When your CNC router skips steps or your 3D printer loses positional accuracy, the culprit is often a mismatched or worn timing pulley. Engineers, makers, and machine builders who demand repeatable, slip-free motion need a pulley that holds tight tolerances across every cycle. This HTD 8M timing belt pulley is designed for exactly that — delivering consistent, backlash-resistant power transmission in demanding motion-control applications.

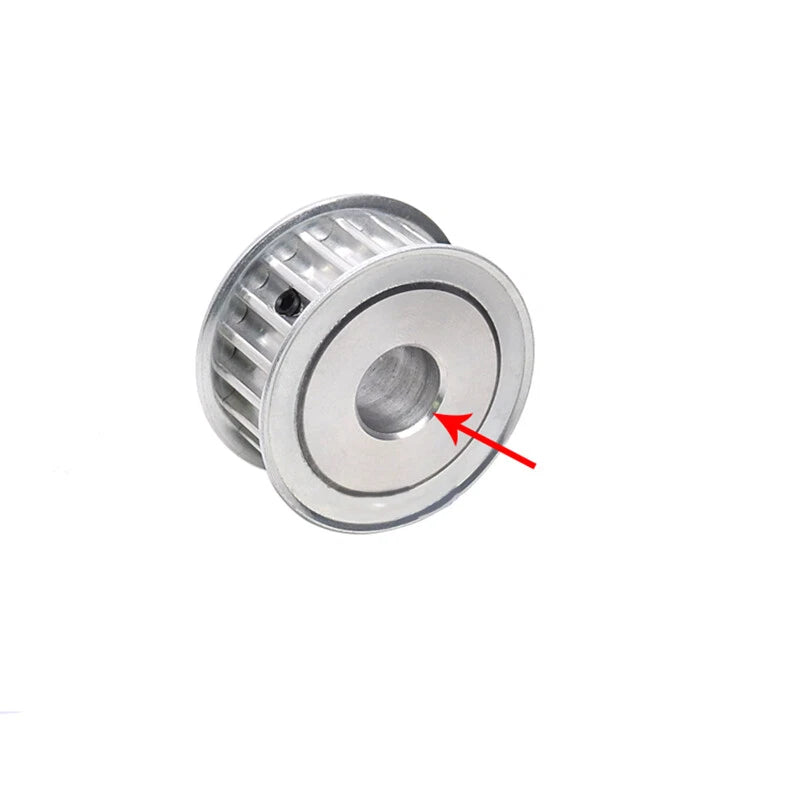

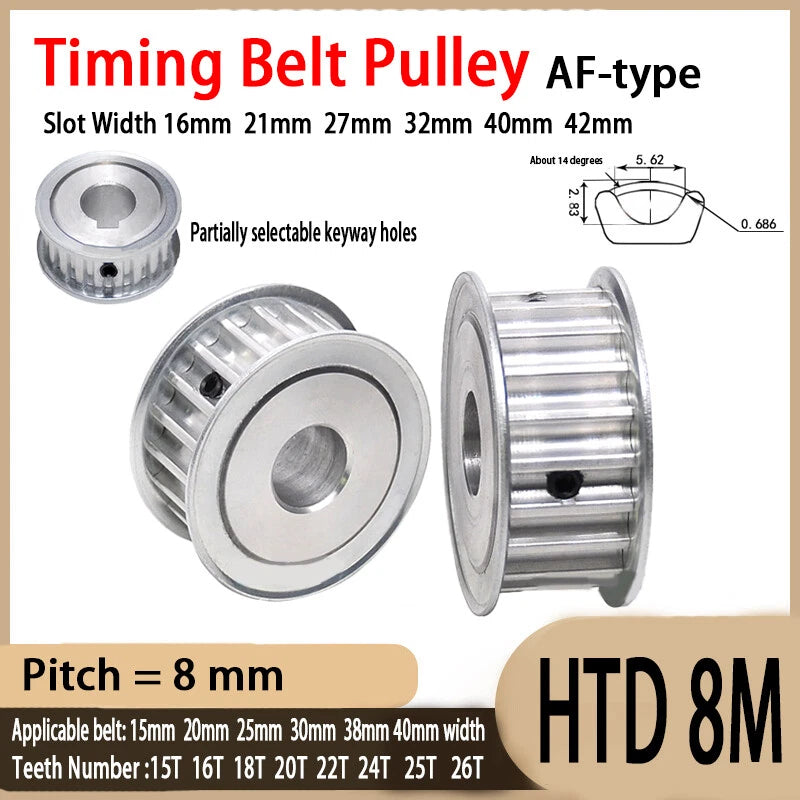

Each pulley is machined from aluminum alloy with a natural or anodized finish and features an HTD (High Torque Drive) 8M tooth profile — 8mm pitch between teeth. Available in 15 to 26 teeth configurations, bore diameters from 8mm (0.31 in) to 25mm (0.98 in), and belt widths from 15mm (0.59 in) to 40mm (1.57 in). A set-screw hub secures the pulley to the shaft, and most variants include a keyway bore option for higher-torque applications.
Typical use cases include CNC router X/Y axis drives requiring HTD 8M belt pulley replacement, 3D printer extruder and gantry motion systems, and industrial automation conveyor or indexing drives where an 8M timing pulley with wide belt compatibility is essential.
The 8mm pitch HTD profile provides a larger tooth engagement area than MXL or GT2 profiles, delivering higher torque capacity and reduced tooth shear risk in heavy-duty CNC and automation drives.
Choose from bore diameters of 8, 10, 12, 12.7, 14, 15, 16, 17, 19, 20, or 25mm and belt widths of 15, 20, 25, 30, 38, or 40mm — covering the majority of standard 8M drive configurations without custom machining.
Machined from aluminum alloy for a balance of low rotational inertia and structural rigidity. Suitable for continuous-duty motion systems where steel pulleys would add unnecessary mass to the drive train.

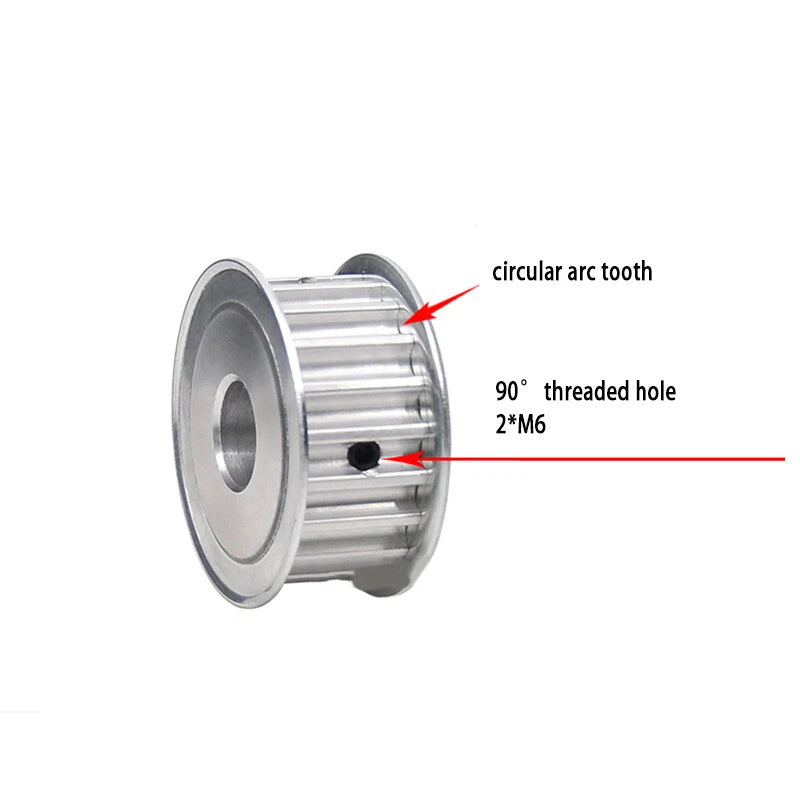

Each pulley includes a set-screw clamping hub for secure shaft mounting. Select keyway bore variants (noted in option names with key dimensions) are available for applications requiring positive rotational locking.

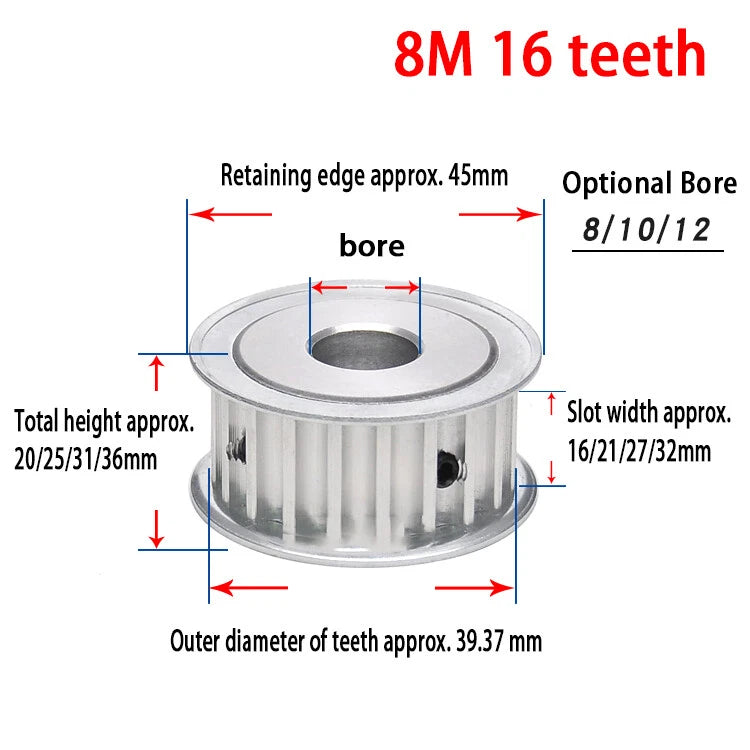

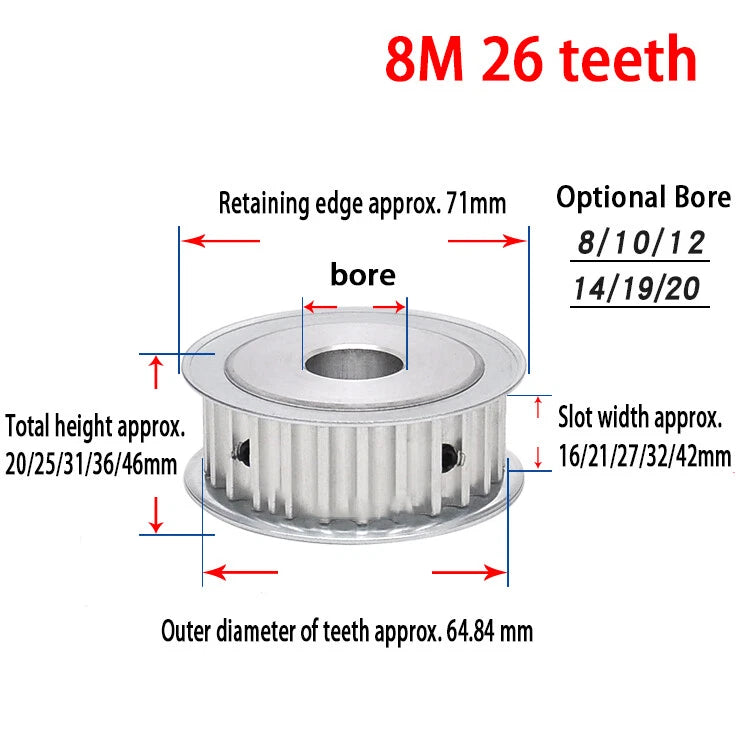

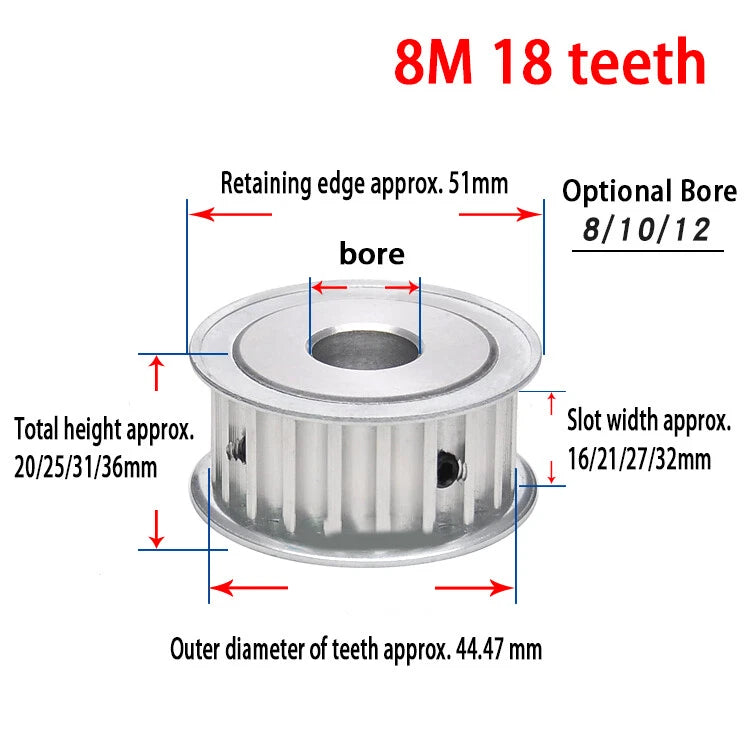

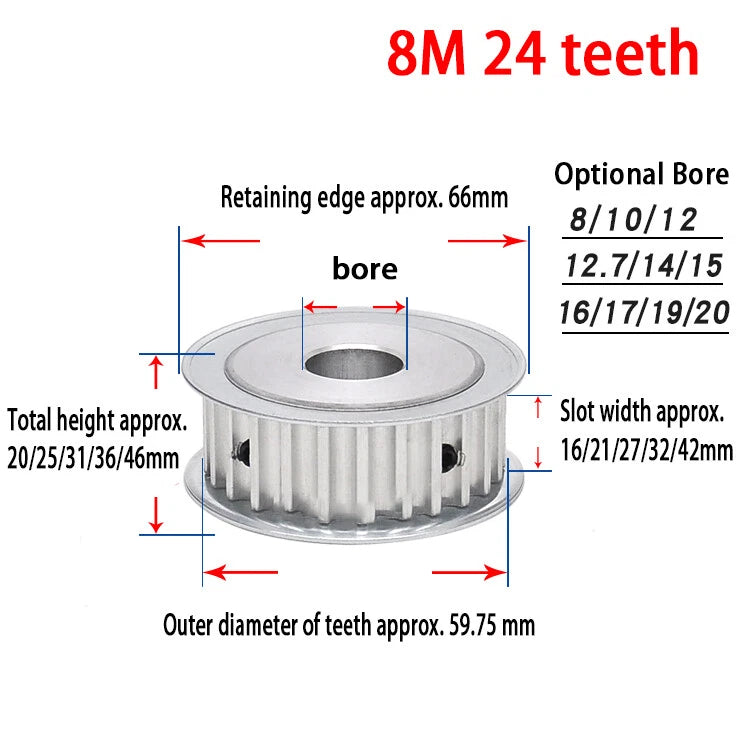

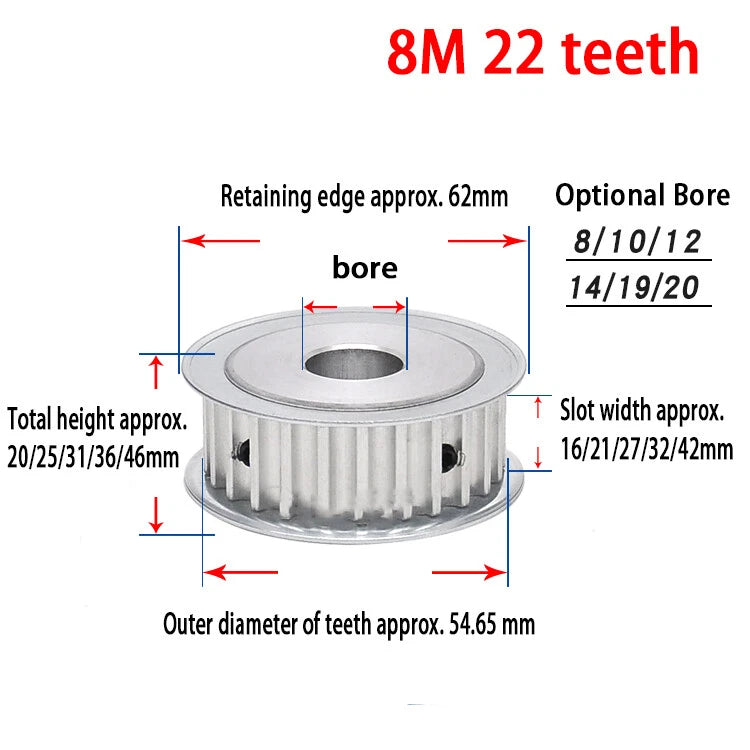

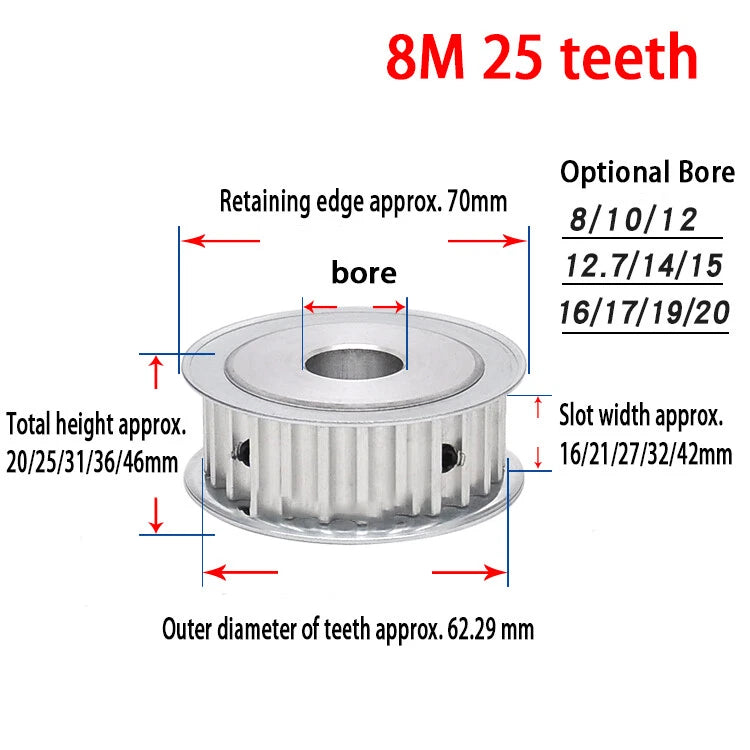

Available in 15T, 16T, 18T, 20T, 22T, 24T, 25T, and 26T counts. All variants in this listing are AF-type (with integrated flanges on both sides) to keep the belt tracking centered on the pulley face.
Dimensioned to standard HTD 8M specifications, making these pulleys direct replacements for OEM pulleys in CNC kits, RepRap-derived 3D printers, and servo motor drive assemblies without shaft modification.

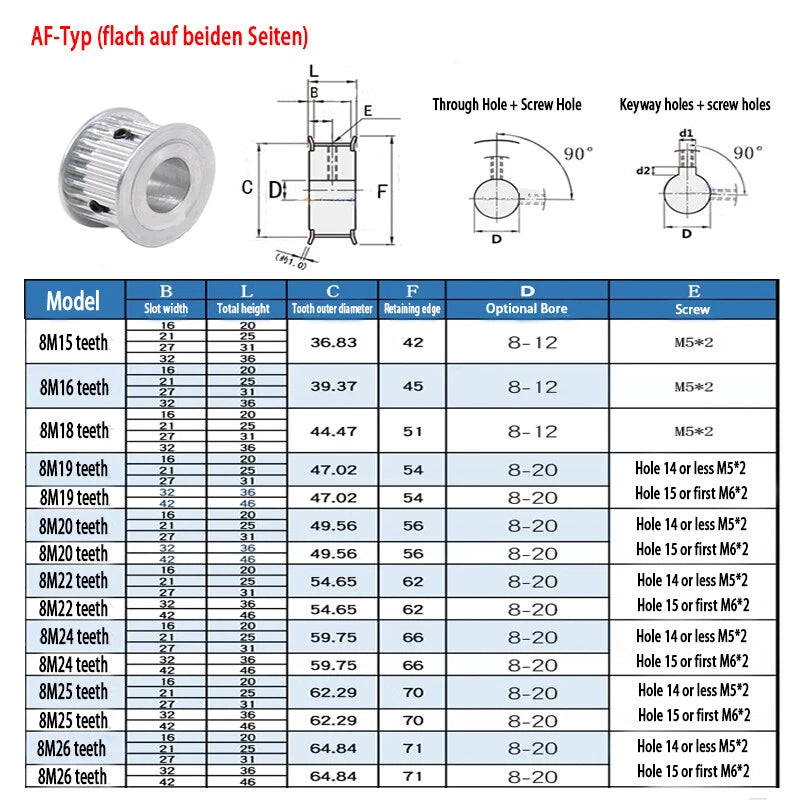

| Belt Profile | HTD 8M (8mm pitch) |
|---|---|
| Tooth Count | 15T / 16T / 18T / 20T / 22T / 24T / 25T / 26T (see variant options) |
| Bore Diameter | 8 / 10 / 12 / 12.7 / 14 / 15 / 16 / 17 / 19 / 20 / 25mm (see variant options) |
| Applicable Belt Width | 15 / 20 / 25 / 30 / 38 / 40mm (see variant options) |
| Flange Type | AF-type (double flange) |
| Material | Aluminum alloy |
| Hub Retention | Set-screw (keyway bore on select variants) |
| Finish | See variant options |
| Weight | See variant options |

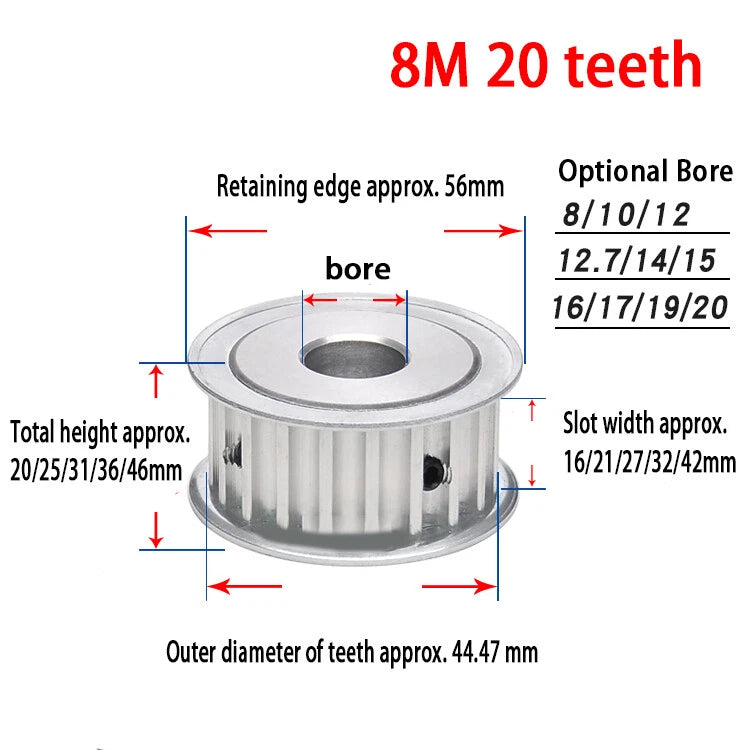

The tooth count determines the pitch diameter and gear ratio of your drive. For CNC and 3D printer applications, 20T is the most common starting point for balanced speed and torque. Use a higher tooth count (e.g., 24T–26T) for higher belt speed at the same RPM, or a lower count (15T–18T) for more torque at lower speeds. Always match the tooth count to your belt length and center distance calculation.
Measure your motor or drive shaft diameter precisely with calipers. The bore must match the shaft — a loose bore causes runout and vibration. If your shaft is metric (e.g., 8mm, 10mm, 12mm), select the matching bore. For imperial shafts, 12.7mm corresponds to 1/2 inch. Keyway bore variants (indicated in the option name with key dimensions such as "5x2.3mm" or "6x2.8mm") are recommended for high-torque or reversing-load applications.

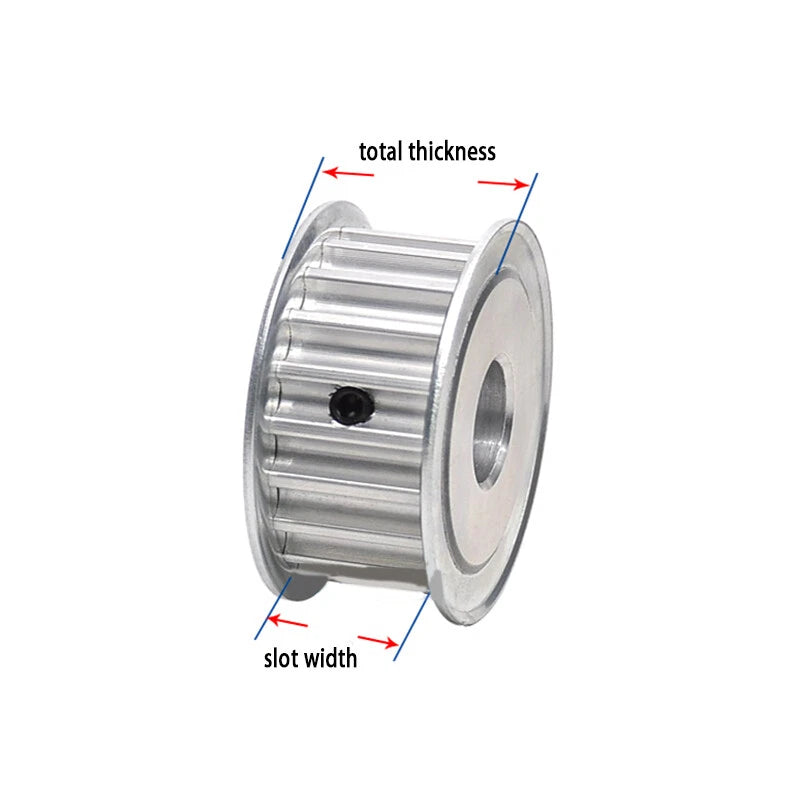

The belt width must match or be narrower than the pulley's applicable belt width listed in the variant option. For example, a variant listed as "10mm & 20mm" accepts a 20mm-wide HTD 8M belt with a 10mm bore. Using a belt wider than the pulley face will cause edge wear and premature failure. The AF-type flanges on these pulleys help keep the belt centered.
Yes. These pulleys are machined to standard HTD 8M tooth geometry (8mm pitch, HTD profile) and are compatible with any HTD 8M synchronous belt of the matching width. They are not compatible with GT2, MXL, T5, T10, or other belt profiles — the tooth shape and pitch are different.
Aluminum alloy pulleys are suitable for the majority of CNC router, 3D printer, and light-to-medium industrial automation applications. They offer lower rotational inertia than steel, which improves acceleration response. For very high-torque or abrasive environments, steel pulleys may be preferred, but for typical servo and stepper motor drives in the 8M belt class, aluminum provides adequate strength and significantly reduces moving mass.
Aluminum alloy naturally forms a thin oxide layer that provides moderate corrosion resistance in typical indoor workshop environments. For humid or chemically exposed environments, anodized variants offer improved surface protection. Avoid prolonged exposure to strong acids or alkalis. Regular light lubrication of the belt drive system is recommended for longevity.
In most cases, yes — provided you match the tooth count, bore diameter, and belt width exactly to your existing OEM specification. These pulleys conform to standard HTD 8M dimensions. Verify the flange style (AF = double flange) matches your belt guide requirements. If your OEM pulley has a keyway, select the corresponding keyway bore variant from the options above.
