HTD3M Timing Belt Closed Loop — Reliable Drive for Precision Motion Systems

When a slipping or stretched drive belt causes positioning errors in your CNC router, 3D printer, or automated conveyor, the entire project stalls. Engineers, makers, and machine builders who need repeatable, slip-free power transmission rely on the HTD3M timing belt closed loop to keep their systems running accurately — whether in a garage workshop or a light industrial setting.

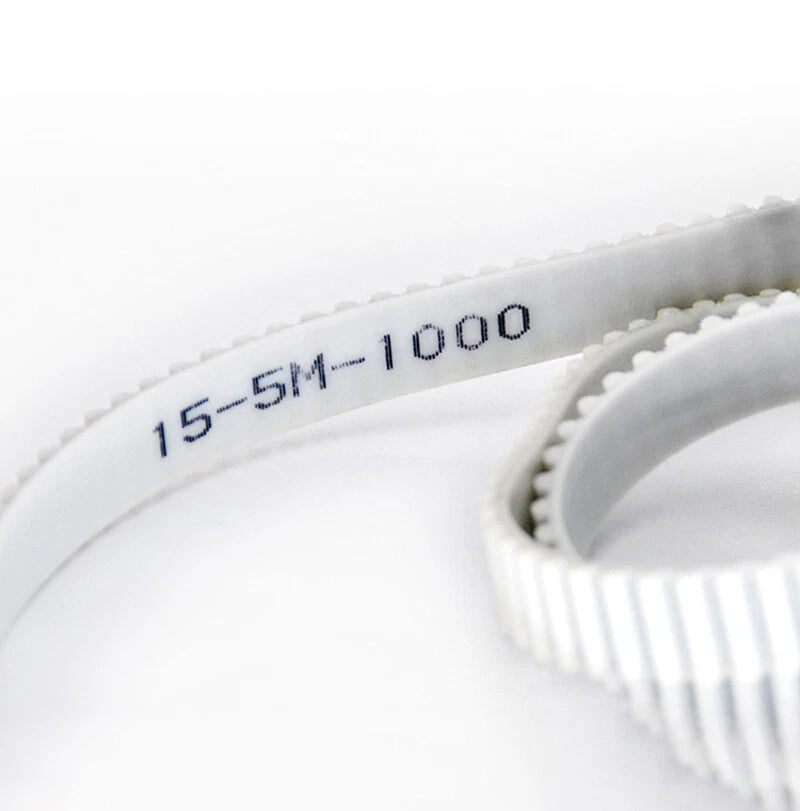

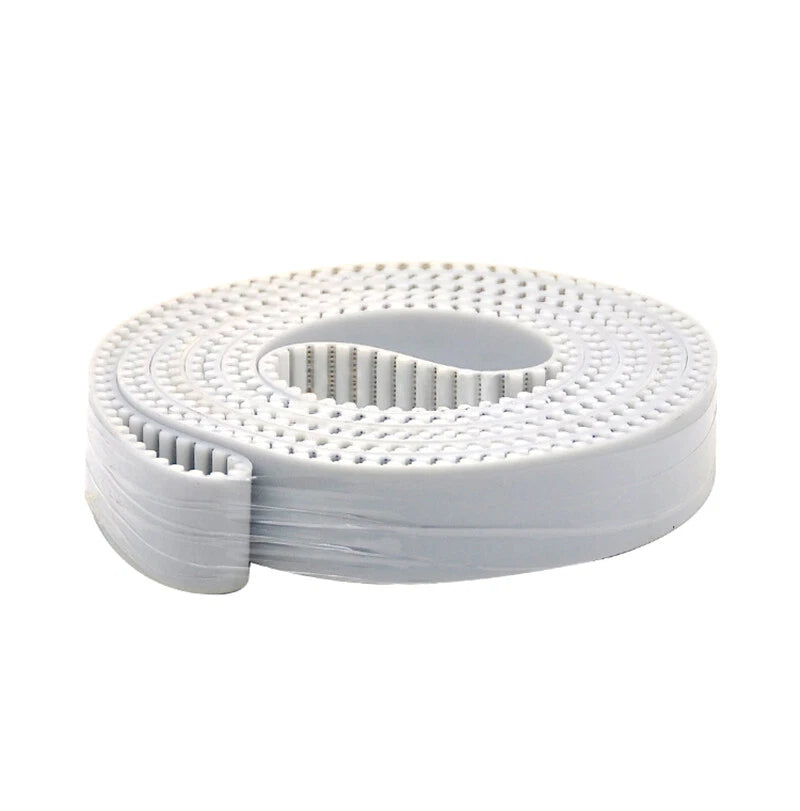

Each belt is a single-piece closed loop constructed from cast polyurethane (PU) with embedded steel wire tension members. The HTD3M tooth profile features a 3mm pitch with a rounded root form designed to reduce stress concentration and mesh smoothly with HTD3M pulleys. Belt width options are 10mm and 15mm; circumference lengths range from 483mm (≈19.0") to 4002mm (≈157.6"), available in multiple sizes — select your exact model from the variant dropdown above.

Typical applications include desktop CNC machines and laser cutters requiring precise axis positioning, FDM 3D printer X/Y drive systems, light-duty conveyor and indexing tables, and robotic arm or linear actuator drives where a steel wire reinforced belt provides the dimensional stability needed for repeatable motion.

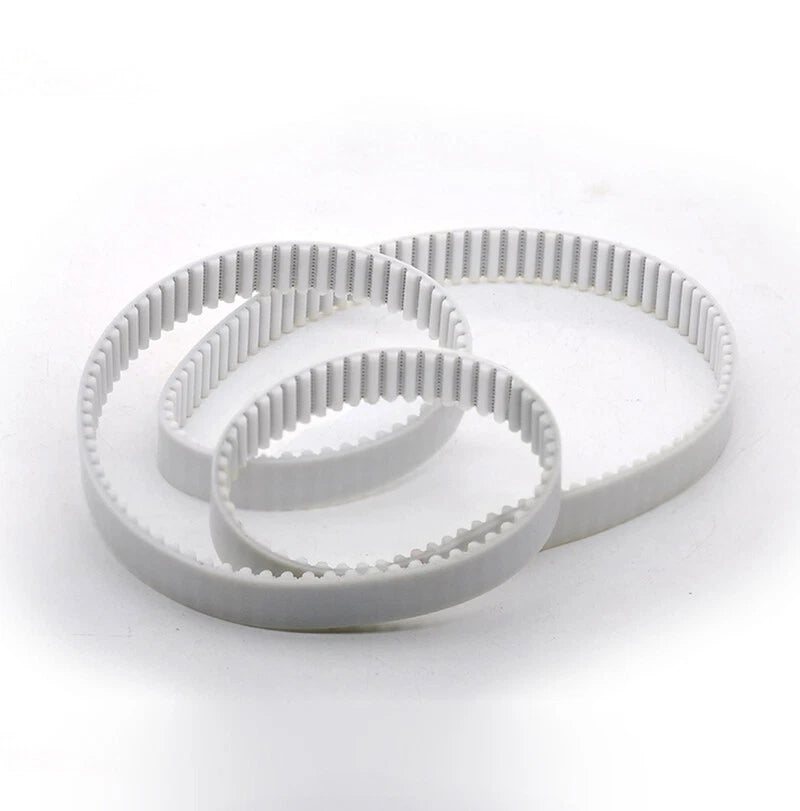

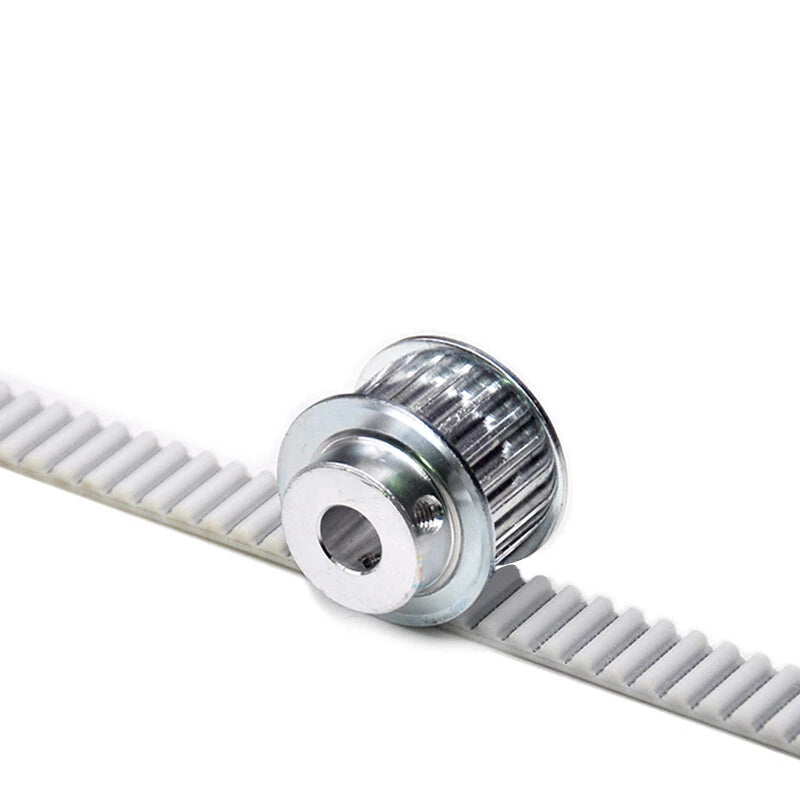

🔗 Compatibility: Designed for HTD3M pulleys (3mm pitch, round-root tooth profile). Not compatible with MXL, T5, GT2, or other pitch standards. Verify your pulley pitch and flange width before ordering.

✅ Key Features of These HTD3M Closed Loop Timing Belts

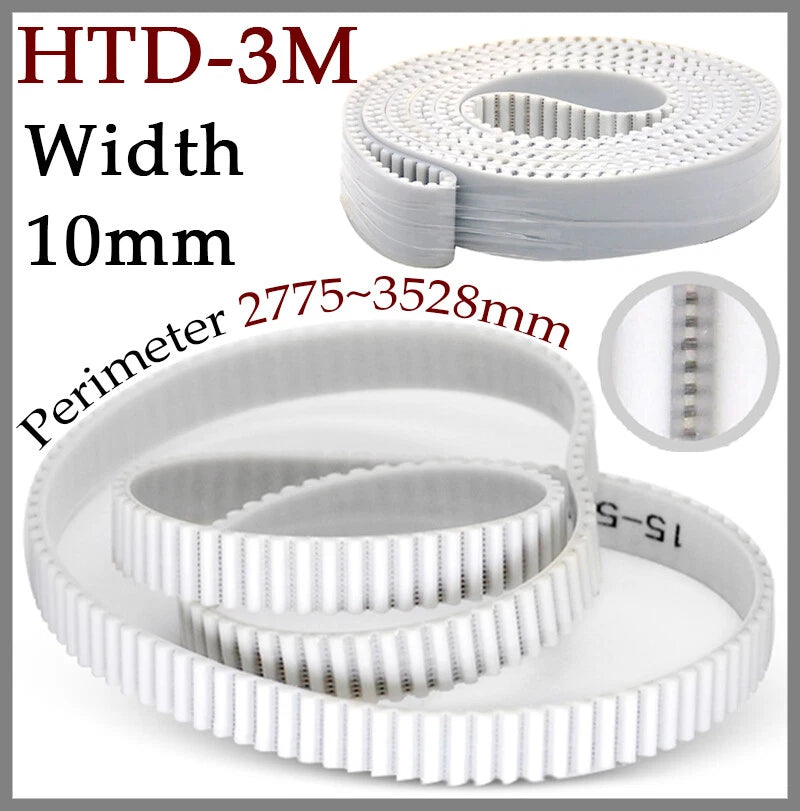

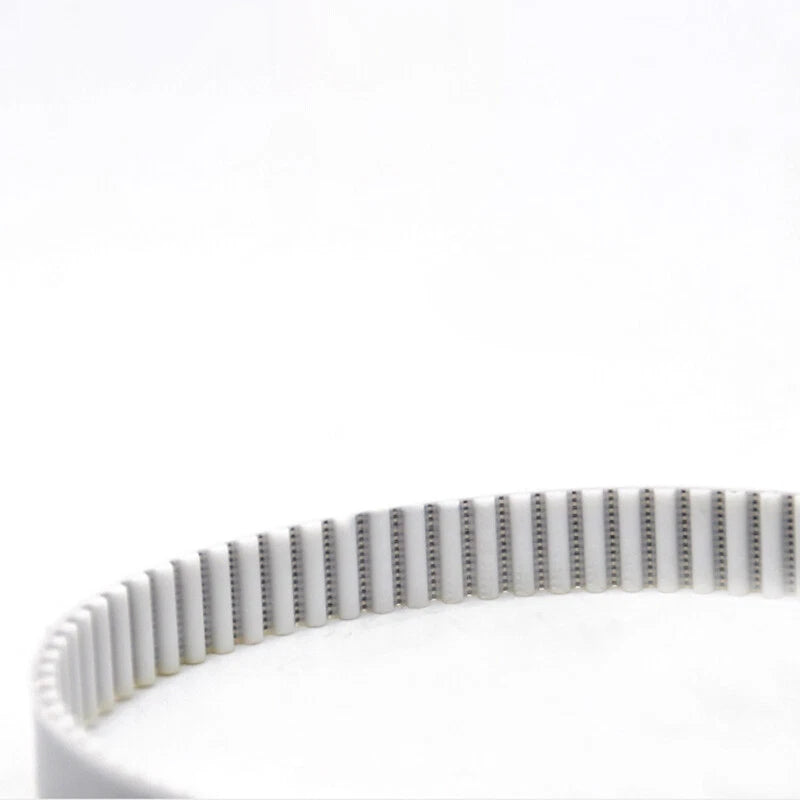

  • ⚙️HTD3M Tooth Profile — 3mm pitch round-root tooth form meshes precisely with HTD3M pulleys, reducing backlash in CNC and 3D printer drive systems.

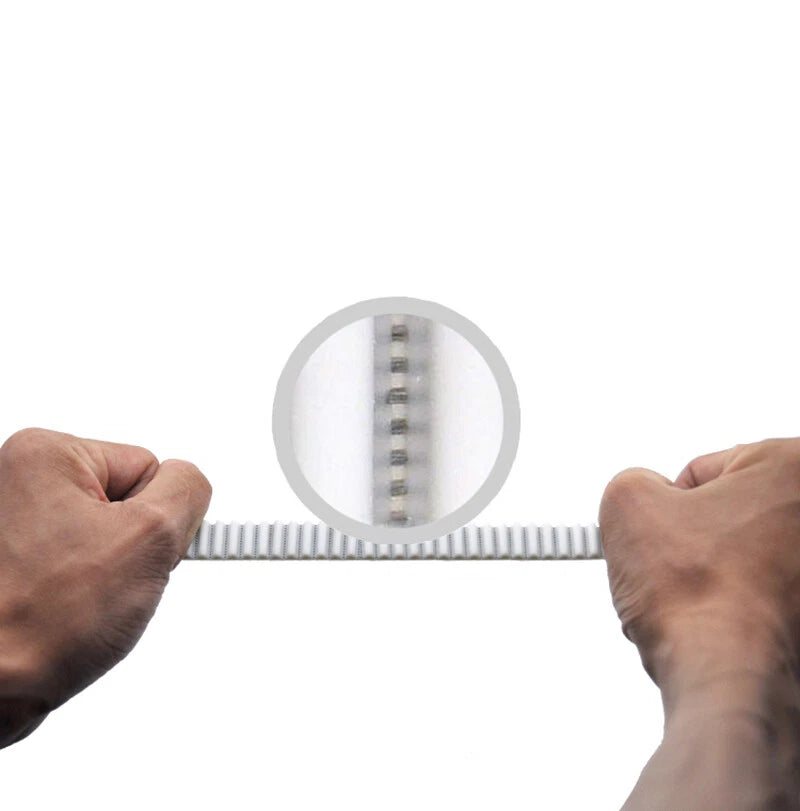

  • 🔩Steel Wire Tension Core — Embedded steel wire members resist elongation under load, maintaining consistent belt length for repeatable positioning in closed-loop motion control.
  • 🧪Polyurethane Body — Cast PU construction offers higher abrasion resistance and oil tolerance compared to standard neoprene rubber, extending service life in workshop environments.
  • 🔄Endless Closed-Loop Design — No mechanical splice or joint means no weak point — the belt runs smoothly at consistent tension throughout the full circumference.
  • 📐Wide Size Selection — Available in 10mm and 15mm widths across a broad range of circumference lengths (483mm–4002mm), covering most desktop machine and light industrial drive requirements.
  • 🏭Versatile Drive Applications — Suitable for CNC routers, laser engravers, FDM 3D printers, conveyor indexing systems, and robotic linear actuators where a steel wire reinforced belt is specified.

📐 Technical Specifications — HTD3M Closed Loop Timing Belt

Belt Type HTD3M Synchronous Timing Belt, Closed Loop (Endless)
Tooth Profile HTD3M — 3mm pitch, round-root tooth form
Belt Material Polyurethane (PU)
Tension Member Steel wire (embedded)
Available Widths 10mm / 15mm
Circumference Range (10mm) 483mm (≈19.0") – 4002mm (≈157.6")
Circumference Range (15mm) 483mm (≈19.0") – 1353mm (≈53.3")
Tooth Pitch 3mm
Compatible Pulley Standard HTD3M (3mm pitch, round-root)
Tensile Strength See variant options — contact us to confirm for your load
Color / Finish See variant options
Quantity per Order 1 belt per unit
⚠️ Size Note: Belt circumference is the total loop length, not the center-to-center pulley distance. Measure your drive geometry carefully before selecting a variant. If you are unsure, contact us with your pulley diameters and center distance.

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference: L = 2C + π(D1+D2)/2. For a quick inch reference, 483mm is approximately 19.0" and 1000mm is approximately 39.4". Select the variant whose circumference matches your calculated loop length. When in doubt, size up slightly and use a tensioner to take up slack.

What pitch is this belt, and which pulleys does it fit?

This belt uses the HTD3M tooth profile with a 3mm pitch. It is designed to mate with HTD3M pulleys (3mm pitch, round-root tooth form). It is not interchangeable with MXL, T5, GT2, or other pitch standards — always verify your pulley specification before ordering.

How strong is this belt, and what loads can it handle?

The steel wire tension core generally provides high tensile strength and low elongation under load. Specific load ratings vary by belt width and circumference. The 15mm width typically handles higher torque than the 10mm width. For critical load calculations, contact us to confirm suitability for your application.

Can this belt be used outdoors or in wet/oily environments?

Polyurethane timing belts are generally more resistant to moisture, oils, and mild chemicals than neoprene rubber belts. However, prolonged submersion or exposure to strong solvents is not recommended. For outdoor installations, shield the belt from direct UV exposure where possible, as extended UV exposure can degrade PU over time.

What is the difference between the 10mm and 15mm width options?

Wider belts (15mm) can typically transmit more torque and handle higher loads than narrower belts (10mm) of the same pitch and length. Choose 10mm for lighter-duty or space-constrained drives, and 15mm when higher power transmission capacity is required. Always verify that your pulley flange width accommodates the belt width you select.

Is this an endless (closed-loop) belt or an open-ended belt?

This is a closed-loop (endless) belt — it forms a continuous loop with no joint or splice. This eliminates the weak point of a mechanical fastener and is suitable for precision motion control applications including 3D printers, CNC machines, and conveyor systems.

How do I install a closed-loop belt on my machine?

Because this is a closed-loop belt, at least one pulley or shaft must be removable or the motor mount must be adjustable to allow the belt to be slipped on. Loosen the tensioner or motor mount, slide the belt over both pulleys, then re-tension until there is minimal slack — typically 1–2mm of deflection per 100mm of free belt span is a reasonable starting point.

🛒 Select your model (length) and belt width above, then add to cart — ships from our US warehouse.
