HTD3M Timing Belt — Reliable Power Transmission for Precision Motion Systems

When a slipping or worn drive belt throws off your CNC router, 3D printer, or automated conveyor, every minute of downtime costs you. This HTD3M timing belt is built for engineers, makers, and machine builders who need consistent, slip-free power transmission without constant re-tensioning.

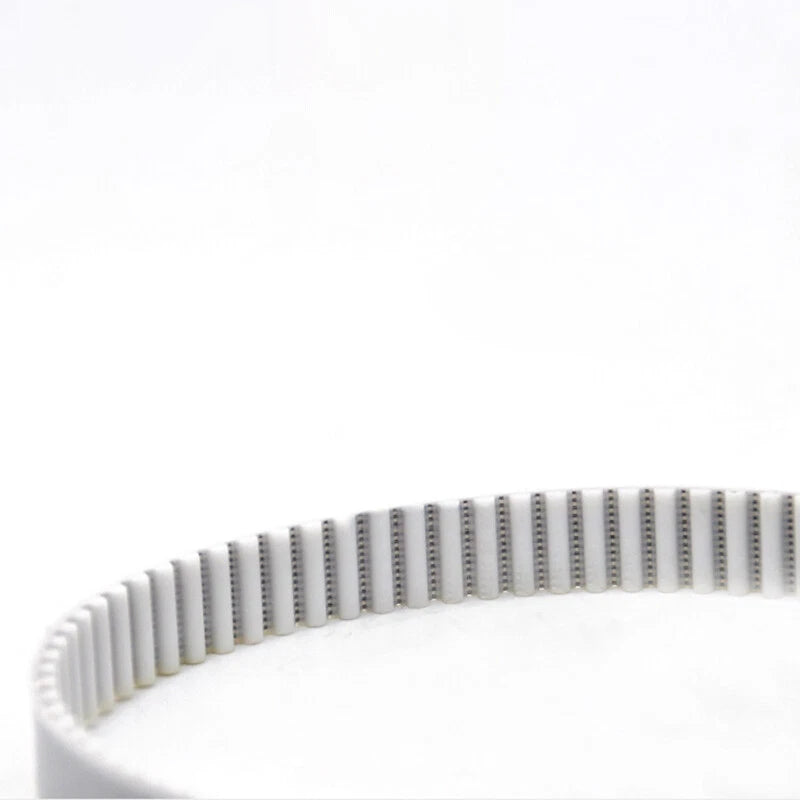

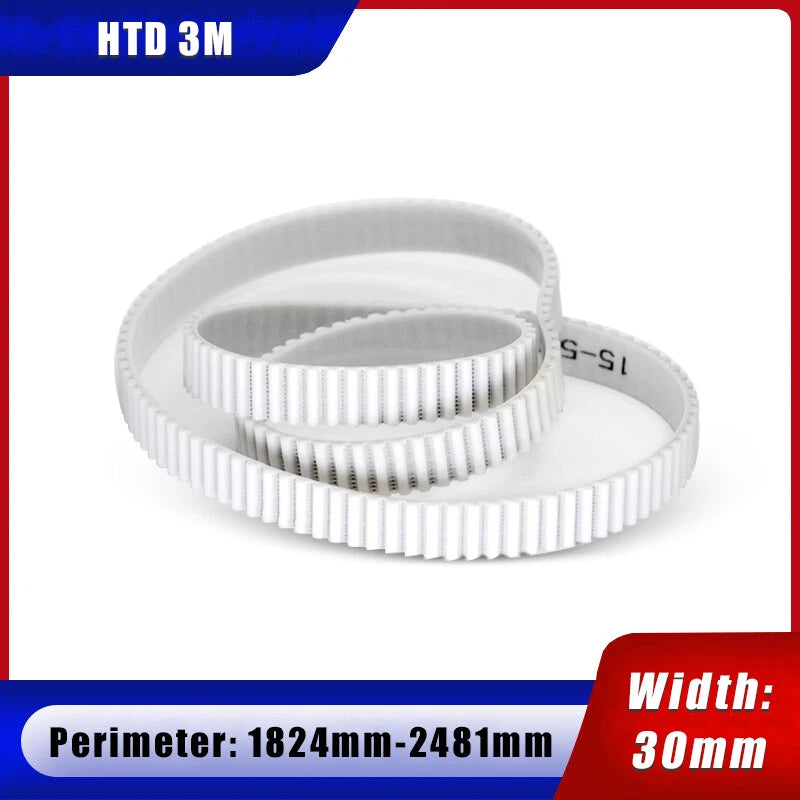

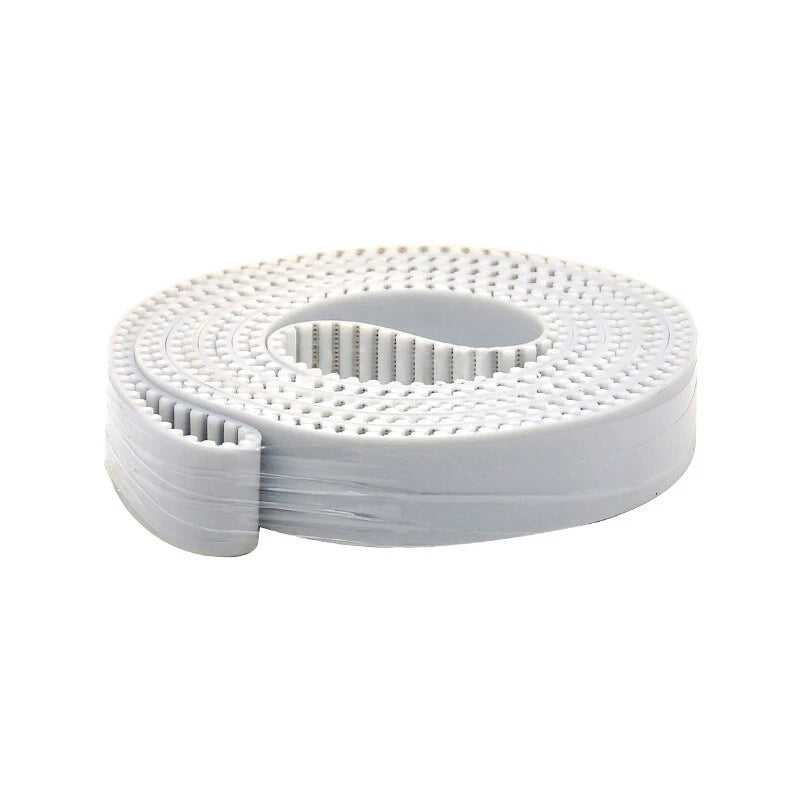

Each belt features a polyurethane (PU) body with embedded steel wire tension members, available in a 30mm width with perimeters ranging from 1824mm (≈71.8") to 2481mm (≈97.7"). Choose 1 pc for a single-axis replacement or 2 pcs for dual-axis builds or to keep a spare on hand.

Typical applications include CNC routing machines, 3D printer motion systems, laser engravers, and light industrial conveyor drives — anywhere precise, repeatable linear or rotary motion is required with an HTD3M pulley system.

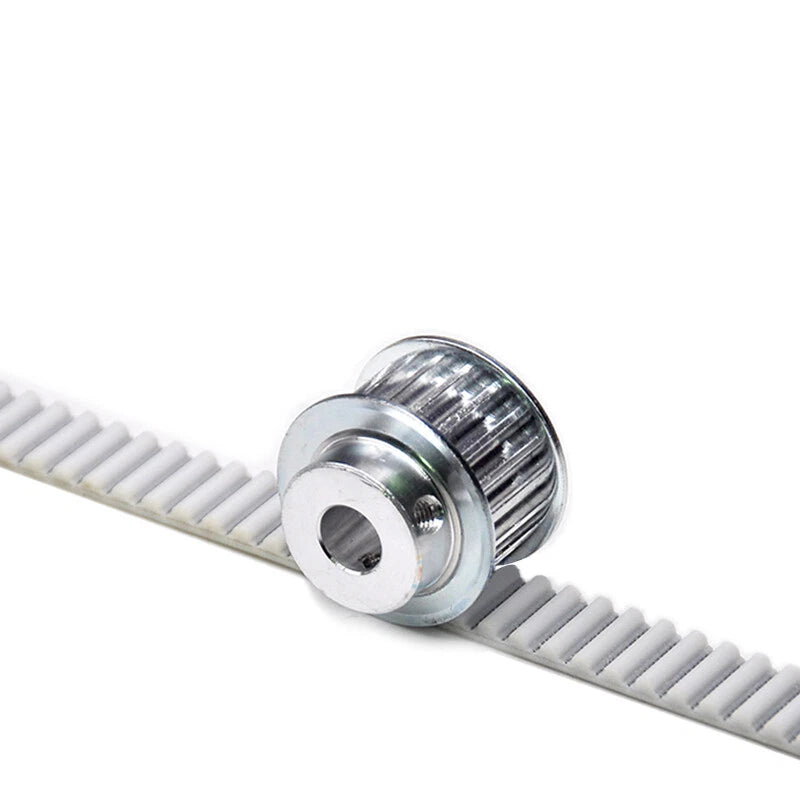

ℹ️ Compatibility: Fits all standard HTD3M pulleys (3mm pitch, curvilinear tooth profile). Verify your pulley tooth count and belt width before ordering.
⚠️ Size Note: Perimeter is the total closed-loop length of the belt. Measure your drive system carefully or use our size guide in the FAQ below before selecting a variant.

✅ Key Features of These HTD3M Polyurethane Timing Belts

  • 🔩Steel Wire Tension Core — Embedded steel wire cords resist stretching under load, maintaining consistent tooth pitch and reducing the need for frequent re-tensioning in CNC and automation drives.
  • 🧱Polyurethane Body — PU construction offers better abrasion resistance and oil tolerance compared to standard neoprene belts, extending service life in light industrial and workshop environments.
  • 📐HTD3M Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area, reducing tooth jump risk and improving torque transmission accuracy in precision motion control systems.

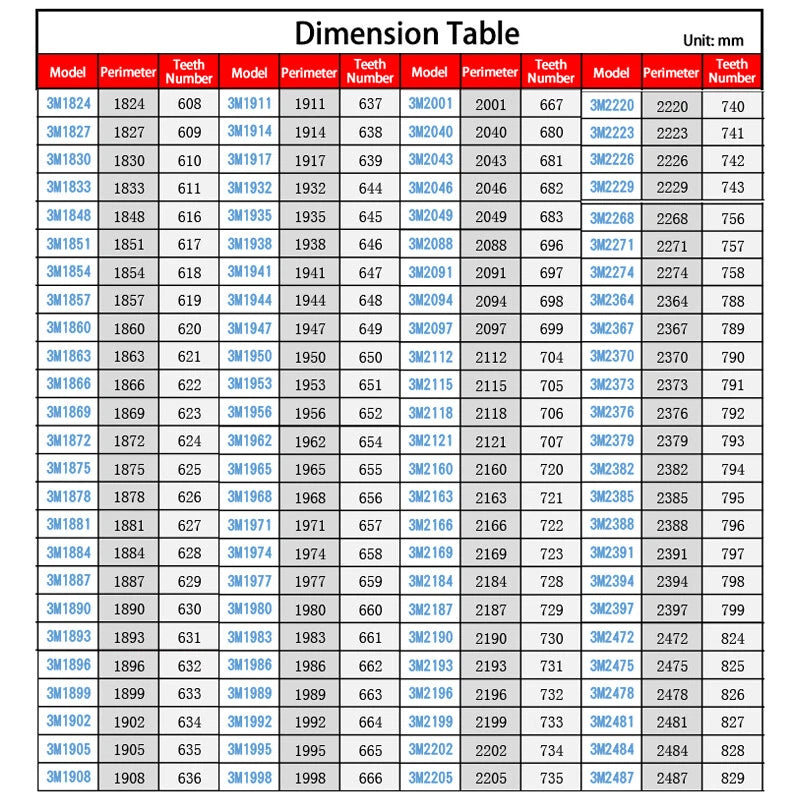

  • 📏Wide Perimeter Selection — Available in perimeters from 1824mm to 2481mm in fine increments, making it straightforward to find the exact fit for your machine without custom fabrication.
  • 🔄30mm Belt Width — The 30mm width provides a solid contact footprint for higher torque applications compared to narrower 6mm or 9mm belts, suitable for heavier gantry or conveyor drives.
  • 📦Flexible Pack Quantity — Order as a single belt for a direct replacement or choose the 2-pack for dual-axis machines, backup inventory, or multi-machine setups at a better per-unit cost.

📐 Technical Specifications — HTD3M Polyurethane Timing Belt

Belt Profile HTD3M (3mm pitch, curvilinear tooth)
Belt Width 30mm (≈1.18")
Perimeter Range 1824mm (≈71.8") – 2481mm (≈97.7")
Tooth Pitch 3mm
Tooth Profile HTD curvilinear (rounded)
Body Material Polyurethane (PU)
Tension Member Steel wire cord
Pack Quantity 1 pc or 2 pcs (select variant)
Tooth Height See variant options
Operating Temperature Contact us to confirm
Compatible Pulleys Standard HTD3M pulleys

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD3M timing belt?

Measure the center-to-center distance between your pulleys, then calculate the required belt perimeter: Perimeter ≈ 2 × center distance + (π × sum of pulley pitch diameters / 2). For example, a 1824mm (≈71.8") belt suits compact CNC or 3D printer setups, while a 2481mm (≈97.7") belt fits larger gantry systems. When in doubt, size up slightly and use a tensioner pulley to take up slack.

What load capacity does this HTD3M timing belt support?

The steel wire tension core generally provides tensile strength suitable for light-to-medium duty power transmission. Exact load ratings depend on pulley diameter, operating speed, and duty cycle. For heavy industrial applications, contact us to confirm suitability before ordering.

Can this timing belt be used outdoors or in wet environments?

Polyurethane timing belts typically offer better moisture and oil resistance than neoprene alternatives. They are generally suitable for light outdoor or damp indoor use. Prolonged UV exposure or full immersion in liquids is not recommended without additional protective measures.

Is this belt compatible with standard HTD3M pulleys?

Yes. This belt follows the HTD3M tooth profile standard — 3mm pitch, curvilinear tooth form — and is compatible with any standard HTD3M pulley. Always verify that the pulley tooth count and belt width match your application before installation.

How do I decide between ordering 1 pc vs. 2 pcs?

Order 1 pc for a single-axis replacement or initial fit test. Choose the 2-pack if you're building a dual-axis system (e.g., CoreXY 3D printer or dual-drive CNC gantry), want a spare on hand, or are outfitting multiple machines — the 2-pack typically offers a better per-unit value.

What is the tooth pitch and profile of this belt?

This belt uses the HTD3M profile: 3mm pitch with a curvilinear (rounded) tooth form. The HTD profile is engineered for higher torque transmission and reduced tooth jump compared to trapezoidal (MXL, XL) profiles, making it well-suited for precision motion control in CNC routers, laser cutters, and 3D printers.

What is the belt width and does it come in other widths?

This listing covers the 30mm wide version. Other widths may be available in separate listings in our store. Contact us if you need a different width for your specific application and we'll help you find the right fit.
