When your motion-control build demands slip-free power transmission and repeatable positioning, a mismatched or low-tolerance pulley becomes the weakest link in the entire drivetrain. Engineers, makers, and small-batch manufacturers who rely on stepper or servo motors need HTD3M timing pulleys that hold tight tolerances across every bore size and tooth count — without the lead time of custom machining.

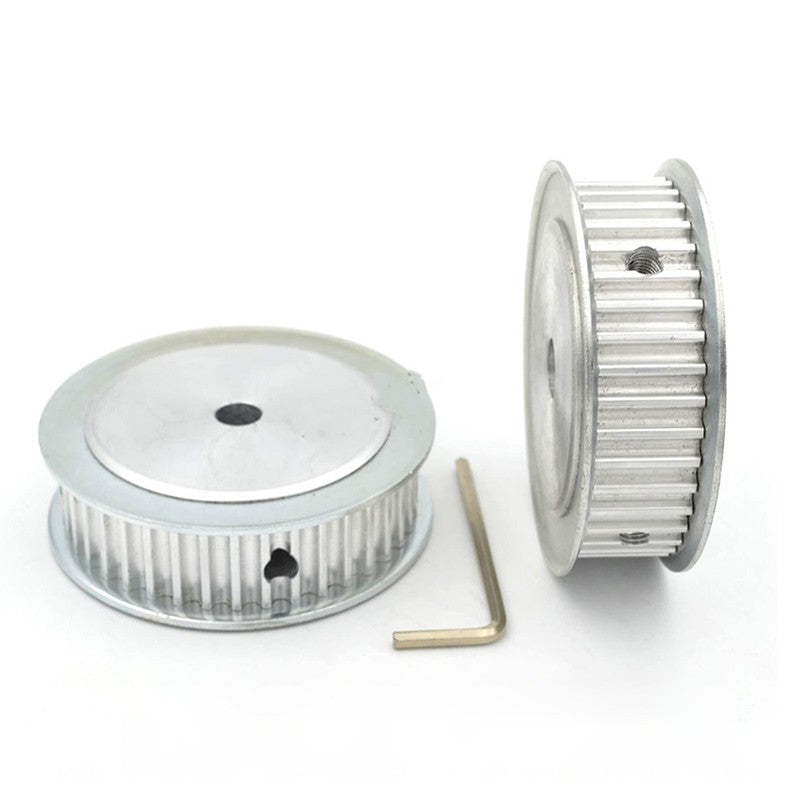

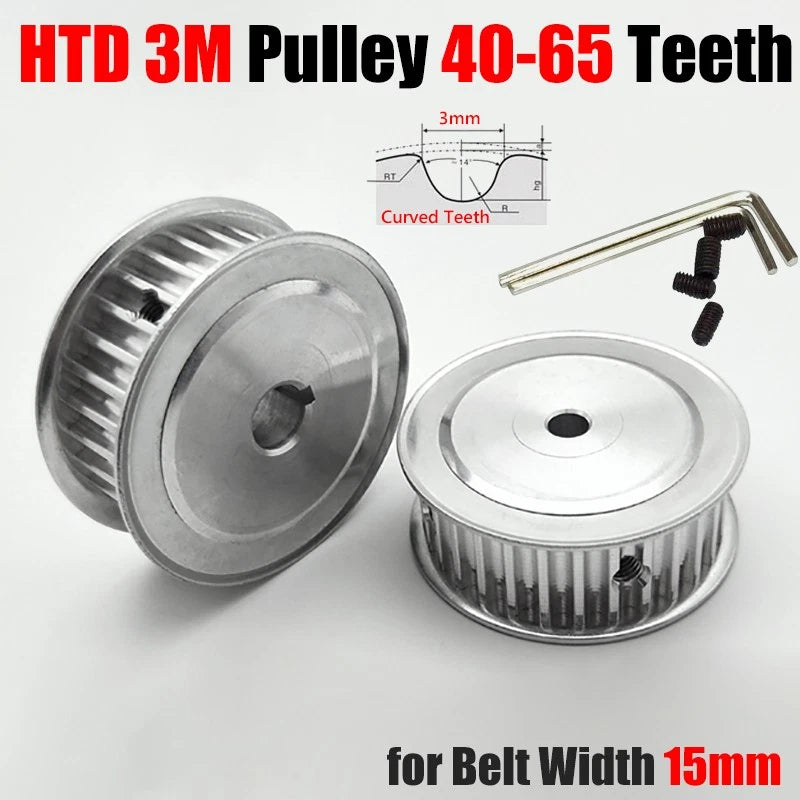

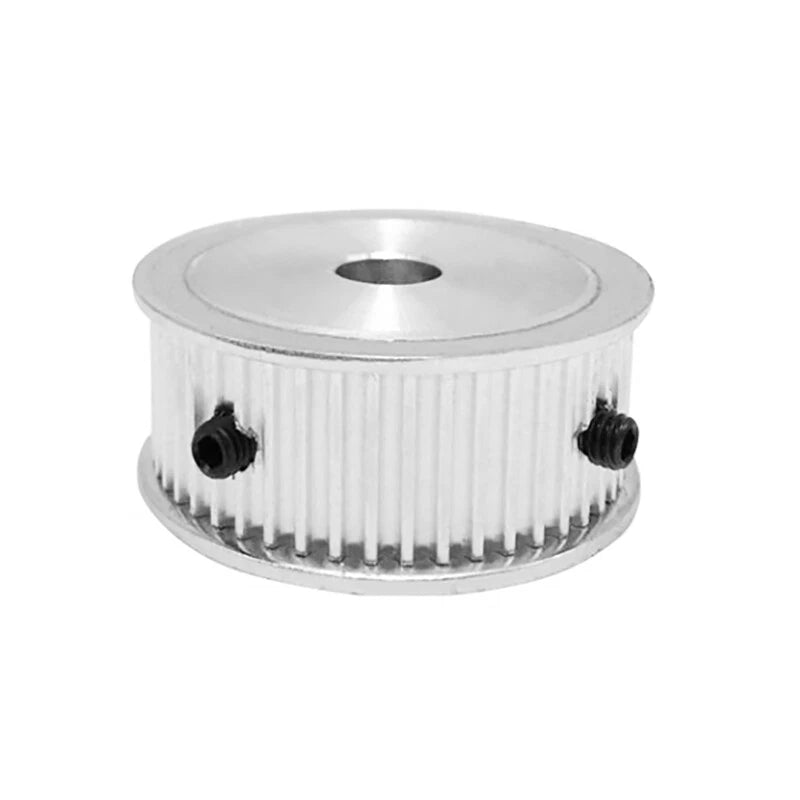

These HTD3M synchronous wheels are machined from aluminum alloy and anodized for corrosion resistance. Each pulley features a 3 mm pitch HTD tooth profile and a 15 mm belt-width groove (compatible with 15 mm wide HTD3M belts). Tooth counts span 40 to 65 teeth, covering pitch diameters from approximately 38.2 mm (1.50 in) at 40T to approximately 62.1 mm (2.44 in) at 65T. Bore options range from 5 mm to 25 mm in plain round bores, plus a full selection of keyway bores (3 mm, 4 mm, 5 mm, 6 mm, and 8 mm keyways) for positive shaft locking.
Typical applications include CNC router X/Y axis drives, 3D printer extruder and motion systems, delta-robot arm synchronization, conveyor indexing systems, and custom servo-driven automation rigs where HTD3M belt-and-pulley synchronous drive systems are specified.
Thirteen tooth-count options let you dial in the exact gear ratio your drive system requires, from compact 40T wheels to larger 65T pulleys for lower-speed, higher-torque configurations.

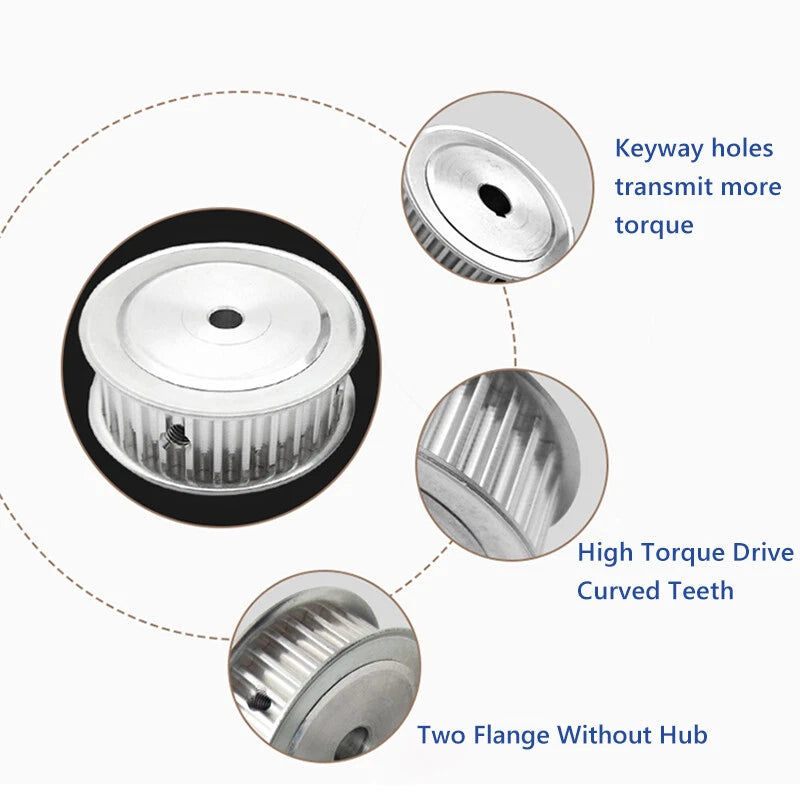

Plain round bores from 5 mm to 25 mm, plus keyway variants (3 mm, 4 mm, 5 mm, 6 mm, 8 mm keyways) accommodate a wide range of motor and shaft standards without custom machining.
Machined from aluminum alloy with an anodized finish, these pulleys offer a strong strength-to-weight ratio and corrosion resistance suited for both indoor and light industrial environments.
The curved HTD tooth form distributes belt load across a larger contact area than trapezoidal profiles, reducing tooth jump risk under dynamic or high-torque conditions.

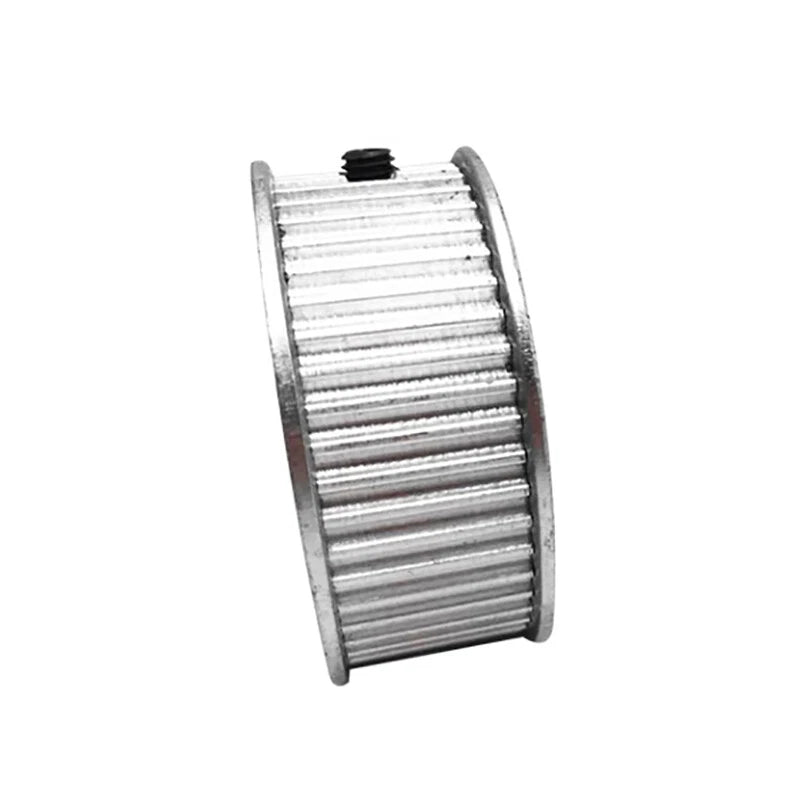

The 15 mm wide belt groove is machined to standard HTD3M tolerances, ensuring consistent belt tracking and minimal lateral drift in precision positioning applications.
Standard HTD3M dimensions make these pulleys direct replacements for worn or undersized pulleys in existing CNC, 3D printer, and robotics drive systems without redesigning the belt path.
| Belt Profile | HTD3M (3 mm pitch, curvilinear tooth) |
|---|---|
| Belt Width Compatibility | 15 mm |

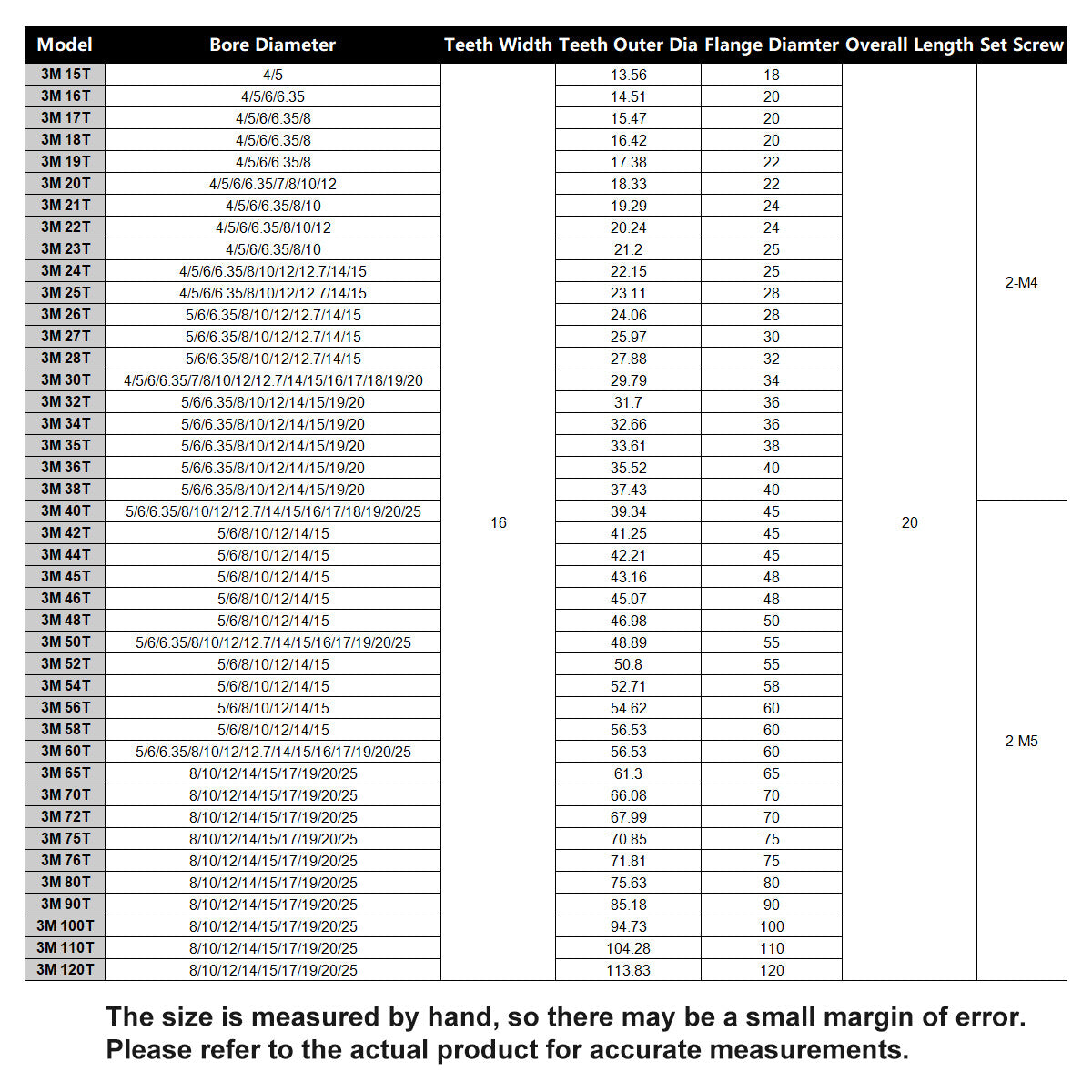

| Teeth Number Options | 40, 42, 44, 45, 46, 48, 50, 52, 54, 56, 58, 60, 65 |

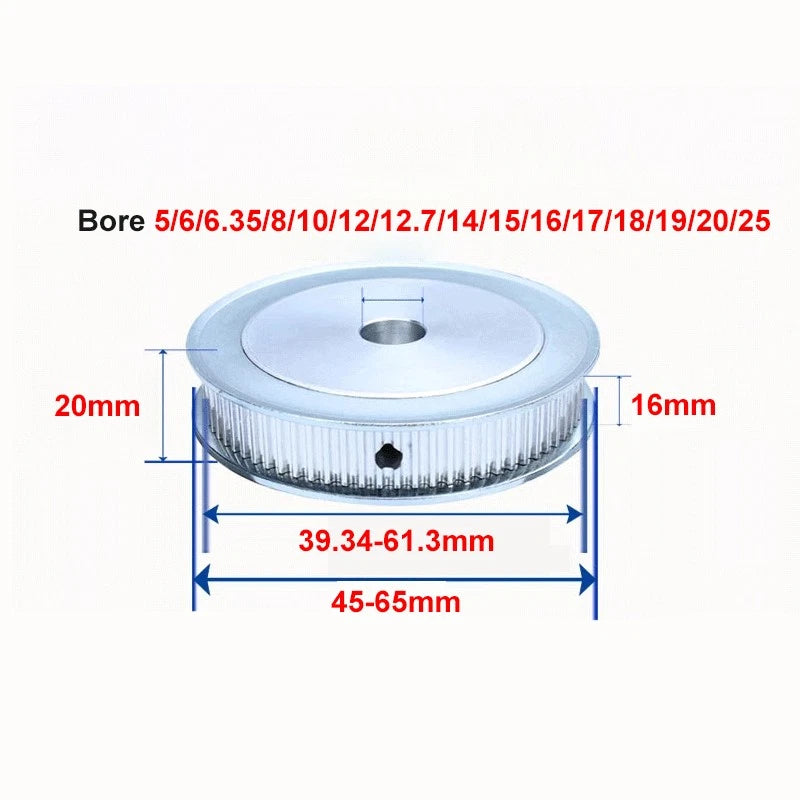

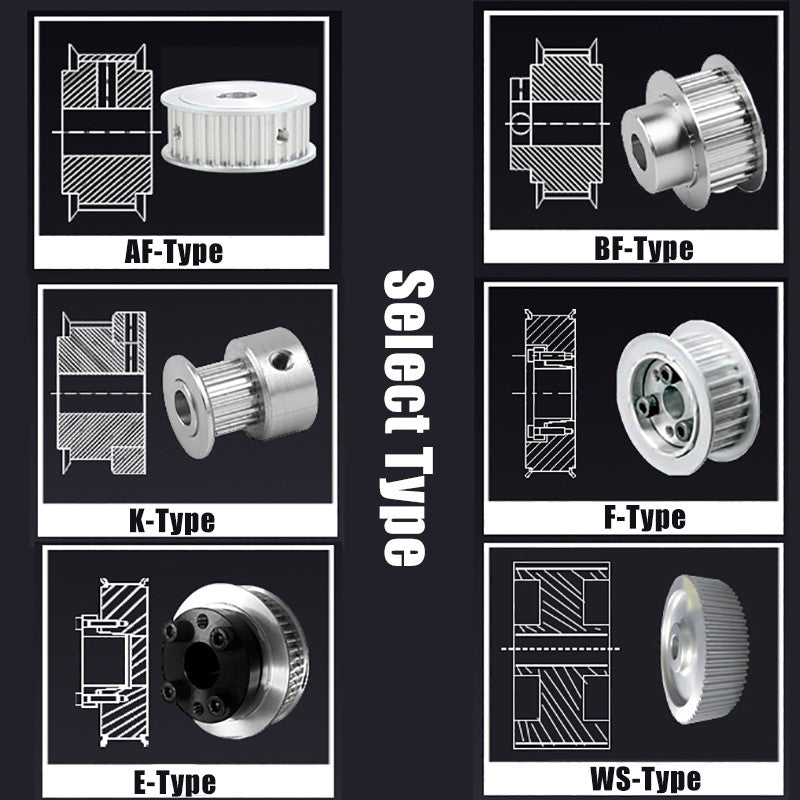

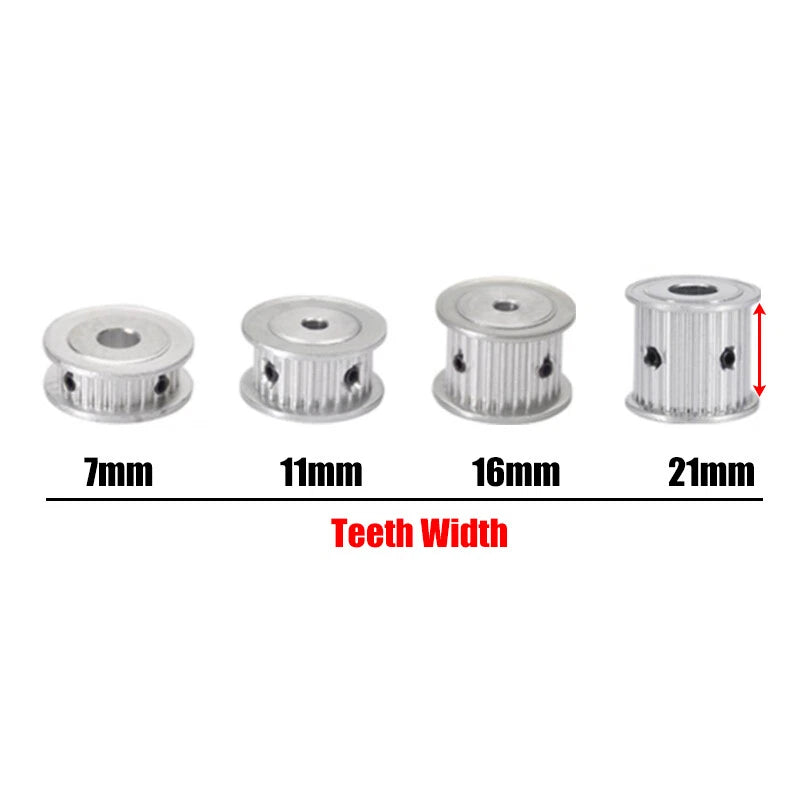

| Pitch Diameter Range | Approx. 38.2 mm (40T) – 62.1 mm (65T) |
| Bore Size Options | 5, 6, 6.35, 8, 10, 12, 12.7, 14, 15, 16, 17, 18, 19, 20, 25 mm (plain); keyway variants available |
| Keyway Options | 3 mm, 4 mm, 5 mm, 6 mm, 8 mm (see variant options) |
| Material | Aluminum alloy, anodized finish |
| Hub Width | See variant options |
| Flange | See variant options |
| Set Screw | See variant options |

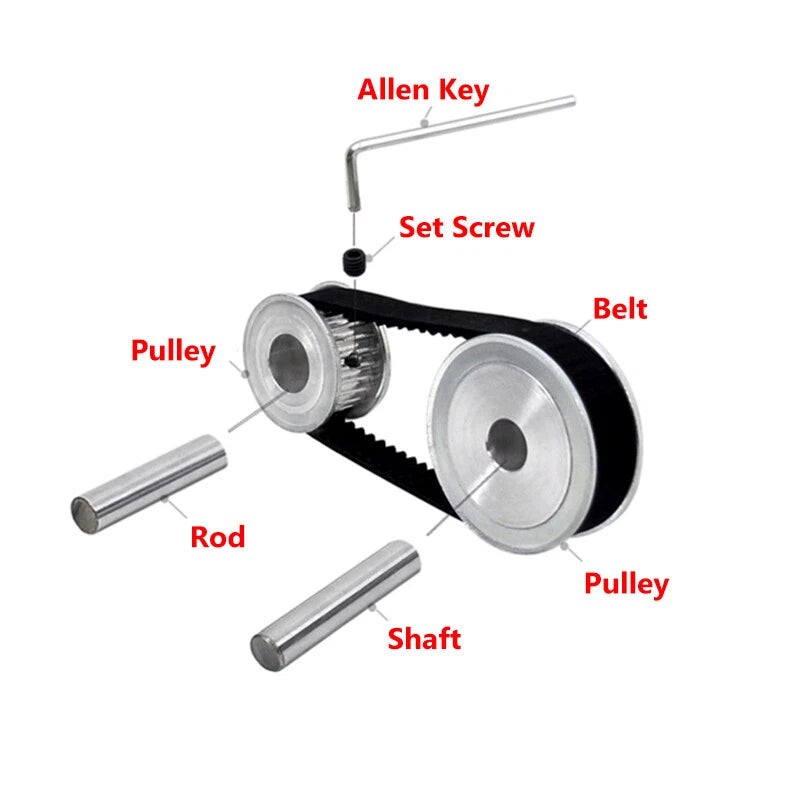

The tooth count determines the pitch diameter and, combined with your belt length and the mating pulley's tooth count, sets your drive ratio. For a 1:1 ratio use identical tooth counts on both pulleys. For speed reduction, use a larger tooth count on the driven pulley. Common CNC and 3D printer setups use 20T driver pulleys paired with 40T or 60T driven pulleys for 2:1 or 3:1 reductions.
Measure your motor or drive shaft diameter precisely with calipers. Select the matching plain bore (e.g., 8 mm bore for an 8 mm shaft) or a keyway bore if your shaft has a machined keyway slot. For NEMA 17 stepper motors the shaft is typically 5 mm; for NEMA 23 it is typically 6.35 mm or 8 mm. Always confirm before ordering.
A plain bore relies on set screws alone to secure the pulley to the shaft. A keyway bore includes a machined slot that accepts a key (a small rectangular metal piece) inserted between the shaft and pulley, providing a positive mechanical lock that prevents rotational slipping under high torque. Keyway variants are recommended for high-torque or reversing-load applications.

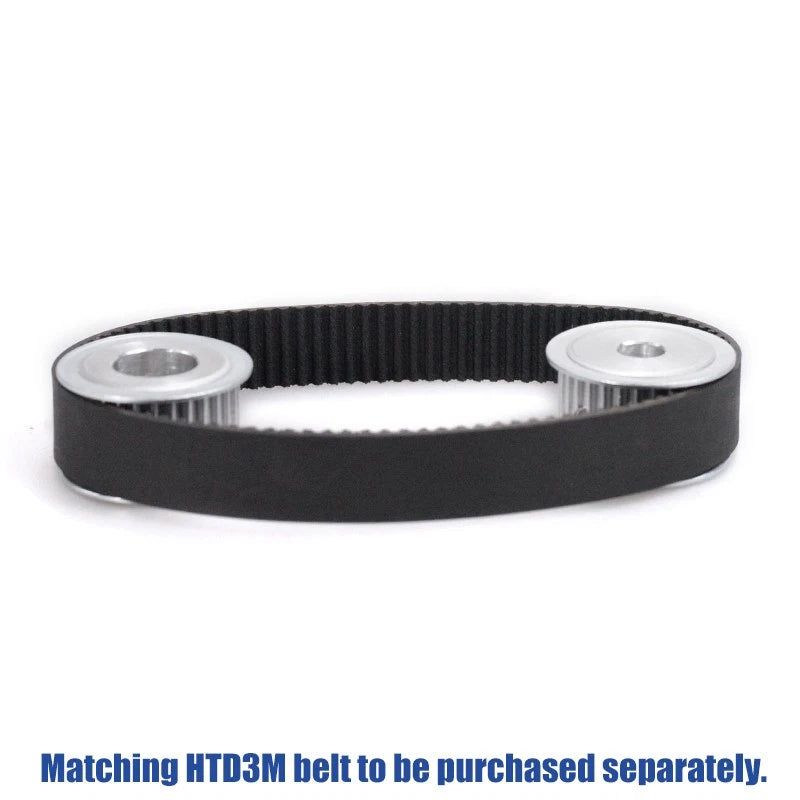

Yes. These pulleys conform to the standard HTD3M tooth profile and 15 mm belt width specification, making them compatible with any standard HTD3M 15 mm wide synchronous belt regardless of brand. Verify the belt's tooth pitch (3 mm) and width (15 mm) match before assembly.
Aluminum alloy pulleys are well-suited for the torque levels typical of NEMA 17 through NEMA 34 stepper motors and equivalent servo motors used in CNC routers, 3D printers, and light automation. For very high-torque industrial applications exceeding the belt's rated load, the belt itself is typically the limiting factor rather than the pulley. Use keyway bore variants for maximum torque transfer.
The anodized aluminum finish provides good resistance to oxidation and mild chemical exposure, making these pulleys suitable for indoor workshops, light manufacturing, and enclosed automation enclosures. For prolonged outdoor or high-humidity exposure, periodic inspection is recommended. Avoid contact with strong acids or alkalis that can degrade the anodized layer.
Yes. HTD3M pulleys are widely used in delta-style 3D printers, CoreXY motion systems, and delta robot arm designs. Select the tooth count that matches your existing belt path geometry and the bore size that fits your motor shaft. The 15 mm belt width provides good lateral stability for these applications.
