HTD5M Closed-Loop Rubber Timing Belt — Reliable 5mm Pitch Drive for Precision Motion Systems

When a slipping or worn drive belt causes missed steps in your 3D printer, positioning errors in your CNC router, or jerky motion in your robotic arm, the root cause is almost always a belt that no longer fits the job. Engineers, makers, and machine builders who need a dependable closed-loop HTD5M timing belt will find this range covers the most common replacement and build scenarios without compromise.

Each belt is a single closed-loop piece made from neoprene rubber reinforced with fiberglass cord, featuring the standard HTD (High Torque Drive) 5mm pitch tooth profile. Models span from HTD5M-120 (120 teeth, 600mm ≈23.6" circumference) to HTD5M-425 (425 teeth, 2125mm ≈83.7" circumference), with widths available in 10mm, 15mm, 20mm, 25mm, 28mm, 30mm, and 35mm depending on the model. Select the tooth count and width that match your pulley and load requirements.

Typical use cases include HTD5M timing belt replacement for desktop CNC routers, closed-loop drive systems in 3D printer extruder and axis assemblies, power transmission in robotic joint actuators, and custom automation conveyor drives where a 5mm pitch rubber timing belt provides the right balance of torque capacity and positioning accuracy.

🔗 Compatibility: Fits any standard HTD5M-profile pulley. Match belt width to your pulley groove width. Tooth count × 5mm = belt circumference — confirm before ordering.
⚠️ Sizing note: Not all width options are available for every tooth-count model. Check the variant selector above to confirm your exact combination is in stock.

✅ Key Features of These HTD5M Closed-Loop Rubber Timing Belts

  • ⚙️HTD 5mm Pitch Tooth Profile — The rounded HTD tooth geometry meshes smoothly with HTD5M pulleys, reducing tooth jump under load compared to trapezoidal profiles in high-torque 5mm pitch drive applications.
  • 🔄Closed-Loop Construction — Seamless endless loop eliminates the splice point found in cut-to-length belts, providing consistent tension and reducing the risk of separation during continuous operation.
  • 🧱Fiberglass-Reinforced Neoprene Body — The fiberglass tension cord resists stretching over time, helping maintain accurate positioning in CNC and 3D printer axis drives where belt elongation causes cumulative error.
  • 📐Wide Model Range (120–425 Teeth) — Covers short center-distance drives (HTD5M-120, 600mm circumference) through long-span conveyor and gantry applications (HTD5M-425, 2125mm circumference) in a single product family.
  • 📏Multiple Width Options (10–35mm) — Select the belt width that matches your pulley groove and torque requirement; wider belts distribute load across more tooth contact area for heavier robotic arm and industrial drive use.
  • 🔧Drop-In Replacement Fit — Manufactured to HTD5M standard dimensions, making these belts a straightforward swap for worn OEM belts in compatible machines without modification to pulleys or tensioners.

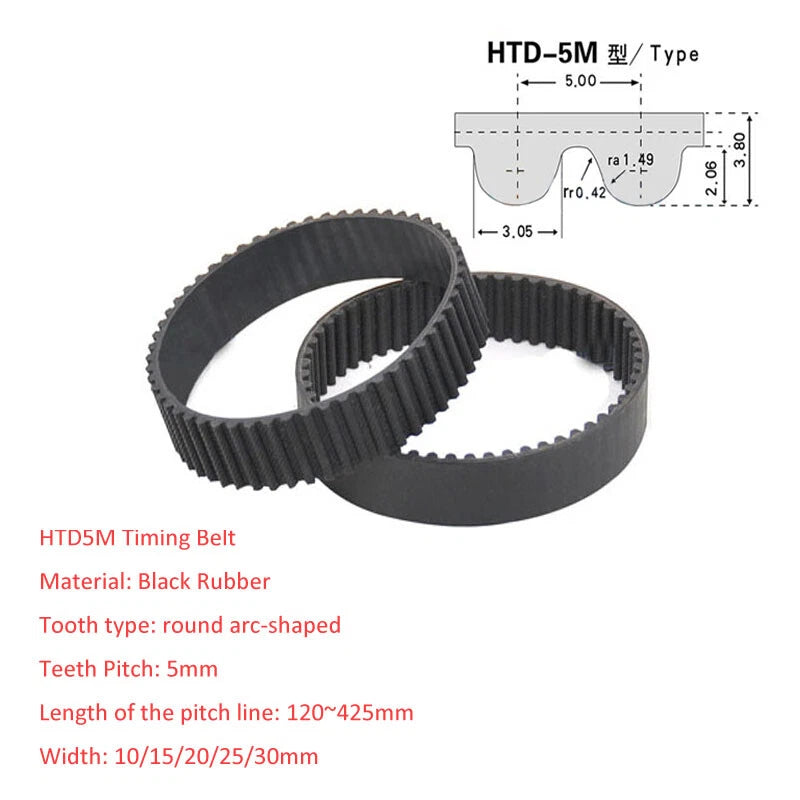

📐 Technical Specifications — HTD5M Closed-Loop Rubber Timing Belt

Belt Type Closed-loop (endless) synchronous timing belt
Pitch Profile HTD (High Torque Drive) — 5mm pitch

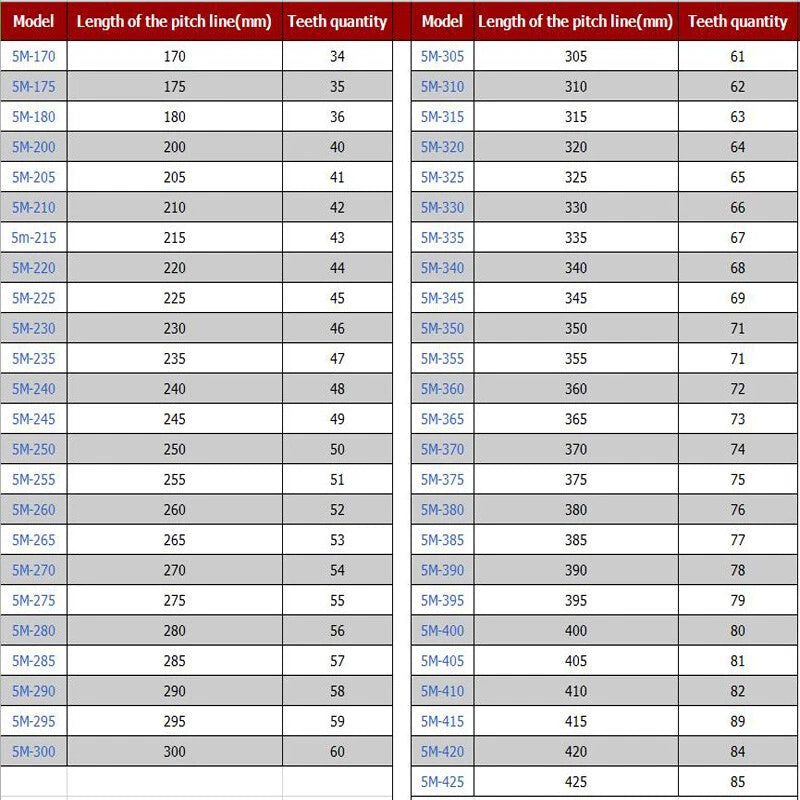

Tooth Count (Model) 120 to 425 teeth — see variant selector
Belt Circumference 600mm (≈23.6") to 2125mm (≈83.7") — teeth × 5mm
Available Widths 10mm, 15mm, 20mm, 25mm, 28mm, 30mm, 35mm (varies by model)
Body Material Neoprene rubber with fiberglass tension cord

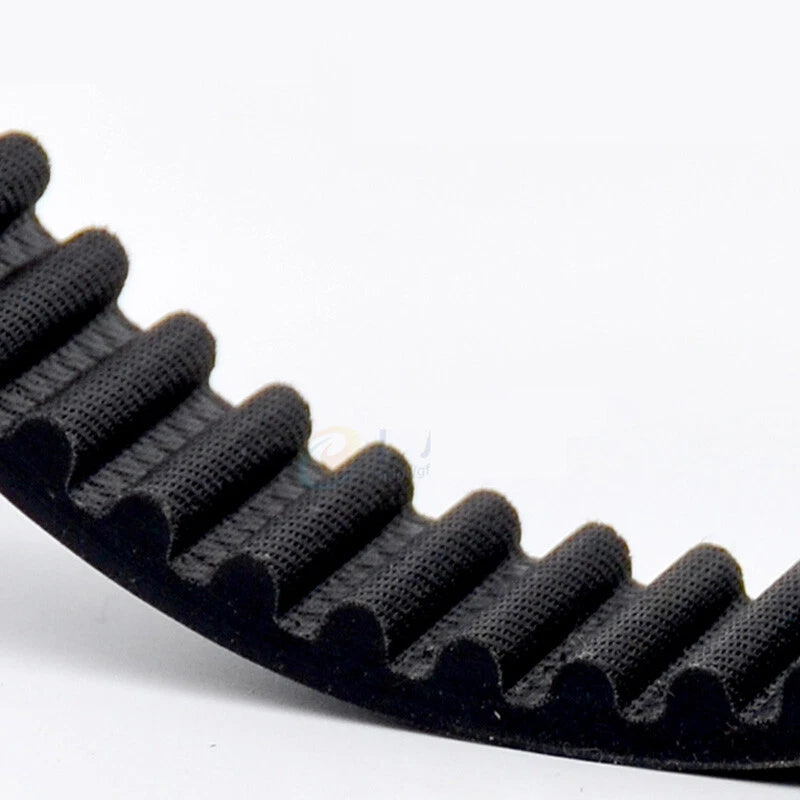

Tooth Surface Nylon fabric facing (typically)
Color Black
Operating Temperature See variant options — contact us to confirm for extreme environments
Pulley Compatibility Standard HTD5M-profile pulleys — match groove width to belt width
Quantity per Order 1 piece per unit

❓ Frequently Asked Questions

How do I choose the right HTD5M timing belt length?

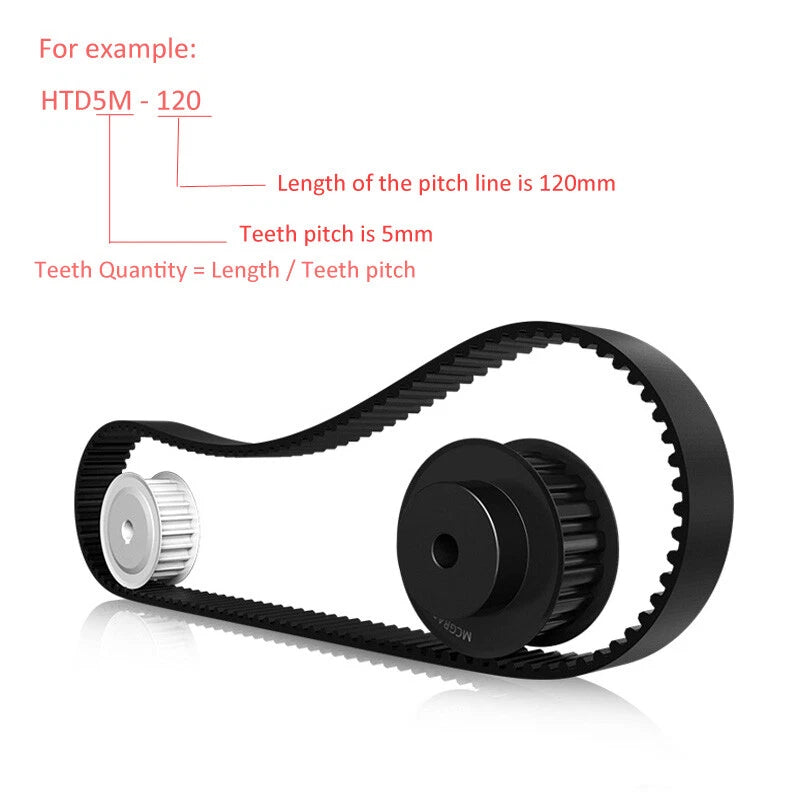

The model number tells you the tooth count. Multiply teeth by the 5mm pitch to get the belt circumference. For example, HTD5M-200 = 200 × 5mm = 1000mm (≈39.4" circumference). To find the right size, measure your existing belt around the outside, or calculate based on your pulley center distance and tooth counts using a standard belt length formula. When in doubt, go one size up and adjust your tensioner.

What width should I choose for my application?

Width selection depends on the torque load and your pulley groove. For light-duty applications like 3D printer axis drives, 10–15mm widths are typically sufficient. For heavier CNC routers, robotic joints, or conveyor drives, 20–35mm widths generally provide more load capacity. Always match the belt width to your pulley groove width — a belt wider than the groove will not seat correctly.

How much torque or load can an HTD5M belt handle?

Load capacity depends on belt width, operating speed, number of teeth in mesh, and pulley diameter. In general, wider belts and larger pulleys increase capacity. For a 15mm-wide HTD5M belt, moderate torque loads in typical maker and light industrial applications are generally within range. For precise load ratings specific to your system, consult a belt drive engineering reference or contact us to confirm.

Can this belt be used outdoors or in wet environments?

The neoprene rubber body offers moderate resistance to moisture and mild temperature variation, making it suitable for many indoor and semi-protected outdoor applications. Prolonged exposure to direct UV sunlight, petroleum-based oils, or aggressive chemicals may degrade the rubber over time. For washdown or fully outdoor environments, inspect the belt regularly and consider a protective enclosure where possible.

Is this belt compatible with standard HTD5M pulleys?

Yes. These belts are manufactured to the HTD 5mm pitch standard and are generally compatible with any HTD5M-profile pulley of matching width. The key checks are: (1) pulley pitch must be HTD5M, (2) pulley groove width must match or be slightly wider than the belt width, and (3) the pulley tooth count and center distance must result in a circumference matching your chosen belt model.

How do I know when it is time to replace my timing belt?

Common indicators include visible cracking, fraying, or chunking on the belt surface or tooth faces; skipped teeth causing layer shifts in 3D prints or positioning errors in CNC work; increased backlash or play in the drive system; or unusual squealing or slapping noise during operation. Proactive replacement during scheduled maintenance is generally recommended rather than waiting for failure.

What is the difference between HTD5M and GT2 timing belts?

HTD5M uses a 5mm pitch rounded tooth profile optimized for higher torque transmission with good resistance to tooth jump under load. GT2 (Gates Tooth 2mm pitch) is designed for precision positioning at lower torque, commonly used in lighter 3D printer axes. If your machine specifies HTD5M pulleys, use HTD5M belts — the profiles are not interchangeable.

🛒 Select your model (tooth count) and width above, then add to cart — ships from our US warehouse.
