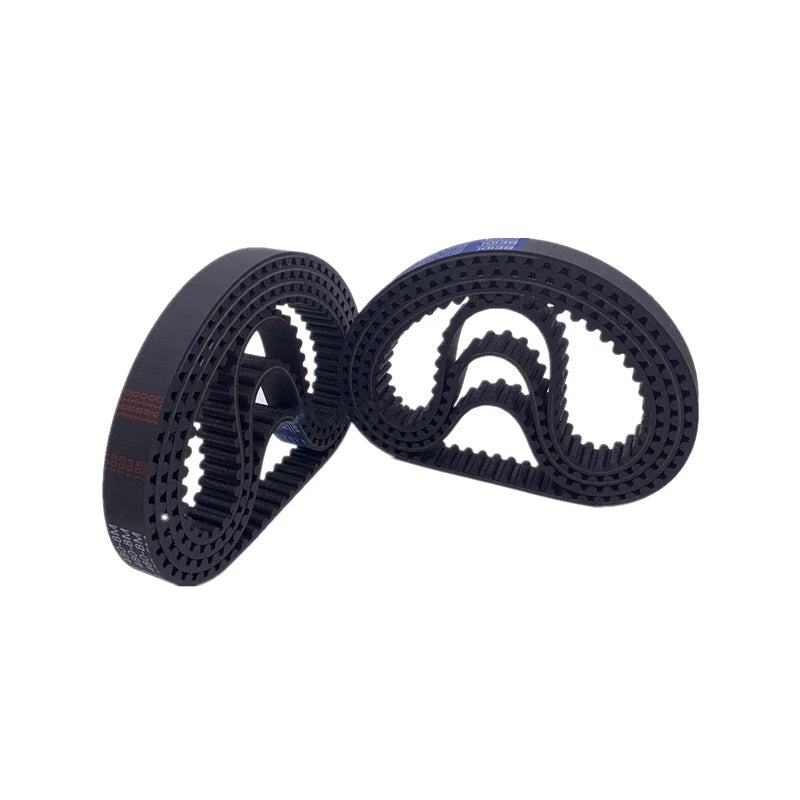

HTD8M Timing Belt 8mm Pitch 15mm Wide — Reliable Power Transmission for CNC, Robotics & Automation
When a slipping or mismatched drive belt brings your CNC router, laser cutter, or robotic axis to a halt, the cost is more than downtime — it's lost precision and rework. Engineers, makers, and machine builders who need a dependable HTD8M timing belt with consistent tooth engagement and zero-slip performance will find exactly what they need here.

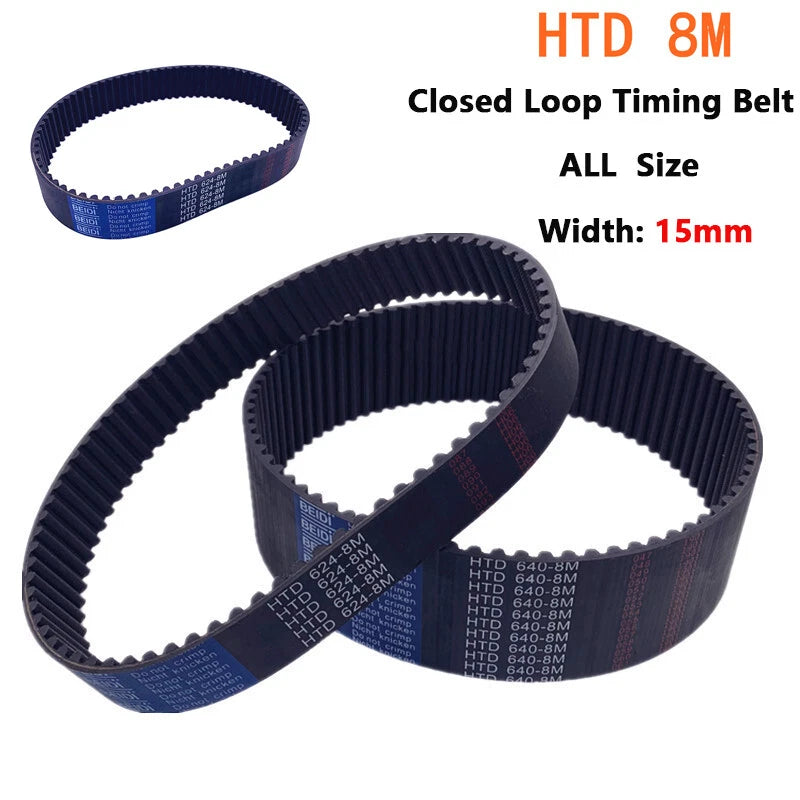

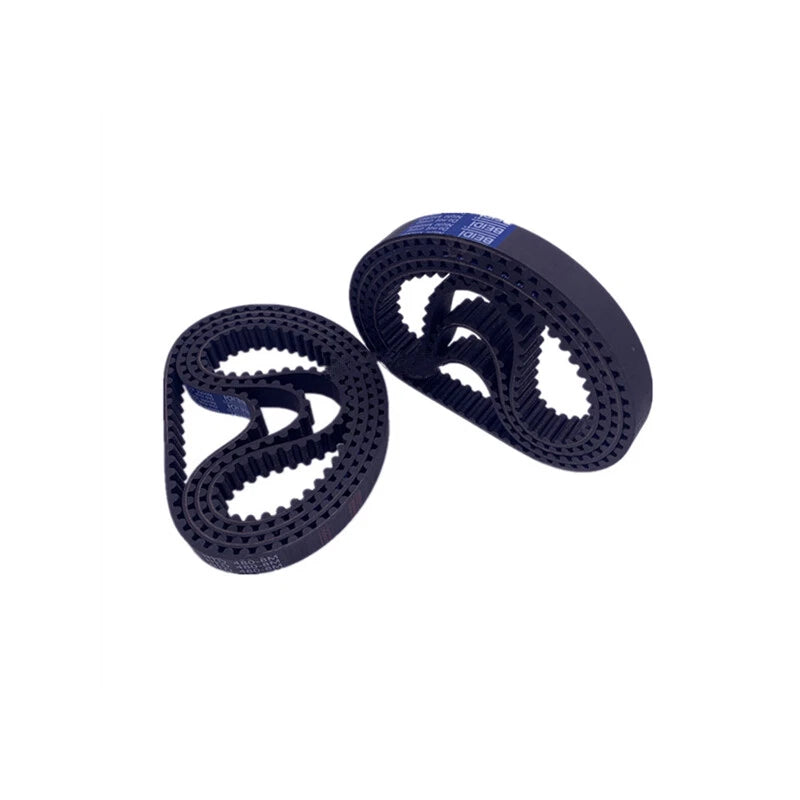

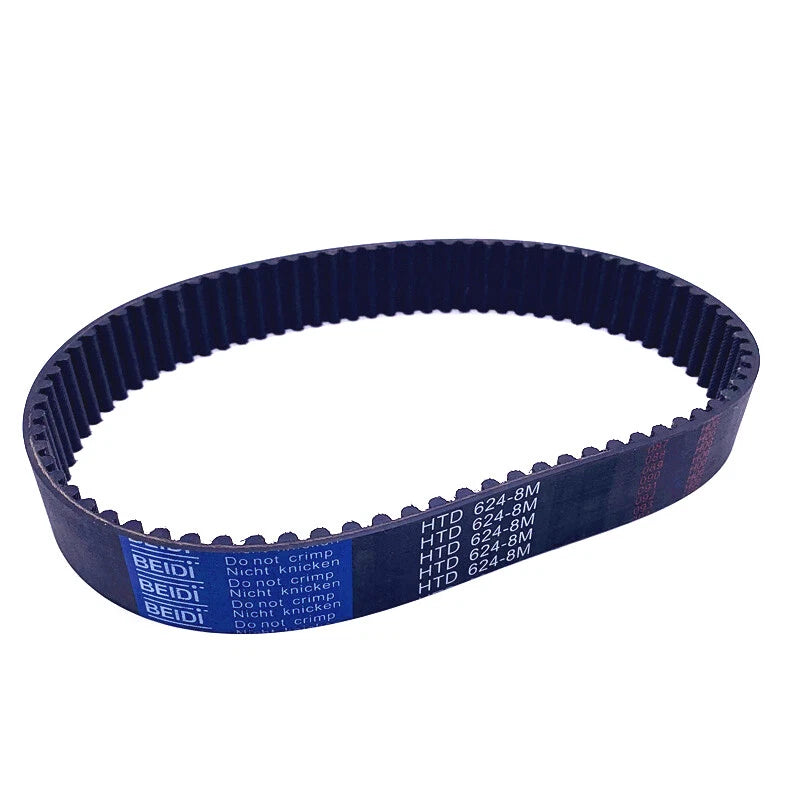

Each belt in this listing follows the HTD8M standard: 8mm pitch (tooth-to-tooth spacing), 15mm wide, with a curved HTD tooth profile designed for higher torque capacity than trapezoidal belts. Available in 229 sizes ranging from 33 teeth / 264mm (≈10.4") up to 550 teeth / 4400mm (≈173.2") — sold individually (1 pc per order). Material is typically neoprene rubber with fiberglass cord reinforcement for dimensional stability under load.
Typical use cases include CNC router X/Y axis drives, 3D printer Z-axis and gantry systems, robotic arm joint drives, conveyor indexing systems, and industrial automation equipment where precise, repeatable positioning is required. The wide 15mm belt width distributes load across more tooth surface area, making it a go-to choice for medium-to-large format machines.
ℹ️ Compatibility Notice: This belt uses the HTD8M curved tooth profile with 8mm pitch and 15mm width. It is compatible with HTD8M pulleys only. Not interchangeable with GT2, GT3, or trapezoidal (XL, L, H) pulleys. Always verify your pulley tooth profile before ordering.
✅ Key Features of These HTD8M Timing Belts
-
⚙️HTD Curved Tooth Profile — The rounded HTD tooth form distributes stress more evenly across the tooth root than trapezoidal profiles, reducing the risk of tooth shear under sudden load spikes in CNC and robotics applications.
-
📏229 Sizes in One Listing — From 264mm (≈10.4") to 4400mm (≈173.2") pitch length, covering the vast majority of CNC router, laser cutter, and automation drive configurations without custom ordering.
-
🔩15mm Belt Width for Higher Torque — Wider than standard 10mm HTD8M belts, the 15mm width increases the tooth contact area, allowing this belt to handle greater tangential loads in demanding drive systems.
-
🧵Fiberglass Cord Reinforcement — Internal tensile cords resist elongation under load, maintaining consistent center-to-center distance and positional accuracy over extended duty cycles.
-
🔄Closed-Loop Endless Design — Seamless construction eliminates the splice point weakness found in cut-and-joined belts, ensuring uniform tooth pitch around the full circumference for smooth, vibration-free operation.
-
🏭Broad Application Compatibility — Suitable for CNC router axis drives, 3D printer gantry systems, robotic joint actuators, conveyor indexing, and general industrial power transmission where an HTD8M-15mm belt is specified.
📐 Technical Specifications — HTD8M Timing Belt 15mm Wide
| Belt Standard |
HTD8M (High Torque Drive, 8mm pitch) |
| Tooth Profile |
HTD curved (semi-circular root) |
| Pitch |
8mm (0.315") |
| Belt Width |
15mm (≈0.59") |
| Tooth Count Range |
33 teeth – 550 teeth (see variant options) |
| Pitch Length Range |
264mm (≈10.4") – 4400mm (≈173.2") |
| Construction |
Neoprene rubber body, fiberglass tensile cord (typically) |
| Belt Type |
Closed-loop (endless) |
| Compatible Pulley Profile |
HTD8M only |
| Quantity per Order |
1 piece |
| Operating Temperature |
Contact us to confirm |
| Max Rated Load |
See variant options / Contact us to confirm |
⚠️ Size Selection Tip: Each variant name shows both tooth count and pitch length in mm (e.g., "50 Teeth 400mm HTD8M-15mm"). To convert to inches, divide mm by 25.4. If you are unsure of your required belt length, measure your existing belt's pitch circumference or calculate from your pulley center distance before ordering.
❓ Frequently Asked Questions
How do I choose the right belt length for my machine?
Measure the center-to-center distance between your two pulleys, then calculate the belt length using the standard formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2. Each variant lists both tooth count and pitch length in mm. For example, a 50-tooth HTD8M belt has a pitch length of 400mm (≈15.7"). When in doubt, go slightly longer — you can adjust center distance, but you cannot stretch a belt.
What load or torque can an HTD8M 15mm wide belt handle?
HTD8M belts are generally rated for moderate-to-high torque applications. A 15mm wide HTD8M belt typically handles higher loads than narrower 5mm or 10mm variants of the same pitch. Exact load ratings depend on pulley diameter, speed, and operating conditions — consult your drive system's engineering specs to confirm suitability for your application.
Can this belt be used outdoors or in wet environments?
HTD timing belts are generally made from neoprene rubber with fiberglass or steel cord reinforcement, which provides reasonable resistance to moisture and mild chemicals. However, prolonged exposure to UV, oils, or harsh solvents can degrade the belt over time. For outdoor or wet environments, contact us to confirm material specifications before ordering.
What pulley standard is compatible with this belt?
This belt uses the HTD (High Torque Drive) 8M tooth profile with an 8mm pitch. It is compatible with HTD8M pulleys only — it is not interchangeable with GT2, GT3, or trapezoidal (MXL, XL, L, H) pulleys of the same pitch. Always match the belt tooth profile to your pulley profile to ensure proper meshing and avoid premature wear.
How do I convert belt length from mm to inches?
Divide the pitch length in mm by 25.4. Common examples: 400mm ÷ 25.4 ≈ 15.7"; 1000mm ÷ 25.4 ≈ 39.4"; 2000mm ÷ 25.4 ≈ 78.7"; 4000mm ÷ 25.4 ≈ 157.5". Each variant in this listing shows the pitch length in mm — use this formula to find the inch equivalent for your application.
Is this belt suitable for 3D printers, CNC routers, and robotics?
Yes. HTD8M belts are commonly used in CNC routers, laser cutters, robotic arms, conveyor systems, and industrial automation where precise, slip-free power transmission is required. The 8mm pitch and 15mm width make this belt well-suited for medium-to-large format machines that need reliable torque transfer over longer spans. Verify your machine's specified belt profile before ordering.
What is the difference between tooth count and pitch length?
Tooth count is the number of teeth on the belt. Pitch length is the total circumference measured at the pitch line: Pitch Length (mm) = Tooth Count × 8. For example, a 50-tooth HTD8M belt has a pitch length of 400mm. Both values are listed in each variant name (e.g., "50 Teeth 400mm HTD8M-15mm") for easy cross-reference with your machine's BOM or service manual.
🛒 Select your size above, then add to cart — ships from our US warehouse.
