When your CNC router, 3D printer, or automation rig demands consistent belt tension and zero-slip power transfer, a mismatched or worn pulley becomes the weakest link in your drivetrain. This HTD8M timing belt pulley is engineered for makers, engineers, and machine builders who need a reliable, drop-in solution for 8M pitch belt systems — available in both toothed drive and smooth idler configurations.
Each pulley is machined from aluminum alloy with a natural or anodized finish, featuring an HTD8M tooth profile (8mm pitch). Available tooth counts range from 15 to 30 teeth, belt widths from 15mm to 40mm (0.59" to 1.57"), and bore diameters from 5mm to 25mm (0.20" to 0.98"). Both "With Tooth" (drive) and "Without Tooth" (smooth idler) variants are offered to suit tensioner and drive positions.
Typical use cases include CNC router X/Y axis drives, large-format 3D printer motion systems, conveyor belt tensioner assemblies, and custom robotics or automation platforms requiring HTD8M belt compatibility.
8mm pitch curvilinear tooth form for smooth, low-noise engagement and reduced belt wear compared to trapezoidal profiles.

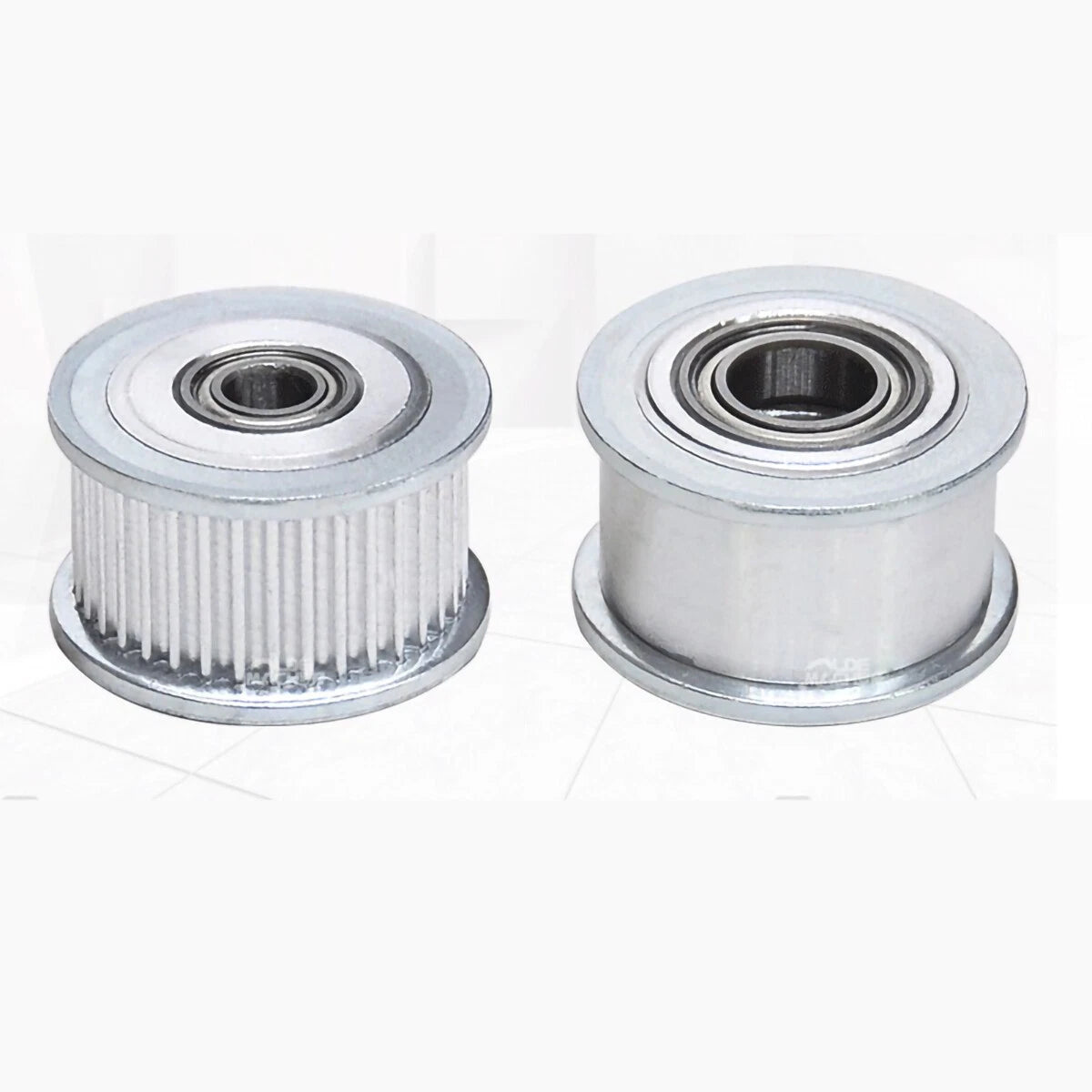

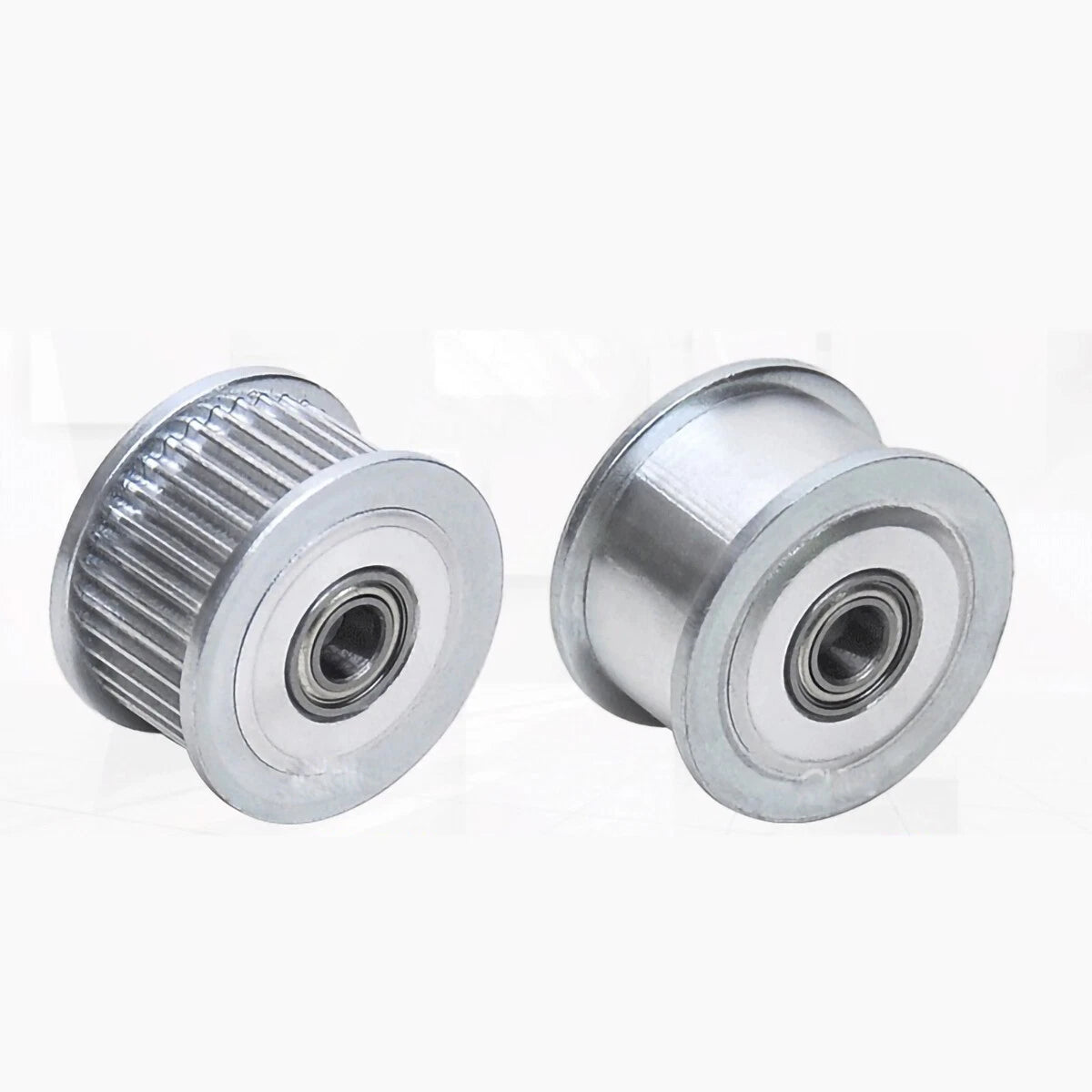

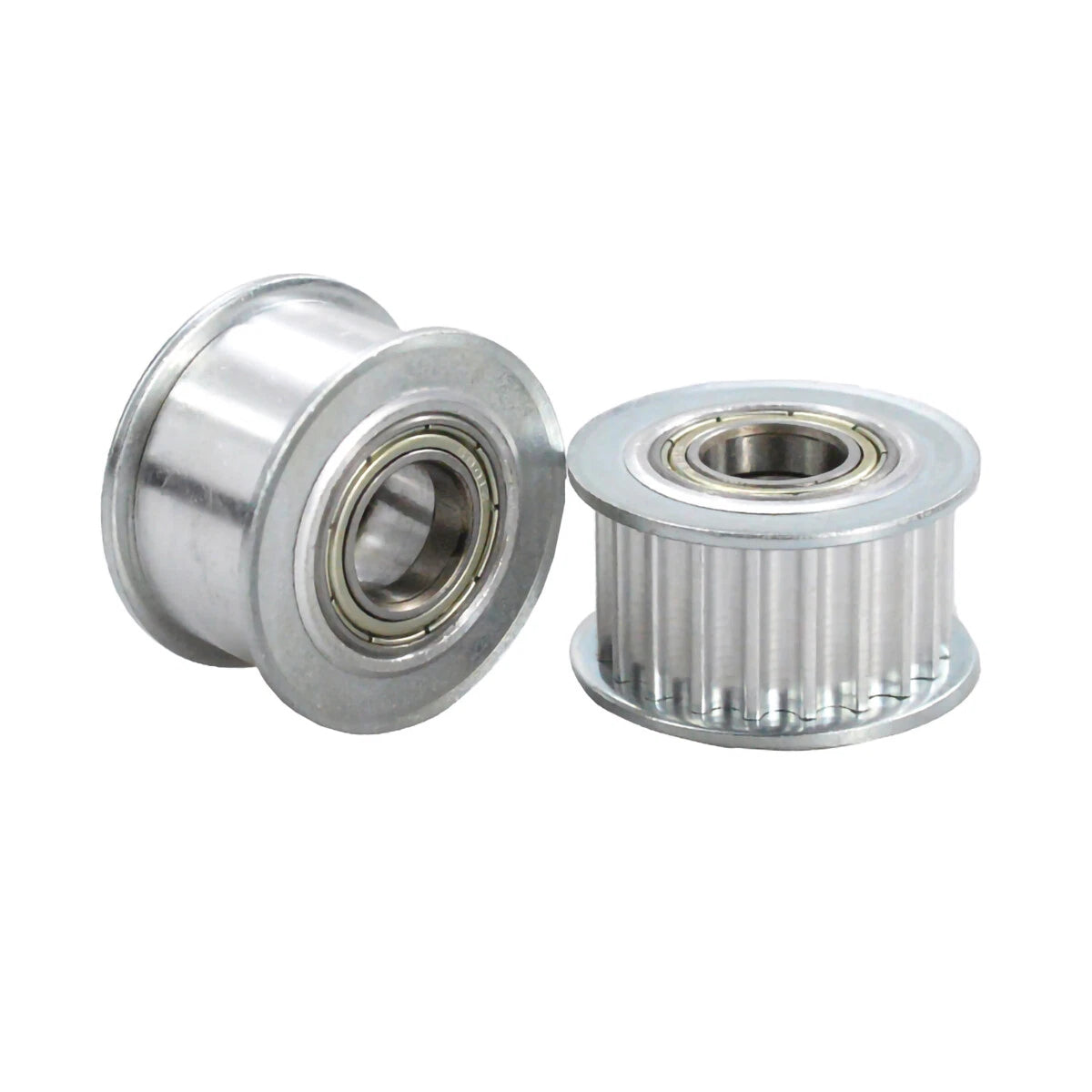

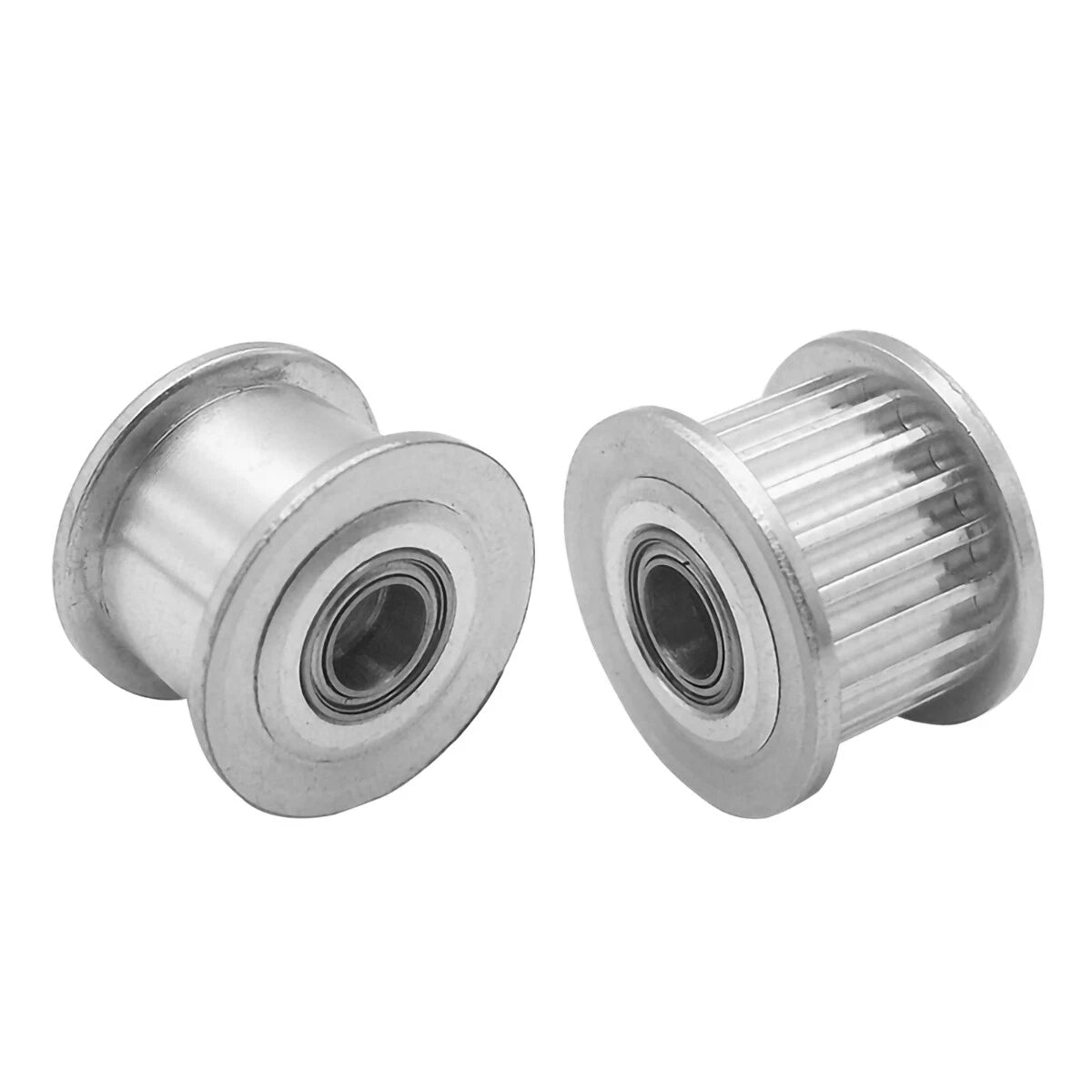

Choose "With Tooth" for active drive positions or "Without Tooth" (smooth) for tensioner/idler positions — both available across all tooth counts.
15, 16, 20, 24, 25, and 30 tooth counts; belt widths 15–40mm; bore diameters 5–25mm — covering the majority of HTD8M drivetrain configurations.
Lightweight yet rigid aluminum body keeps rotational inertia low while withstanding the radial loads typical of belt-driven motion systems.
Bores from 5mm to 25mm machined for close shaft fit. Set screw or keyway retention depends on variant — confirm your shaft retention method before ordering.
Each listing is for 1 piece. Select your exact tooth count, belt width, and bore size combination from the variant options above.
| Belt Pitch | HTD 8M (8mm) |
|---|---|
| Tooth Count Options | 15, 16, 20, 24, 25, 30 |
| Tooth Style | With Tooth (drive) / Without Tooth (smooth idler) |
| Belt Width Options | 15mm / 20mm / 25mm / 30mm / 40mm |
| Bore Diameter Options | 5mm / 6mm / 7mm / 8mm / 10mm / 12mm / 15mm / 20mm / 25mm |
| Material | Aluminum alloy |
| Finish | See variant options |
| Flange | See variant options |
| Quantity per Order | 1 piece |
| Weight | See variant options |
Tooth count determines the pulley's pitch diameter and gear ratio. More teeth = larger diameter = higher belt speed at the same RPM. Match the tooth count to your drive ratio requirements. For tensioner/idler positions, tooth count is less critical — choose a size that fits your frame geometry.

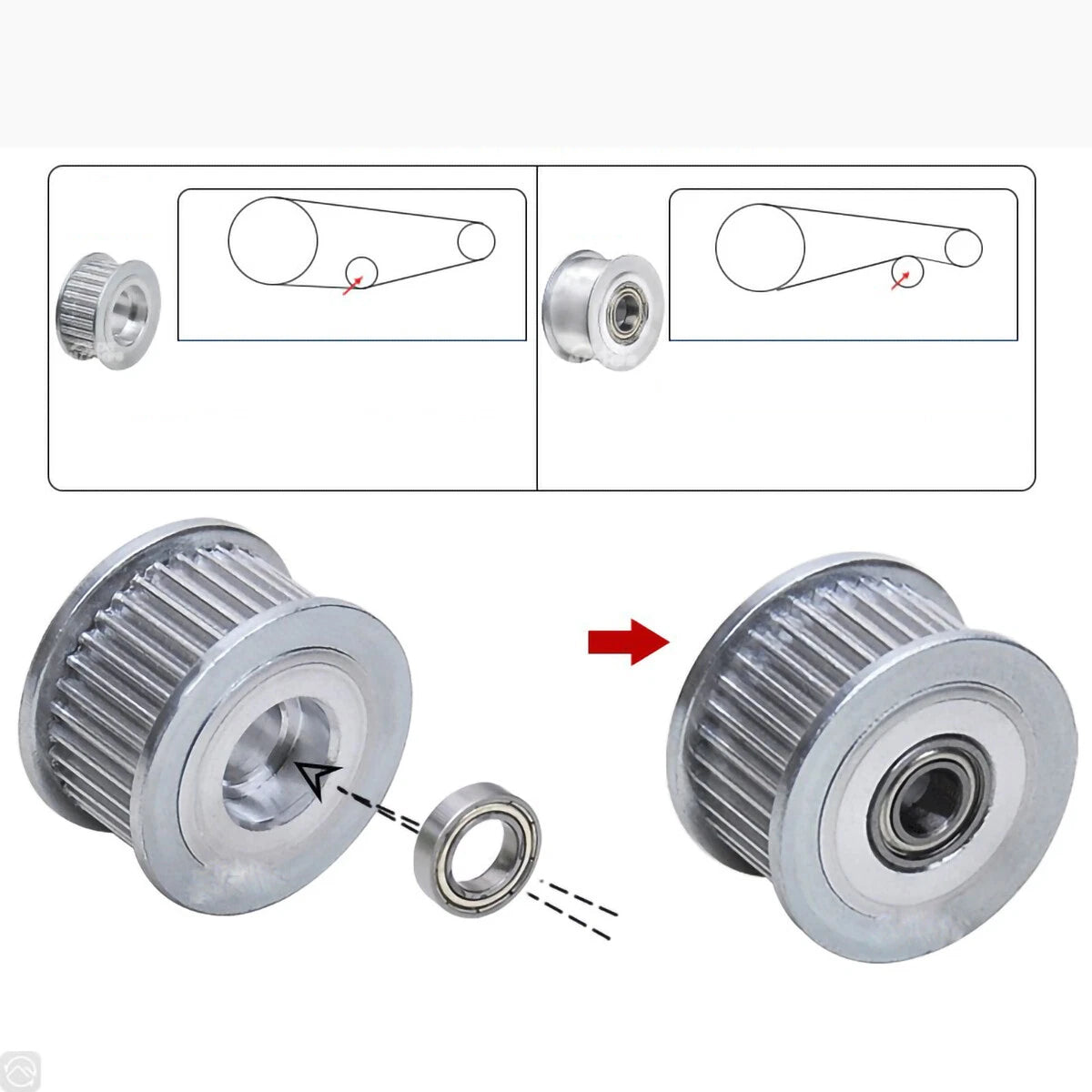

"With Tooth" pulleys have the HTD8M tooth profile machined into the rim and are used as active drive pulleys that engage the belt teeth. "Without Tooth" (smooth) pulleys have a flat rim and are used as idler or tensioner pulleys that guide belt tension without engaging the tooth profile.
Yes — these pulleys are designed specifically for HTD 8M pitch (8mm pitch) timing belts. Ensure the belt width matches the pulley width you select (e.g., a 20mm-wide belt requires a 20mm belt-width pulley). Using a mismatched width can cause belt tracking issues.
Measure your motor or idler shaft diameter precisely with calipers. Select the bore that matches your shaft. Common shaft sizes for stepper motors are 5mm, 6.35mm, and 8mm — choose the closest available bore. If your shaft is between sizes, a slightly larger bore with a set screw or keyway adapter may be needed.
Aluminum alloy construction provides a good strength-to-weight ratio suitable for most CNC router, laser cutter, and 3D printer applications. For very high-torque industrial applications (continuous heavy loads above typically 50Nm), consider verifying load ratings with your system designer. These pulleys are well-suited for hobbyist and light industrial motion systems.
No — smooth pulleys are intended for tensioner/idler use only. Without the tooth profile, the belt will slip under load. Always use a "With Tooth" pulley in any position where torque is being transmitted from the shaft to the belt.
Flange configuration varies by variant. Please check the variant description or contact us to confirm whether flanges are included with your selected size. Flanges help keep the belt tracking on the pulley and are recommended for most applications.
