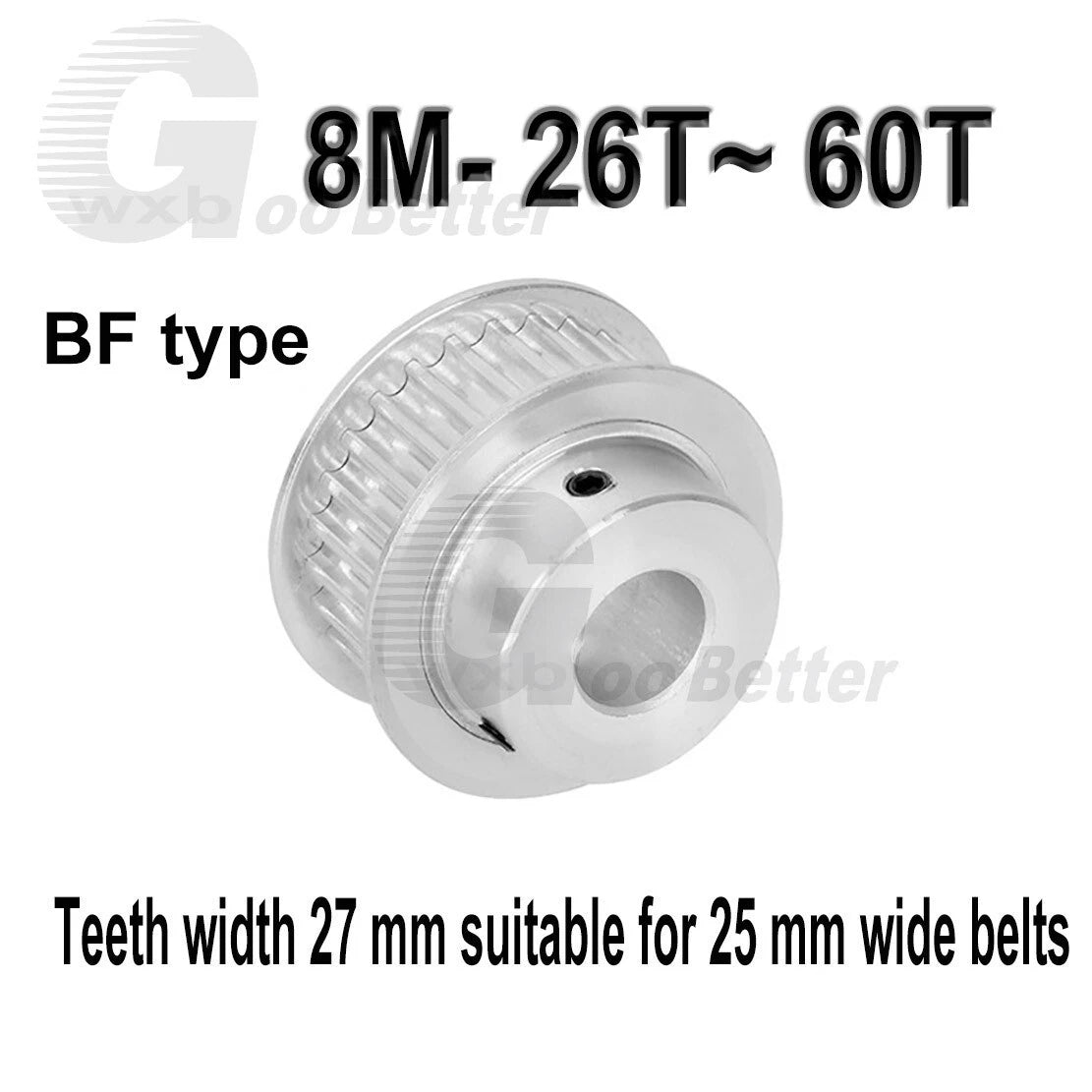

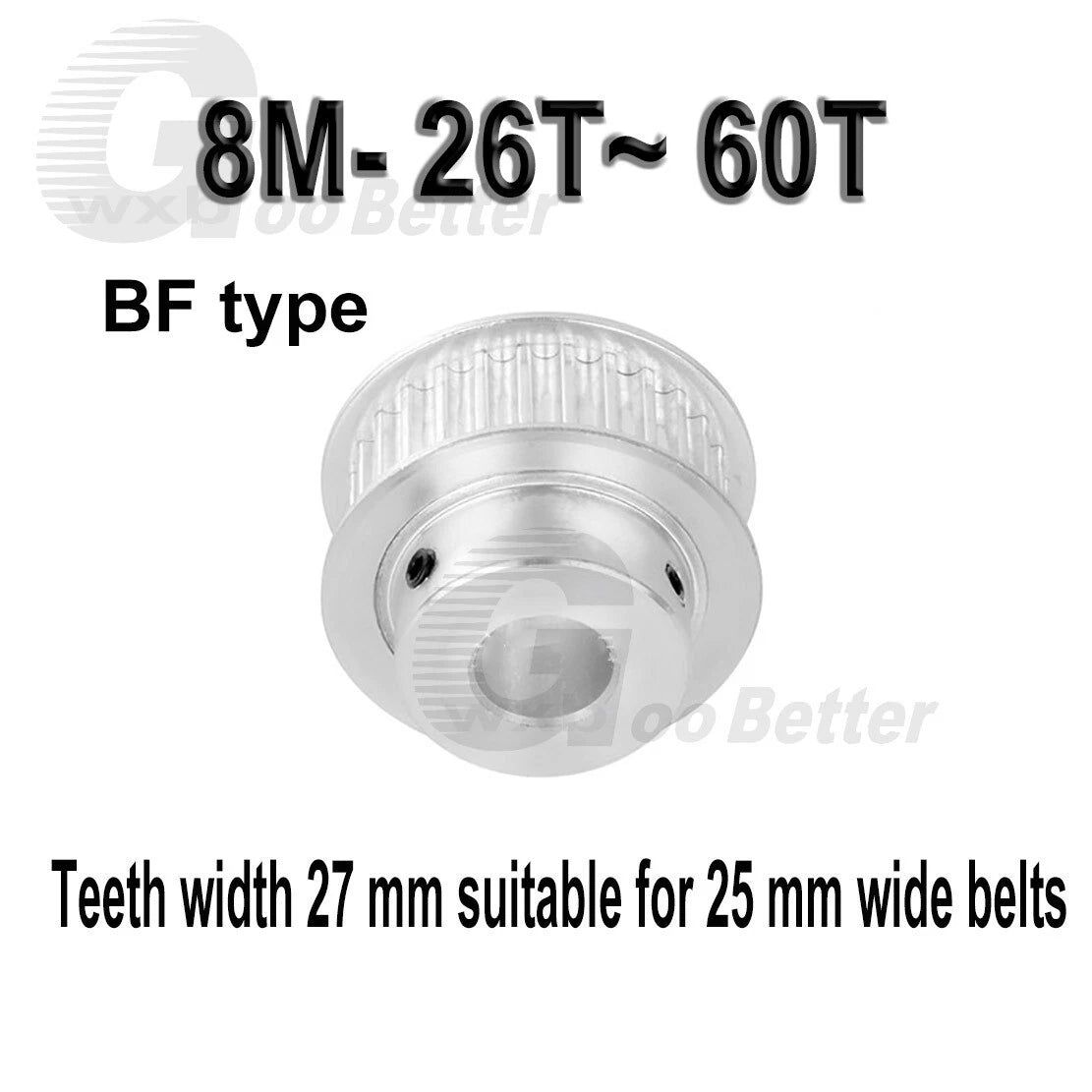

HTD8M Timing Pulley — Aluminum Synchronous Drive Pulley for Precision Motion Control
When your CNC router, 3D printer, or automation rig demands slip-free, repeatable motion, a worn or mismatched pulley becomes the weakest link in the entire drivetrain. Engineers, makers, and workshop builders who rely on HTD8M timing pulleys need a component that holds tight tolerances across thousands of cycles without play or wobble.
These HTD8M timing pulleys are machined from aluminum alloy and feature a 27 mm (1.06 in) belt-contact width. Tooth counts span 26 T to 60 T, and bore diameters range from 8 mm to 30 mm (0.31 in – 1.18 in). Variants with a machined step hub are available with optional keyway widths of 3 mm, 4 mm, 5 mm, 6 mm, or 8 mm to suit standard shaft-key combinations.
Typical applications include CNC router X/Y axis drives, desktop 3D printer extruder and motion systems, robotic arm joint actuators, and light-duty conveyor or indexing table builds where an HTD8M synchronous belt pulley with a precise bore-to-shaft fit is required.
⚙️ Compatible with: HTD 8M synchronous timing belts, 27 mm belt width — verify belt pitch and width before ordering.
✅ Key Features of These HTD8M Timing Pulleys
🔩
Aluminum Alloy Construction — Lightweight yet rigid body keeps rotational inertia low while maintaining dimensional stability under continuous load.
📐
Wide Size Matrix — Seven tooth-count options (26 T, 28 T, 30 T, 40 T, 44 T, 50 T, 60 T) combined with bore diameters from 8 mm to 30 mm give you a direct fit for most standard shaft sizes.
🔑

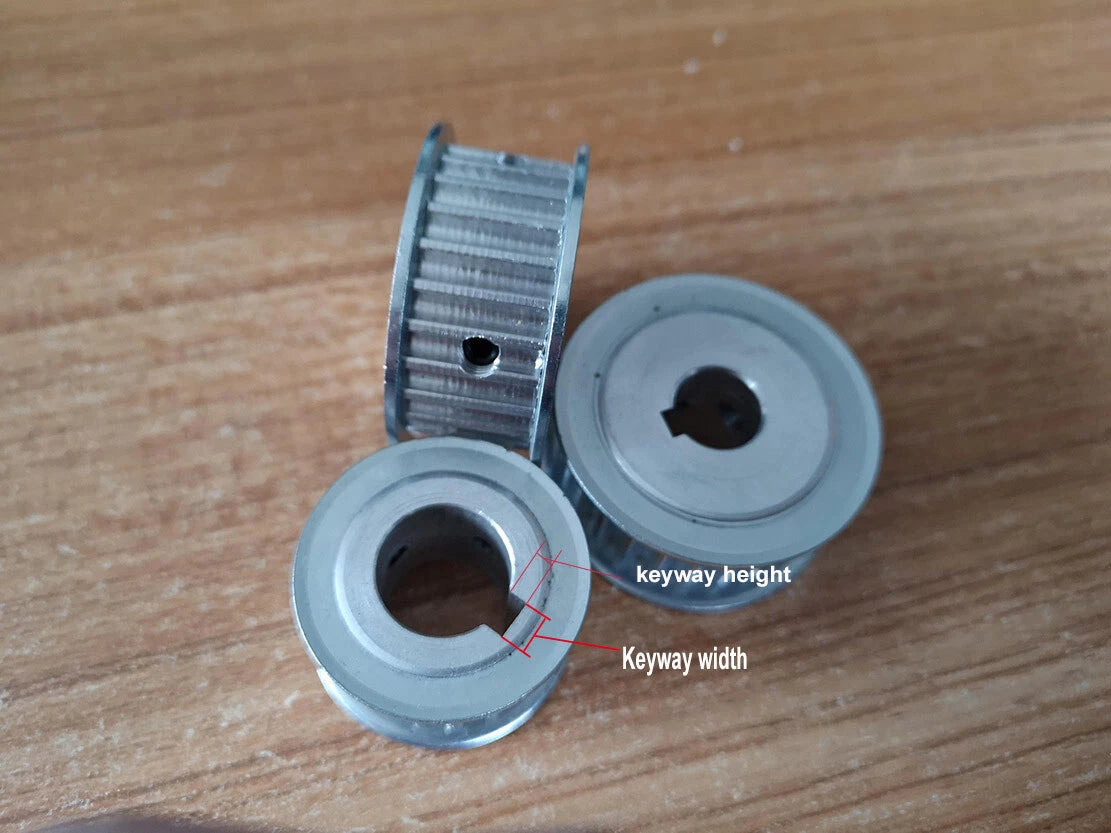

Optional Keyway — Choose without keyway for press-fit or set-screw retention, or select a 3 mm, 4 mm, 5 mm, 6 mm, or 8 mm keyway for positive torque transmission on keyed shafts.
📏

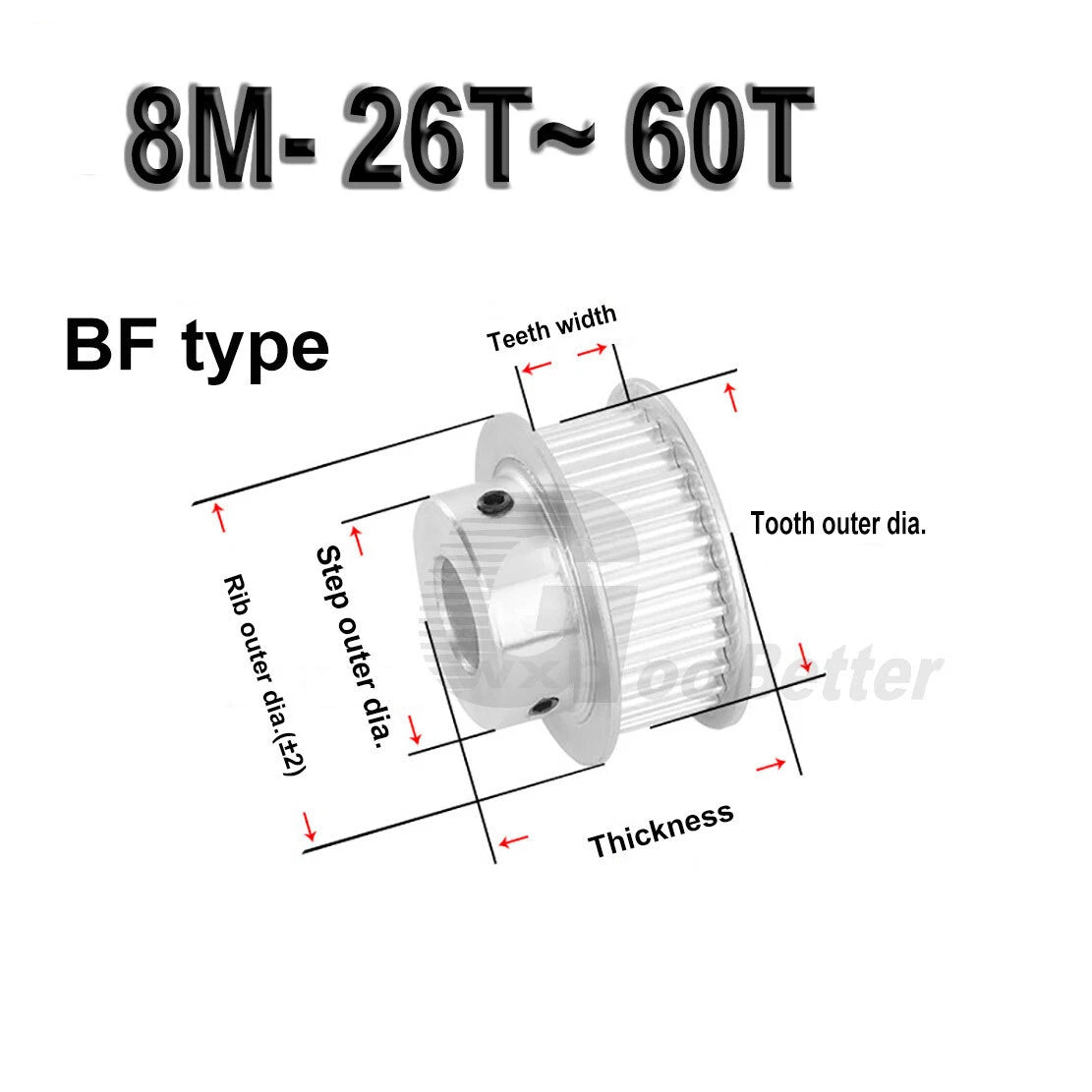

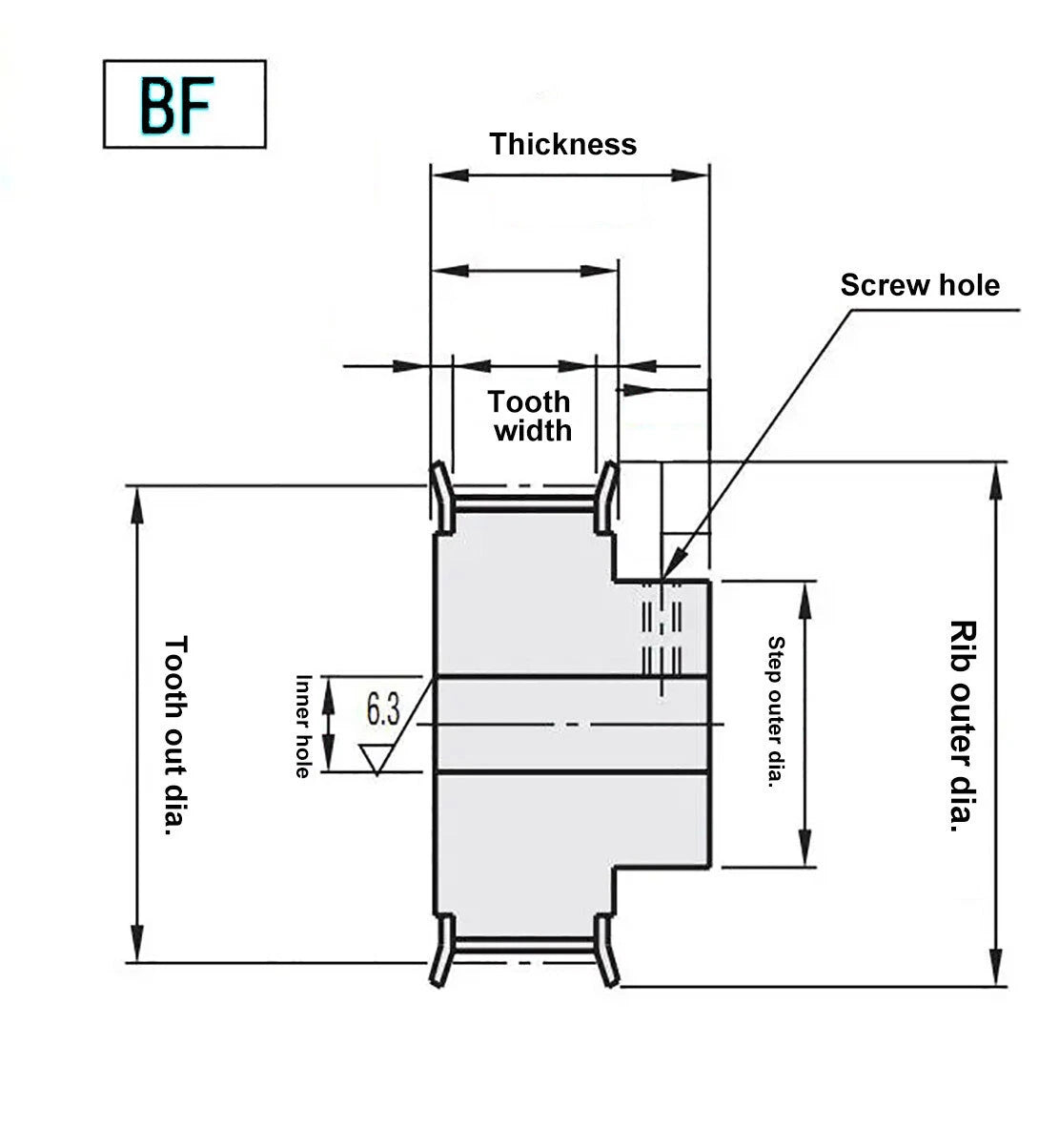

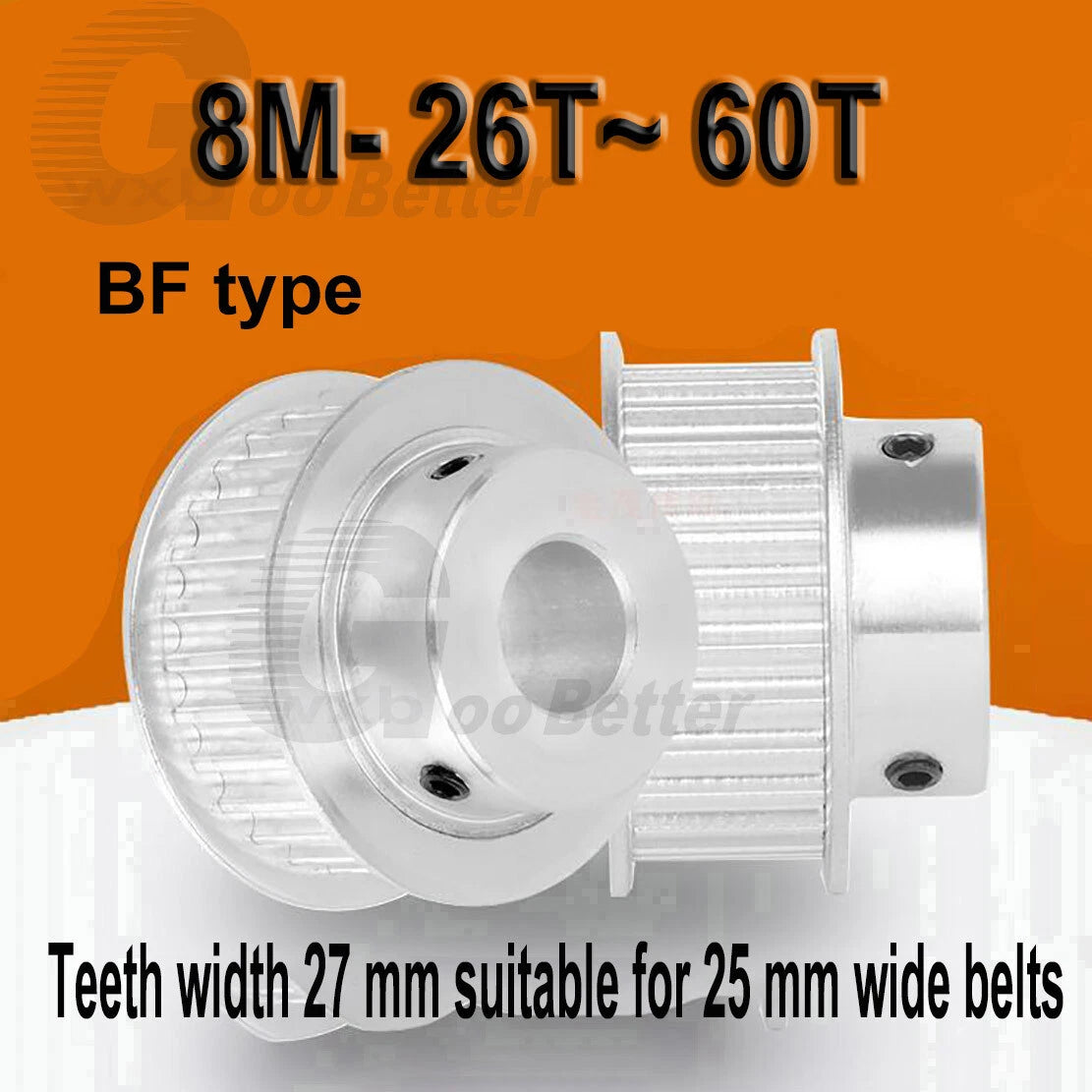

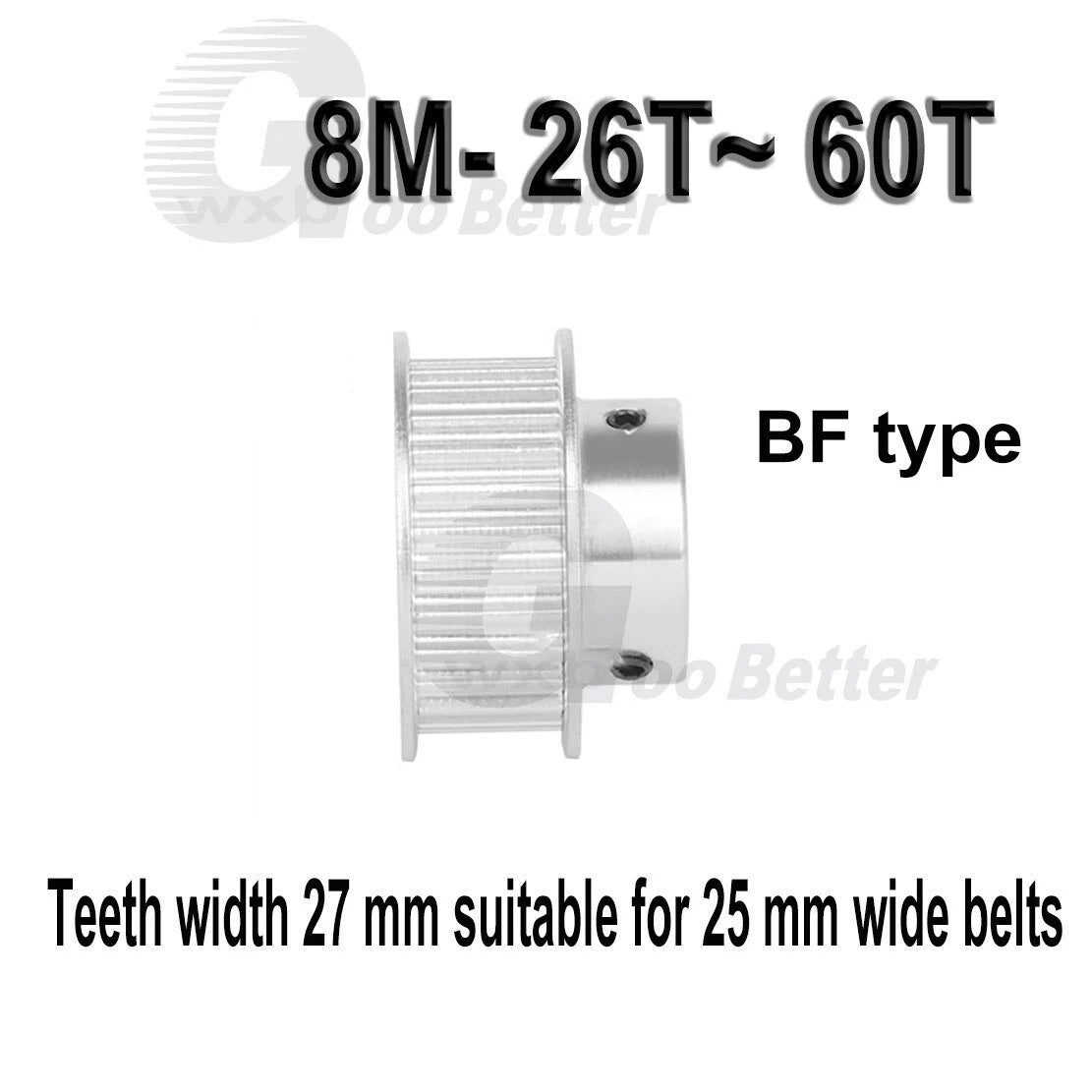

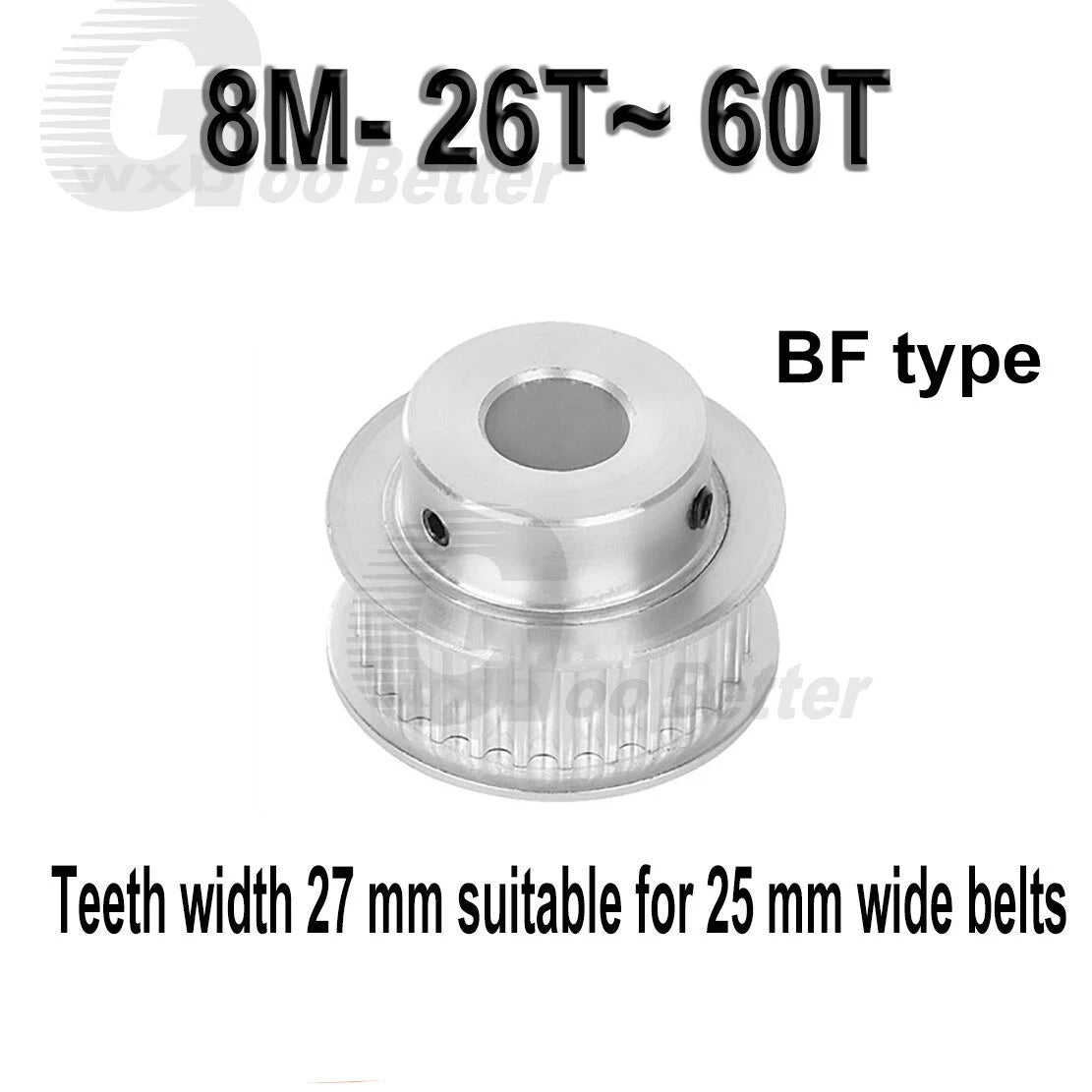

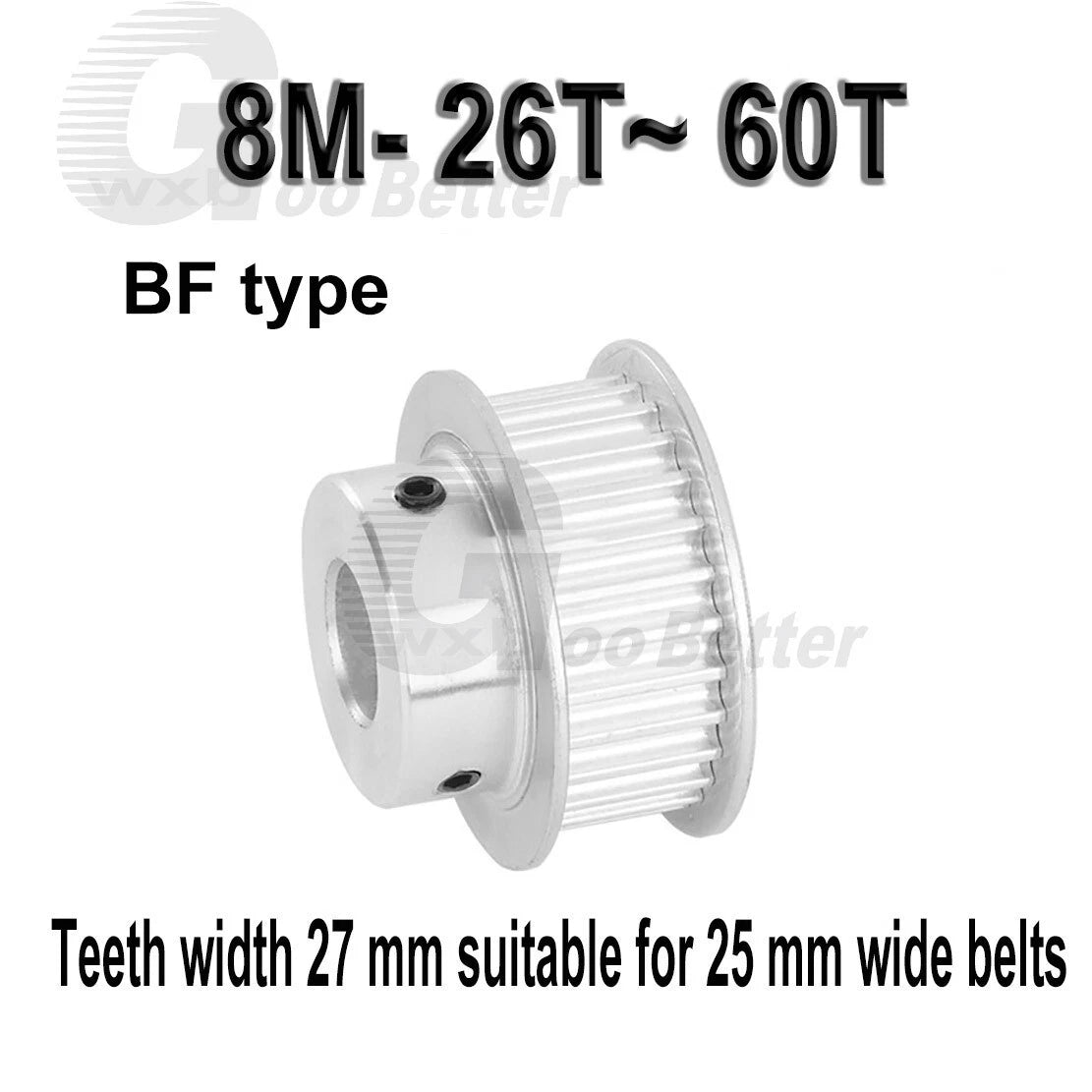

Stepped Hub Design — The machined step hub provides a positive axial reference face, simplifying pulley alignment on the shaft and reducing belt-tracking adjustment time.
⚡
HTD 8M Tooth Profile — The curvilinear HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth stress and extending belt life in high-torque applications.
🏭
Broad Application Range — Suited for CNC machines, 3D printers, laser cutters, robotic joints, and indexing tables where a reliable aluminum timing pulley HTD8M 27mm wide is needed.
📐 Technical Specifications — HTD8M Timing Pulley
| Belt Profile |
HTD 8M (8 mm pitch, curvilinear) |
| Belt Width Compatibility |
27 mm |
| Tooth Count Options |
26 T / 28 T / 30 T / 40 T / 44 T / 50 T / 60 T |
| Bore Diameter Range |
8 mm – 30 mm (see variant options) |
| Keyway Width Options |
Without keyway / 3 mm / 4 mm / 5 mm / 6 mm / 8 mm |
| Hub Style |
Stepped hub with flange |
| Material |
Aluminum alloy |
| Finish |
Natural / anodized (see variant options) |
| Pitch Diameter (26 T) |
approx. 66.2 mm (2.61 in) |
| Pitch Diameter (30 T) |
approx. 76.4 mm (3.01 in) |
| Pitch Diameter (60 T) |
approx. 152.8 mm (6.02 in) |
| Quantity per Order |
1 piece |
❓ Frequently Asked Questions
How do I choose the right tooth count for my application?
The tooth count determines the pitch diameter and, together with your motor pulley tooth count, sets the drive ratio. Divide the driven pulley teeth by the drive pulley teeth to get the reduction ratio. For example, pairing a 30 T drive pulley with a 60 T driven pulley gives a 2:1 reduction. Use a smaller tooth count for higher speed and a larger tooth count for more torque at the output shaft.
Which bore diameter should I select for my shaft?
Select the bore diameter that matches your shaft diameter exactly. Available bores range from 8 mm to 30 mm. If your shaft is metric (e.g., 12 mm, 20 mm), choose the matching bore. For imperial shafts, the 12.7 mm bore option accommodates a 1/2 in shaft. If you need a keyway, also select the appropriate keyway width that matches your shaft key standard (DIN 6885 or equivalent).
Do I need a keyway, and what size should I choose?
A keyway is needed when the pulley must transmit significant torque without slipping on the shaft. Without a keyway, retention relies on a set screw or interference fit. Keyway width is typically determined by the shaft diameter per standard key tables: 8–10 mm shafts commonly use a 3 mm key, 10–12 mm shafts use a 4 mm key, 12–17 mm shafts use a 5 mm key, 17–22 mm shafts use a 6 mm key, and 22–30 mm shafts use an 8 mm key. Confirm against your shaft's key specification before ordering.
Is this pulley compatible with standard HTD 8M timing belts?
Yes. These pulleys are designed for HTD 8M synchronous timing belts with an 8 mm pitch and 27 mm belt width. Ensure your belt is also rated for 27 mm width (sometimes listed as HTD 8M-27 or 8M 1080-27, etc.). Using a narrower or wider belt will result in misalignment or reduced load capacity.
What is the load capacity of an aluminum HTD8M pulley compared to steel?
Aluminum pulleys are well-suited for light-to-medium duty applications such as CNC routers, 3D printers, and robotics where weight reduction is important. For heavy industrial drives with sustained high torque or shock loads, steel pulleys are typically preferred. The aluminum alloy used here provides adequate strength for most maker and automation applications while keeping the rotating mass low, which benefits acceleration performance.
Will the pulley corrode or oxidize over time?
Aluminum naturally forms a thin oxide layer that provides moderate corrosion resistance in typical indoor workshop or machine environments. For applications exposed to moisture, cutting fluids, or outdoor conditions, an anodized finish variant (where available) offers improved surface protection. Avoid prolonged contact with strong acids or alkalis.
Can I use this pulley on a 3D printer or CNC machine?
Yes. HTD8M pulleys are commonly used on larger-format CNC routers and laser cutters where the 8 mm pitch provides higher torque capacity than smaller GT2 or GT3 profiles. For desktop 3D printers, verify that your motion system is designed for 8M pitch belts, as most consumer FDM printers use 2 mm pitch (GT2) belts. This pulley is an excellent fit for heavy-duty CoreXY or gantry systems built around HTD 8M drive trains.
🛒 Select your Model / Teeth count, Bore Dia., and Keyway width above, then add to cart.
