1. Product core introduction

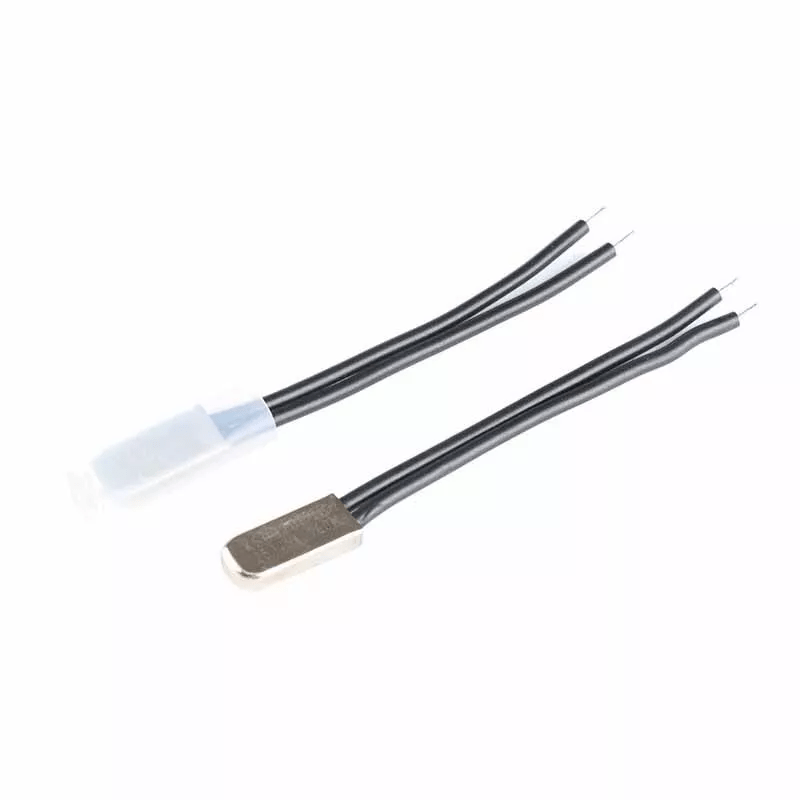

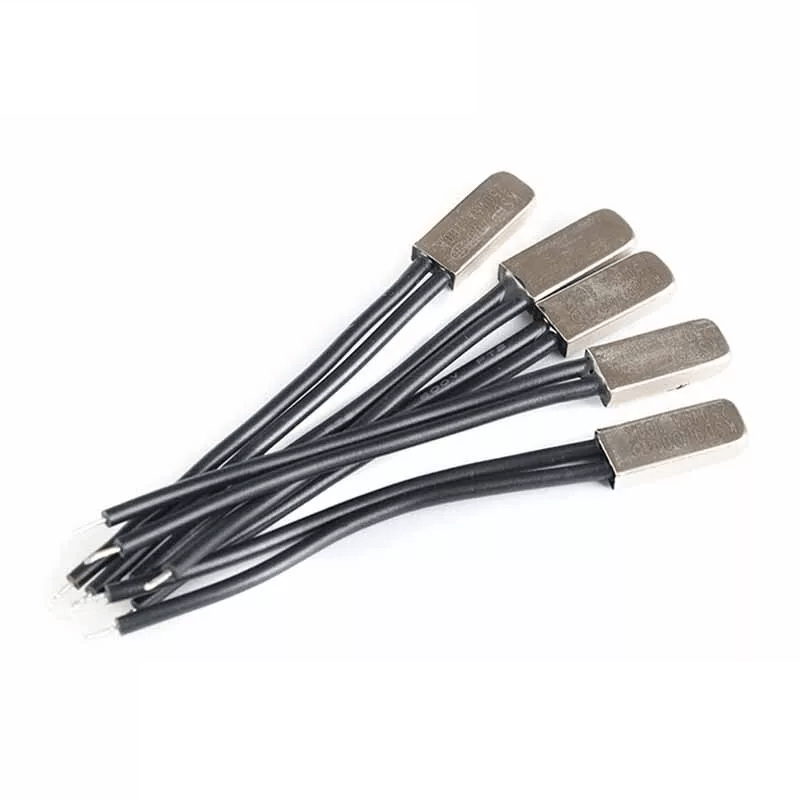

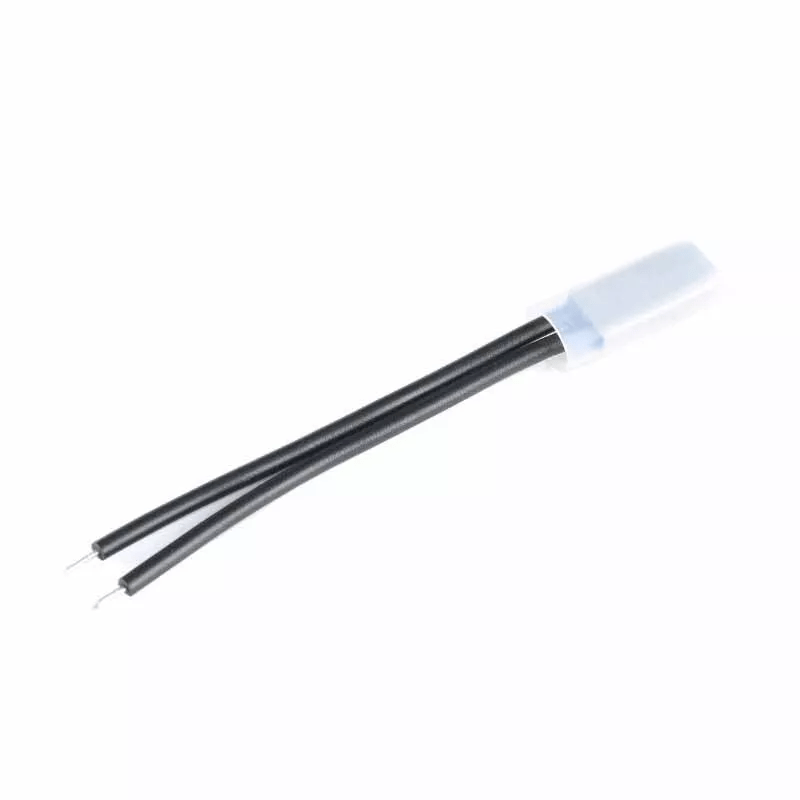

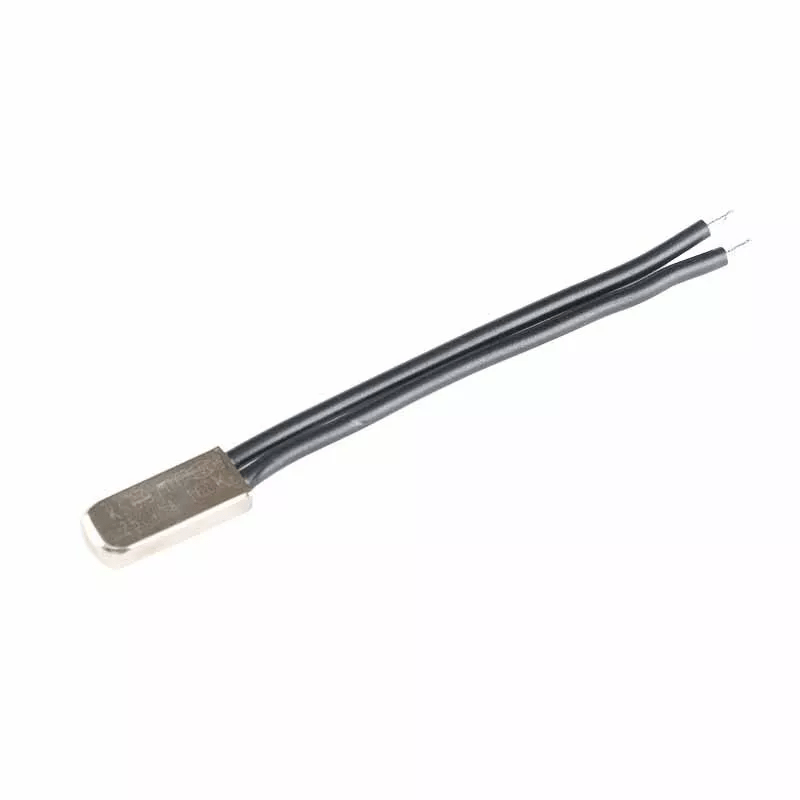

The KSD9700 temperature control switch, with both normally open and normally closed operating modes, has a temperature sensing range of 40°C - 105°C. It is a key temperature safety control component designed to provide precise temperature regulation and protection for a wide range of applications. As a key temperature safety control component, it is designed to provide precise temperature regulation and protection for a wide range of applications, ensuring that your equipment operates in a safe and stable temperature environment by automatically sensing and regulating the temperature, all of which can effectively meet your temperature control needs.

2. The main characteristics of the product

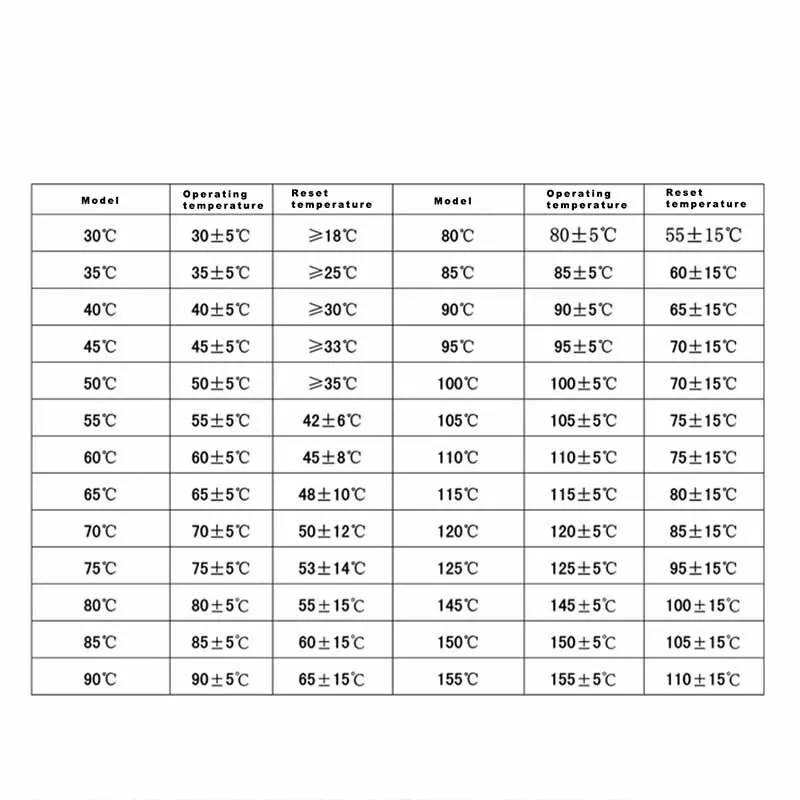

Accurate Temperature Sensing: Adopting advanced thermal material and precise manufacturing process, it can sense the ambient temperature quickly and accurately, ensure timely response and trigger the switch action within the set temperature range (40°C - 105°C), with a very small margin of error, providing reliable temperature protection for the equipment, effectively preventing damage or performance degradation of the equipment due to too high or too low a temperature. Normally open/closed mode: There are two flexible working modes, normally open and normally closed, which can be selected by the user according to the actual application requirements. Normally open mode, the switch remains open when the temperature does not reach the set value, and closes when the temperature rises to the set point, which is suitable for the equipment that needs to activate a certain function under a specific temperature; Normally closed mode, on the contrary, the switch is closed when the temperature is normal, and breaks when the temperature is out of the set range, which is commonly used to cut off the circuit when the temperature is abnormal to protect the safety of the equipment, and the diversified selection of the working modes greatly improves the applicability and versatility of the product. This diversified choice of operating modes greatly improves the applicability and versatility of the product and meets the control logic requirements of different equipment. Wide temperature range: Its 40°C - 105°C temperature sensing range covers many common application scenarios. Whether it is equipment that needs to be heated in a low-temperature environment or devices that need to dissipate heat or stop heating in a high-temperature environment, accurate temperature control can be achieved within this temperature range, ensuring that the equipment operates stably under various working conditions and reducing the adverse effects on the equipment due to temperature fluctuations, thus prolonging the service life of equipment and reducing maintenance costs. Extend the service life of the equipment and reduce maintenance costs. High reliability design: the shell is made of high temperature and corrosion-resistant materials, the internal structure is compact, and the electronic components have been strictly screened and tested, with good stability and durability, and can work reliably for a long time under complex environmental conditions. At the same time, the contacts of the switch are made of highly conductive materials with low contact resistance, which can withstand frequent switching operations and ensure the stable on-off of the circuit, providing a solid guarantee for the safe operation of the equipment.

3. Product use scene

Temperature protection for household appliances: Widely used in all kinds of household appliances, such as electric kettles, electric irons, microwave ovens, ovens, water dispensers and so on. Take electric kettle as an example, when the water temperature reaches the set boiling point (usually around 100°C, within the temperature range of the switch), KSD9700 temperature control switch will automatically cut off the heating power supply, preventing the water from boiling continuously and causing dry burning and other safety accidents; in the case of electric iron, according to the demand for ironing temperature of different fabrics, the set temperature of the switch can be adjusted to achieve precise temperature control, which protects the equipment and meets the diversified use needs of users, enhancing the safety and safety of home appliances. equipment, but also to meet the diverse needs of users, to enhance the safety and convenience of home appliances. Industrial equipment temperature regulation: In the process of industrial production, many equipments require strict temperature control, such as industrial ovens, dryers, injection moulding machines, motor cooling systems, etc. The KSD9700 temperature control switch can be used as a key component of temperature control to set a suitable temperature range according to the process requirements, to monitor the operating temperature of the equipments in real time and to adjust the working status of the heating or cooling system in time, to Ensure the industrial equipment to run in a stable temperature environment, ensure the consistency and stability of product quality, improve the production efficiency, reduce the scrap rate, and provide a strong guarantee for the smooth progress of industrial production.

4. Product use instructions

Preparation before installation: Carefully check the appearance of the switch for any defects such as breakage, deformation, loose pins, etc. If there are any problems, contact the supplier for replacement in time to ensure that the quality of the switch used is intact and undamaged. According to the actual application scenarios and equipment control requirements, determine the required switch operating mode (normally open or normally closed) as well as the suitable installation location, and prepare the corresponding installation tools, such as screwdrivers, spanners, soldering irons (if soldering connections are required), etc., to ensure the precision and applicability of the tools, so as to avoid damages to the switch during the installation process. Installation and connection: Install the KSD9700 temperature control switch at a location in the equipment where it can accurately sense the temperature, and ensure that its temperature-sensing part is in full contact with the monitored object to obtain an accurate temperature signal. For mounting that requires fixing, use suitable screws or clips to mount the switch firmly in the specified position to avoid displacement or loosening during equipment operation. Use wires to properly connect the switch to the circuit according to the pin definition of the switch and the circuit connection requirements of the equipment. If welding connection is used, attention should be paid to the welding time and temperature to avoid overheating and damaging the switch components, and to ensure that the welding joints are firm, smooth and free of false welding; if plug-in connection is used, make sure that the plug and the socket are closely matched with good contact to prevent the circuit failure due to poor contact. Temperature setting and debugging: Before the equipment is used for the first time, set the temperature of KSD9700 temperature control switch according to the actual demand. The desired action temperature value can usually be set by rotating or adjusting the temperature adjustment knob on the switch to match the operating temperature requirements of the equipment. When setting the temperature, reference should be made to the technical parameters of the equipment and the actual use environment to ensure the accuracy and reasonableness of the temperature setting. After completing the temperature setting, carry out power-on testing of the equipment, and use thermometers and other temperature measurement tools to monitor and record the actual operating temperature of the equipment. Observe whether the temperature control switch operates accurately at the set temperature point. If the temperature control is found to be inaccurate or the switch operates abnormally, check whether there are any problems in the temperature setting, installation position and circuit connection, etc., and make adjustments and corrections accordingly to ensure that the temperature control switch can work normally and meet the temperature control requirements of the equipment. Precautions for use: During the operation of the equipment, avoid applying excessive external force or vibration to the KSD9700 temperature control switch, so as not to affect its temperature sensing performance and the accuracy of the switching action. At the same time, pay attention to prevent water, oil, dust and other impurities from entering the switch, which may affect its normal operation. If the working environment of the equipment is relatively harsh, consider taking appropriate protective measures, such as adding protective cover, sealing box, etc., to protect the temperature control switch. Regularly check and maintain the temperature control system of the equipment, including checking whether the appearance of the temperature control switch is damaged, whether the connection is loose, and whether the temperature setting is offset. If problems are found, they should be repaired or replaced in a timely manner to ensure that the temperature control switch is always in good working condition and to guarantee the safe and stable operation of the equipment.
