When a slipping or misaligned timing belt threatens the accuracy of your drive system, the right idler pulley makes all the difference. Engineers, machine builders, and DIY automation enthusiasts who rely on L-series timing belts need a toothed tensioner that holds position under load without introducing backlash or vibration.

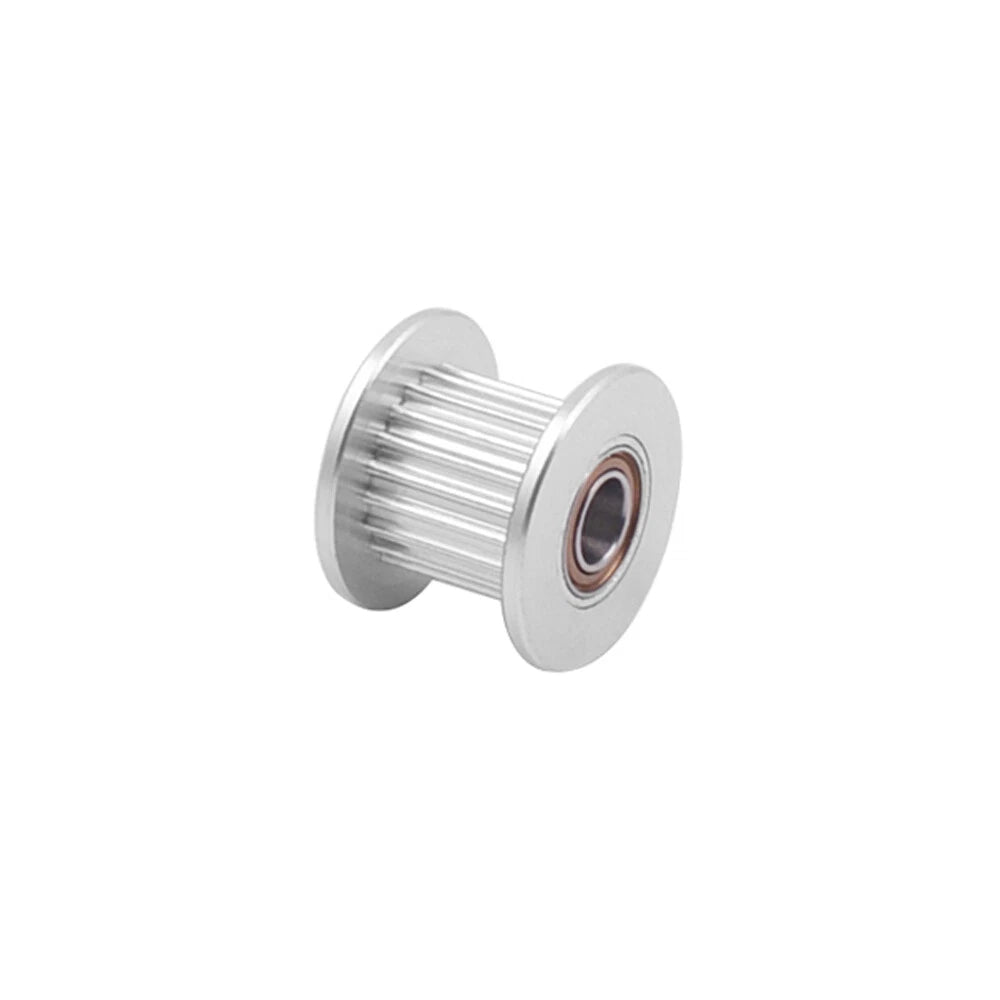

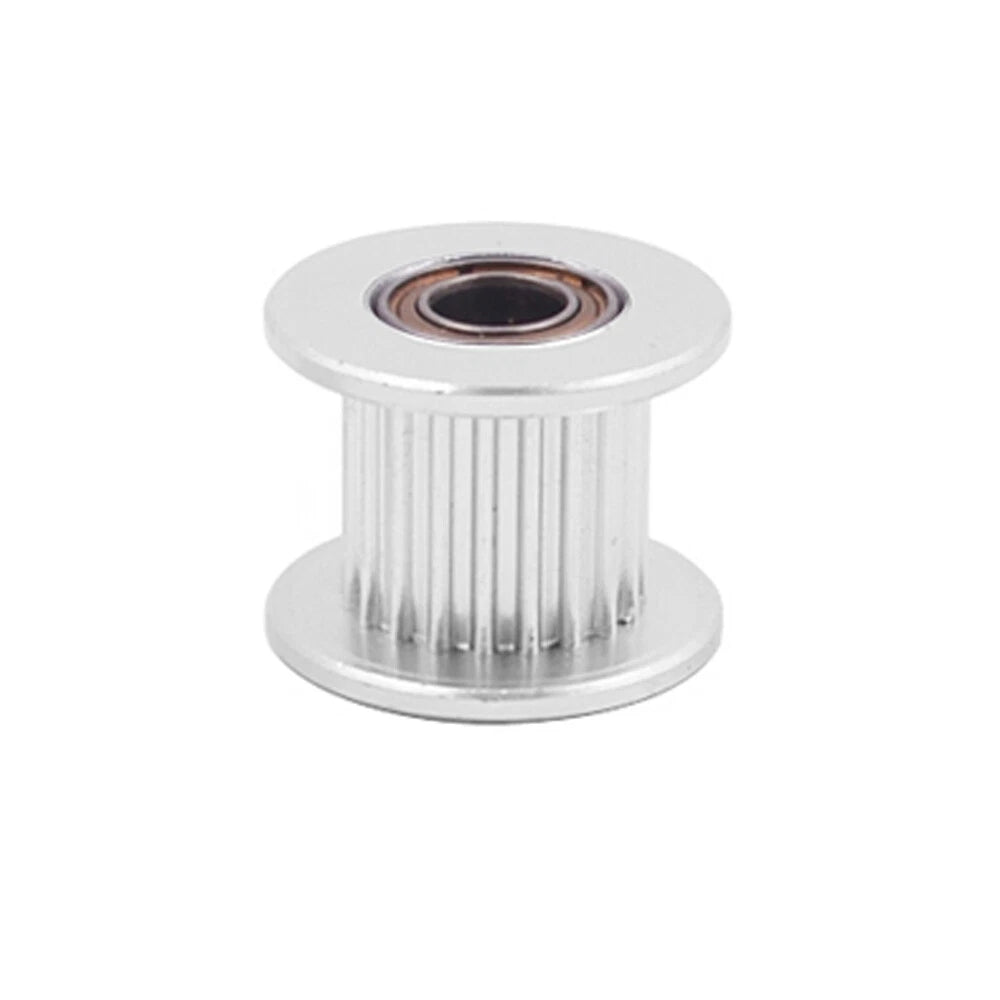

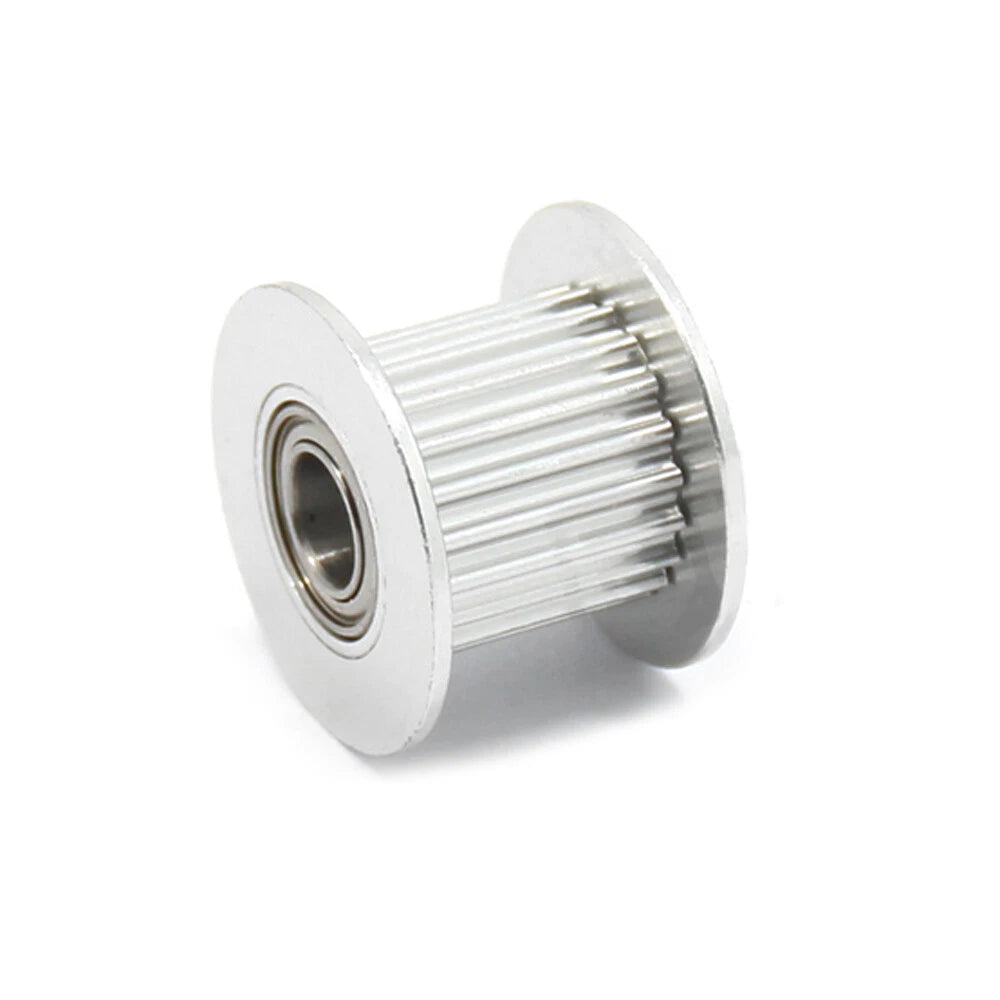

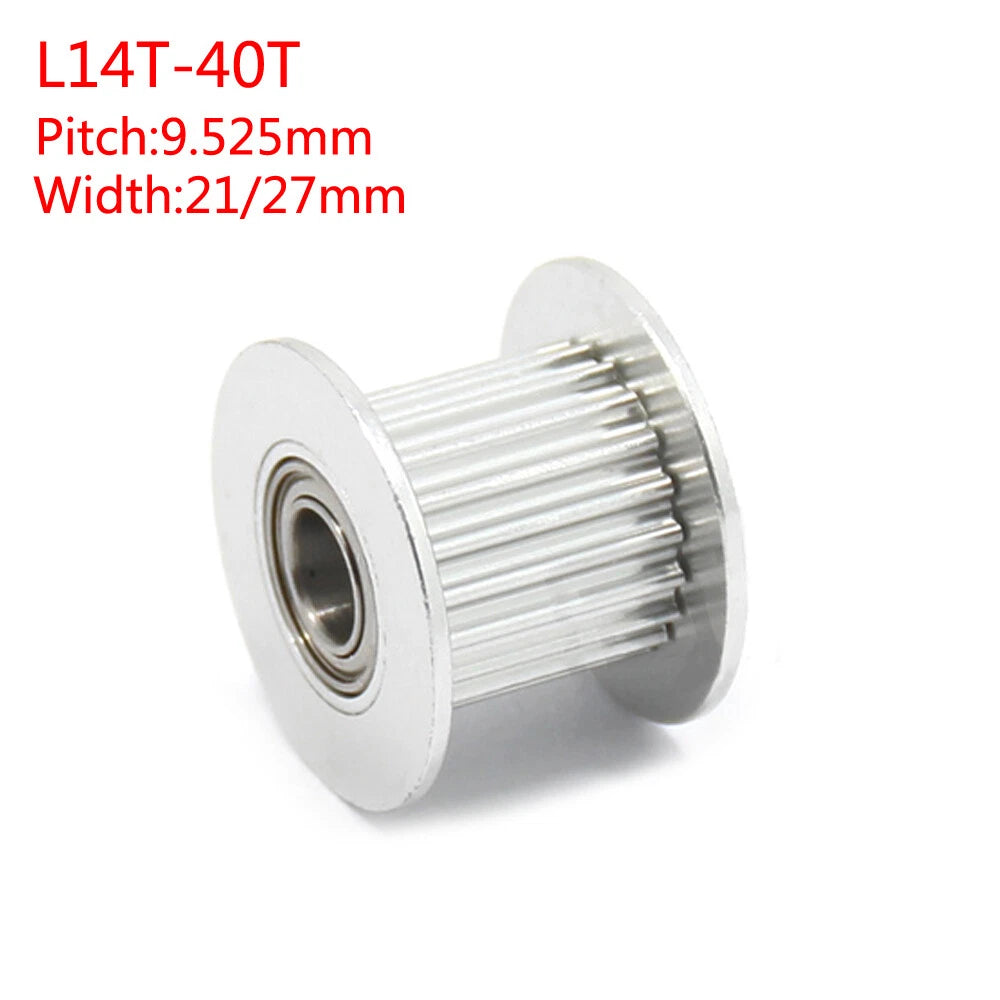

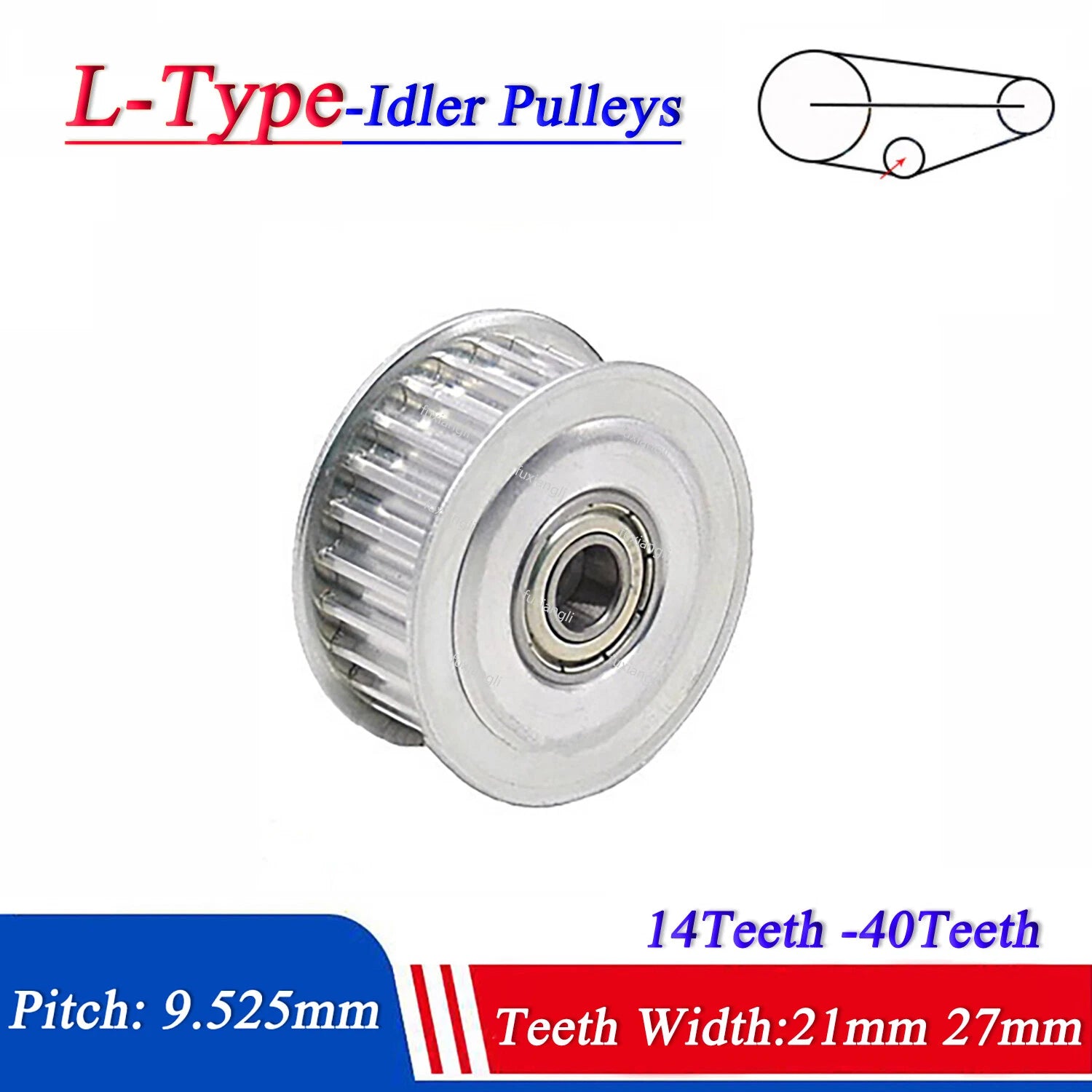

These L-type timing belt idler pulleys are machined to accept L-series belts with a 9.525 mm (0.375 in) pitch. The toothed profile engages the belt teeth directly, preventing slippage under tension. Available in teeth counts from L14T to L40T and teeth widths of 21 mm (~0.83 in) or 27 mm (~1.06 in), with bore options ranging from 5 mm to 30 mm to suit a wide range of shaft sizes.
Typical applications include CNC router tensioner setups, 3D printer belt idler replacements, conveyor drive tensioning systems, and custom robotic arm timing belt assemblies — anywhere a reliable L-belt toothed idler pulley is needed to maintain consistent belt tension.
| Belt Type | L-Series (L-Type) Timing Belt |
|---|---|
| Belt Pitch | 9.525 mm (0.375 in) |
| Teeth Width | 21 mm or 27 mm (see variant options) |
| Number of Teeth | L14T / L15T / L16T / L18T / L20T / L22T / L24T / L25T / L28T / L30T / L40T |
| Bore Diameter | 5 / 6 / 7 / 8 / 10 / 12 / 15 / 17 / 20 / 25 / 30 mm (see variant options) |
| Pulley Type | Toothed Idler / Tensioner |
| Material | See variant options |
| Finish / Colour | See variant options |
| Quantity per Order | 1 Piece |
| Product Type | Pulley |
The number of teeth determines the pulley's pitch diameter and affects your drive ratio. A higher tooth count means a larger pulley diameter. Match the tooth count to your existing drive geometry — if you are replacing an existing idler, count the teeth on the original pulley or measure its pitch diameter and cross-reference with standard L-belt pulley tables.
Select the teeth width that matches your belt's width. A 21 mm wide pulley is used with L-series belts up to approximately 21 mm wide, and the 27 mm option suits wider L-belts. Using a pulley narrower than your belt can cause edge wear; using one wider is generally acceptable but confirm your application's clearance requirements.
Measure your shaft diameter with a caliper and select the matching bore. Available bores are 5, 6, 7, 8, 10, 12, 15, 17, 20, 25, and 30 mm. If your shaft diameter falls between listed sizes, a bore slightly larger than the shaft can be used with a keyway or set-screw arrangement — confirm your shaft's exact diameter before ordering.
These toothed idler pulleys are designed for tensioning L-series timing belts in mechanical drive systems. Load capacity depends on the specific teeth count, bore, and the belt tension in your system. For heavy-load or high-speed industrial applications, verify the pulley's rated load against your system's requirements. Contact us to confirm suitability for demanding use cases.
Yes — these pulleys are machined to the standard L-belt pitch of 9.525 mm, making them compatible with any L-series timing belt of the matching width. Confirm that your belt's tooth profile is the standard L-type (trapezoidal) and that the belt width matches your chosen pulley width (21 mm or 27 mm).
Material details are listed in the variant options. If you require a specific material (e.g., aluminium alloy or steel) for corrosion resistance or weight considerations, please check the variant description or contact us to confirm before purchasing.
Yes, provided your machine uses an L-series timing belt with 9.525 mm pitch. Measure the original pulley's tooth count, bore diameter, and belt width, then select the matching variant. These are commonly used as CNC router belt tensioner replacements and 3D printer idler pulley upgrades where L-belt drive systems are fitted.
