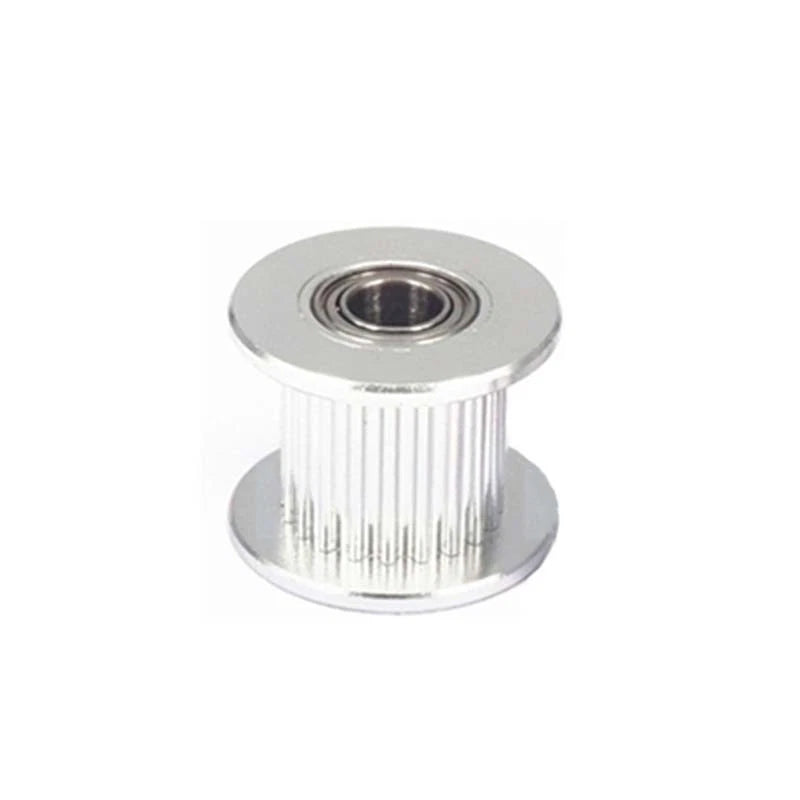

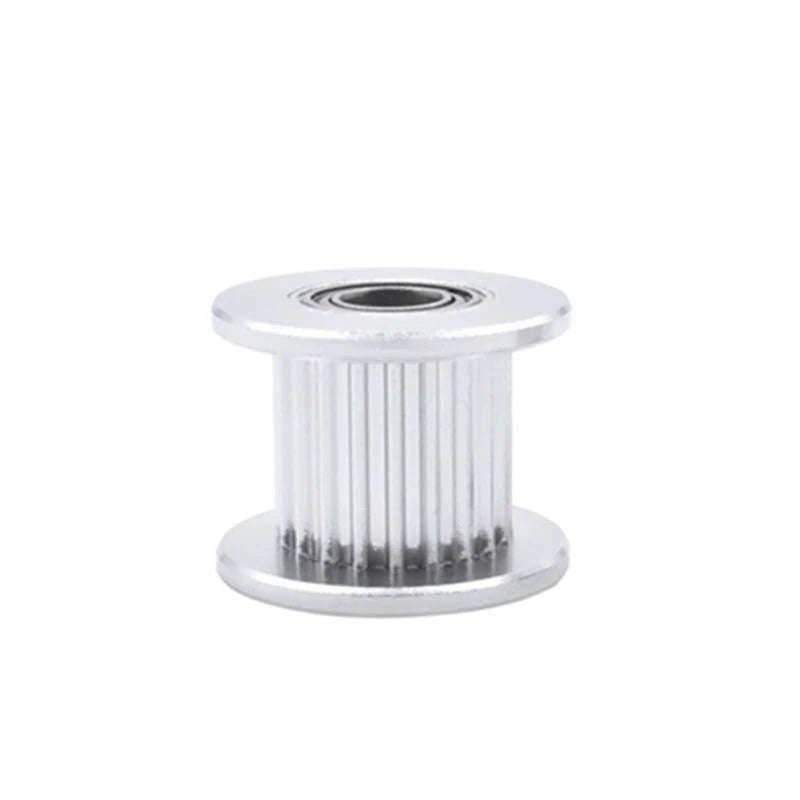

When your CNC router skips steps or your 3D printer loses positional accuracy, the culprit is often a mismatched or worn timing pulley. Engineers, makers, and automation builders who demand repeatable, backlash-free motion need a synchronous pulley they can rely on. These L-type timing pulleys are engineered for exactly that — delivering consistent tooth engagement across every cycle.

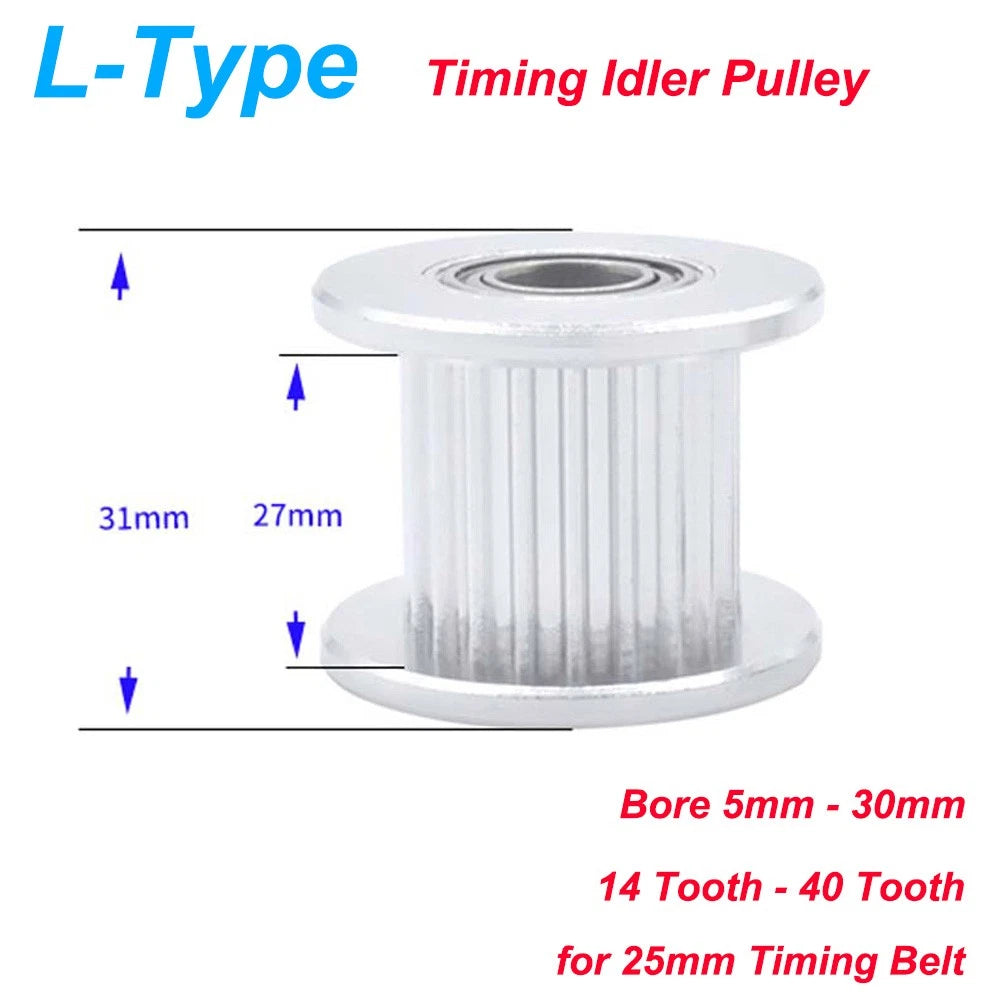

Each pulley is machined from aluminum alloy with an anodized finish for corrosion resistance and long service life. The tooth profile conforms to the L-pitch (9.525 mm / 0.375 in) standard, with a fixed tooth width of 27 mm (1.06 in). Tooth counts range from 14T to 40T, and bore diameters span 5 mm to 30 mm (0.20 in – 1.18 in), covering a wide range of shaft sizes. All variants are designed to mate with standard 25 mm wide L-type synchronous belts.
Typical use cases include CNC milling machine axis drives requiring low-backlash linear motion, FDM 3D printer extruder and gantry systems needing precise filament feed, and light industrial conveyor or robotic arm joints where synchronous torque transfer is critical. Long-tail applications include DIY laser cutter belt drive upgrades, RepRap-style printer X/Y axis replacements, and desktop automation platform builds.
| Pulley Type | L-Type Synchronous Timing Pulley |
|---|---|
| Tooth Count | 14T / 15T / 16T / 18T / 20T / 22T / 24T / 25T / 28T / 30T / 40T |

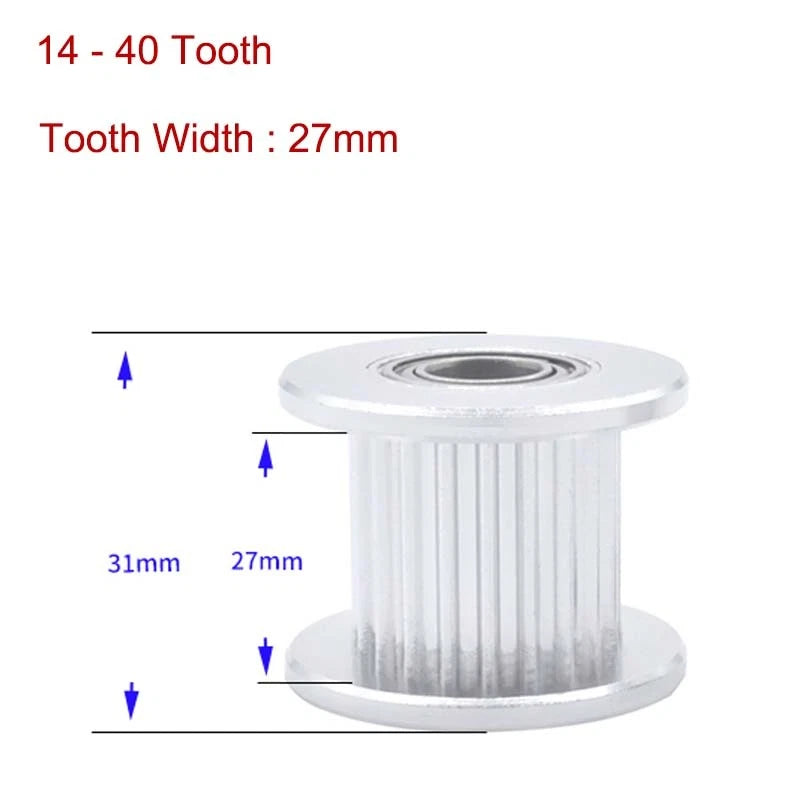

| Tooth Width | 27 mm (1.06 in) |
| Bore Diameter | 5 / 6 / 7 / 8 / 10 / 12 / 15 / 17 / 20 / 25 / 30 mm |
| Belt Pitch | L-Pitch — 9.525 mm (0.375 in) |
| Compatible Belt Width | 25 mm (1 in) L-type synchronous belt |
| Material | Aluminum Alloy |
| Surface Finish | Anodized |
| Outer Diameter | See variant options |
| Flange | See variant options |
| Keyway | See variant options |
| Set Screw | See variant options |
| Quantity per Order | 1 piece |
Select your tooth count based on the drive ratio you need. Divide the driven pulley tooth count by the driving pulley tooth count to get your reduction ratio. For CNC axis drives, 20T–30T pulleys are common on NEMA 17/23 motors. Smaller tooth counts (14T–16T) suit high-speed, lower-torque setups; larger counts (28T–40T) provide more torque at lower output speed.
Measure your motor or idler shaft diameter with calipers before ordering. Common NEMA 17 stepper motor shafts are 5 mm; NEMA 23 shafts are typically 6.35 mm or 8 mm. Choose the bore that matches your shaft exactly — a loose bore will cause slippage and positioning errors. If your shaft size falls between options, contact us to confirm availability.
Yes, provided your belt uses the standard L-pitch (9.525 mm / 0.375 in) tooth profile and is 25 mm (1 in) wide. These pulleys are not compatible with T5, GT2, HTD, or other pitch standards. Always verify both the pitch and width of your belt before ordering.
Aluminum alloy pulleys are well-suited for CNC routers, 3D printers, laser cutters, and light conveyor systems operating at typical hobby and light industrial torque levels. For heavy industrial applications with sustained high torque or shock loads, consider steel pulleys instead. If you are unsure whether aluminum is appropriate for your load, share your torque and speed requirements and we can advise.
Anodizing creates a hard aluminum oxide layer that resists oxidation, mild chemical exposure, and abrasion far better than bare aluminum. These pulleys are suitable for typical indoor workshop environments. They are not rated for continuous immersion or highly corrosive chemical atmospheres — for those conditions, stainless steel or coated steel pulleys would be more appropriate.
The bore is finished to the diameter shown in the variant options. Whether a keyway or set screw is included varies by variant — please check the variant details or contact us to confirm. For most CNC and 3D printer applications, a set screw bore is sufficient. If you require a custom keyway or a bore size not listed, contact us before ordering.
Yes, L-type timing pulleys can function as idlers when mounted on a bearing-supported shaft or bolt. Ensure the bore matches your idler shaft or bolt diameter, and that the bearing is appropriately rated for your belt tension and speed. Flanged idler configurations may require additional hardware not included with the pulley.
