Phillips Pan Head Machine Screws M1.2–M4 — Precision Fasteners for Electronics, Appliances & Light Machinery
Finding the right small-diameter metric screw shouldn't slow down your project. Whether you're reassembling a circuit board, repairing a household appliance, or building out a custom enclosure, stripped or mismatched fasteners waste time and damage components. These Phillips pan head machine screws give precision-focused builders and repair technicians a reliable, corrosion-resistant option across a wide size range.

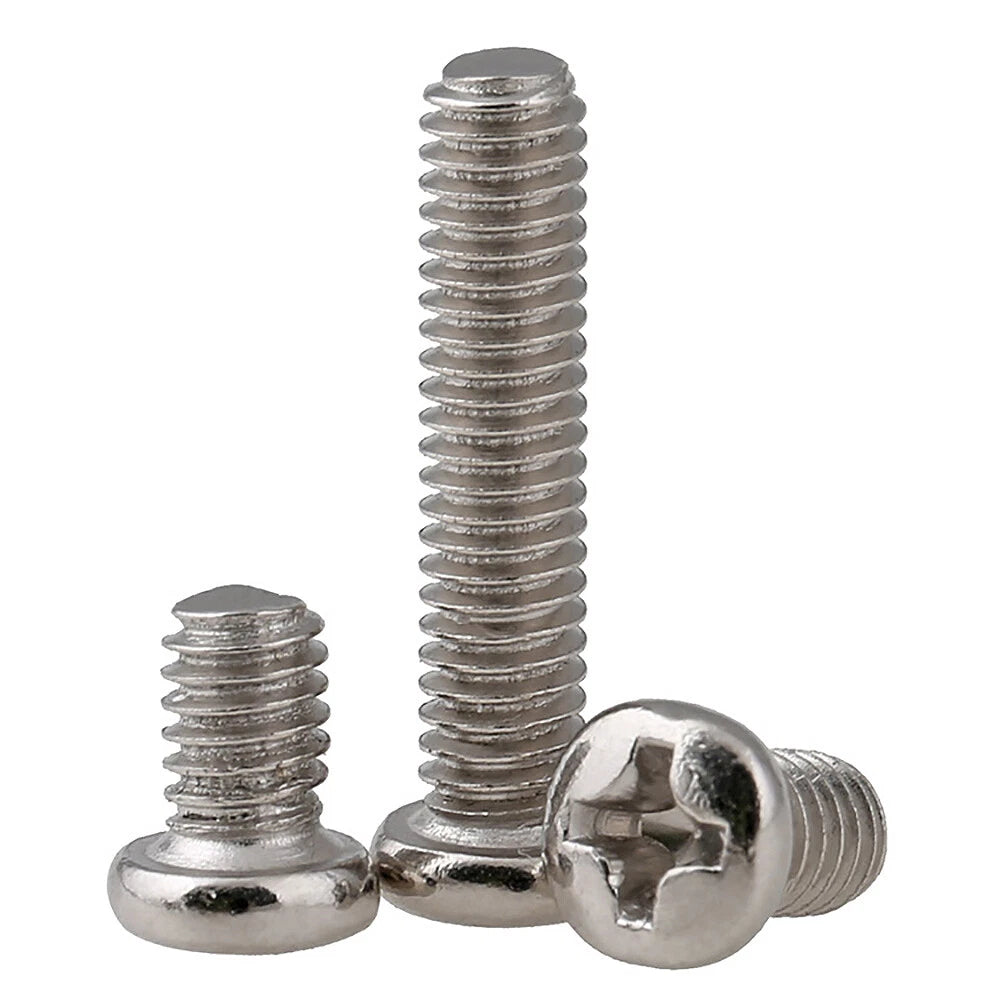

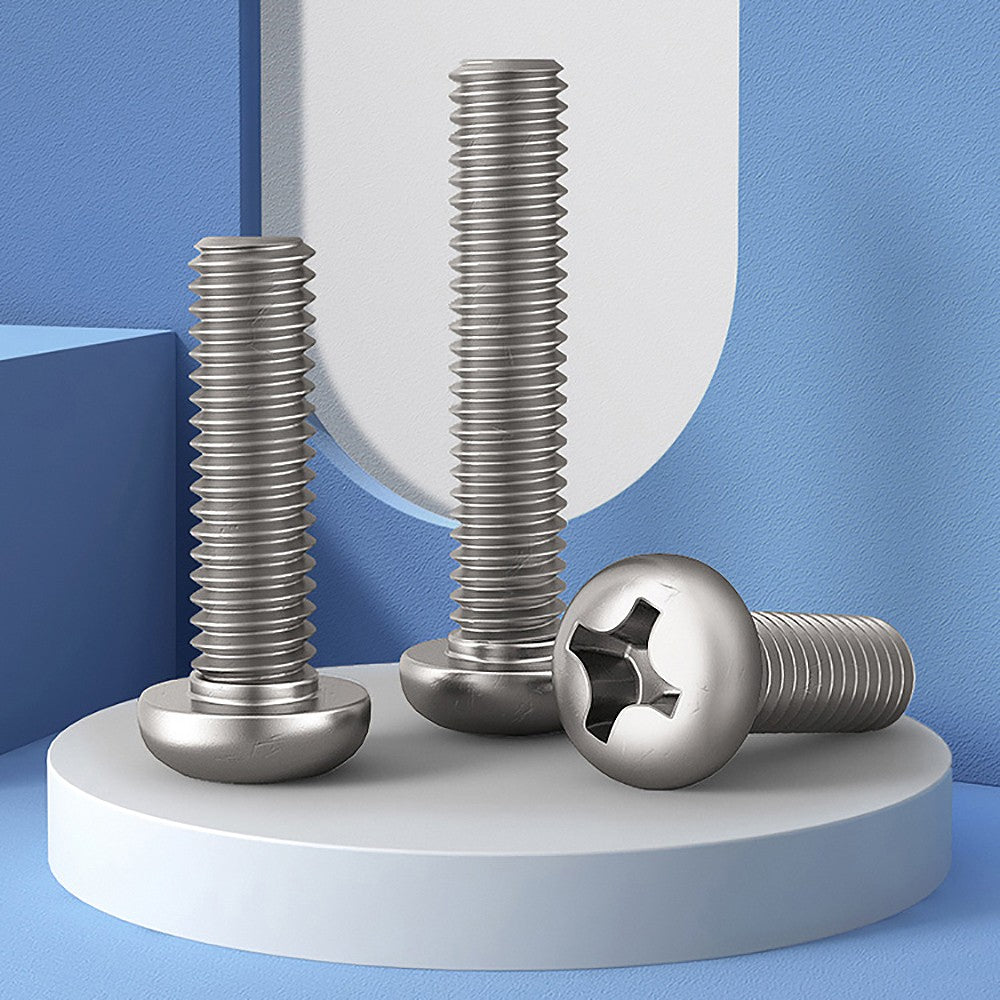

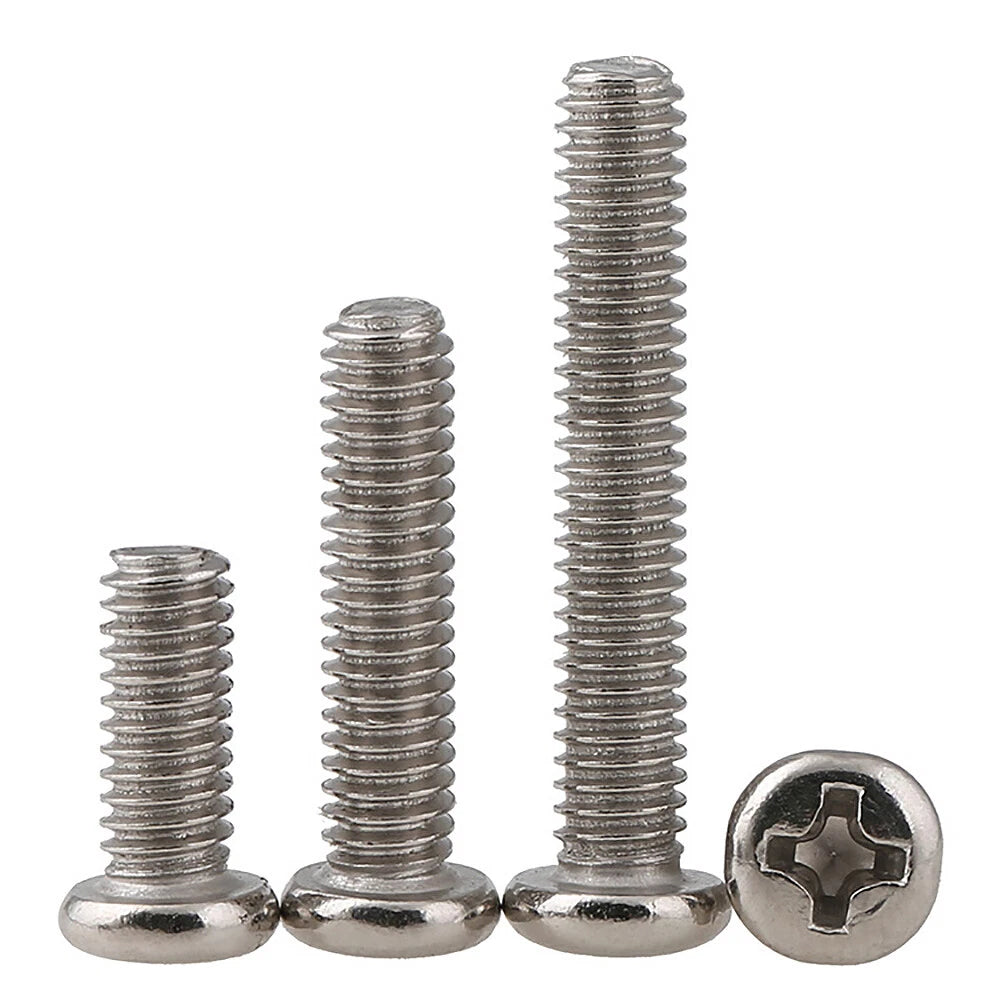

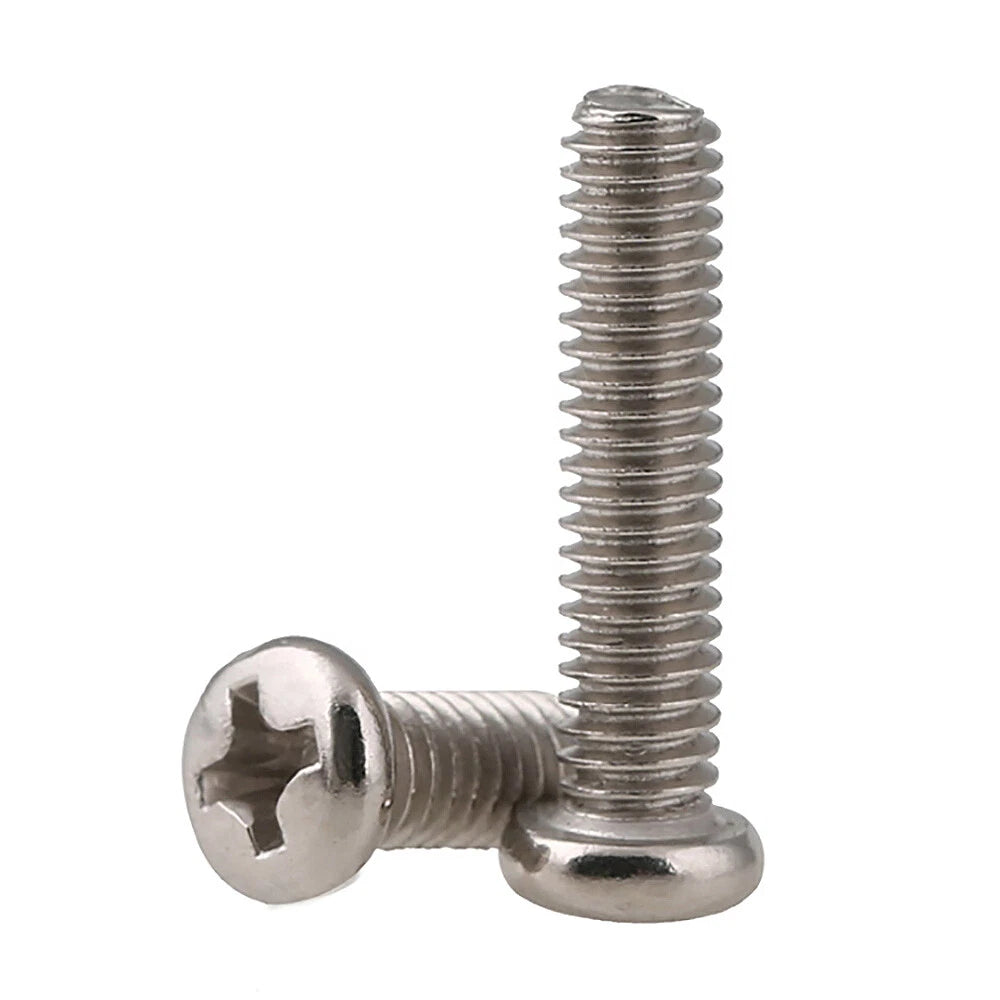

Each screw is manufactured to DIN 7985 standards from A2 stainless steel (304 grade), featuring a domed pan head with a Phillips drive. Thread diameters span M1.2, M1.4, M1.6, M1.7, M2, M2.5, M3, M3.5, and M4, with shaft lengths from 2mm to 12mm (approximately 0.08" to 0.47"). All screws are fully threaded. Available in packs of 10, 20, 50, or 100 to match your project scale.

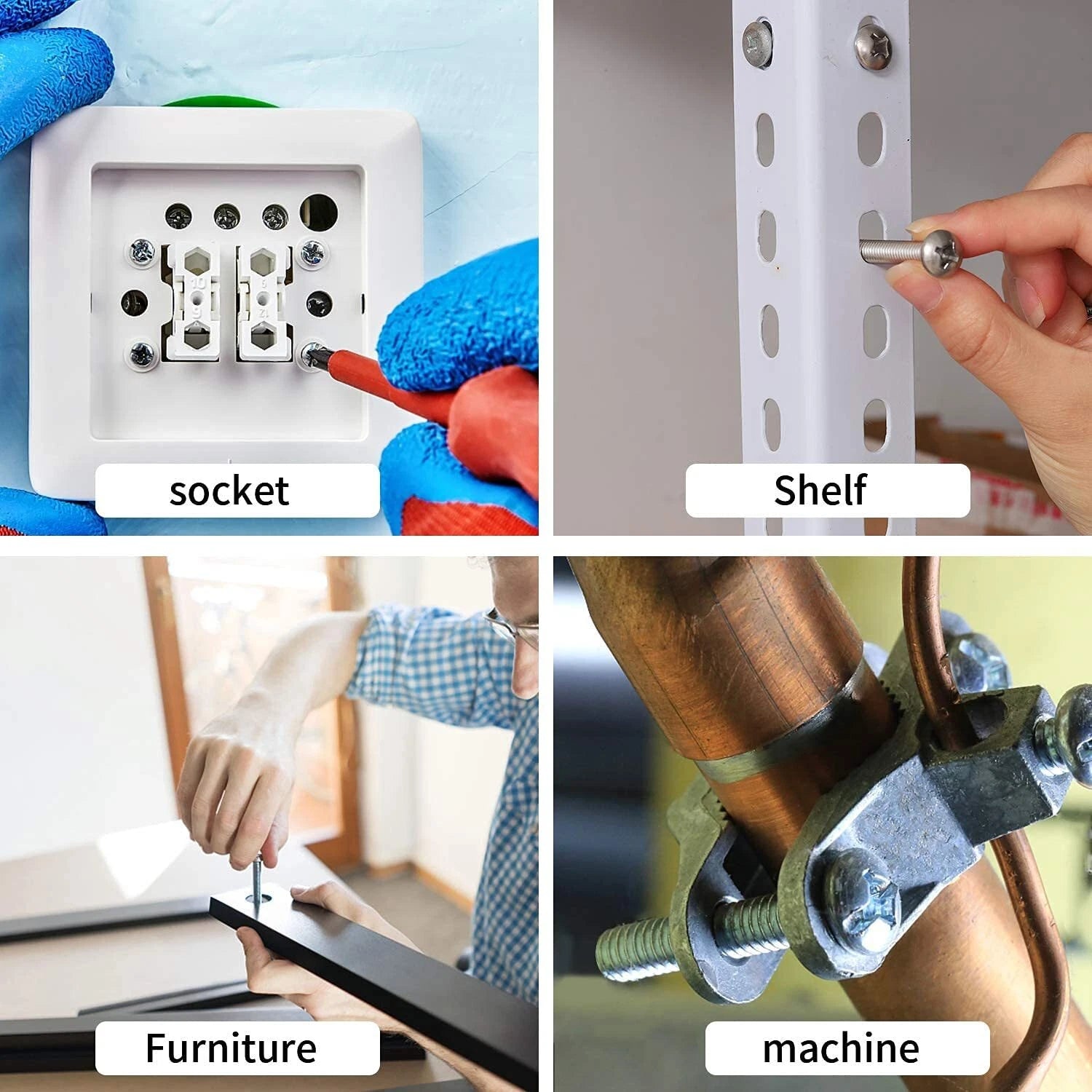

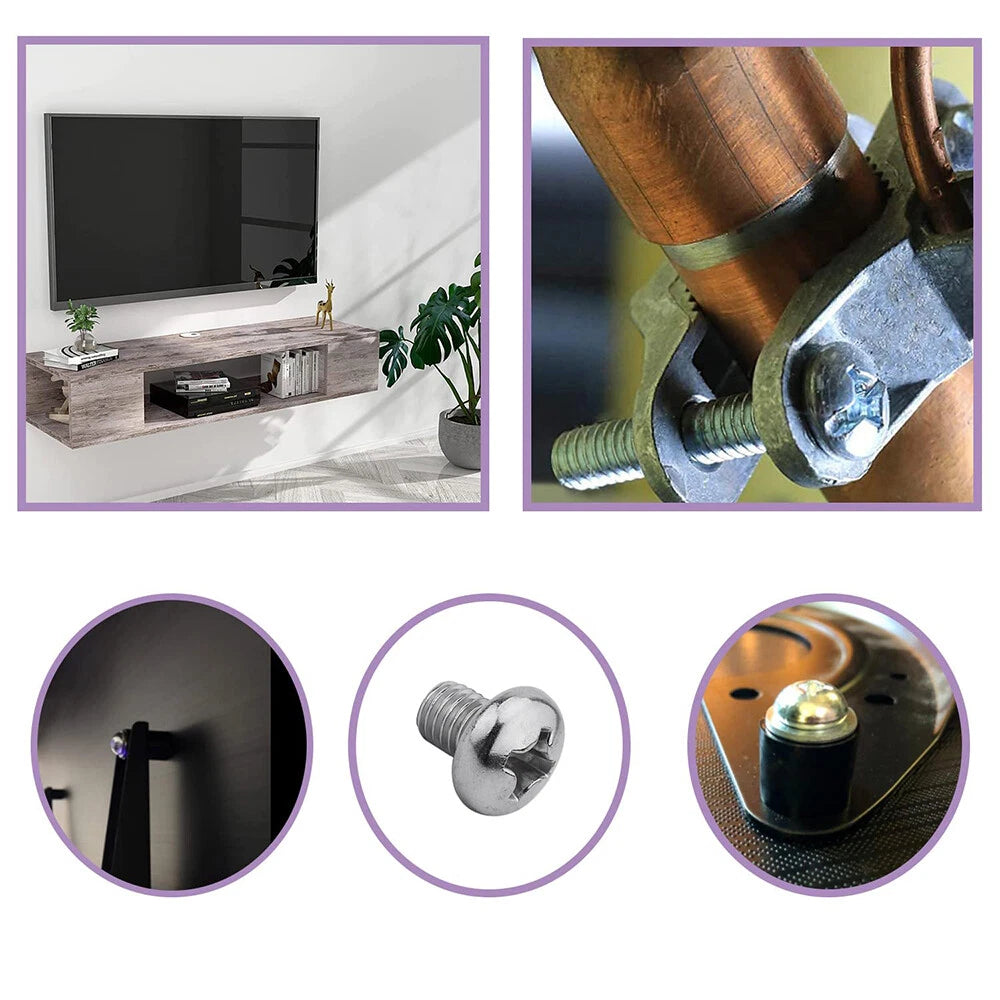

Typical use cases include electronics and PCB assembly, eyewear and camera repair, communication equipment, furniture hardware, motorcycle and automotive trim, and general light-duty machinery. The nickel finish and A2 stainless construction make these screws well-suited for indoor environments and applications requiring moderate corrosion resistance.
🔩
Compatibility: DIN 7985 metric standard — fits standard metric tapped holes. Use a #0 Phillips driver for M1.2–M1.6, #1 for M1.7–M2.5, and #2 for M3–M4.
✅ Key Features of These Phillips Pan Head Machine Screws
-
🔩 A2 Stainless Steel (304 Grade) — Offers solid strength and corrosion resistance for indoor and light-duty applications
-
📐 DIN 7985 Standard — Consistent metric thread pitch and head dimensions across all sizes
-
🔄 Fully Threaded Shaft — Thread runs the full length from tip to head for maximum grip in thin materials
-
🎯 Wide Size Range — M1.2 through M4 diameters, lengths 2mm–12mm, covering precision electronics to general hardware
-
📦 Flexible Pack Quantities — Choose 10, 20, 50, or 100 pieces to match your project or stocking needs
-
🔧 Phillips Drive Head — Domed pan head with cross drive; compatible with standard Phillips screwdrivers

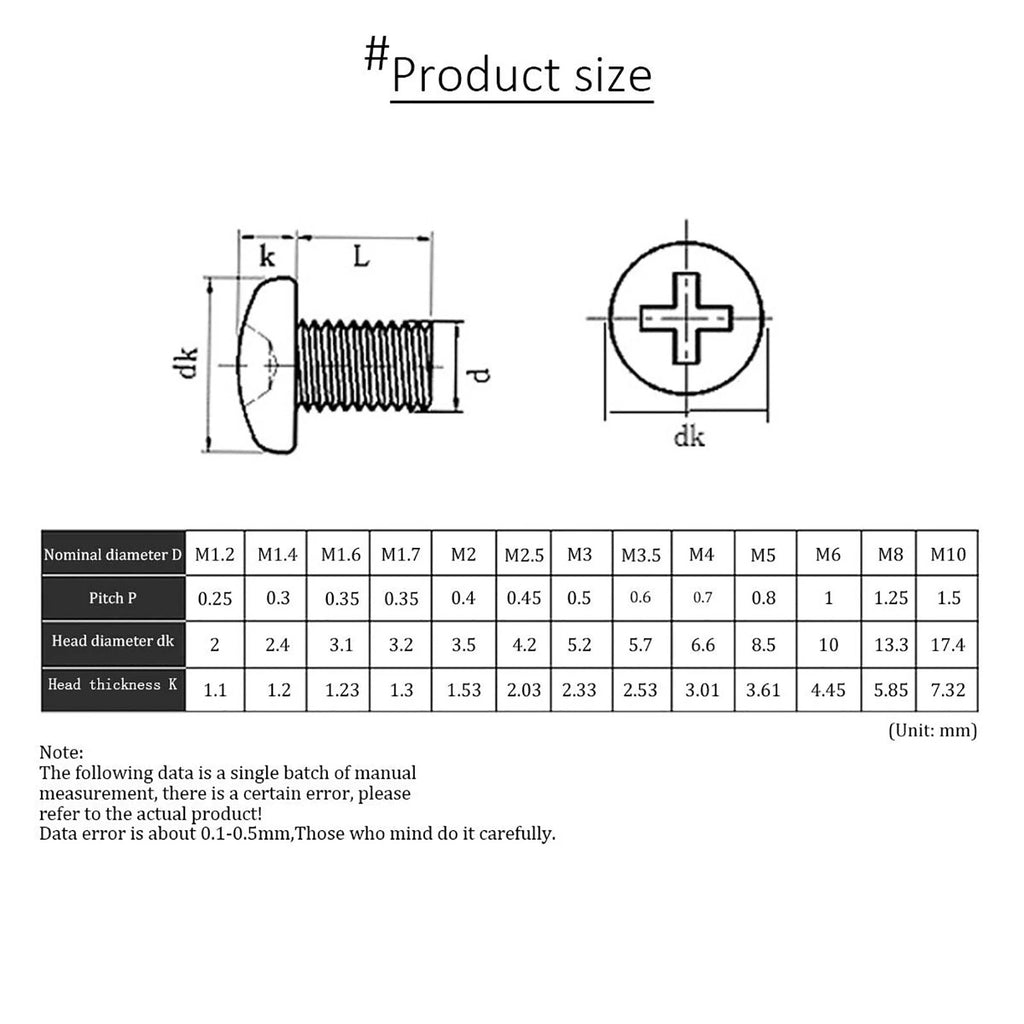

📐 Technical Specifications — Phillips Pan Head Machine Screws DIN 7985
| Standard |
DIN 7985 |
| Material |
A2 Stainless Steel (304 Grade) |
| Finish |
Nickel / Natural Stainless |
| Head Style |
Pan Head (Domed) |
| Drive Type |
Phillips (Cross) |
| Thread Type |
Metric, Fully Threaded |
| Thread Diameters |
M1.2, M1.4, M1.6, M1.7, M2, M2.5, M3, M3.5, M4 |
| Shaft Lengths |
2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm |
| Length Measurement |
Shaft only — does not include head height |
| Pack Quantities |
10 / 20 / 50 / 100 pieces |
| System of Measurement |
Metric |
❓ Frequently Asked Questions
What sizes are available?
Thread diameters range from M1.2 to M4, with shaft lengths from 2mm to 12mm. Select your size and pack quantity from the variant dropdowns above.
What material are these screws made from?
A2 stainless steel (304 grade), which typically provides good corrosion resistance in indoor and light outdoor environments.
Are these screws fully threaded?
Yes — all screws in this listing are fully threaded from tip to head, making them well-suited for thin materials and through-hole applications.
What Phillips driver size do I need?
Generally, use a #0 Phillips for M1.2–M1.6, a #1 for M1.7–M2.5, and a #2 for M3–M4. Always verify fit before applying torque to avoid cam-out.
What standard do these conform to?
DIN 7985 — the metric standard for Phillips pan head machine screws, ensuring consistent thread pitch and head geometry.
What are common applications?
Electronics and PCB assembly, eyewear and camera repair, home appliances, communication equipment, furniture, and light machinery. Smaller sizes (M1.2–M1.7) are particularly suited for precision electronics.
How do I choose the right screw length?
As a general rule, the screw should engage at least 1.5× its diameter in the receiving material. For example, an M3 screw should typically thread at least 4.5mm into the mating part.
Does the listed length include the head?
No. The listed length refers to the shaft only and does not include the head height.
🛒 Select your screw size and pack quantity above, then add to cart.
