🔧 Product Overview: M10 Aluminum Alloy + Stainless Steel Knurled Thumb Screws – Hand Grip Bolts (10–100mm)
For heavy‑duty tool‑less fastening where a large hand grip and strong thread engagement are required, these M10 knurled thumb screws deliver. The head is made from stainless steel with a knurled grip for excellent hand torque, while the threaded shank is precision‑machined from lightweight aluminum alloy 6061 – combining a comfortable non‑slip grip with corrosion resistance and reduced weight. Fully threaded with standard M10 coarse pitch (1.5mm), available in thread lengths from 10mm to 100mm (measured under the head). Ideal for machinery, precision molds, bearing assembly, and industrial equipment where frequent hand adjustments are needed.
✨ Why This Dual‑Material Thumb Screw Design Stands Out
-
Dual‑material construction – Stainless steel knurled head provides a durable, slip‑resistant grip. Aluminum alloy 6061 threaded shank keeps weight low while offering good strength.
-
Knurled head for tool‑less operation – The textured surface gives you a secure, comfortable grip for hand tightening and loosening – no wrench needed.
-
Anodized aluminum shank – The threaded portion is anodized for added corrosion and oxidation resistance.
-
M10 metric thread – fully threaded – Standard coarse pitch (1.5mm). Threads run the entire length for maximum grip and easy nut engagement.
-

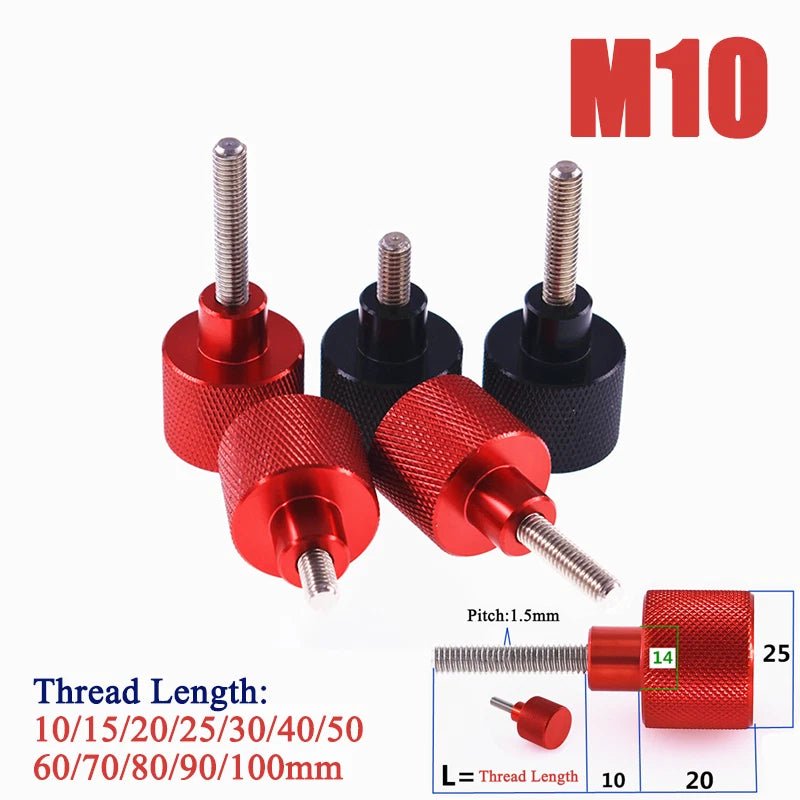

Wide thread length range: 10mm to 100mm – Available in 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100mm. Choose exactly what your application needs.
-
Smooth, burr‑free workmanship – Clean threads and even force distribution. Anti‑corrosion and anti‑rust for long service life.
-
Wide application range – Machinery, precision molds, bearing assembly, industrial equipment, and any heavy‑duty hand‑tightening fastening.
📏 Technical Specifications – M10 Knurled Thumb Screws (Stainless Head + Aluminum Shank)
| Specification |
Details |
| Product Type |
Knurled Thumb Screws (Hand Grip Bolts) |
| Head Material |
Stainless steel (knurled grip) |
| Thread Material |
Aluminum alloy 6061 (anodized) |
| Thread Size |
M10 (metric coarse) |
| Thread Pitch |
1.5mm |
| Thread Length Range (under head) |
10mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm (select from options) |
| Length Measurement |
Under head – from underside of knurled head to tip (head not included) |
| Head Style |
Knurled cylindrical (diamond or straight knurl), stainless steel |
| Drive Style |
Hand grip (toolless) |
| Finish |
Stainless steel head (natural), aluminum shank anodized |
| Tolerance |
±1.0mm |
❓ FAQs – M10 Aluminum & Stainless Thumb Screws
🔸 Why is the threaded shank made of aluminum? Is it strong enough?
Aluminum alloy 6061 is a heat‑treatable alloy with good mechanical strength. For applications where you are hand‑tightening into a threaded metal hole or nut, aluminum is strong enough for most industrial and machinery uses. However, for extremely high torque or load‑bearing applications, a full stainless steel thumb screw would be stronger. The aluminum shank keeps the overall weight lower, which is beneficial for large M10 thumb screws that would otherwise be heavy.
🔸 How is thread length measured for these thumb screws?
Thread length is measured from the underside of the knurled head (where the aluminum shank begins) to the very tip of the thread. The stainless steel head is not included. For example, an M10 x 30mm screw has a 30mm long threaded shank.
🔸 Are these screws fully threaded? What is the thread pitch?
Yes – they are fully threaded from under the head to the tip. The thread pitch is standard M10 coarse: 1.5mm. This ensures compatibility with standard M10 nuts and tapped holes.
🔸 Will the aluminum shank gall or seize when threaded into steel nuts?
Aluminum on steel can gall if installed dry at high speed, but since these are hand‑tightened, the risk is low. For repeated use or high torque, apply a light lubricant or anti‑seize to the threads. The anodized finish on the aluminum also helps reduce friction and galling.
🔸 What are the typical applications for M10 thumb screws?
M10 thumb screws are commonly used in industrial machinery (access panels, tool‑less adjustments), precision molds (mold clamping), bearing assembly fixtures, heavy equipment, and large‑scale 3D printers or CNC machines. They are also suitable for woodworking jigs and heavy‑duty workshop fixtures.
🔸 What thread lengths are available?
We offer thread lengths from 10mm to 100mm in standard increments (10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100mm). Please select your desired length from the dropdown options. If you need a specific length not listed, contact us for custom orders.
