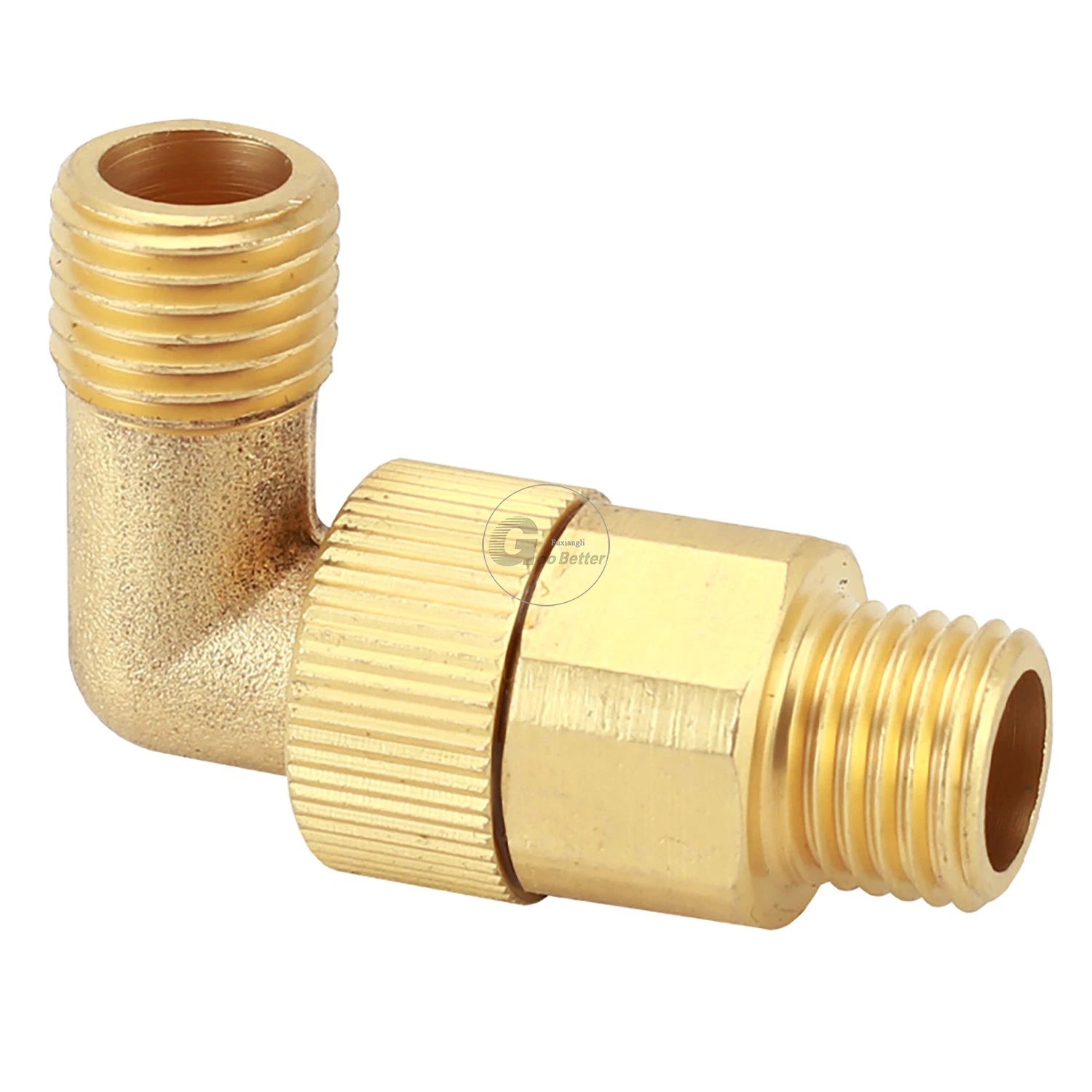

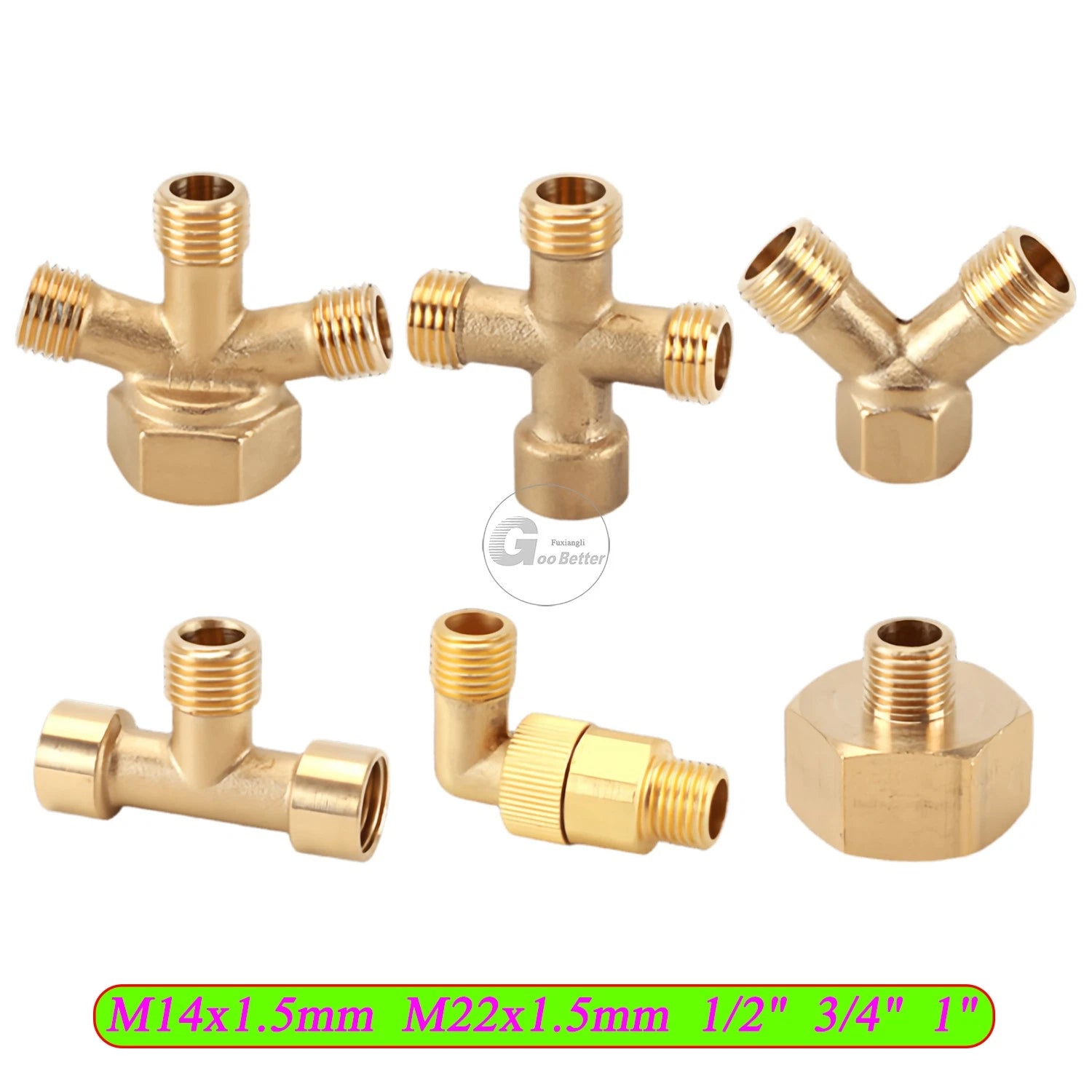

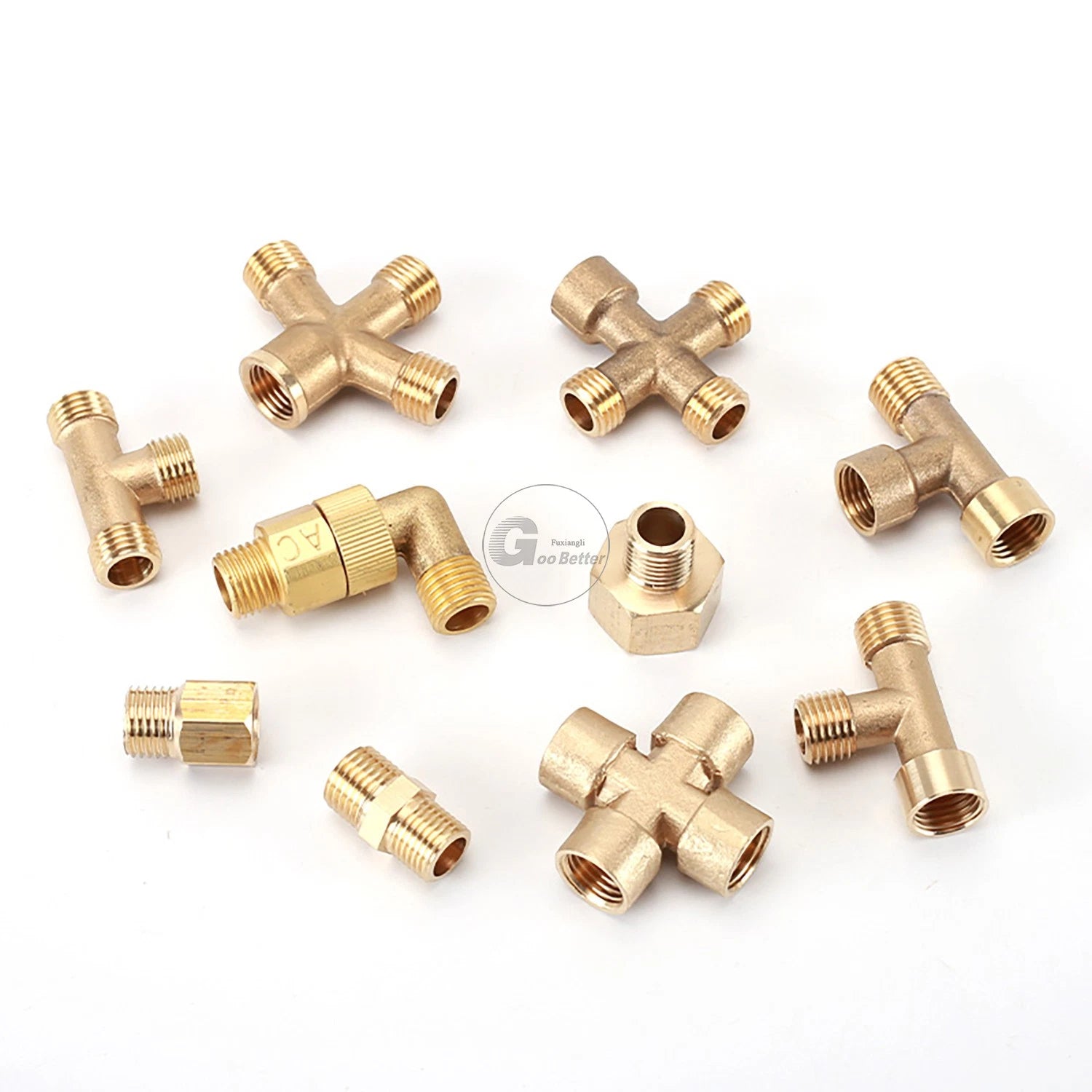

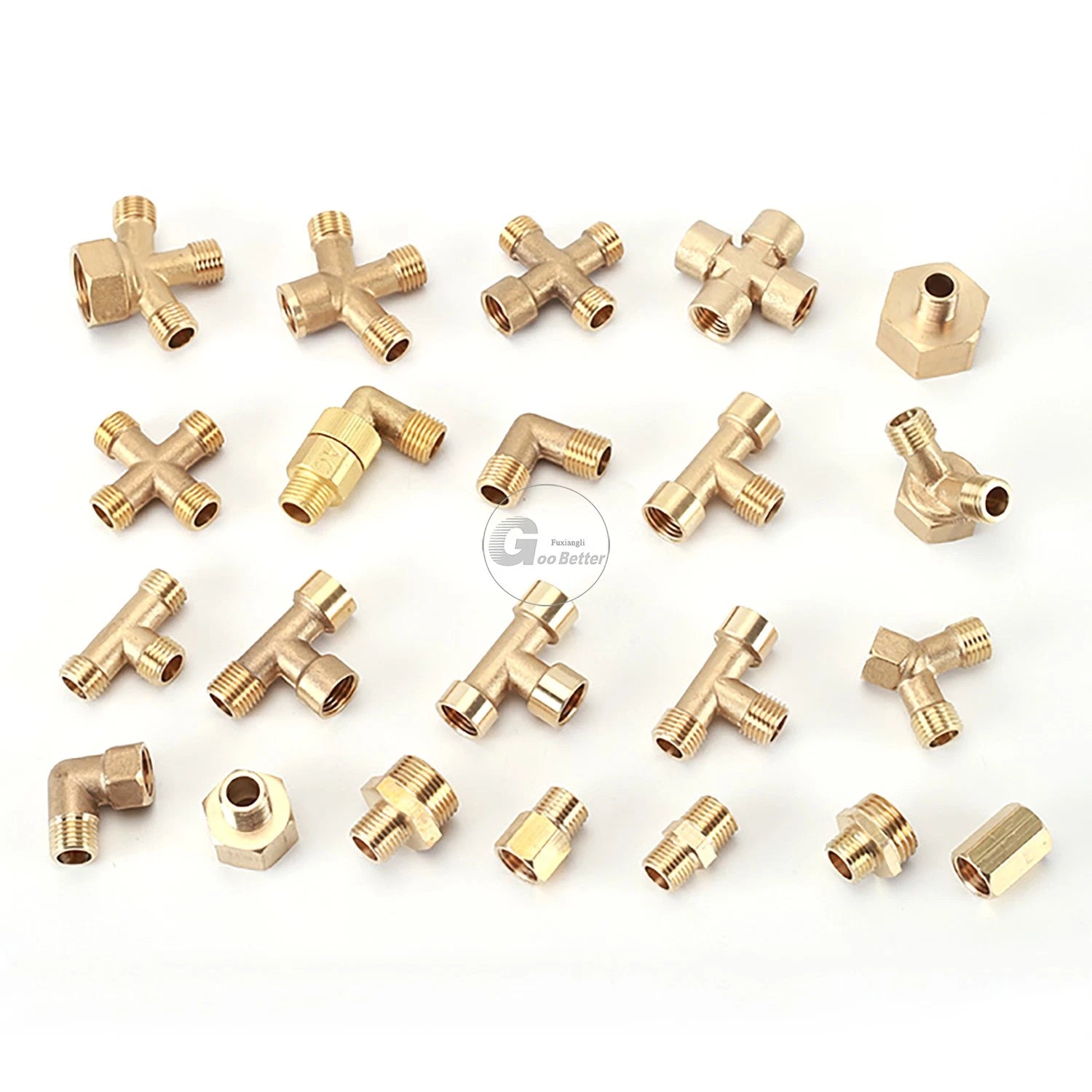

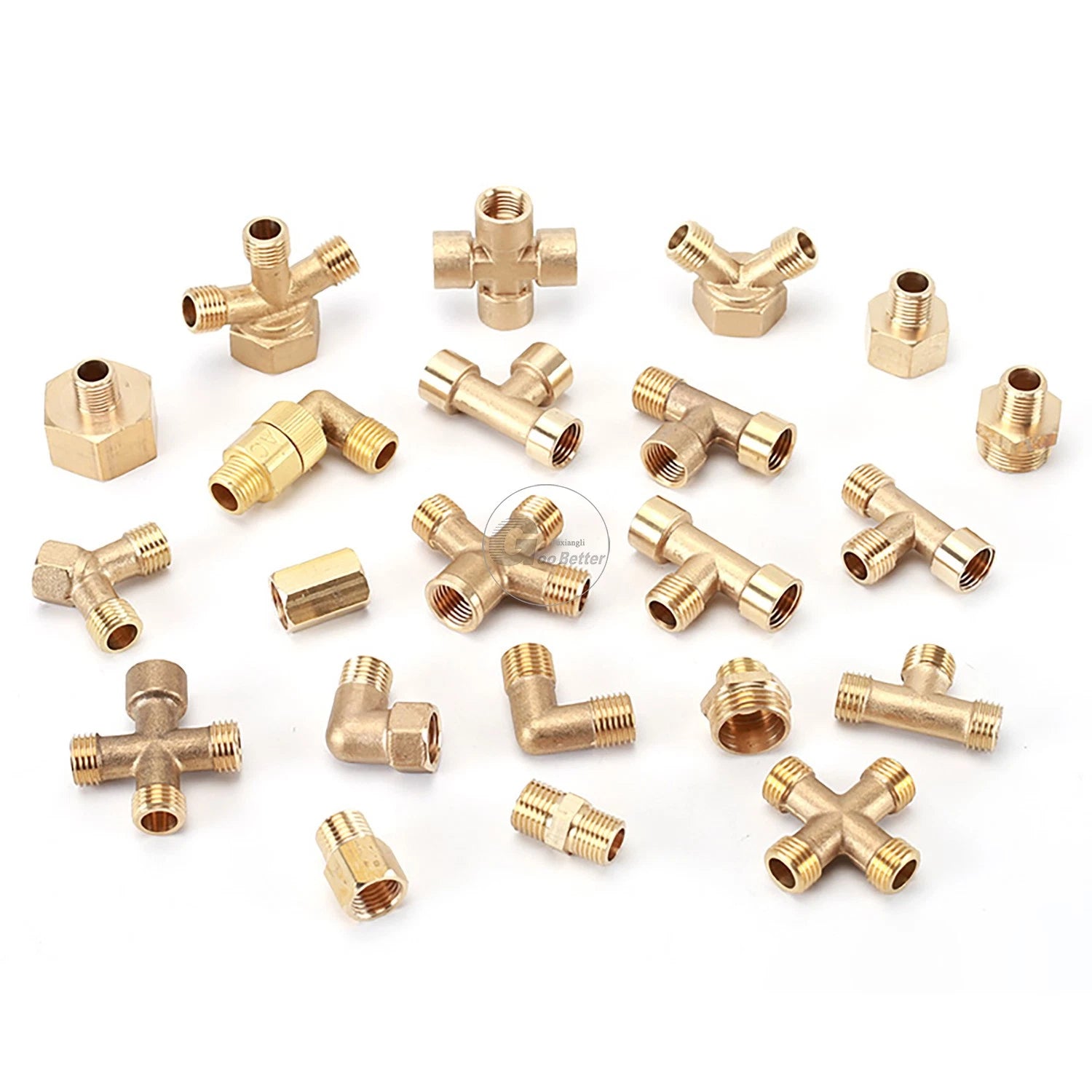

M14x1.5mm M22x1.5mm Brass Fittings — Elbow, Tee, Cross, Y-Piece & Adapter Sprayer Joints

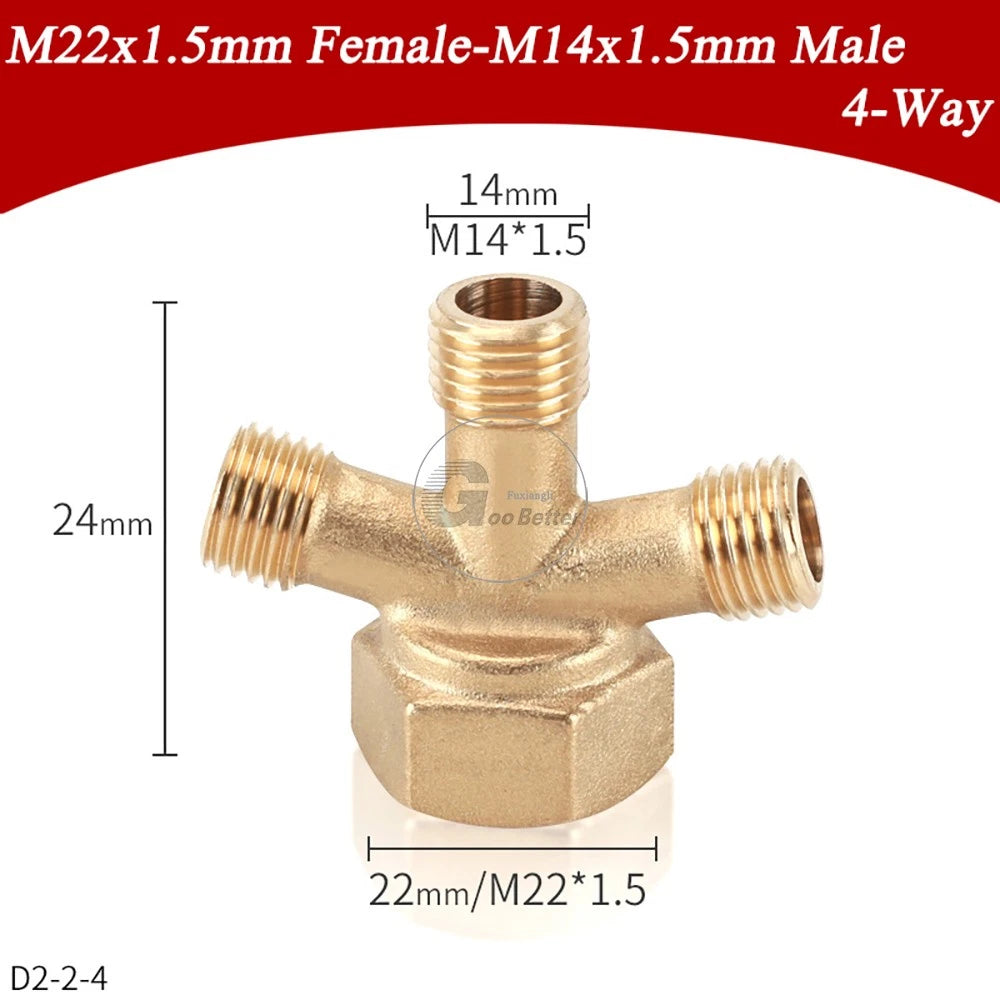

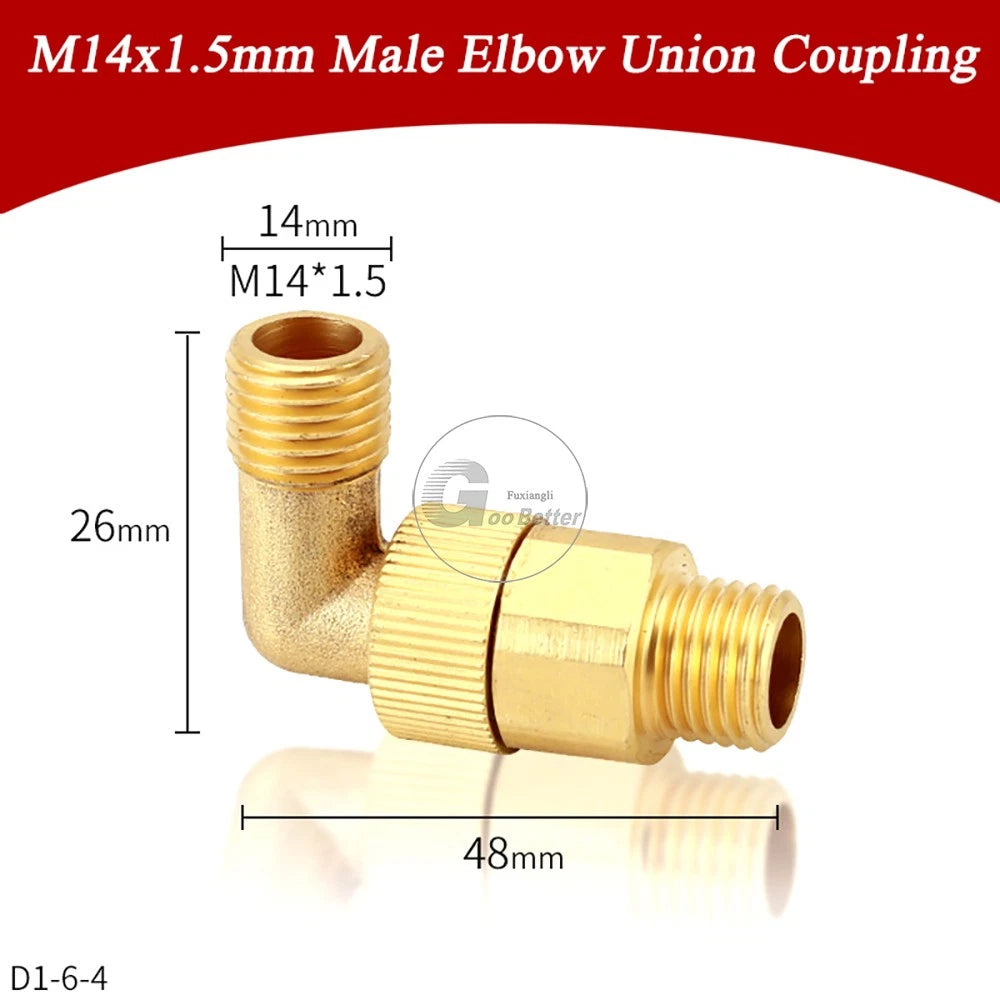

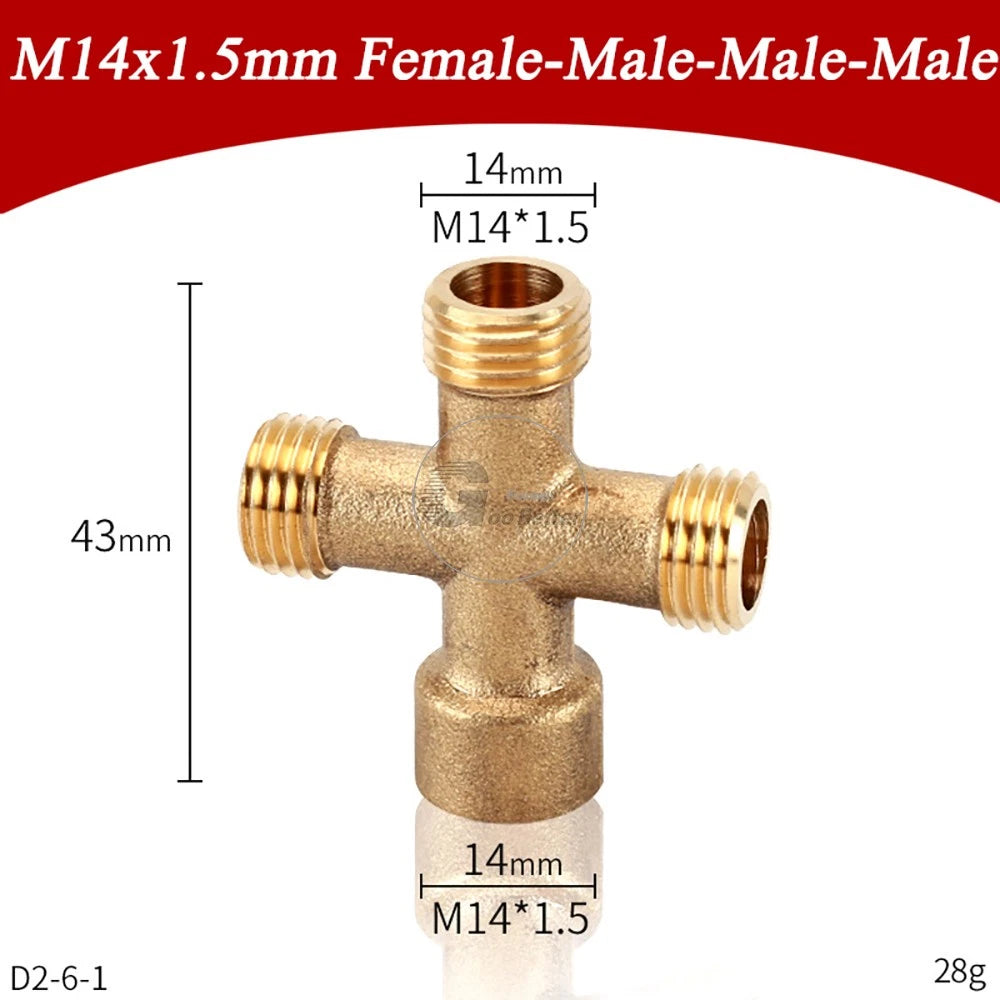

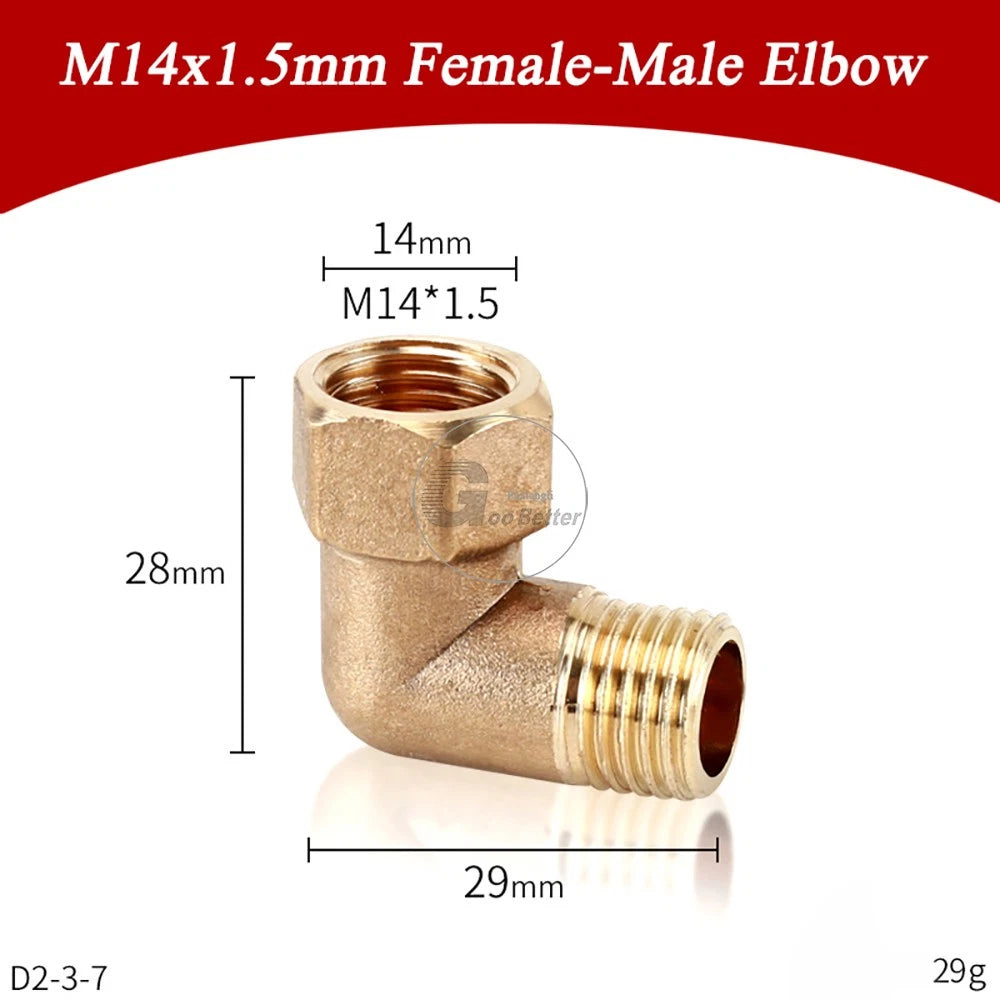

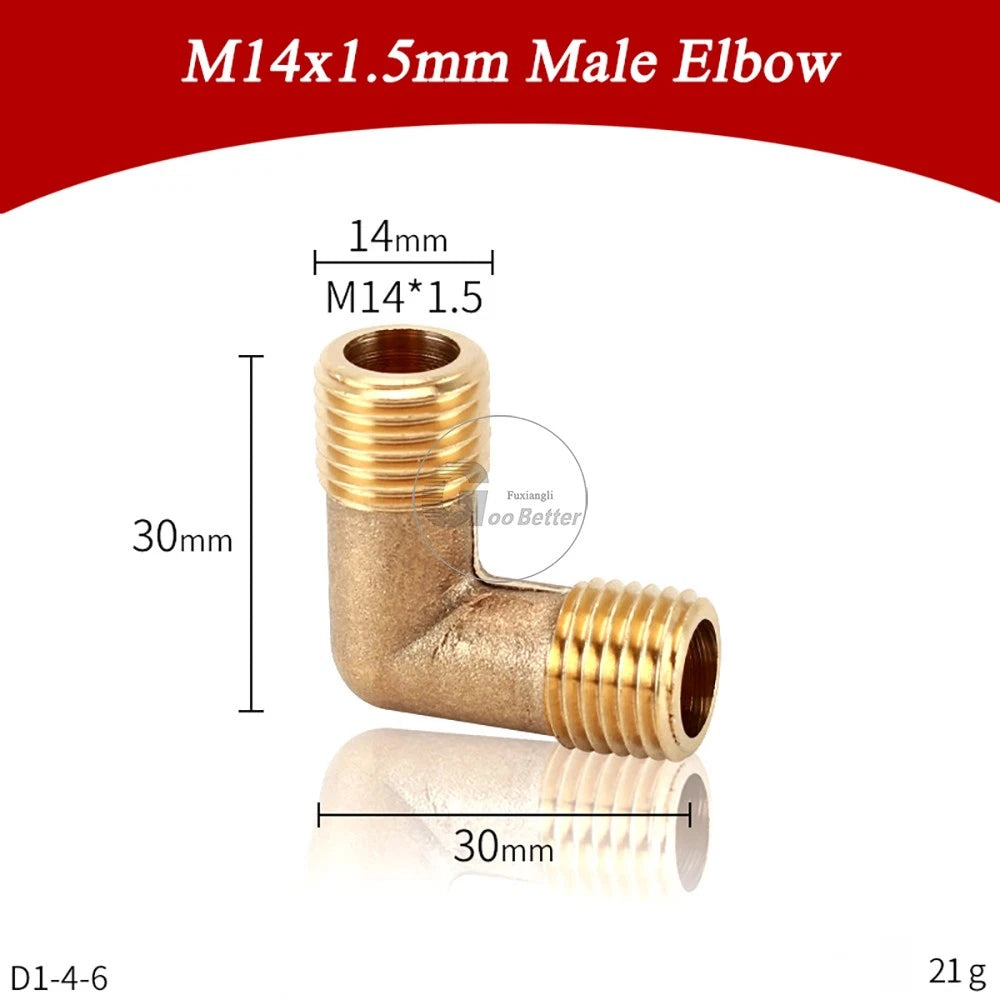

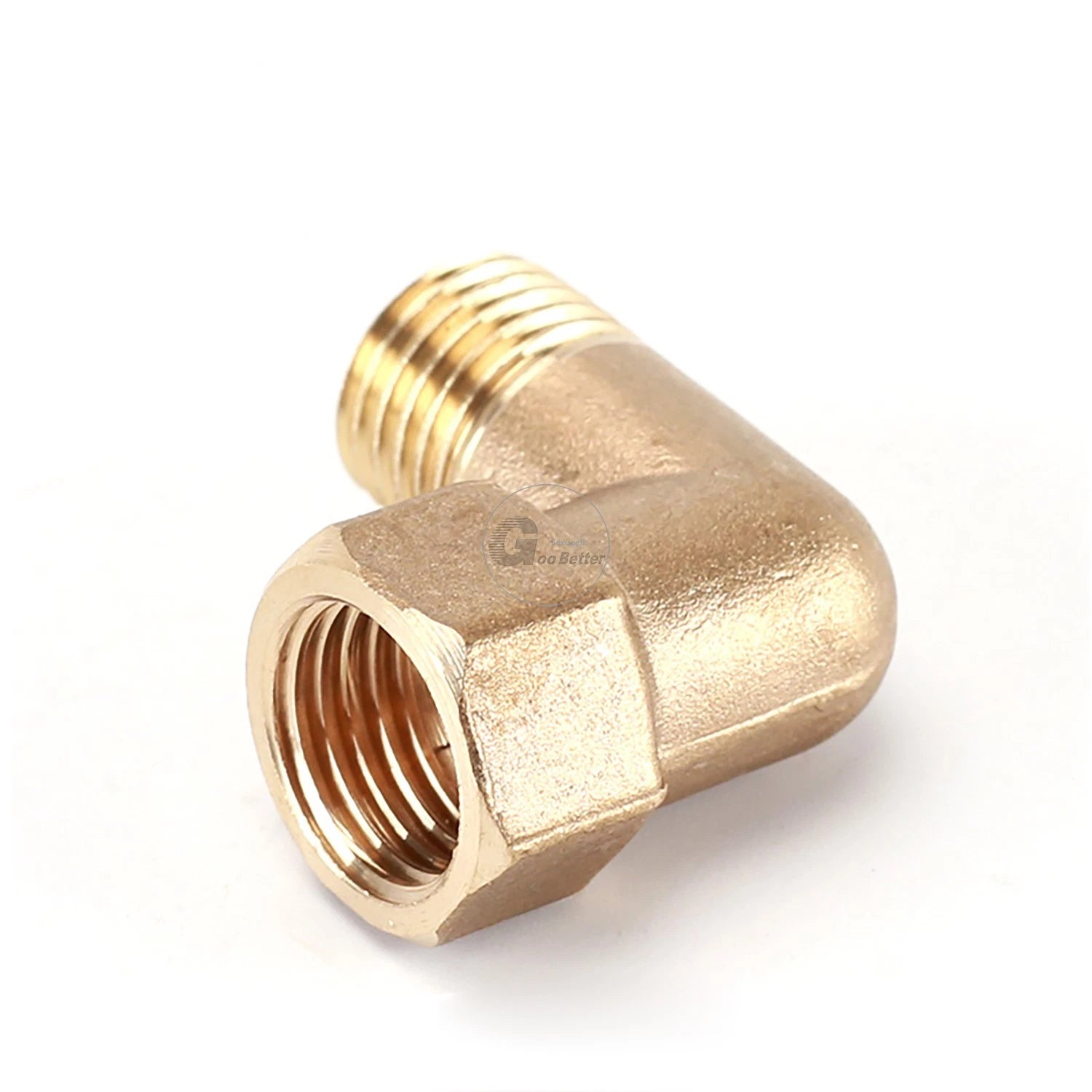

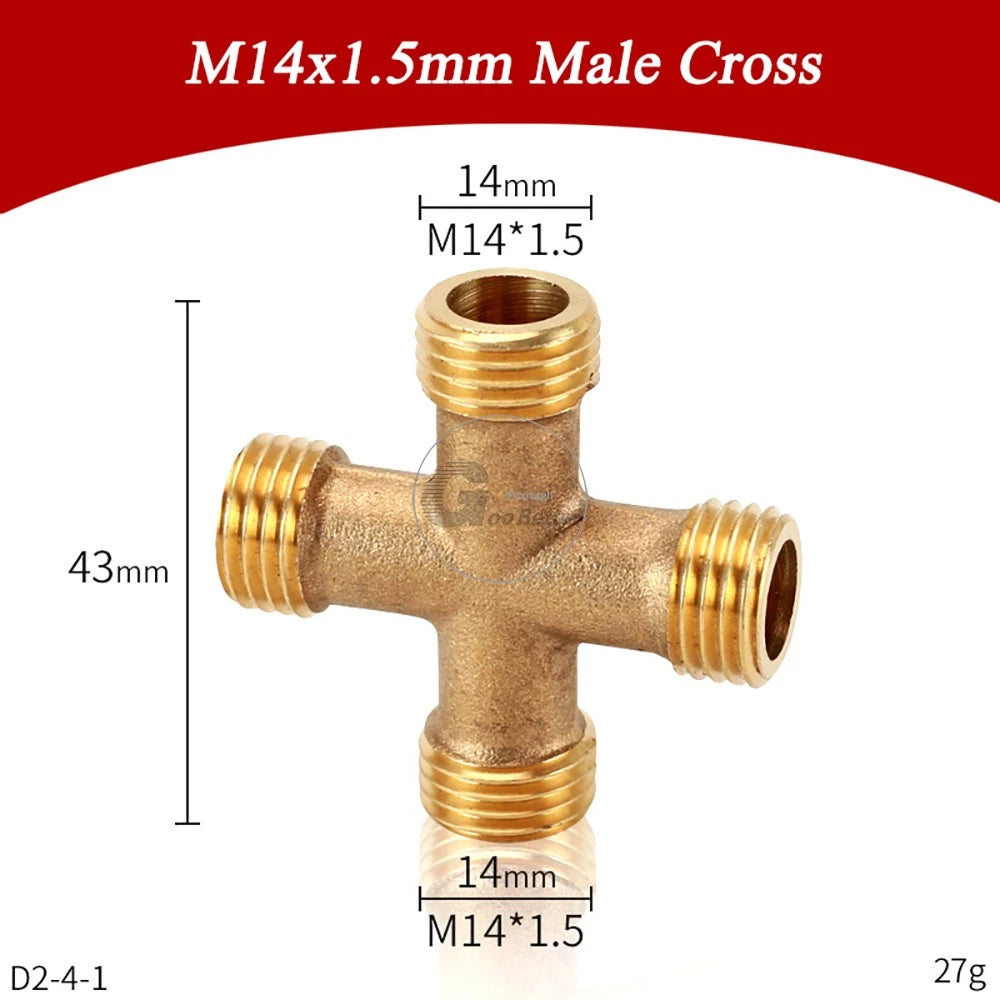

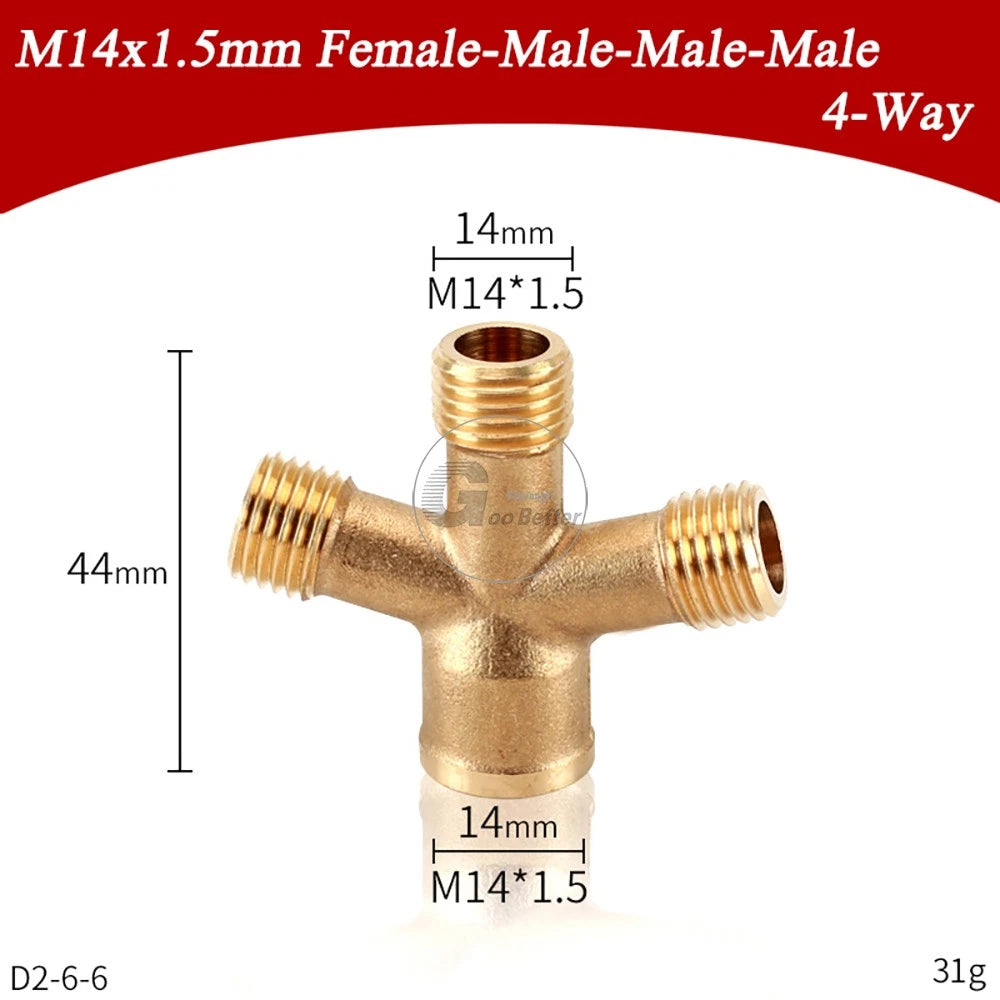

Count the number of ports you need and identify whether each connection is male or female. For a single line split, a Y-piece or T-piece works well. For multi-line distribution, choose a 4-way cross fitting. Elbow fittings are ideal when you need a 90° direction change in tight spaces. Check your existing hose or wand thread — most sprayer wands use M14x1.5mm or M22x1.5mm threads.

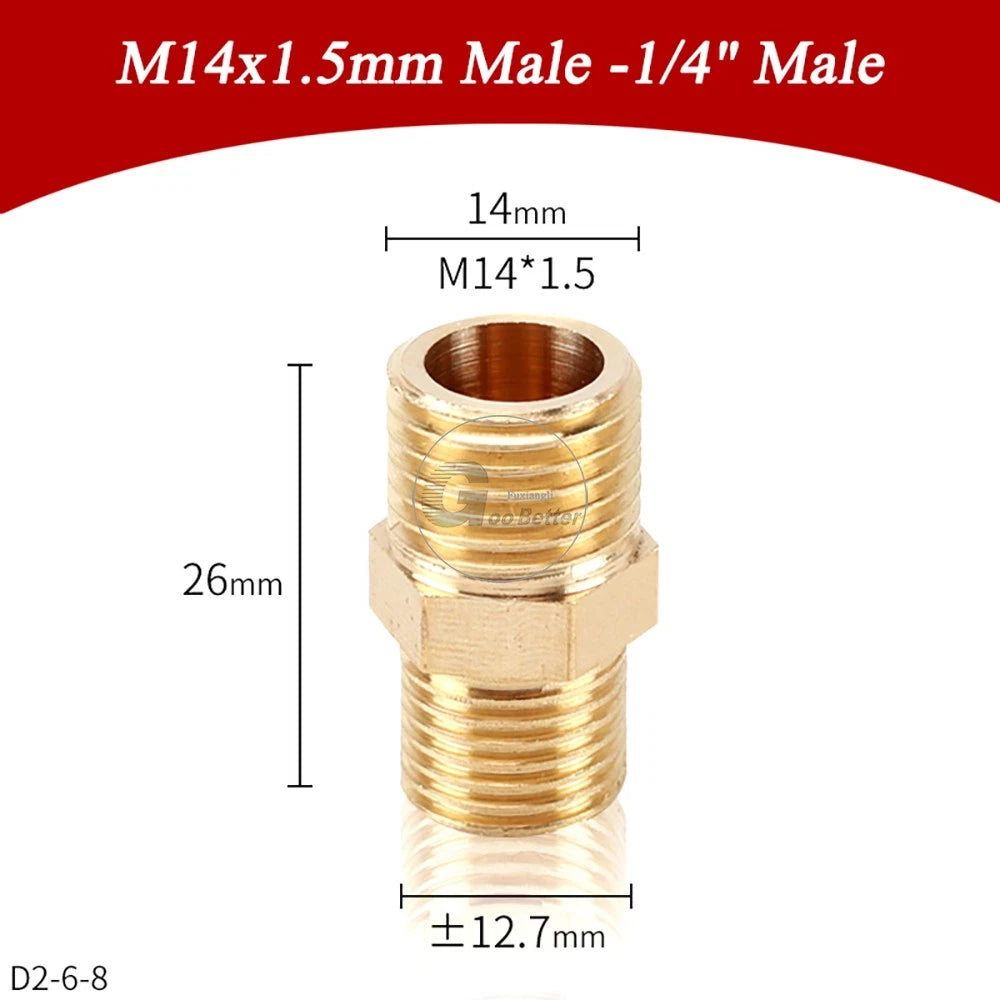

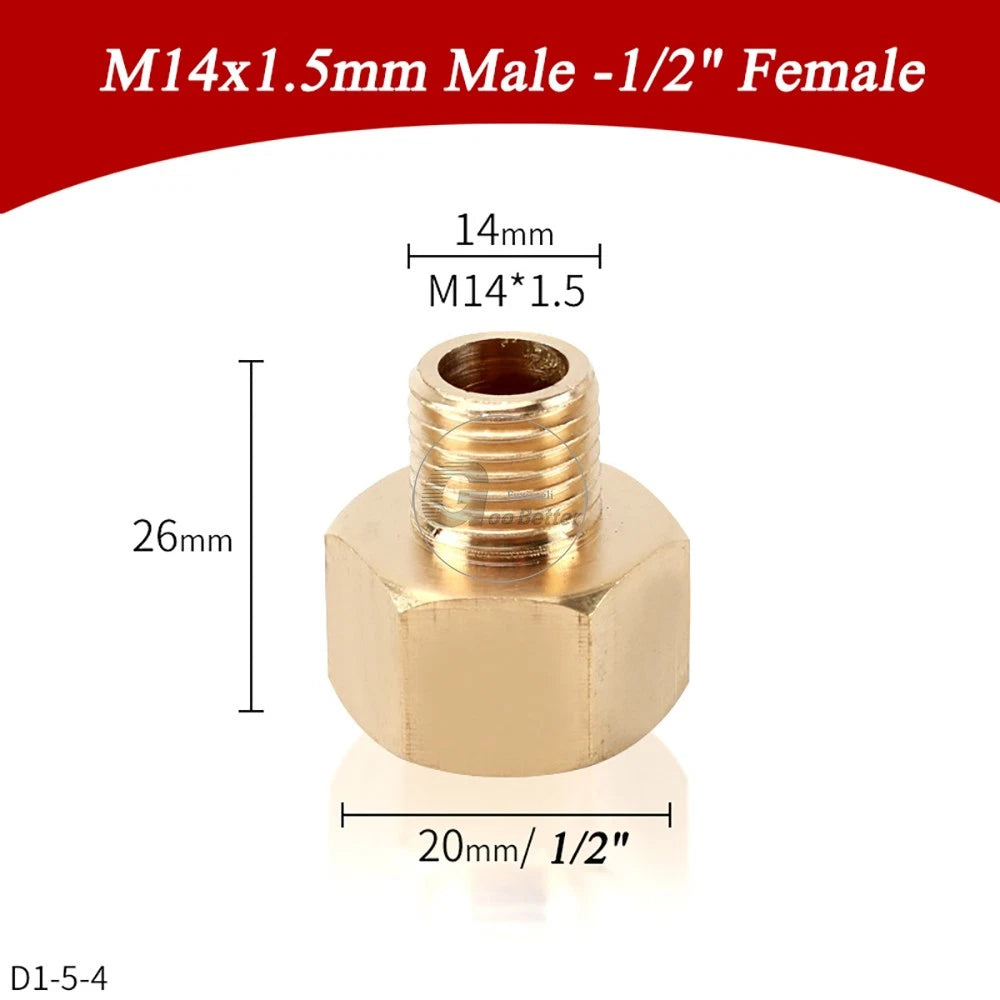

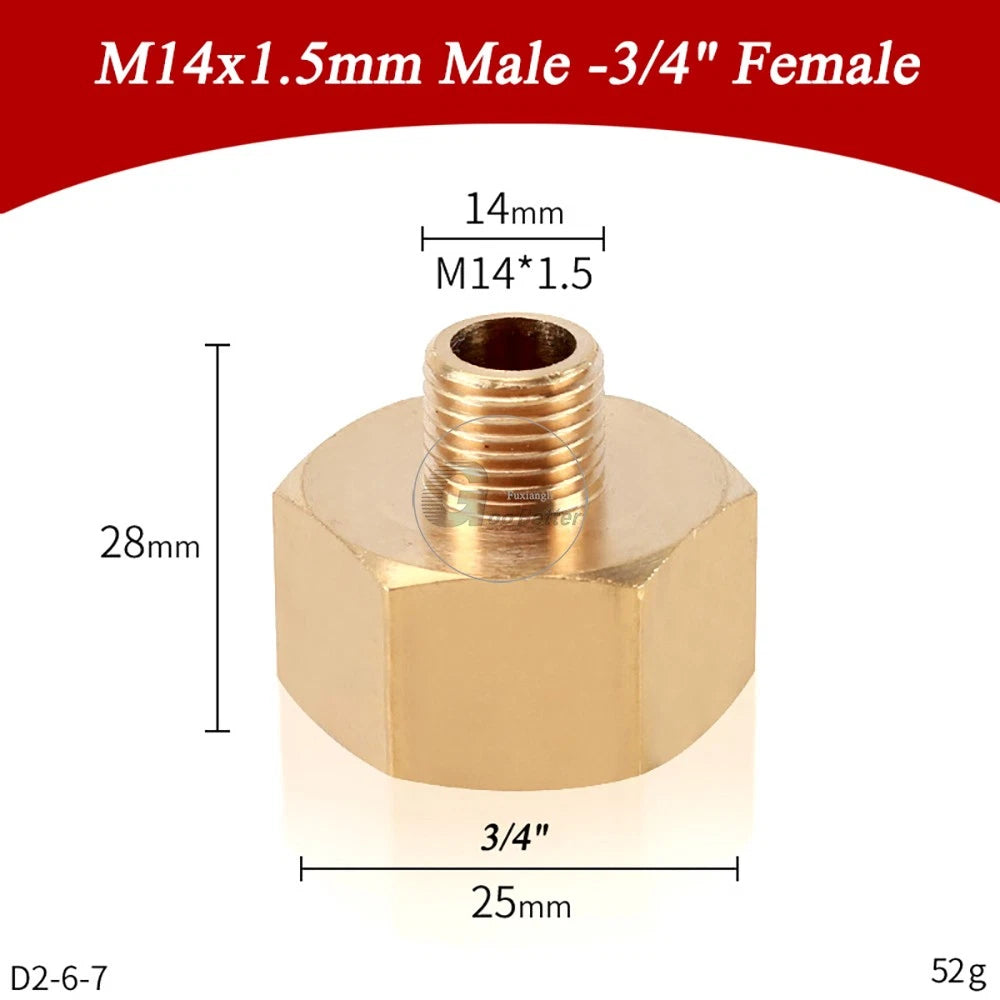

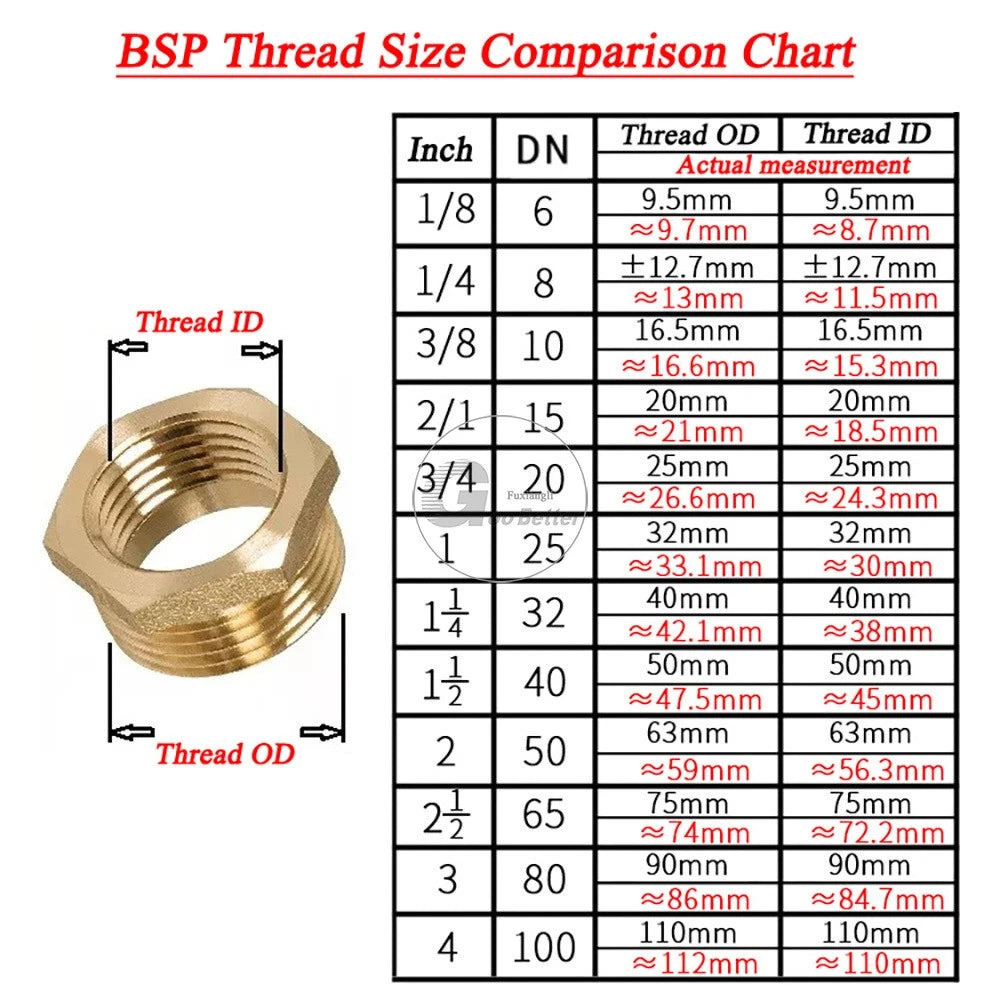

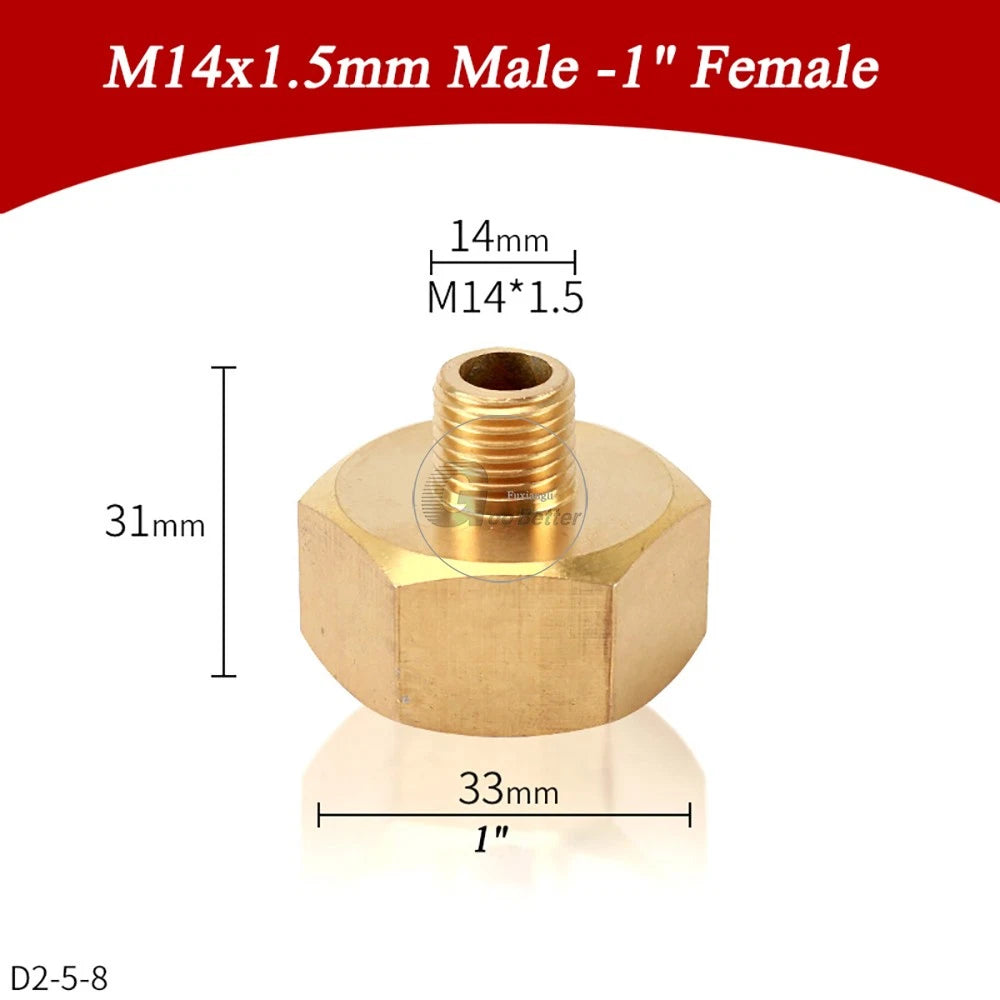

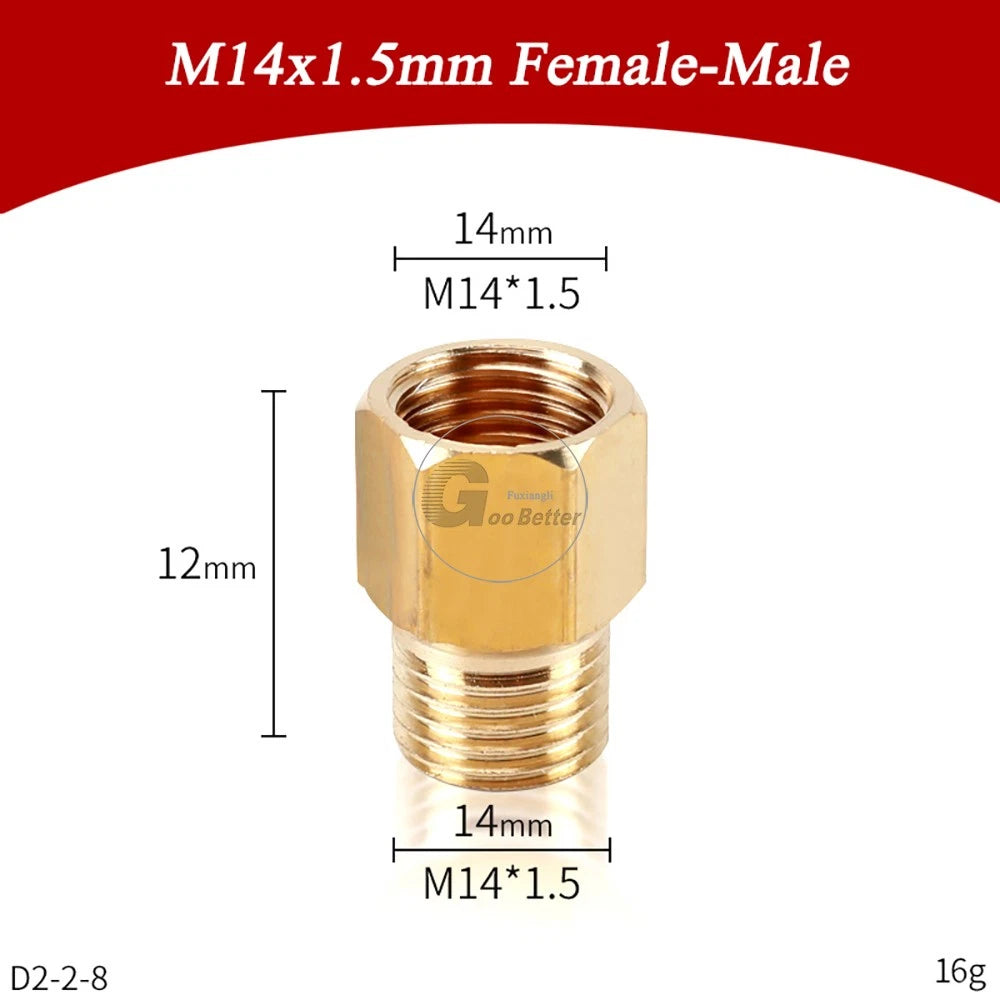

These fittings use metric threads — primarily M14x1.5mm and M22x1.5mm. Some variants also include NPT-compatible female ports (1/4" and 1/2" female). Always verify the thread pitch and diameter of your existing equipment before ordering.

Yes. Brass is naturally corrosion-resistant and generally performs well in outdoor, wet, and humid conditions. It is suitable for garden sprayers, pressure washers, and irrigation systems. For prolonged submersion or highly acidic environments, contact us to confirm suitability.

Brass fittings of this type typically handle working pressures in the range of 100–300 PSI depending on configuration and wall thickness. For high-pressure applications, please contact us to confirm the specific variant's rated pressure before use.

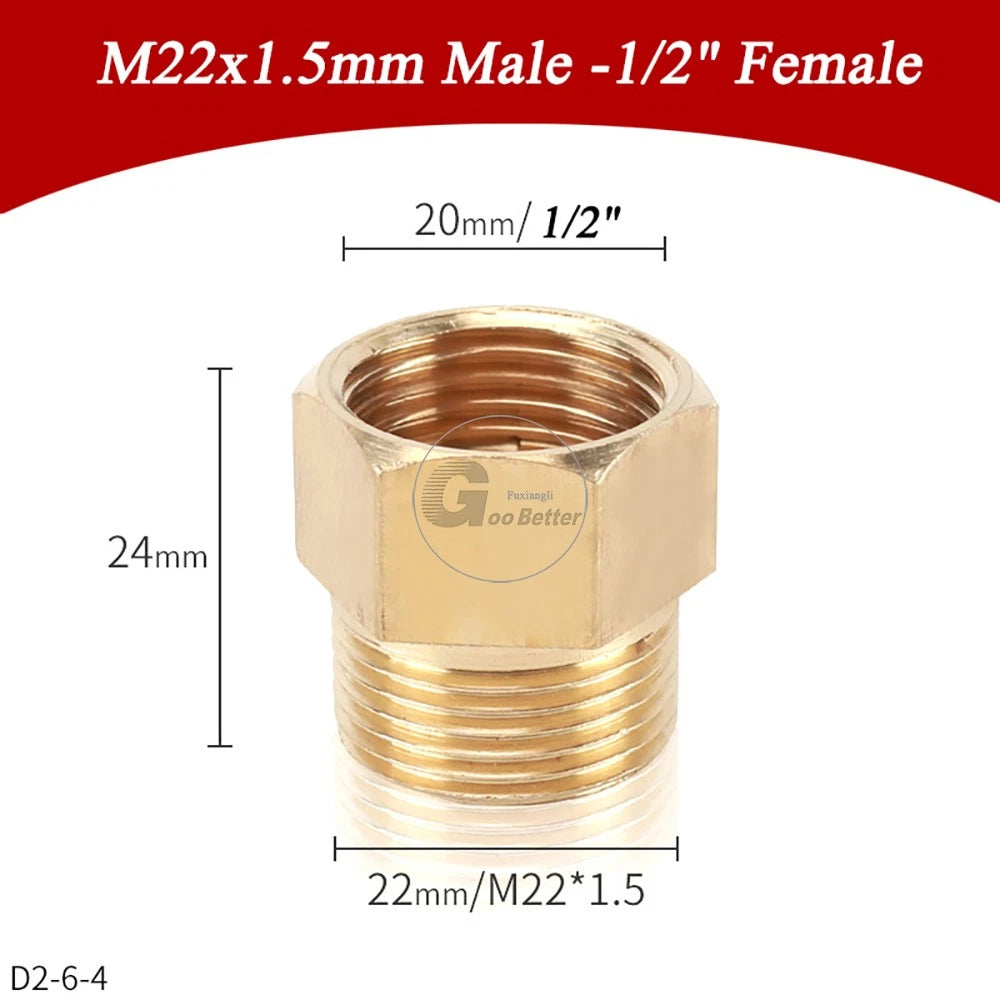

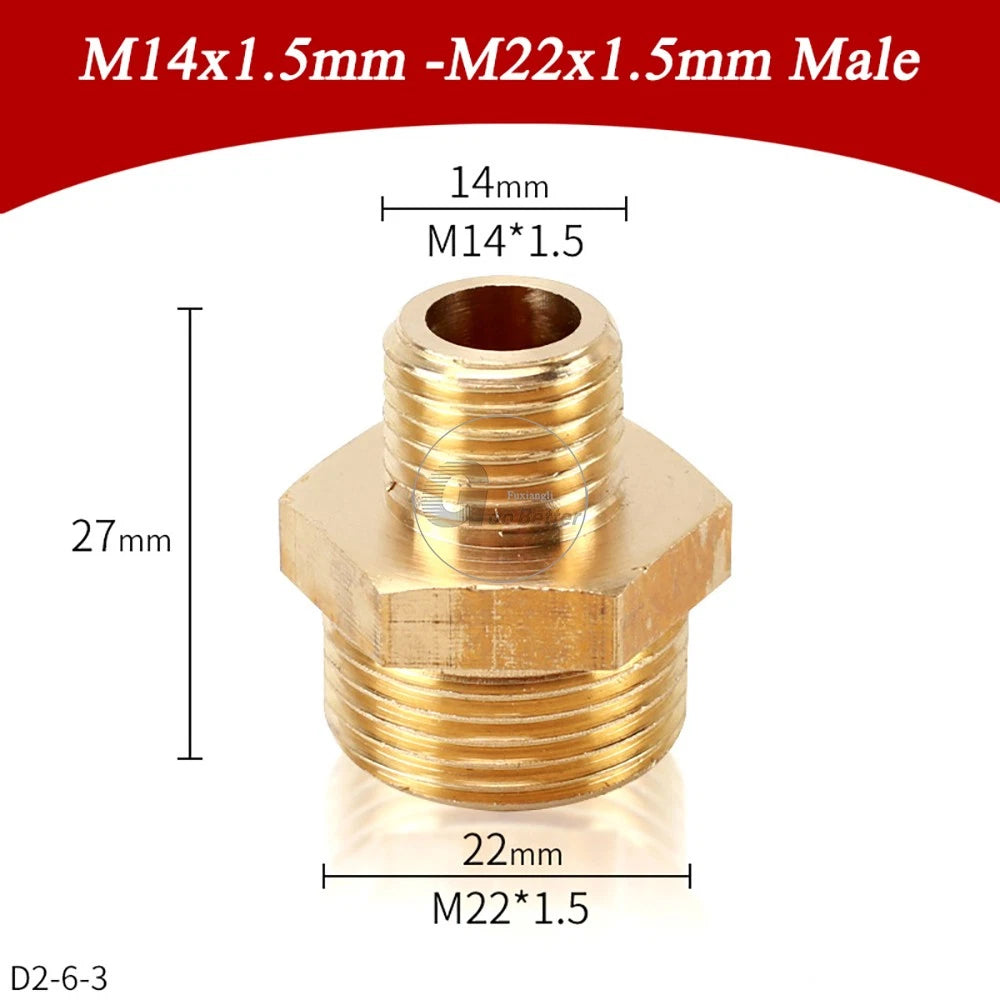

Many pressure washer wands and lances use M14x1.5mm or M22x1.5mm connections, which match these fittings. Check your wand's thread size and gender (male or female) before selecting a variant. The M22x1.5mm female variants are commonly used with standard pressure washer guns.

For a leak-free seal, applying PTFE thread tape (plumber's tape) to male threads is generally recommended, especially for water or chemical sprayer applications. This is standard practice for threaded brass fittings and helps compensate for minor thread tolerance variations.

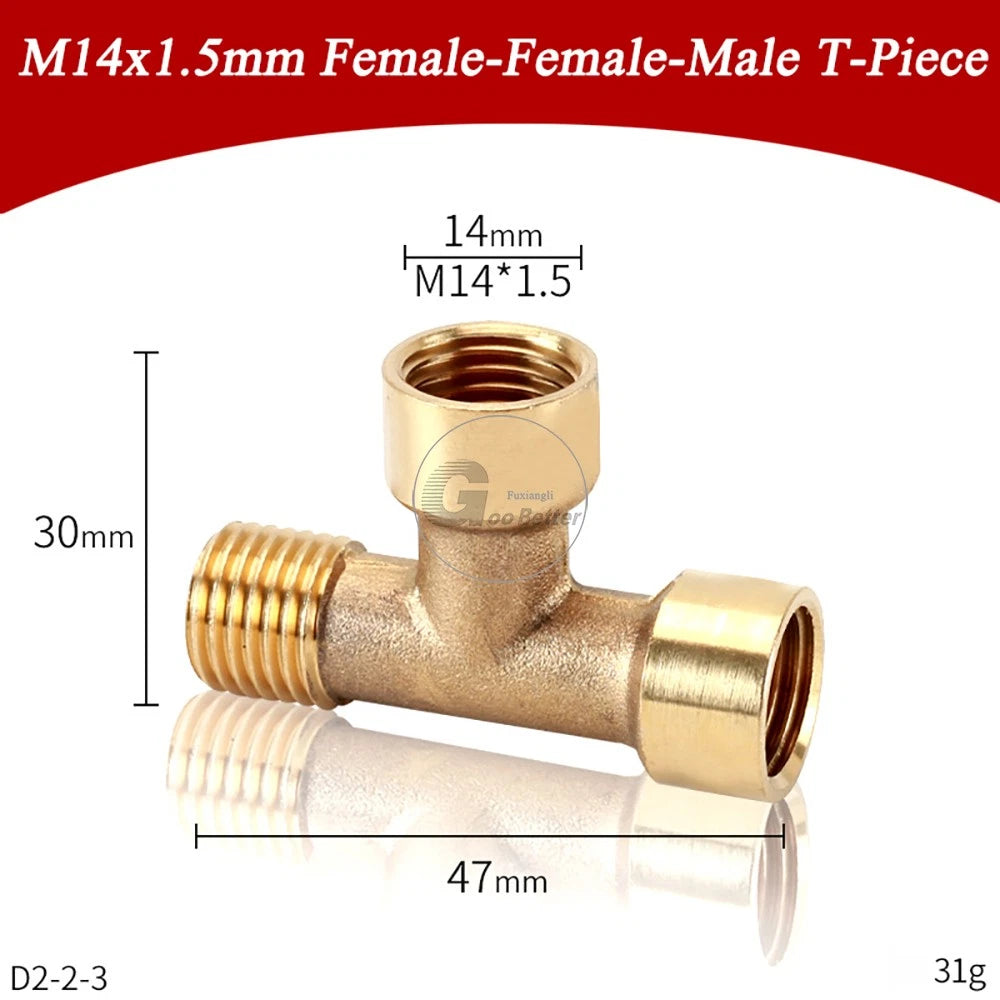

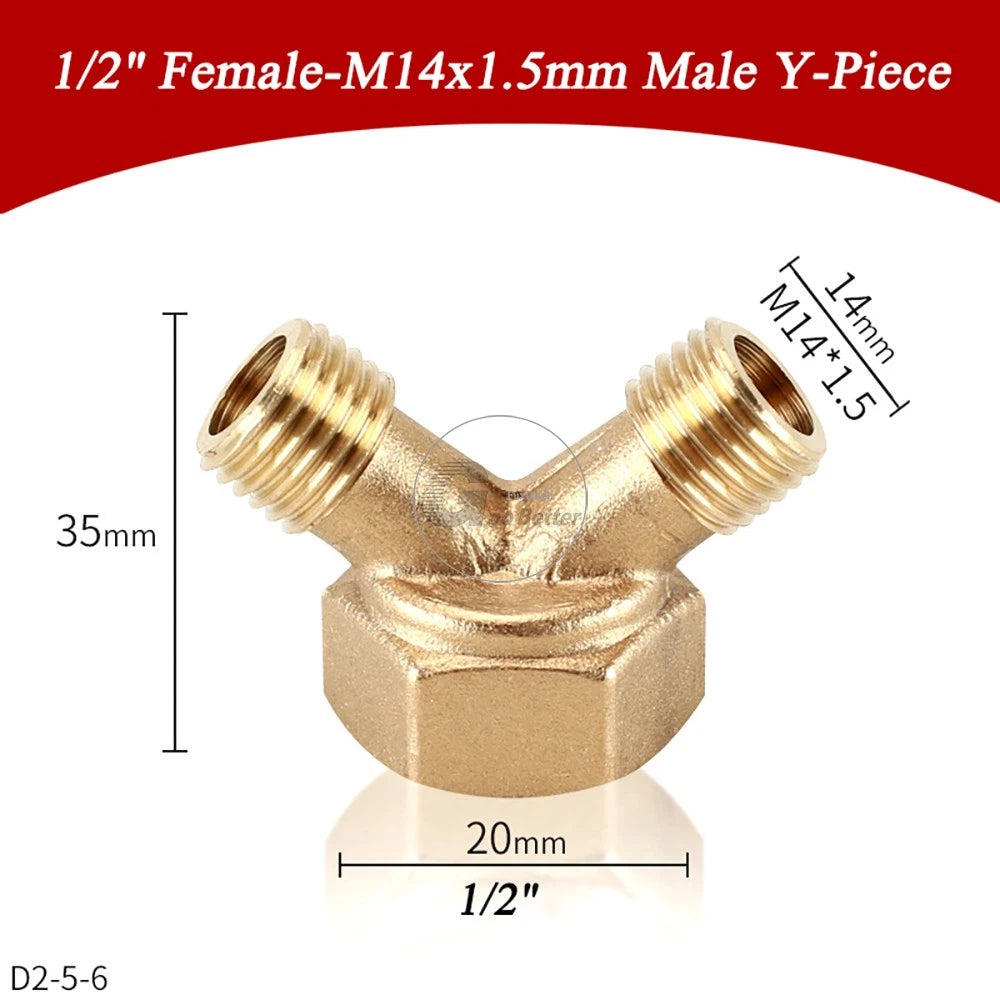

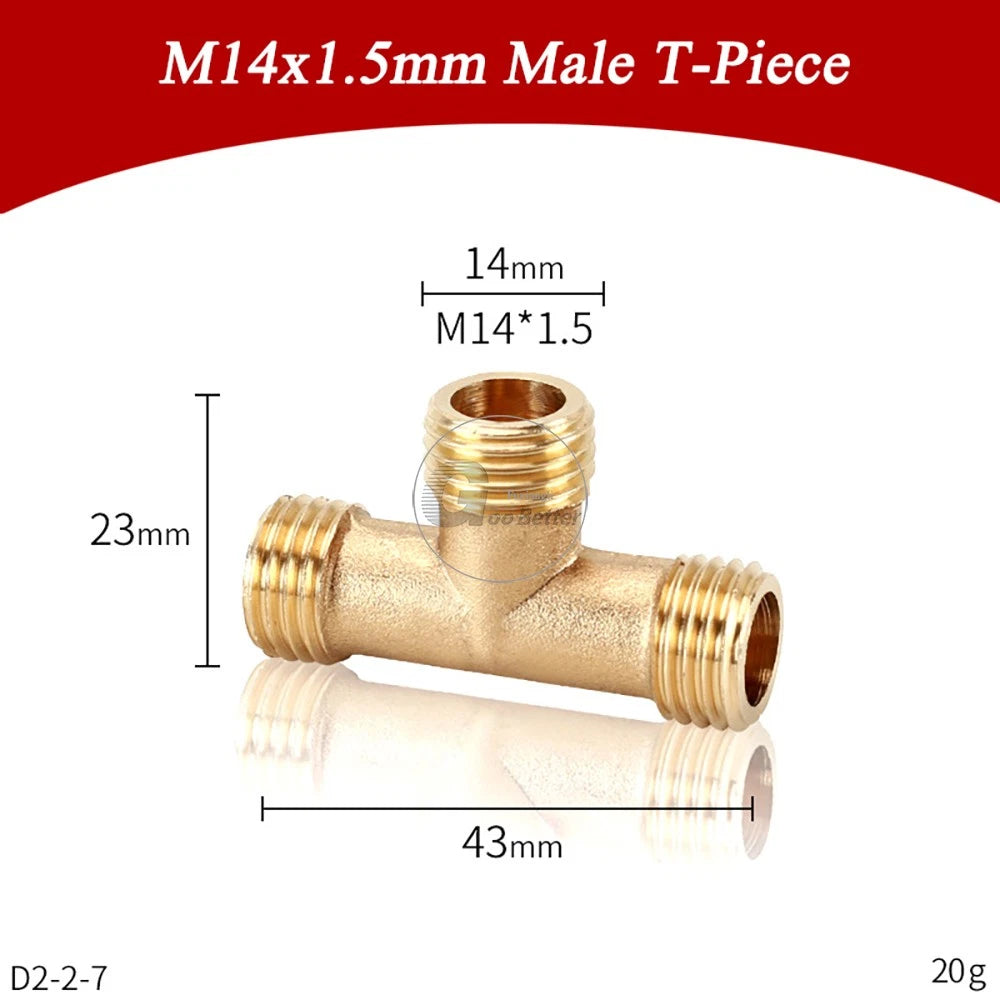

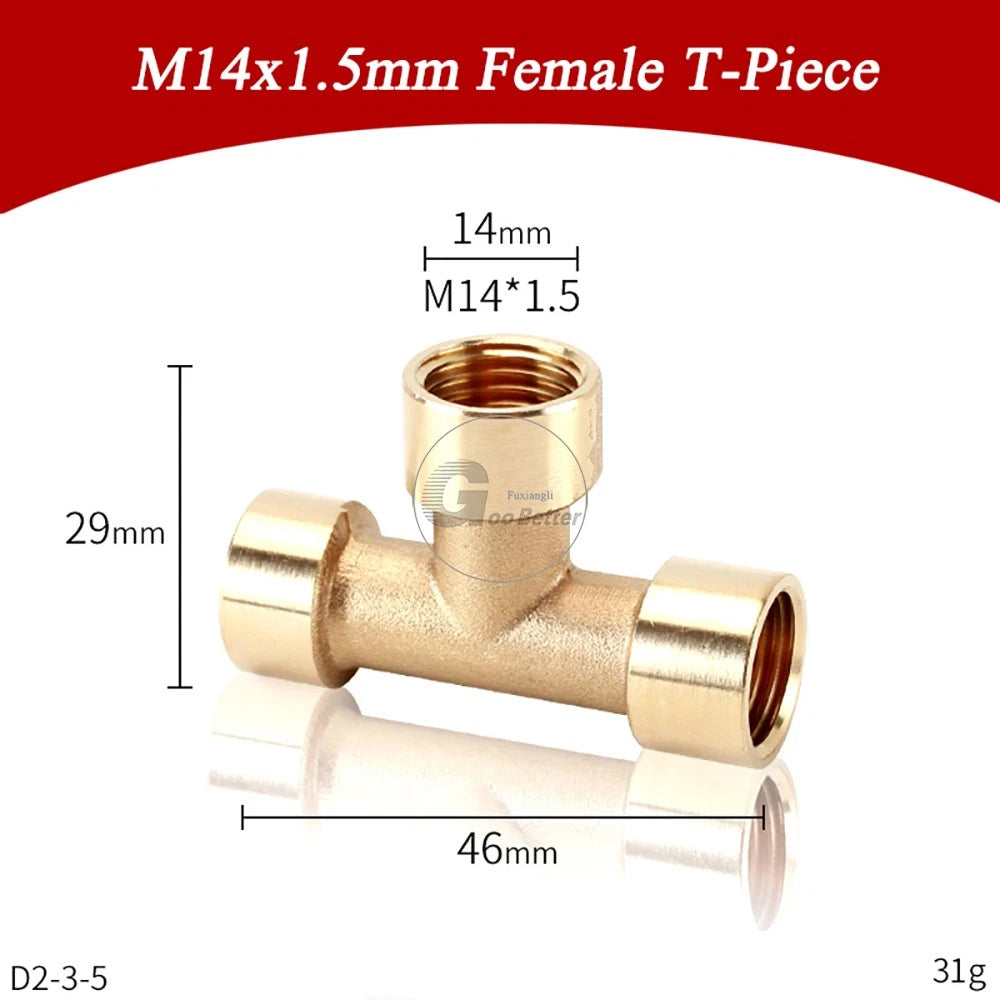

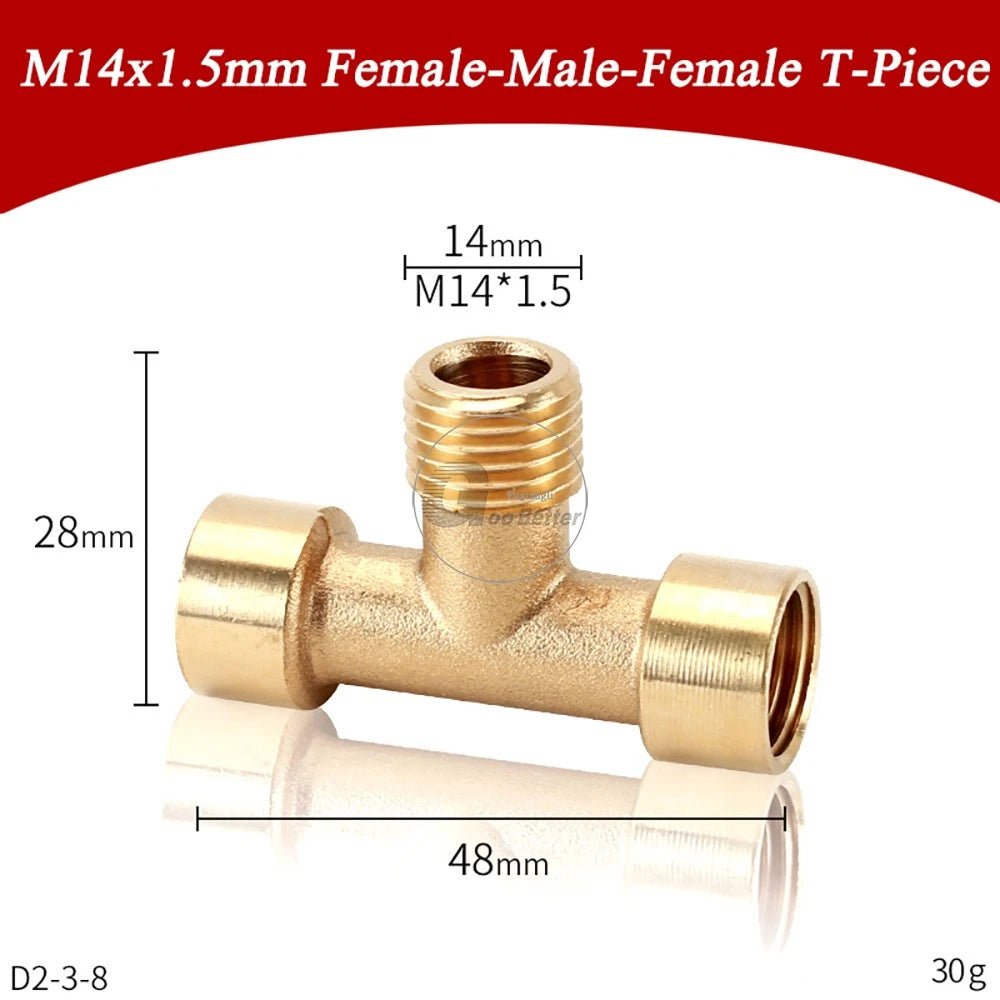

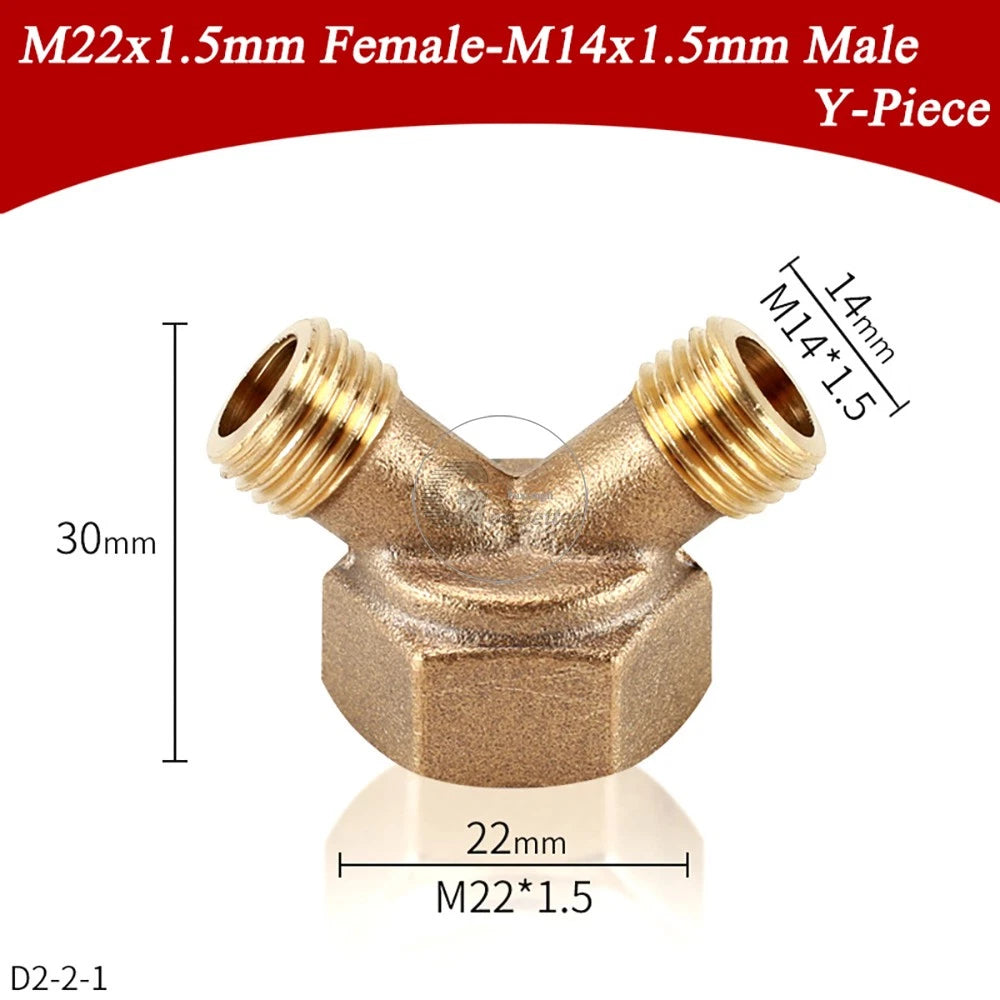

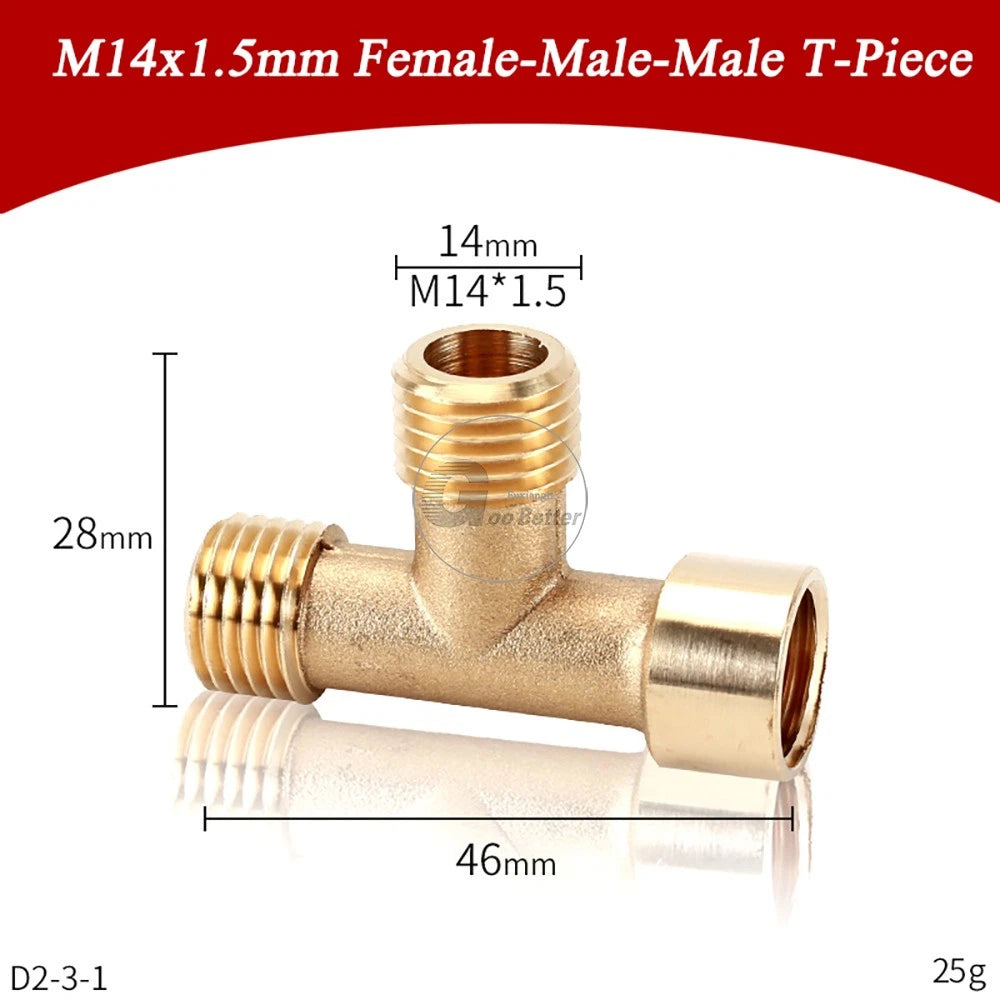

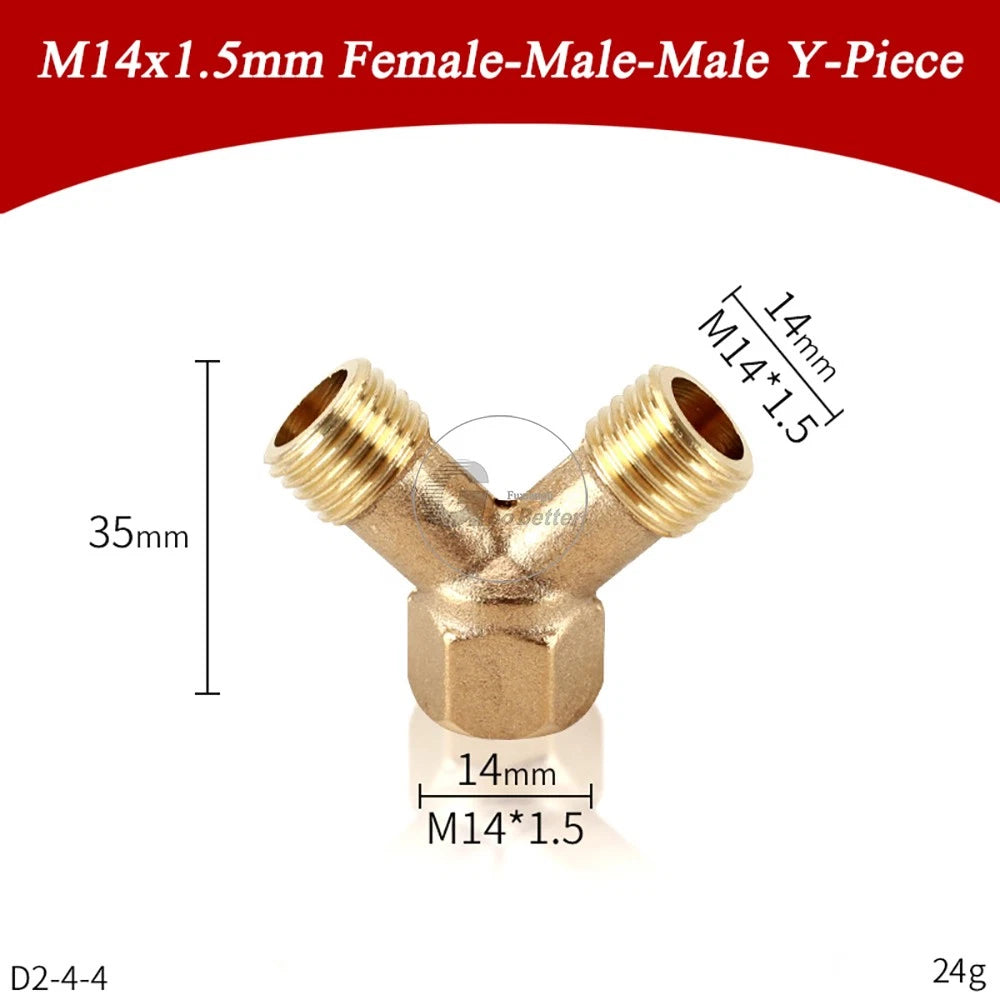

A T-piece splits flow at a 90° angle from the main line, while a Y-piece splits flow at an angled (typically 45°) branch. Y-pieces generally cause less turbulence and flow restriction, making them preferred for liquid sprayer lines. T-pieces are more compact and suit tighter installations.
