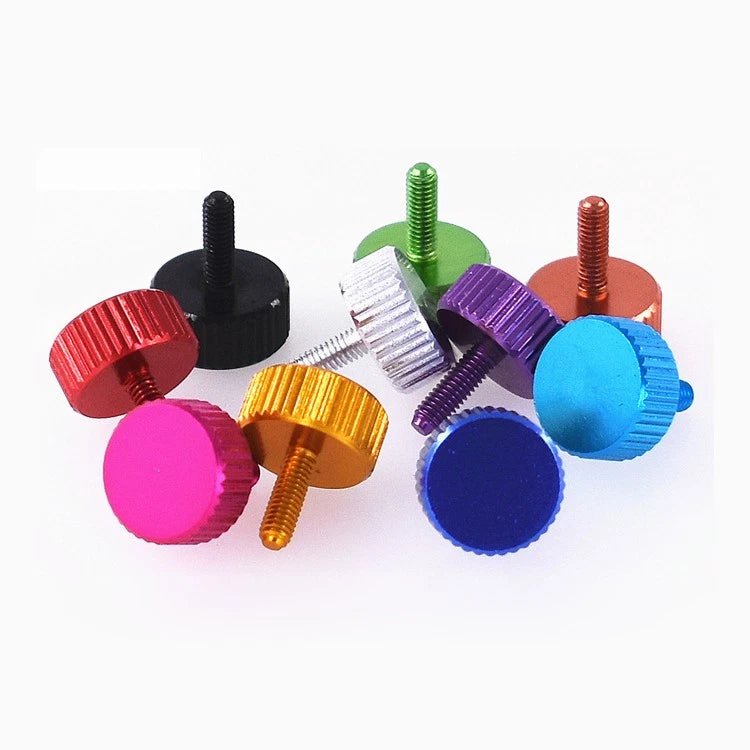

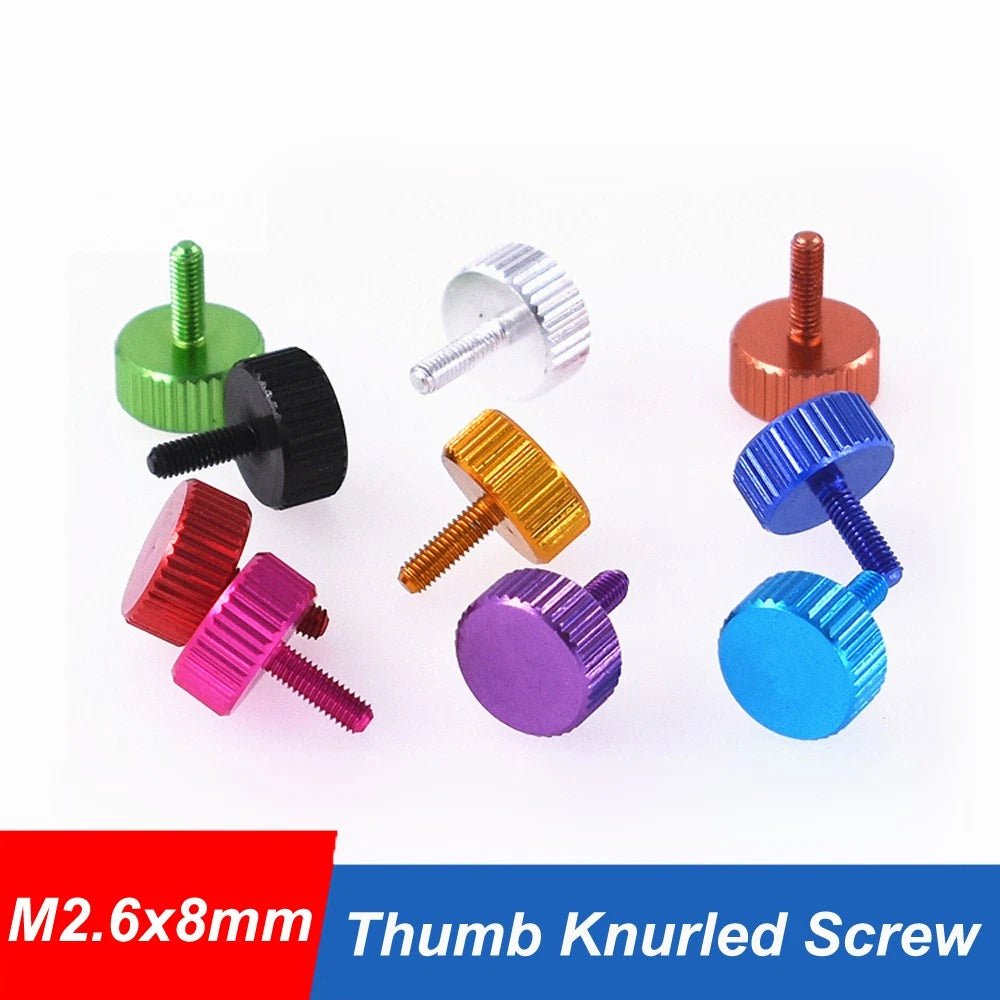

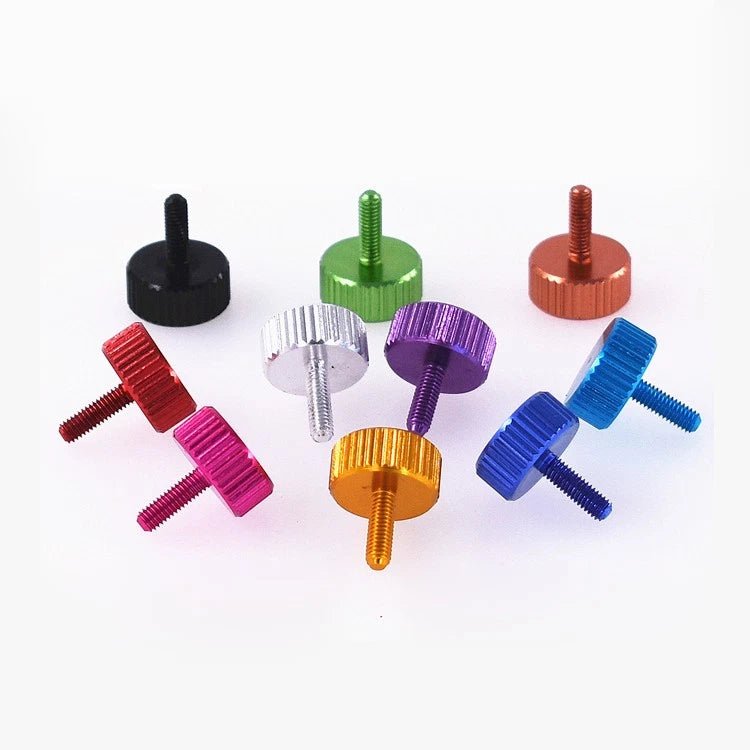

🔧 Product Overview: M2.6 x 8mm Aluminum Knurled Thumb Screw – Flat / Round Head, Hand Grip Knob Bolts (Anodized Colors)
For compact electronics, 3D printers, or PC case modding where you need a small, tool‑less fastener with a splash of color, this M2.6 knurled thumb screw is a perfect fit. The low‑profile head (flat / round shape) is machined from lightweight aluminum alloy and anodized in a choice of Red, Gold, Black, Silver, Blue, or Green. The diamond knurl pattern provides a secure non‑slip grip for hand tightening and loosening – no screwdriver needed. The stainless steel threaded stud is fully threaded with M2.6 coarse pitch (0.45mm), and the 8mm thread length (measured under the head) is ideal for thin panels and small components. Corrosion‑resistant, non‑magnetic, and lightweight – perfect for camera rigs, RC cars, drones, and DIY electronics.
✨ Why This Colorful Anodized Thumb Screw Is a Must‑Have
-
Lightweight aluminum alloy – Machined from 6061-grade aluminum, these screws are strong yet light, reducing overall assembly weight.
-
Anodized finish in 6 colors – Choose Red, Gold, Black, Silver, Blue, or Green. Anodizing provides a durable, scratch‑resistant surface and vibrant color.
-
Knurled head for tool‑less grip – Diamond knurl pattern gives you excellent finger traction for hand tightening and loosening – no tools required.
-
Low‑profile flat / round head – Sits neatly on surfaces without protruding too much. Ideal for tight spaces and sleek assemblies.
-
M2.6 metric thread – fully threaded – Standard coarse pitch (0.45mm). Threads run the entire 8mm length for maximum grip.
-
Corrosion‑resistant & non‑magnetic – Anodized aluminum won't rust and is completely non‑magnetic – safe for sensitive electronics.
-
Wide applications – 3D printer bed leveling knobs, PC case thumb screws, camera rigs, RC car body mounts, drone components, and small electronics enclosures.

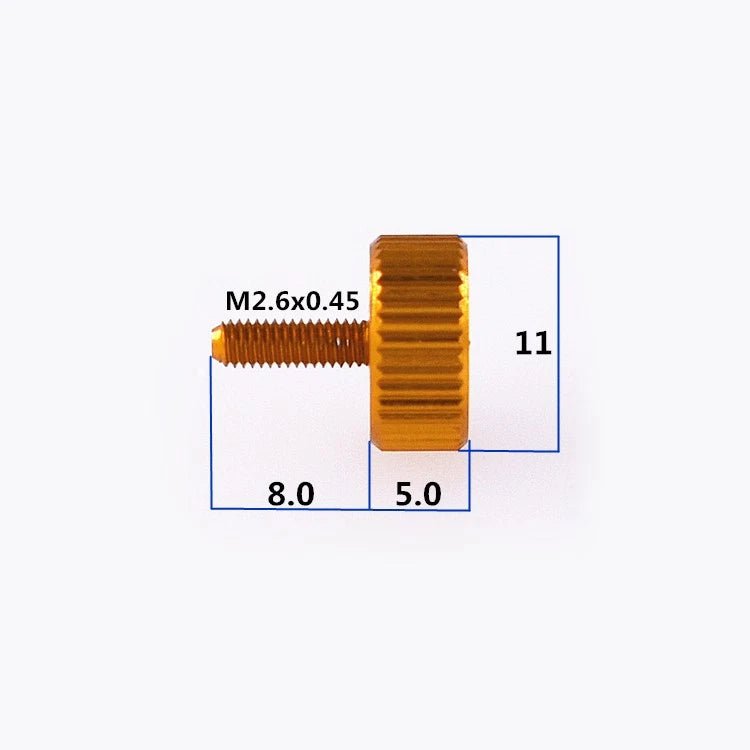

📏 Technical Specifications – M2.6 x 8mm Knurled Thumb Screw
| Specification |
Details |
| Thread Size |
M2.6 |
| Thread Pitch |
0.45mm (metric coarse) |
| Thread Length (under head) |
8mm (measured from underside of head to tip) |
| Total Length (including head) |
Approx. 10–11mm (depends on head height) |
| Material |
Aluminum alloy (6061) – head; threaded stud is stainless steel (or integrated aluminum – per spec) |
| Head Style |
Flat / round head (low profile) |
| Head Knurling |
Diamond knurl pattern for non‑slip hand grip |
| Available Colors |
Red, Gold, Black, Silver, Blue, Green |
| Drive Style |
Hand grip (toolless) |
| Tolerance |
±0.3mm |
| Surface Treatment |
Anodized (colored) |
Note: The threaded stud is made of stainless steel for strength, while the head is anodized aluminum. This provides a lightweight, colorful grip with a durable thread.
❓ FAQs – M2.6 Anodized Knurled Thumb Screws
🔸 What is M2.6 thread? Is it common?
M2.6 is a less common metric size (2.6mm diameter, 0.45mm pitch). It is often used in some 3D printers, RC cars, and specialty electronics. Always check your existing thread size before ordering – if you need a more standard size, M2.5 or M3 may be better suited.
🔸 How is thread length measured? Is 8mm enough for my application?
Thread length is measured from the underside of the head to the tip. The 8mm threaded shank is ideal for panel thicknesses up to 5‑6mm when using a nut, or for shallow threaded holes. Measure your material thickness and add 2‑3mm of thread engagement for a secure hold.
🔸 Is the entire screw made of aluminum, or just the head?
The knurled head is anodized aluminum. The threaded stud is typically stainless steel for strength and wear resistance. This combination gives you a lightweight, colorful grip with a durable, non‑corroding thread.
🔸 Will the anodized color wear off over time?
Anodizing is an electrochemical process that creates a durable oxide layer bonded to the aluminum. It will not peel like paint. Under normal hand use, the color will remain vibrant for years. Heavy abrasion may wear the finish, but typical thumb screw applications are gentle.
🔸 Can I use these screws with nuts, or are they for tapped holes only?
These are standard machine screws – they work with matching M2.6 nuts or in pre‑tapped holes. For through‑hole applications, use a nut on the back side. The knurled head is designed for hand grip only – do not use tools on the knurling.
🔸 What colors are available? Can I get a sample pack?
We offer Red, Gold, Black, Silver, Blue, and Green. Please select your preferred color from the dropdown options. We do not offer mixed color packs for this listing – contact us if you need a variety.
