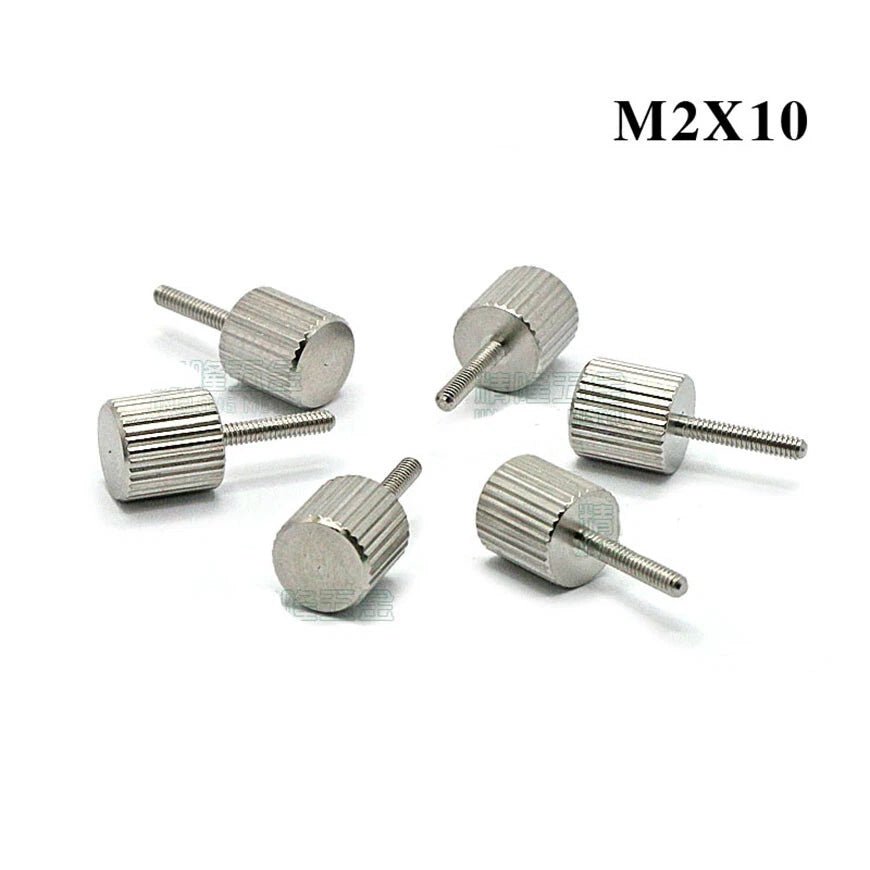

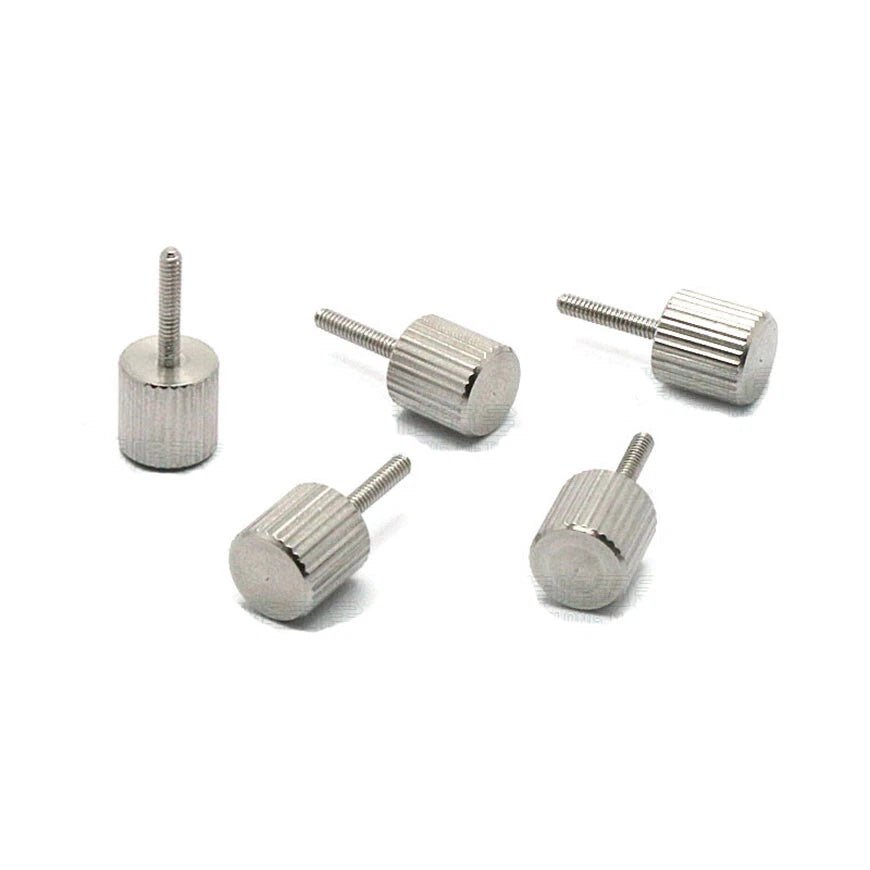

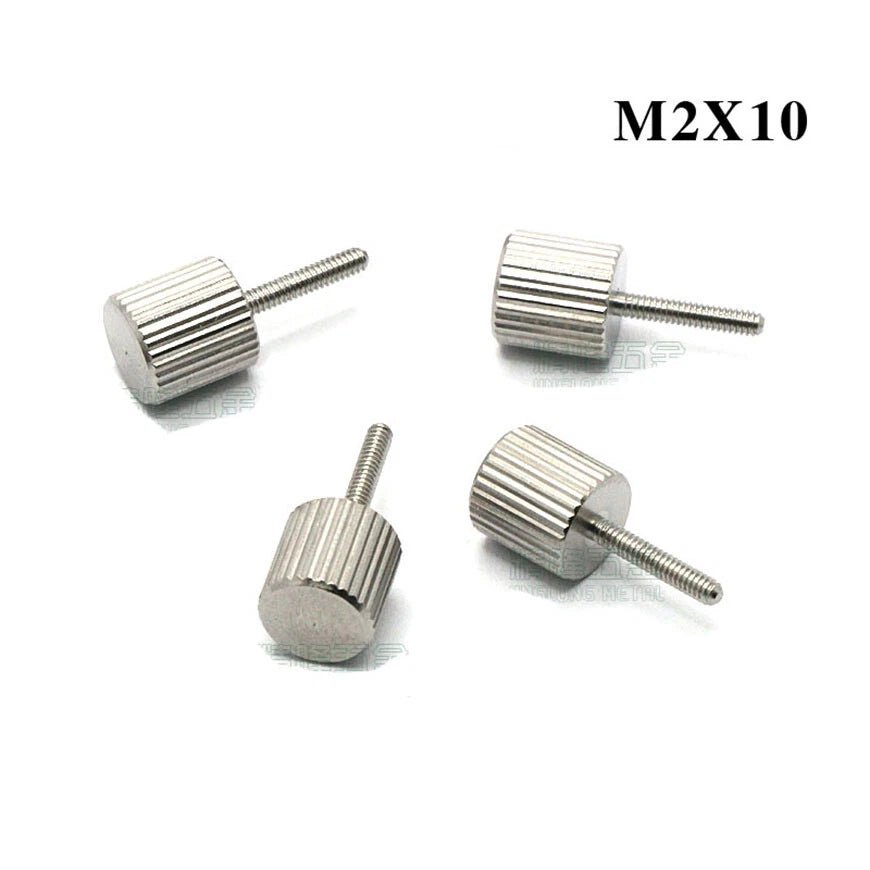

🔘 M2 x 10mm Cylinder Head Knurled Thumb Screws – Stainless Steel Hand Grip Knob Bolts for Laptops & Small Devices
You’re tired of hunting for a tiny screwdriver every time you need to open a laptop, adjust a camera bracket, or secure a small electronic enclosure. These M2 thumb screws give you a comfortable, knurled cylinder head that you can turn by hand – no tools required. Made from stainless steel, they resist rust and look clean on visible fasteners. The 10mm thread length (under head) is perfect for chassis covers, mounting plates, and other light‑duty applications. Use them as direct replacements for Phillips screws on access panels, or add them to your own designs for tool‑less convenience.
✨ Key Features – M2 Stainless Steel Knurled Thumb Screws
- 🔘 Cylinder head with diamond knurling – Provides excellent fingertip grip for hand tightening, even with oily fingers.
- 🛡️ Stainless steel construction – Corrosion resistant, durable, and has a clean natural silver finish. Won’t rust like plain steel.
- 📐
Tool‑less operation – No screwdrivers needed. Ideal for quick access panels and frequent adjustments.
- 📏 M2 metric thread (2mm diameter) – Very small size, perfect for laptops, tablets, compact cameras, and miniature enclosures.
- 📐 10mm thread length (under head) – Fully threaded from under head to tip. Suitable for most thin‑panel fastening applications.
- 💻 Specifically useful for laptops – Replace standard Phillips screws on bottom covers, hard drive caddies, or battery compartments.
- 🔧 Versatile applications – Computer laptop screws, multifunctional electronics, 3D printer adjustments, camera rigs, and DIY prototypes.

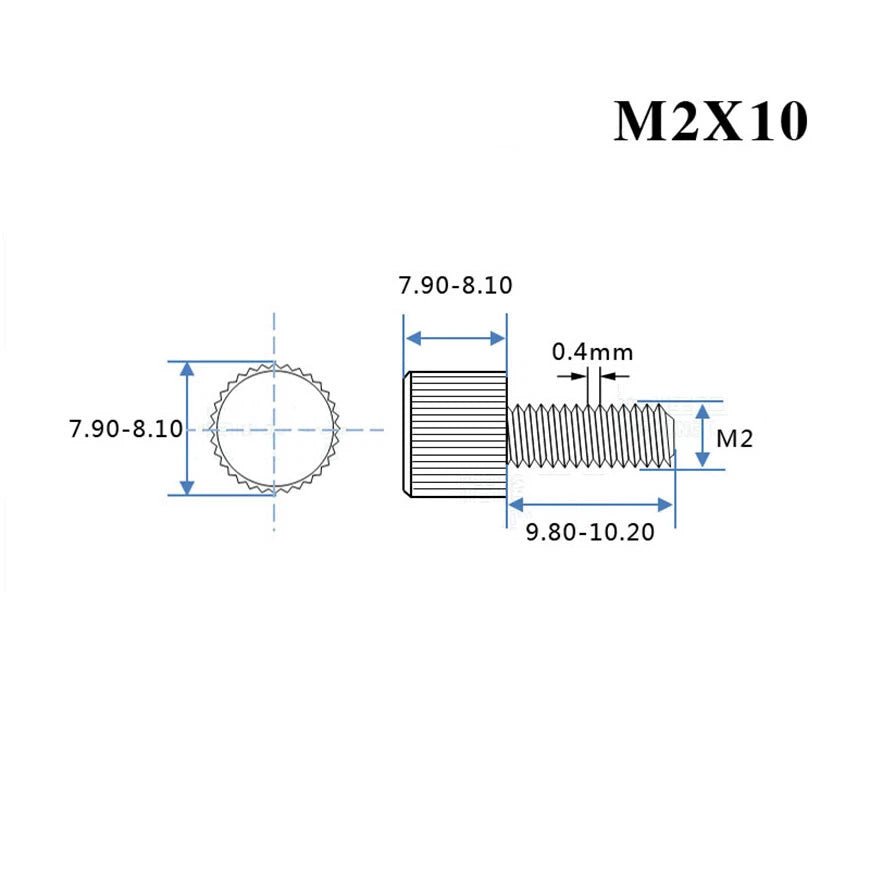

📏 Specifications – M2 x 10mm Cylinder Knurled Thumb Screw
| Thread Diameter (M) |
Thread Pitch (mm) |
Thread Length (mm) |
Total Length (approx.) |
Head Type |
Head Diameter (approx.) |
Head Height (approx.) |
Material / Finish |
| M2 |
0.4 |
10 mm |
~12 mm (including head) |
Cylinder knurled |
~4‑5 mm |
~2‑3 mm |
304 stainless steel / natural (silver) |
* Thread length measured from underside of head to tip. Fully threaded. Custom lengths and other thread sizes (M1.6, M2.5, M3, etc.) available on request – please contact us.
🛠️ Typical Applications for M2 Thumb Screws
| Device / Area |
Typical Use |
| Laptops |
Replace standard screws on bottom cover, battery compartment, hard drive / SSD caddy |
| Small electronics |
Tool‑less access to PCB enclosures, battery doors, sensor housings |
| Camera & tripod gear |
Bracket clamps, cold shoe adapters, small quick‑release plates |
| 3D printers & models |
Enclosure panels, spool holder clamps, adjustable stops |
❓ Frequently Asked Questions – M2 Knurled Thumb Screws
1. How do I measure the length of a thumb screw?
Length is measured from the underside of the head (where the knurling ends) to the tip of the threaded shaft. The head itself is NOT included. Our M2 thumb screw has a 10mm thread length under the head, which is ideal for panels approximately 5‑8mm thick (plus a nut or threaded insert).
2. Will this fit my laptop? What if the original screw was a different length?
Many laptops use M2 screws for bottom covers, but lengths vary (e.g., 3mm, 5mm, 8mm). Please measure your original screw’s thread length before ordering. This 10mm version is suitable for thicker sections or where a nut is used. For exact replacements, we offer custom lengths – contact us.
3. Are these screws fully threaded?
Yes, the M2 thumb screw is fully threaded from under the head to the tip, giving you maximum grip in tapped holes or when using a nut.
4. Will the stainless steel rust? Can I use these outdoors?
304 stainless steel offers good corrosion resistance for indoor use and occasional outdoor exposure. For continuous marine or high‑humidity environments, consider 316 stainless (available on request). For typical laptop and electronics use, this material is perfectly fine.
5. Do I need a nut or washer with this thumb screw?
It depends on your application. If you have a threaded hole (e.g., a threaded brass insert in a laptop chassis), no nut is needed. If you are fastening through a plain hole, you will need an M2 nut. Washers are optional for load distribution.
6. Can I get other thread sizes like M2.5 or M3?
Yes – we offer custom sizes. Please contact us with your requirements (thread diameter, length, head style). Minimum order quantities may apply.
