🔧 Product Overview: M2 Anodized Aluminum Knurled Thumb Screws – 4/8/12/15mm DIY Hand Grip Knob Bolts
For small‑scale DIY projects, 3D printers, camera rigs, and PC modding, these M2 knurled thumb screws offer a lightweight, tool‑less fastening solution with a stylish anodized finish. Machined from high‑strength aluminum alloy (heat treatable, good mechanical performance), they feature a flat, diamond‑knurled head that provides a secure non‑slip grip for hand tightening and loosening – no screwdriver needed. Fully threaded with M2 coarse pitch (0.4mm), and available in thread lengths of 4mm, 8mm, 12mm, and 15mm (measured under the head). Available in a variety of vibrant anodized colors to add style and uniqueness to your project. Ideal for DIY modifications, camera lens housings, computer case side panels, and more.
✨ Why These Anodized Aluminum Thumb Screws Are a DIY Essential
-
High‑quality aluminum alloy – Heat treatable alloy with good strength, wear resistance, and excellent corrosion & oxidation resistance. Lightweight and non‑magnetic.
-
Flat knurled head for tool‑less grip – Diamond knurl pattern provides excellent finger traction for hand tightening and loosening – no tools required.
-

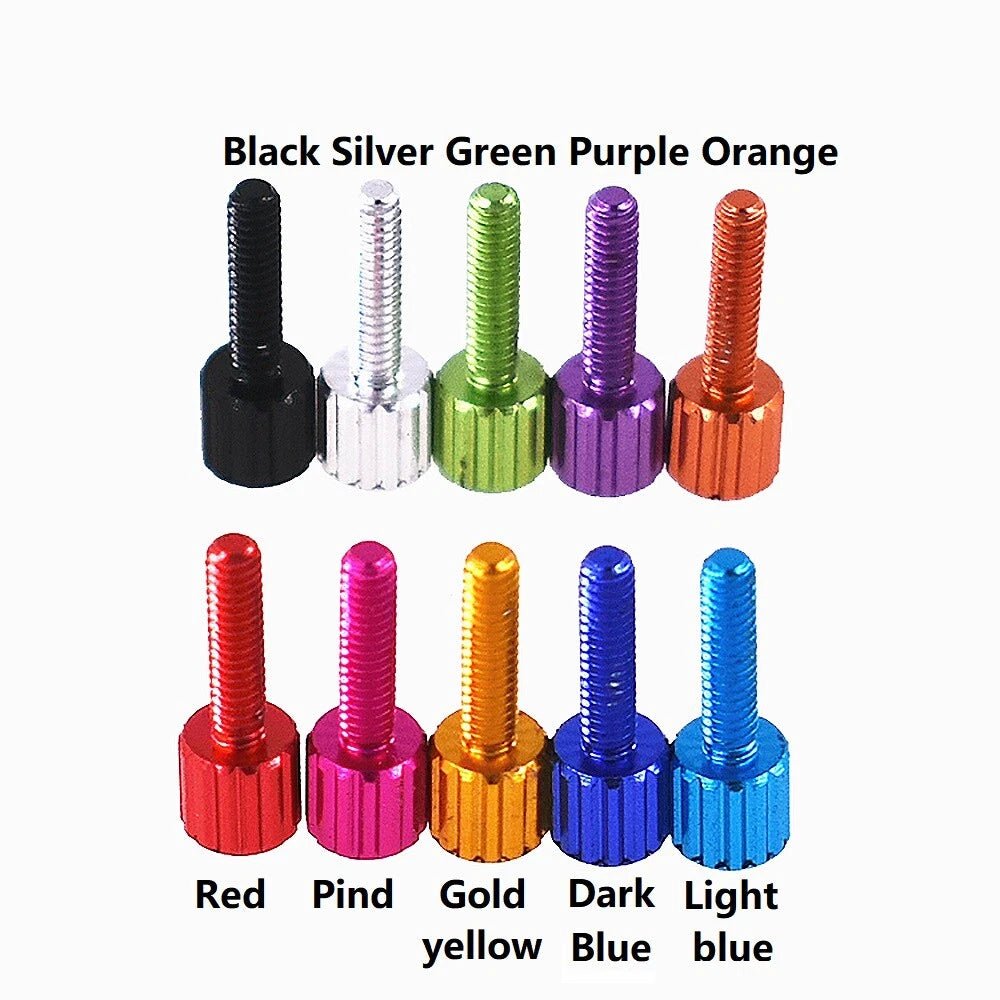

Anodized finish – vibrant & durable – The anodized coating is fade‑resistant and adds extra protection against corrosion and wear. Available in multiple colors.
-
M2 metric thread – fully threaded – Standard coarse pitch (0.4mm). Threads run the entire length for maximum grip.
-

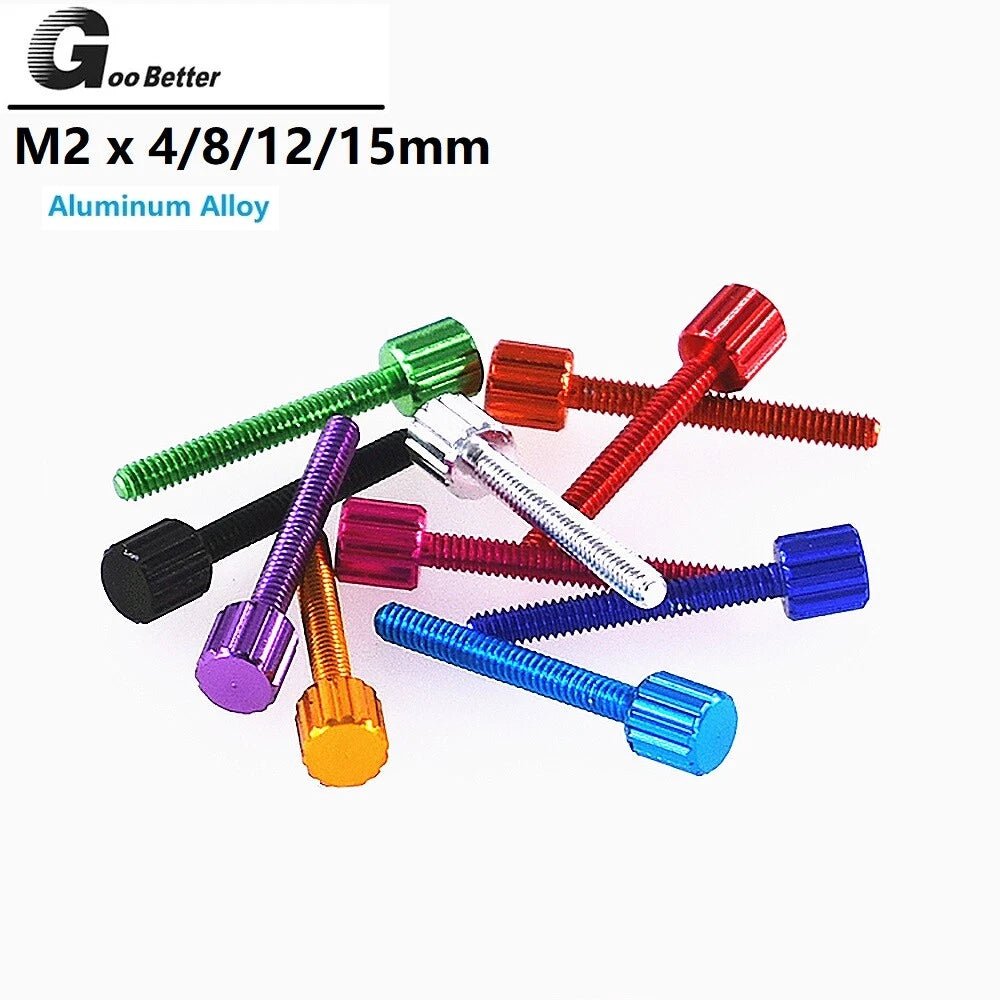

Multiple thread lengths: 4mm, 8mm, 12mm, 15mm – Choose the length that fits your panel thickness or assembly depth. Length is measured under the head.
-
Wide applications – DIY modifications, camera lens housing fixation, computer case side panels, 3D printer bed leveling knobs, RC models, and electronics enclosures.
-
Easy to use & durable – Smooth, burr‑free workmanship, neat threads, and even force distribution ensure long service life.
📏 Technical Specifications – M2 Knurled Thumb Screws
| Specification |
Details |
| Product Type |
Knurled Thumb Screws (Hand Grip Knob Bolts) |
| Material |
Aluminum Alloy (heat treatable) |
| Thread Size |
M2 |
| Thread Pitch |
0.4mm (metric coarse) |
| Thread Lengths Available (under head) |
4mm, 8mm, 12mm, 15mm (select from options) |

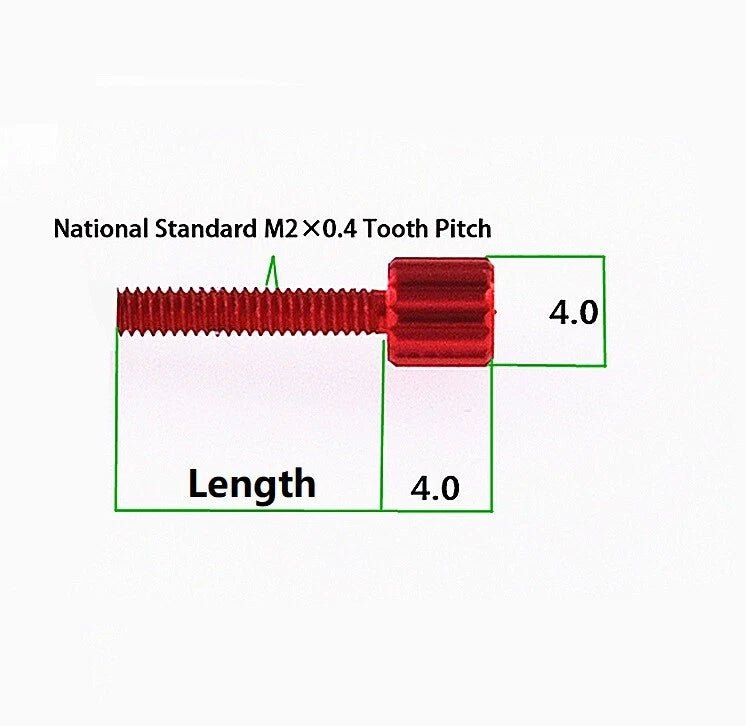

| Length Measurement |
Under head – from underside of flat head to tip (head not included) |
| Head Style |
Flat head with diamond knurling |
| Drive Style |
Hand grip (toolless) |
| Finish |
Anodized (multiple colors available) |
Key Properties |
Lightweight, non‑magnetic, corrosion resistant, wear resistant
|
❓ FAQs – M2 Aluminum Knurled Thumb Screws
🔸 What are the typical uses for M2 thumb screws?
M2 thumb screws are perfect for small‑scale applications: 3D printer bed leveling knobs (small printers), camera lens housing fixation, PC case side panels, RC car body mounts, drone frame fasteners, and miniature electronics enclosures. They are also great for any DIY project requiring a tool‑less hand‑tightened fastener.
🔸 How do I choose the correct thread length?
Thread length is measured from the underside of the flat head to the tip. For thin panels (1‑2mm thick), 4mm is sufficient. For thicker panels or when using a nut, choose a longer length such as 8mm, 12mm, or 15mm. Measure the depth of your threaded hole or the total thickness of the material plus nut, then select a length slightly longer than that depth.
🔸 Are these screws fully threaded? What is the thread pitch?
Yes – they are fully threaded from under the head to the tip. The thread pitch is standard M2 coarse: 0.4mm.
🔸 Will the anodized color fade or wear off?
Anodizing is an electrochemical process that bonds the color to the aluminum surface. It is durable and will not peel like paint. Under normal hand use, the color will remain vibrant for years. Heavy abrasion may wear the finish, but typical thumb screw applications are gentle.
🔸 Can I use these screws with nuts, or are they for tapped holes only?
These are standard machine screws – they work with matching M2 nuts or in pre‑tapped holes. For through‑hole applications, use a nut on the back side. The knurled head is designed for hand grip only – do not use tools on the knurling.
🔸 Are these screws magnetic? Will they affect sensitive electronics?
Aluminum is non‑magnetic, so these thumb screws will not interfere with sensitive electronics, hard drives, or magnetic sensors. They are completely safe for use inside computers and near camera equipment.
