Stripped screw heads and cam-out failures slow down every precision assembly job. Whether you're a mechanical engineer, fabricator, or serious DIYer, you need fasteners that hold torque without slipping — and that won't rust on you six months later. These A2 stainless steel Torx countersunk machine screws are built for exactly that.

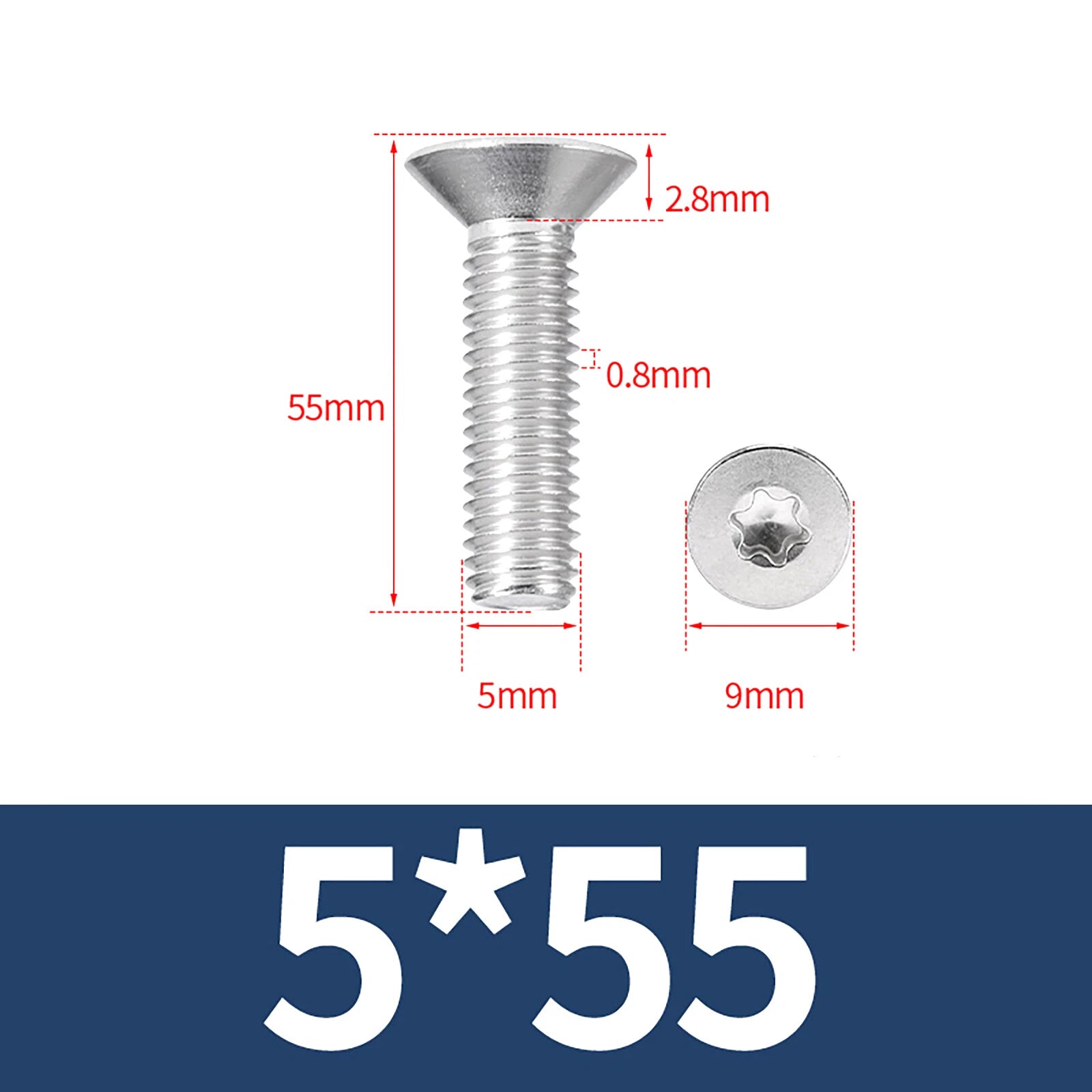

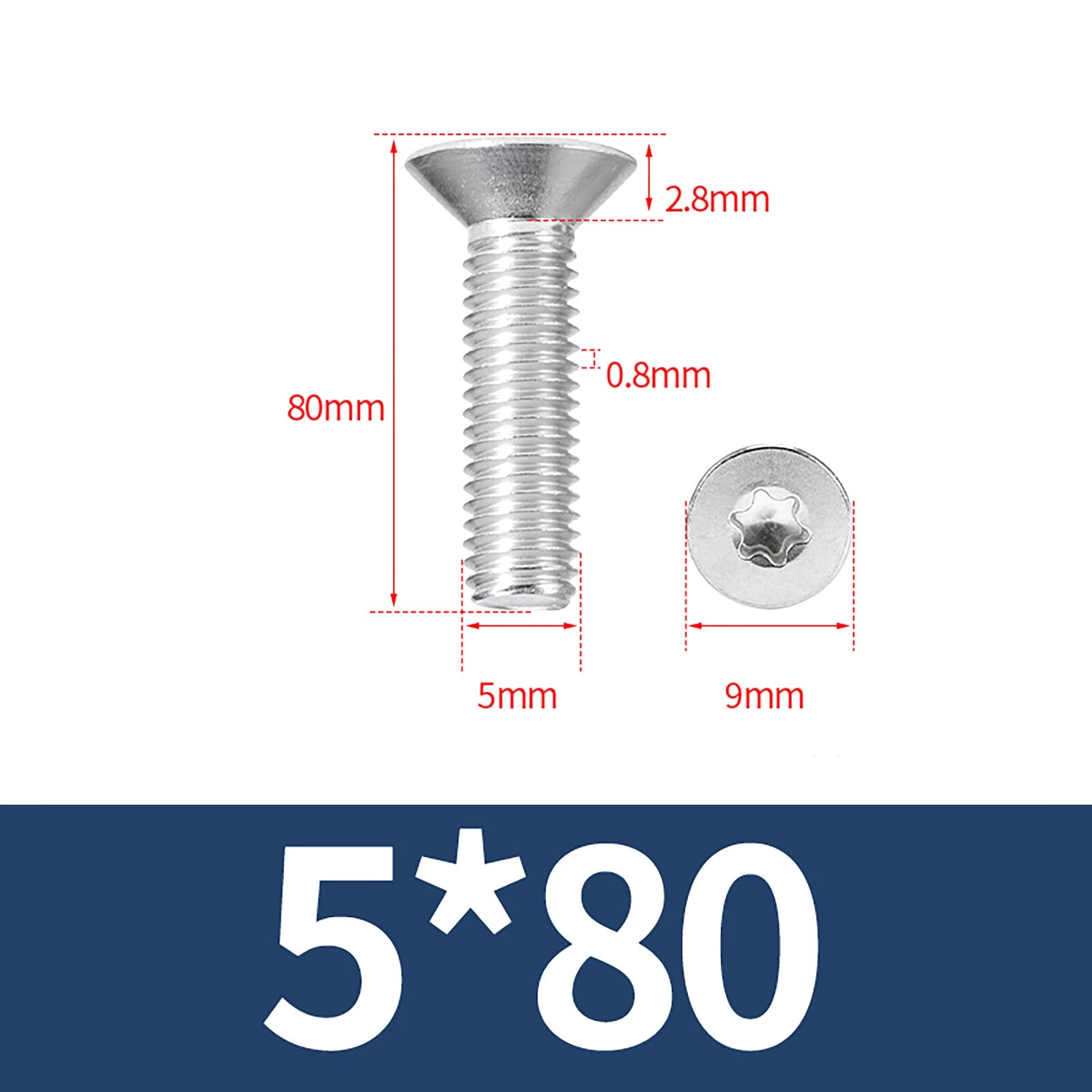

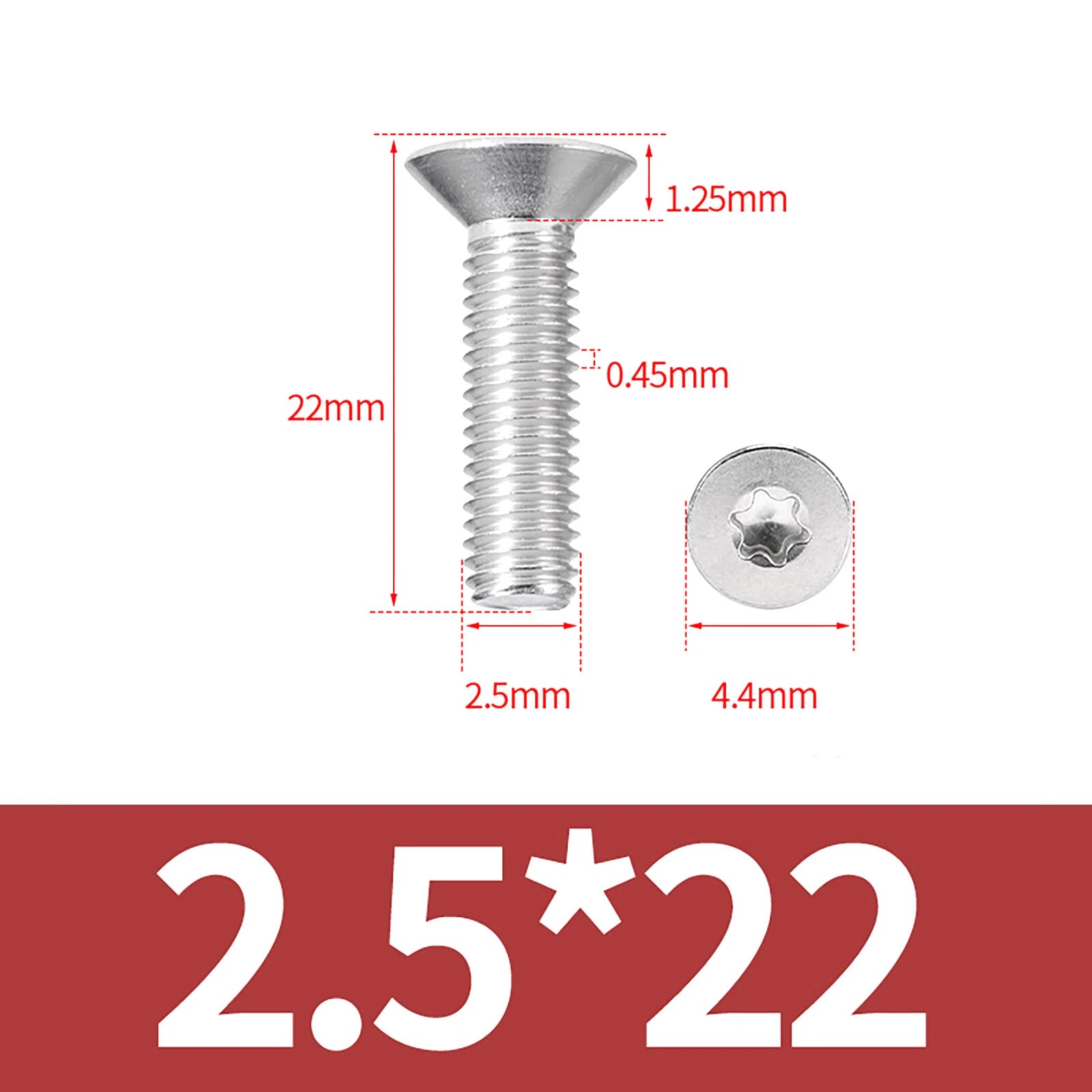

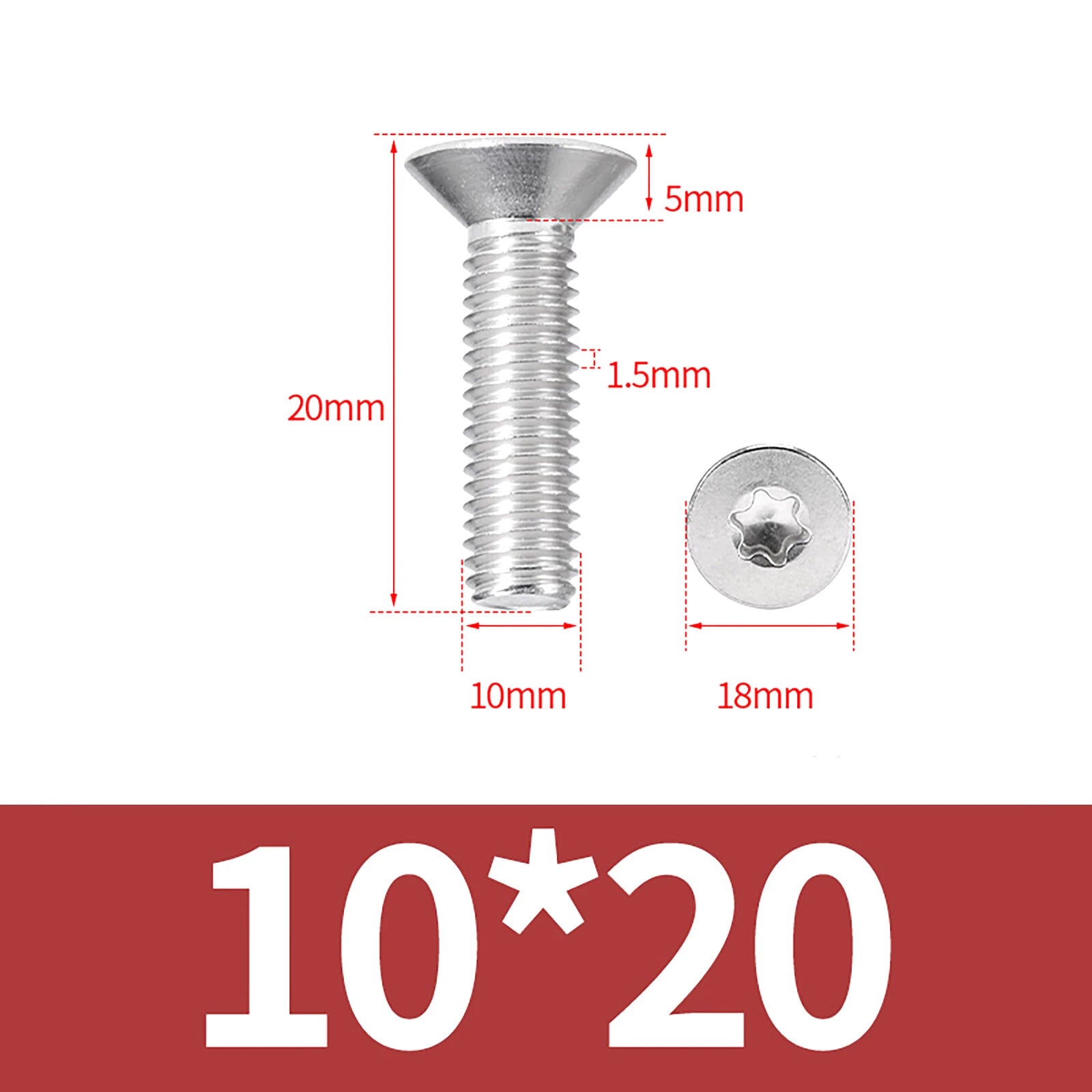

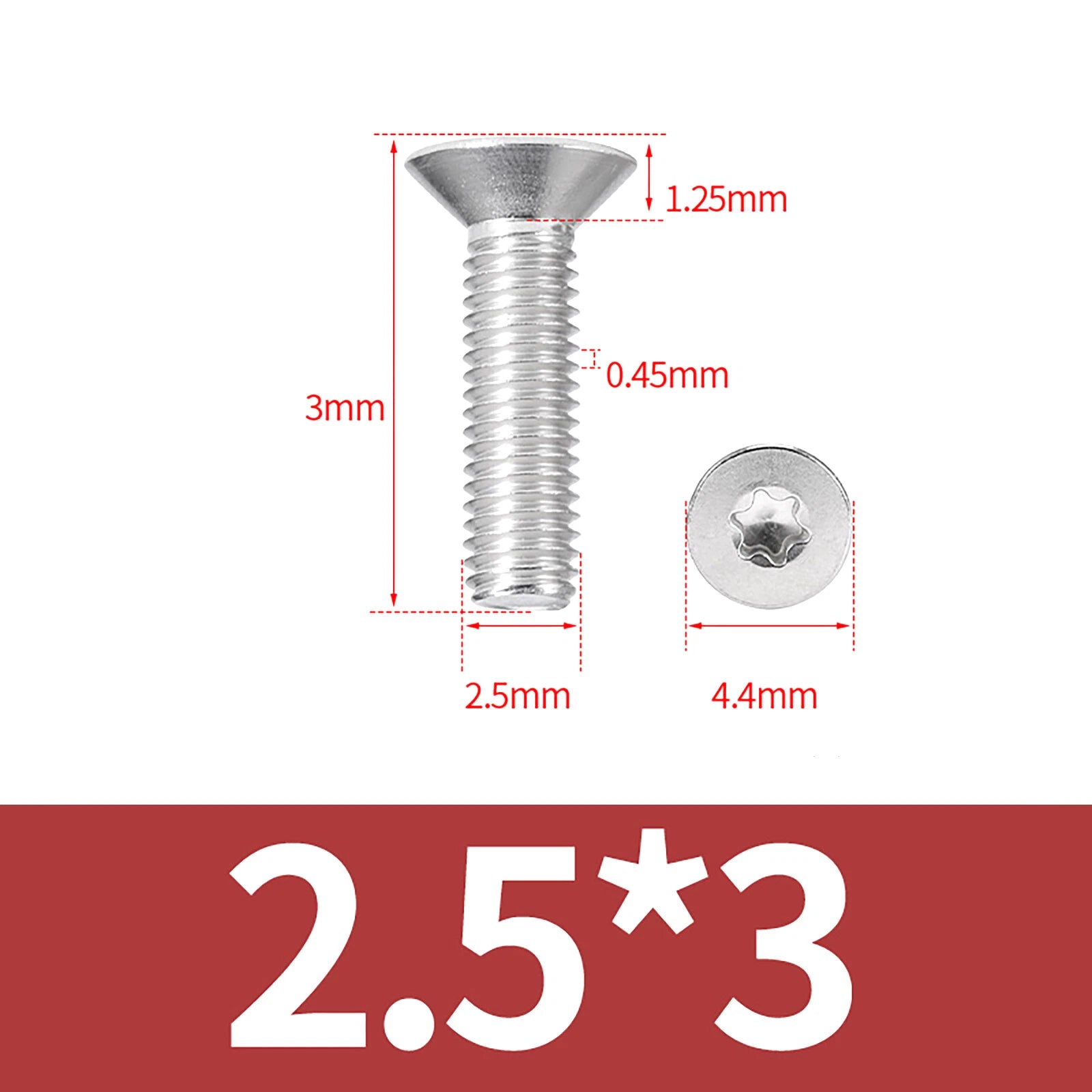

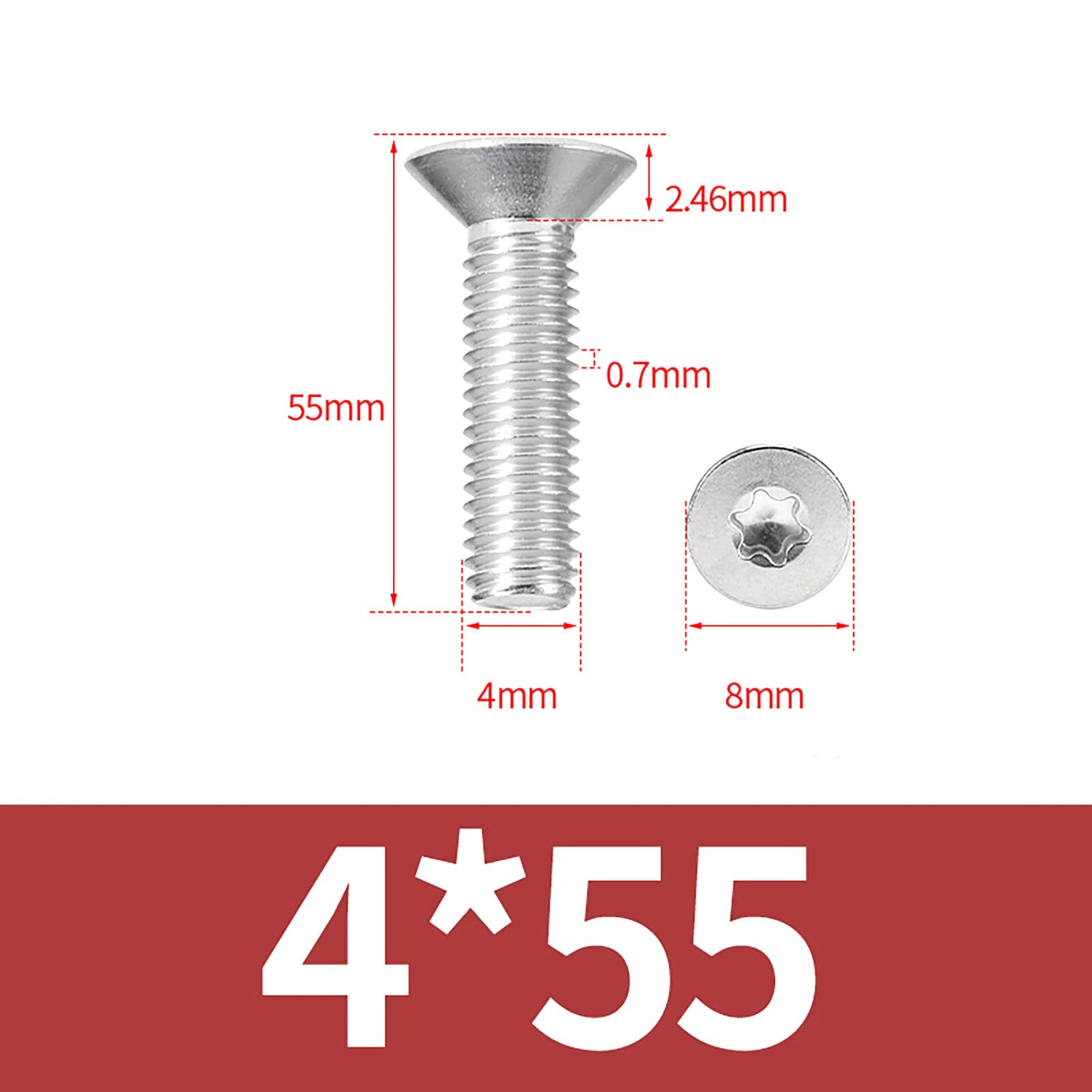

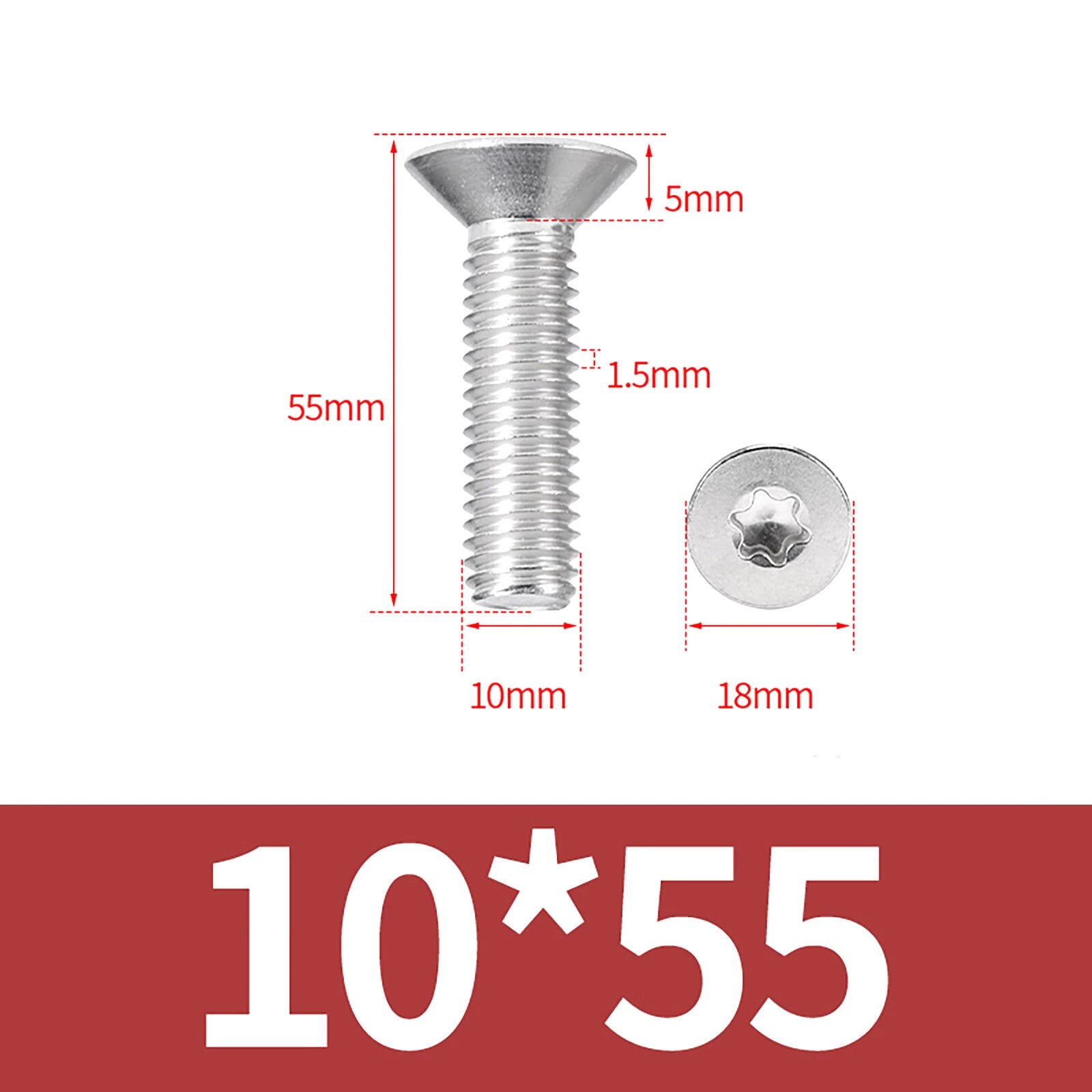

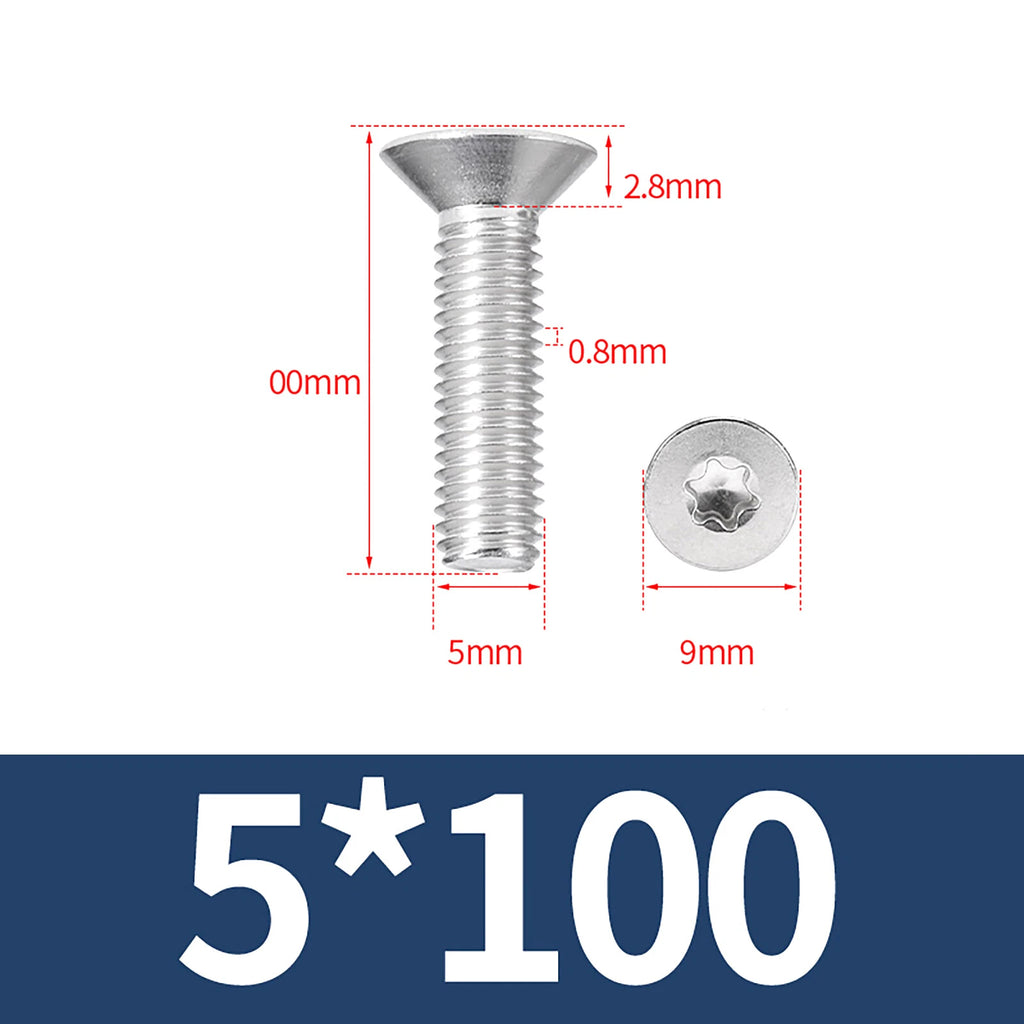

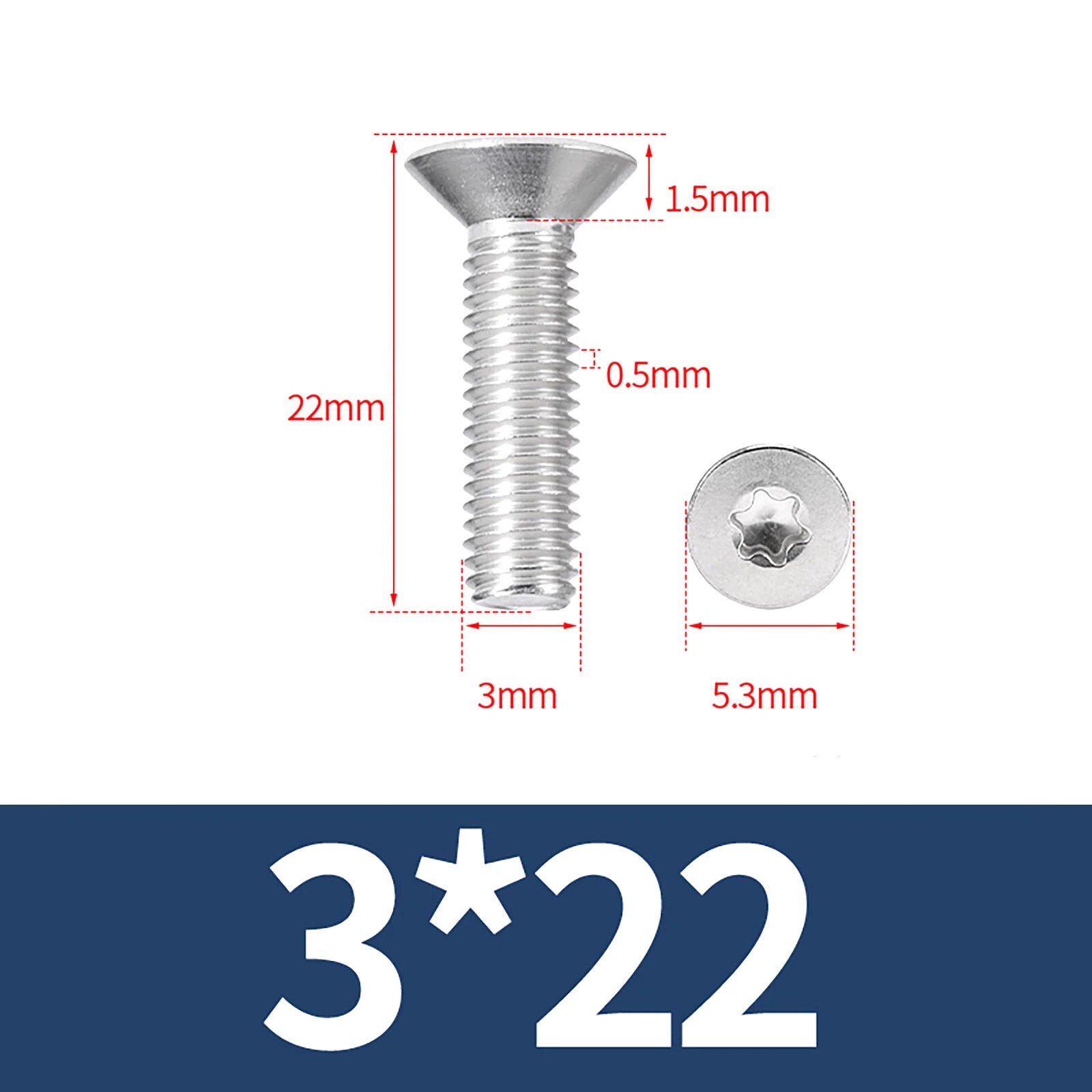

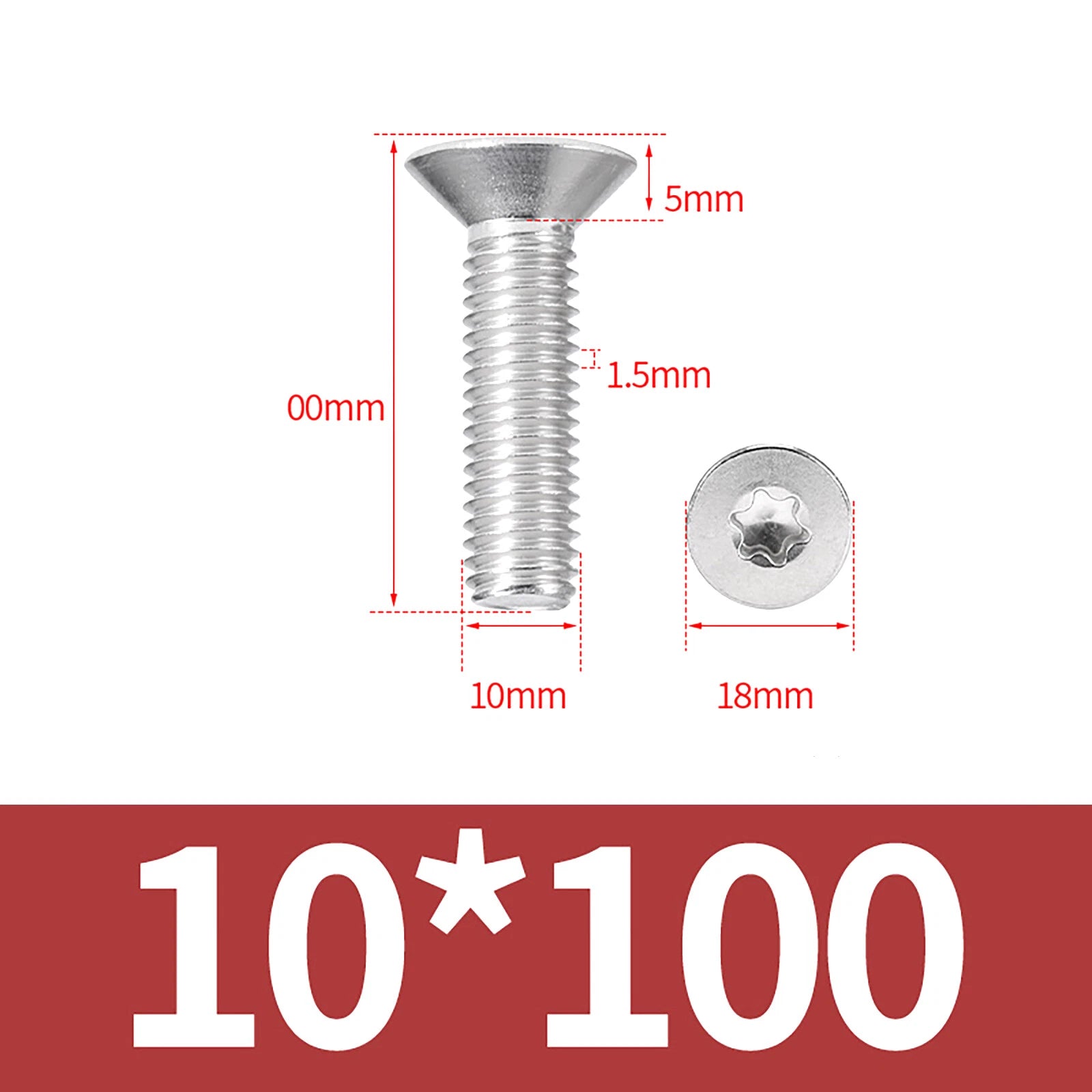

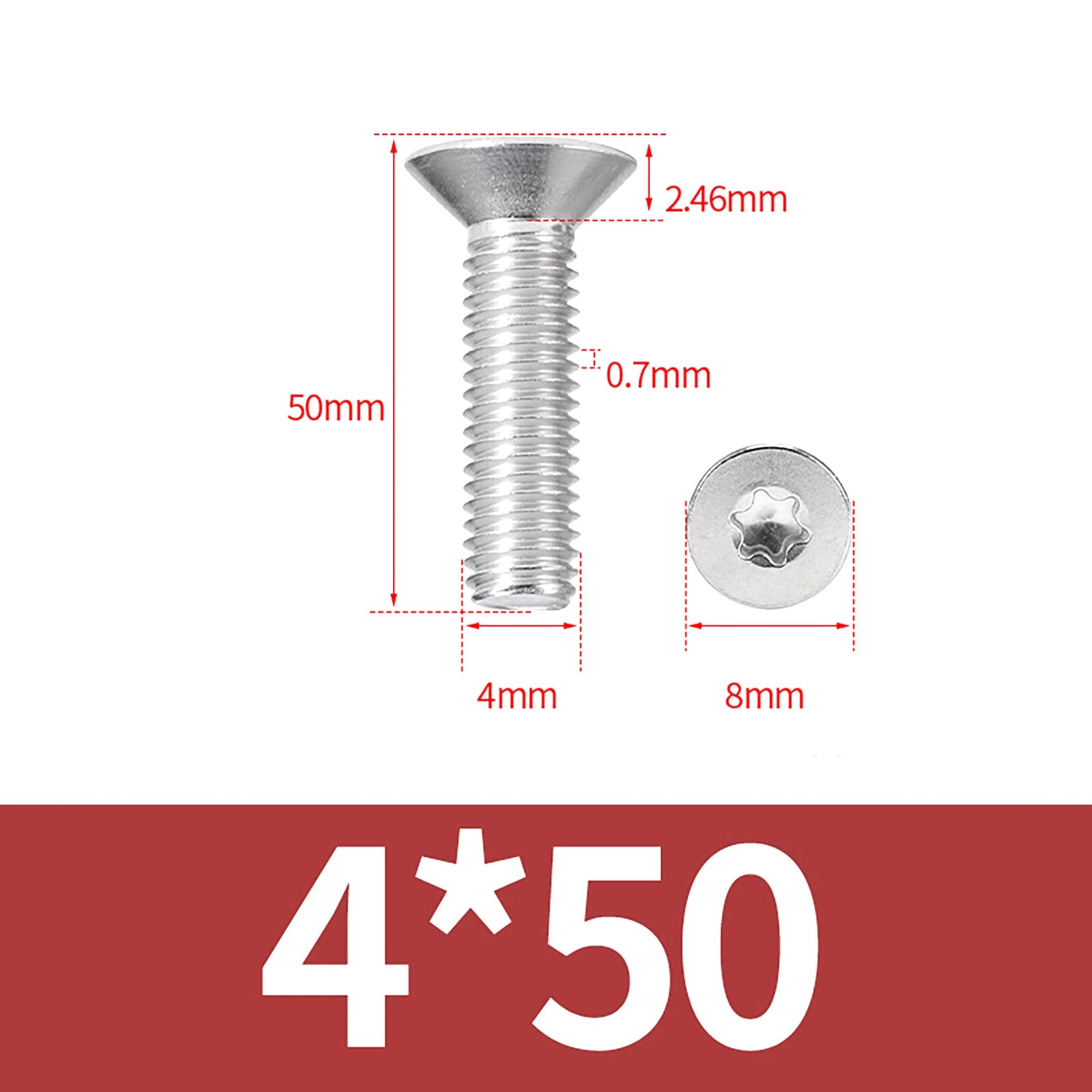

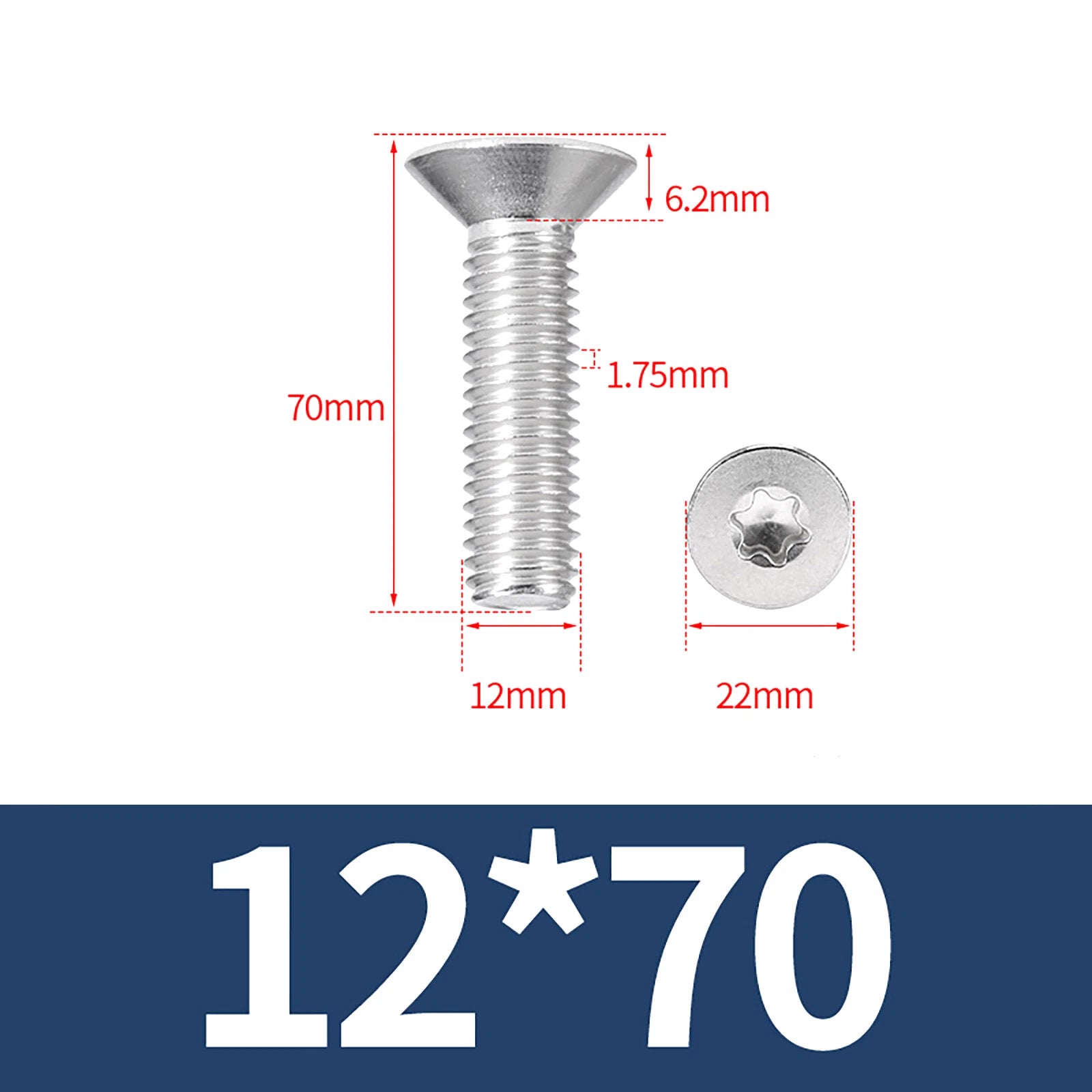

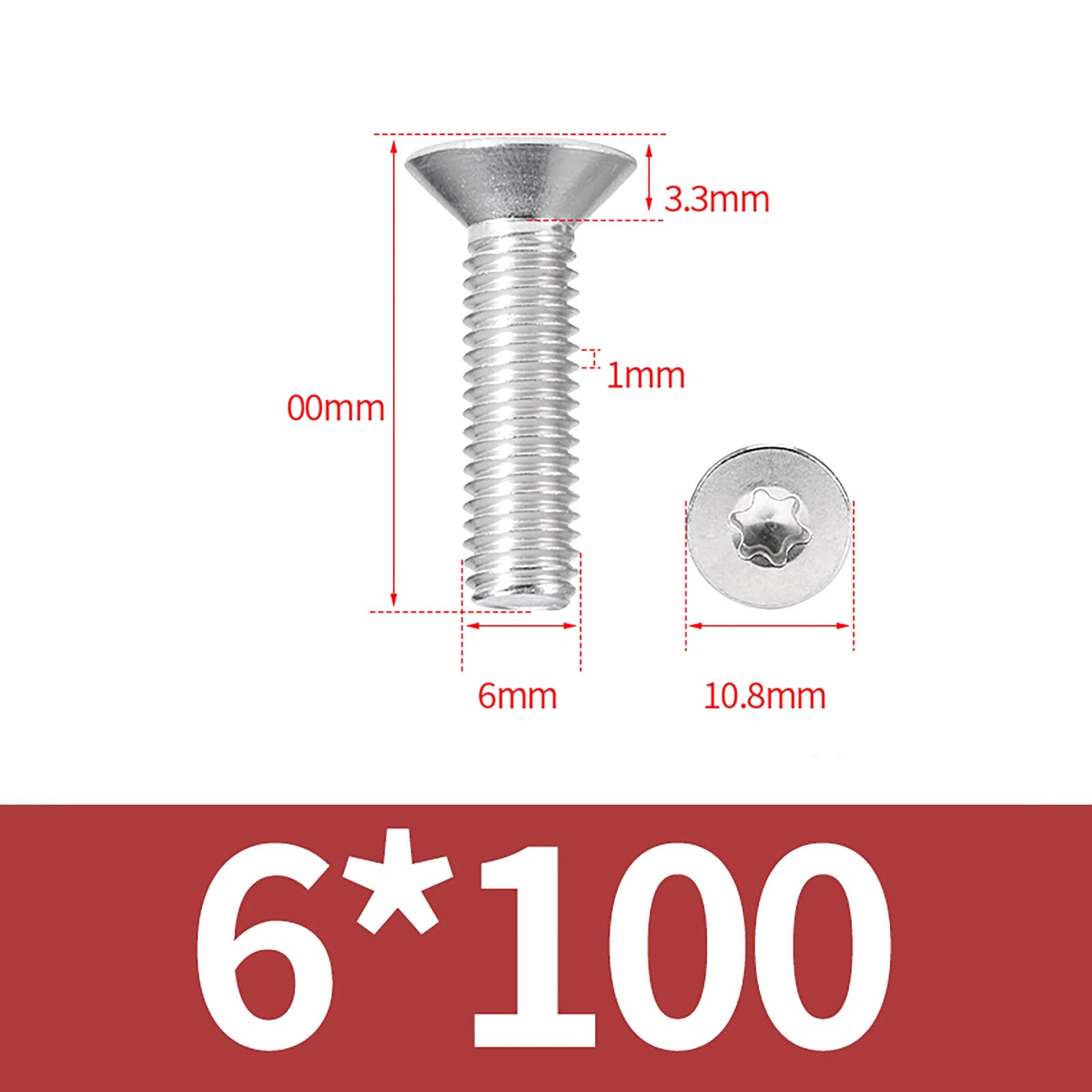

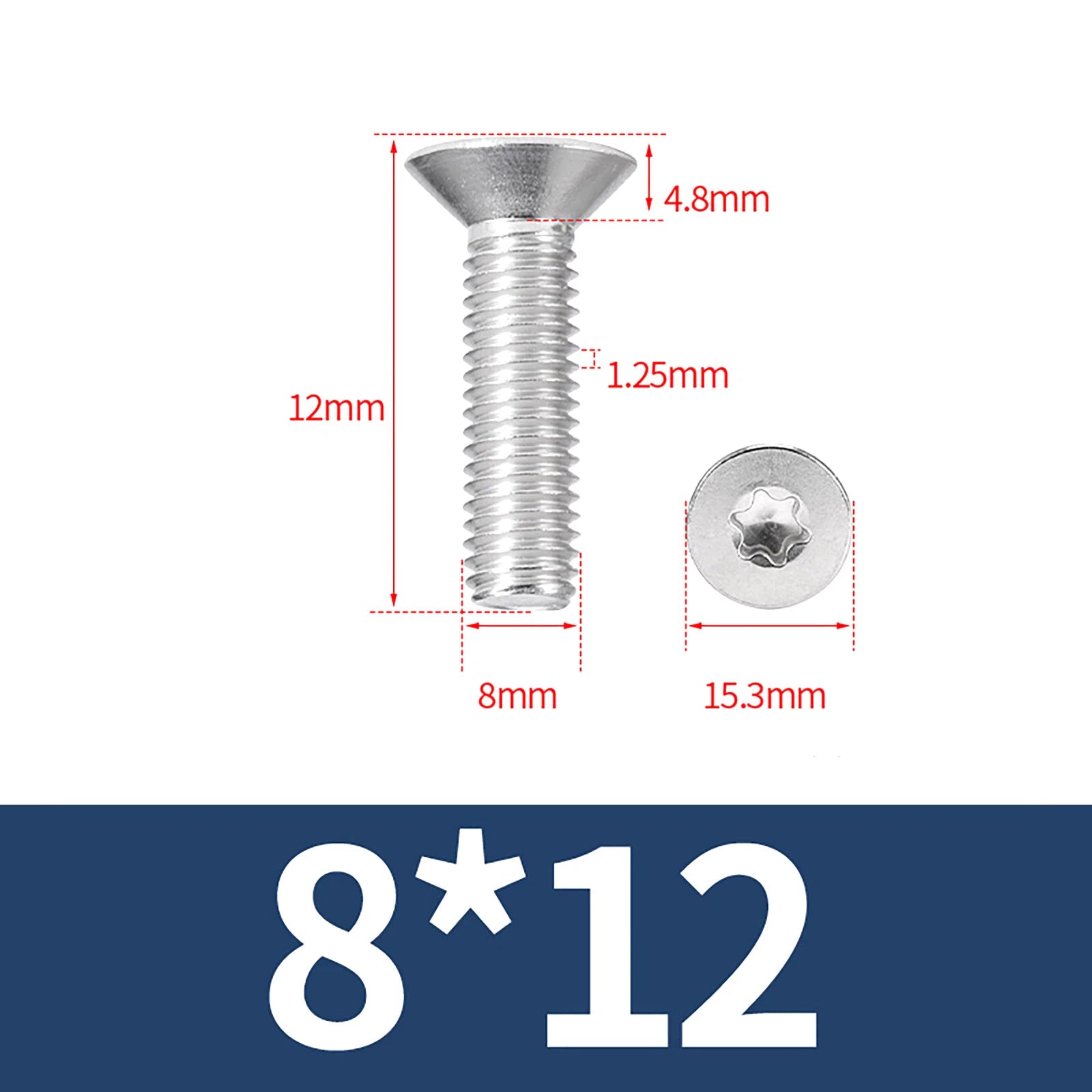

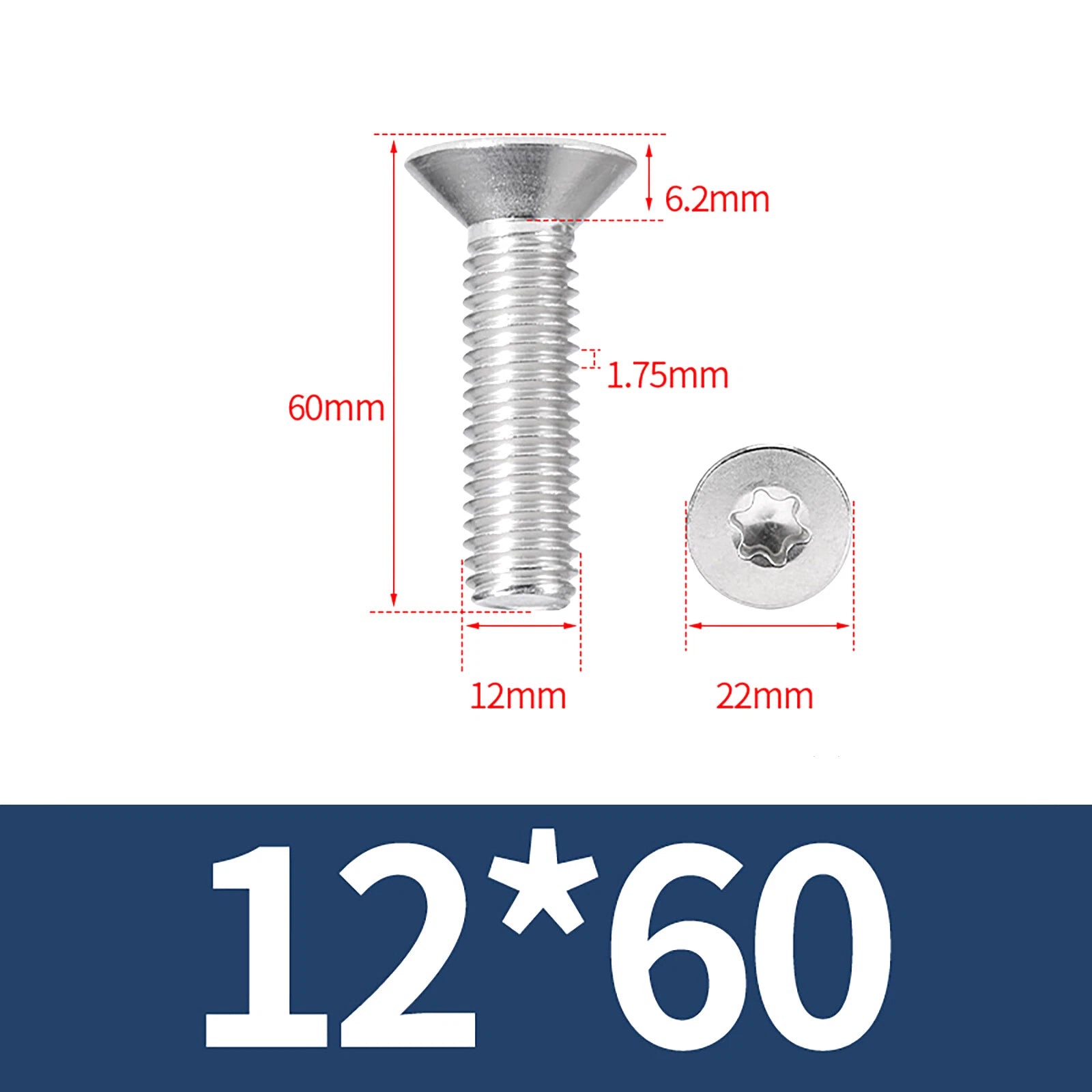

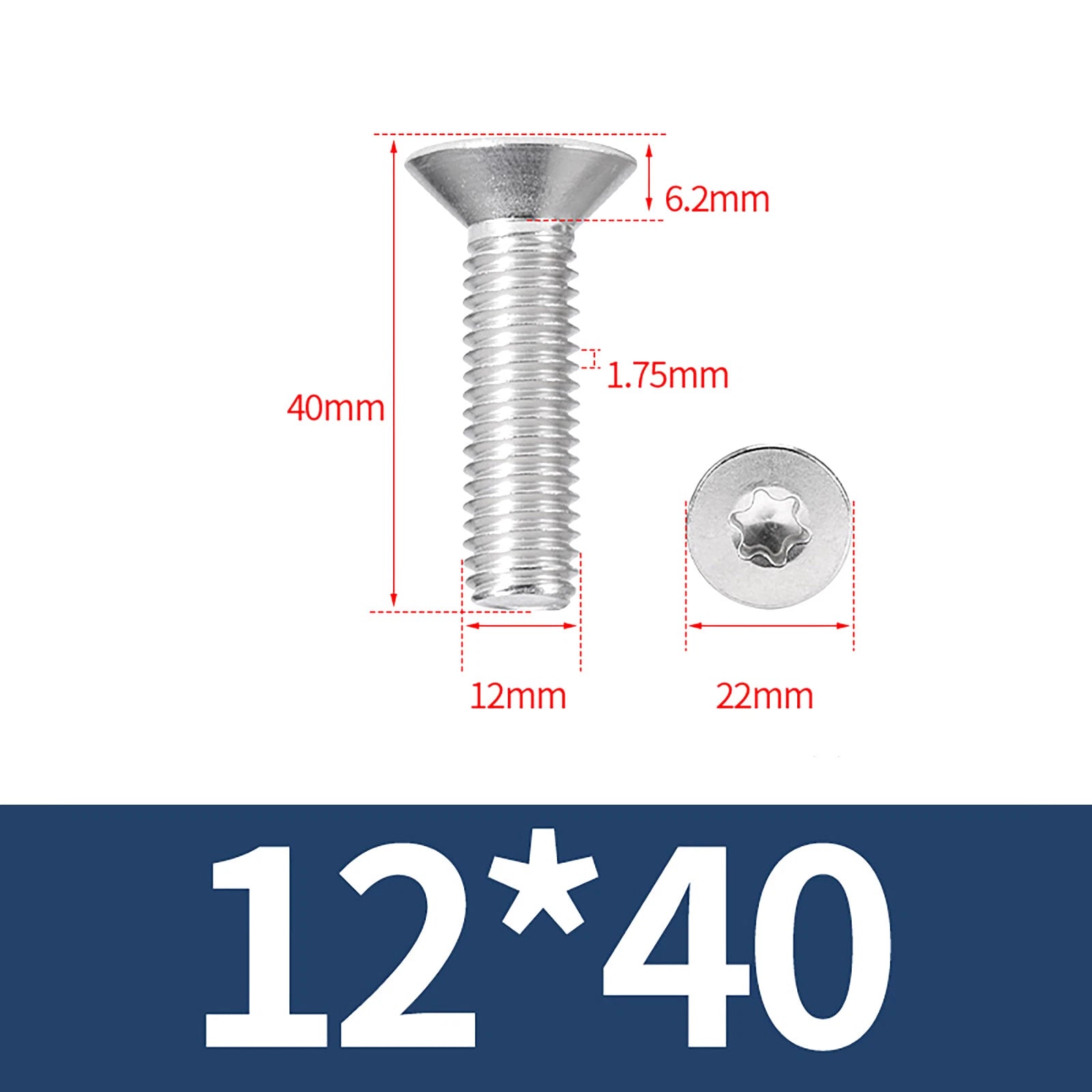

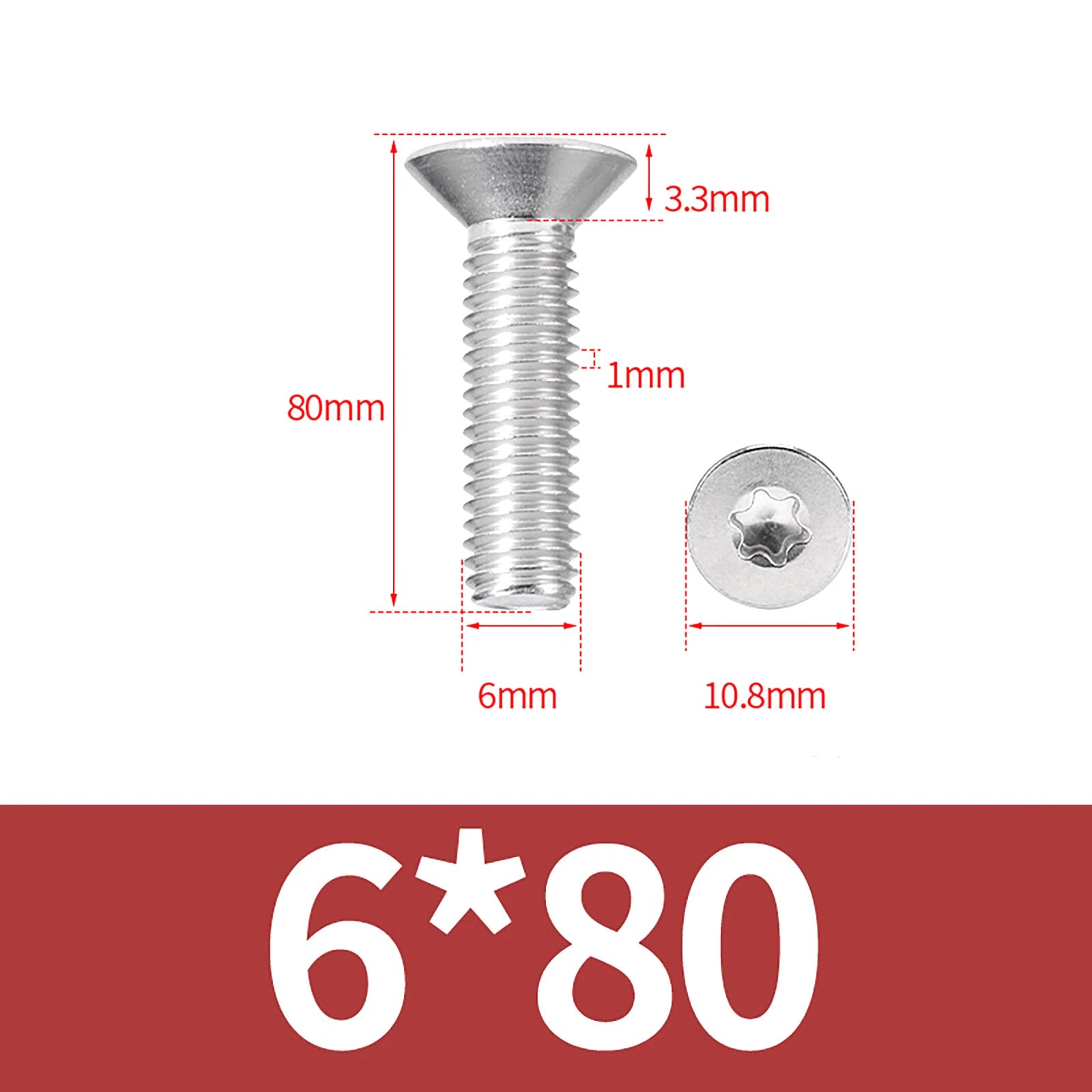

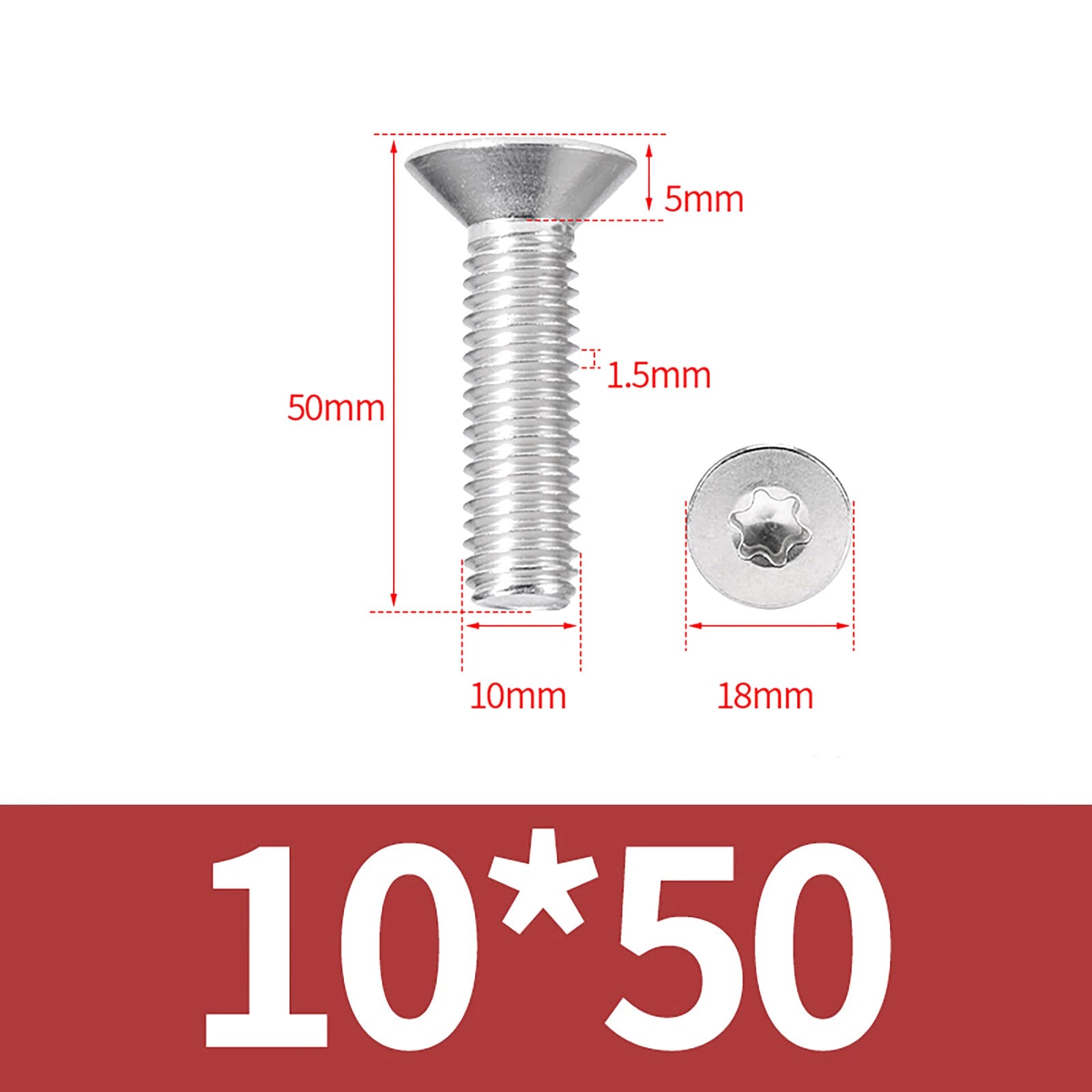

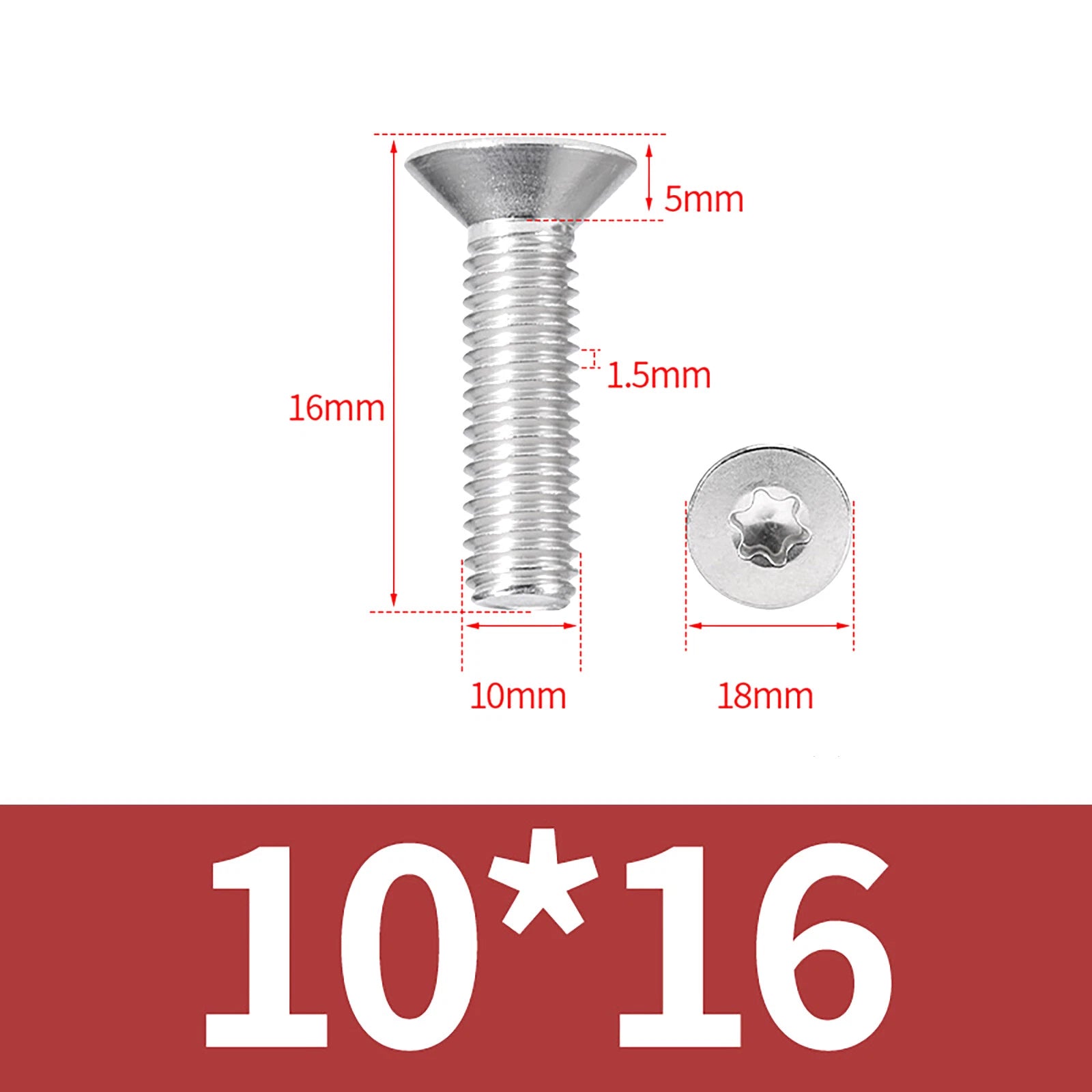

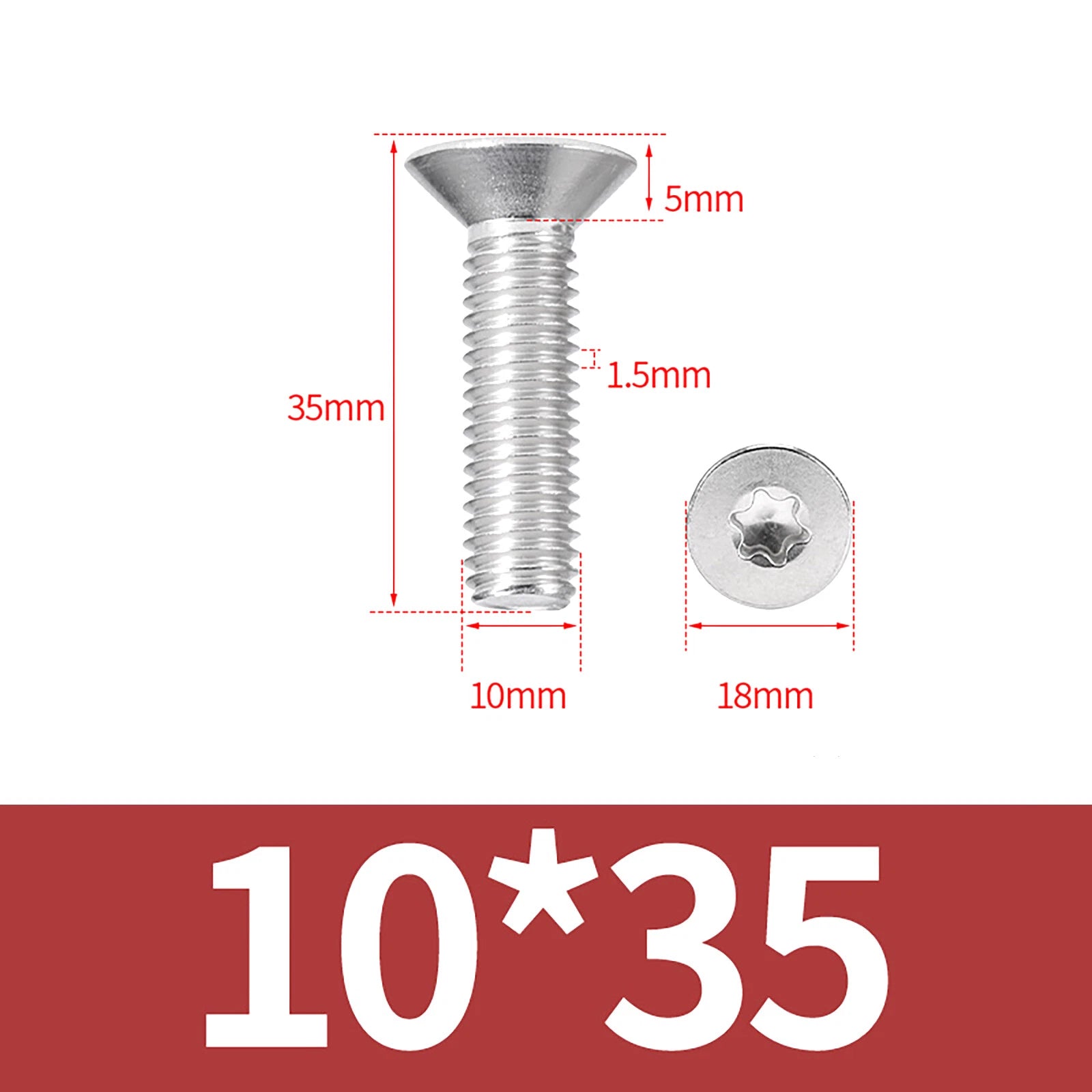

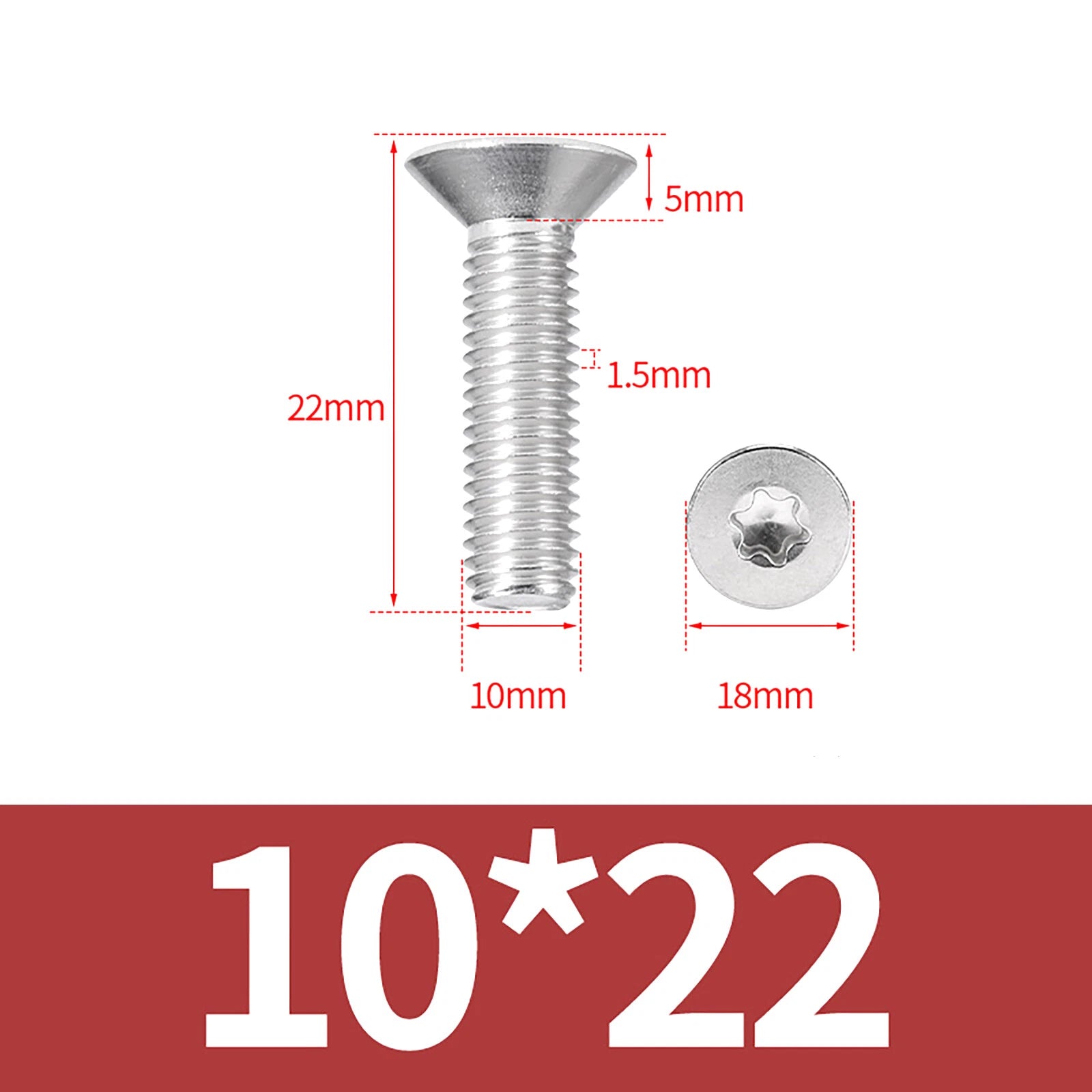

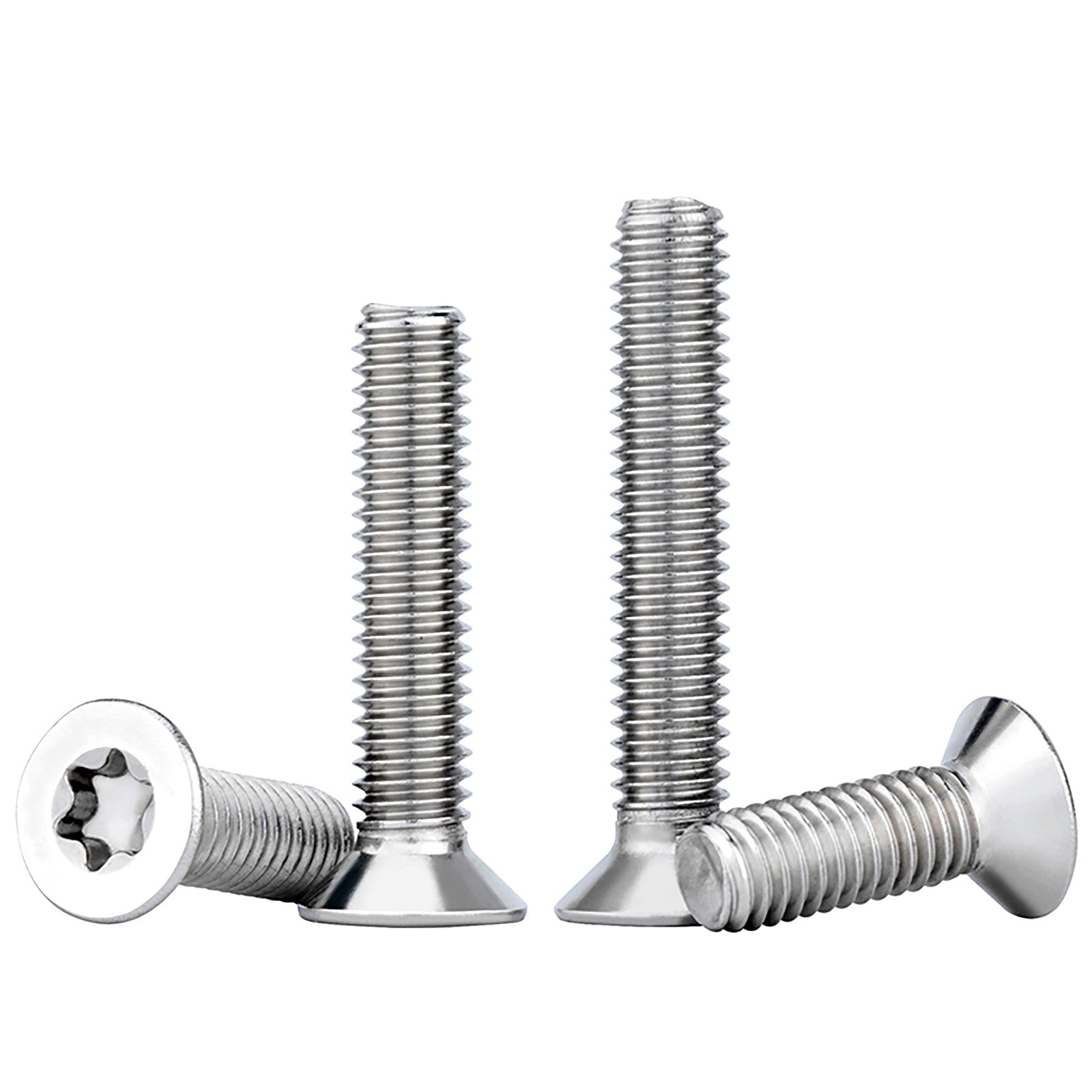

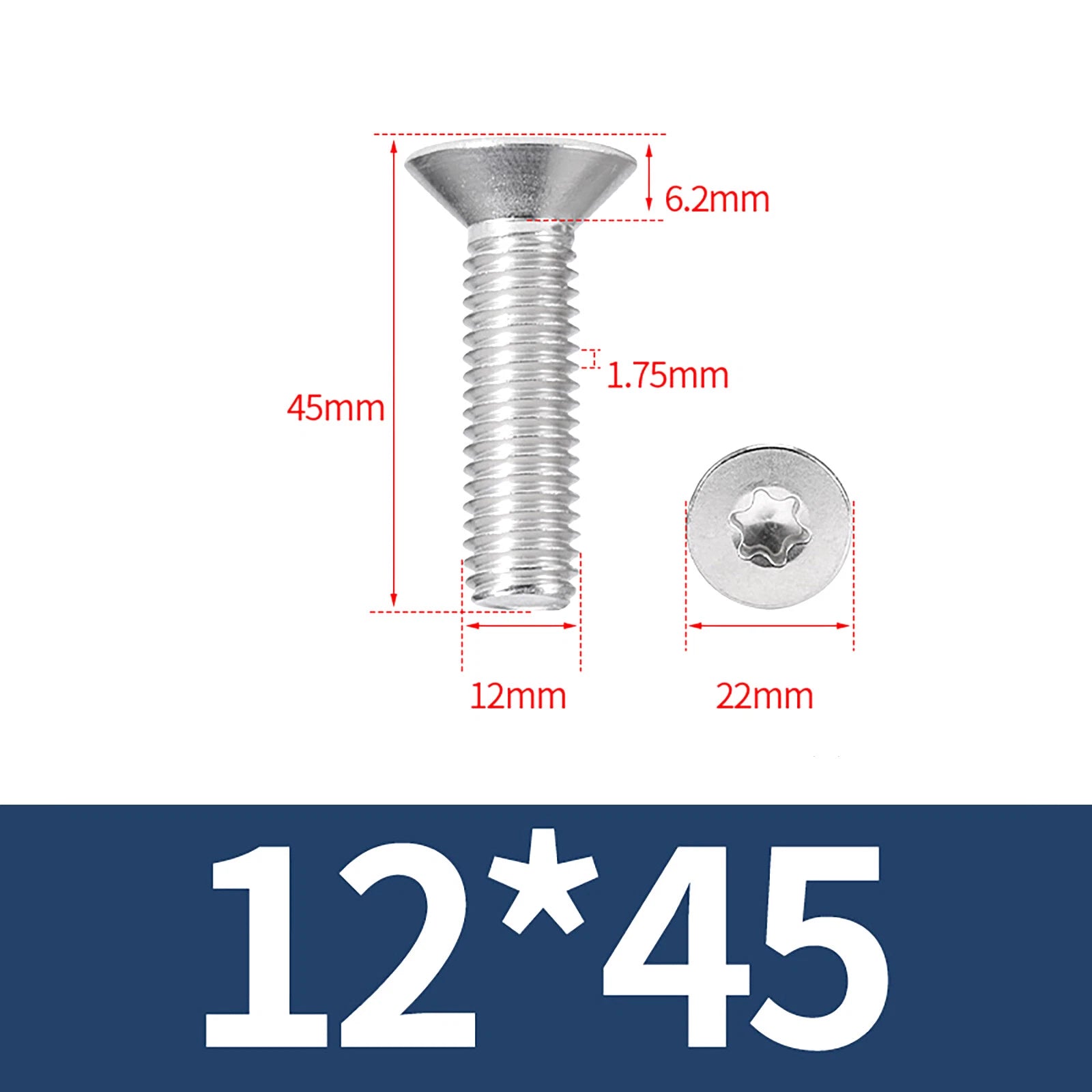

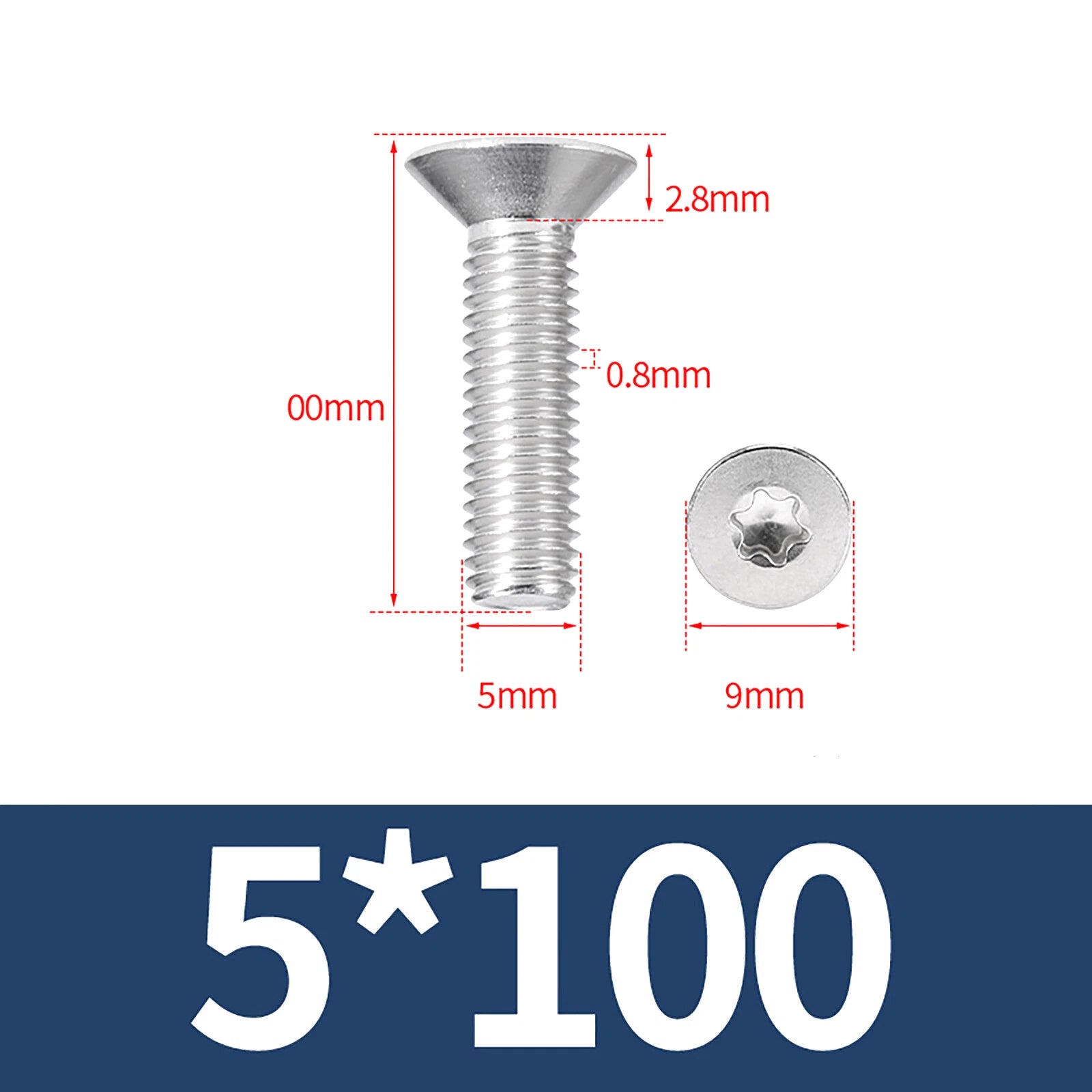

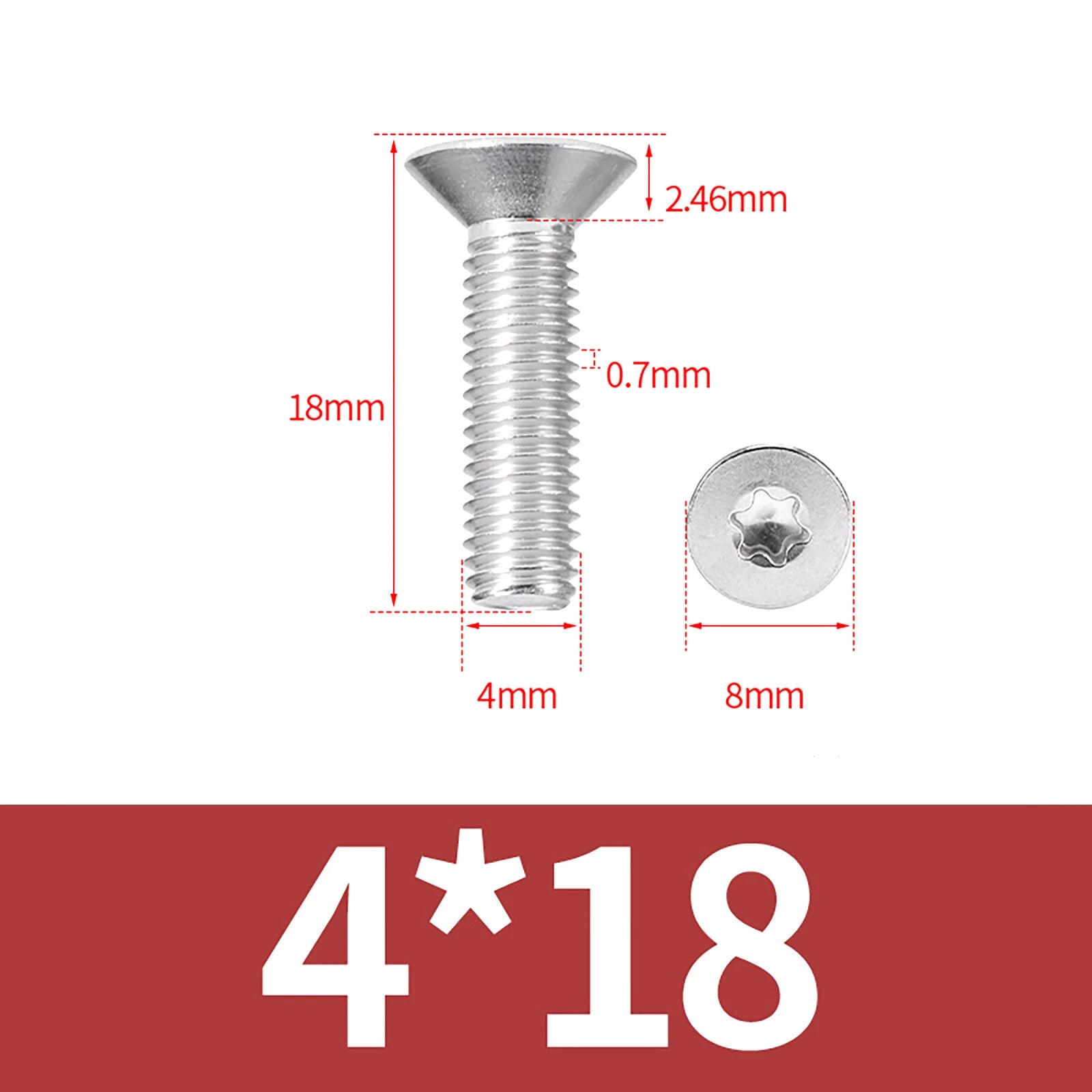

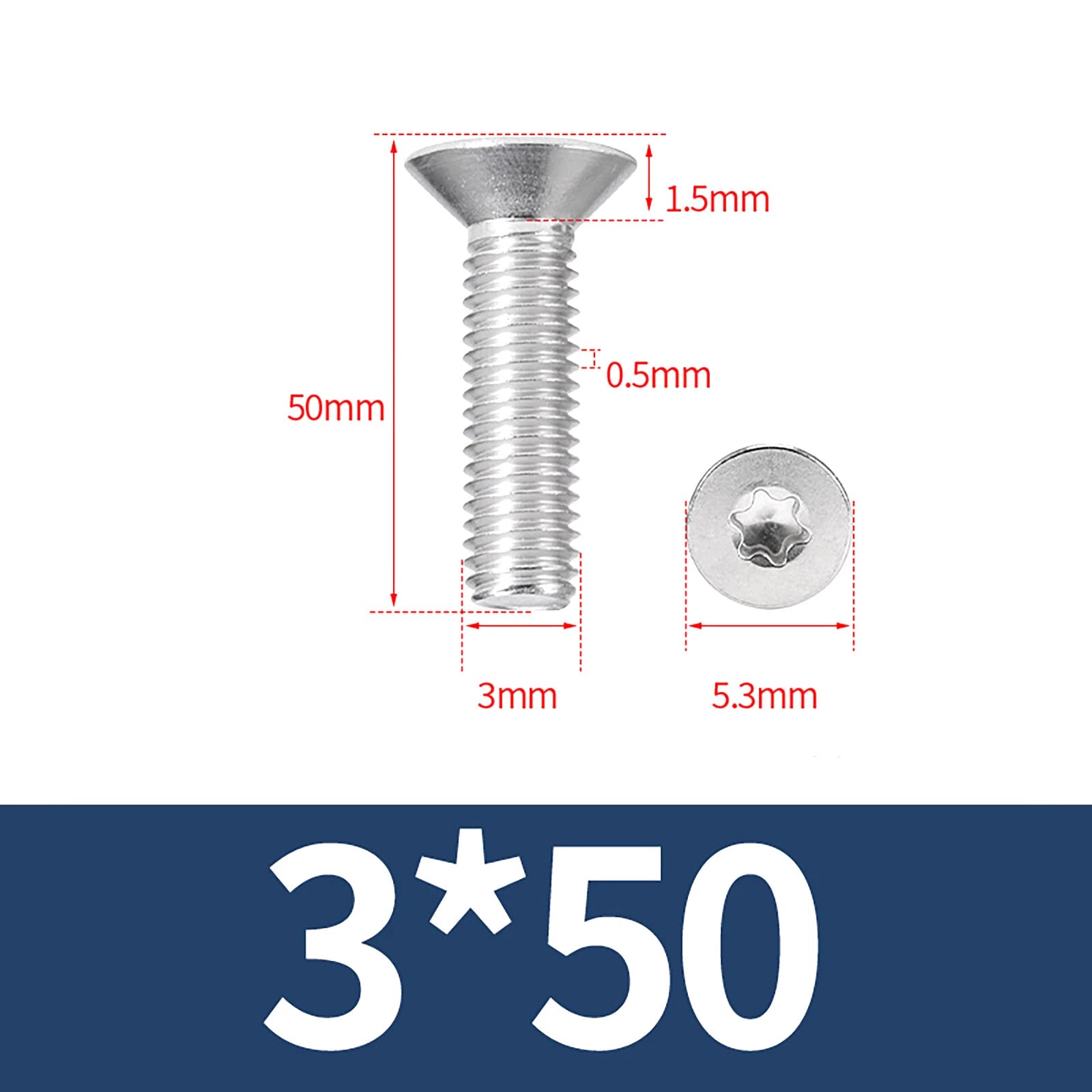

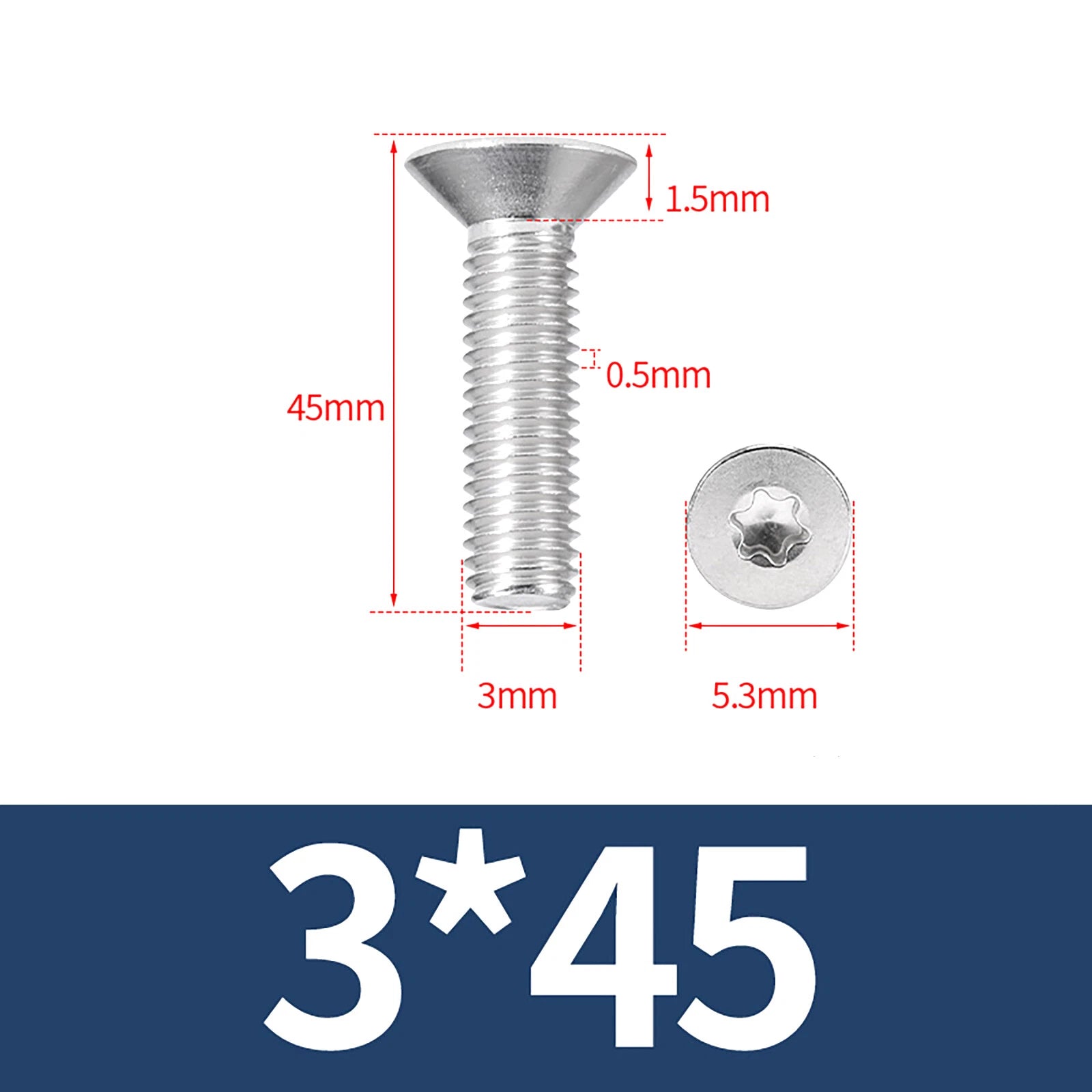

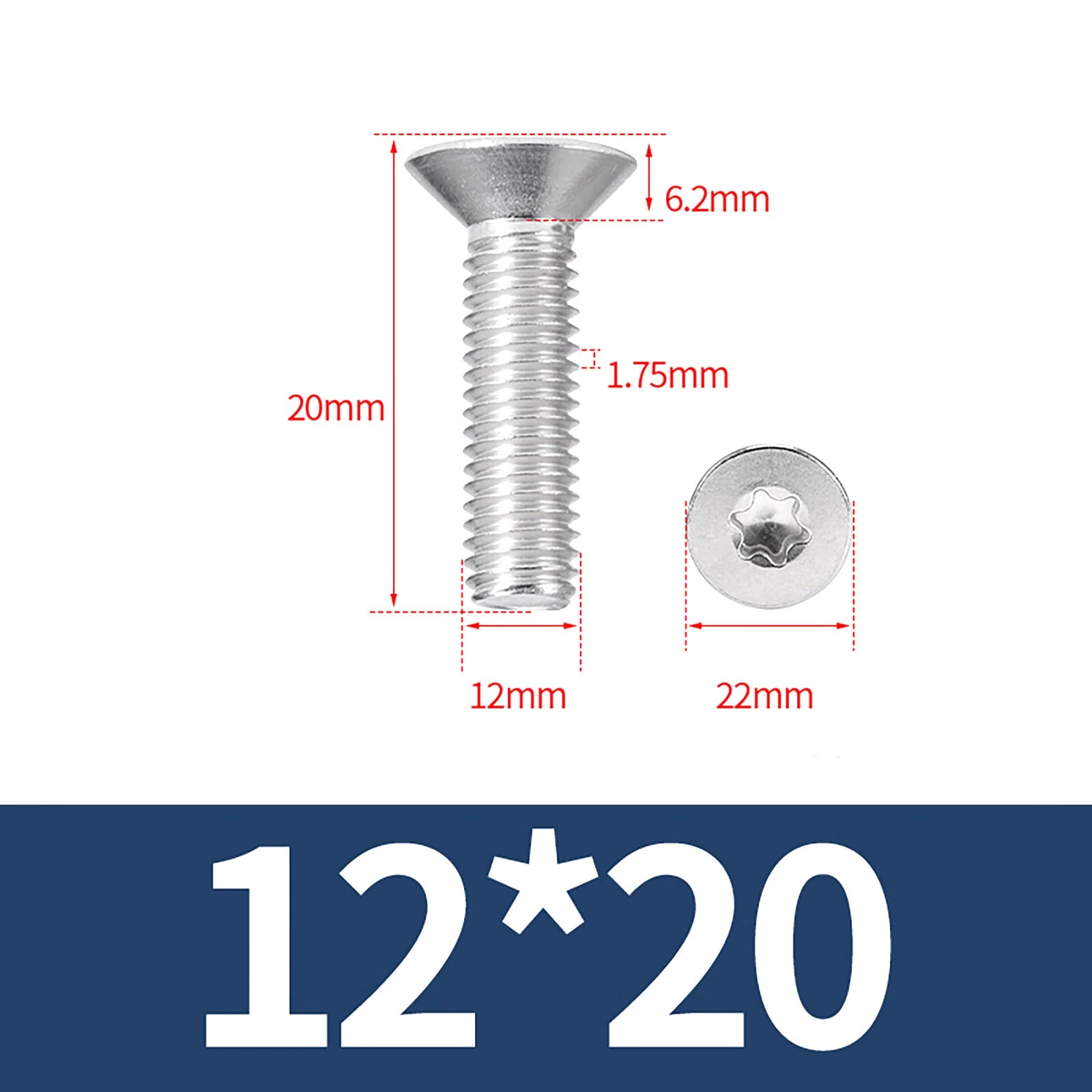

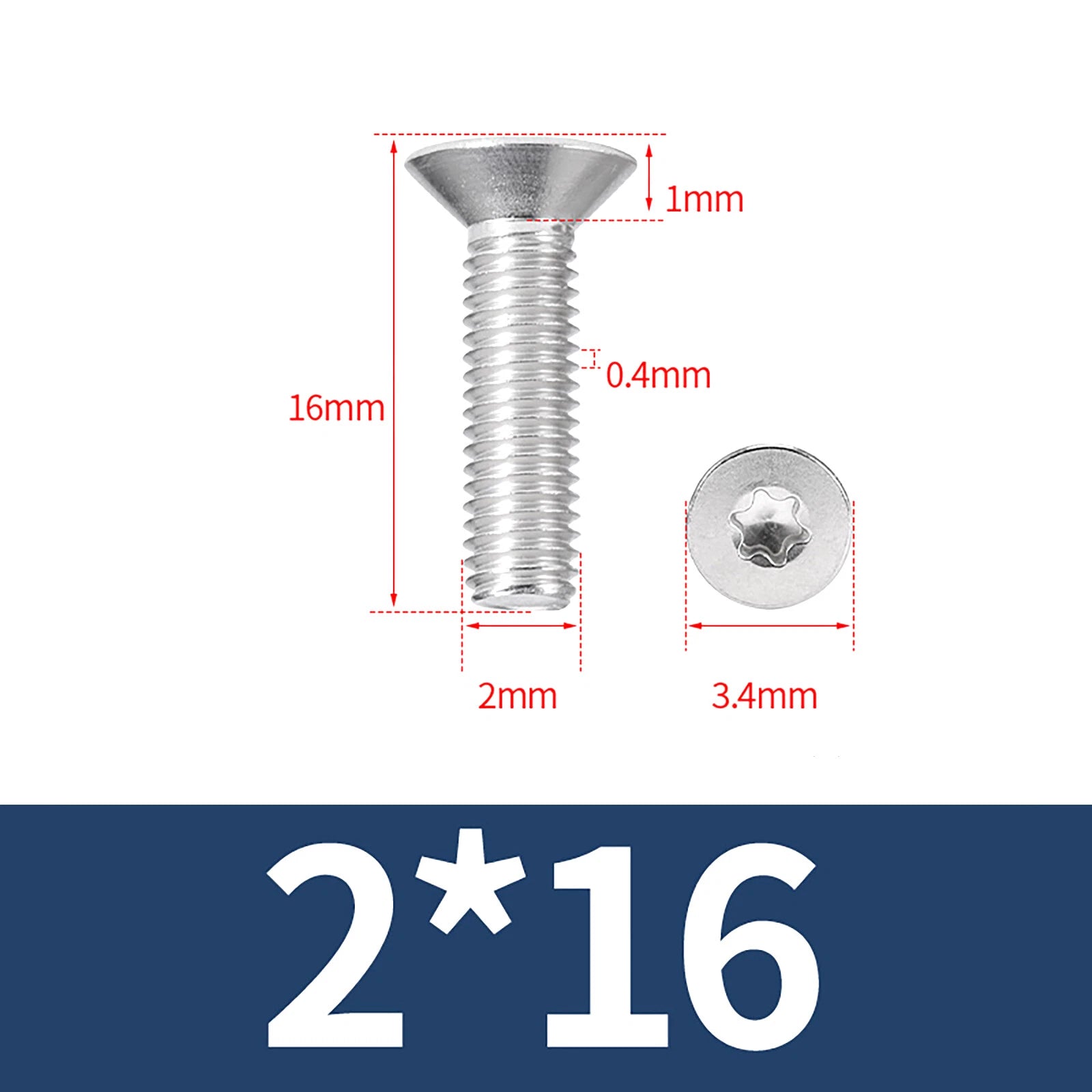

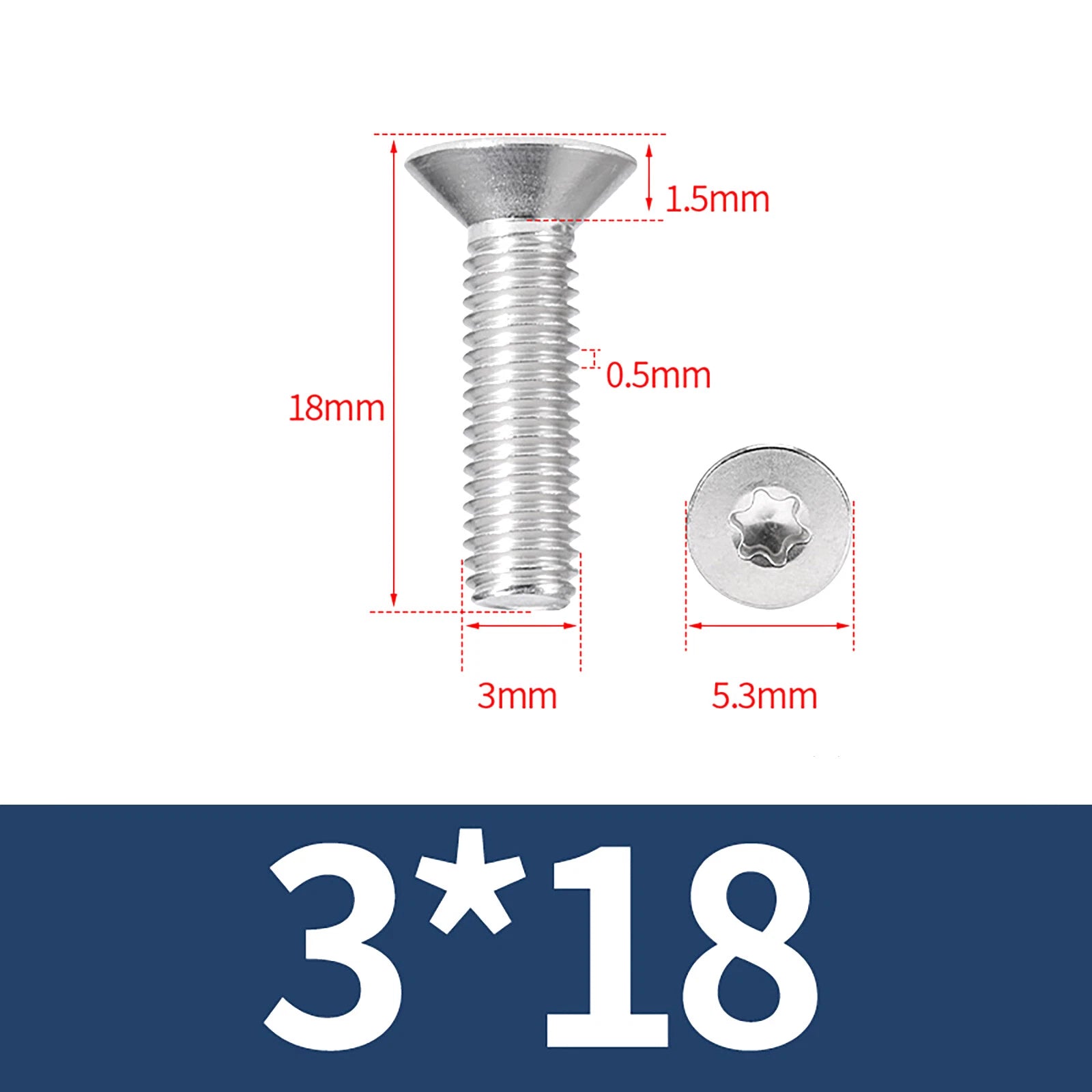

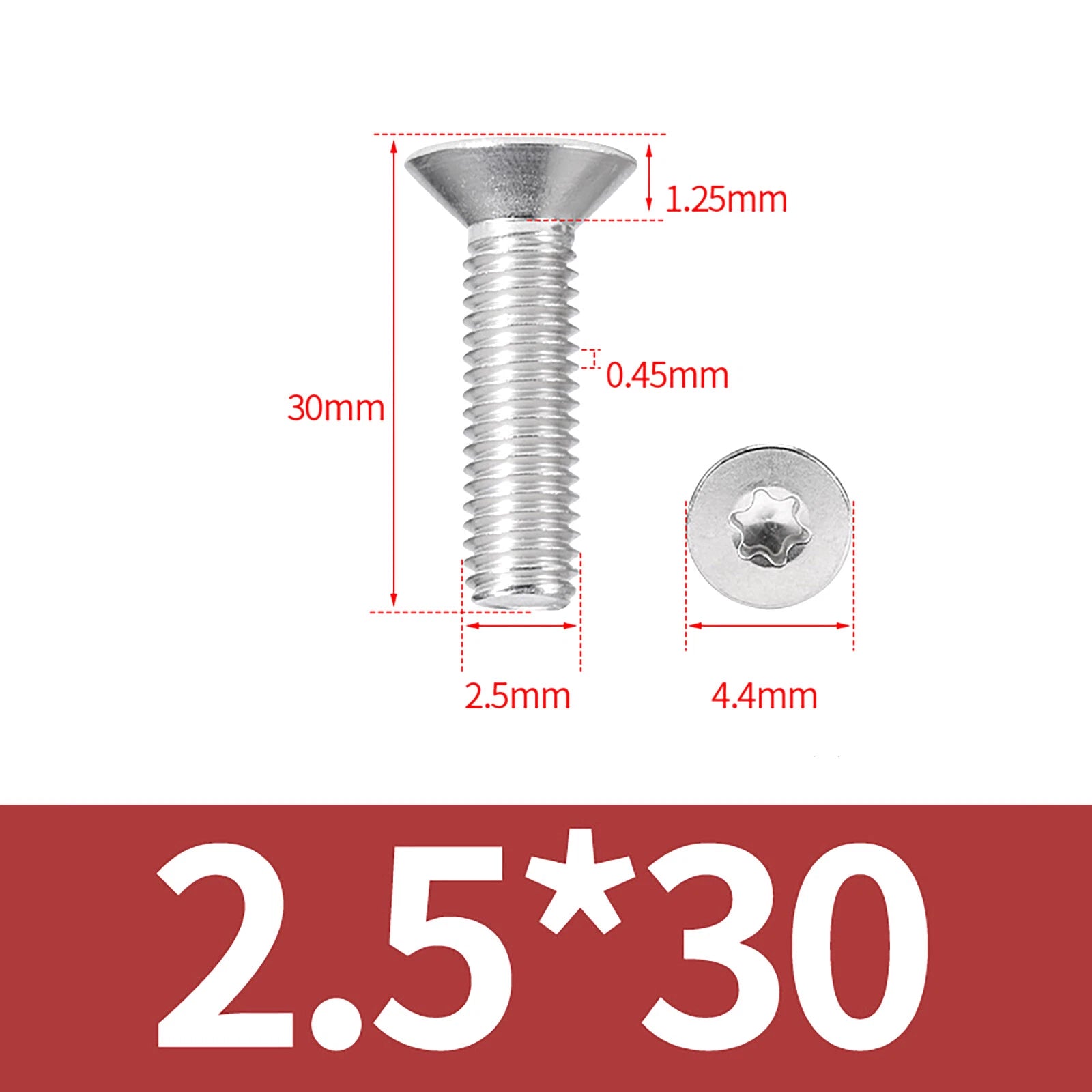

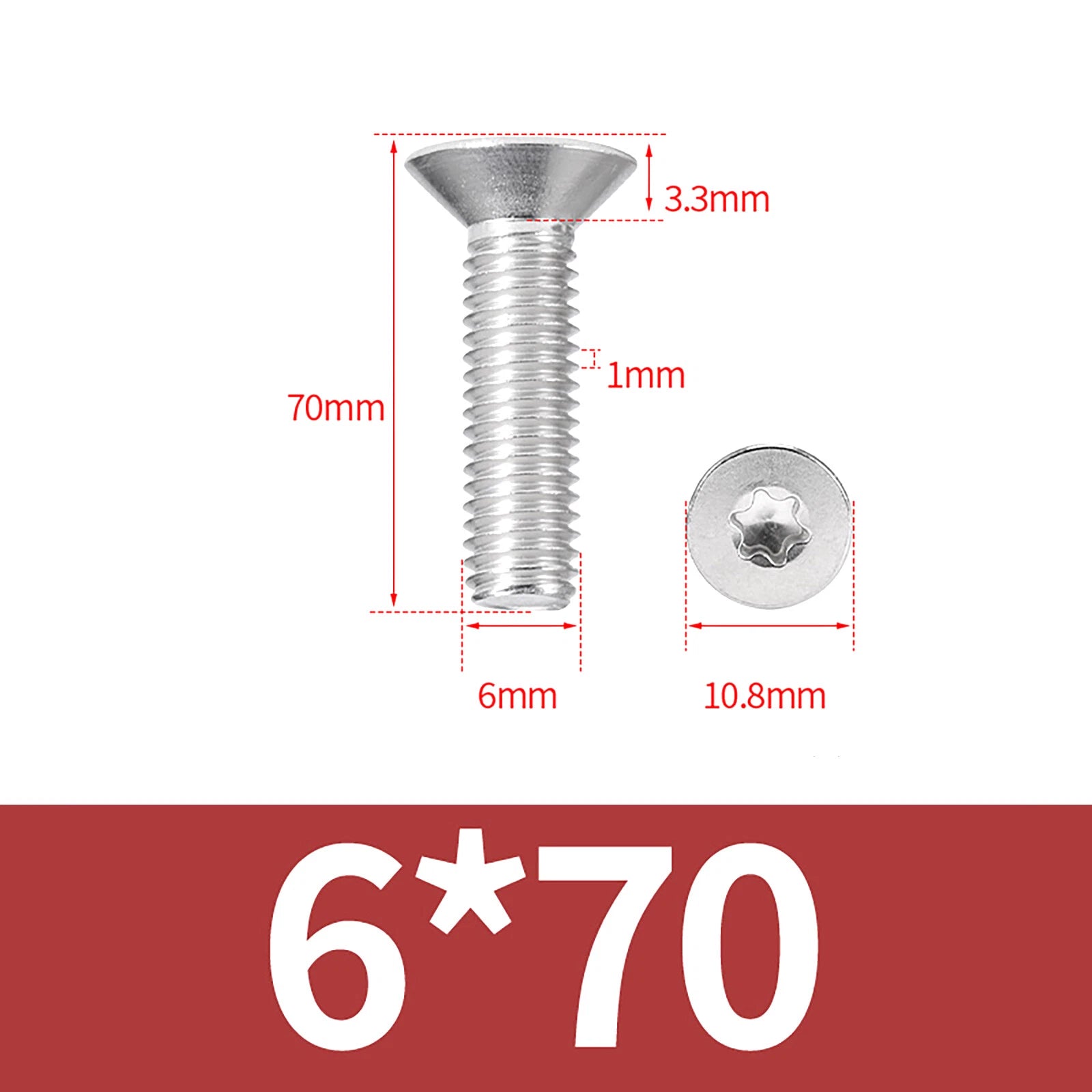

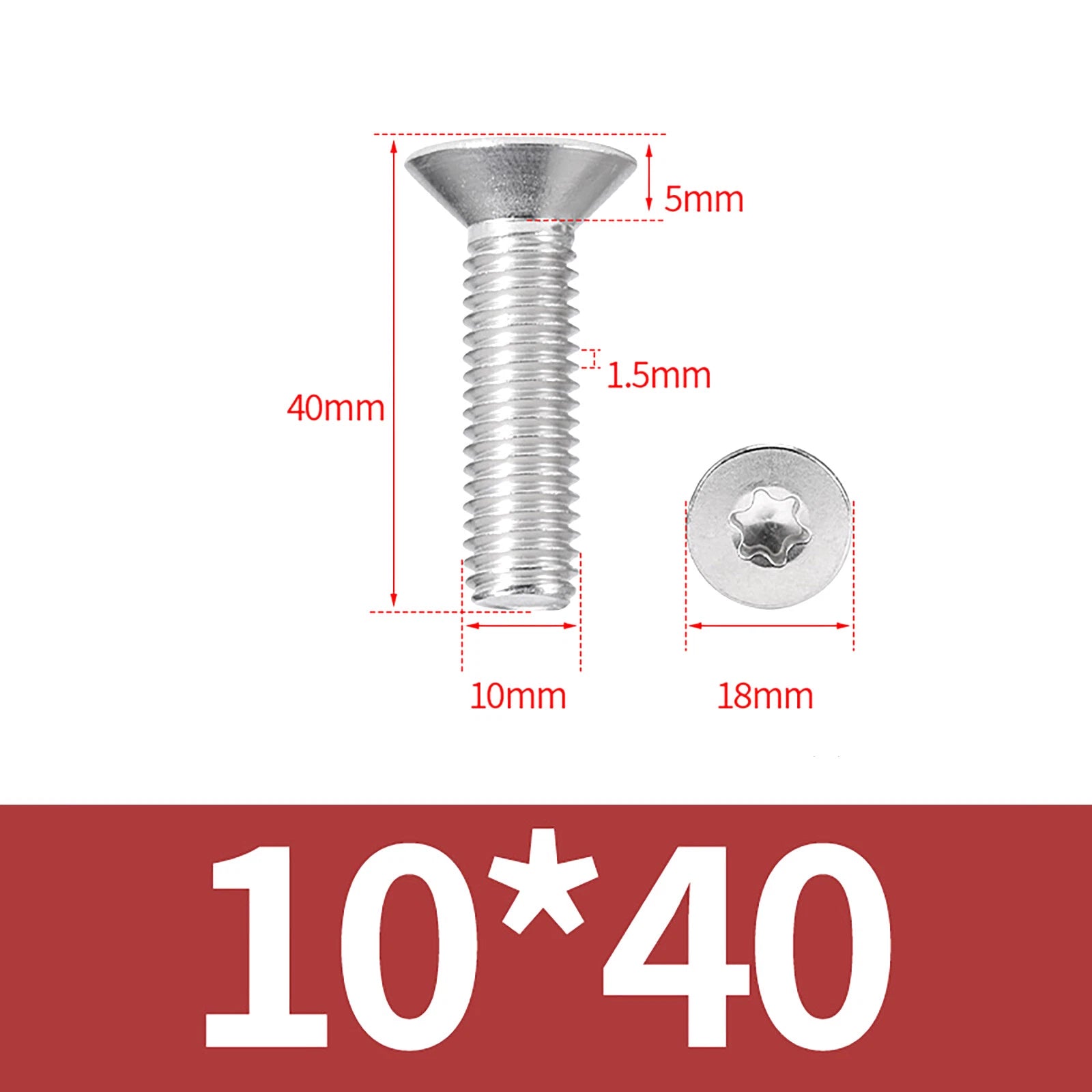

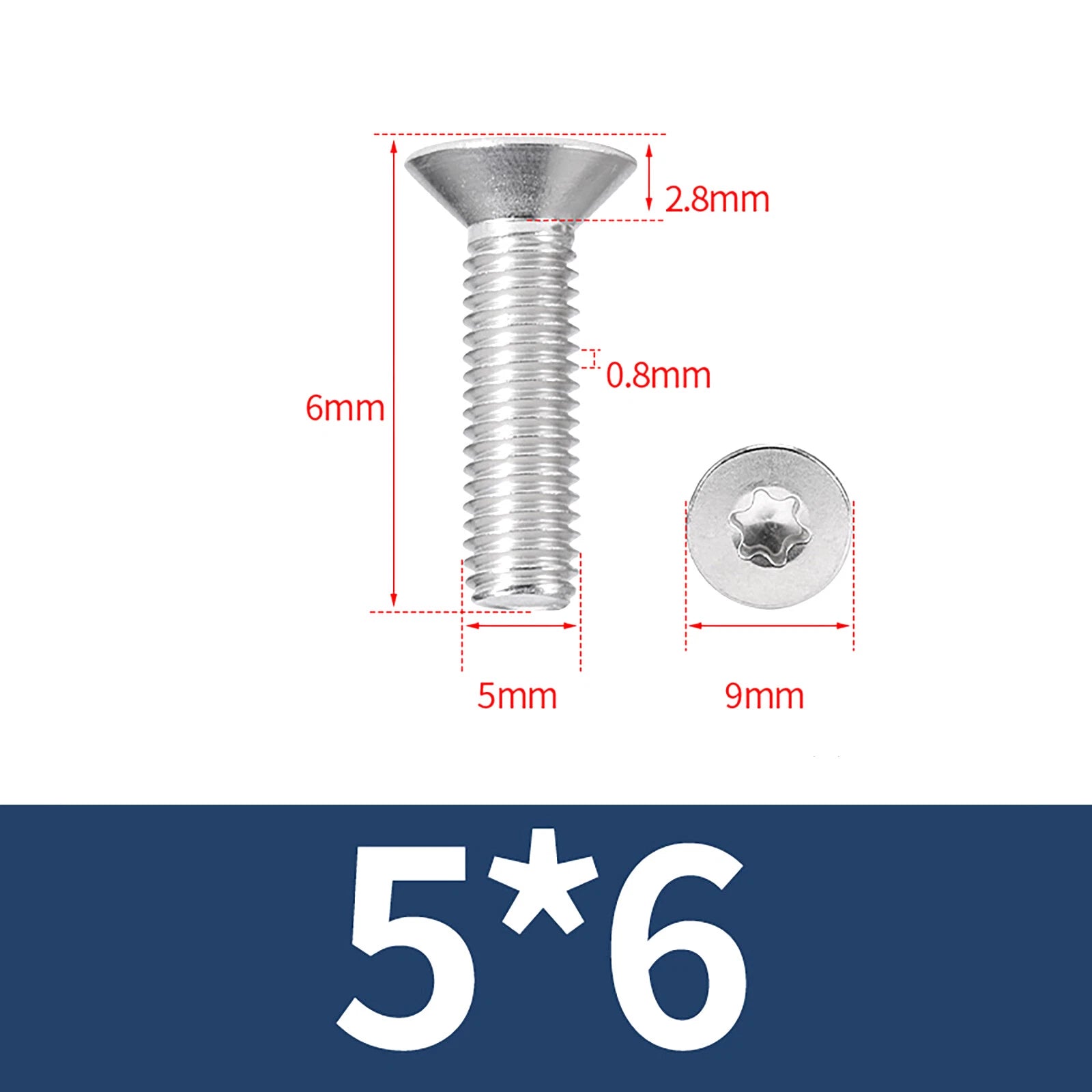

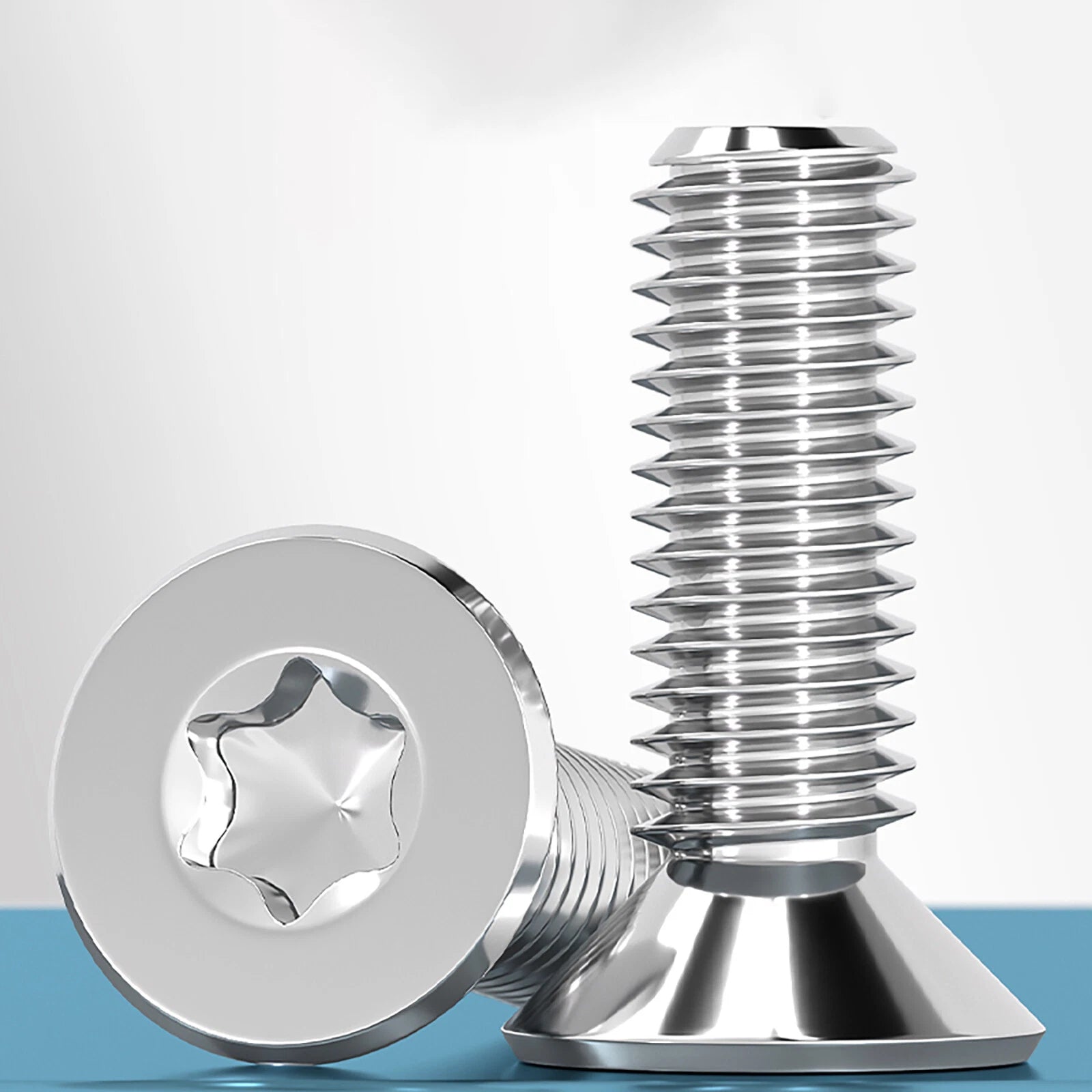

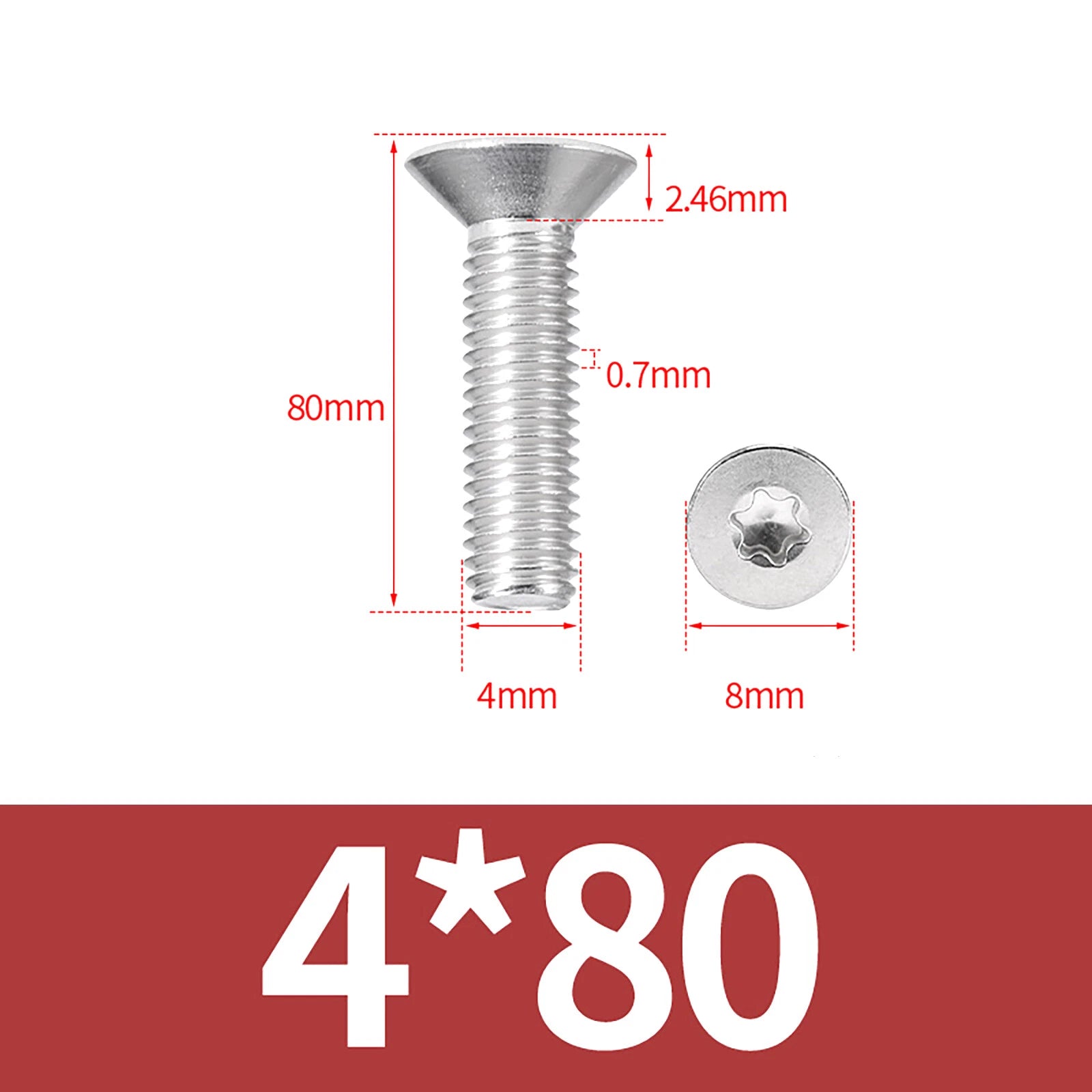

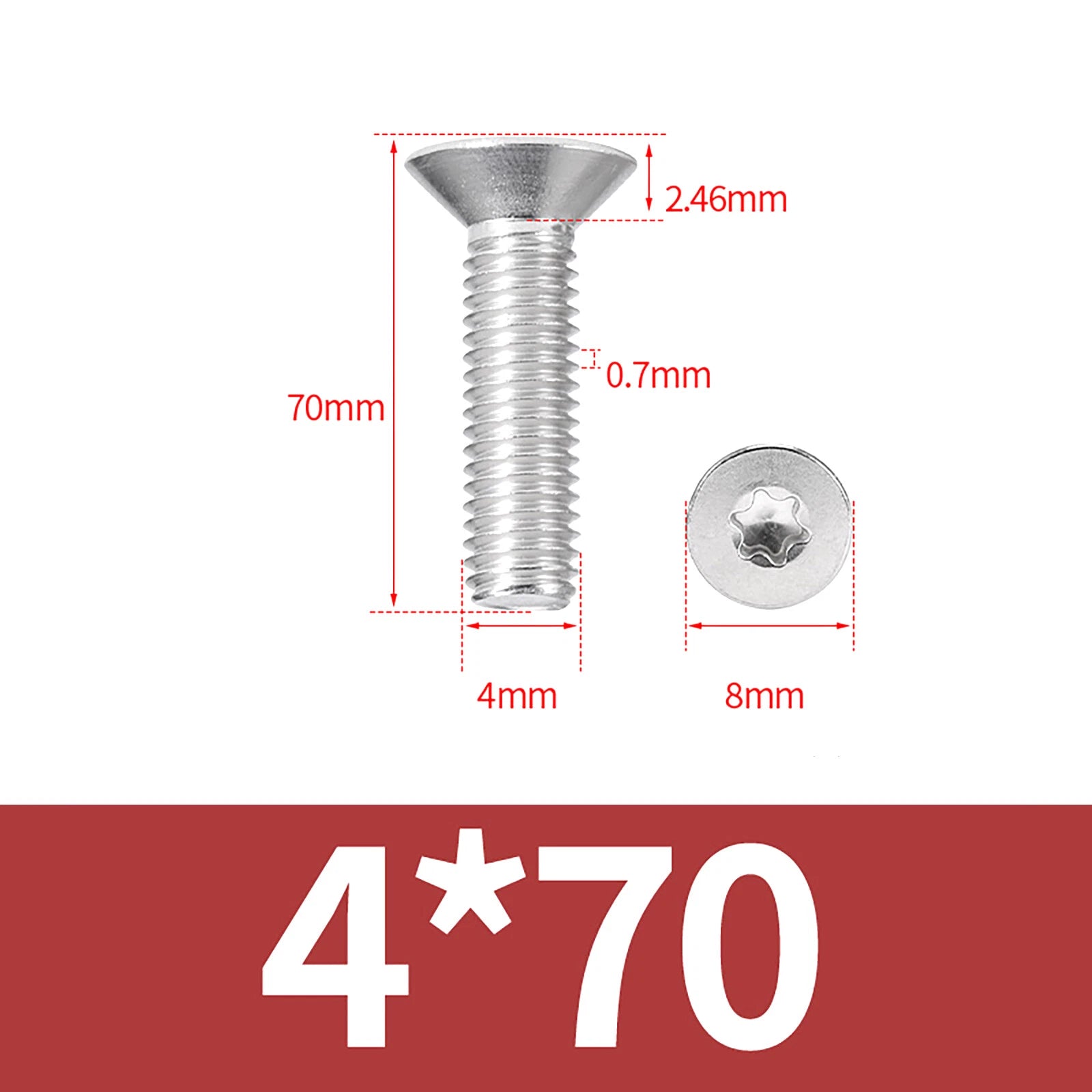

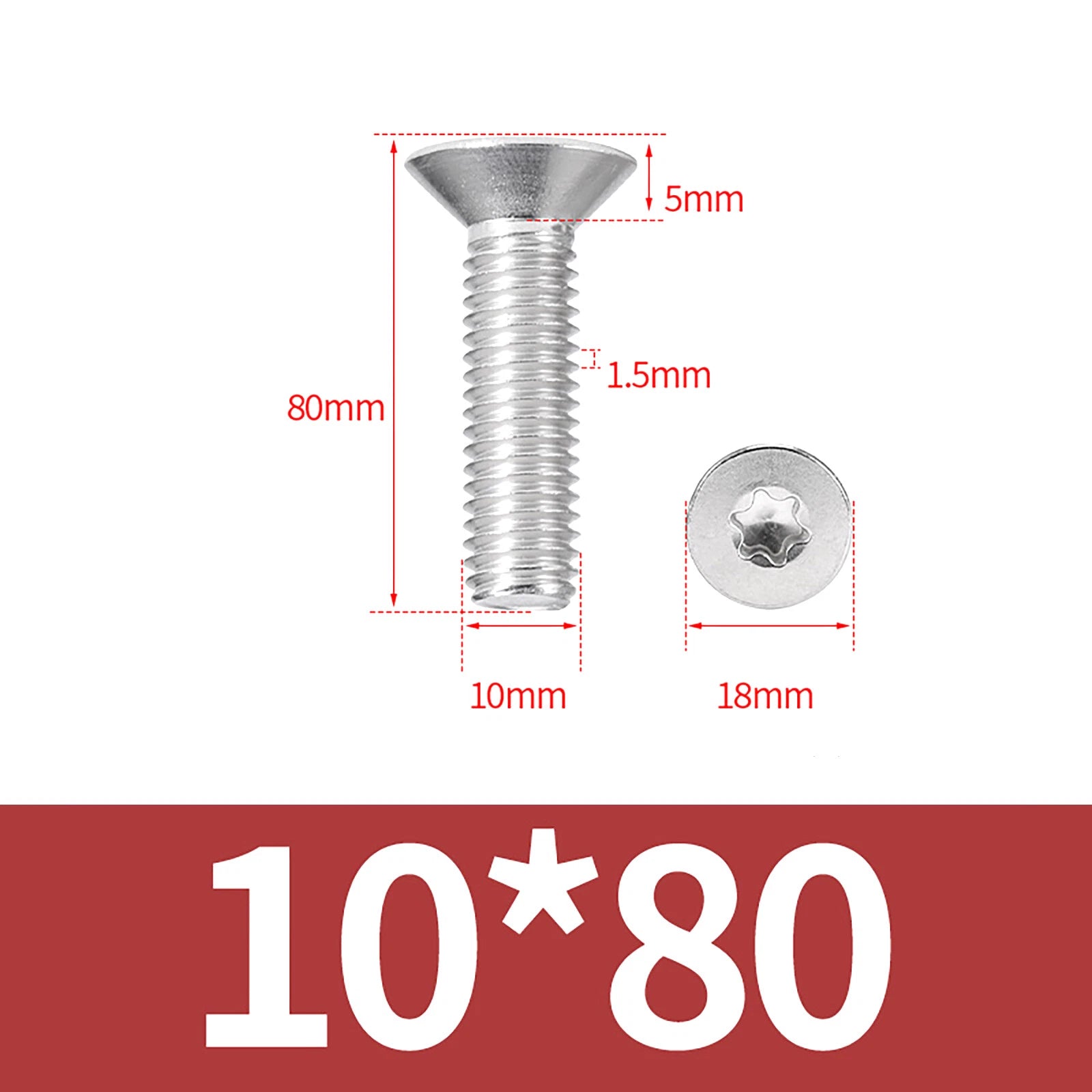

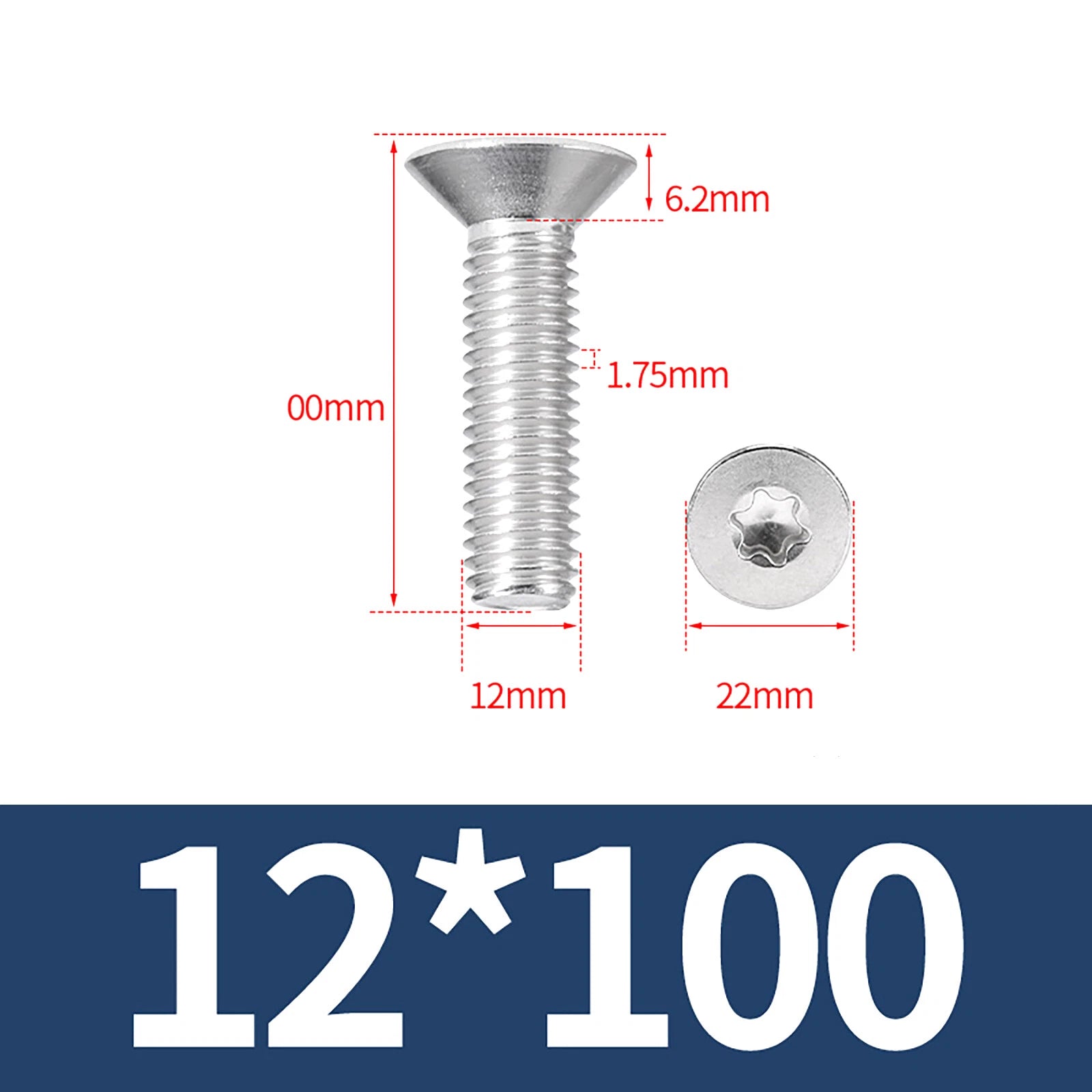

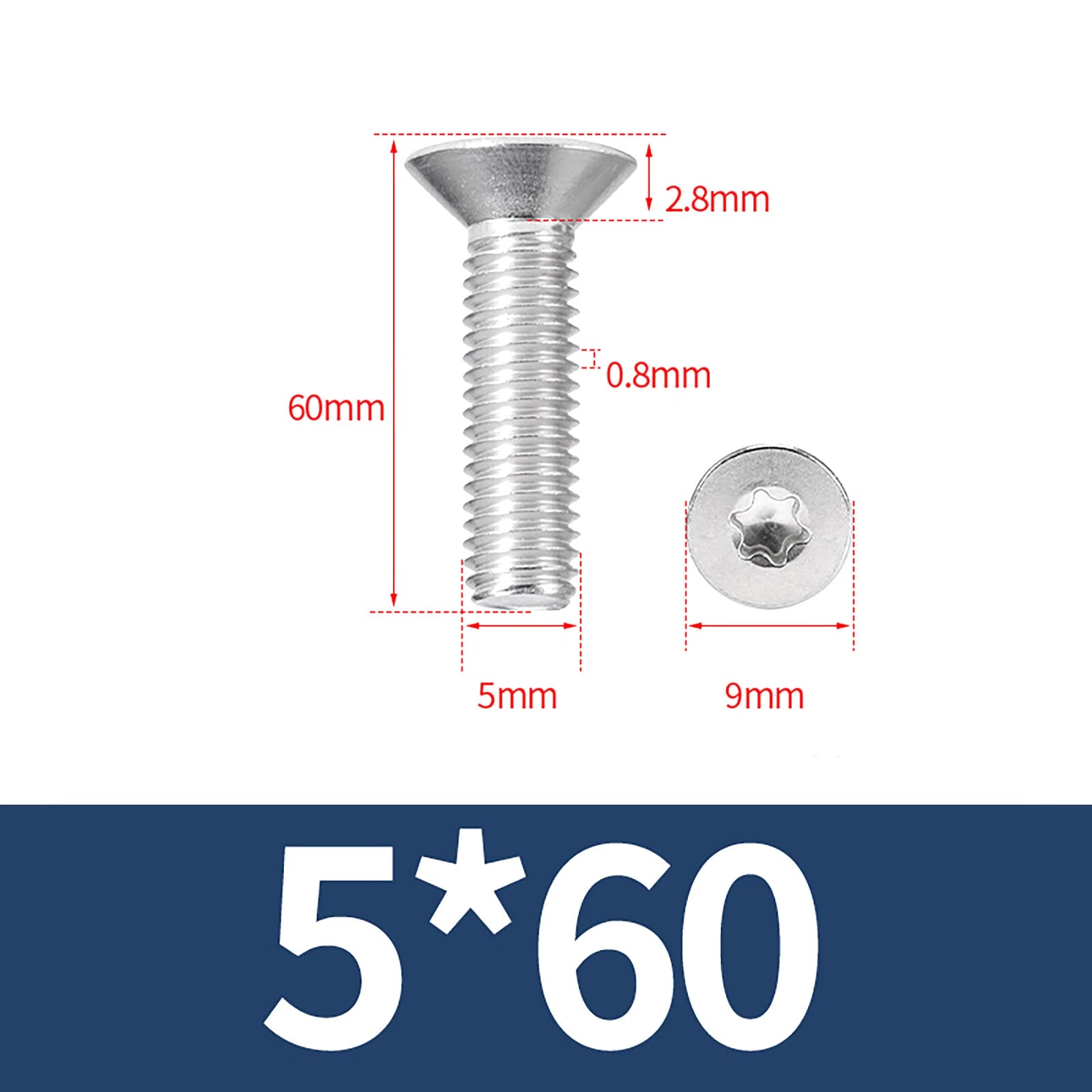

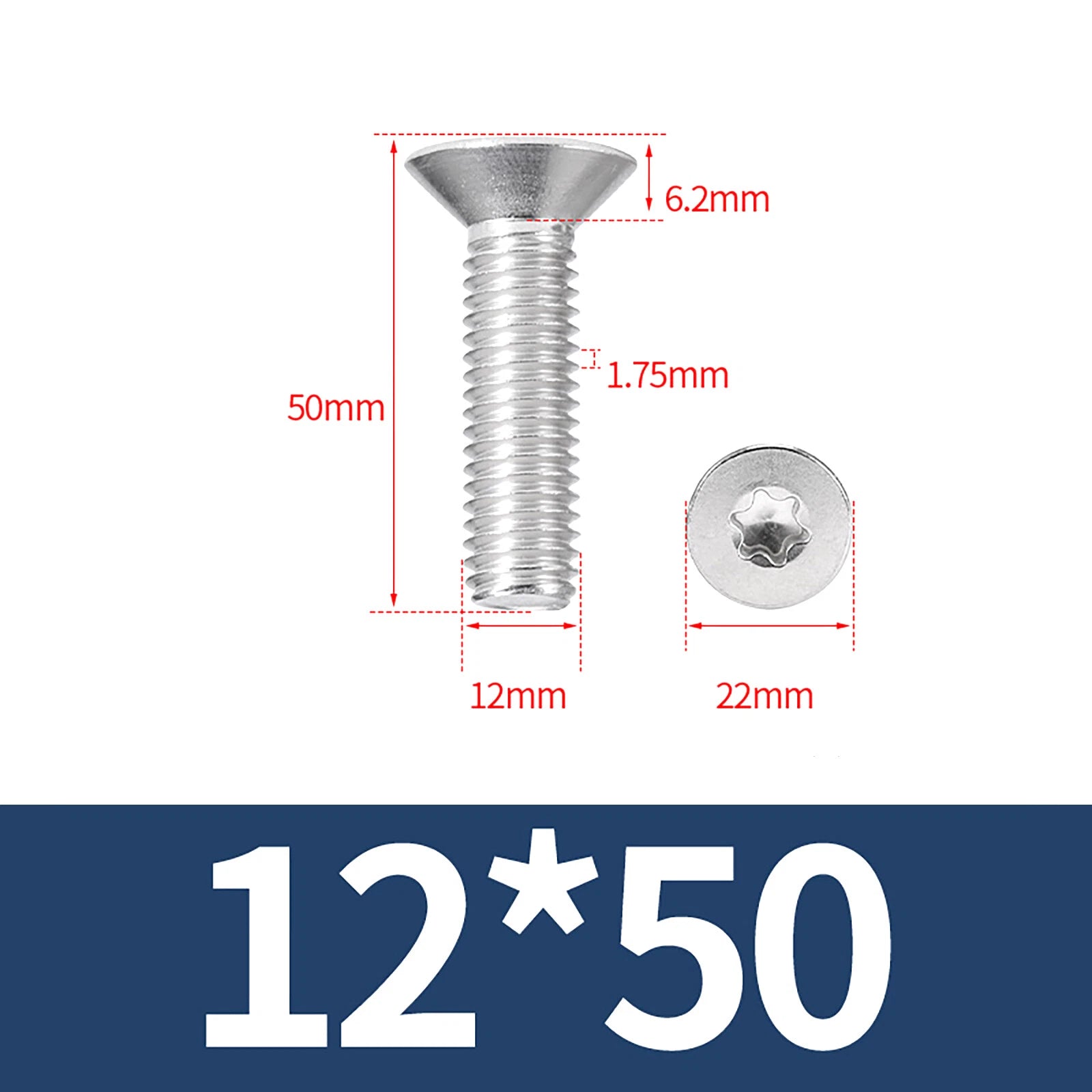

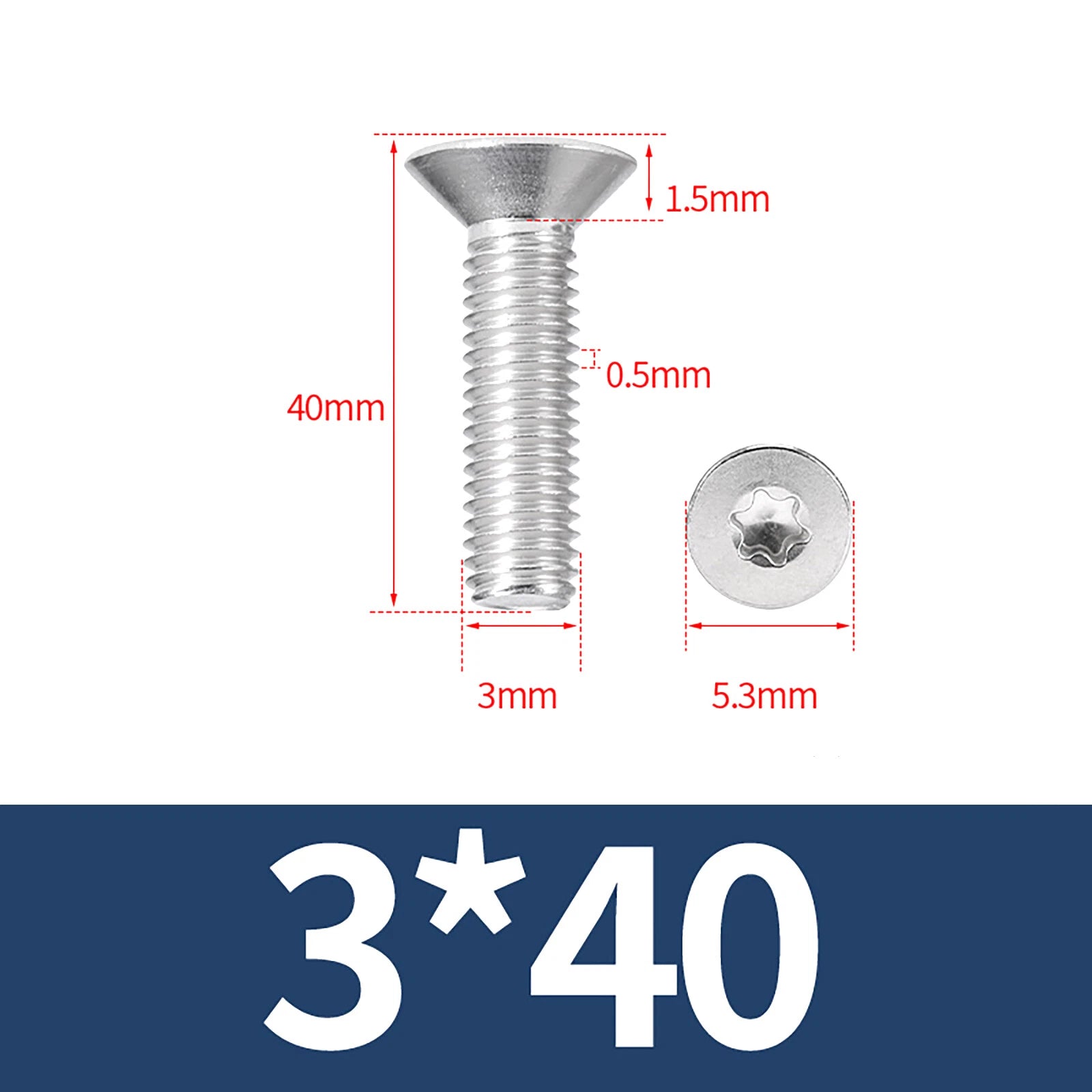

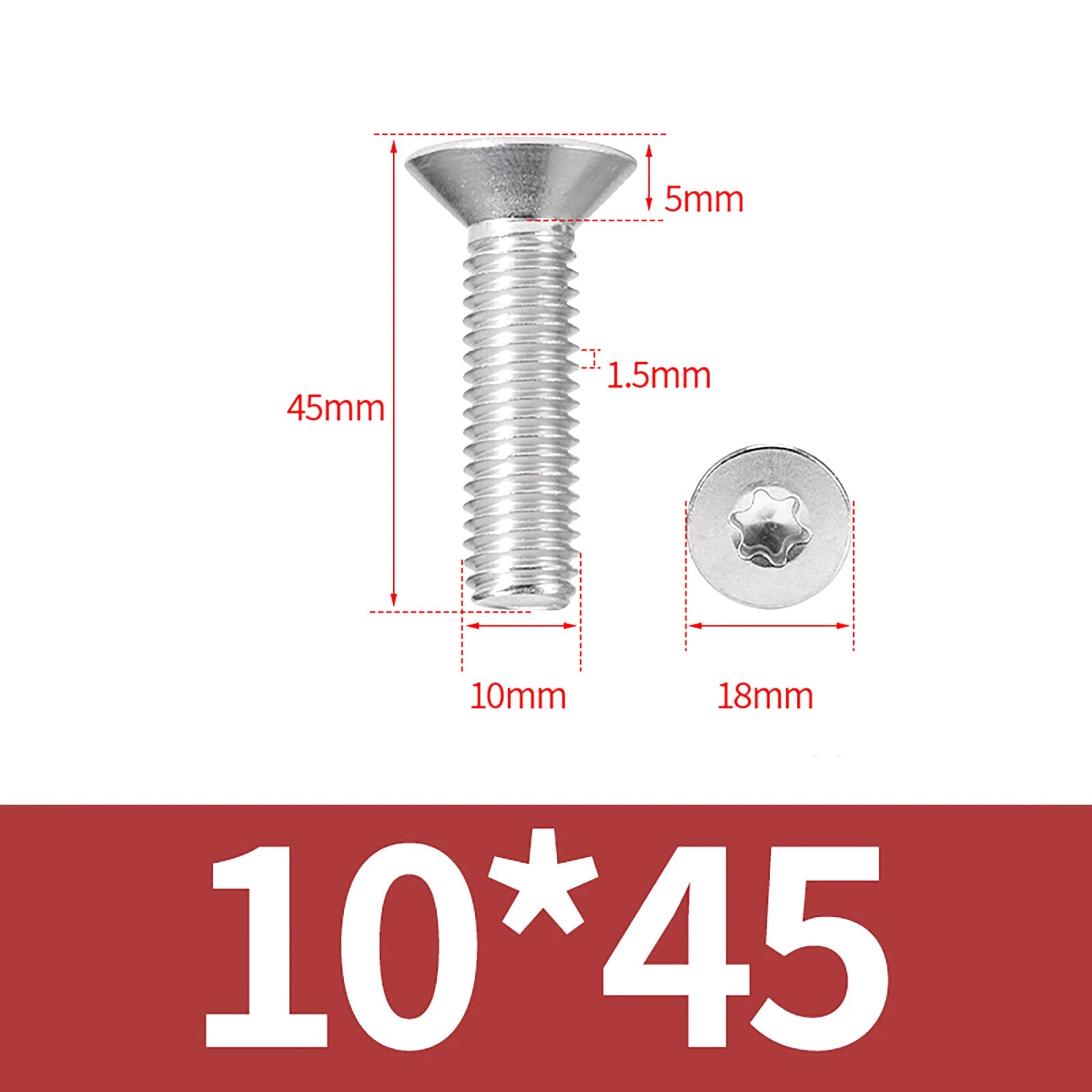

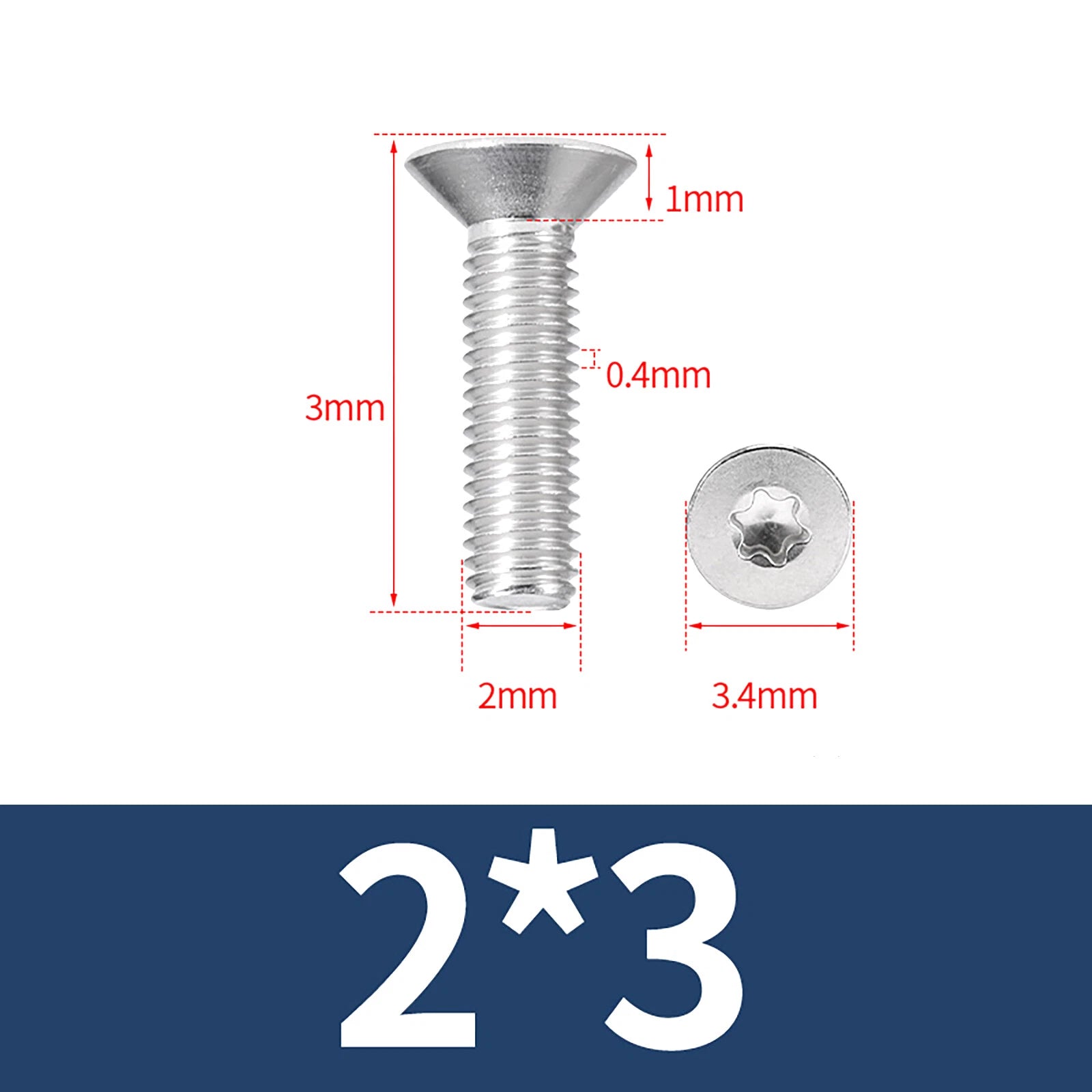

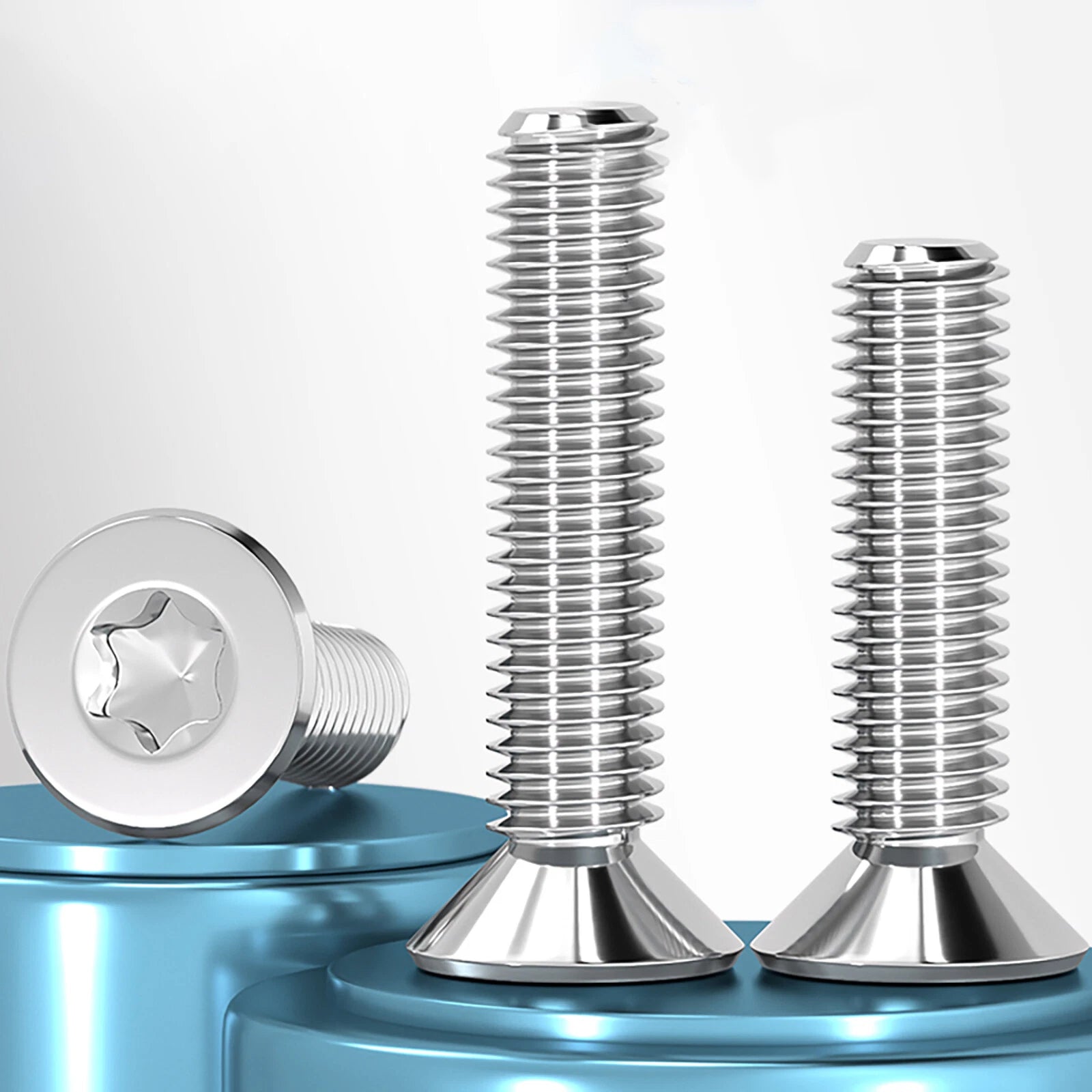

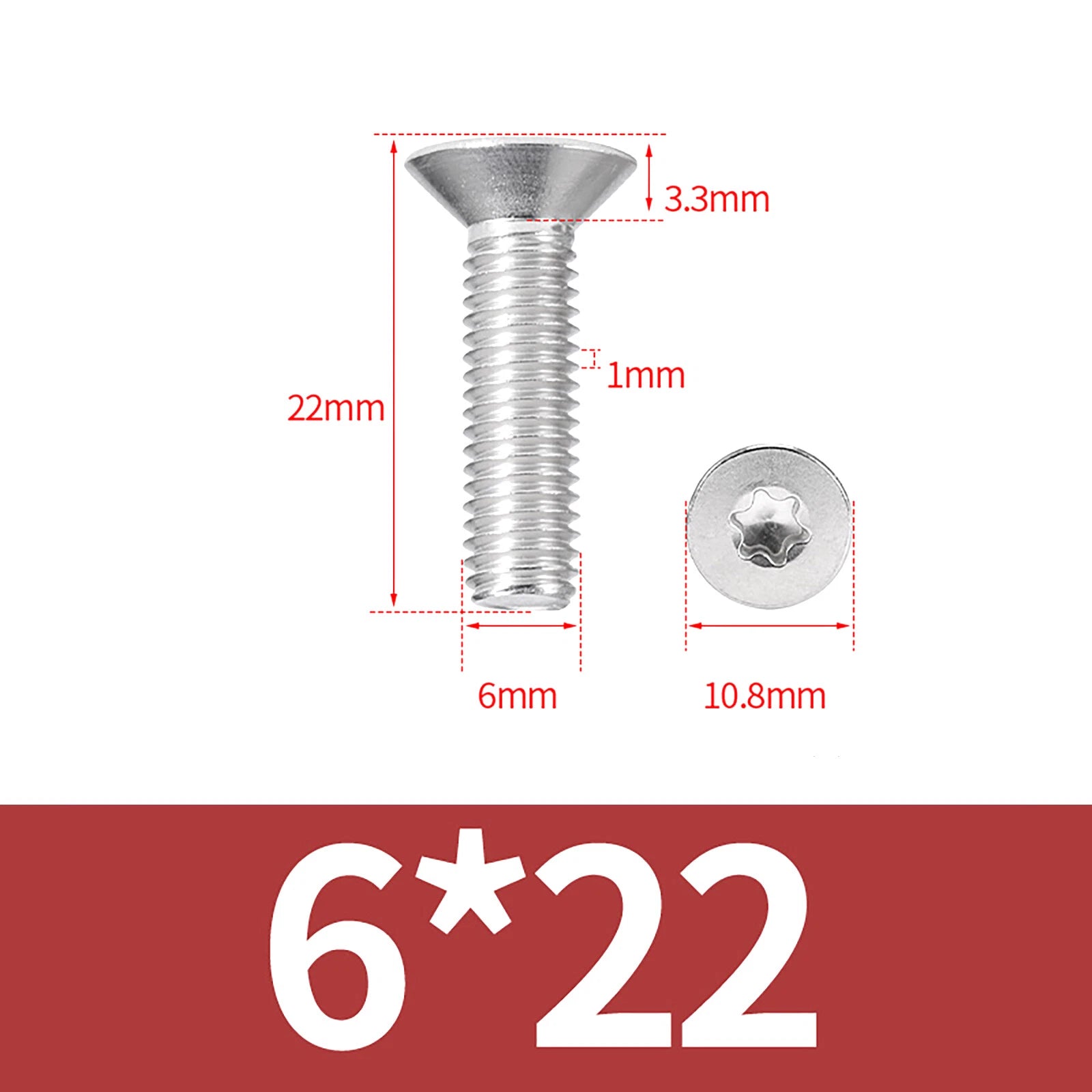

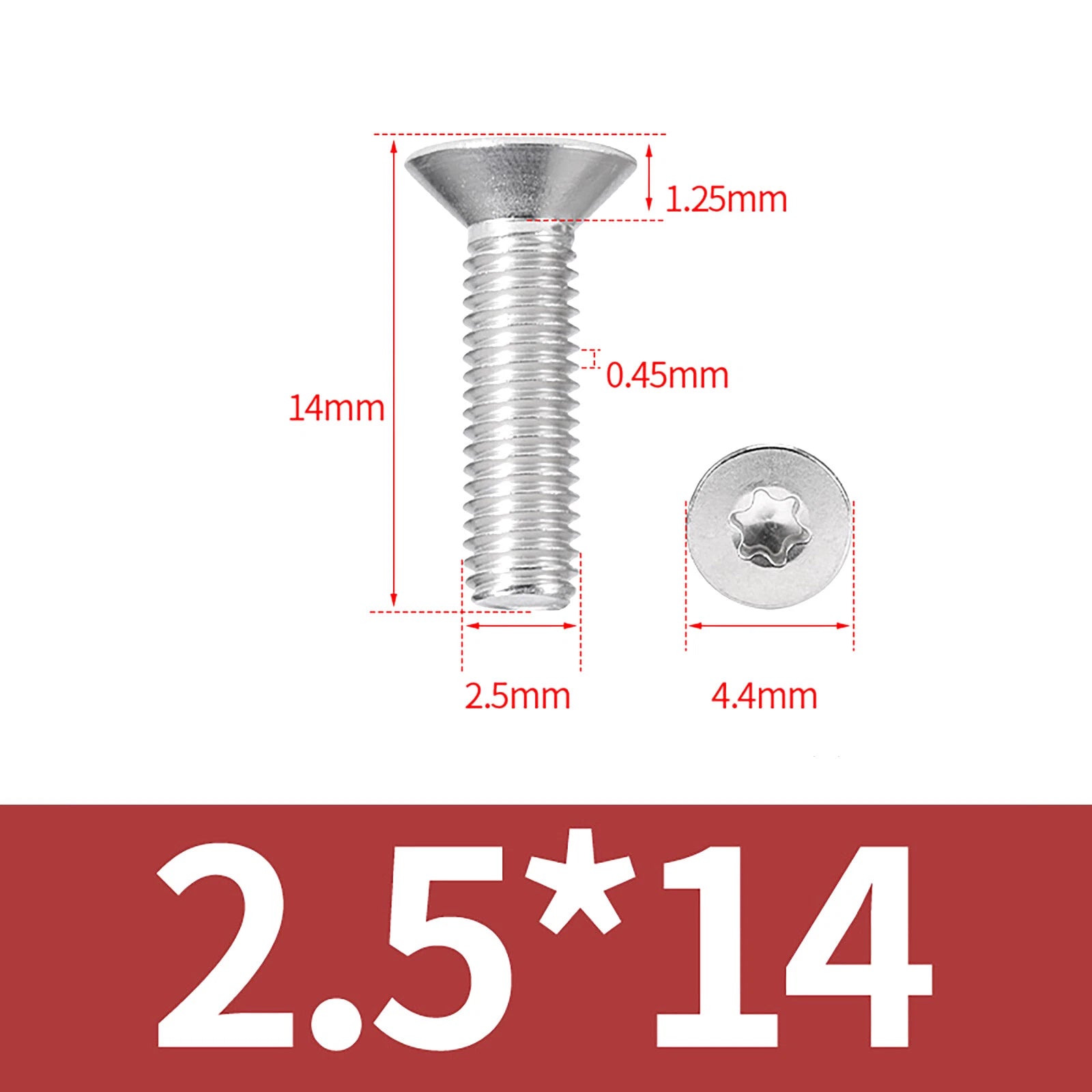

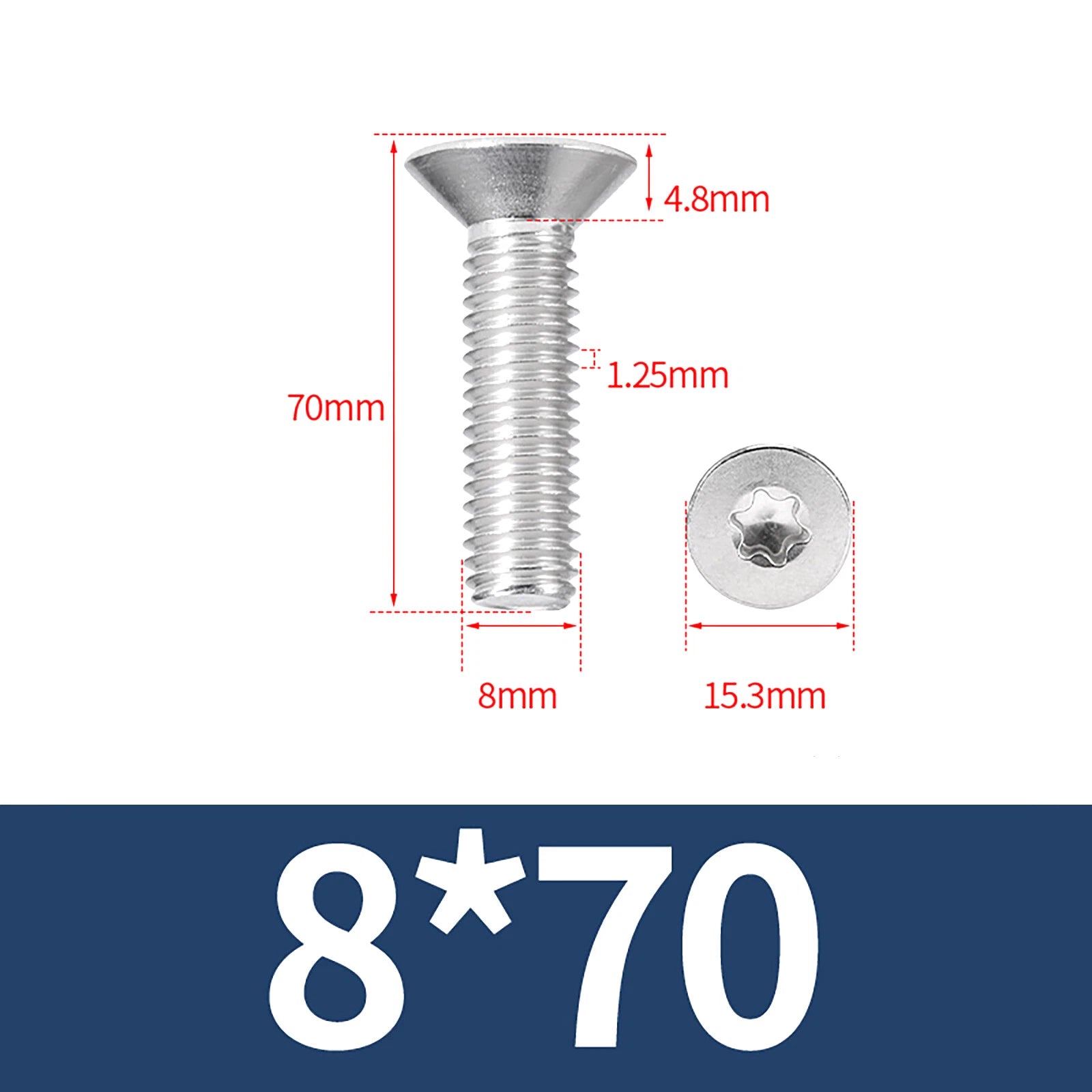

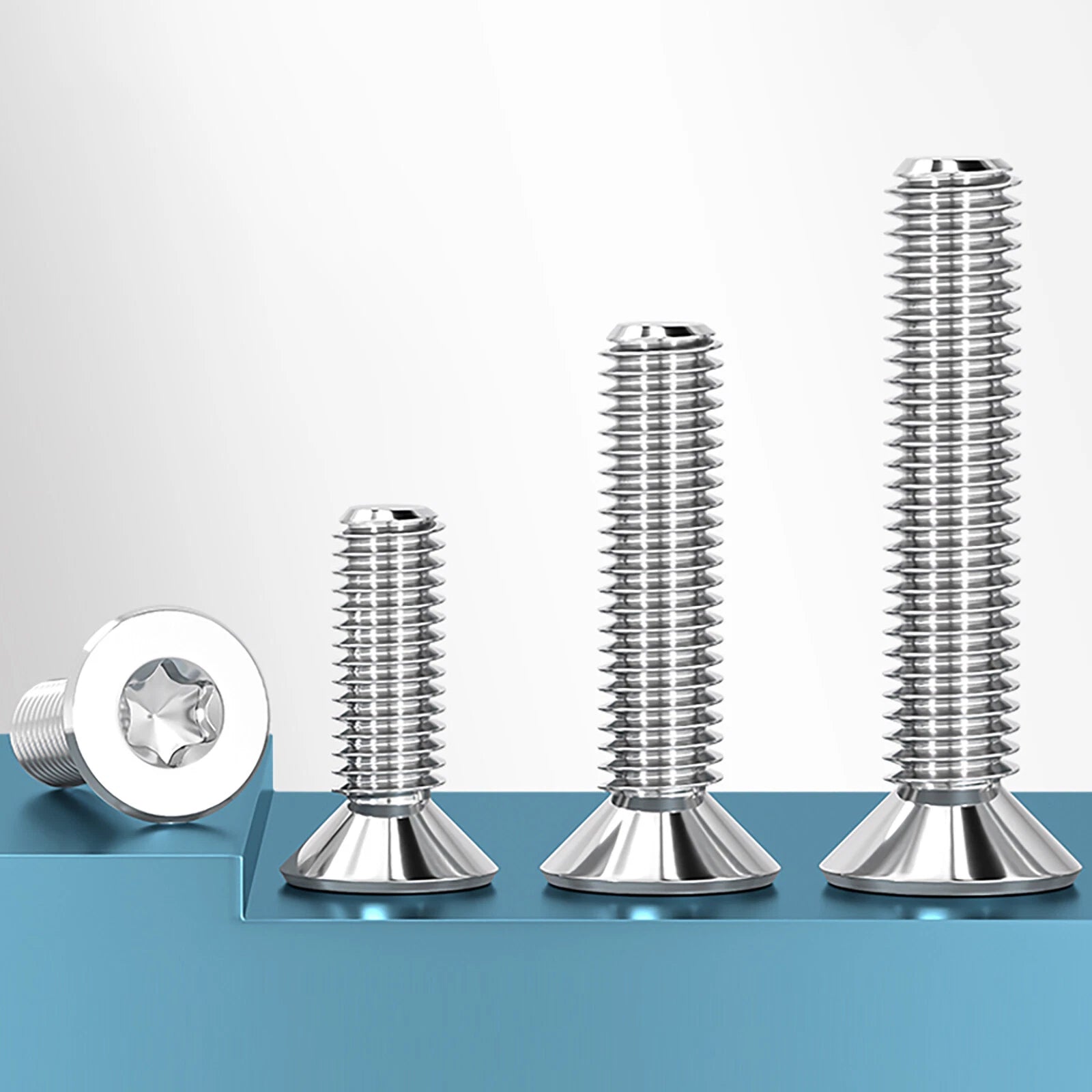

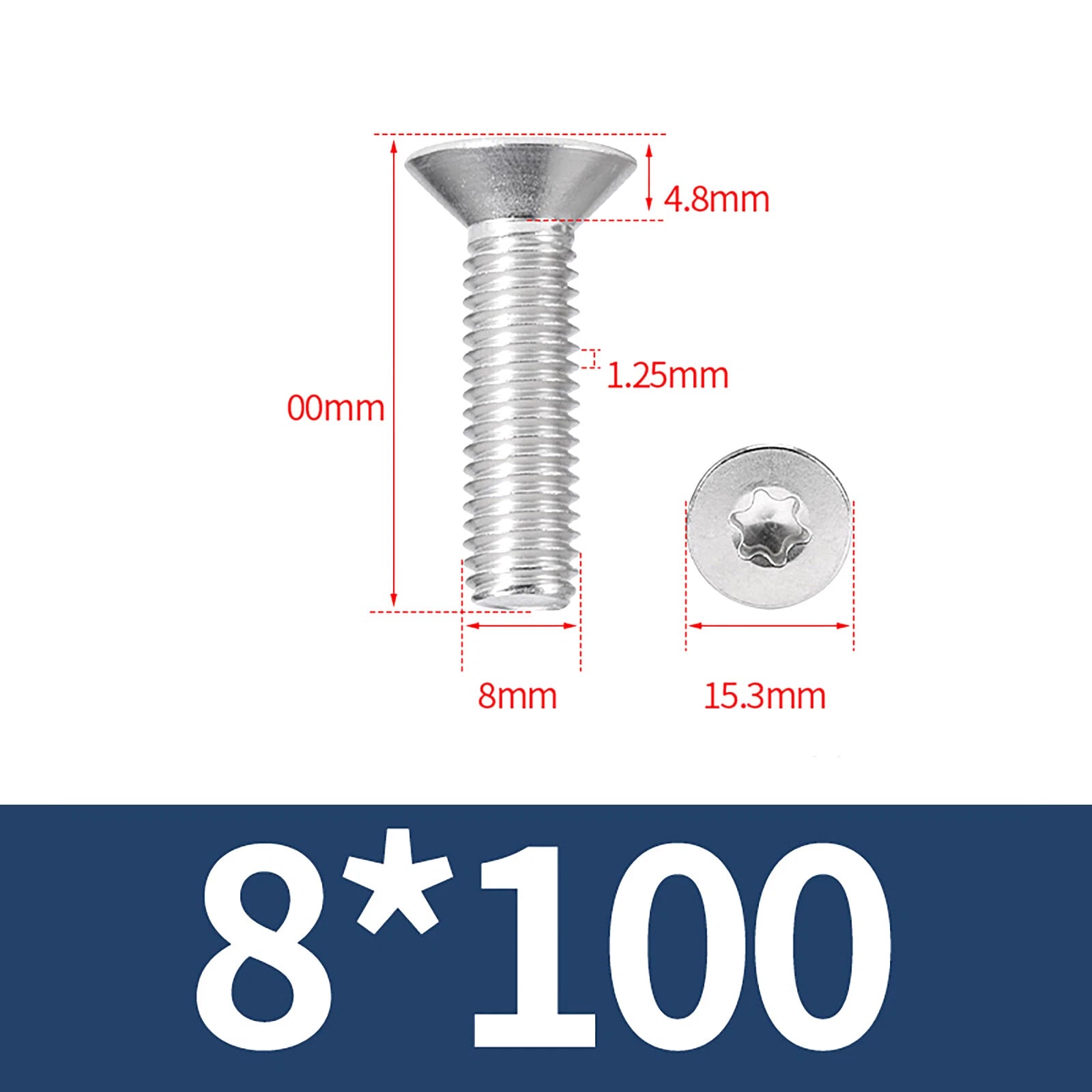

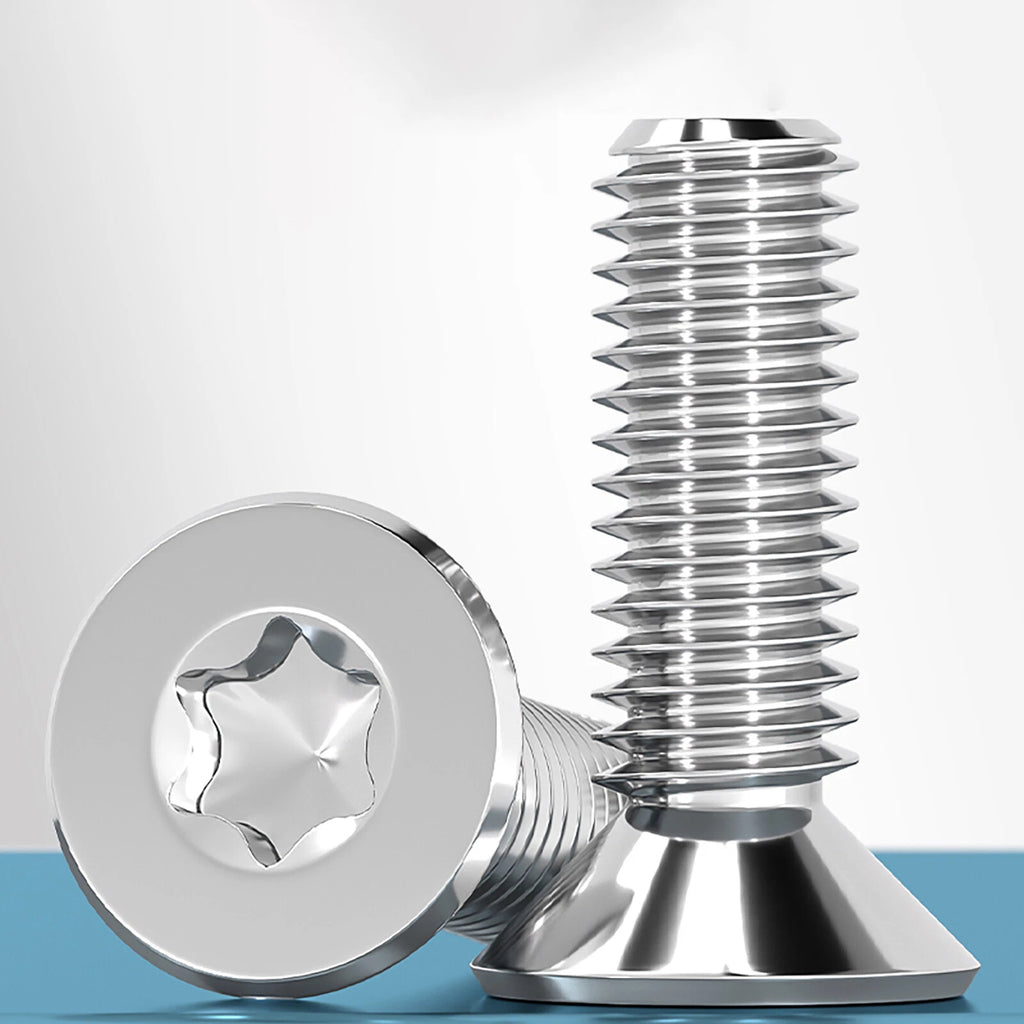

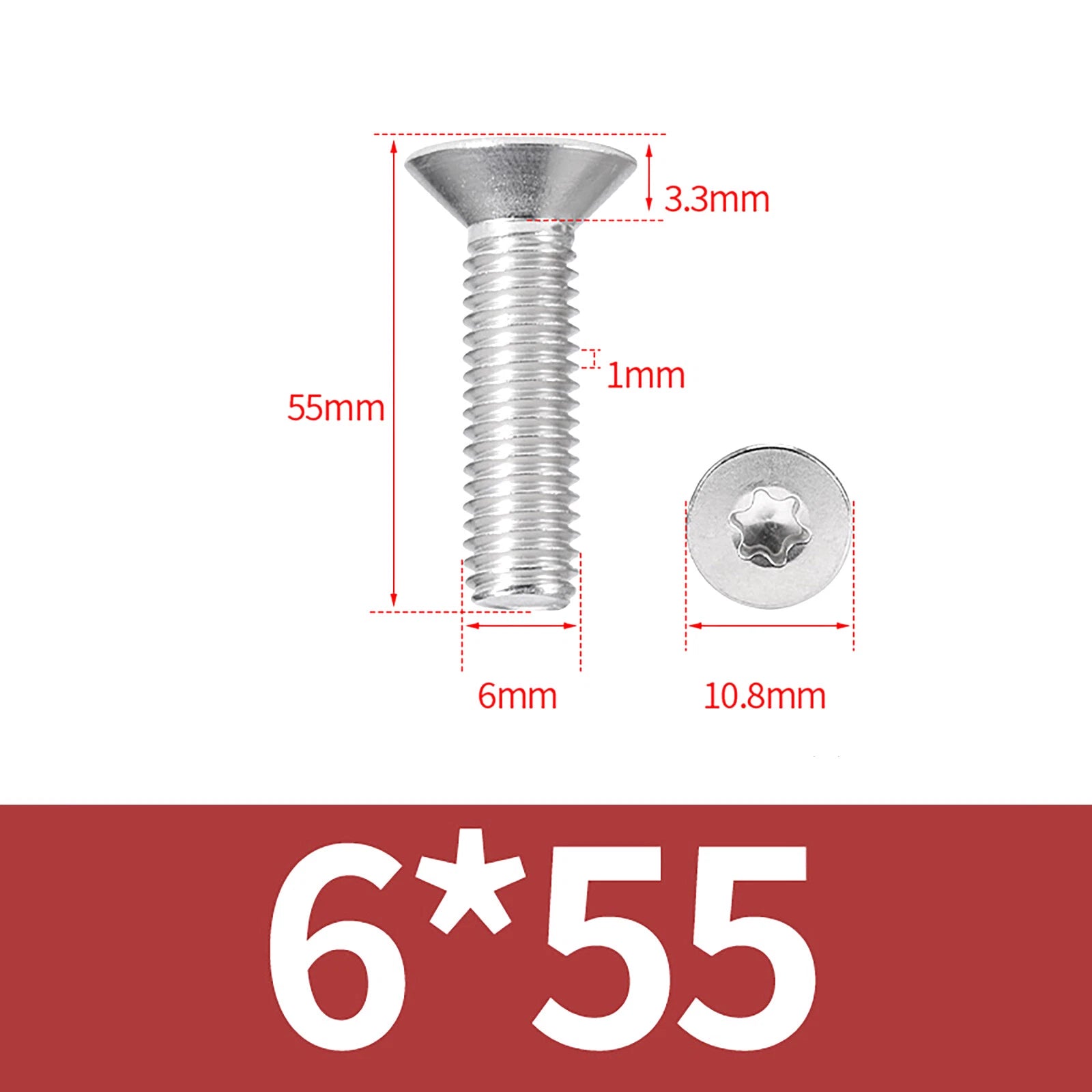

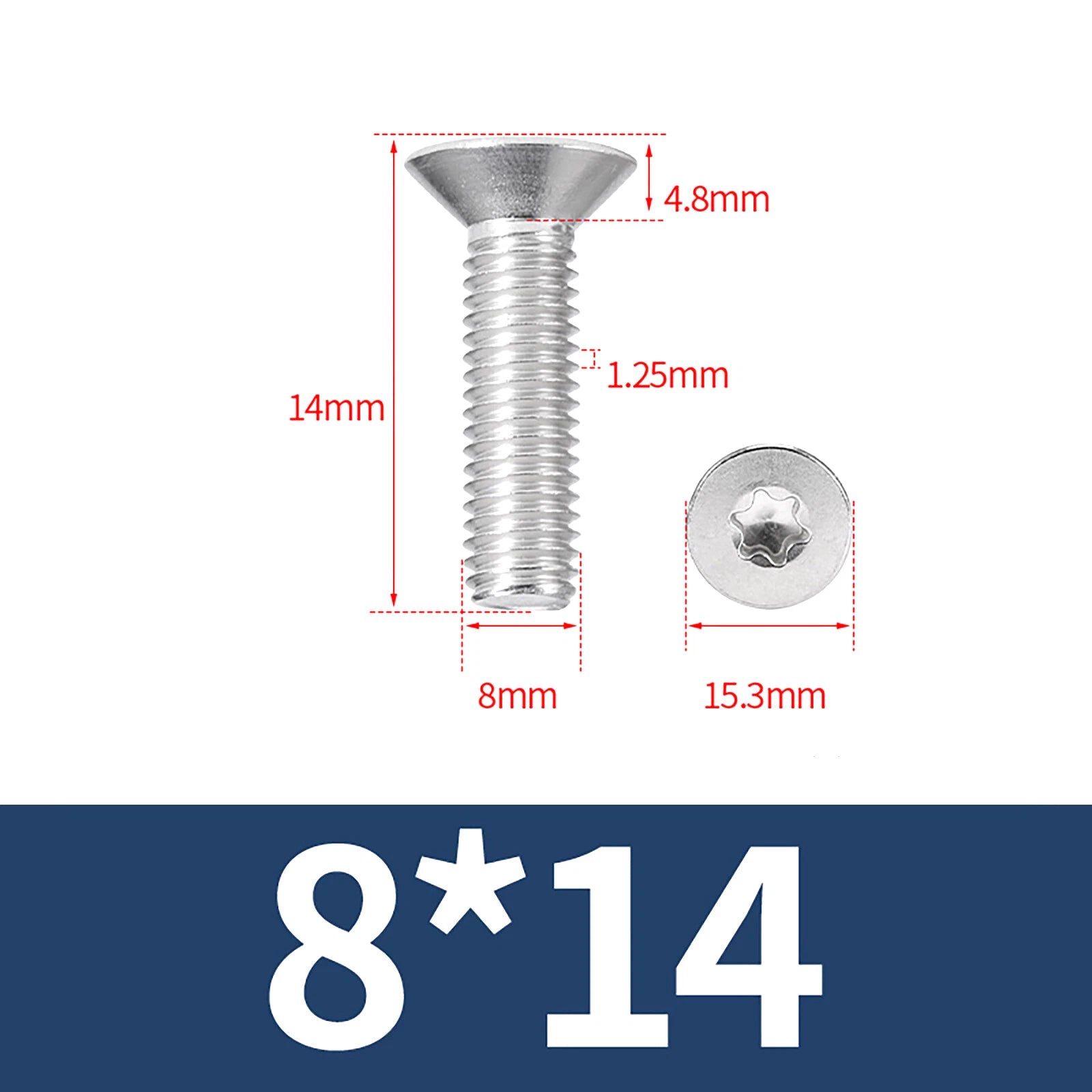

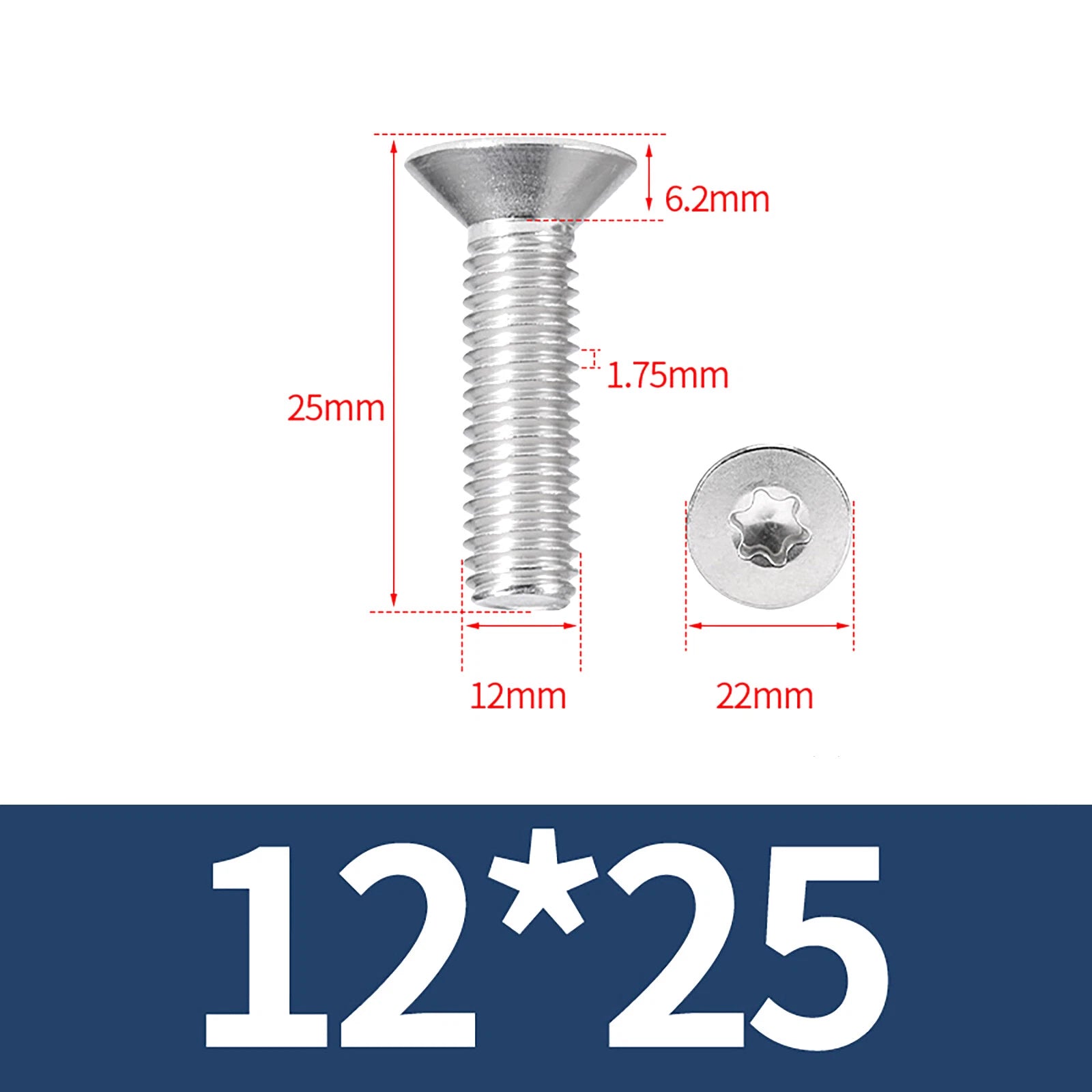

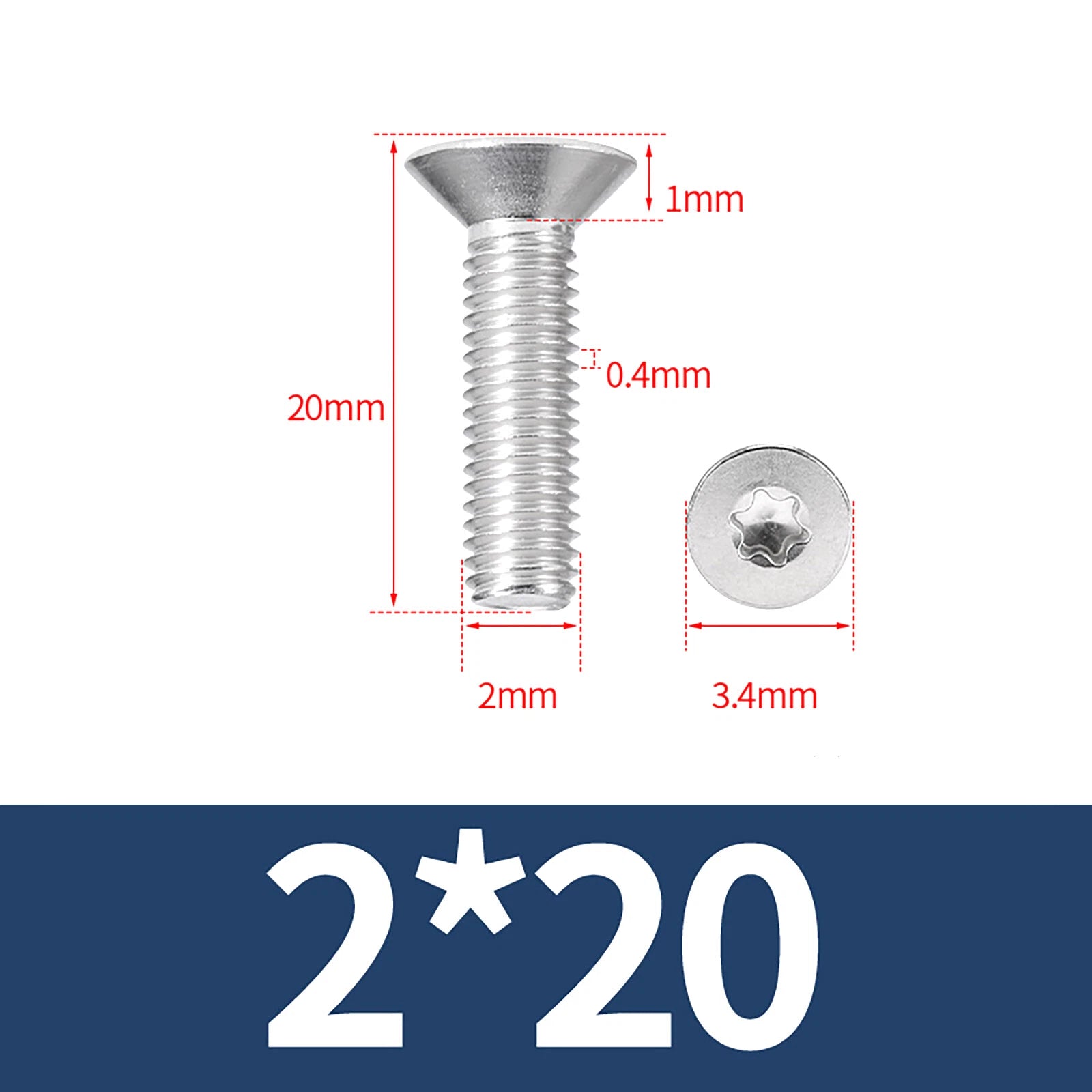

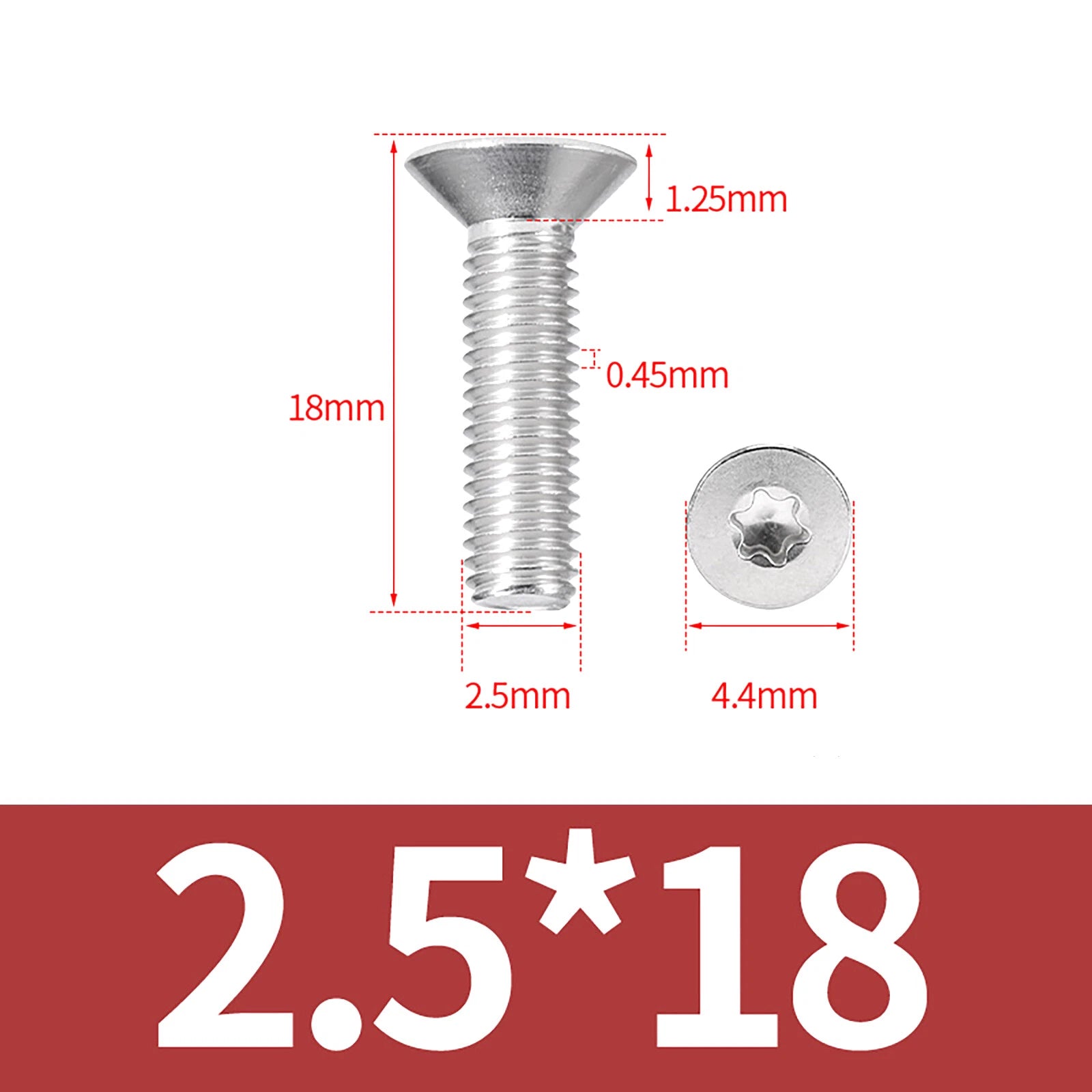

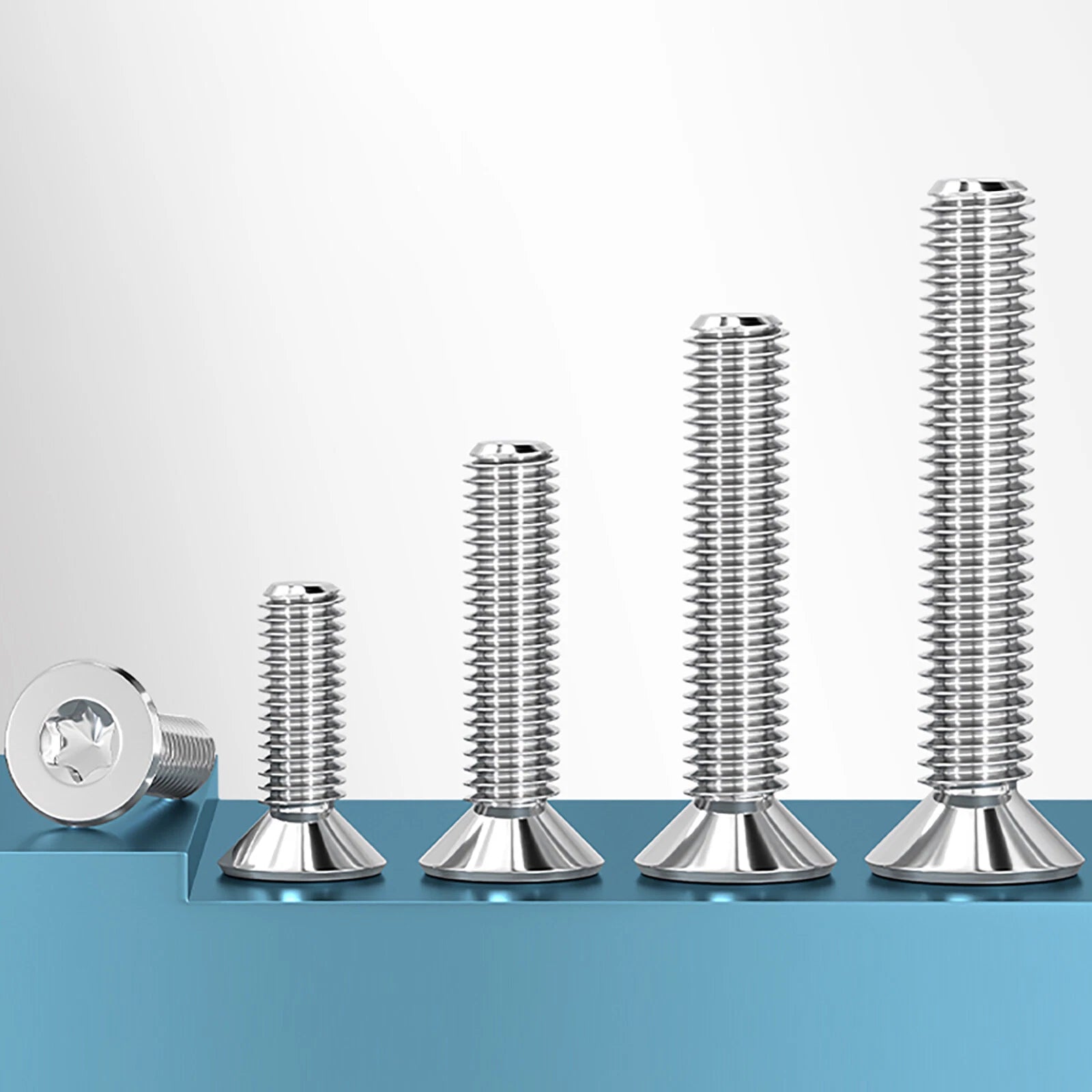

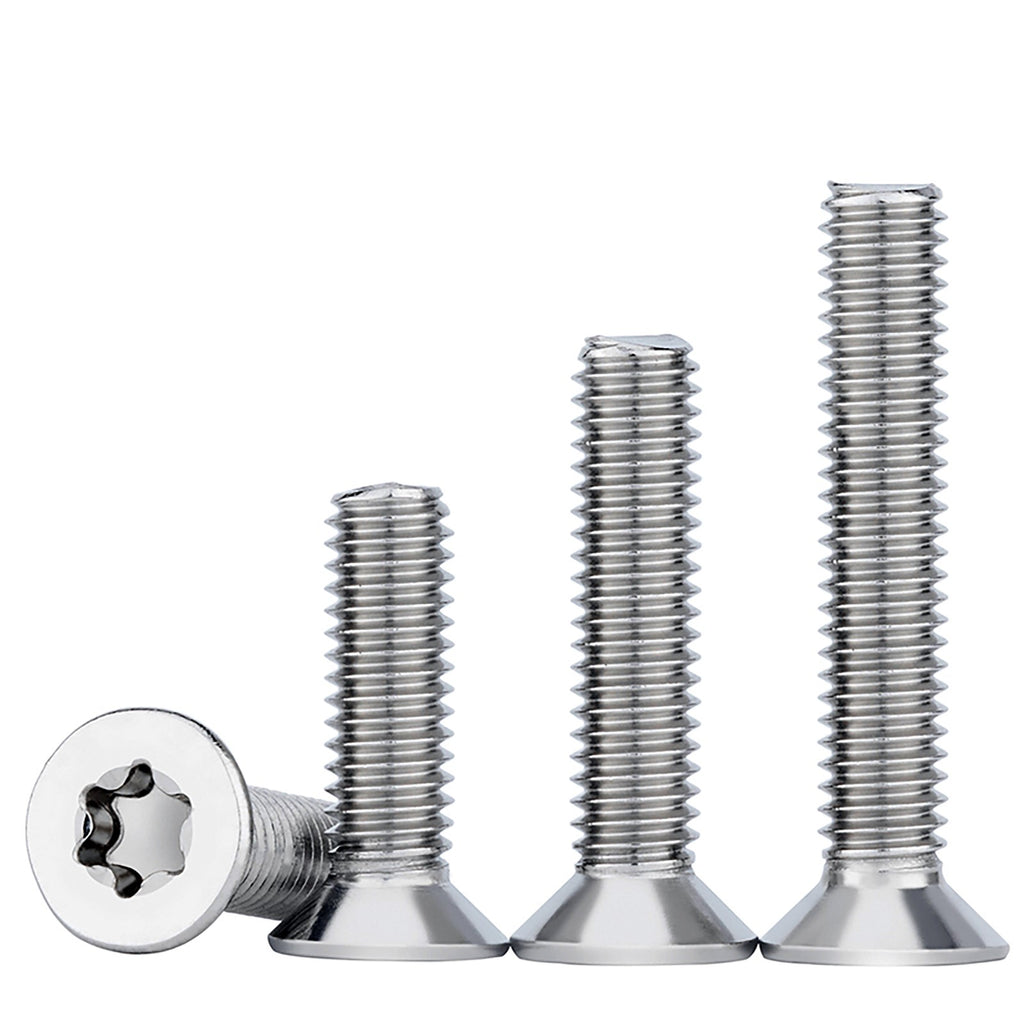

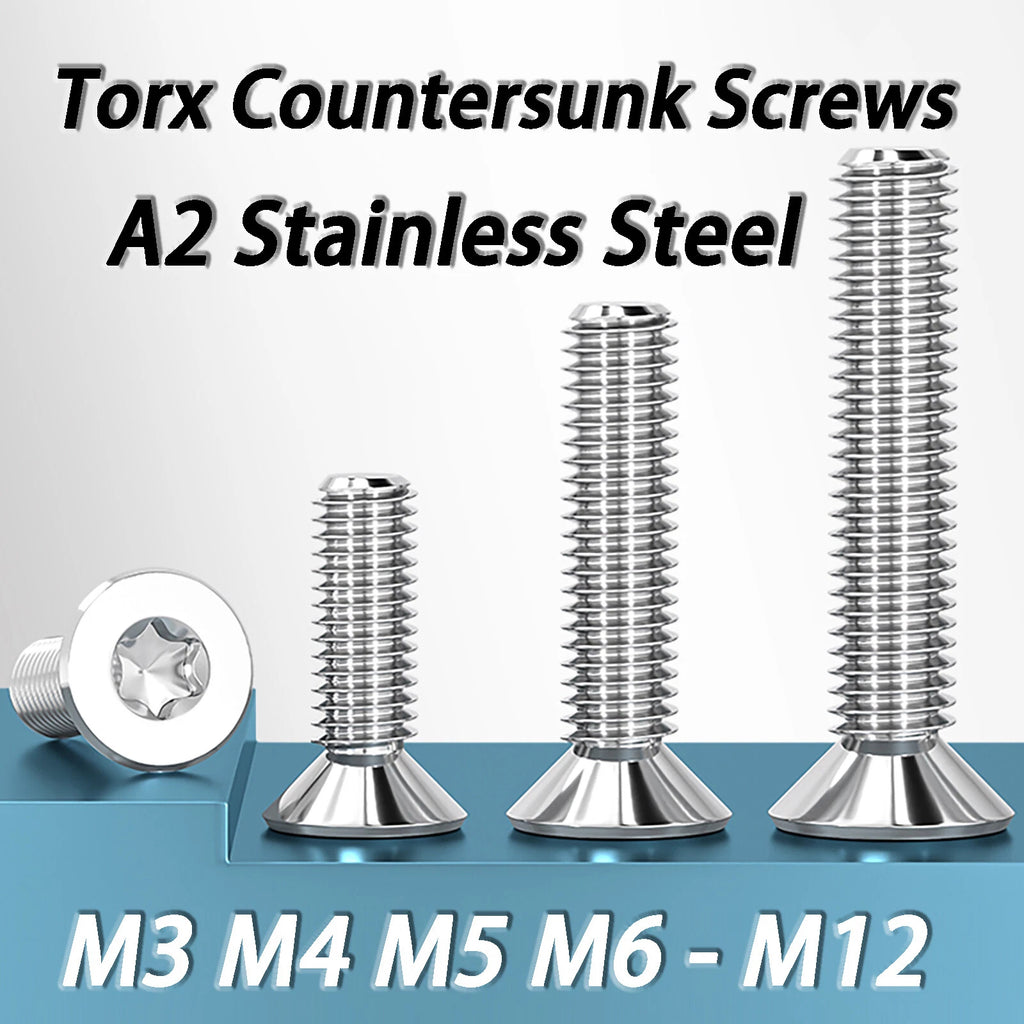

Each screw features a flat countersunk head conforming to DIN 965, machined from A2/70 (304) stainless steel with a six-lobe Torx drive. Available in diameters from M2 to M12 and lengths ranging from 3mm to 100mm (approximately 0.12" to 3.94"), with pack sizes from 2 to 50 pieces to match your project scale.
Ideal for electronics enclosures, automotive trim panels, furniture assembly, marine hardware, and precision instrument mounting — anywhere a flush, tamper-resistant, corrosion-resistant fastener is required.
| Material | A2 Stainless Steel (304 Grade) |
|---|---|
| Grade | A2/70 |
| Standard | DIN 965 |
| Head Style | Countersunk (Flat Head) |
| Drive Style | Torx / Six-Lobe (Star) |
| End Type | Flat |
| Thread Type | Metric, Full Thread |

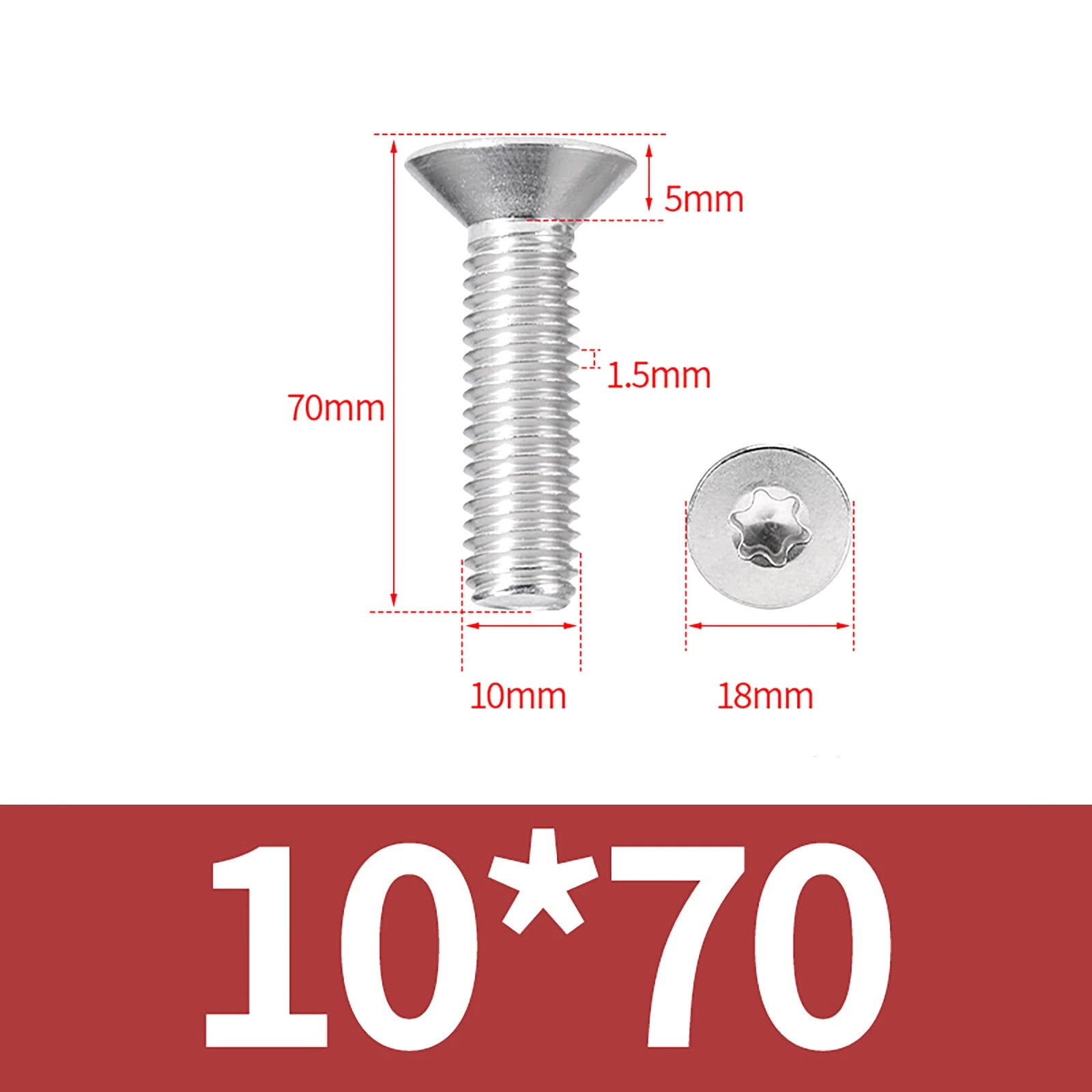

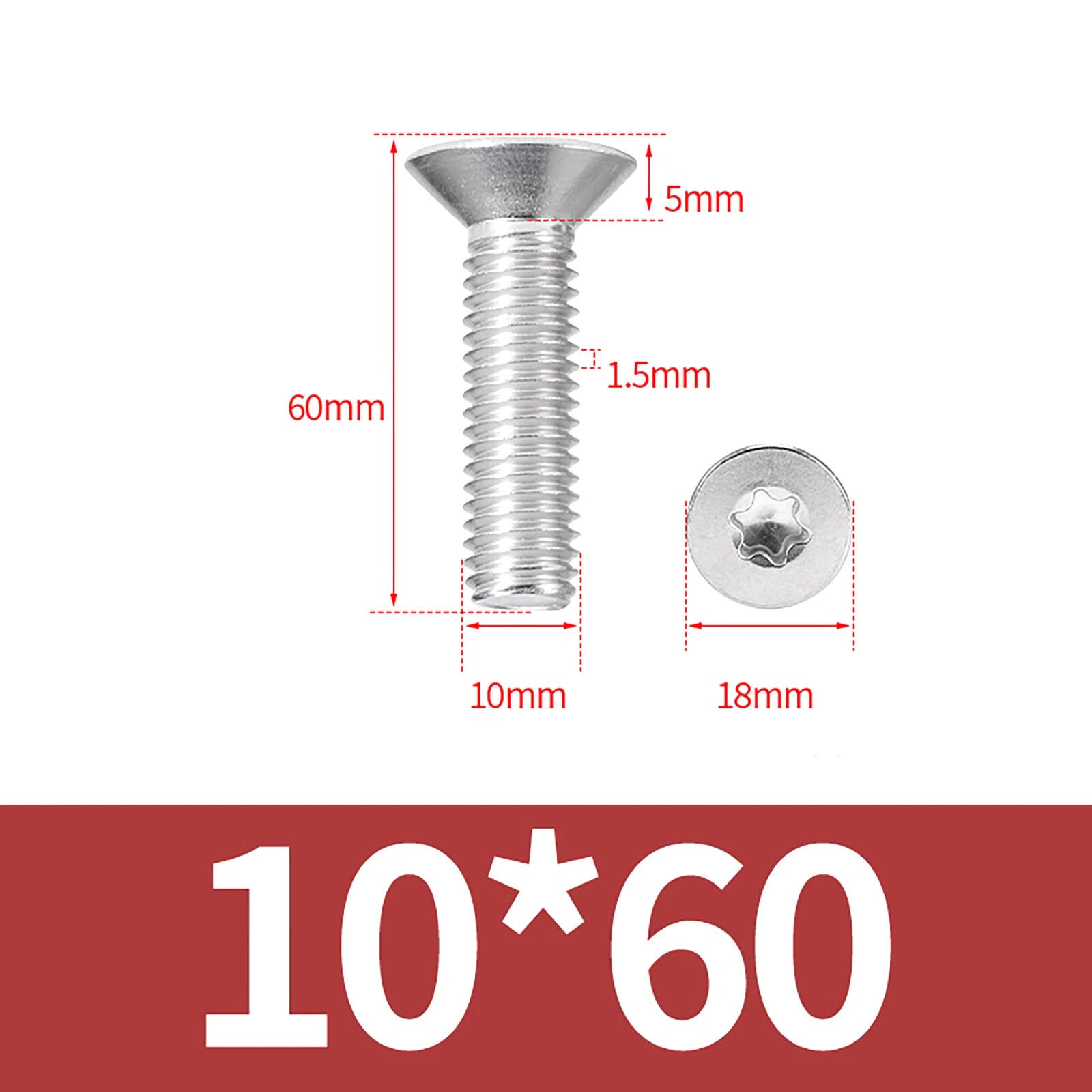

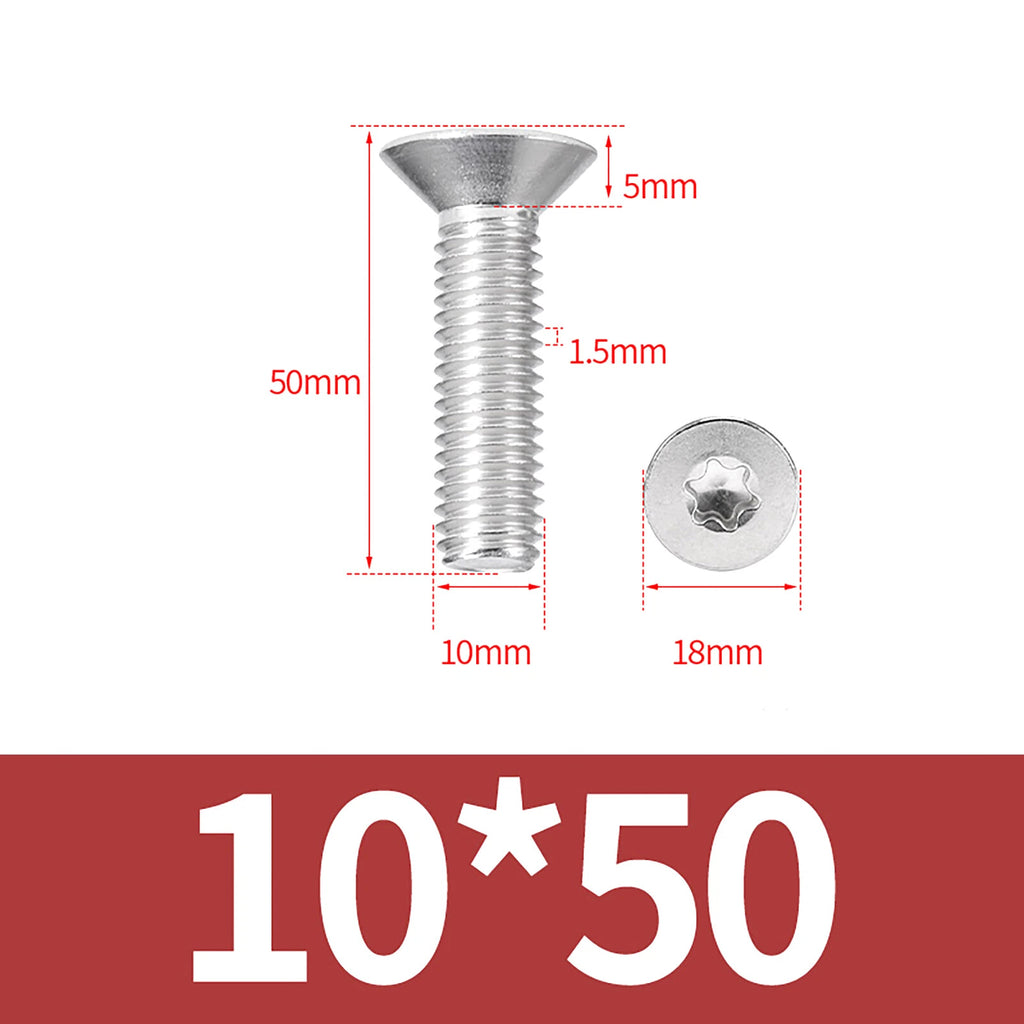

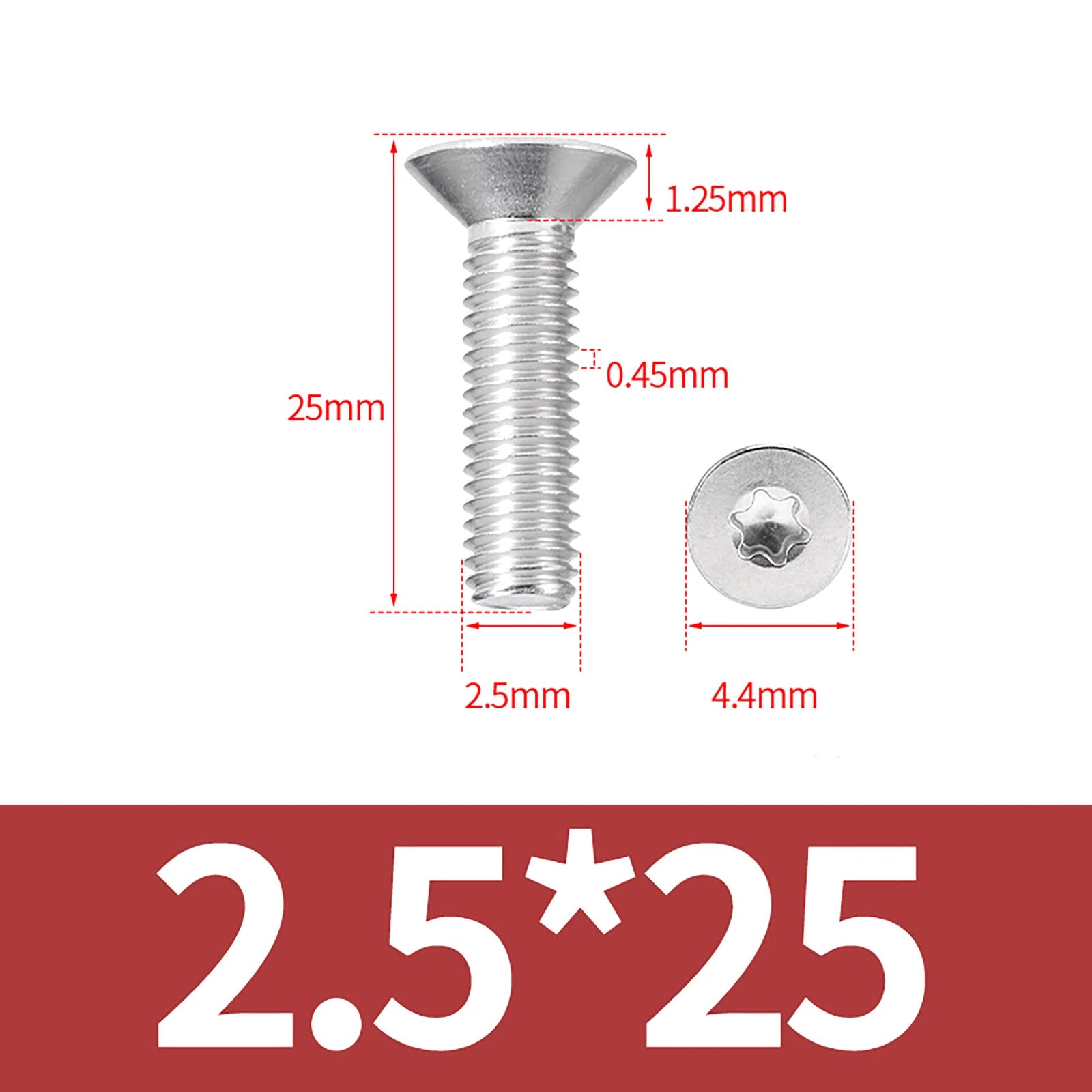

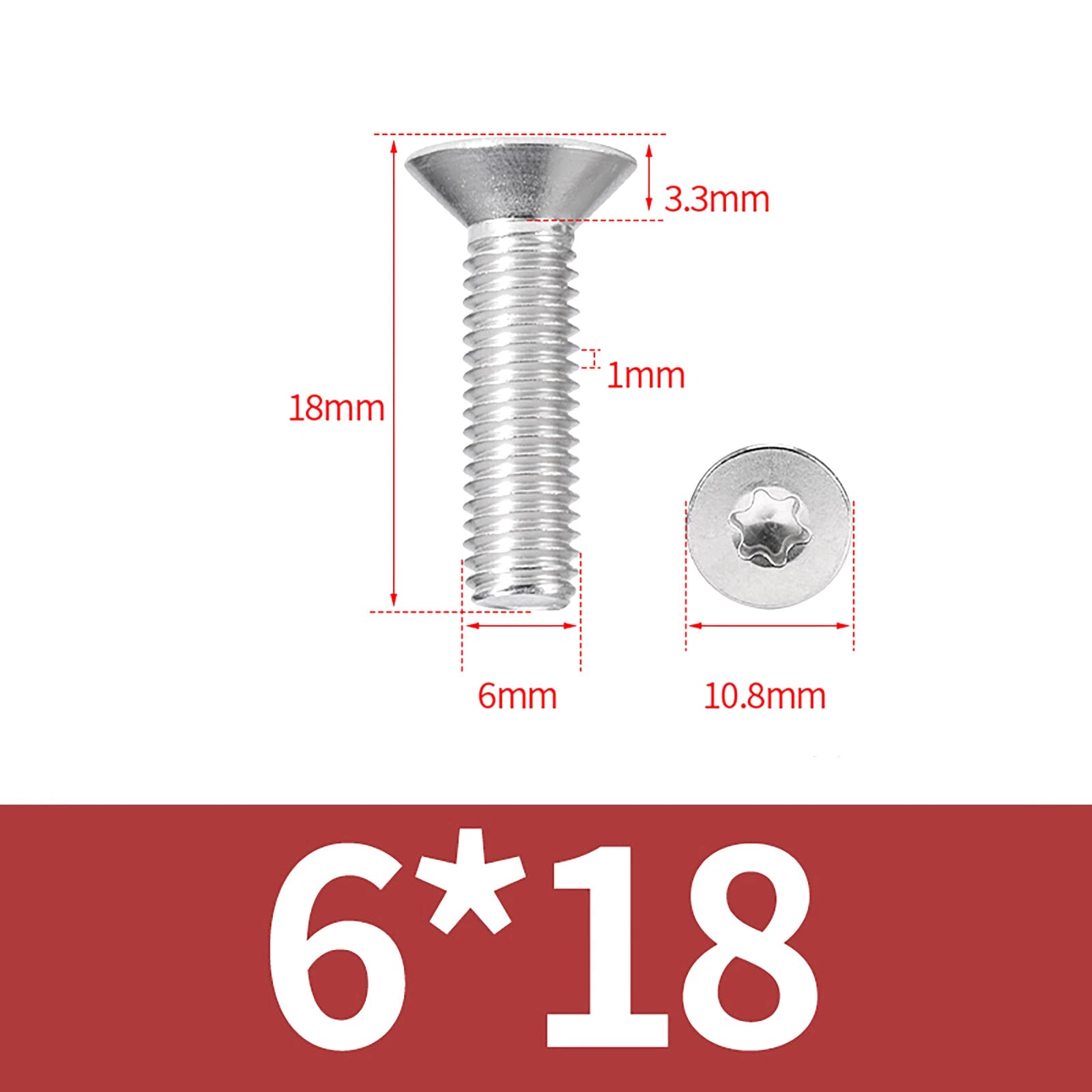

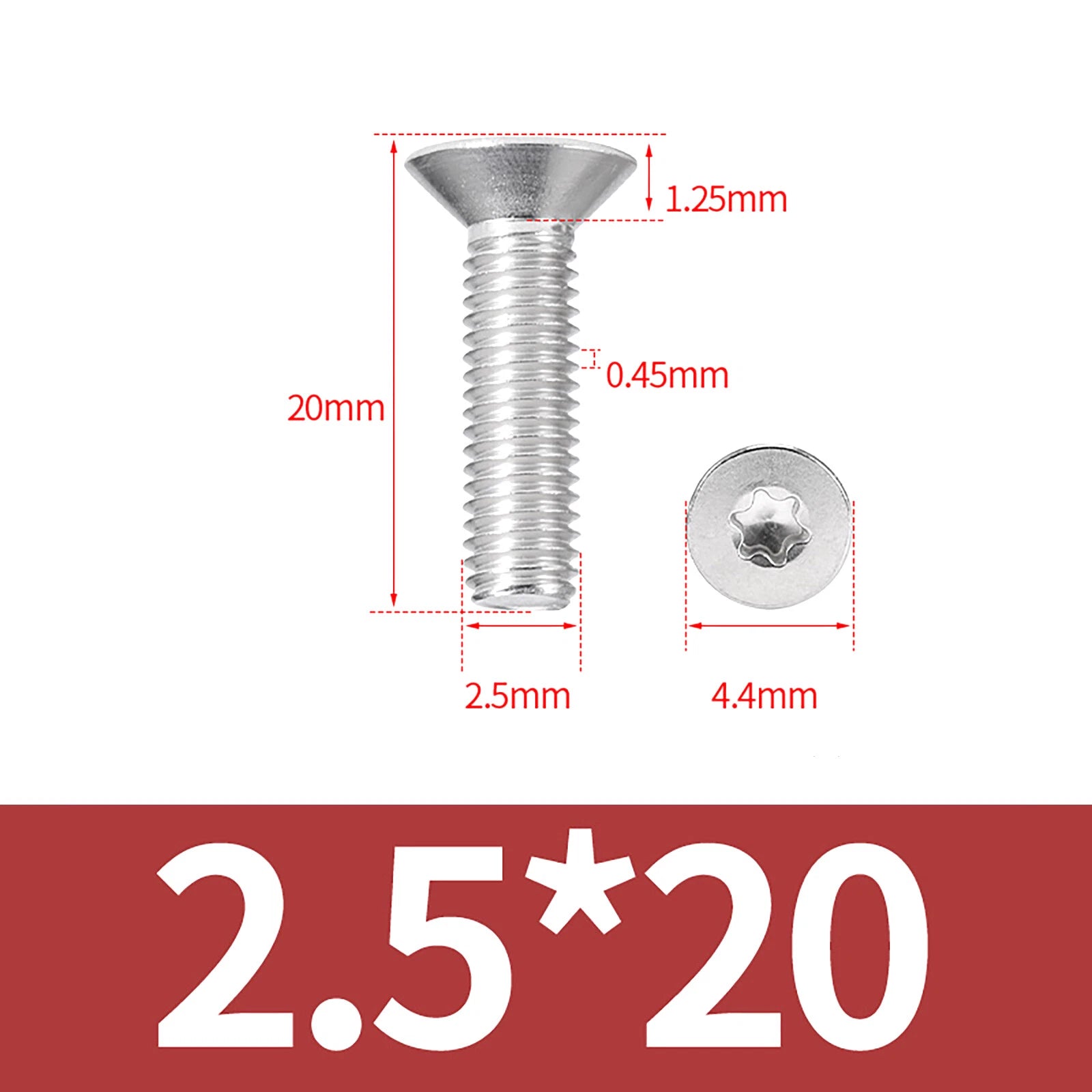

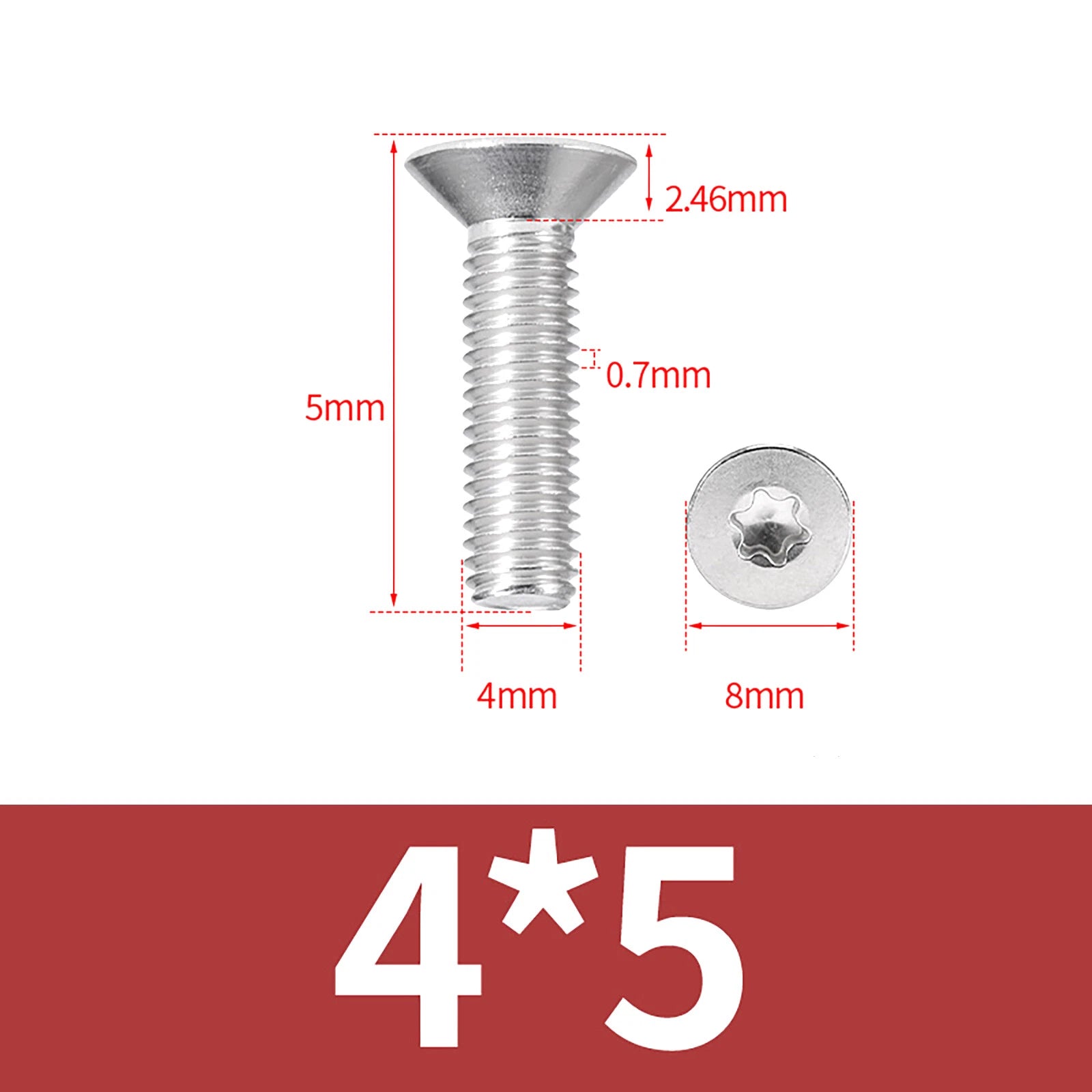

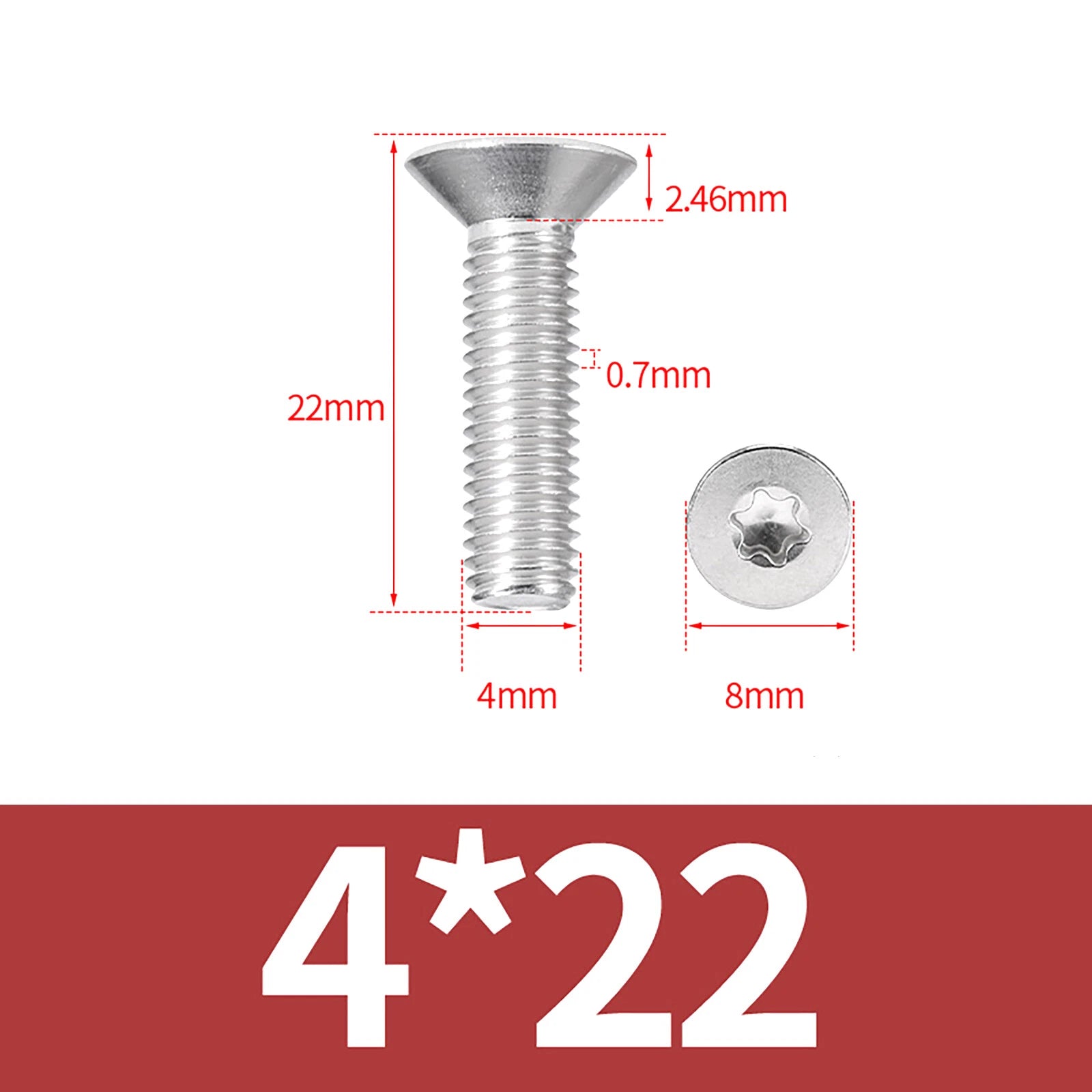

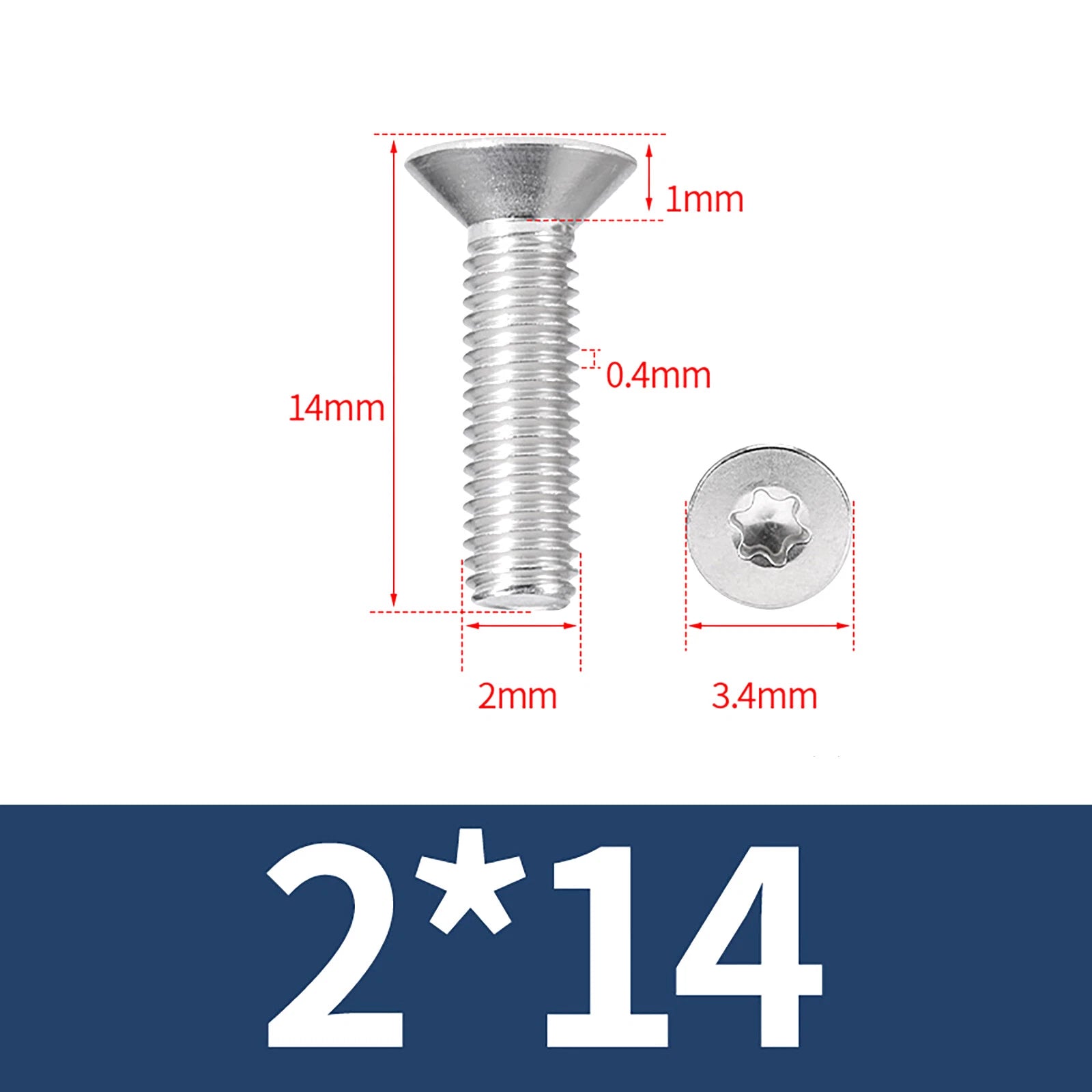

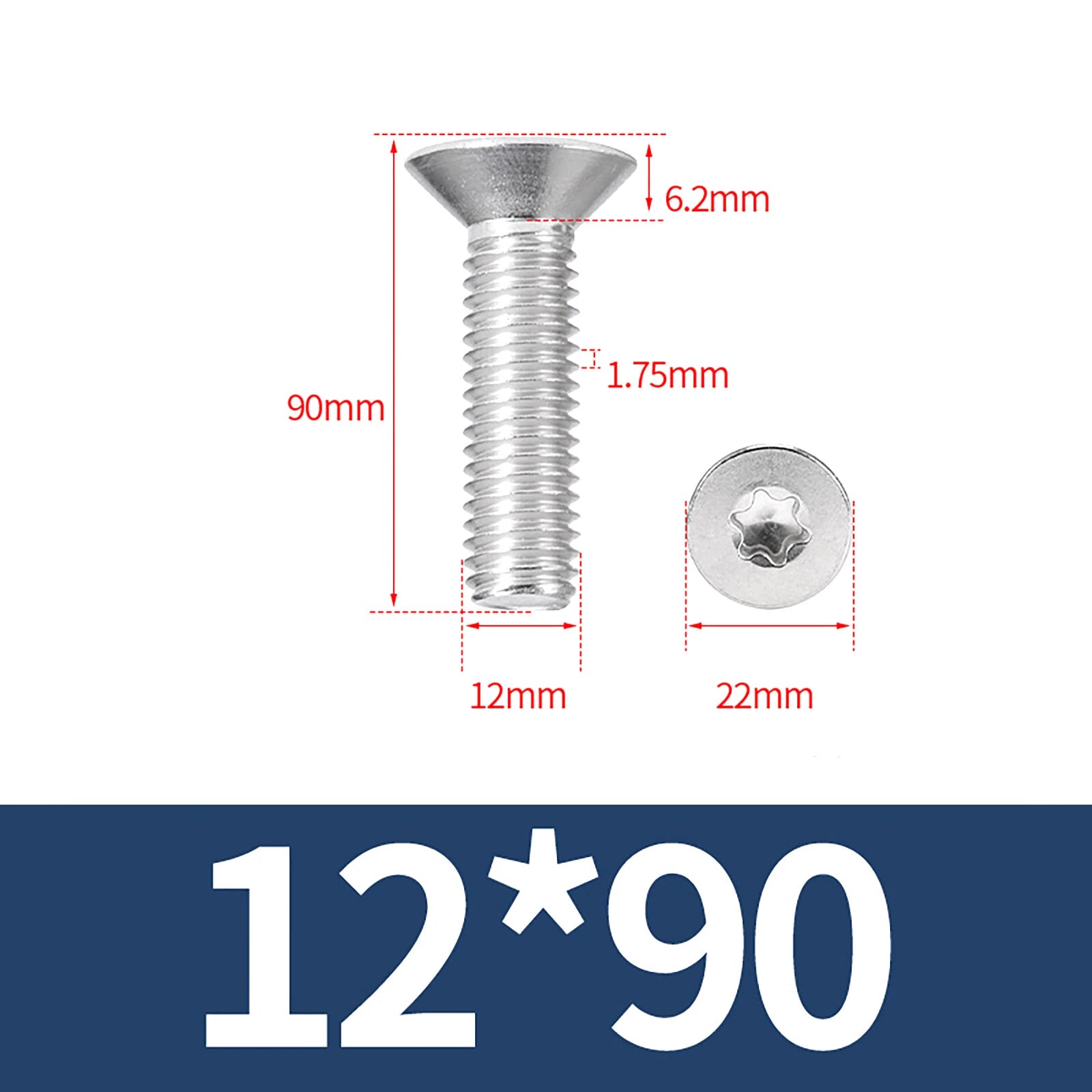

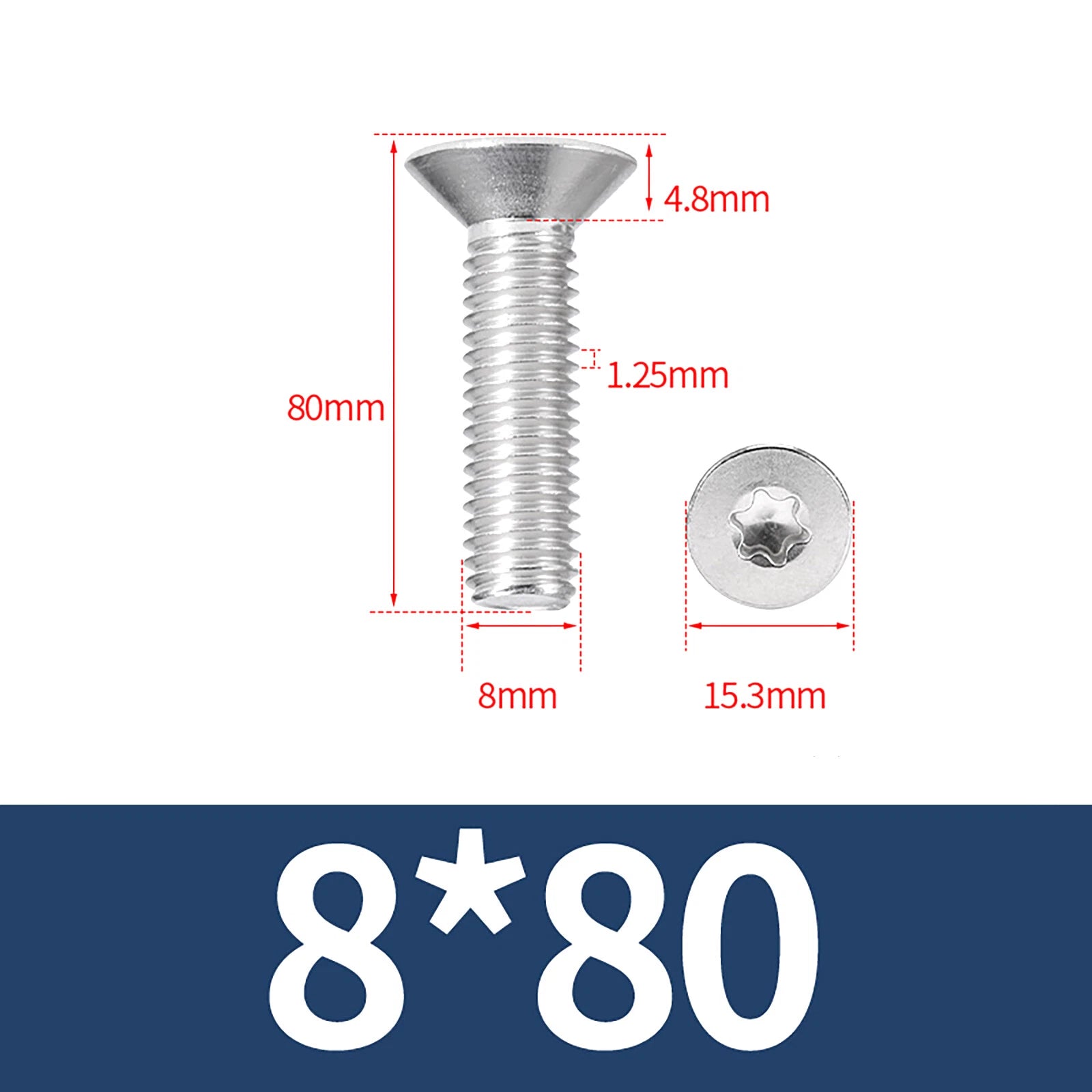

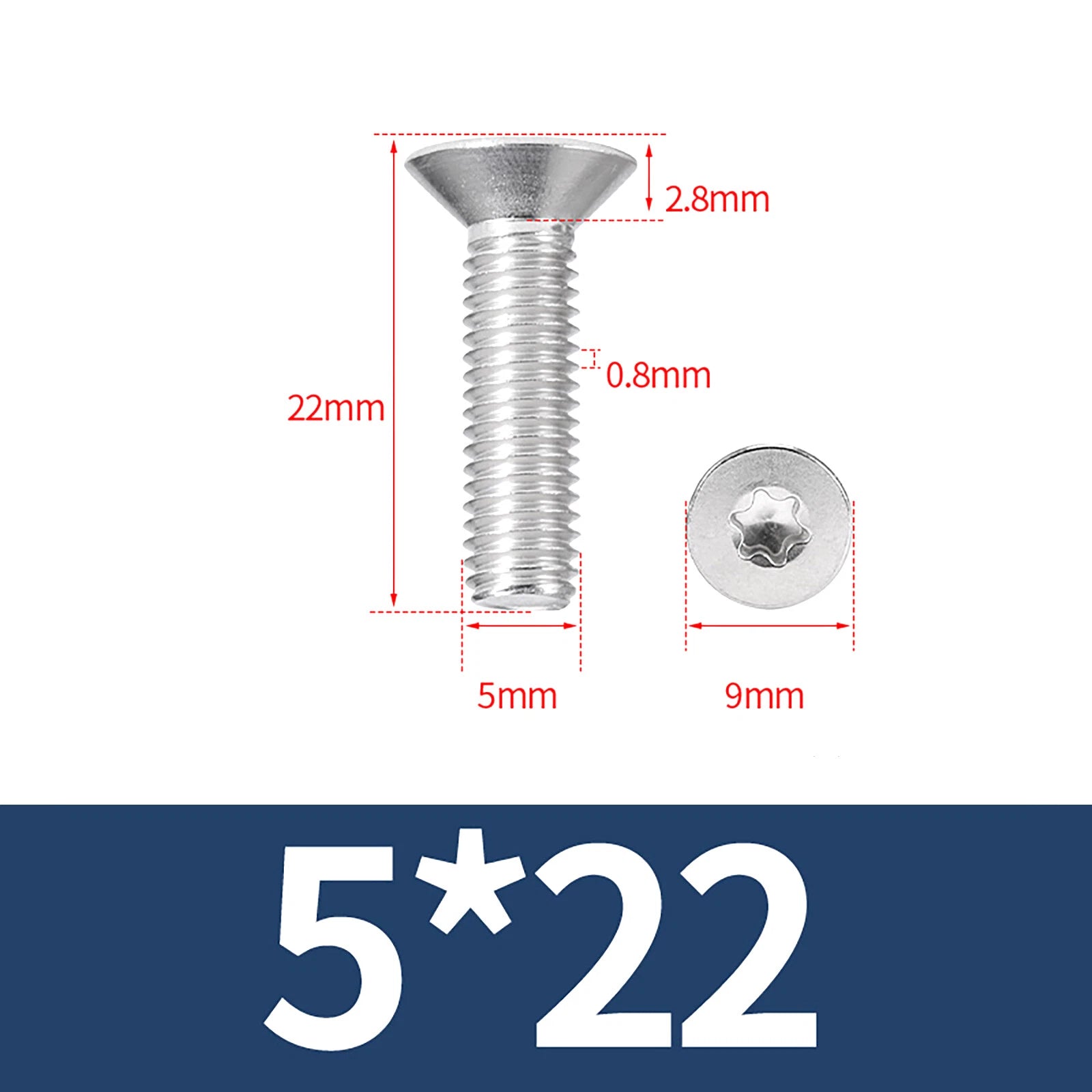

| Diameter Range | M2, M2.5, M3, M4, M5, M6, M8, M10, M12 |
| Length Range | 3mm – 100mm (approx. 0.12" – 3.94") |
| Pack Sizes Available | 2, 4, 5, 10, 20, 50 Pcs |
| System of Measurement | Metric |
| Magnetic | No (non-magnetic) |
| Corrosion Resistance | Good — suitable for indoor and light outdoor use |
A2 stainless steel (also known as 304 grade) offers excellent corrosion resistance, making these screws suitable for indoor and light outdoor applications. They are non-magnetic and resist rust in most environments.
DIN 965 is a German industrial standard that defines the dimensions and tolerances for countersunk flat head screws. These screws conform to that standard for consistent, reliable fit across all compatible hardware.
The required Torx (six-lobe) bit size varies by screw diameter: M2–M2.5 typically use T6–T8, M3–M4 use T10–T15, M5–M6 use T20–T25, and M8–M12 use T30–T40. Always verify with a test fit before final installation.
A2 stainless steel provides good corrosion resistance for light outdoor and marine-adjacent environments. For highly corrosive or fully submerged applications, A4 (316) grade is generally recommended.
For countersunk screws, length is measured from the top of the head to the tip. As a general rule, the screw should engage at least 1.5× its diameter into the receiving material for a secure hold.
These machine screws are designed for use with pre-tapped holes or nuts in metal, hard plastics, wood (with threaded inserts), and composite materials. They are not self-tapping.
Torx (six-lobe) drive provides significantly higher torque transfer with less cam-out risk compared to Phillips or slotted drives. This makes installation faster, more reliable, and reduces damage to both the bit and screw head.
