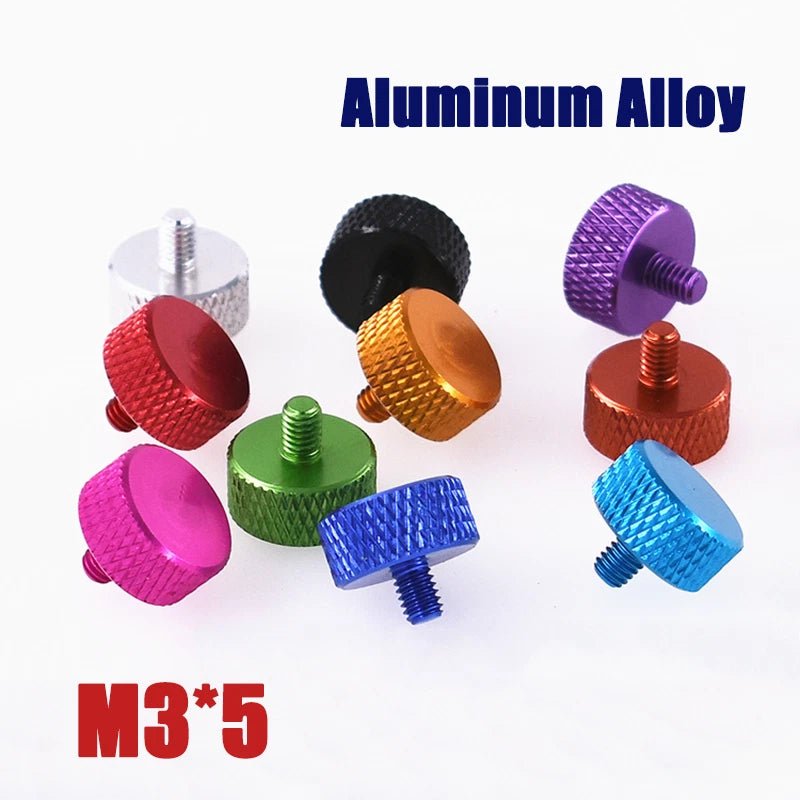

🔧 Product Overview: M3 x 5mm Aluminum Alloy Knurled Thumb Screws – Hand Grip Knob Bolts (Anodized)
For precision fastening in tight spaces where tool‑less access is a priority, these M3 knurled thumb screws are an excellent choice. Machined from 6061 aluminum alloy with a durable anodized finish, they offer a lightweight, corrosion‑resistant, and attractive solution. The knurled round head provides a secure, non‑slip grip for hand tightening and loosening – no screwdriver needed. Fully threaded with M3 coarse pitch (0.5mm), and a 5mm thread length (measured under the head). Ideal for machinery, precision molds, bearing assembly, and other applications requiring frequent manual adjustment.
✨ Why Choose These Anodized Aluminum Thumb Screws
-
High‑quality 6061 aluminum alloy – Lightweight, strong, and corrosion‑resistant. Anodized finish adds durability and a professional appearance.
-
Knurled round head for tool‑less grip – Diamond knurl pattern provides excellent finger traction for hand tightening and loosening – no tools required.
-
Smooth, burr‑free workmanship – High quality manufacturing ensures consistent threads and a clean finish for reliable fastening.
-
M3 metric thread – fully threaded – Standard coarse pitch (0.5mm). Threads run the entire 5mm length for maximum grip.
-
5mm thread length (under head) – Ideal for thin panels, shallow threaded holes, and applications where minimal protrusion is desired.
-
Corrosion & rust resistant – Anodized aluminum resists oxidation and wear, ensuring long service life.
-
Wide applications – Machinery, precision molds, bearing assembly, 3D printers, camera rigs, and general DIY.

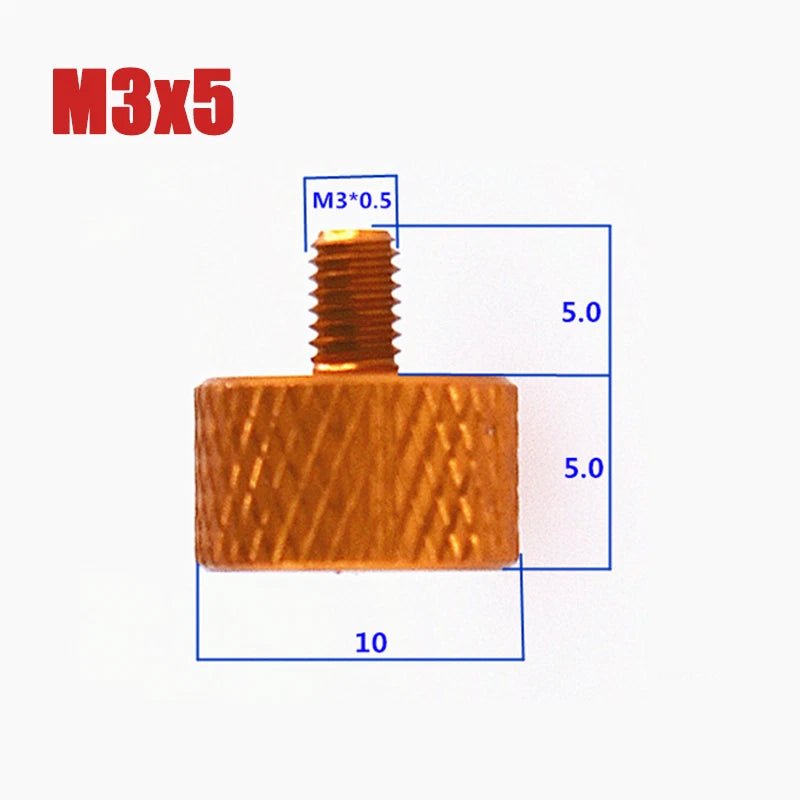

📏 Technical Specifications – M3 Knurled Thumb Screws (5mm Length)
| Specification |
Details |
| Product Type |
Knurled Thumb Screws (Hand Grip Knob Bolts) |
| Material |
6061 Aluminum Alloy (anodized) |
| Thread Size |
M3 |
| Thread Pitch |
0.5mm (metric coarse) |
| Thread Length (under head) |
5mm |
| Length Measurement |
Under head – from underside of head to tip (head not included) |
| Head Style |
Knurled round head (diamond knurl) |
| Drive Style |
Hand grip (toolless) |
| Finish |
Anodized (various colors available) |
| Tolerance |
±0.2mm |
❓ FAQs – M3 Knurled Thumb Screws
🔸 How is the 5mm thread length measured? Is it enough for my project?
Thread length is measured from the underside of the knurled head to the tip. A 5mm threaded shank is suitable for material thickness up to 3‑4mm when using a nut, or for pre‑tapped holes up to 5mm deep. For thicker panels, consider a longer version (contact us for custom lengths).
🔸 Are these screws fully threaded? What is the thread pitch?
Yes – they are fully threaded from under the head to the tip. The thread pitch is standard M3 coarse: 0.5mm.
🔸 Will the anodized finish wear off over time?
Anodizing is an electrochemical process that creates a durable, bonded oxide layer. It will not peel like paint. Under normal hand use, the finish will remain intact for years. Heavy abrasion may wear the surface, but typical thumb screw applications are gentle.
🔸 Can I use these screws with nuts, or are they for tapped holes only?
These are standard machine screws – they work with matching M3 nuts or in pre‑tapped holes. For through‑hole applications, use a nut on the back side. The knurled head is designed for hand grip only – do not use tools on the knurling.
🔸 What colors are available?

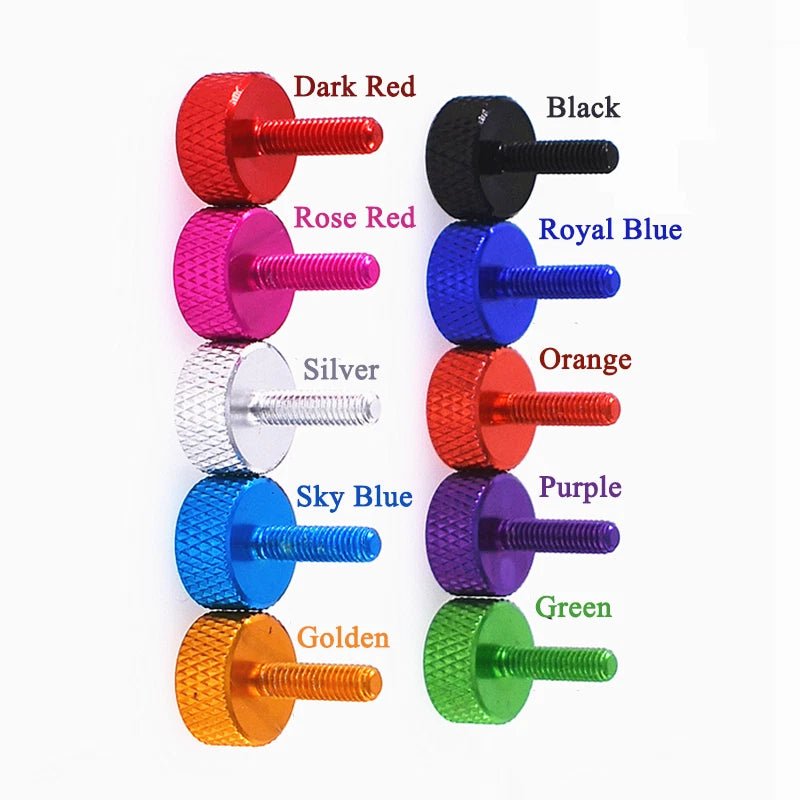

We offer a range of anodized colors – please select your preferred color from the dropdown options when ordering. Common colors include Black, Silver, Red, Blue, Gold, and Green. Note that colors may vary slightly due to lighting and photography.
🔸 Are these screws magnetic? Will they affect sensitive electronics?
Aluminum is non‑magnetic, so these thumb screws will not interfere with sensitive electronics, magnetic sensors, or precision instruments. They are completely safe for use near hard drives, medical devices, and measuring equipment.
