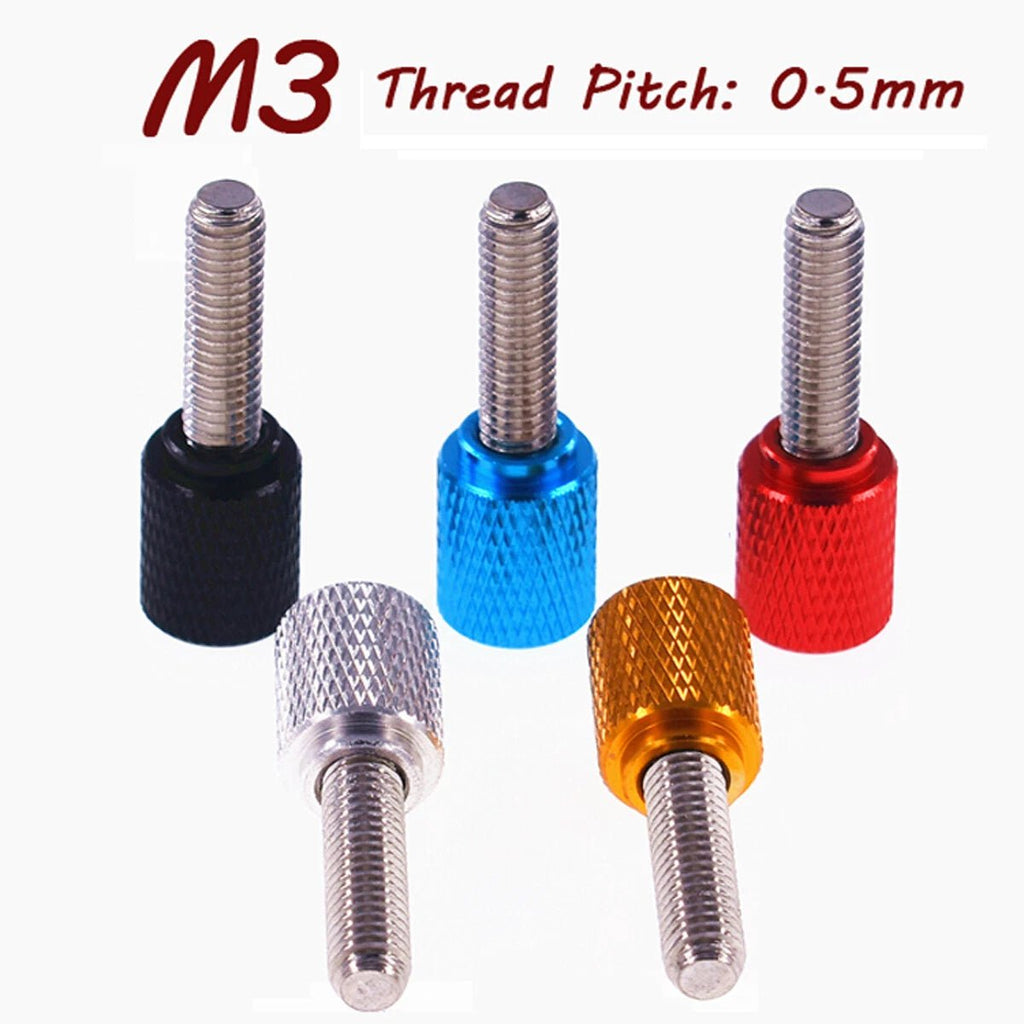

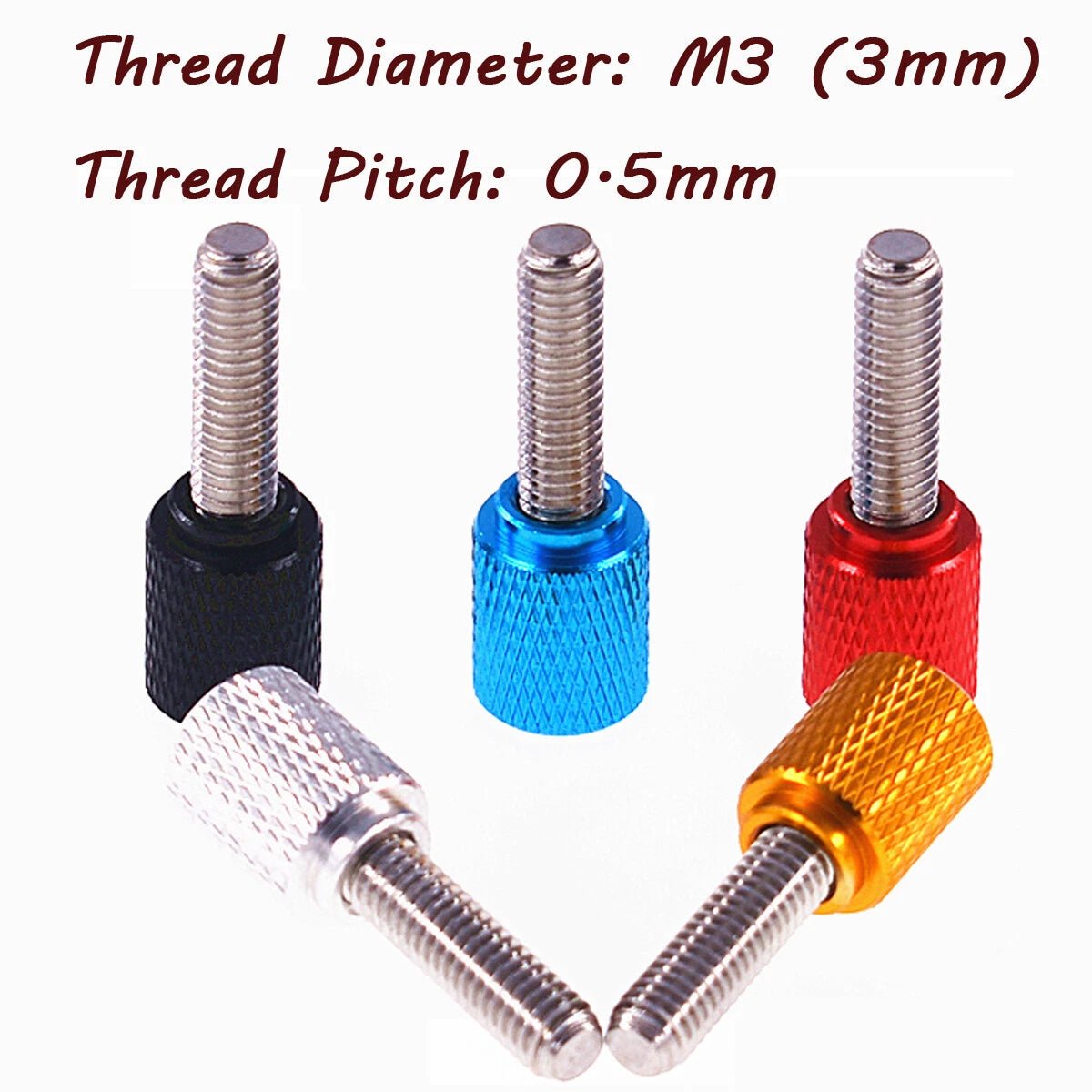

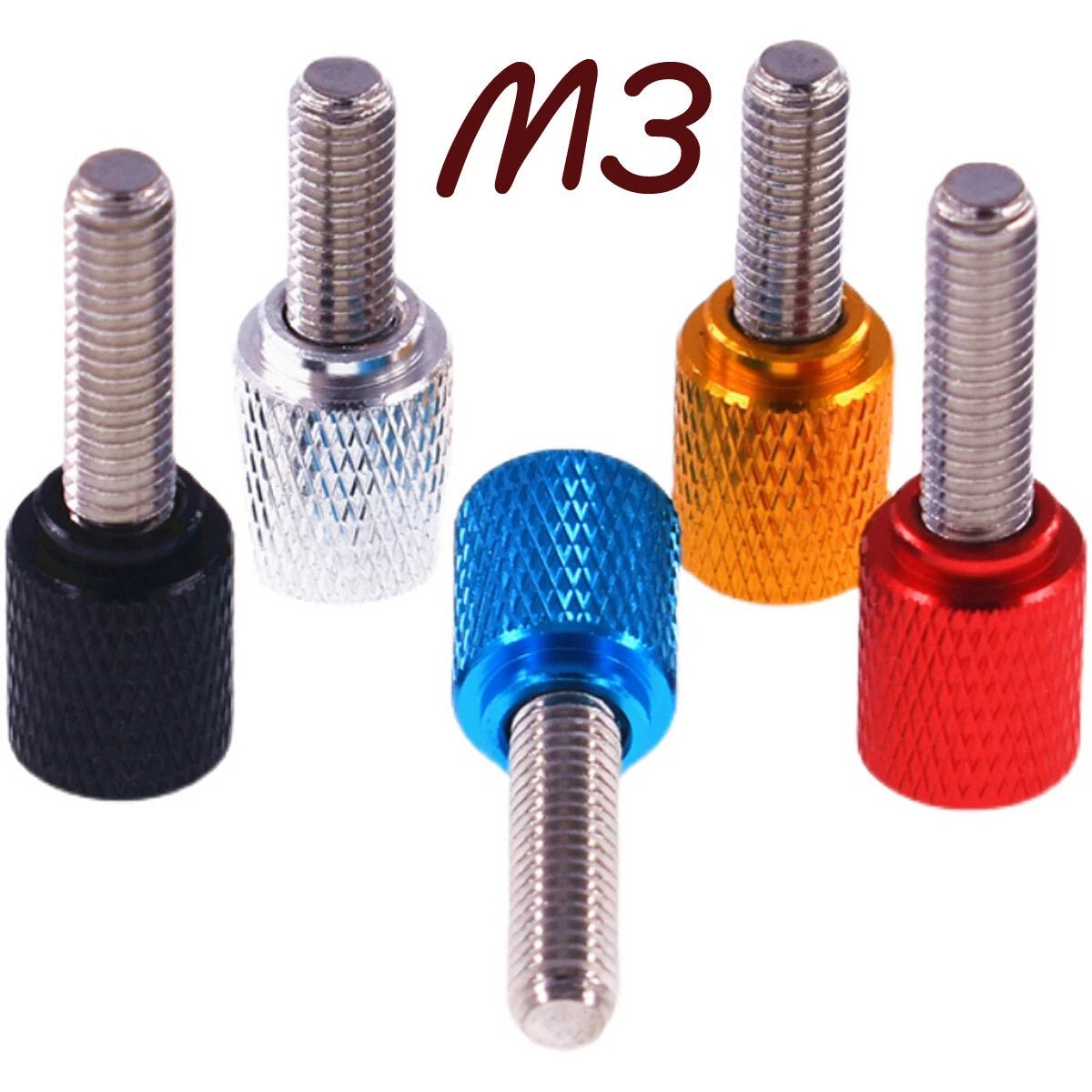

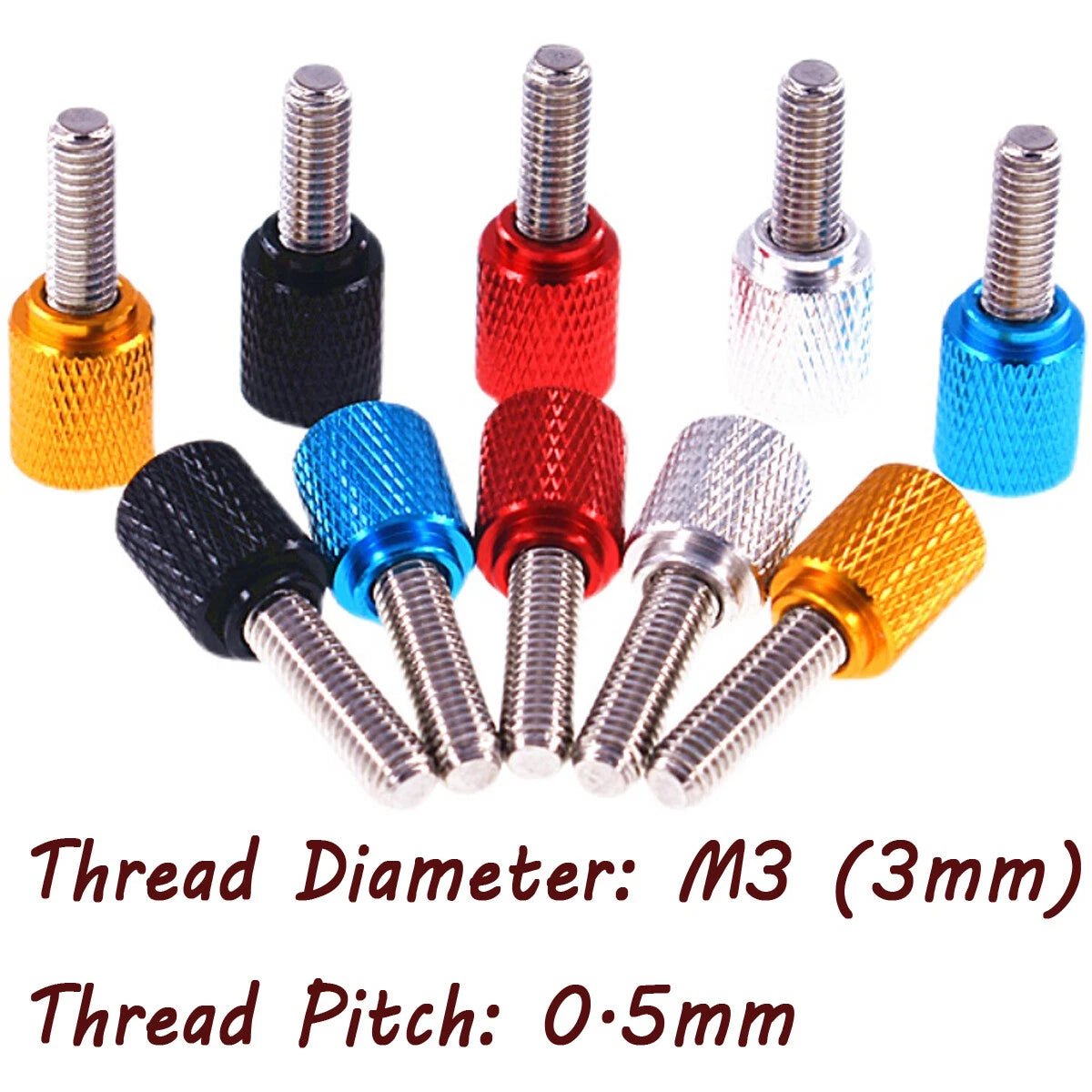

🔧 M3 High Knurled Thumb Screws – Aluminum Head + Stainless Steel Thread, Hand Twist Flat Grip
You need a fastener that’s easy to turn by hand, strong enough to hold tight, and looks good doing it. These M3 high knurled thumb screws deliver exactly that. The oversized 12mm aluminum head features deep, high knurling for a non‑slip finger grip – even with gloves on. The threaded shaft is stainless steel, so you get corrosion resistance and strength where it counts, while the lightweight aluminum head keeps things comfortable. Choose from five anodized colors (Dark Red, Sky Blue, Golden, Silver, Black) and thread lengths from 5mm to 100mm. Perfect for camera rigs, 3D printers, machine guards, and any spot that needs tool‑free access with a professional finish.
📏 Technical Specifications – M3 High Knurled Thumb Screws
| Type |
Thumb Screw / High Knurled Hand Twist Flat Grip
|
| Material |
Head: Aluminum Alloy (anodized) / Thread: Stainless Steel
|
| Thread Diameter |
M3 (3mm)
|
| Thread Pitch |
0.5mm (standard metric fine? Actually standard M3 pitch is 0.5mm, correct)
|
| Thread Length (under head) |
5mm to 100mm (select from dropdown – specific lengths available)
|
| Head Diameter |
12mm
|
| Head Thickness (total height) |
16mm (2mm base + 14mm knurled section)
|
| Head Style |
Flat top with high knurling on the side
|

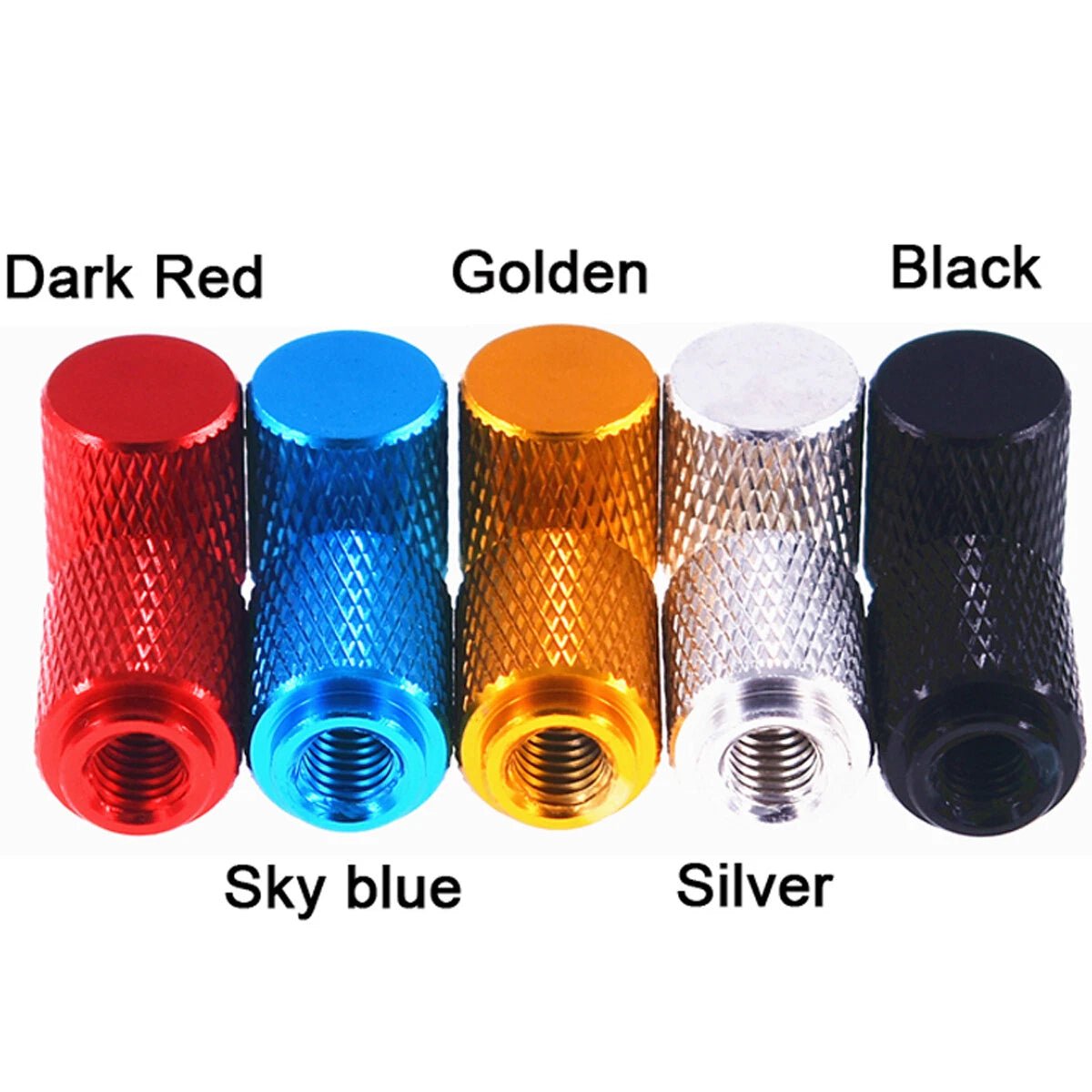

| Available Colors |
Dark Red, Sky Blue, Golden, Silver, Black
|
| System of Measurement |
Metric
|
| Tolerance Range |
±1‑2mm (overall length tolerance)
|
| Packing |
Plastic bag / Carton box
|

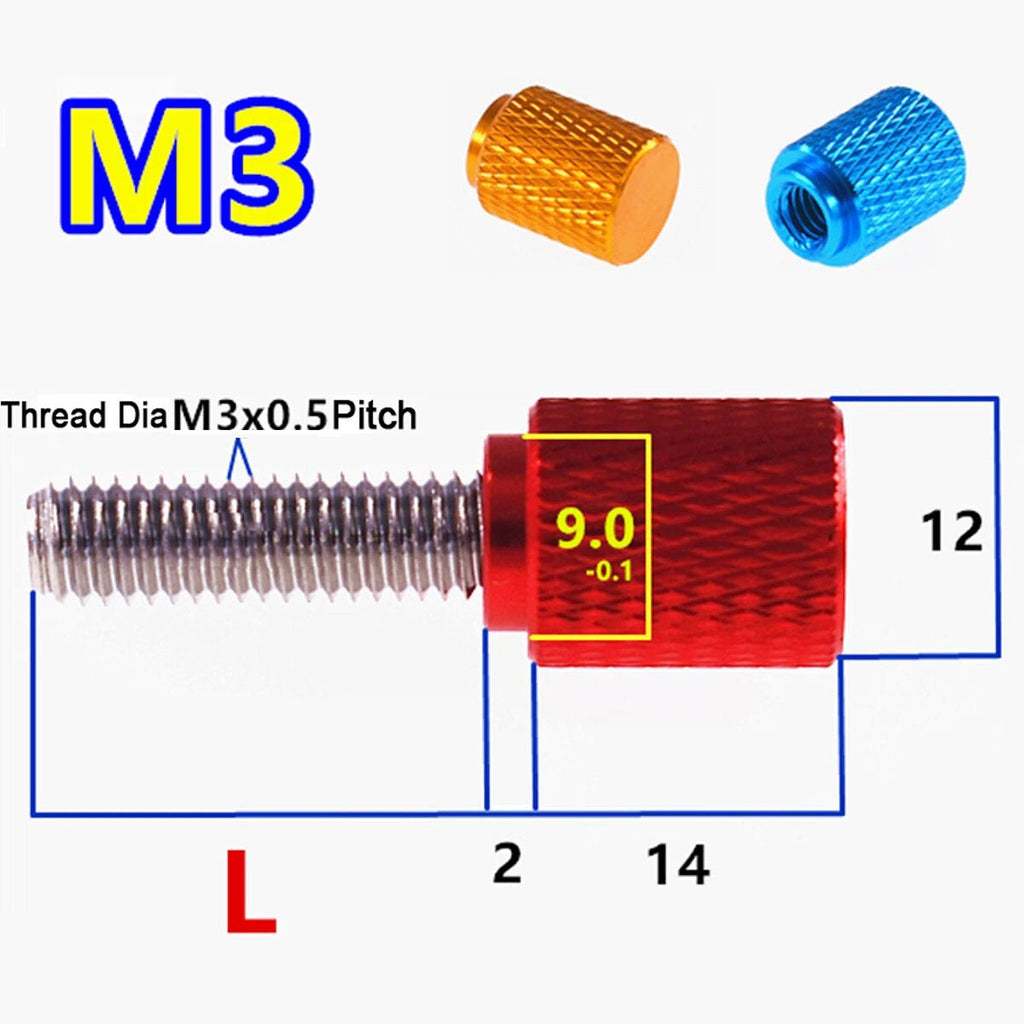

📐 Head design: Flat top with a tall, aggressively knurled cylindrical body – 12mm diameter, 16mm total height. Easy to grab even when recessed.
❔ Frequently Asked Questions
Why is the head aluminum but the thread stainless steel?
This hybrid design gives you a lightweight, comfortable‑to‑grip head that won’t get too hot or cold, while the stainless steel thread provides higher strength, better wear resistance, and rust protection where it matters most. It’s the best of both materials for hand‑tighten applications.
What length should I order for my project?
Measure the thickness of the material you’re clamping (panel, bracket, etc.). Add 2–3mm to ensure the screw reaches a nut or fully engages a blind hole. For example: a 5mm thick panel → choose 8mm thread length. We offer lengths from 5mm up to 100mm – if you need a specific size not listed, contact us.
Will the anodized color wear off over time?
Anodizing is an electrochemical process that bonds the color into the aluminum surface – it’s much more durable than paint. Under normal hand use, the color will not peel or flake. However, heavy abrasion or scratching can mark the surface, just like any colored metal.
Can I use these screws outdoors? Will the stainless steel rust?
Yes, the stainless steel thread offers good corrosion resistance for outdoor use (rain, humidity). The aluminum head is also corrosion‑resistant thanks to the anodized layer. Avoid continuous saltwater exposure – for marine environments, we recommend upgrading to 316 stainless steel threads (contact us for custom orders).
What’s the tolerance ±1‑2mm? Does that affect thread fit?
The tolerance applies to the overall thread length (e.g., a 20mm listed length could be 19‑21mm). The thread diameter and pitch are held to tighter standards (6g), so they will fit standard M3 nuts without issue. The length tolerance is typical for hand‑tighten screws and won’t impact most applications.
Do these come with nuts or washers?
This listing is for the thumb screws only. However, we sell M3 nuts, lock washers, and flat washers separately. Contact us if you need a complete hardware kit – we can bundle them for you at a small extra cost.
