🔘 M3 Knurled Thumb Screws – A2 Stainless Steel + Anodised Aluminium Hand Grip Knob Bolts
You want a thumbscrew that’s both comfortable to turn and completely rust‑proof. This M3 knurled thumb screw combines a lightweight, colourful anodised aluminium head with a strong A2 stainless steel threaded stud. The diamond‑knurled aluminium head gives you a secure, non‑slip grip for tool‑less tightening, while the stainless steel thread resists corrosion in humid or outdoor environments. Perfect for PC cases, camera rigs, 3D printers, and any project where you need a reliable hand‑grip fastener that looks great and lasts. Available in multiple colours and pack sizes (1, 5, or 10 pieces).
✨ Key Features – M3 Stainless + Aluminium Thumb Screws
- 🔘 Knurled round aluminium head – Diamond knurling provides excellent fingertip grip for hand tightening without tools.
- 🎨 Anodised aluminium (colour options) – Available in a range of vibrant colours – add a custom look to your build.
- 🛡️ A2 stainless steel threaded stud – Corrosion‑resistant, strong, and durable. Won’t rust like carbon steel.
- ⚖️ Lightweight head, strong thread – Aluminium head keeps weight low; stainless steel stud provides secure fastening.
- 📏 M3 metric thread (3mm diameter, 0.5mm pitch) – Standard size for PC cases, electronics, and light machinery.
- 📐 Fully threaded stud, length under head – Thread runs the entire length under the head for maximum grip in tapped holes or with nuts.
- 📦 Flexible pack sizes – Choose 1, 5, or 10 pieces per pack. Select colour and length from dropdown.

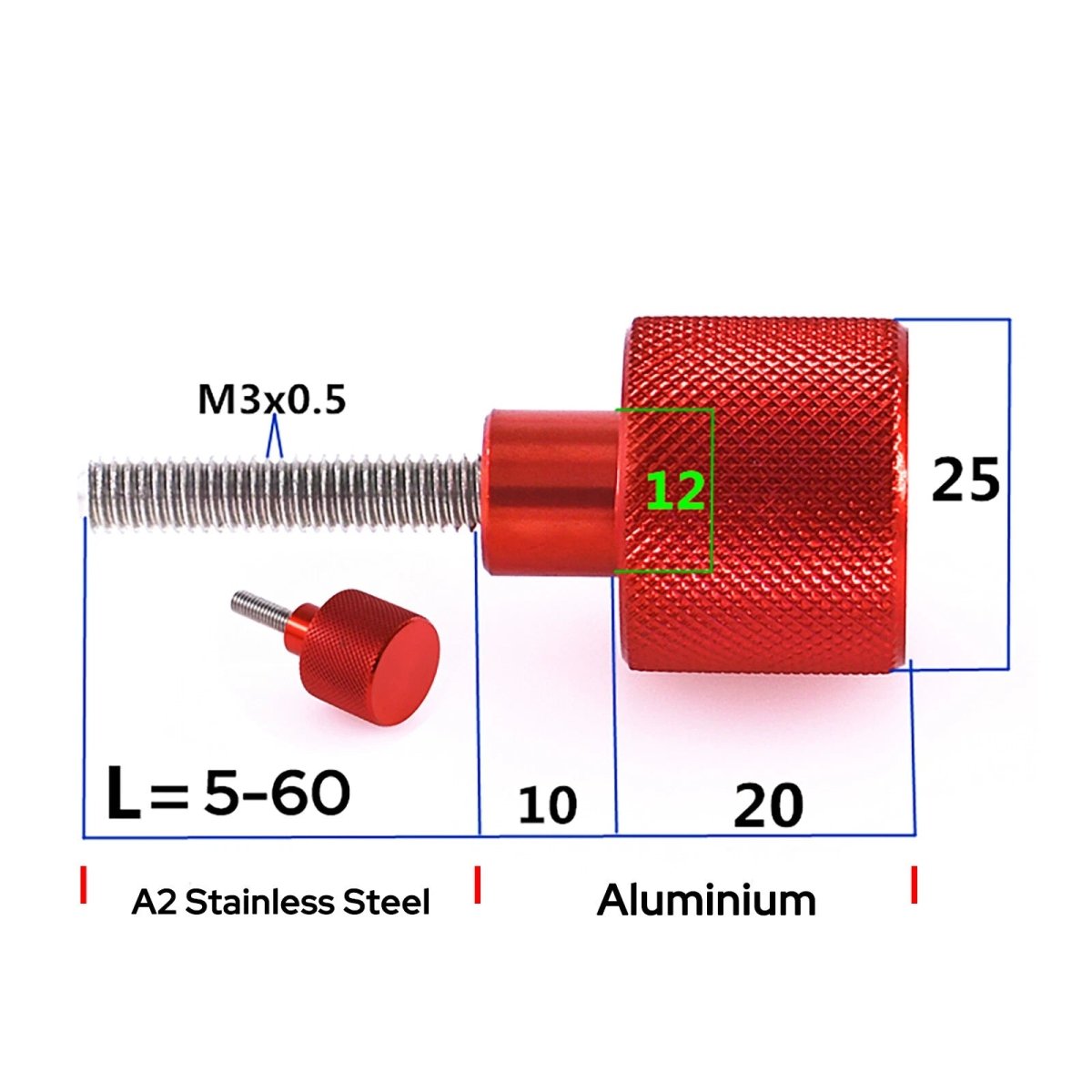

📏 Specifications – M3 Knurled Thumb Screws (Aluminium Head + A2 Stainless Steel)
| Thread Diameter (M) |
Thread Pitch (mm) |
Head Material / Finish |
Stud Material |
Head Style |
Head Diameter (approx.) |
Head Height (approx.) |
Stud Length (mm, under head) * |
Pack Sizes |
| M3 |
0.5 |
6061 aluminium / Anodised |
A2 304 stainless steel |
Round knurled (diamond pattern) |
~8‑10 mm |
~5‑7 mm |
Select from dropdown (typical range 4–20mm) |
1, 5, 10 |
* Length measured from underside of head to tip. Fully threaded. Colour availability may vary – select from dropdown.
🛠️ Perfect for PC Modding & Precision Equipment
| Application |
Typical Use |
| Computer cases |
Side panel thumbscrews, radiator brackets, PSU mounts, drive bay fasteners |
| Camera rigs & tripods |
Quick‑release plate locks, bracket clamps, monitor arms |
| 3D printers & CNC |
Bed leveling knobs, spool holders, enclosure thumbscrews |
| Electronics enclosures |
Tool‑less access to battery compartments, PCB covers, test equipment |
| RC models & hobby |
Body mounts, battery covers, adjustable links |
❓ Frequently Asked Questions – M3 Aluminium + Stainless Thumb Screws
1. How do I measure the length of this thumb screw?
The length is measured from the underside of the aluminium head (where the knurling meets the shaft) to the tip of the stainless steel thread. The head itself is NOT included. For example, an “M3 x 10mm” screw has a 10mm long threaded stud under the head. Select your required stud length from the dropdown.
2. Are the screws fully threaded? What about longer stud lengths?
Yes – all M3 screws in this range are fully threaded from under the head to the tip, giving you maximum grip in tapped holes or when using a nut.
3. Will the anodised aluminium head fade or scratch?
Anodising is a durable electrochemical finish that bonds to the aluminium. It resists scratches and fading far better than paint. Normal hand use will not remove the colour.
4. Will the stainless steel stud rust? Can I use these outdoors?
A2 stainless steel (304) offers excellent corrosion resistance for indoor and light outdoor use. It will not rust under normal conditions. For continuous saltwater or harsh chemical environments, consider A4 (316) stainless – contact us for custom orders.
5. Do I need a nut or washer with these thumb screws?
If your equipment has a pre‑tapped M3 hole (e.g., a threaded boss in a PC case), no nut is needed. For plain holes, use a standard M3 metric nut (0.5mm pitch). A flat washer is optional for load distribution.
6. Can I buy a mixed pack or other pack sizes?
We offer pack sizes of 1, 5, and 10. For bulk quantities or mixed colour packs, please contact us – we can accommodate custom orders.
