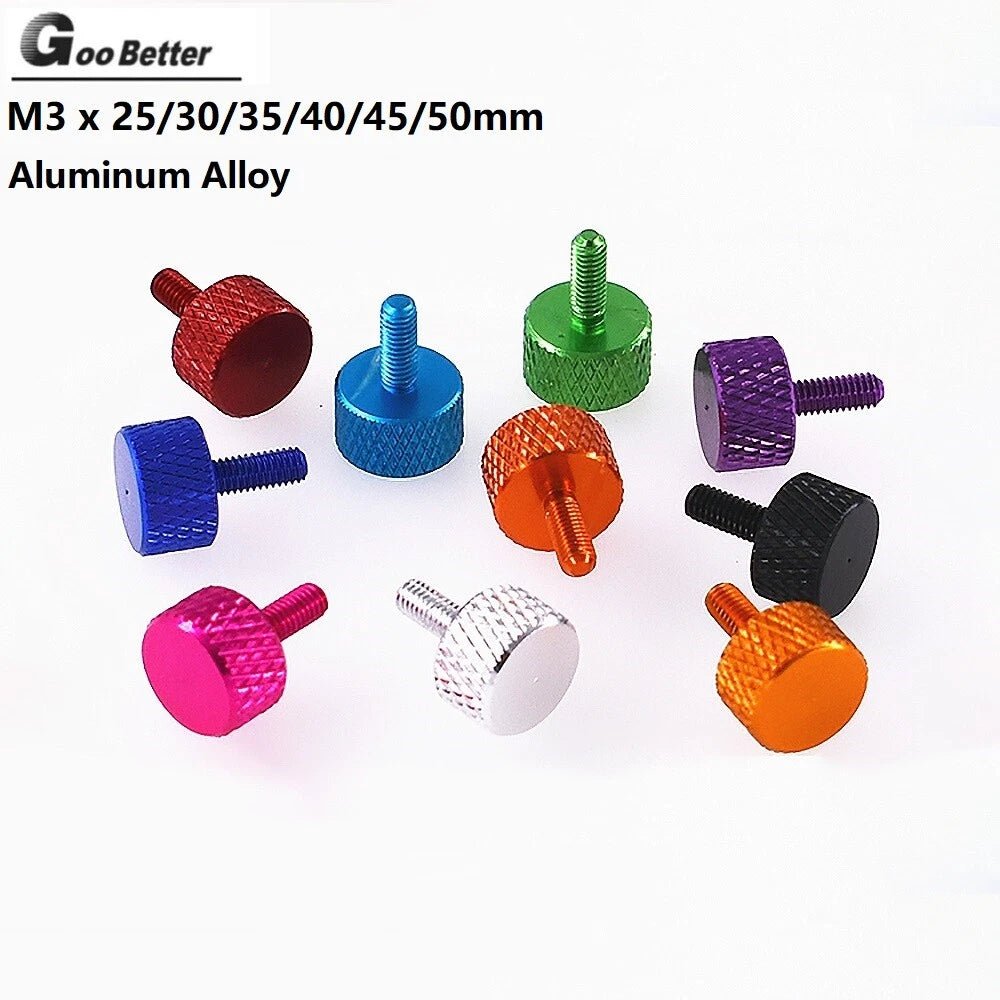

🔩 Product Overview: M3 Knurled Thumb Screws – Aluminum Alloy, 25–50mm Lengths (Anodized Colors)
For quick, tool‑less fastening with a touch of style, these M3 knurled thumb screws are a perfect choice. Made from lightweight, high‑strength aluminum alloy with an anodized finish, they offer excellent corrosion resistance, a secure non‑slip grip, and vibrant color options. The knurled head lets you tighten and loosen by hand – no screwdriver needed. Fully threaded with M3 coarse pitch (0.5mm), and available in thread lengths from 25mm to 50mm (measured under the head). Ideal for camera lens housing fixation, computer case side panels, DIY modifications, and any project where hand‑tightening is preferred.
✨ Why These Anodized Aluminum Knurled Thumb Screws Are a DIY Essential
-
High‑strength aluminum alloy – Heat treatable alloy with good mechanical performance, excellent wear resistance, and easy processability.
-
Knurled grip for tool‑less operation – The textured surface provides a secure, non‑slip grip for hand tightening and loosening – no tools required.
-
Anodized finish – Provides excellent corrosion resistance, oxidation resistance, and a vibrant, durable color that won't peel.
-
Vibrant color options – Add style and uniqueness to your project. Available in multiple anodized colors (select from options).
-
M3 metric thread – fully threaded – Standard coarse pitch (0.5mm). Threads run the entire length for maximum grip.
-
Thread lengths: 25mm, 30mm, 35mm, 40mm, 45mm, 50mm (under head) – Choose the length that fits your panel thickness or assembly depth.
-
Lightweight & non‑magnetic – Ideal for applications where weight matters or magnetic interference is a concern.
-
Wide applications – DIY modifications, camera lens housing fixation, computer case side panels, 3D printers, RC vehicles, and general hand‑tightening fasteners.
📏 Technical Specifications – M3 Knurled Thumb Screws (Aluminum Alloy)
| Specification |
Details |
| Product Type |
Knurled Thumb Screws (Hand Tighten Grip Knob Bolts) |
| Material |
Aluminum alloy (heat treatable, high strength) |
| Thread Size |
M3 (metric coarse) |
| Thread Pitch |
0.5mm |
| Thread Length Range (under head) |
25mm, 30mm, 35mm, 40mm, 45mm, 50mm (select from options) |
| Length Measurement |
Under head – from underside of knurled head to tip (head not included) |
| Head Style |
Knurled cylindrical / barrel shape (diamond or straight knurl) |
Drive Style |
Hand grip (toolless)
|
| Finish |
Anodized (vibrant colors available) |
| Key Properties |
Lightweight, non‑magnetic, corrosion resistant, oxidation resistant, good wear resistance |
❓ FAQs – Knurled Aluminum Thumb Screws
🔸 How is the length measured for these thumb screws?
Length is measured from the underside of the knurled head (the flat bearing surface) to the tip of the thread. The head itself is not included. For example, an M3 x 25mm screw has a 25mm threaded shank – perfect for panel thicknesses up to 23‑24mm when using a nut or threaded hole.
🔸 Are these screws fully threaded? What is the thread pitch?
Yes – they are fully threaded from under the head to the tip. The thread pitch is standard M3 coarse: 0.5mm. This ensures compatibility with standard M3 nuts and tapped holes.
🔸 What colors are available?
We offer a range of anodized colors – please select your preferred color from the dropdown options when ordering. Common colors include Black, Silver, Red, Blue, Gold, Green, and Purple. Contact us for specific color requests.
🔸 Will the anodized color wear off?
Anodizing is an electrochemical process that bonds the color to the aluminum surface. It is durable and will not peel like paint. Under normal hand use, the color will remain vibrant for years. Heavy abrasion may wear the finish, but typical finger tightening will not cause significant wear.
🔸 Can I use these screws outdoors?
Aluminum with anodized finish has good corrosion resistance for indoor and light outdoor use. For continuous saltwater or heavy industrial chemical exposure, stainless steel would be better. However, for general outdoor equipment, camera gear, and computer cases, these are perfectly fine.
🔸 What are the typical applications for these M3 thumb screws?
Camera lens housing fixation, computer case side panels, 3D printer bed leveling knobs, RC car body mounts, electronic enclosures, DIY modifications, and any application where hand‑tightening is convenient and a colored accent is desired.
