Stripped threads, mismatched hardware, and last-minute hardware store runs slow down every project. Whether you're a maker, maintenance tech, or serious DIYer, having the right metric machine screw on hand — in the right size and quantity — is non-negotiable. These M4 and M5 Phillips pan head machine screws are built for exactly that: reliable, repeatable fastening without the guesswork.
Each screw is manufactured from Grade 4.8 carbon steel with a black zinc finish, offering a tensile strength of approximately 400 MPa. The pan head profile provides a wide bearing surface ideal for sheet metal, electronics enclosures, and machinery panels. Thread diameters span M4 (4mm, pitch 0.7mm) and M5 (5mm, pitch 0.8mm), with lengths ranging from 4mm to 30mm — all fully threaded. Available in pack quantities from 5 to 1,000 pieces to match your project scale.
Common use cases include electronics assembly and PCB standoff fastening, HVAC and appliance panel assembly, 3D printer frame construction, rack-mount server and networking hardware, and general workshop or maintenance kits. The black zinc finish blends cleanly into dark-anodized aluminum and powder-coated steel enclosures.
| Type | Pan Head Machine Screw (Fully Threaded) |
|---|---|
| Drive Style | Phillips / Pozi (PH2) |
| Thread Sizes | M4, M5 (ISO Metric) |
| Available Lengths | M4: 4–20mm | M5: 6–30mm |
| Thread Pitch | M4: 0.7mm | M5: 0.8mm |
| Head Diameter | M4: ~6.6mm | M5: ~8.5mm |
| Head Height | M4: ~2.2mm | M5: ~3.2mm |
| Material | Grade 4.8 Carbon Steel |
| Finish | Black Zinc (Black Oxide + Zinc Plate) |
| Tensile Strength | ~400 MPa (Grade 4.8) |
| System of Measurement | Metric |
| Pack Quantities | 5, 10, 15, 20, 30, 50, 80, 100, 150, 200, 250, 300, 400, 500, 800, 1000 pcs |

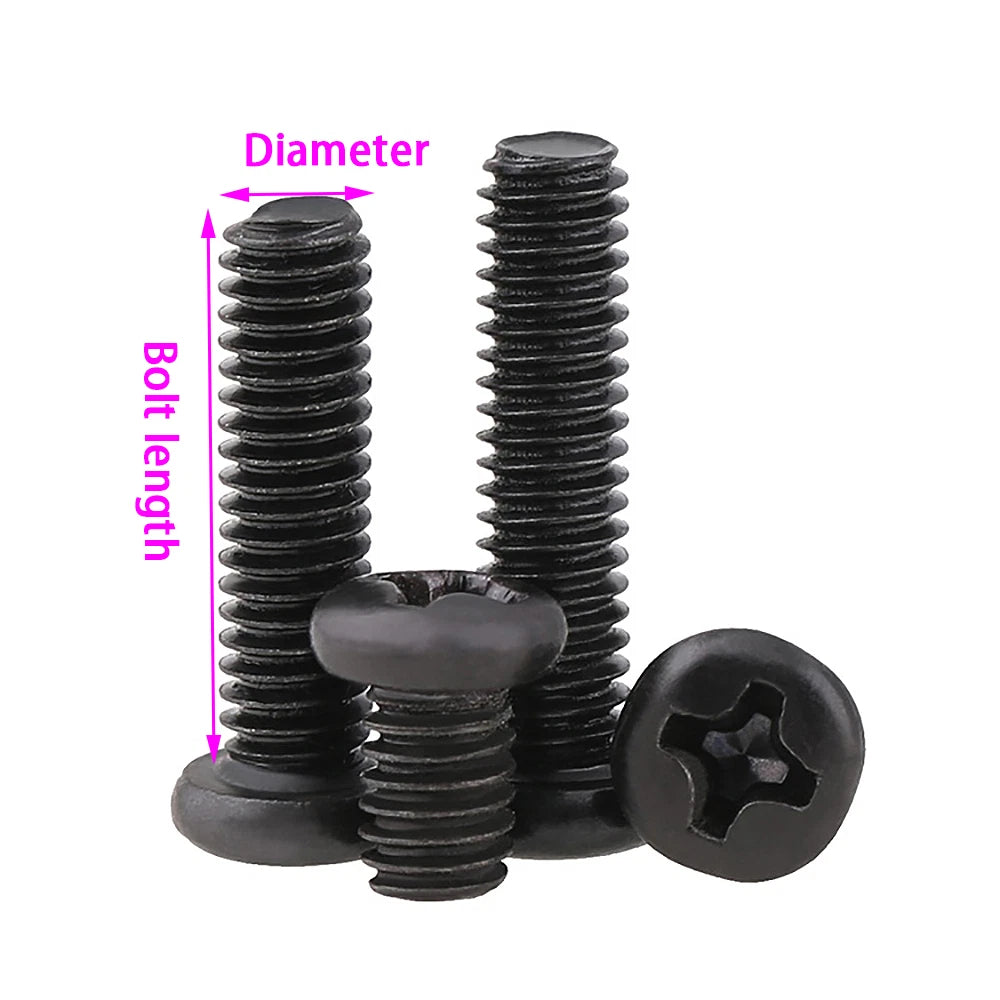

The first number is the thread diameter (M4 = 4mm, M5 = 5mm) and the second number is the shank length measured from under the head. All screws are fully threaded.
Yes. All M4 and M5 pan head machine screws in this listing are fully threaded from tip to head, making them suitable for thin materials and short blind holes.
These screws use a Phillips (Pozi) drive. A standard PH2 Phillips bit is typically used for M4 and M5 sizes and is compatible with most power drivers and hand screwdrivers.
Black zinc (black oxide + zinc plating) provides moderate corrosion resistance suitable for indoor and light-duty applications. For outdoor or high-humidity environments, stainless steel alternatives are generally recommended.
Grade 4.8 is a metric property class indicating a tensile strength of approximately 400 MPa and yield strength of 320 MPa — suitable for general-purpose fastening in electronics, machinery, and DIY projects.
Generally, the screw should engage at least 1.5× the thread diameter into the receiving material. For M4, aim for at least 6mm of thread engagement; for M5, at least 8mm. Measure your material stack-up before selecting a length.
These are machine screws designed for use with pre-tapped holes or nuts. They work well in aluminum and steel. For plastic or wood, a self-tapping screw is generally more appropriate unless the material is already tapped.
M4 pan head: diameter ~6.6mm, height ~2.2mm, thread pitch 0.7mm. M5 pan head: diameter ~8.5mm, height ~3.2mm, thread pitch 0.8mm.
