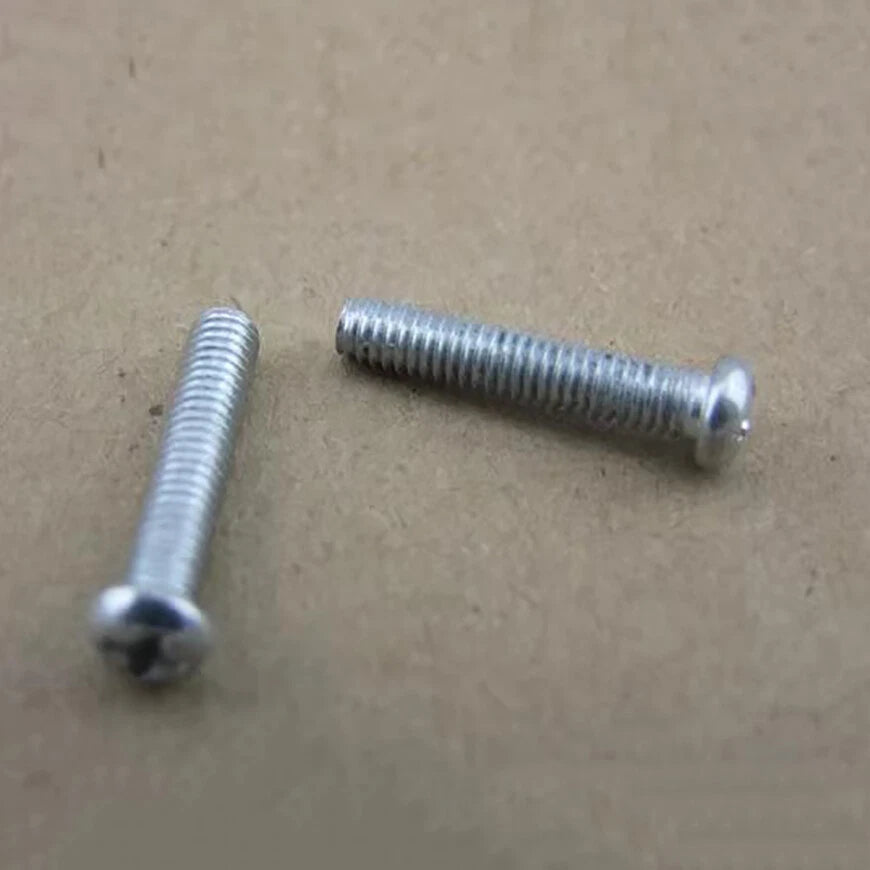

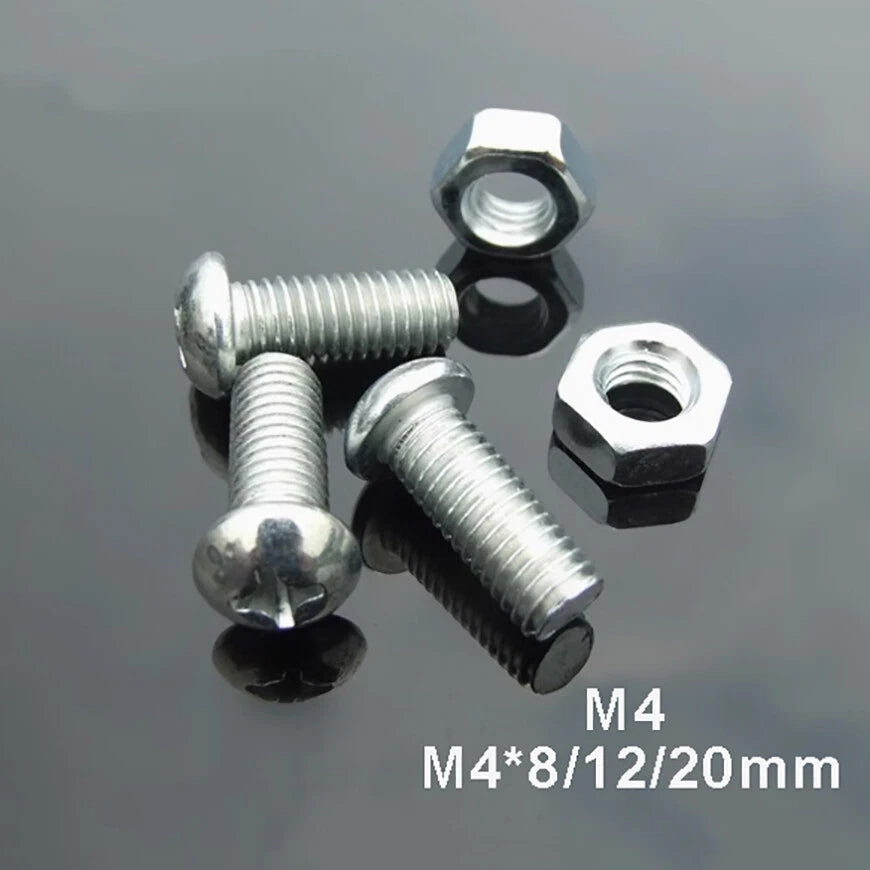

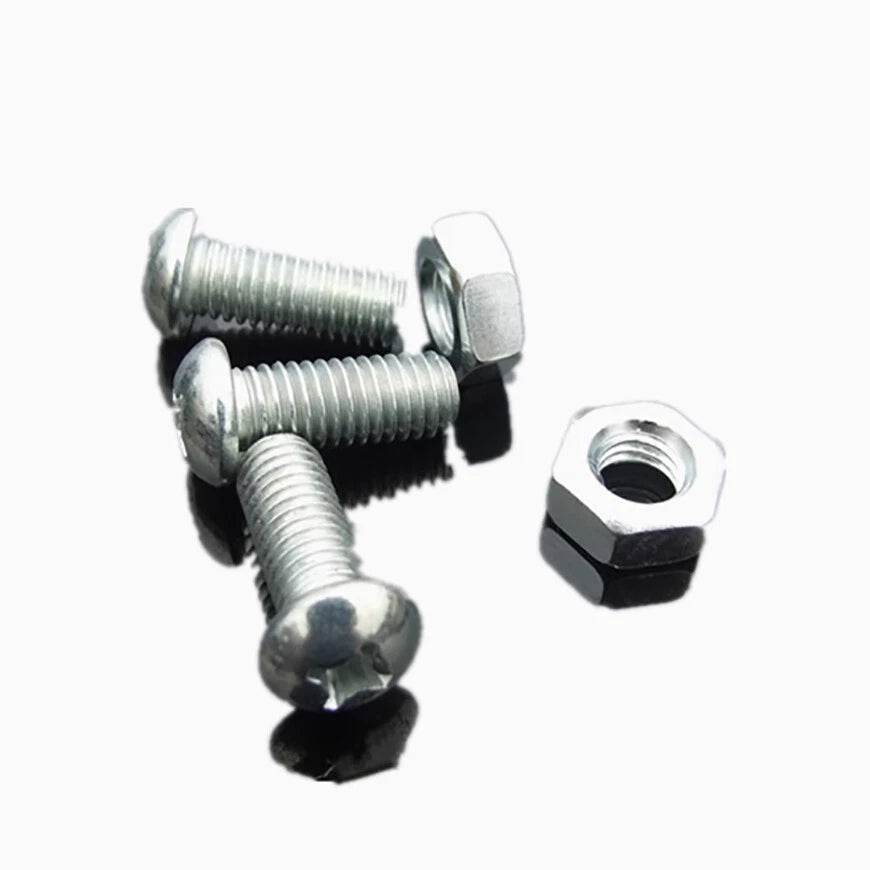

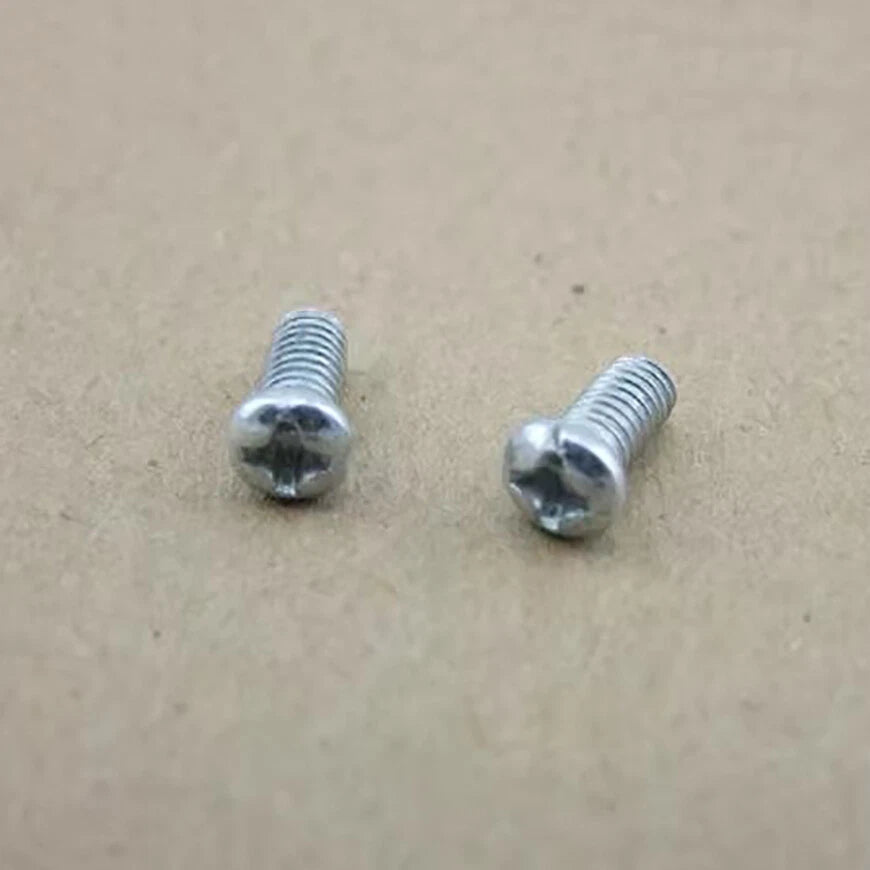

You’re assembling a small bracket, mounting a piece of electronic equipment, or repairing a household appliance – and you need a complete fastener set that includes both screws and matching nuts. These M4 pan head machine screws come with the same‑size hex nuts, so you don’t have to hunt for hardware. The Phillips drive gives you a secure grip with a standard screwdriver, and the zinc plating adds moderate corrosion resistance for indoor use. Choose from 8mm, 12mm, or 20mm thread lengths (measured under the head). Ideal for furniture assembly, metalwork, 3D printer frames, and general DIY repairs.
| Thread Diameter (M) | Thread Pitch (mm) | Lengths Available (mm, under head) | Head Style | Drive | Material / Finish |
|---|---|---|---|---|---|
| M4 | 0.7 | 8mm, 12mm, 20mm | Pan head | Phillips | Zinc plated carbon steel |
📐 Length measured from underside of head to tip. Fully threaded. Nut included: M4 hex nut (same material and finish).
| Component | Details |
|---|---|
| Screw | M4 x (8/12/20mm) pan head Phillips, zinc plated |

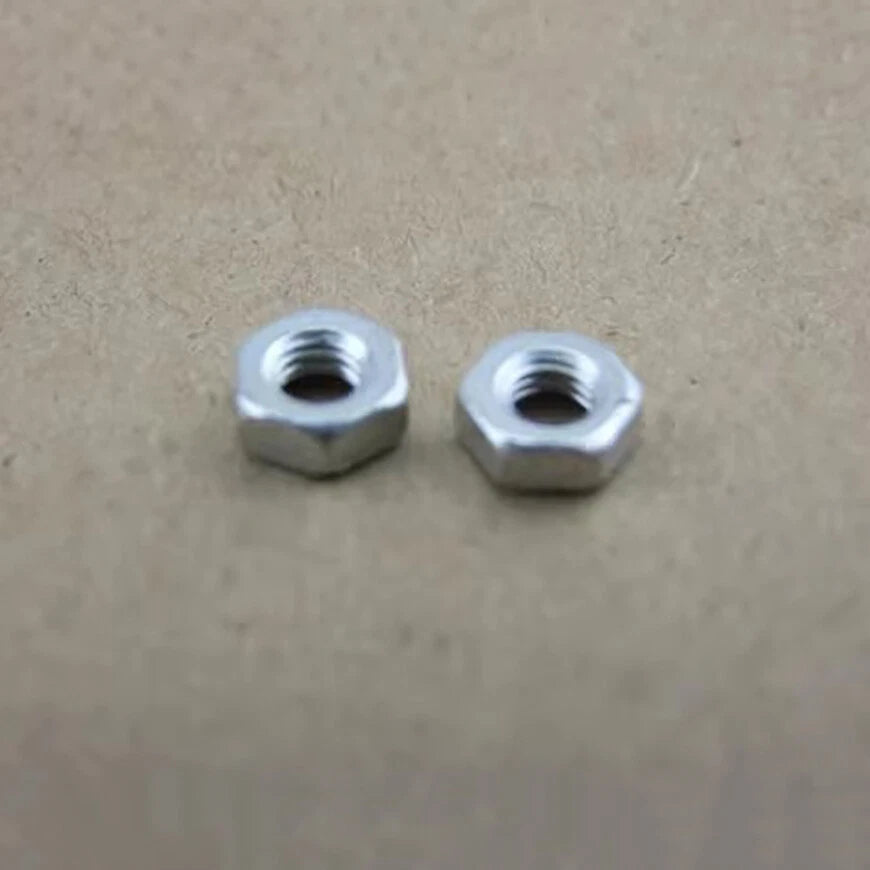

| Nut | M4 hex nut, same zinc plated finish – threads onto the screw perfectly |
| Installation | Drill a clearance hole (approx. 4.2‑4.5mm) or use a pre‑tapped M4 hole. Use the nut on the opposite side for a secure joint. |
| Tools needed | #1 or #2 Phillips screwdriver, 7mm wrench or socket for the M4 nut |
1. How do I measure the length of a pan head screw?
For pan head screws, length is measured from the underside of the head (the flat bearing surface) to the tip. The head itself is NOT included. So an “M4 x 20mm” screw has a 20mm long threaded shaft under the head. All our lengths follow this standard.
2. Are the nuts included? What type are they?
Yes – each screw comes with one M4 hex nut. The nuts are the same zinc plated carbon steel and have a standard 7mm across‑flats size. You can use a 7mm wrench or socket.
3. Are these screws fully threaded?
Yes – all M4 screws in this set are fully threaded from under the head to the tip, giving you maximum grip even in shallow holes or when using the nut.
4. Will the zinc plating rust? Can I use these screws outdoors?
Zinc plating provides moderate corrosion resistance – fine for indoor use and occasional light outdoor exposure (e.g., garden furniture under cover). For continuous outdoor or marine environments, we recommend stainless steel. For most DIY and furniture projects, zinc plated screws are perfectly adequate.
5. What screwdriver do I need for M4 Phillips screws?
Use a #1 or #2 Phillips screwdriver. A #2 is more common and provides good engagement. Always use a driver that fits snugly to avoid cam‑out and head damage.
6. Can I buy these screws without nuts? Or nuts without screws?
This listing is for screw + nut sets. We also sell screws only or nuts only in other listings – please check our store.
