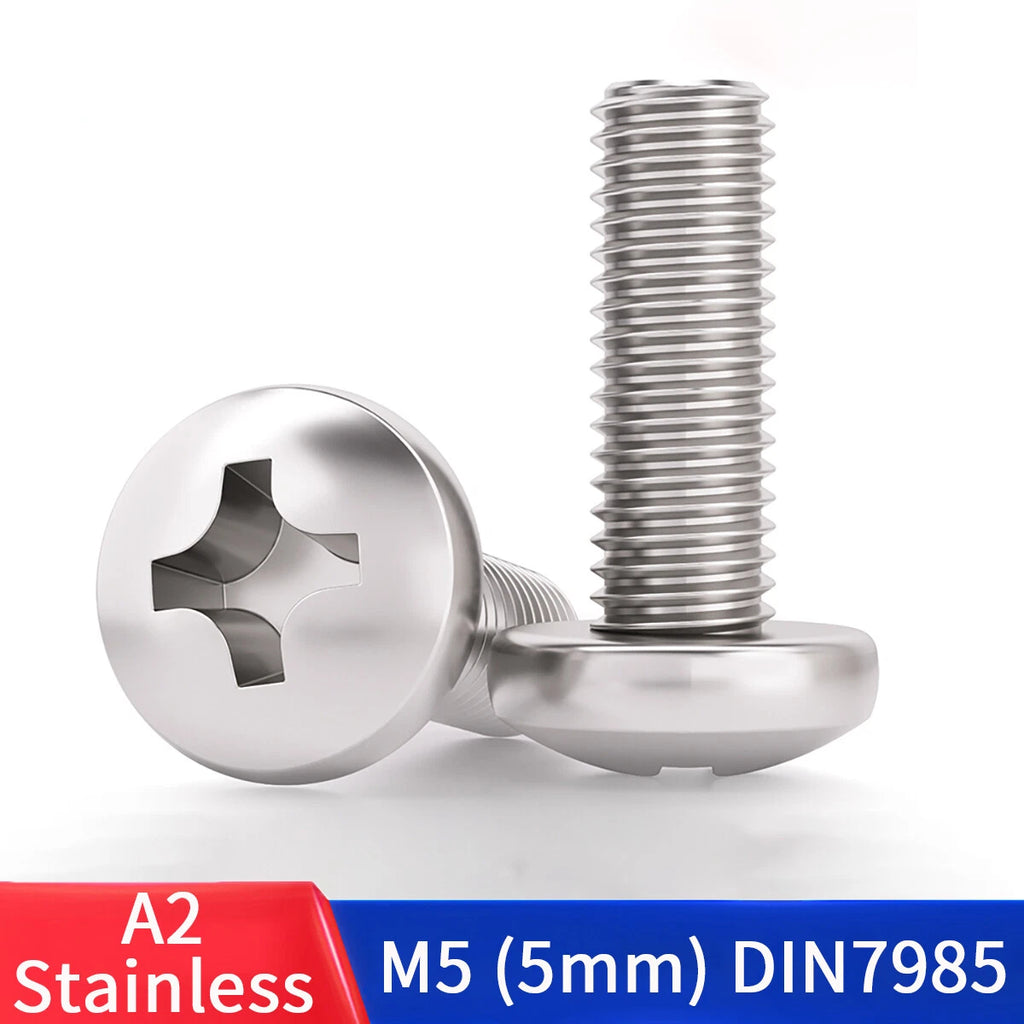

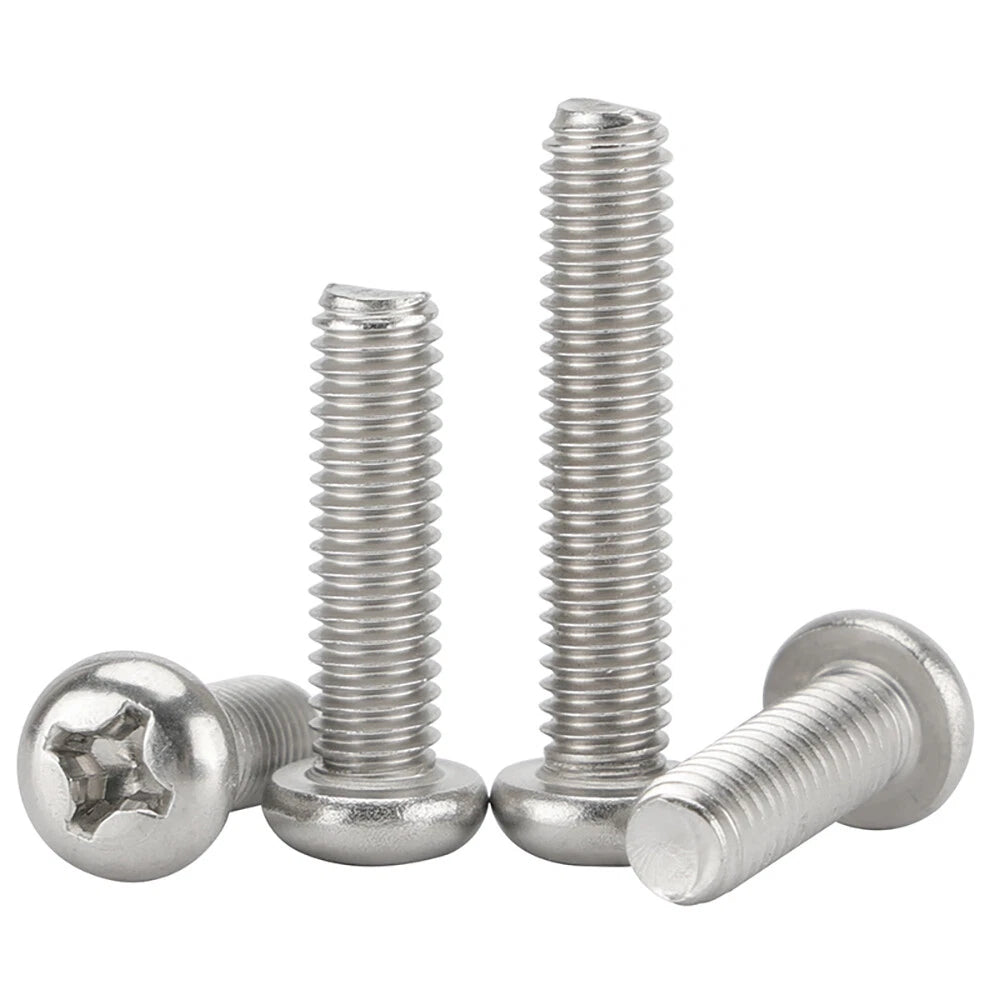

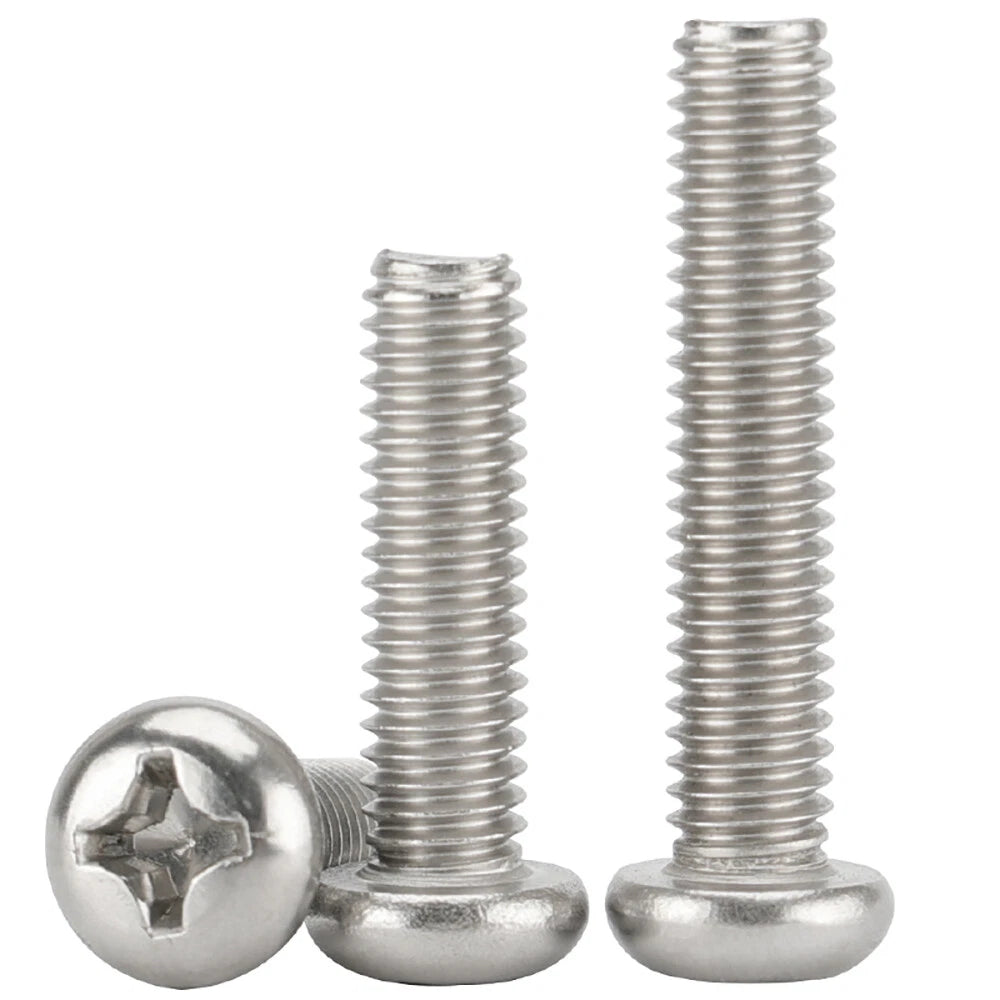

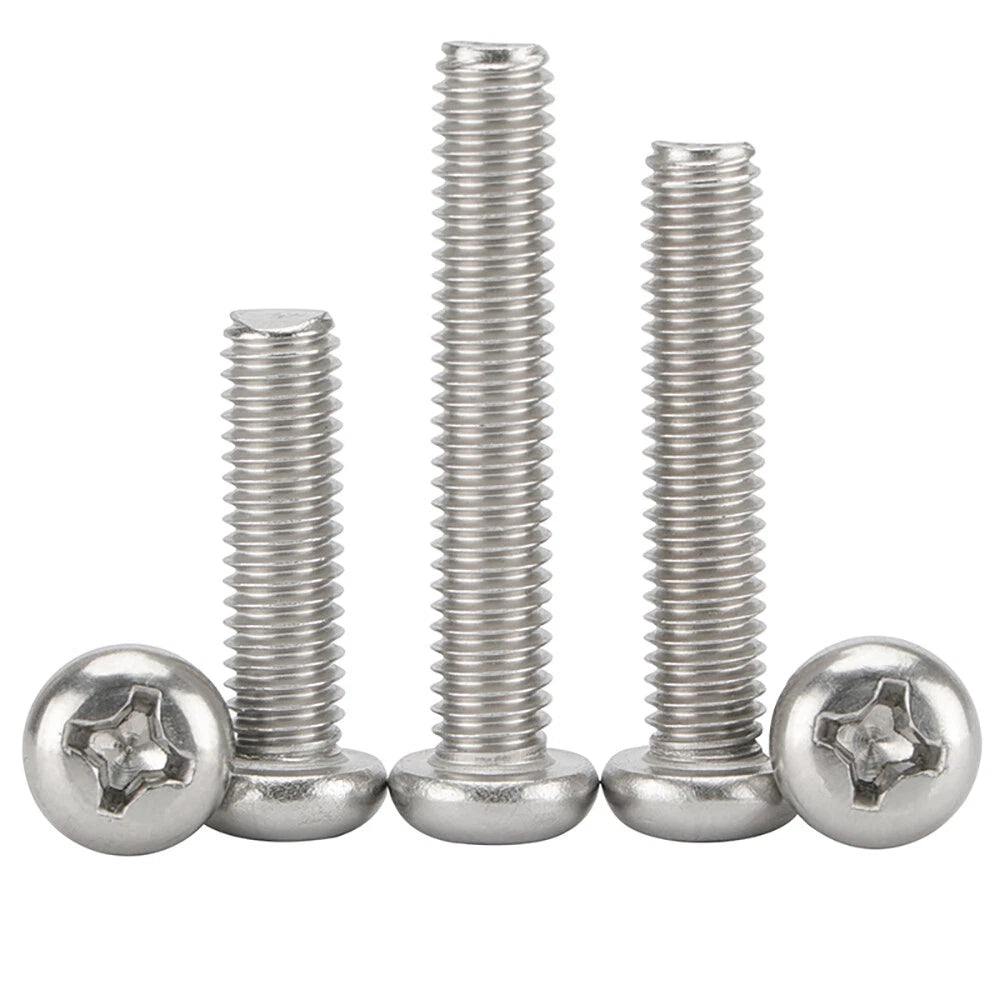

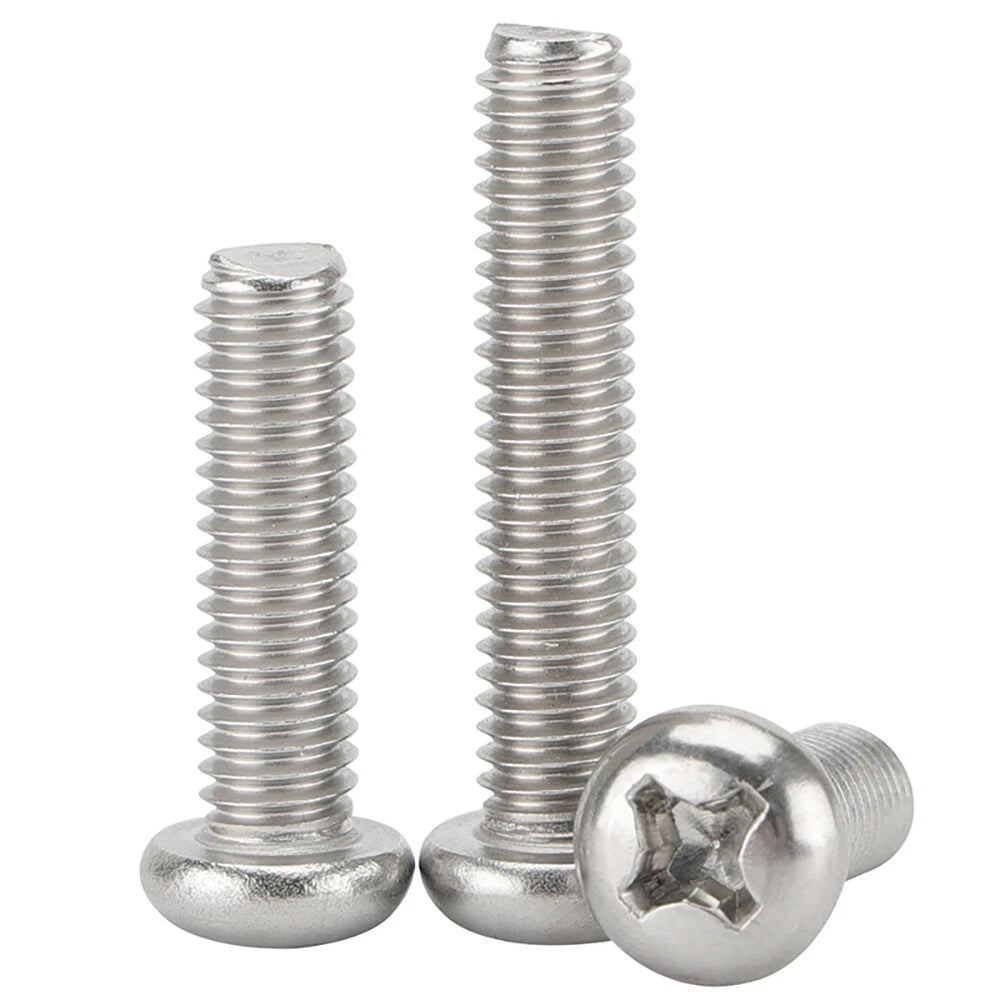

🔩 Product Overview: M5 Pozi Pan Head Machine Screws – A2 Stainless Steel (304)
If you’re tired of Phillips drivers slipping out just as you’re about to tighten a screw, switch to Pozidriv. These M5 Pozi pan head machine screws feature the Pozidrive (Pozi) recess – designed to give you better bite and significantly less cam‑out than standard Phillips. Made from A2 (304) stainless steel with A2-70 strength grade, they offer excellent corrosion resistance, high strength, and a clean, polished finish. The low‑profile pan head sits flush on surfaces, making them perfect for machinery, automotive trim, marine hardware, electronics enclosures, and DIY furniture. Fully threaded with standard coarse metric pitch (M5 x 0.8), and available in a wide range of lengths (e.g., M5×10, M5×20, M5×30, etc.). Rust‑proof, robust, and versatile – these bolts handle heavy‑duty fastening while looking great.
✨ Why Choose M5 Pozi Pan Head Screws in A2 Stainless Steel
-
A2 stainless steel (304) with A2-70 grade – Crafted from high‑quality 304 stainless, renowned for excellent corrosion resistance, high strength, and aesthetic appeal. Rust‑proof in harsh environments.
-
Pozidriv (Pozi) drive – Distinct from Phillips, the extra cross‑recesses provide greater torque transfer and reduce cam‑out. Your driver stays engaged, even under load.
-
Pan head (round) design – Low‑profile rounded head with a flat bearing surface. Distributes clamping force evenly and gives a clean, professional finish.
-
M5 metric diameter – fully threaded – Standard coarse pitch (0.8mm). Threads run the entire shank length for maximum grip in thin materials and reliable nut engagement.
-

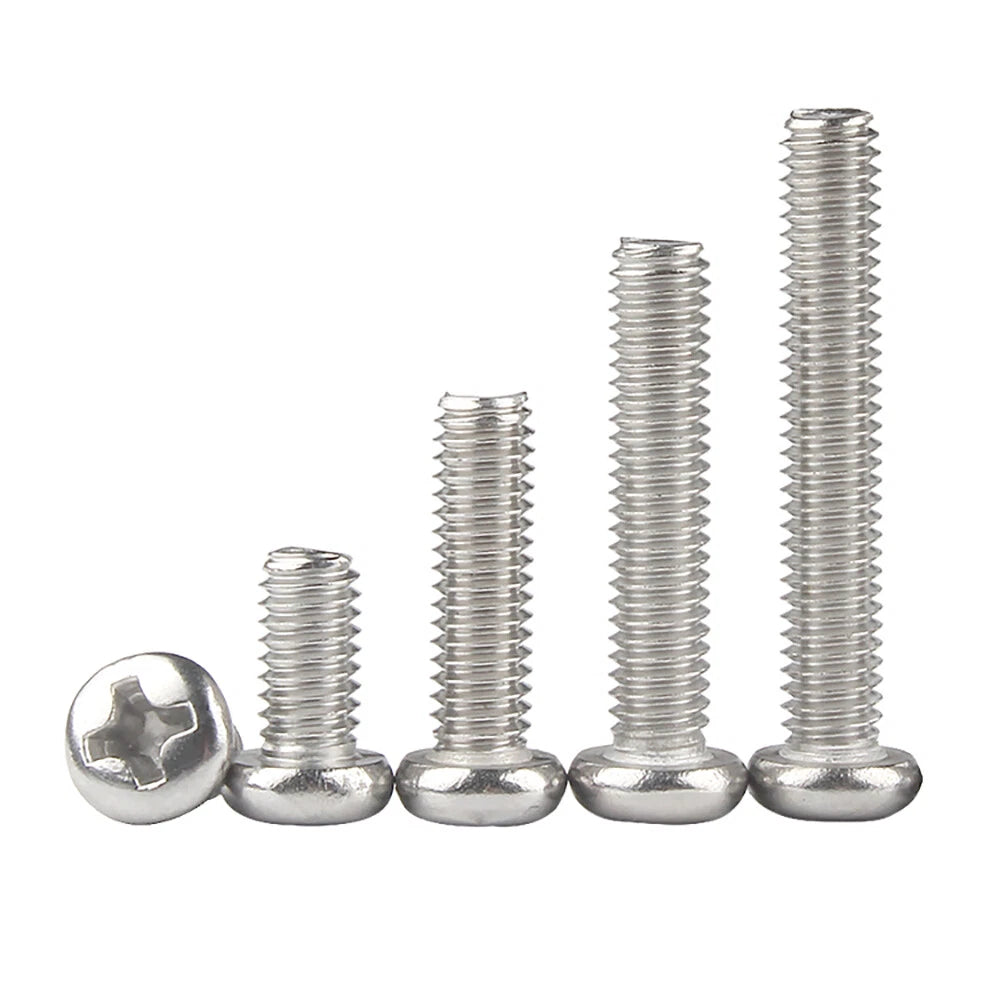

Length measured under the head – No confusion: an M5 x 20mm screw has 20mm of threaded shank below the pan head. Available in various lengths (e.g., 10, 12, 16, 20, 25, 30, 40, 50mm).
-
Robust construction – High tensile strength supports heavy‑duty fastening in machinery, automotive, structural projects, and industrial equipment.
-
Wide application range – Electronics (circuit boards, sensor mounts), automotive (fastening components, HVAC systems), DIY (furniture assembly, appliance repair), outdoor & marine (decking, garden equipment, marine fittings).

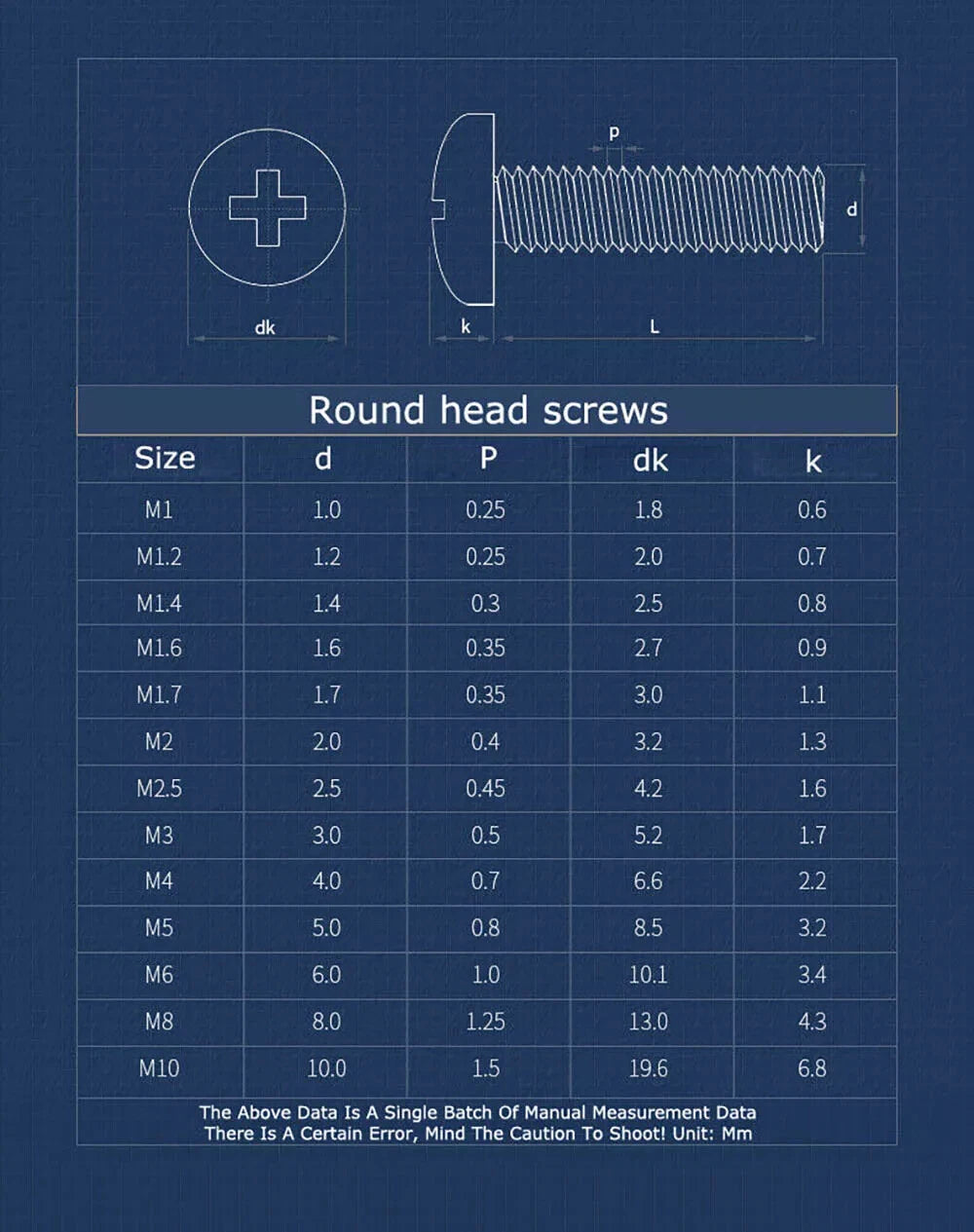

📏 Technical Specifications – M5 Pozi Pan Head Screws (A2 Stainless)
| Specification |
Details |
| Product Type |
Pozi Pan Head Machine Screws (Pozidriv drive) |
| Material |
A2 Stainless Steel (304 / 18-8) |
| Grade |
A2-70 (tensile strength 700 N/mm²) |
| Drive Style |
Pozidriv (Pozi) – use PZ2 driver bit |
| Head Style |
Pan head (round, low profile) |
| System of Measurement |
Metric |
| Screw Size (Diameter) |
M5 (5mm) |
| Thread Pitch |
0.8mm (standard metric coarse) |
| Thread Type |
Fully threaded |
Length Measurement |
Under head – from flat bearing surface to tip (excludes head height)
|
| Length Range |
Select from options (typical: 10–50mm, also 6, 8, 12, 16, 20, 25, 30, 35, 40, 45, 50mm) |
| Finish |
Natural stainless steel (unplated, bright) |
❓ FAQs – M5 Pozi Pan Head Stainless Steel Screws
🔸 What’s the difference between Pozidriv and Phillips? What driver bit do I need?
Pozidriv has additional smaller cross‑recesses at 45° angles and a blunter tip. A Phillips driver will fit loosely and will cam‑out or damage the recess. For M5, use a PZ2 Pozidriv driver bit. Using the correct bit gives you much better torque without slipping.
🔸 Are these screws fully threaded? How is length measured?
Yes – they are fully threaded from just under the head to the tip. Length is measured from the underside of the head (the flat bearing surface) to the tip, not including the pan head. For example, an M5 x 20mm screw has a 20mm threaded shank below the head.
🔸 Will A2 (304) stainless steel rust outdoors or in marine environments?
A2 stainless is highly resistant to moisture, rain, and humidity – perfect for most outdoor use. For direct saltwater immersion or heavy coastal spray, A4 (316) stainless is better, but for garden furniture, railings, and general outdoor DIY, 304 lasts for years without rust. It's also suitable for marine fittings above waterline.
🔸 Can I use these screws with nuts, or are they self‑tapping?
These are standard machine screws – they require a matching M5 metric nut or a pre‑tapped hole. They are not self‑tapping. For best corrosion resistance, pair them with A2 stainless nuts.
🔸 What lengths are available for M5 Pozi pan head screws?
We offer a wide range of lengths – typical options include 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, and 50mm. Please select your desired length from the dropdown options on the product page.
🔸 Are these screws suitable for high‑vibration applications like automotive or machinery?
Yes – the A2-70 grade offers high tensile strength, and the Pozidriv drive provides excellent torque transfer without cam‑out. For added vibration resistance, use a thread locker or a spring washer. They're widely used in automotive components and industrial machinery.
