When you're assembling a custom PC case, electronics enclosure, or workshop fixture and need fasteners you can tighten and release without reaching for a screwdriver, standard bolts become a daily frustration. M6 knurled thumb screws are the go-to solution for makers, hobbyists, and small-workshop builders who need quick, repeatable access to panels and covers.

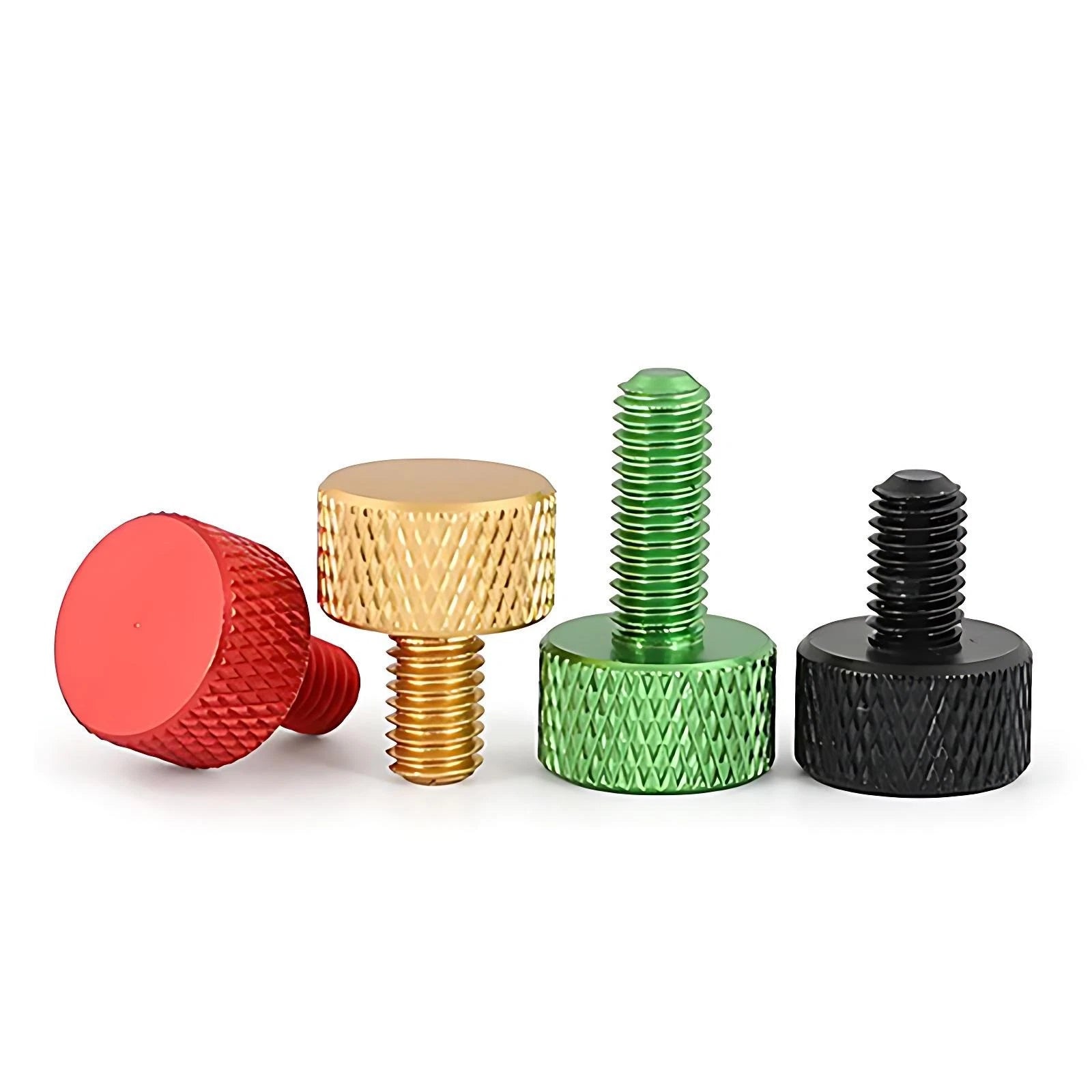

These M6 knurled thumb screws are machined from aluminum alloy with a knurled flat-head profile for a secure finger grip. The M6 metric thread diameter pairs with lengths ranging from 10 mm to 20 mm (approximately 0.39 in to 0.79 in), covering the most common panel-thickness applications. Available in Black, Red, Silver, Green, Royal Blue, and Gold anodized finishes.
Typical use cases include securing side panels on DIY computer cases, fastening access covers on electronic enclosures, adjusting jigs and fixtures on workbenches, and hand-tightening knobs on 3D printer frames or CNC router guards — all scenarios where tool-free M6 thumb screw fastening saves time on repeated assembly cycles.
The wide knurled flat head provides enough grip surface to apply firm clamping force with fingers alone — no driver required for routine panel removal.
Lightweight yet rigid aluminum alloy body keeps overall fastener weight low — ideal for weight-sensitive builds like PC cases and portable enclosures.

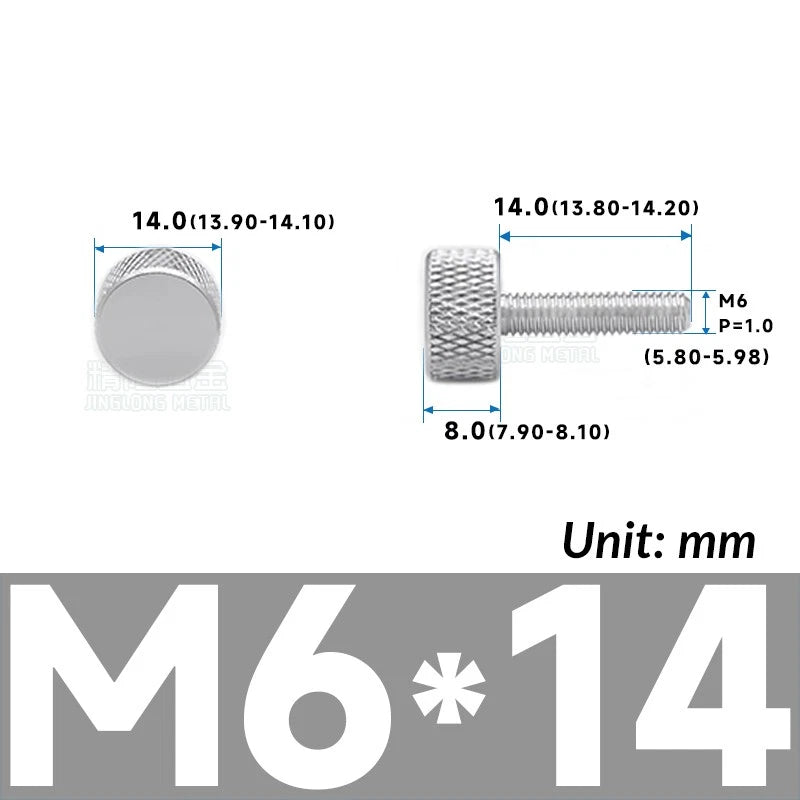

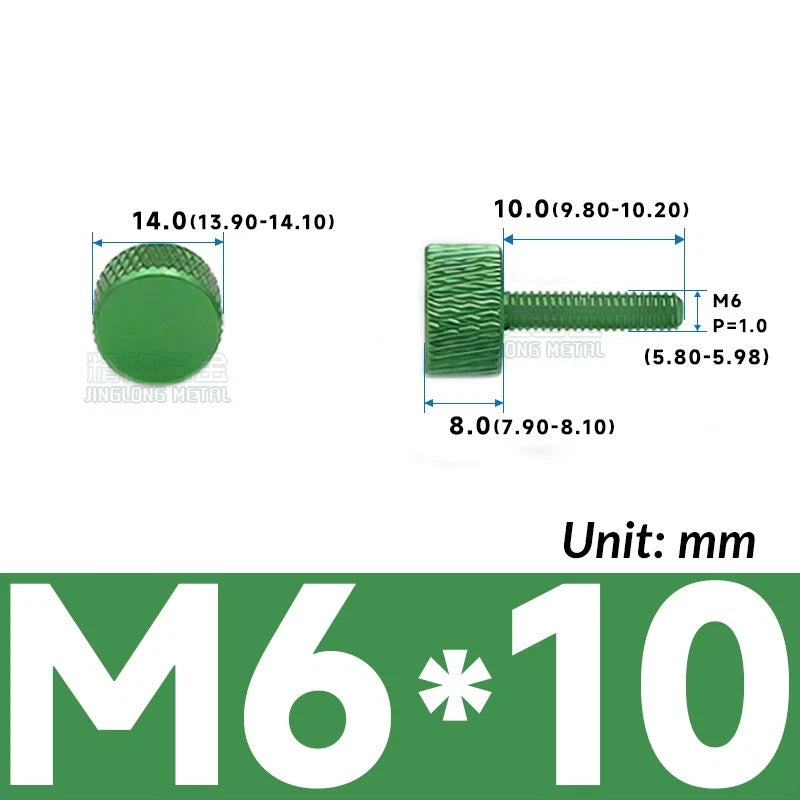

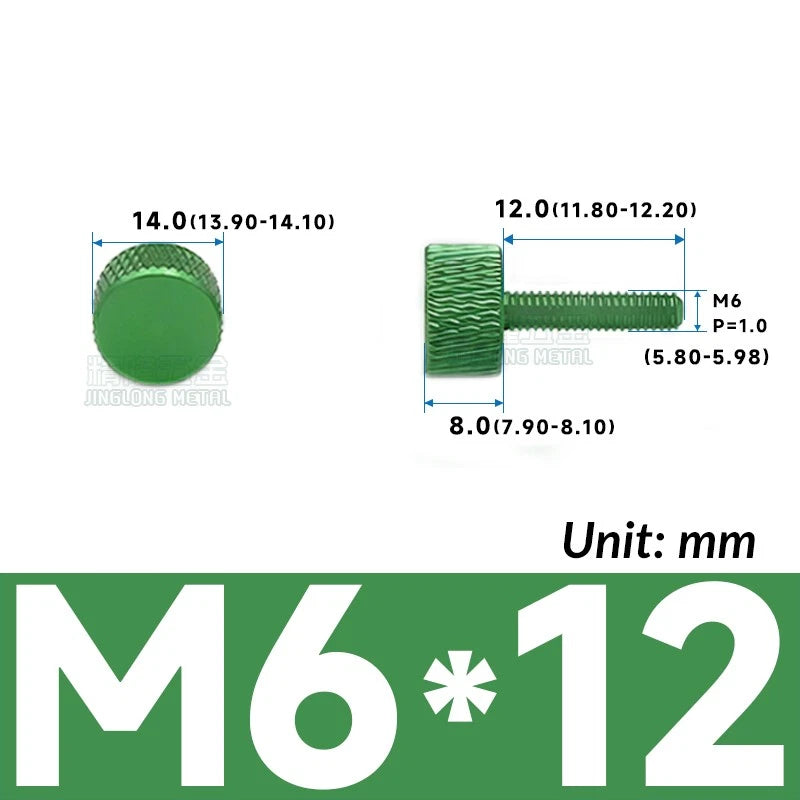

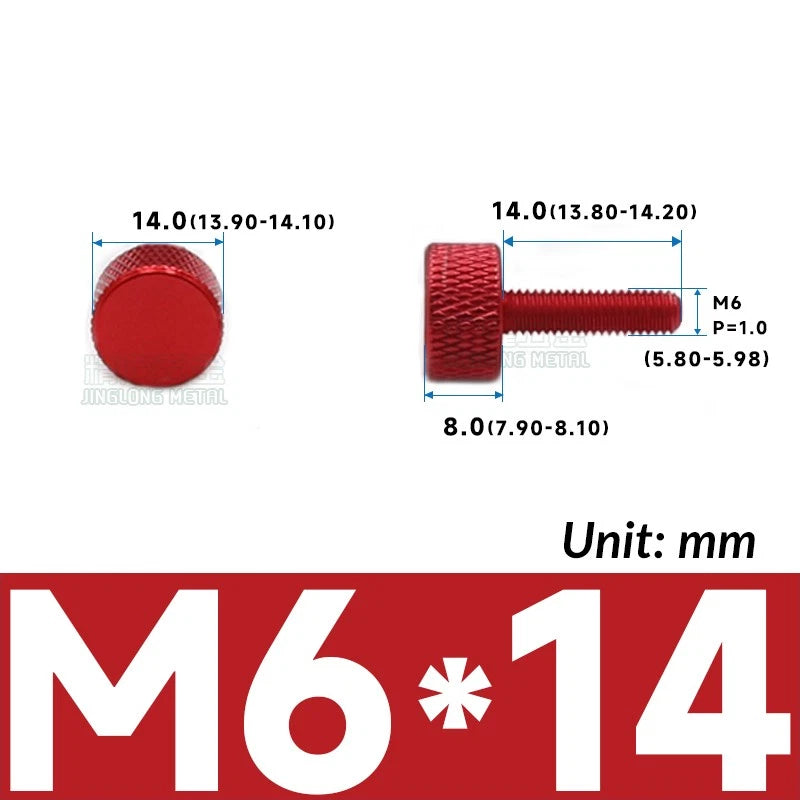

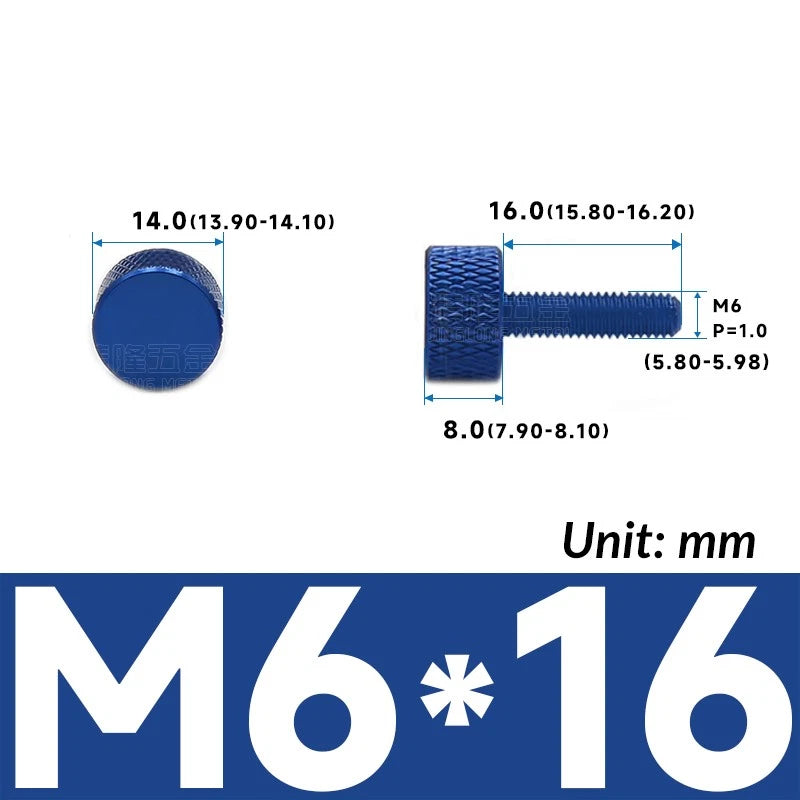

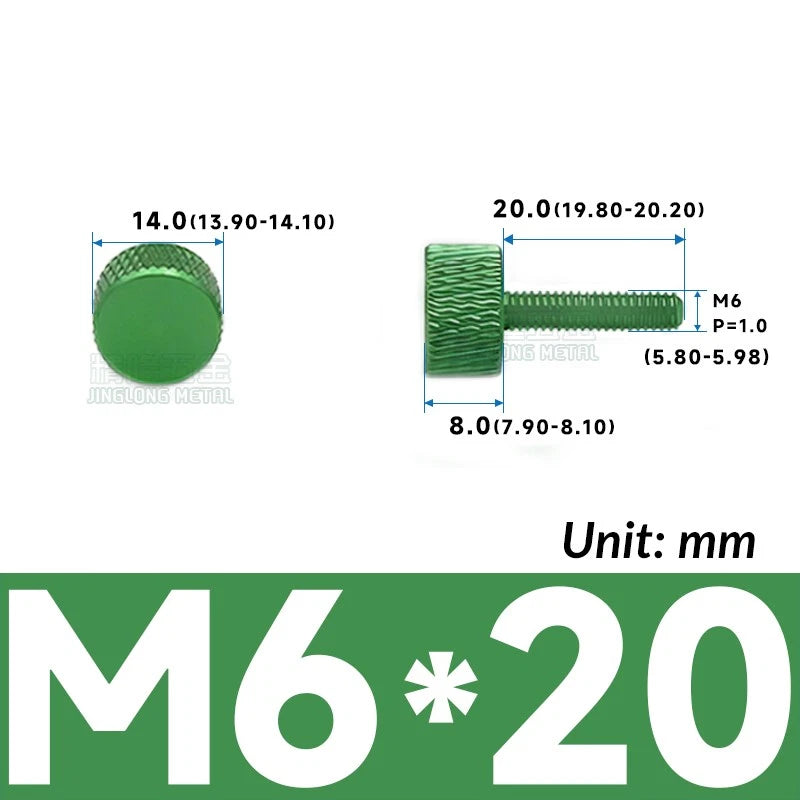

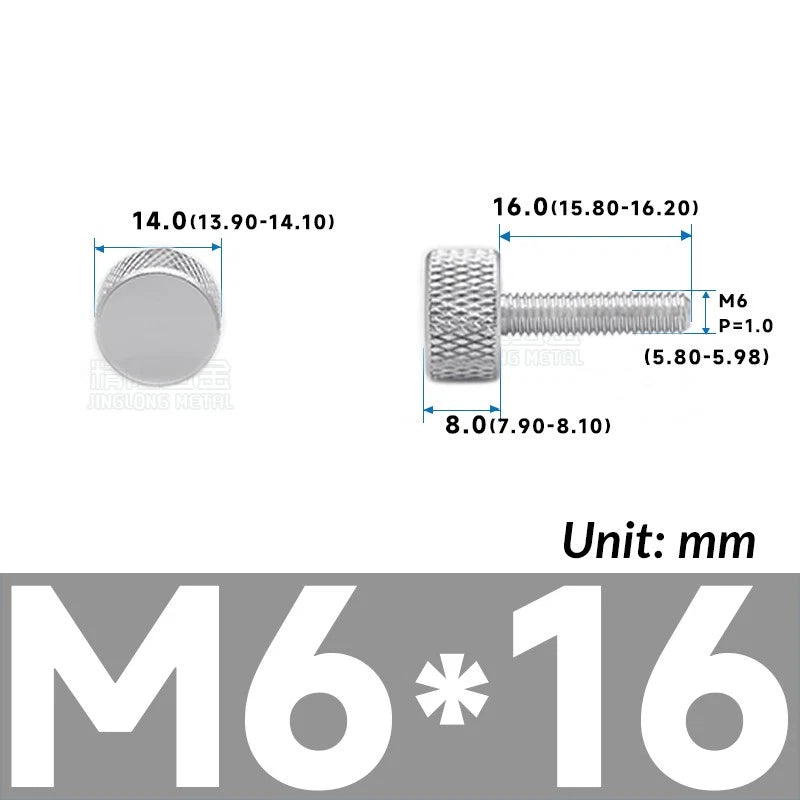

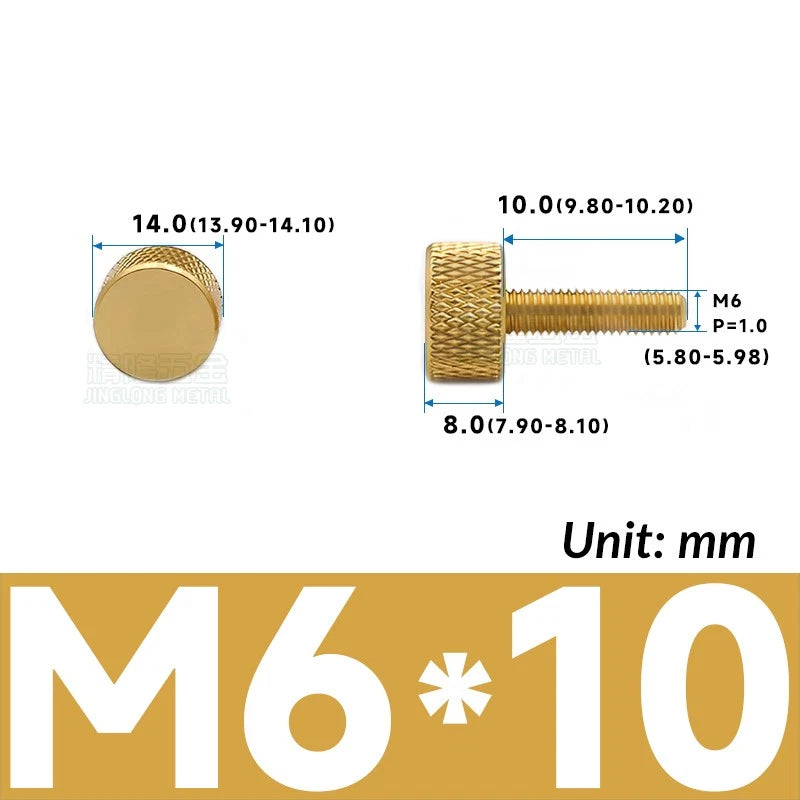

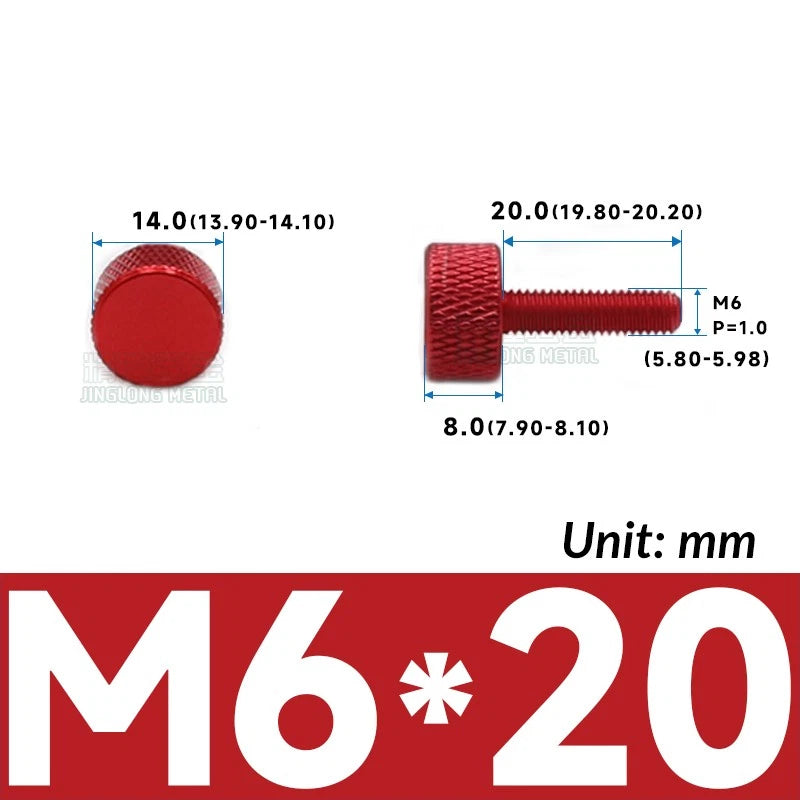

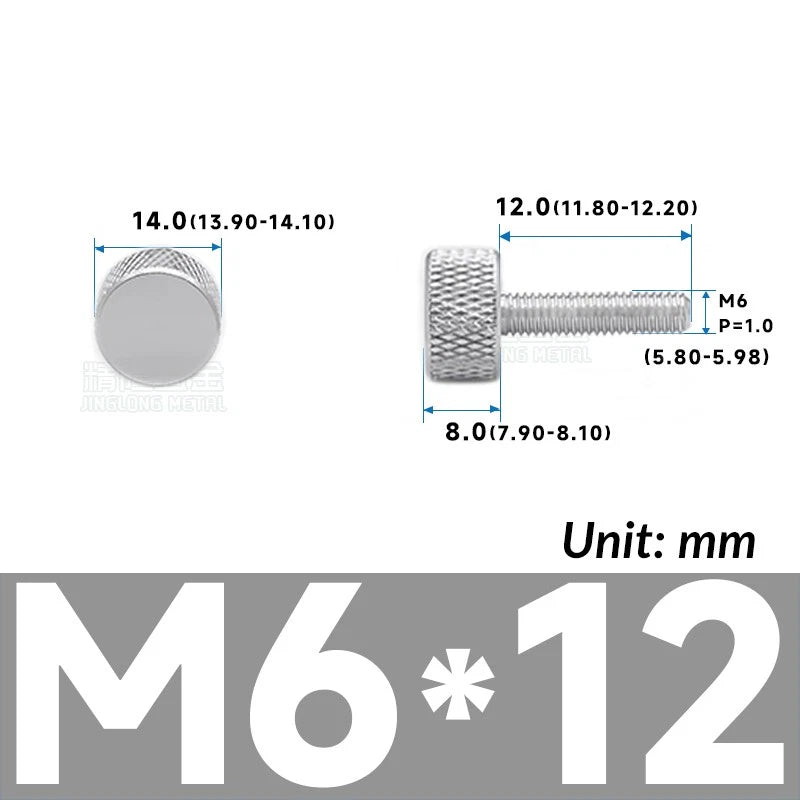

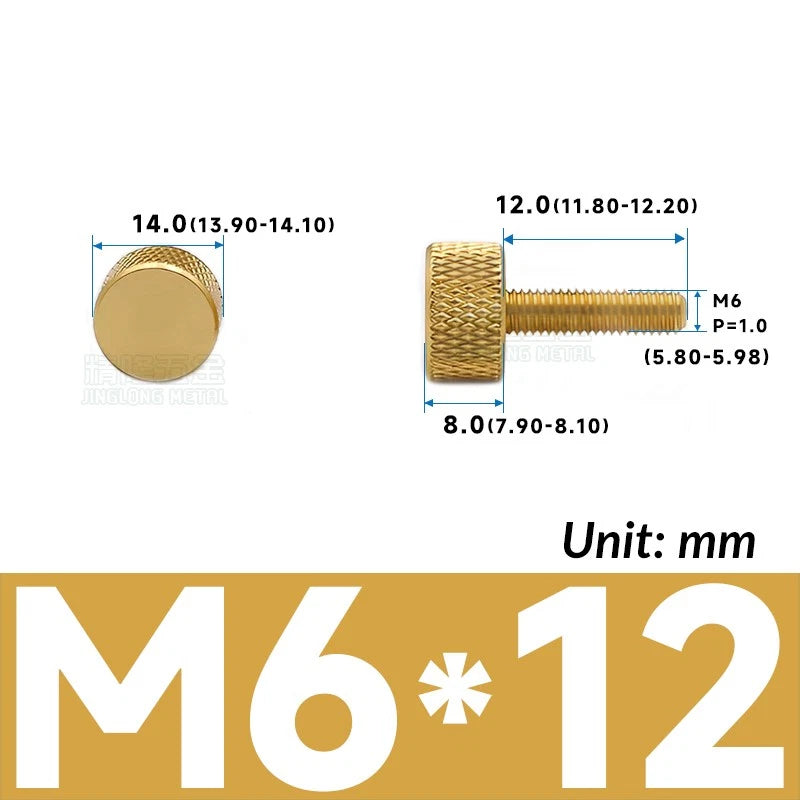

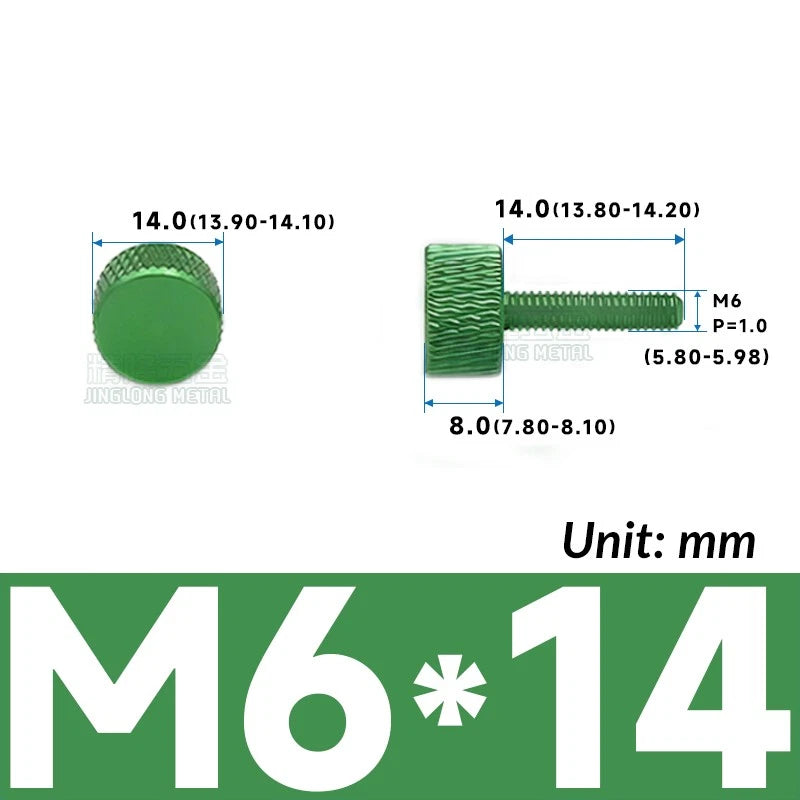

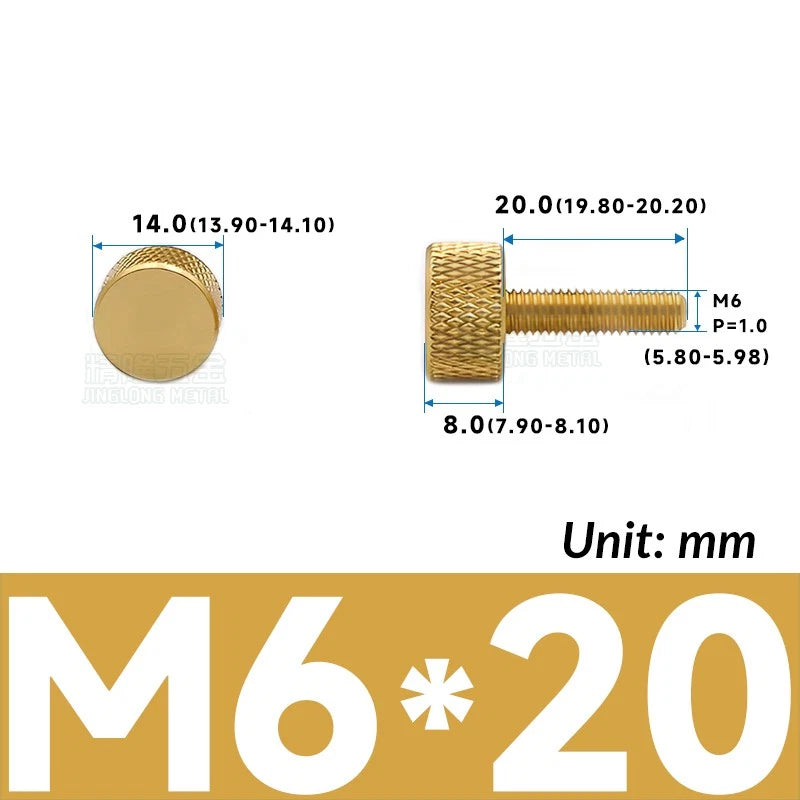

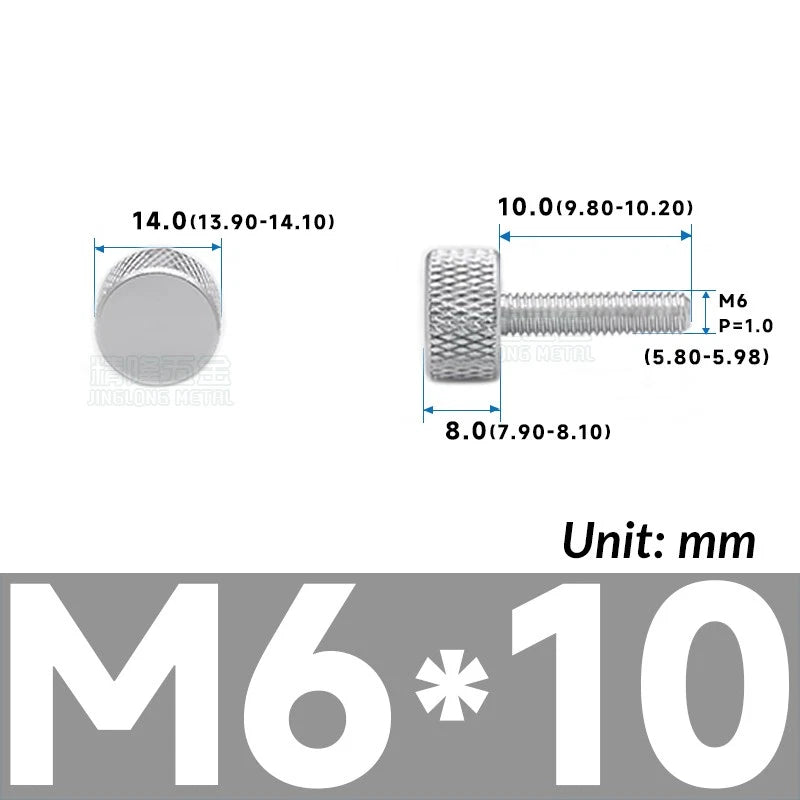

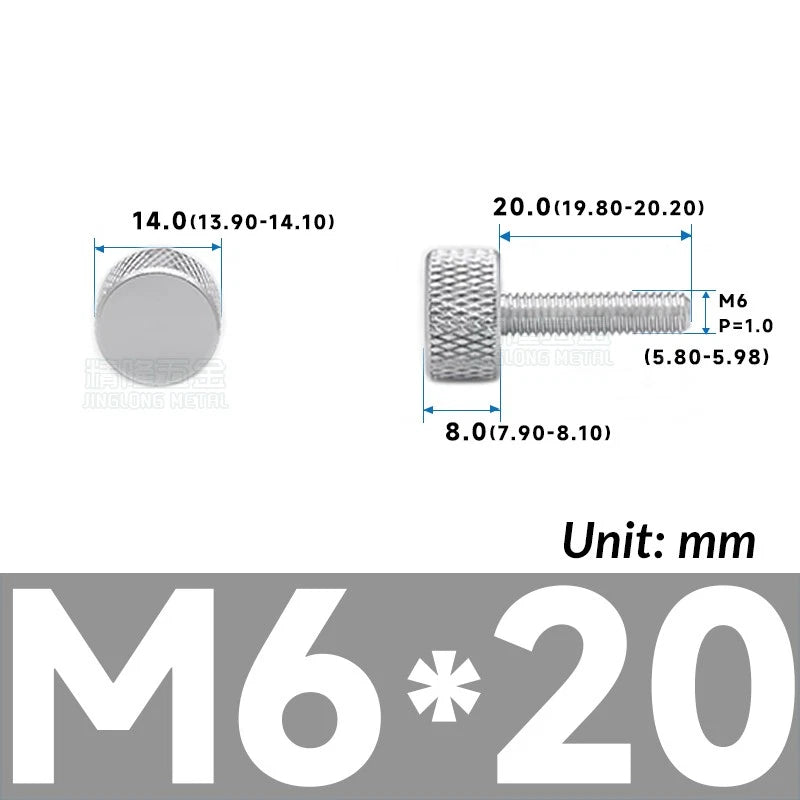

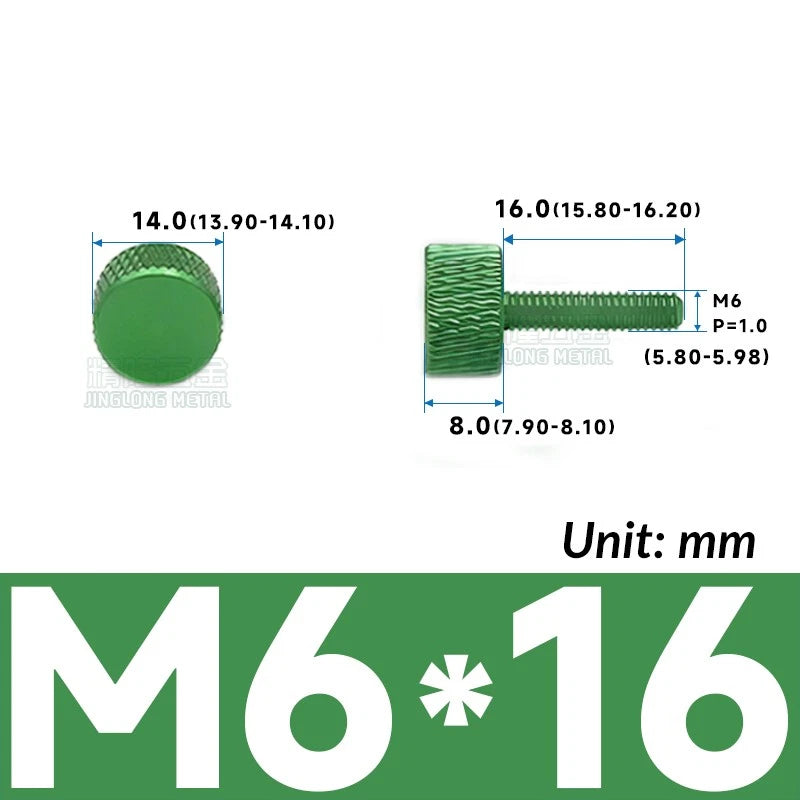

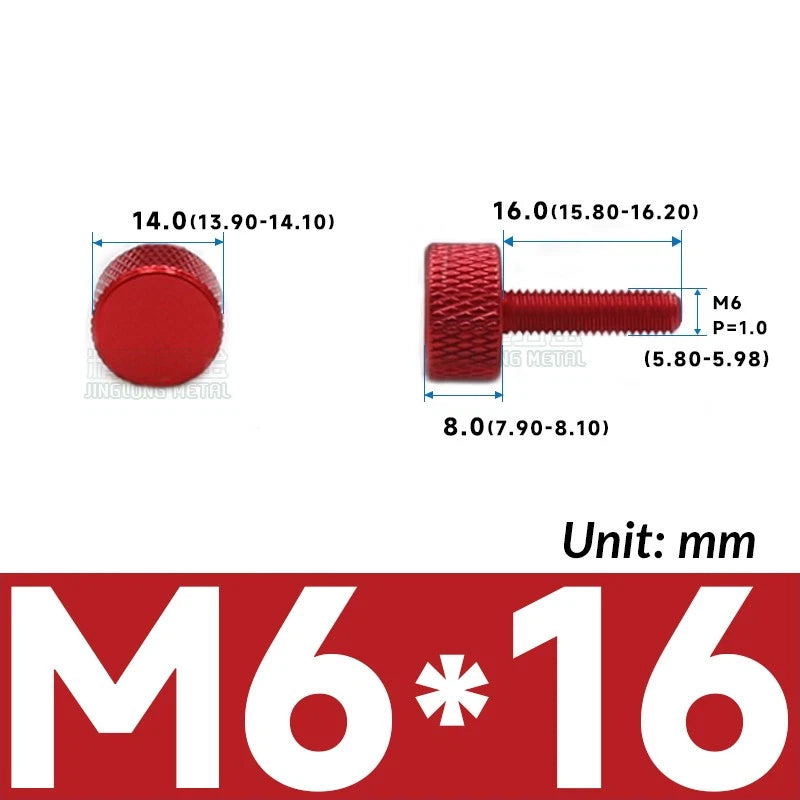

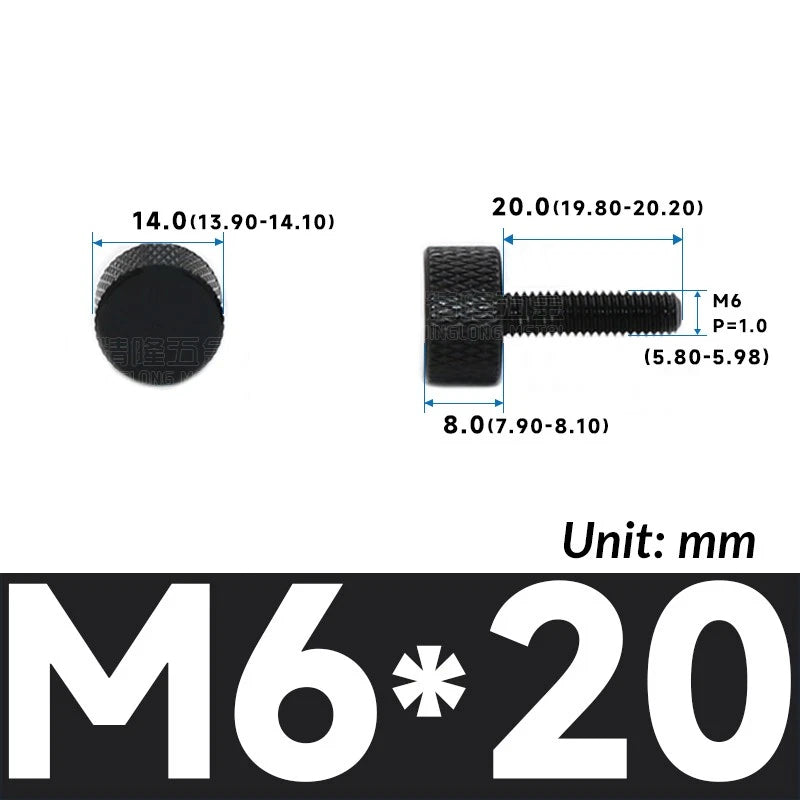

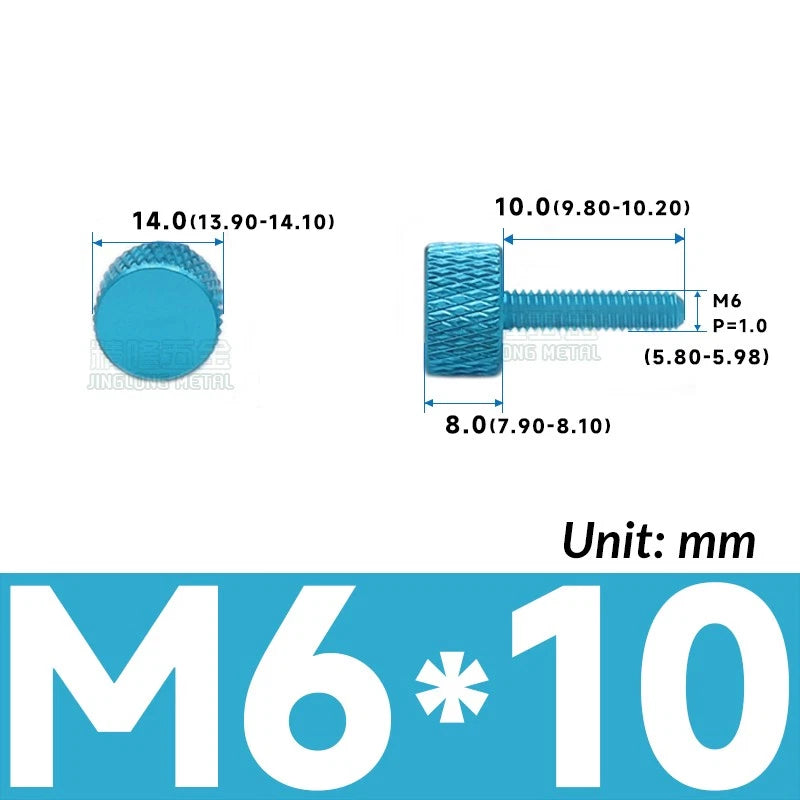

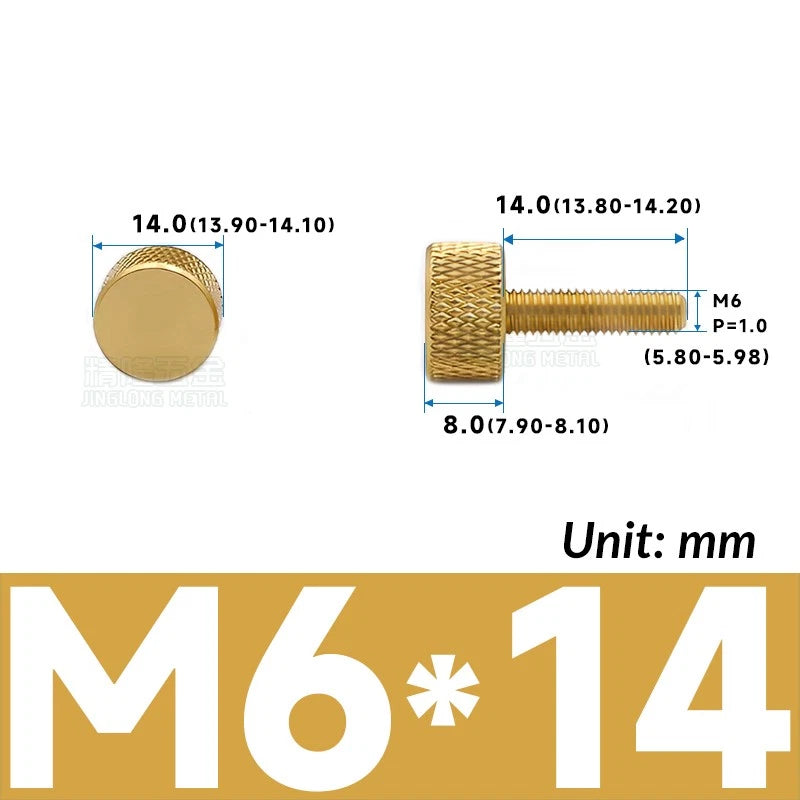

Available in M6 × 10 mm, 12 mm, 14 mm, 16 mm, and 20 mm to match varying panel stack-up thicknesses from thin acrylic to thicker aluminum plate.

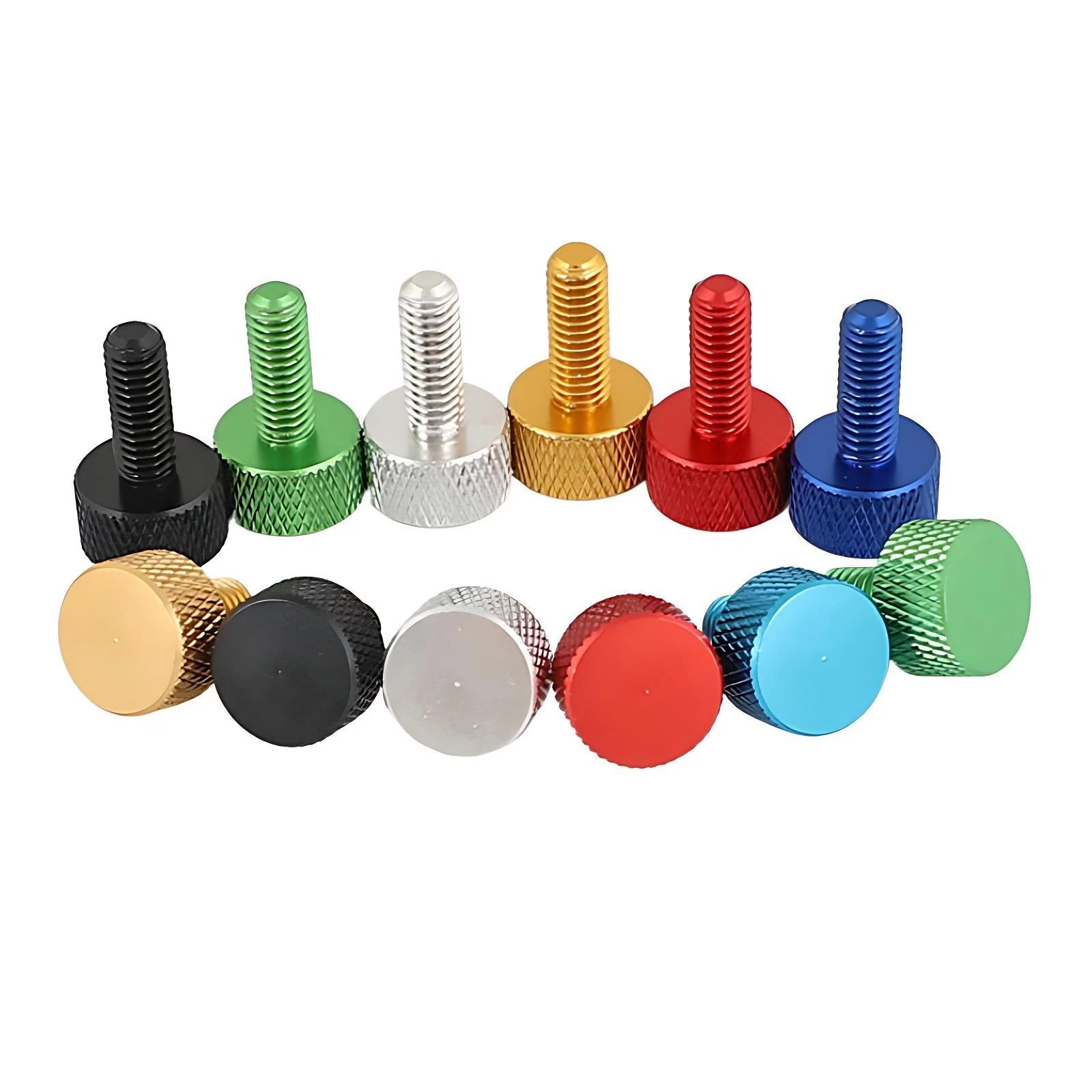

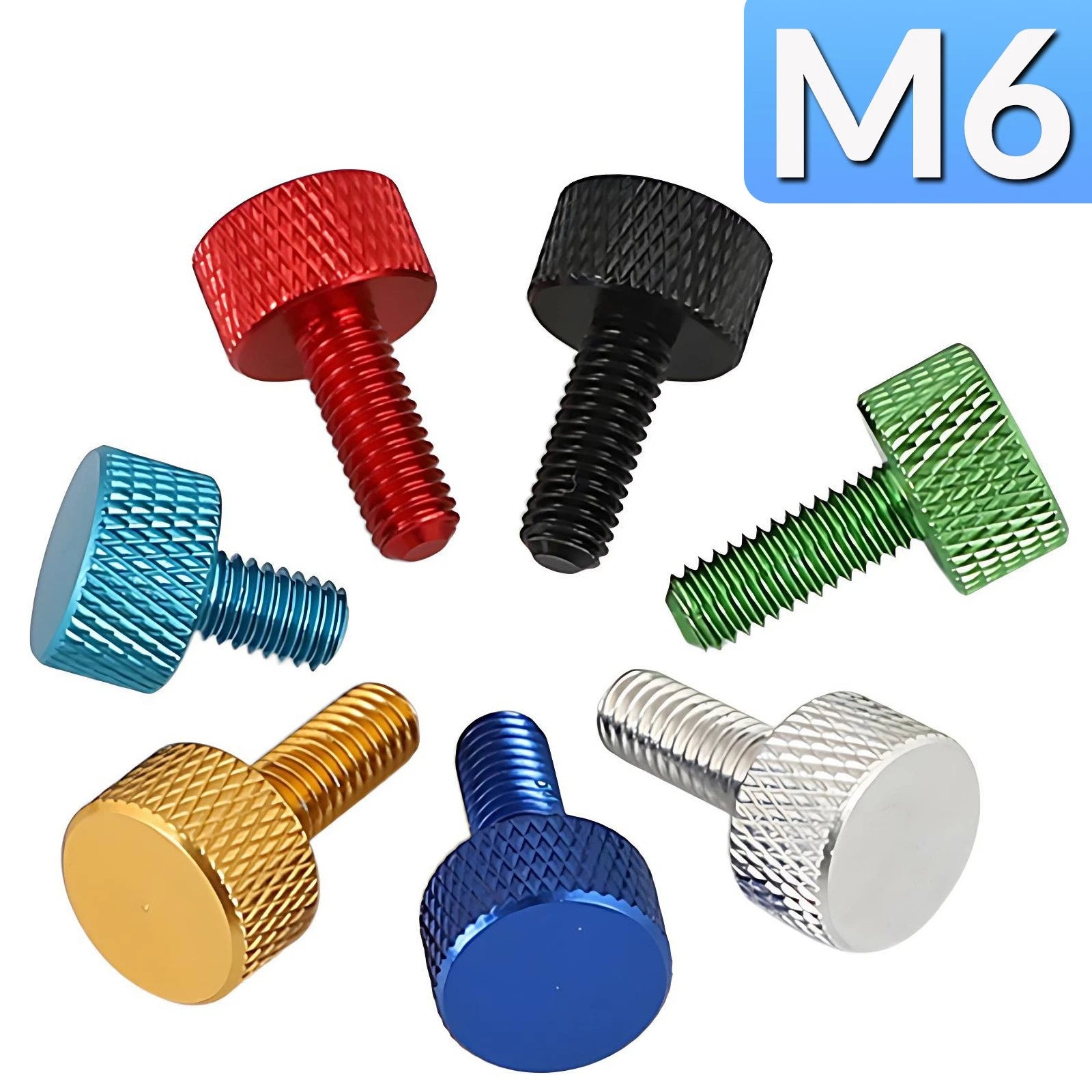

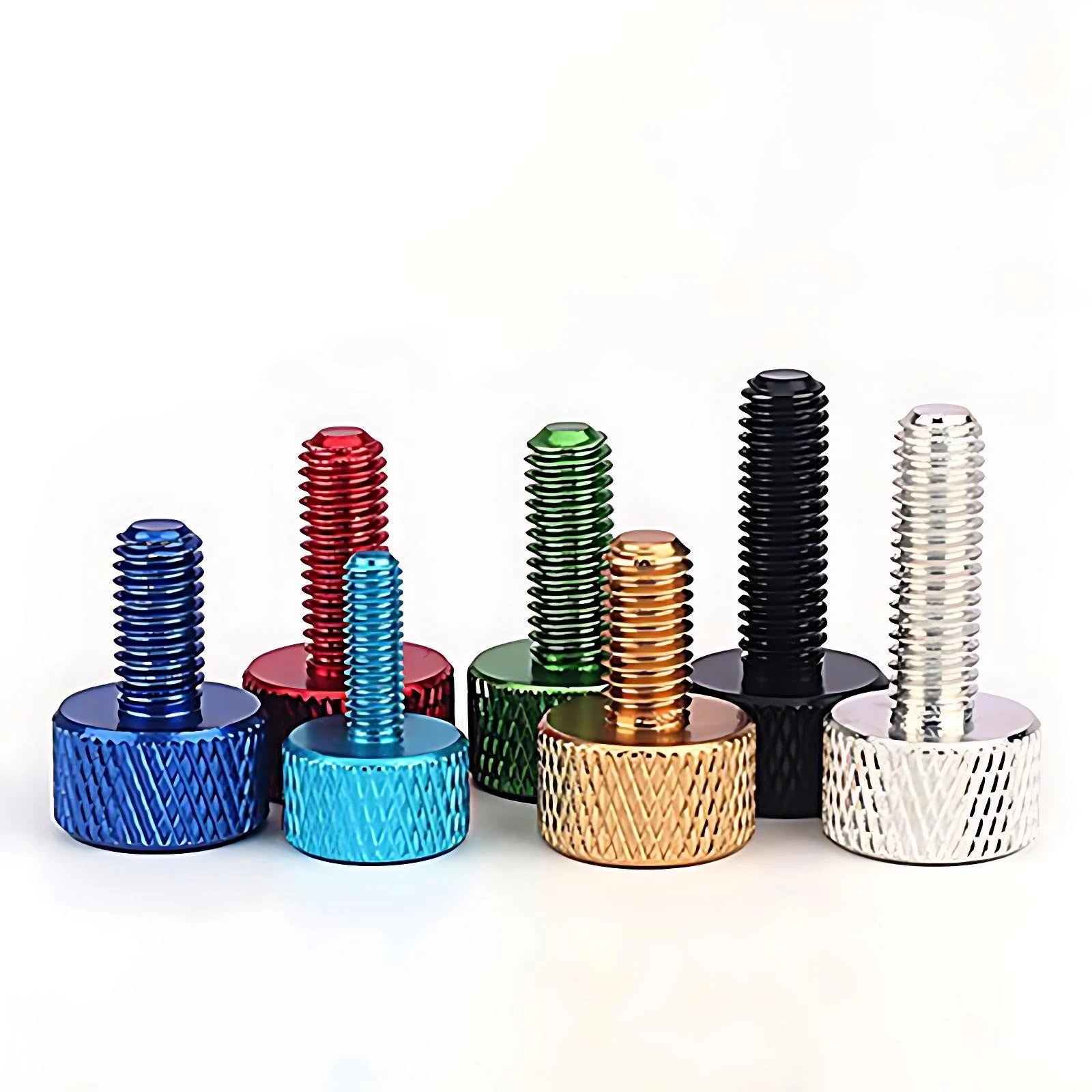

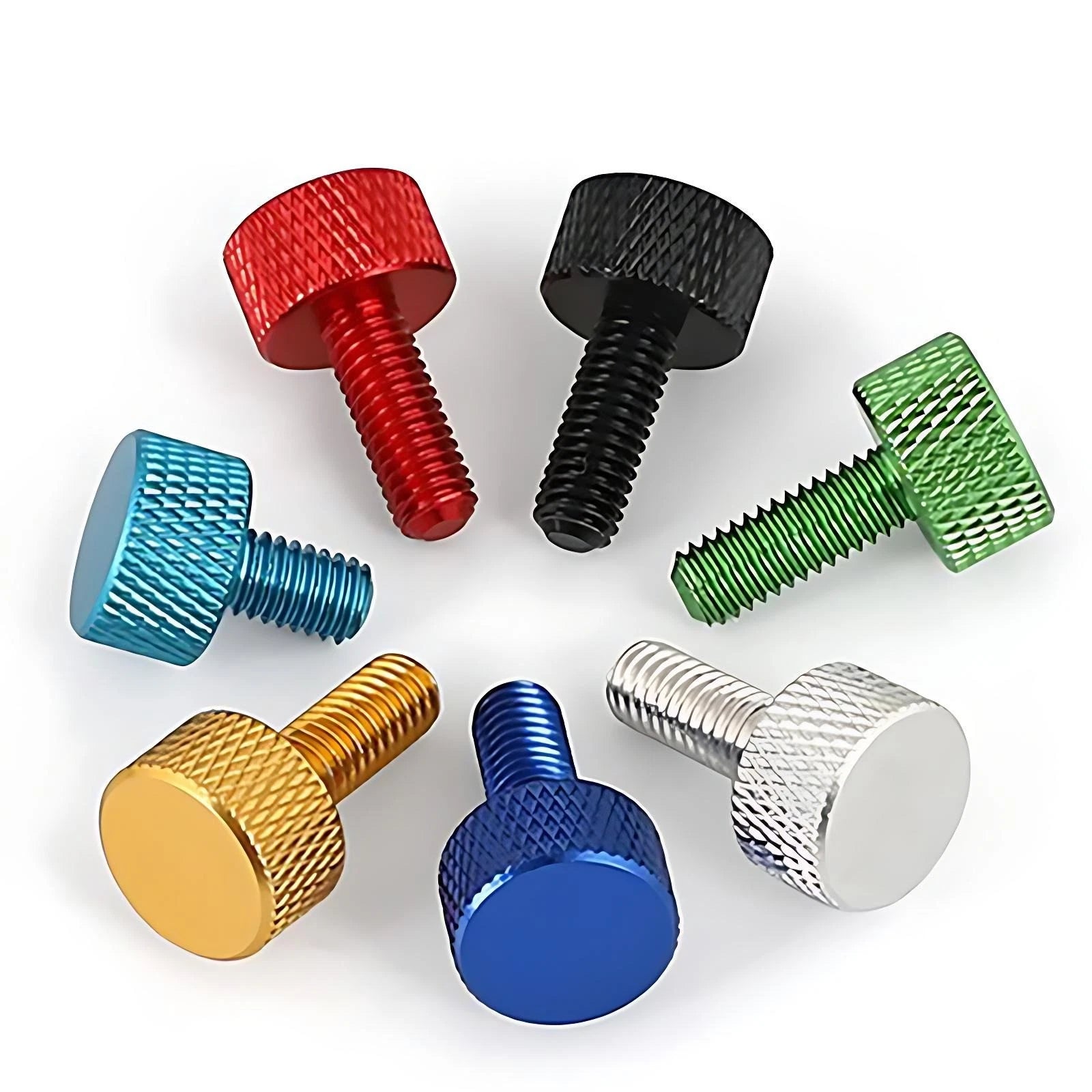

Black, Red, Silver, Green, Royal Blue, and Gold finishes let you color-code fastener locations or match your build's aesthetic without painting.
Order from 1 piece up to 100 pieces per variant — whether you need a single replacement or a full batch for a production run of enclosures.
Anodized surface and machined threads maintain dimensional accuracy across repeated tighten-and-release cycles without galling or thread wear under normal hand-torque loads.

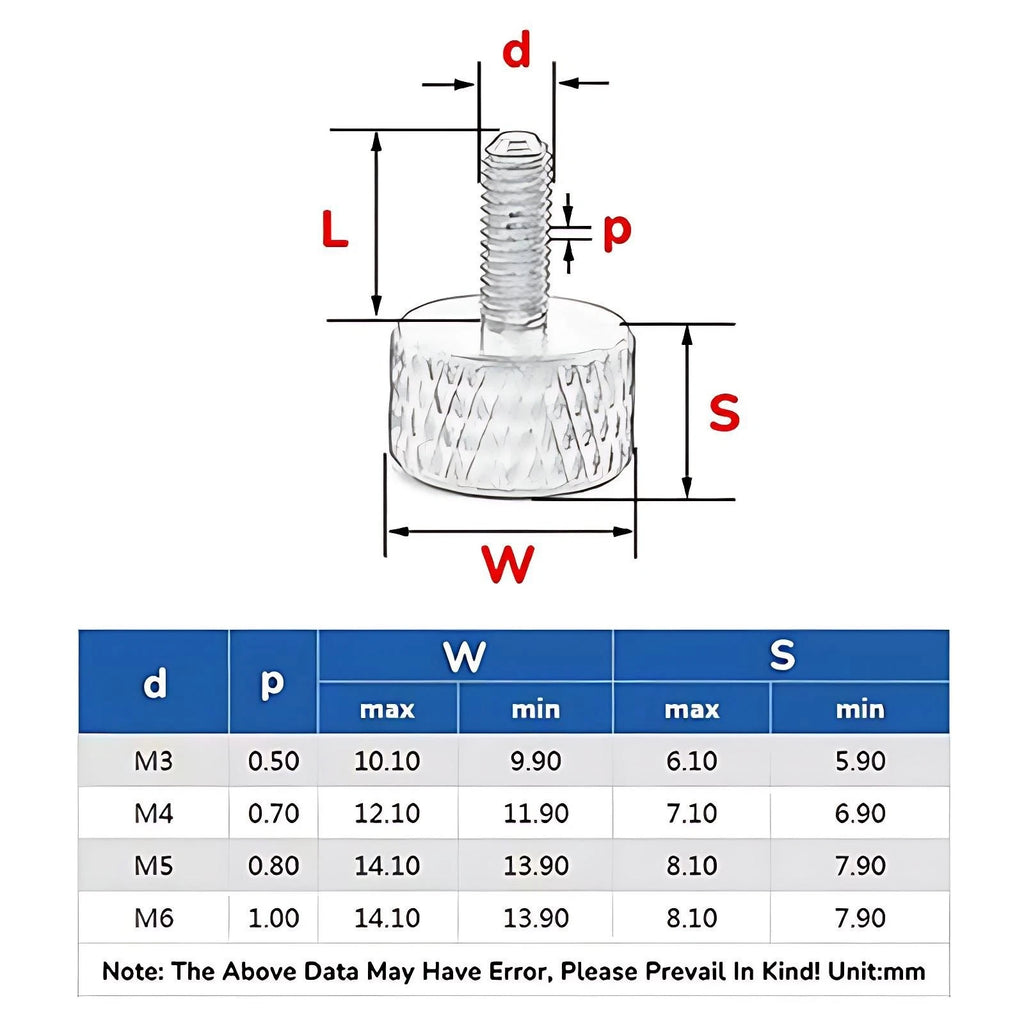

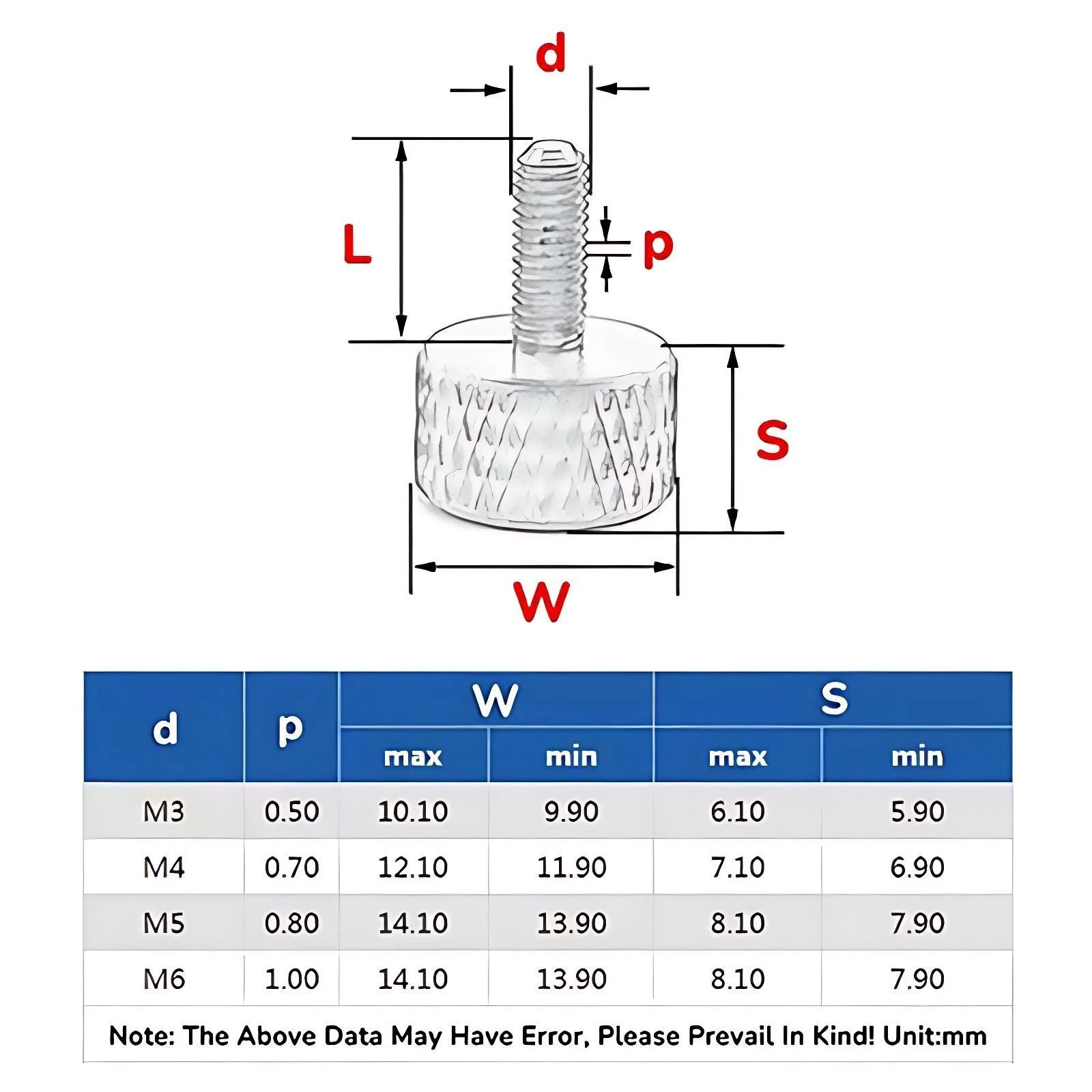

| Thread Size | M6 |
|---|---|
| Thread Pitch | 1.0 mm (standard metric coarse) |
| Available Lengths | 10 mm, 12 mm, 14 mm, 16 mm, 20 mm |
| Head Style | Flat knurled (thumb screw) |
| Material | Aluminum alloy |
| Finish / Color | Anodized — Black, Red, Silver, Green, Royal Blue, Gold |
| Head Diameter | See variant options |
| Head Height | See variant options |
| Drive Style | Hand-tighten (no tool drive) |
| Pack Quantity | 1 / 2 / 4 / 10 / 20 / 40 / 50 / 100 pcs |
| Weight per Piece | See variant options |
Measure the total thickness of the material(s) you are clamping — panel plus any spacer or washer. The screw length should be at least equal to that stack-up so the thread fully engages the nut or insert. For a single 3 mm aluminum panel with a standard M6 T-nut, M6 × 10 mm is typically sufficient. For thicker stacks (6–10 mm), choose M6 × 14 mm or M6 × 16 mm.
Aluminum alloy thumb screws are lighter and corrosion-resistant but have lower tensile strength than steel equivalents. They are well-suited for panel-retention applications where hand-torque loads are applied — such as securing access covers, side panels, and enclosure lids. They are not recommended for structural load-bearing joints that require high clamping force.
Anodizing creates an oxide layer that is integral to the aluminum surface, providing good resistance to mild corrosion and everyday handling wear. The finish holds up well in indoor environments. For outdoor or high-humidity applications, consider adding a protective coating or choosing a stainless steel alternative.
Yes. These screws use standard M6 × 1.0 mm metric coarse thread, which is compatible with any M6 threaded insert, T-nut, hex nut, or tapped hole machined to that specification. They work in aluminum extrusions (e.g., 2020/3030 profiles), steel plates, acrylic panels, and wood with threaded inserts.
Yes — M6 knurled thumb screws are a popular choice for tool-free panel removal on 3D printer enclosures and CNC router guards. The M6 thread matches the standard fastener size used on many aluminum extrusion frames. Choose a length that matches your panel thickness and extrusion slot depth.
If you need a single replacement for a lost fastener, the 1-piece option keeps cost low. For a full enclosure build — typically 4 to 8 screws per panel — the 4-pack or 10-pack offers better value per piece. For production runs or workshop stock, the 40-, 50-, or 100-piece packs provide the lowest per-unit cost and ensure you have spares on hand.
No. The anodized color finish is a surface treatment only and does not alter the thread pitch, diameter, or mechanical properties of the screw. All color variants share the same M6 × 1.0 mm thread specification and aluminum alloy base material.
