When you need a fastener you can tighten and release by hand — without reaching for a screwdriver — standard hex bolts become a daily frustration. Makers, electronics hobbyists, and workshop builders who frequently access enclosures, panels, or jigs know the pain of stripped heads and lost tools. These M6 knurled thumb screws are designed for exactly those situations, giving you a secure, repeatable grip every time.
Each screw is machined from aluminium alloy with a flat knurled head that provides a firm finger grip. The anodized finish is available in five colors — Deep Red, Azure, Gold, Silver, and Black — making color-coding by function or location straightforward. Thread diameter is M6 (6 mm / 0.236 in), with shaft lengths ranging from 6 mm to 100 mm (approximately 0.24 in to 3.94 in) to suit shallow panel mounts through to deeper structural assemblies.
Typical use cases include securing 3D printer access panels, rack-mount equipment covers, DIY electronics enclosures, CNC fixture plates, and laboratory instrument housings where tool-free access is a recurring requirement. The metric M6 thread makes these knurled thumb screws compatible with standard M6 threaded inserts, T-nuts, and tapped aluminum extrusions used across maker and light industrial projects.
The wide flat knurled head provides enough surface area and grip texture to tighten securely by hand, eliminating the need for a screwdriver in frequent-access applications.
Choose from Deep Red, Azure, Gold, Silver, or Black anodized finishes. Anodizing bonds the color into the surface layer, resisting chipping and fading under normal indoor use.
23 shaft lengths from 6 mm (0.24 in) to 100 mm (3.94 in) cover shallow panel fastening through to deeper structural connections, all on the same M6 thread.
Aluminium alloy keeps weight low compared to steel equivalents — useful in weight-sensitive builds like drone frames, portable enclosures, and handheld instruments.
The flat head sits flush or proud of the surface without protruding hardware that could snag cables or clothing, keeping builds clean and professional-looking.
Available as individual screws for prototyping or in 10-packs for production runs and stock builds, letting you order exactly what your project requires.

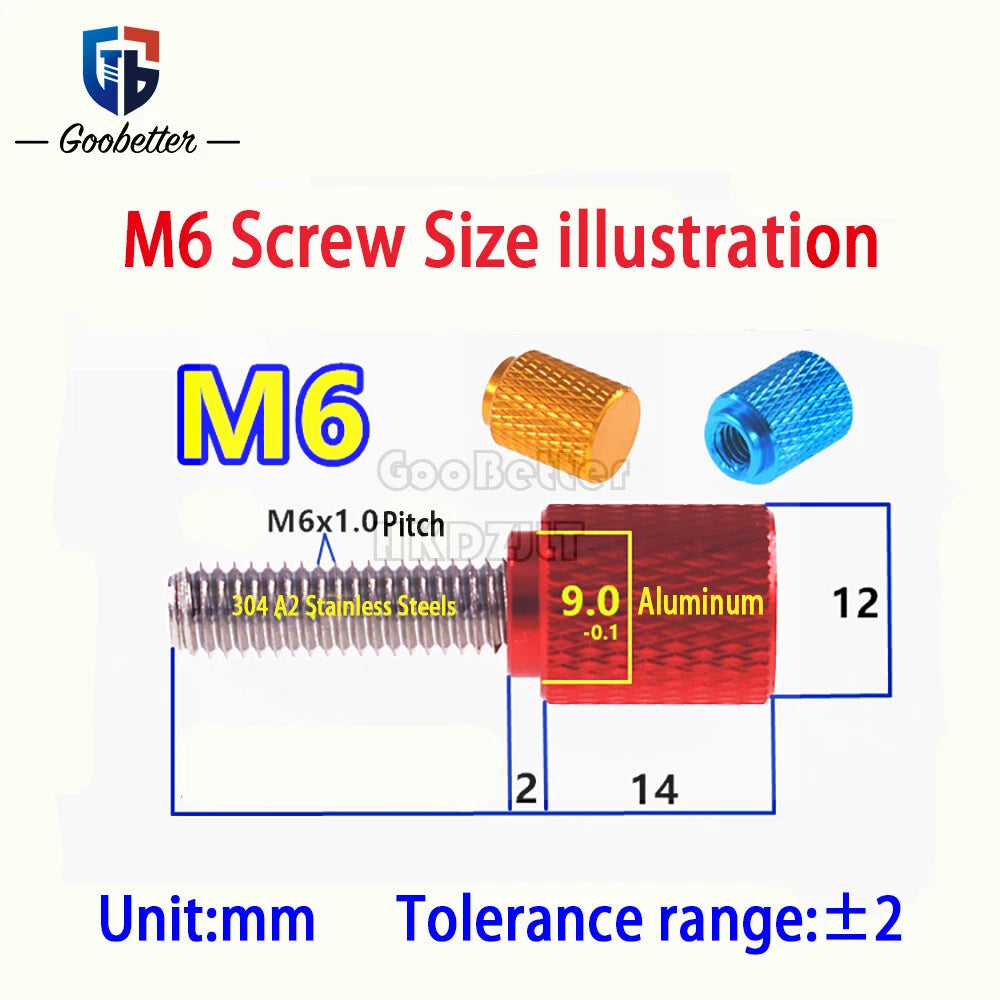

| Thread Standard | Metric M6 |
|---|---|
| Thread Pitch | 1.0 mm (standard coarse) |
| Thread Diameter | 6 mm (0.236 in) |
| Shaft Length Range | 6 mm – 100 mm (0.24 in – 3.94 in) |
| Head Style | Flat knurled |
| Material | Aluminium alloy |
| Surface Finish | Anodized (color options: Deep Red, Azure, Gold, Silver, Black) |
| Drive Style | Hand-tighten (no tool required) |
| Head Diameter | See variant options |
| Head Height | See variant options |
| Quantity per Order | 1 PCS or 10 PCS (select above) |
Measure the total grip length — the combined thickness of all materials the screw must pass through — then add 3–5 mm for thread engagement beyond the last layer. For example, if your panel stack is 12 mm thick, an M6 × 15 mm or M6 × 18 mm screw gives adequate thread engagement without bottoming out.
These aluminium knurled thumb screws are suited for light-duty panel fastening, enclosure covers, and fixture plates where hand-tightening torque is sufficient. They are not recommended for high-vibration structural joints or applications requiring torque values above what can be achieved by hand. For high-load structural connections, consider steel fasteners.
Anodizing is an electrochemical process that converts the surface of the aluminium into a durable oxide layer — the color is part of the metal, not a coating on top. Under normal indoor use, the finish resists chipping and fading well. Prolonged exposure to harsh chemicals or abrasive contact can wear the finish over time.
Yes. These use standard M6 × 1.0 mm metric coarse thread, which is compatible with M6 hex nuts, threaded inserts, T-nuts, and tapped holes in aluminum extrusion profiles (such as 2020 and 3030 series), steel plate, and acrylic. No special tapping is required if your existing hardware is M6.
Aluminium alloy has natural corrosion resistance due to its oxide layer, and anodizing further enhances this. These screws can handle occasional moisture exposure. However, for continuous outdoor or marine environments, stainless steel thumb screws would provide better long-term corrosion resistance.
The 1 PCS option is ideal for prototyping, replacing a single lost screw, or testing a size before committing to a larger order. The 10 PCS pack offers a lower per-unit cost and is suited for production builds, stocking a parts drawer, or projects that use multiple identical fasteners. Both options ship the same screw — only the quantity differs.
These listings are for the thumb screws only. Standard M6 hex nuts, nylon lock nuts, and flat washers are widely available separately and are fully compatible with the M6 × 1.0 mm thread on these screws.
