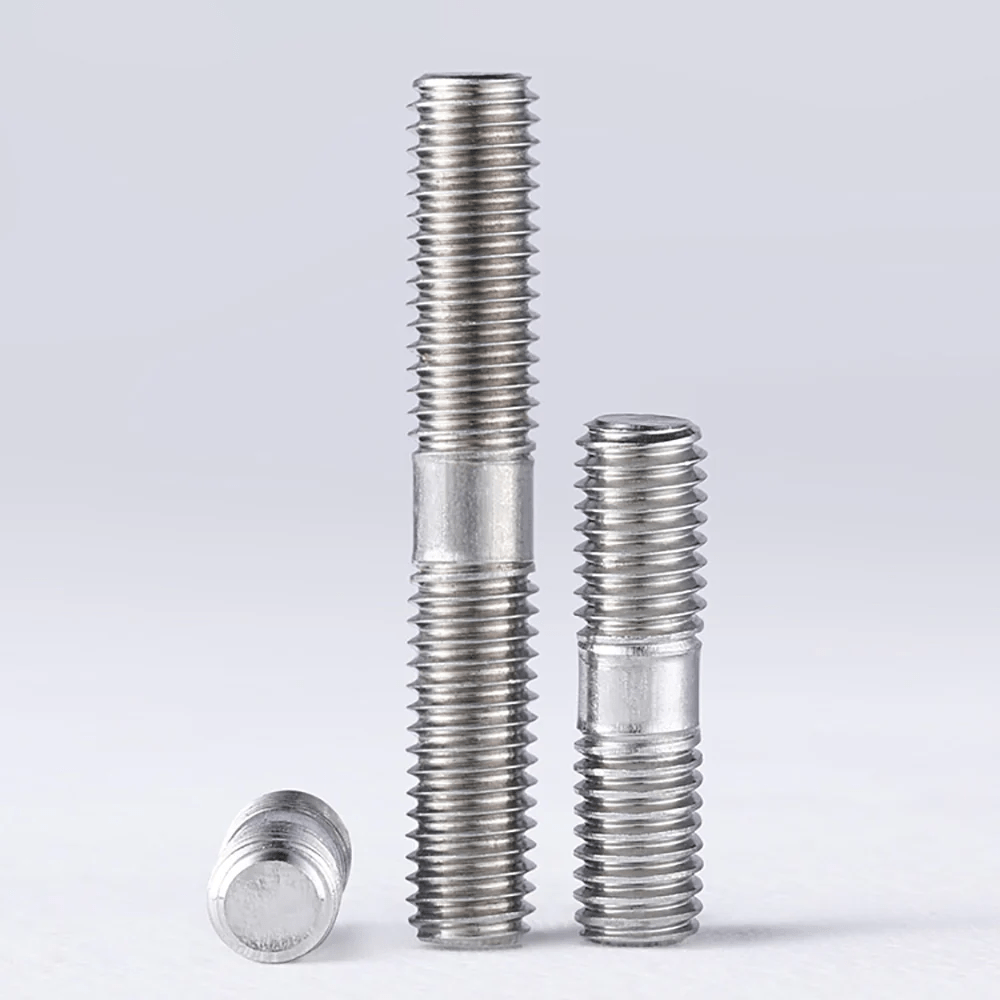

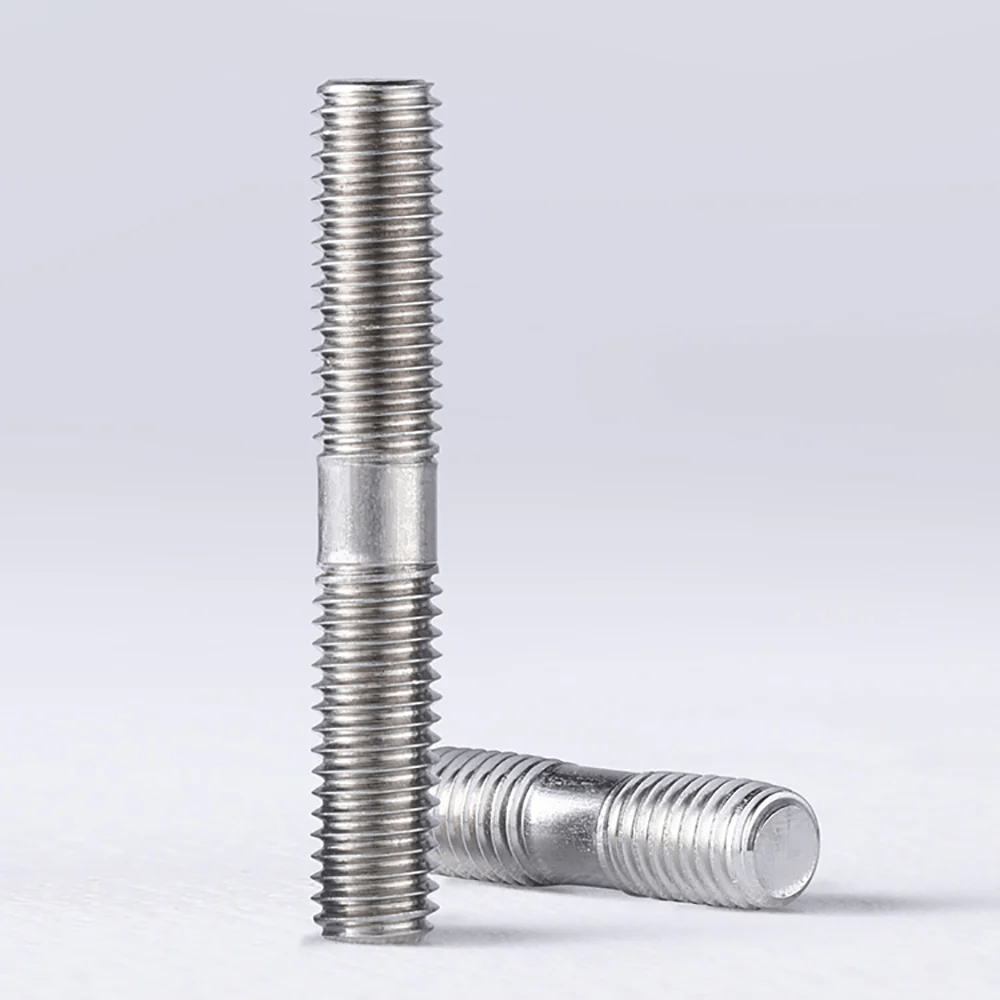

When you need to connect two components without a bolt head in the way — hanging a chandelier, mounting a wall cabinet, securing an outdoor awning, or assembling mechanical parts — a double-end stud screw (hanger bolt) is the right fastener. This range covers six metric thread sizes from M6 to M16, each available in multiple lengths, so you can match the exact fastener to your application.
Every stud is machined from 316 stainless steel, the marine-grade alloy with superior chloride and corrosion resistance compared to standard 304 stainless. The double-end design features threaded sections on both ends — one end screws into a fixed substrate, the other accepts a nut or coupling for the mating component. Thread pitches follow standard metric coarse specifications: M6×1mm, M8×1.25mm, M10×1.5mm, M12×1.75mm, M14×2mm, and M16×2mm. Each size is sold in a 10-piece pack.
From indoor home decoration and furniture assembly to outdoor facility installation and mechanical maintenance, these 316 stainless steel hanger bolts deliver a clean, headless connection that holds up in demanding indoor and outdoor environments.
| Thread Size × Pitch | Available Lengths | Pack Size |
|---|---|---|
| M6 × 1mm | 40 / 45 / 50 / 55 / 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 mm | 10 pcs |
| M8 × 1.25mm | 40 / 45 / 50 / 55 / 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 mm | 10 pcs |
| M10 × 1.5mm | 40 / 45 / 50 / 55 / 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 mm | 10 pcs |
| M12 × 1.75mm | 40 / 45 / 50 / 55 / 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 mm | 10 pcs |
| M14 × 2mm | 50 / 55 / 60 / 65 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 mm | 10 pcs |
| M16 × 2mm | 60 / 65 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 mm | 10 pcs |
Hang chandeliers, mount wall cabinets, install curtain rods, and secure shelving with a clean, headless fastener that leaves no exposed bolt head on the finished surface.
Secure awnings, fences, clotheslines, and outdoor structures with 316 stainless steel that resists salt air, moisture, and UV exposure without rusting or weakening over time.
Connect machine components, secure equipment panels, and perform structural assembly with a stud screw that provides a strong, rattle-free connection under load and vibration.
| Thread Sizes | M6 / M8 / M10 / M12 / M14 / M16 |
|---|---|
| Thread Pitches | M6×1mm / M8×1.25mm / M10×1.5mm / M12×1.75mm / M14×2mm / M16×2mm |
| Length Range | 40 mm – 150 mm (varies by thread size) |
| Fastener Type | Double-End Stud Screw (Hanger Bolt) |
| Thread Type | Metric Coarse, Full Thread (both ends) |
| Material | 316 Stainless Steel |
| Finish | Natural Stainless (Brushed) |
| Pack Size | 10 pieces per size combination |
| Application | Home decoration, outdoor installation, mechanical assembly — indoor & outdoor |
A hanger bolt, also called a double-end stud screw, is a fastener with no head — it has threaded sections on both ends. One end is typically screwed into a fixed substrate (such as wood or a threaded insert), and the other end accepts a nut or coupling to secure the mating component. This creates a clean, headless connection without an exposed bolt head.
316 stainless steel contains molybdenum, which significantly improves resistance to chloride corrosion, salt water, and acidic environments compared to 304 stainless. This makes 316 the preferred choice for outdoor, coastal, marine, and high-humidity applications where long-term corrosion resistance is critical.
1. Select the correct thread size and length for your application. 2. Thread one end into the fixed substrate (wood, threaded insert, or tapped hole) using two nuts locked together on the exposed end as a driving tool, or a stud driver. 3. Align the mating component with the exposed threaded end. 4. Thread on a nut and tighten with a wrench to secure the connection. Always verify the connection is firm before applying load.
You typically need two matching metric nuts (to lock together as a driving tool) or a dedicated stud driver, plus a wrench or socket set for tightening. The specific wrench size depends on the thread diameter — M6 through M16 correspond to standard metric wrench sizes.
Yes. 316 stainless steel is the standard choice for outdoor, coastal, and marine fastening applications due to its superior chloride and salt resistance. It holds up in high-humidity, salt air, and temperature-variable environments without rusting or deforming over time.
Thread size (M6–M16) should match the threaded hole or insert in your substrate and the load requirements of your application — larger diameters provide greater holding strength. Length should be sufficient to anchor securely in the substrate on one end and provide enough thread engagement for the nut on the other. Contact us if you need help selecting the right size for your specific application.
Yes. All thread sizes follow standard metric coarse pitch specifications (M6×1mm through M16×2mm) and are compatible with standard metric nuts, couplings, and threaded inserts of the corresponding size.
