Standard Phillips and hex socket screws strip under high torque — cam-out damages the drive recess, the bit, and the surrounding material. In production environments, automotive assemblies, and outdoor structures where fasteners are driven repeatedly or torqued to specification, a drive system that transfers force without slipping isn't optional. It's the difference between a reliable assembly and a stripped fastener that has to be drilled out.

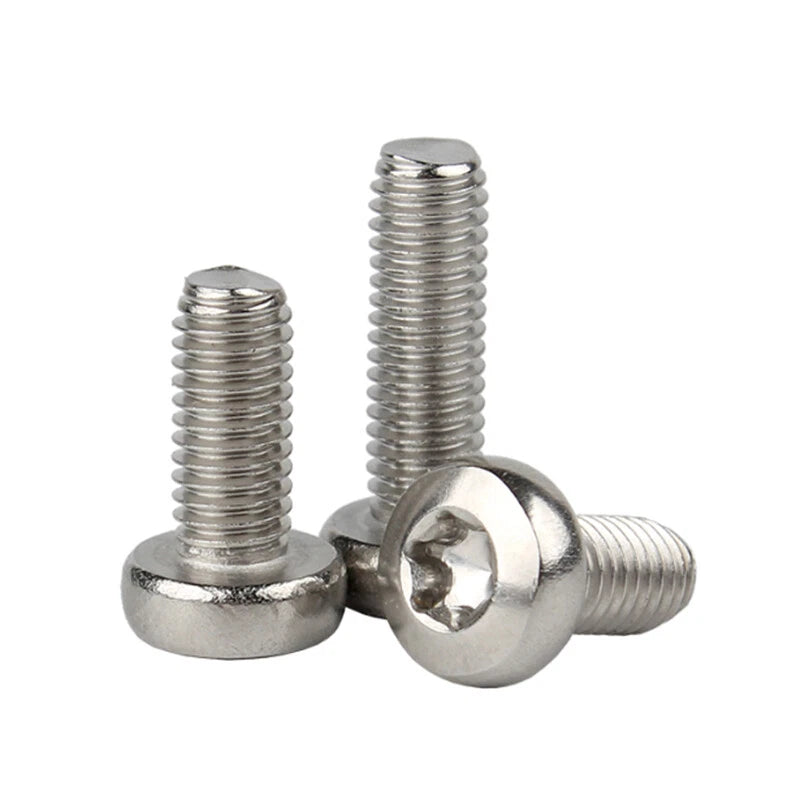

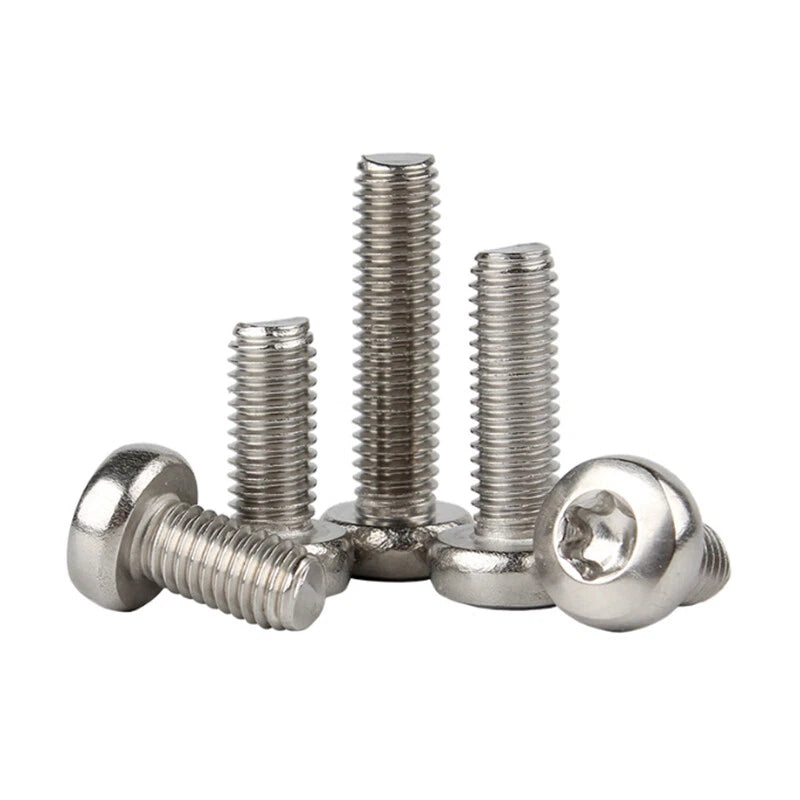

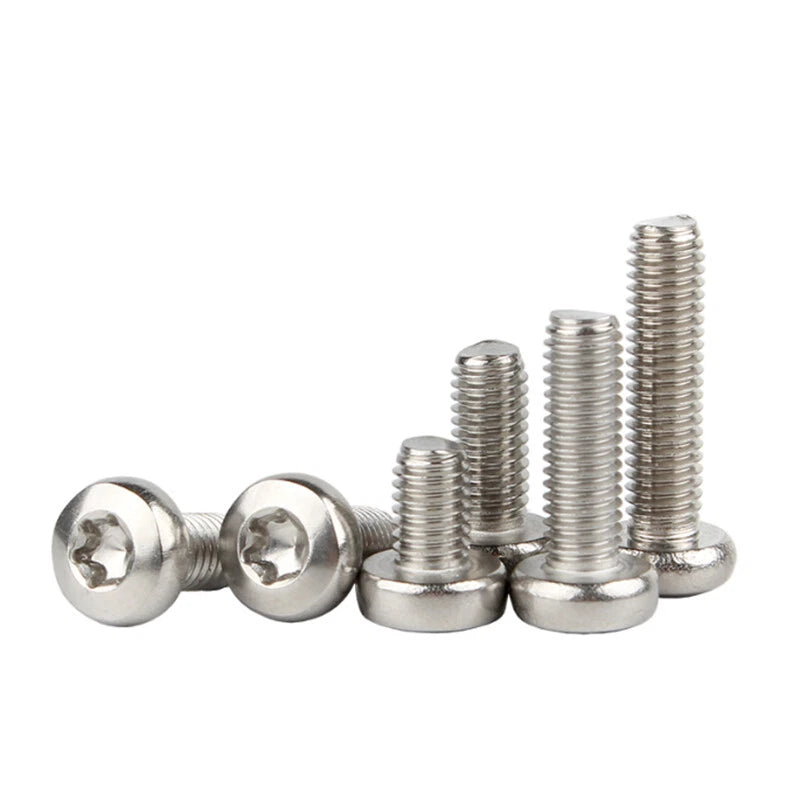

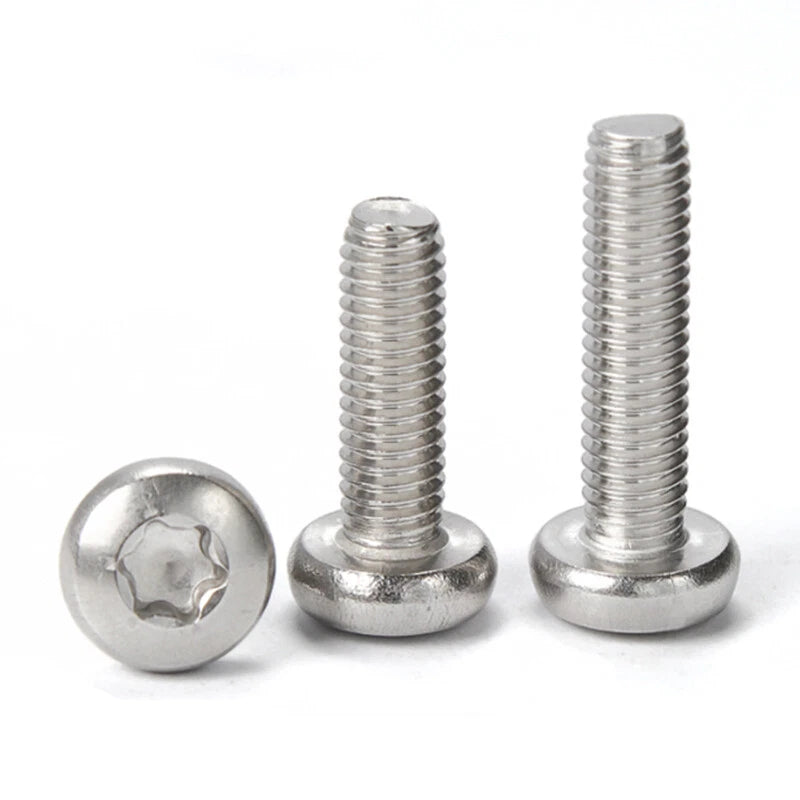

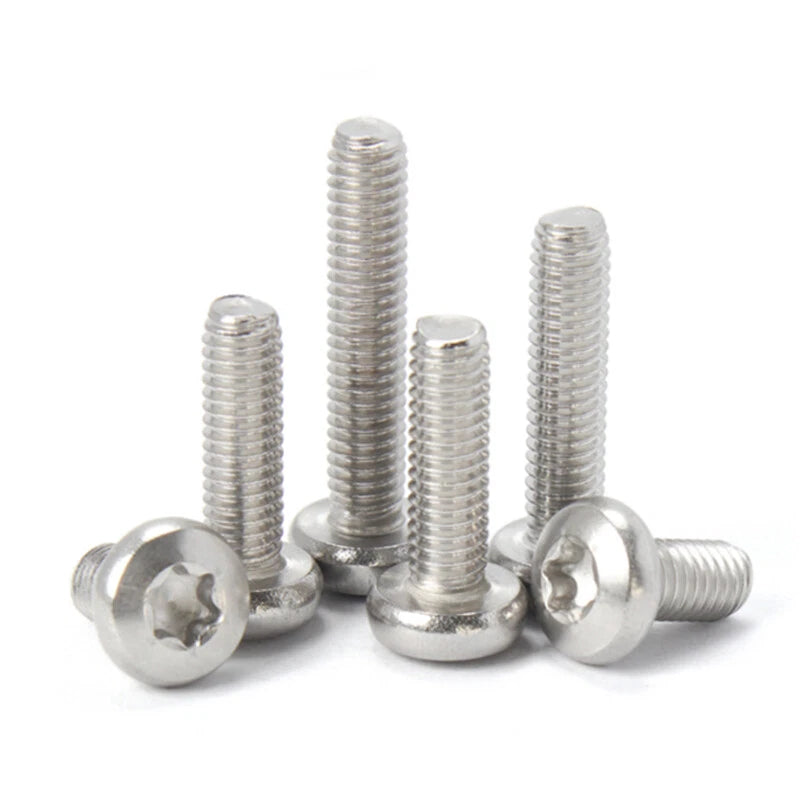

These Torx (hexalobular / 6-lobe) pan head machine screws are manufactured from A2 grade 304 stainless steel — providing corrosion resistance, oxidation resistance, and heat resistance across a wide range of environments. Available in three thread diameters (M6, M8, M10) with lengths from 8 mm to 100 mm (approximately 0.31" to 3.94"), and pack quantities of 1, 3, 5, 10, and 30 pieces to match any project scale. The pan head profile distributes clamping force over a wider bearing area than a flat head, making it suitable for assemblies where surface flush-fit is not required.
Ideal for industrial machinery, automotive and equipment assemblies, furniture manufacturing, outdoor structures, general fabrication, and any application requiring a corrosion-resistant metric fastener with high-torque Torx drive capability.
| Type | Pan Head (Round Head) Machine Screw — Torx (hexalobular) drive |
|---|---|
| Drive Style | Torx / Hexalobular (6-lobe) — T30 for M6, T40 for M8, T50 for M10 (verify before use) |
| Head Style | Pan Head / Round Head (above-surface profile) |
| Thread Sizes | M6 · M8 · M10 |
| Thread Pitch | M6 × 1.0 mm · M8 × 1.25 mm · M10 × 1.5 mm (metric coarse, standard) |
| Available Lengths | 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100 mm |
| Material | A2 Grade 304 Stainless Steel |
| Surface Treatment | Untreated (natural stainless steel finish) |
| Grade | A2 (ISO 3506) |
| System of Measurement | Metric |
| Pack Quantities | 1 · 3 · 5 · 10 · 30 pieces |
| Typical Applications | Industrial machinery, automotive assemblies, furniture manufacturing, outdoor structures, marine environments, general fabrication and mechanical assemblies |
These screws are made from A2 grade 304 stainless steel. A2 (304) stainless steel provides excellent corrosion resistance, oxidation resistance, and heat resistance, making it suitable for both indoor and outdoor applications where rust resistance is required.
These screws use a Torx (6-lobe / hexalobular) drive. Torx drive provides significantly higher torque transfer than Phillips or slotted drives, reducing cam-out and driver wear. A T30 bit is typically used for M6, T40 for M8, and T50 for M10 — verify with your specific fastener before use.

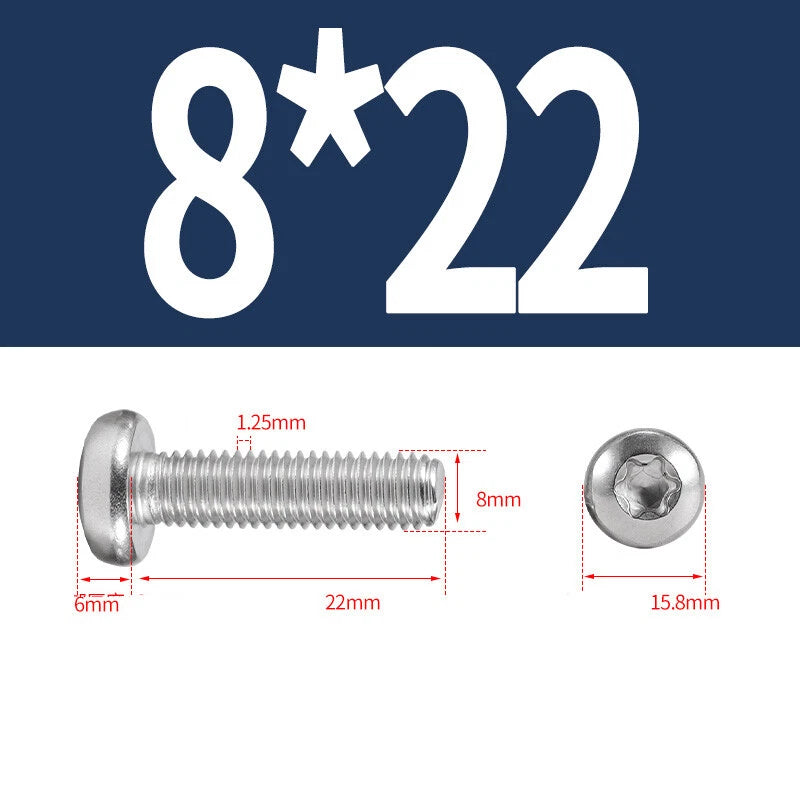

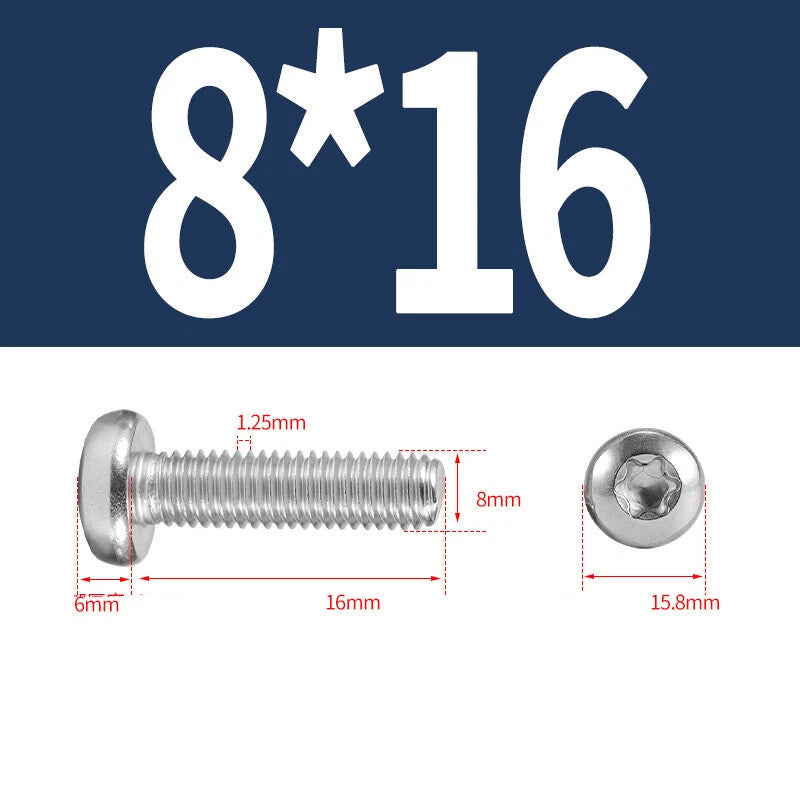

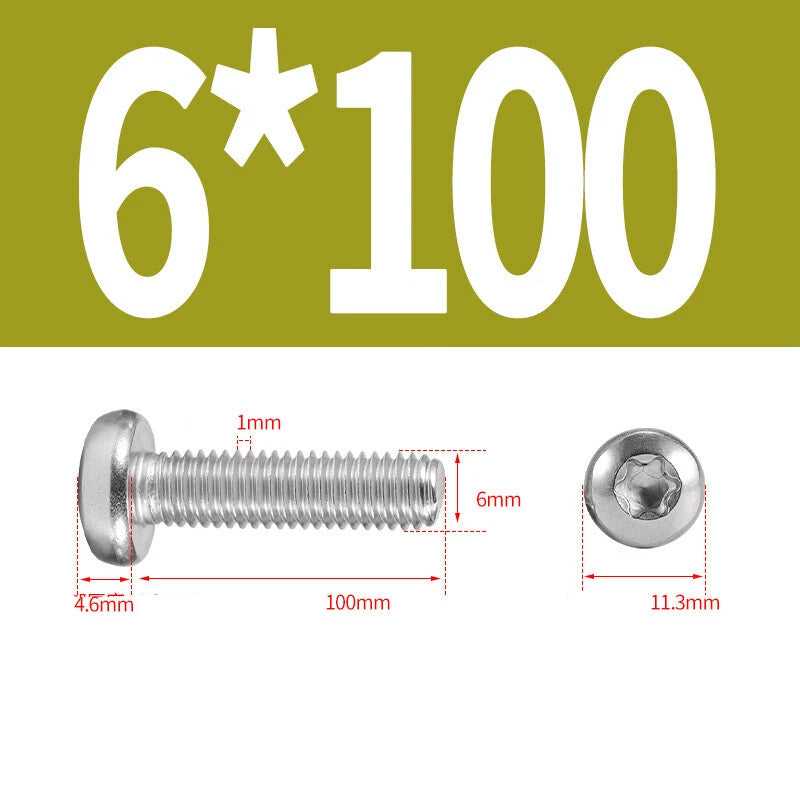

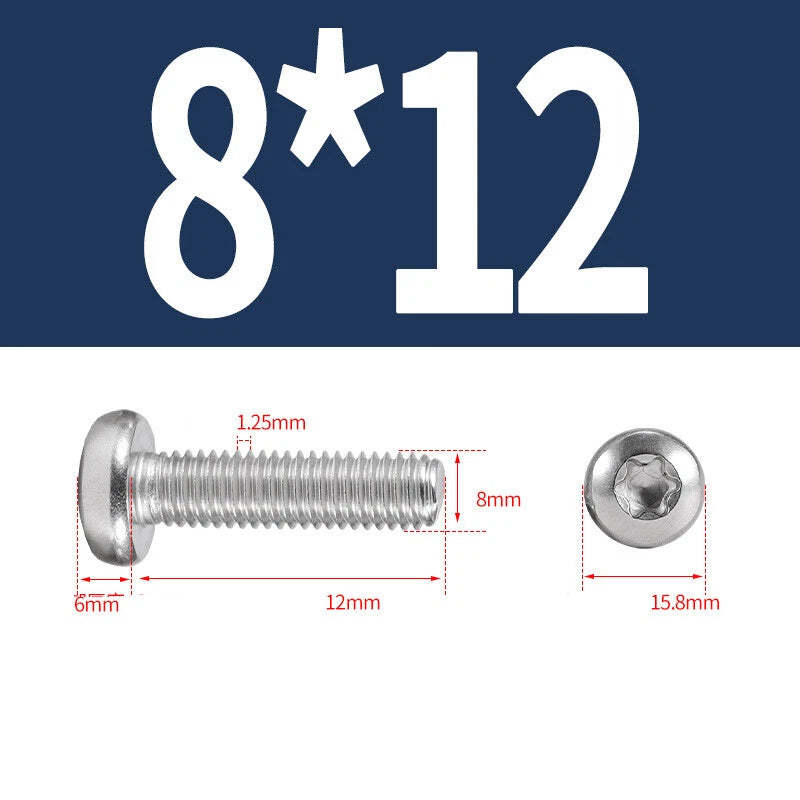

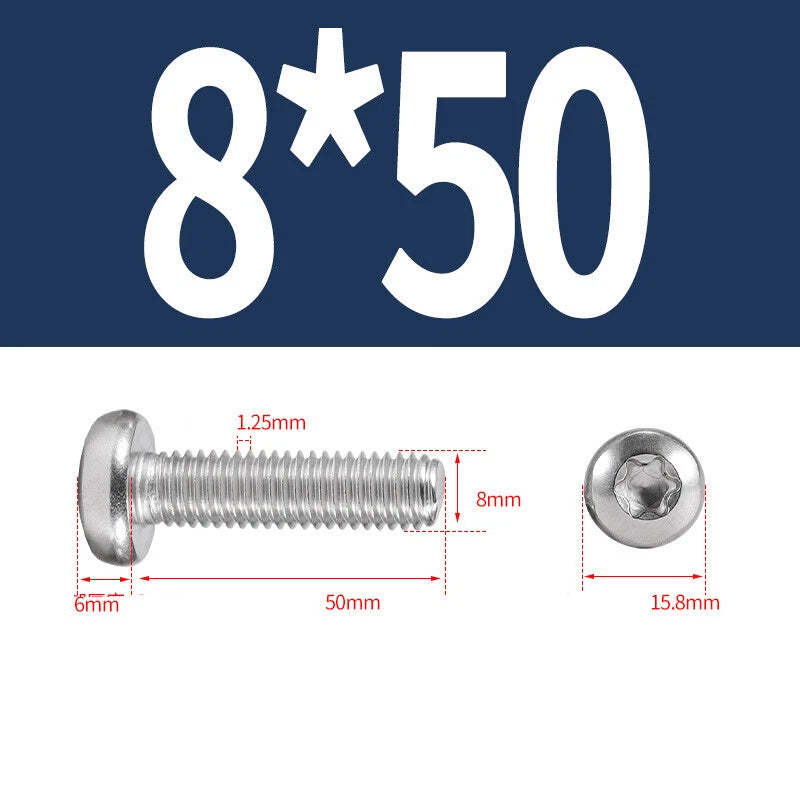

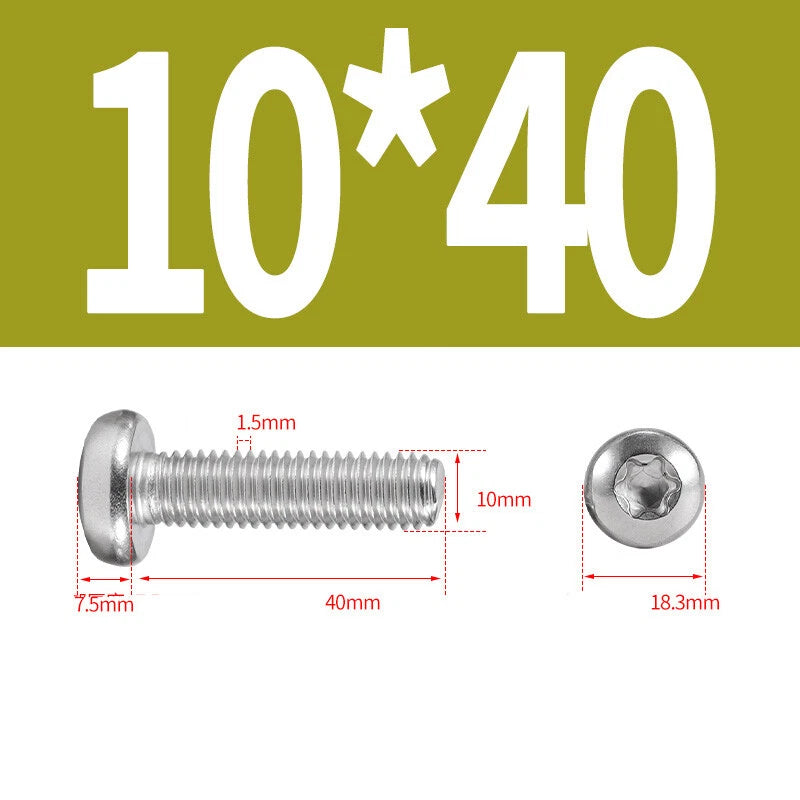

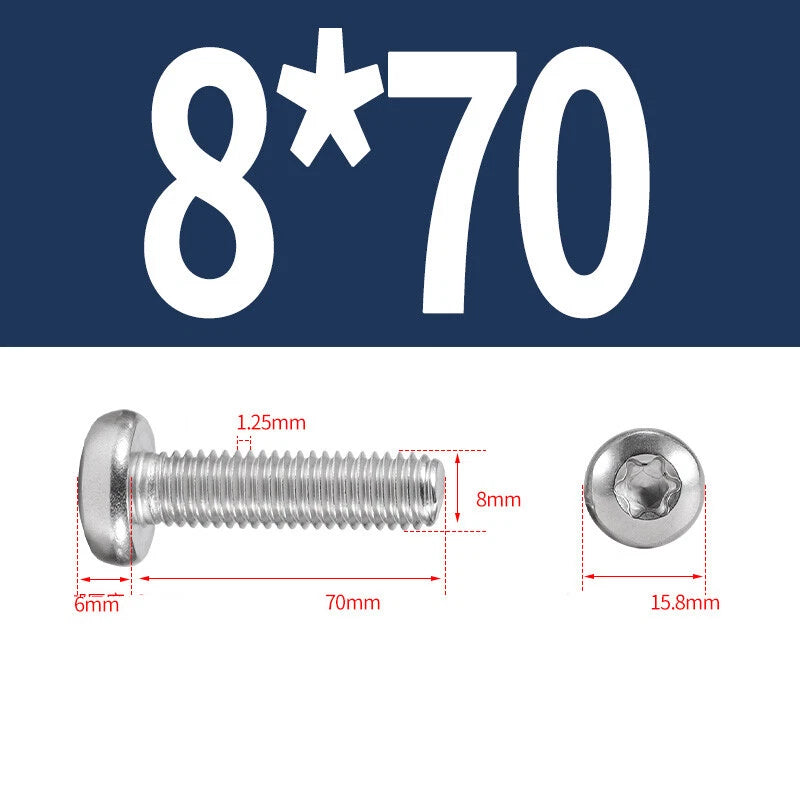

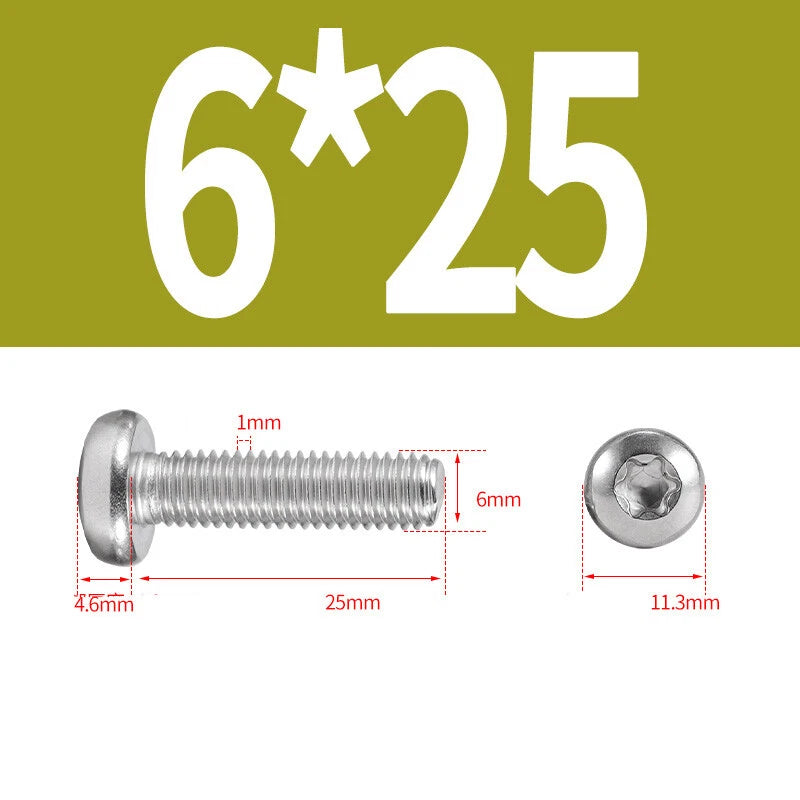

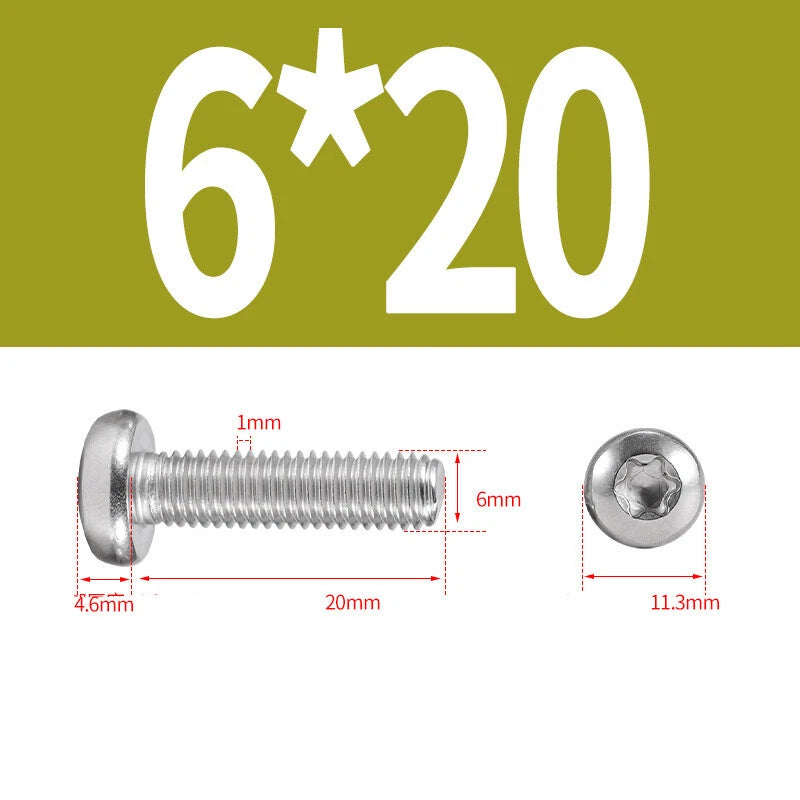

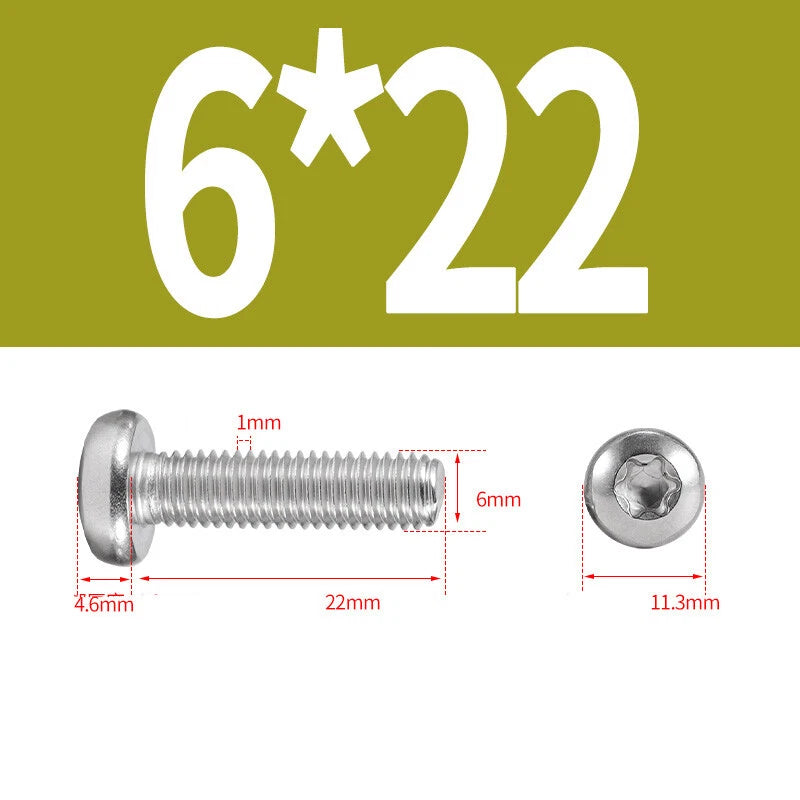

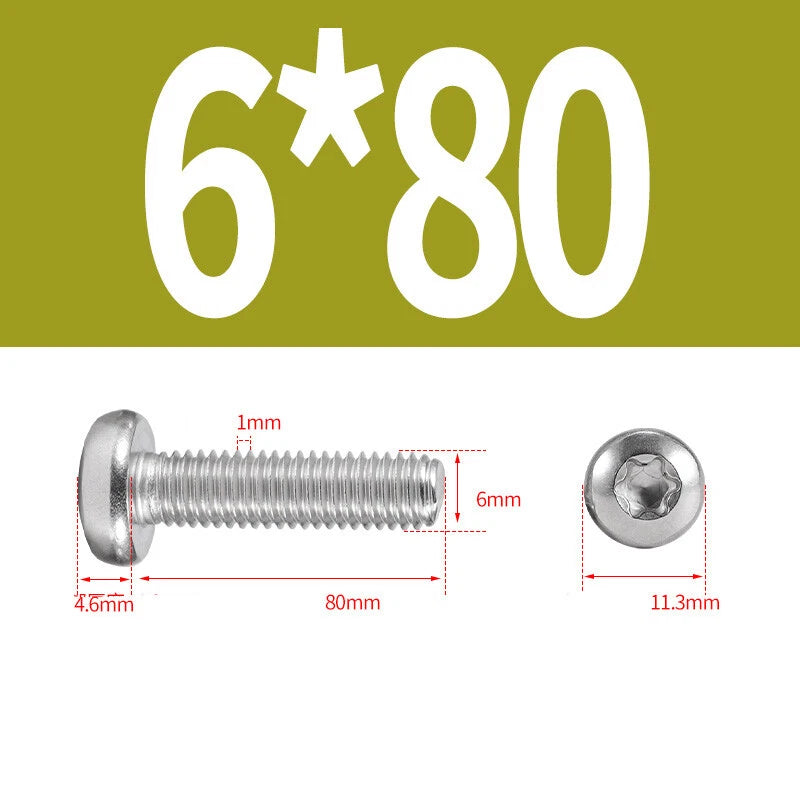

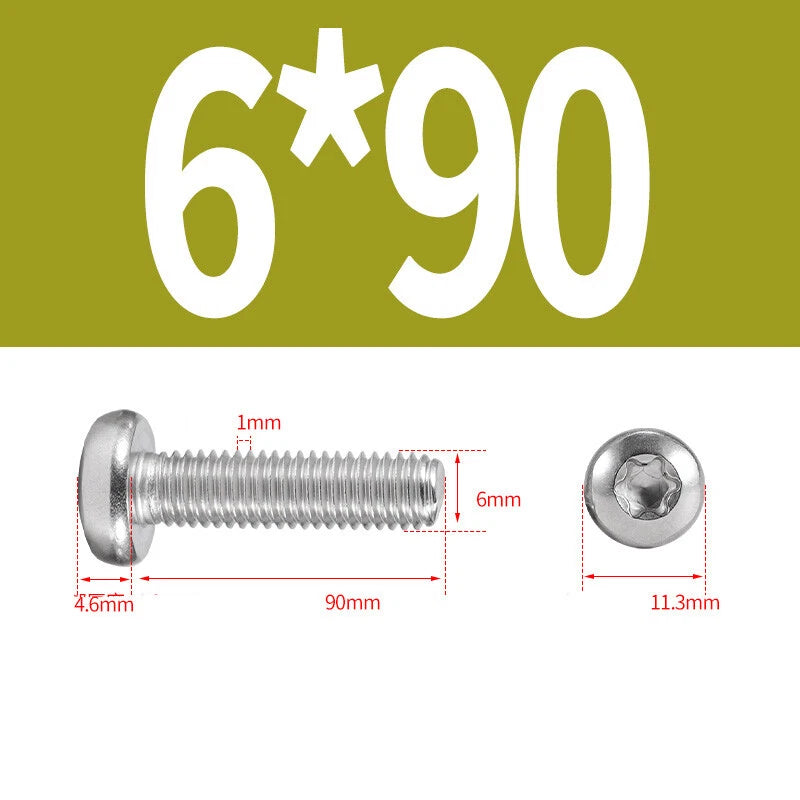

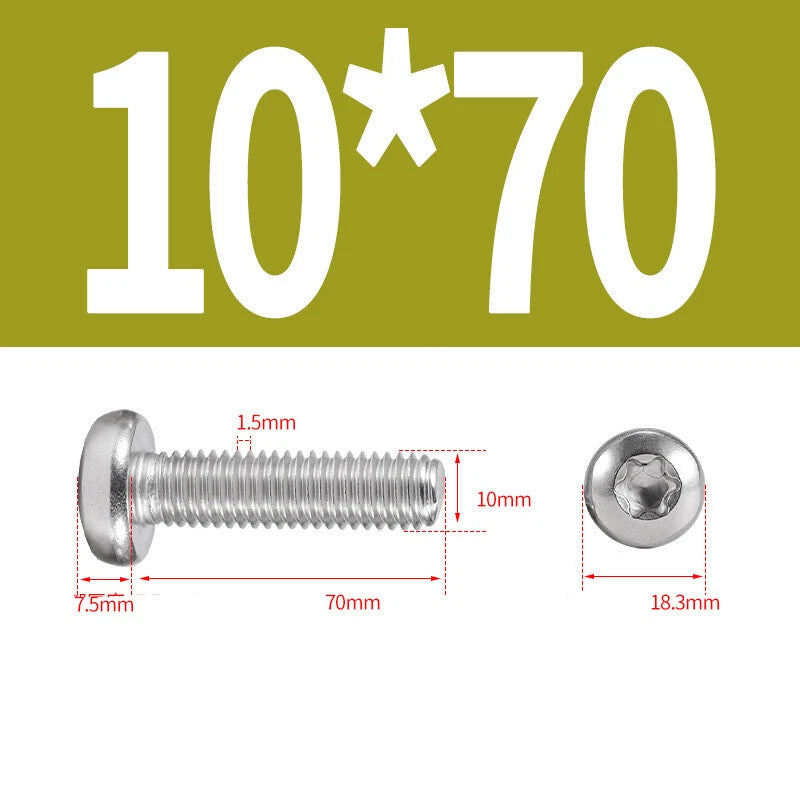

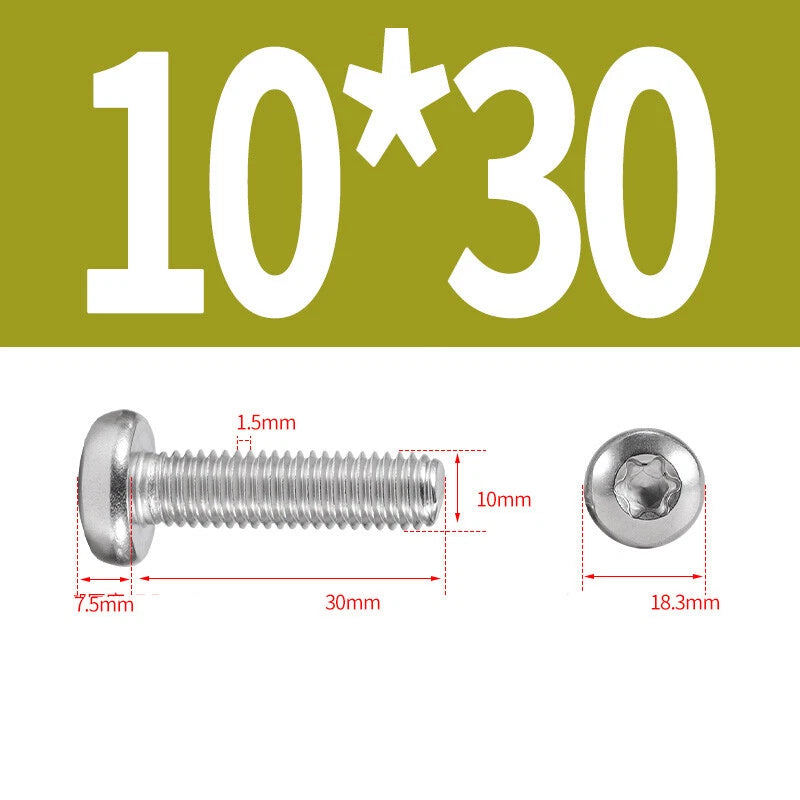

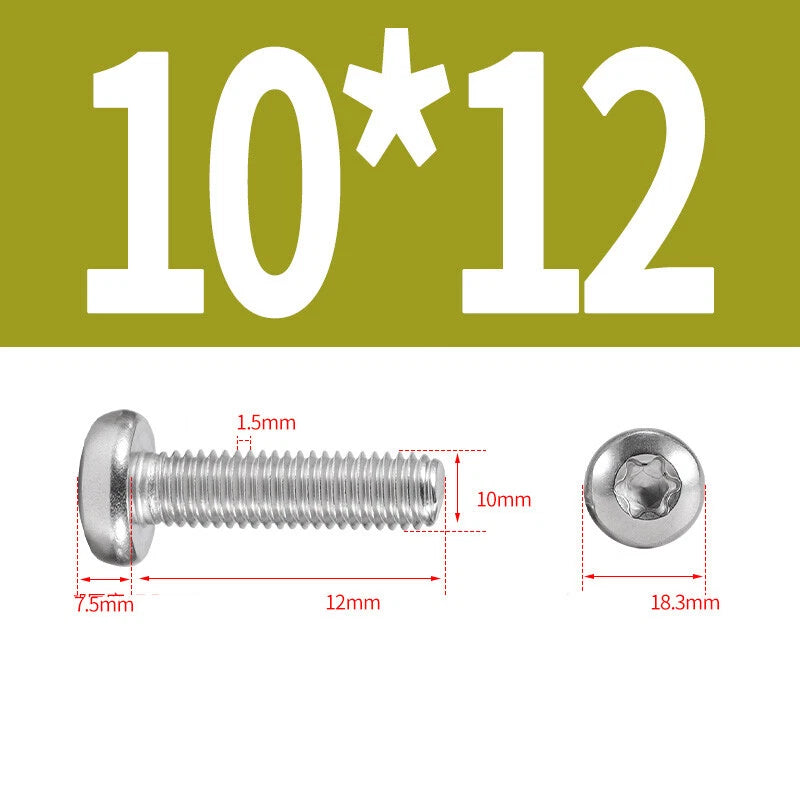

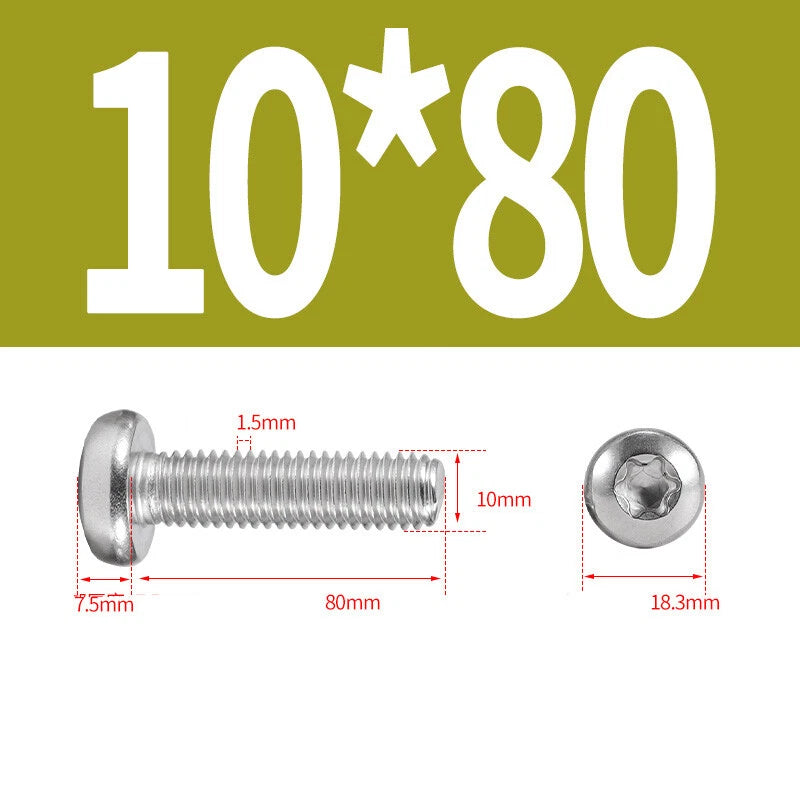

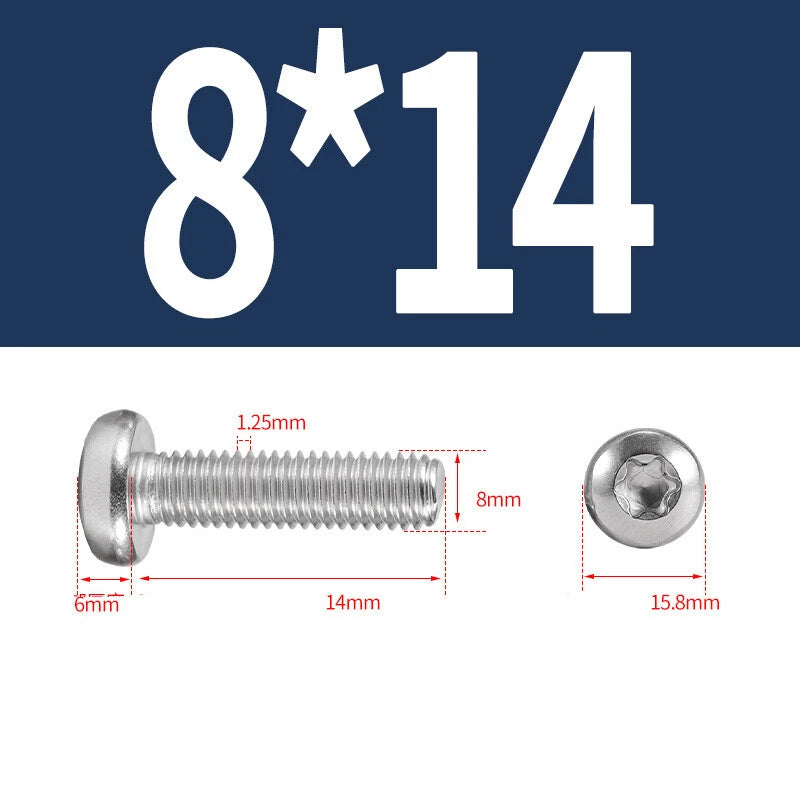

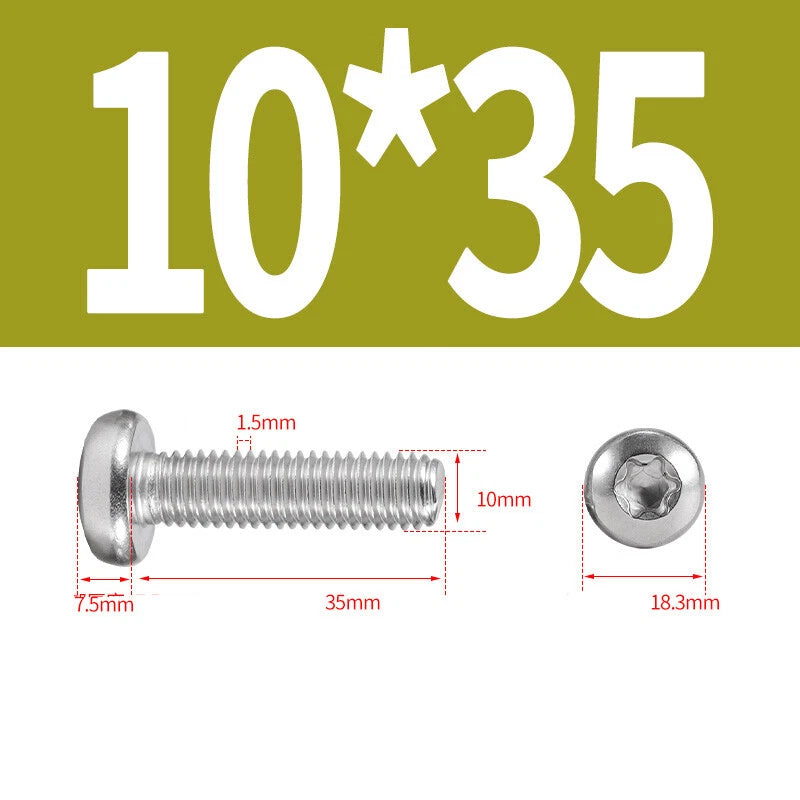

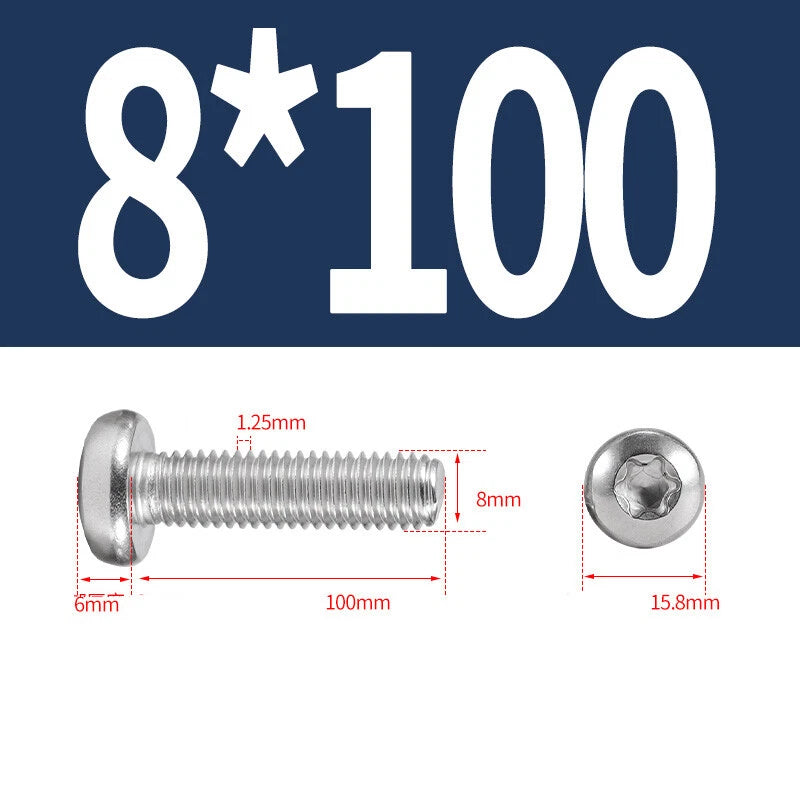

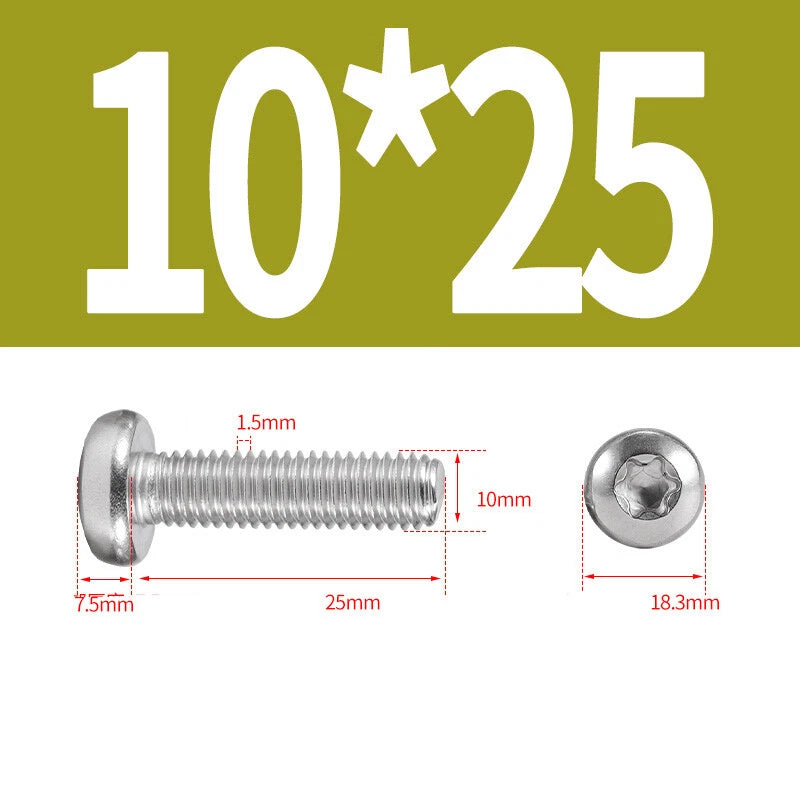

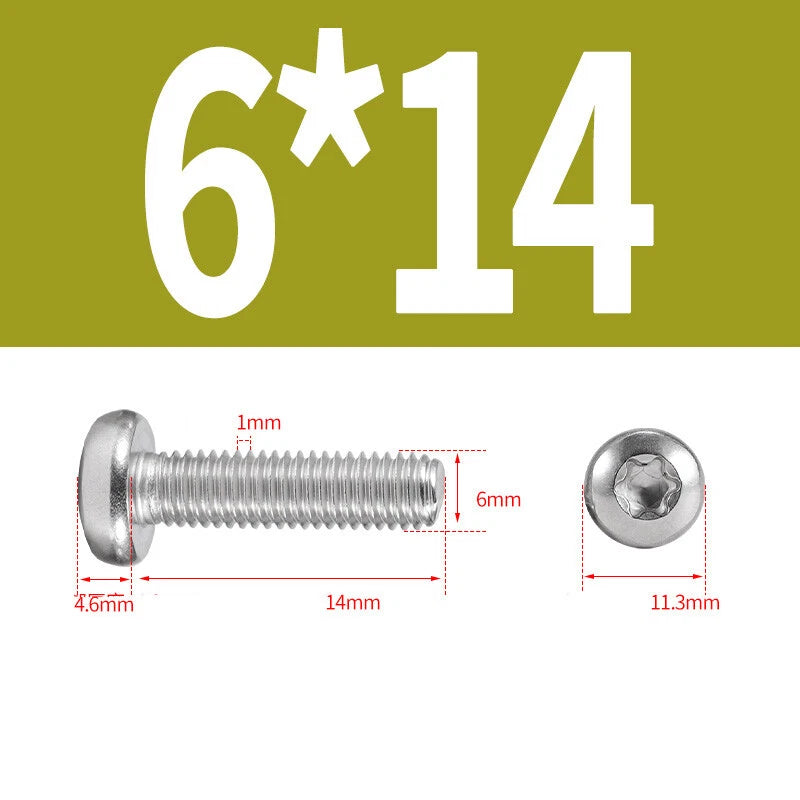

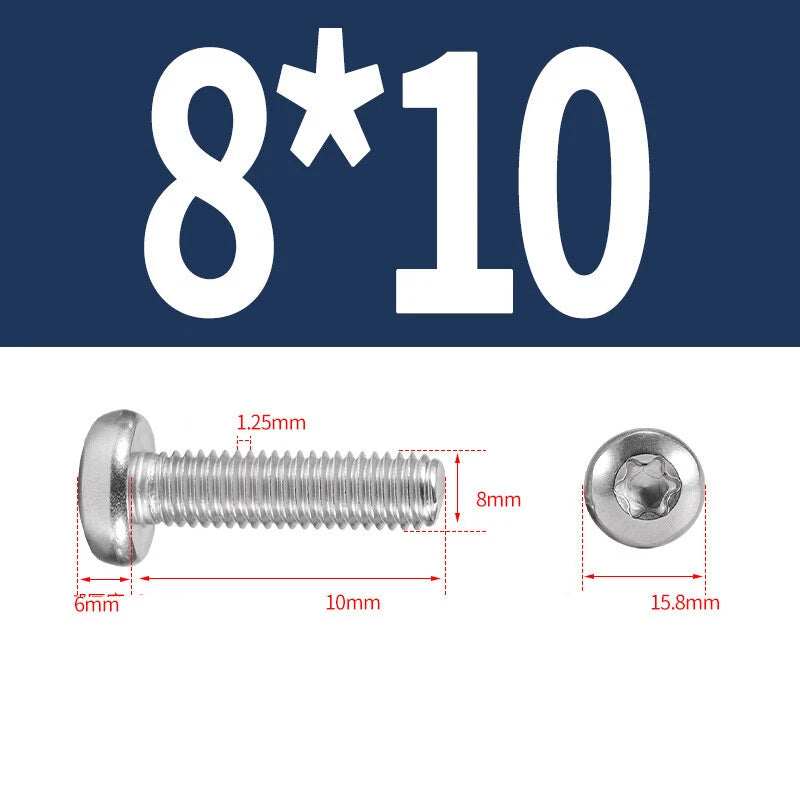

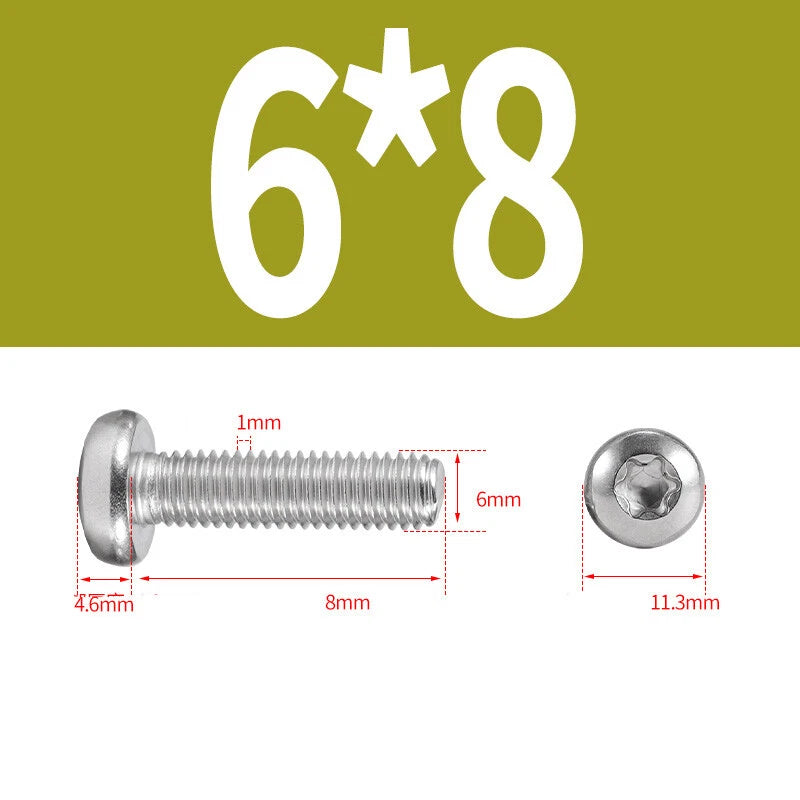

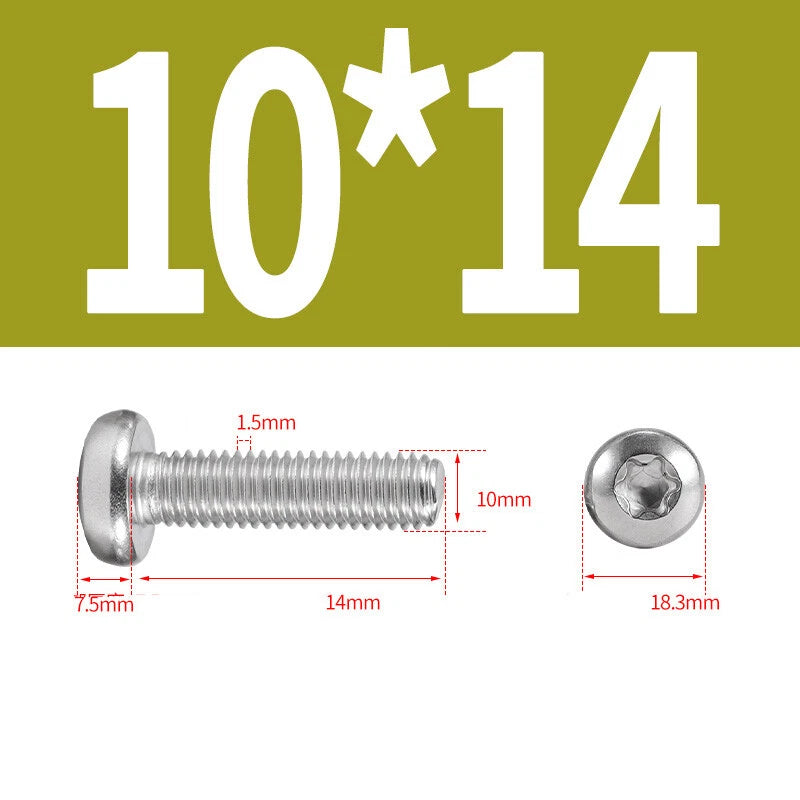

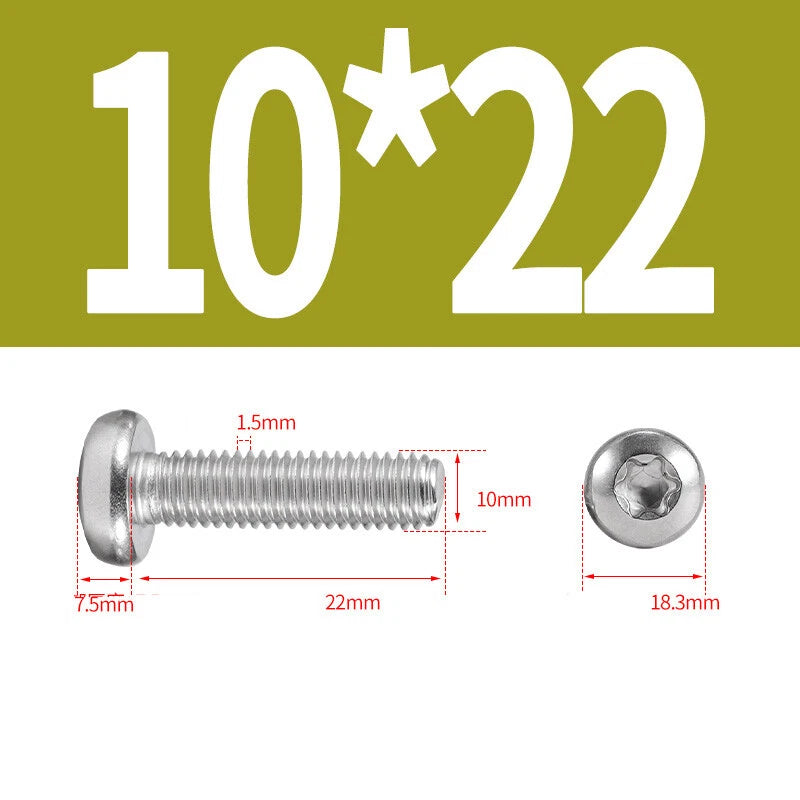

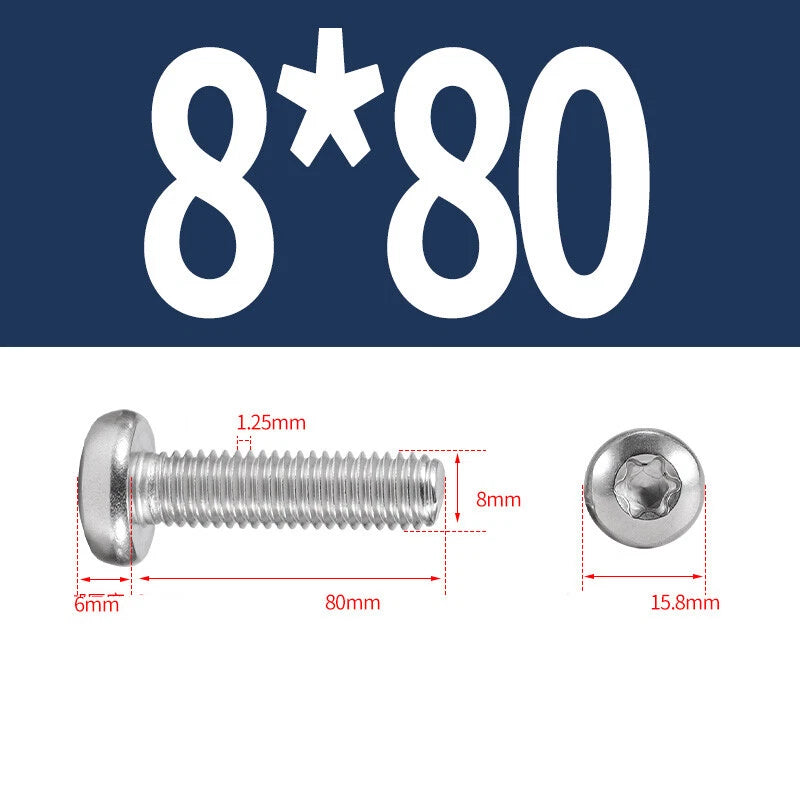

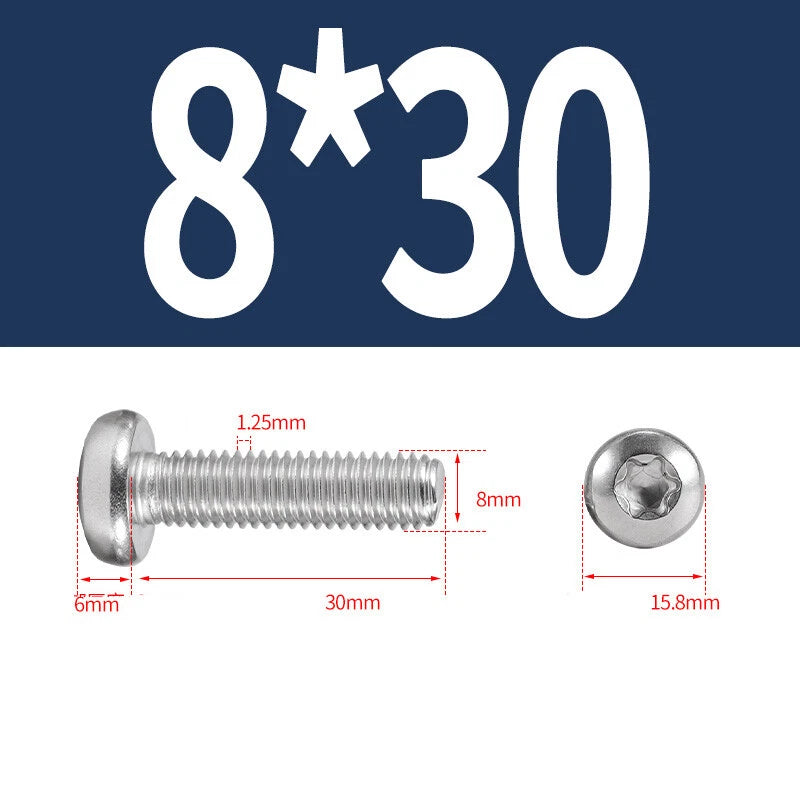

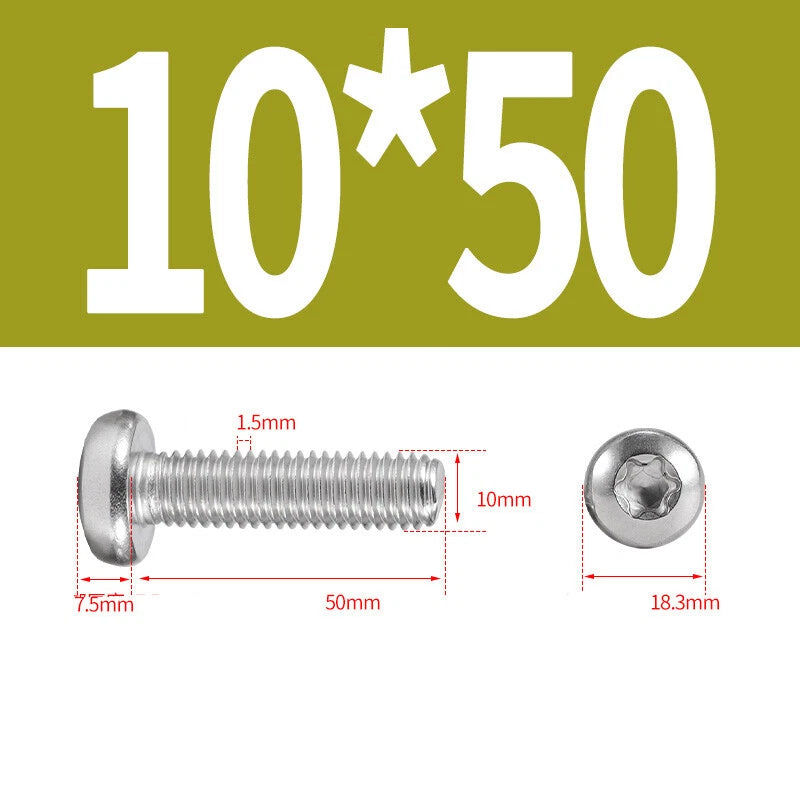

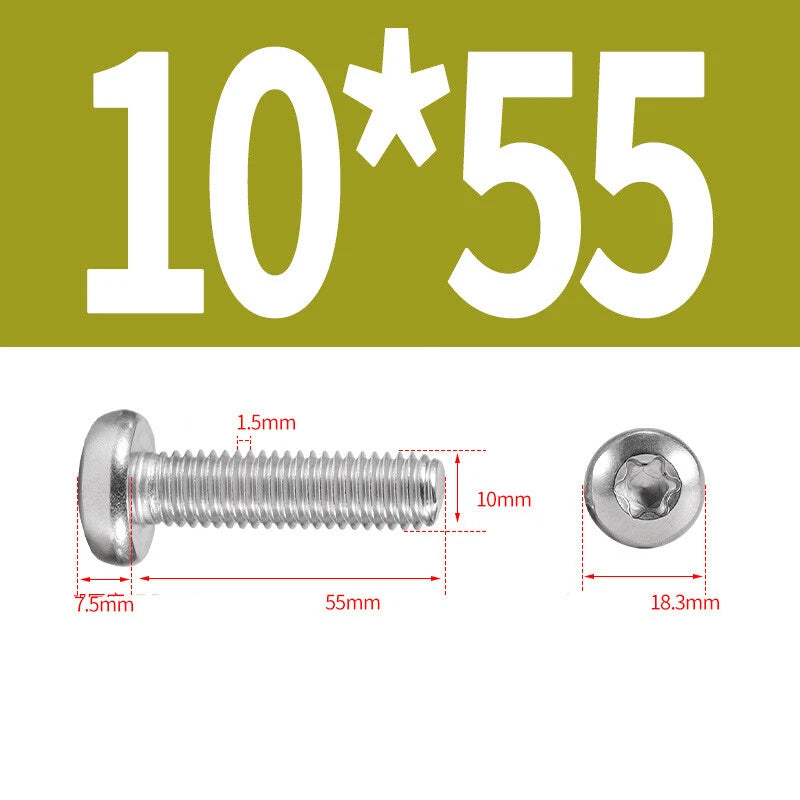

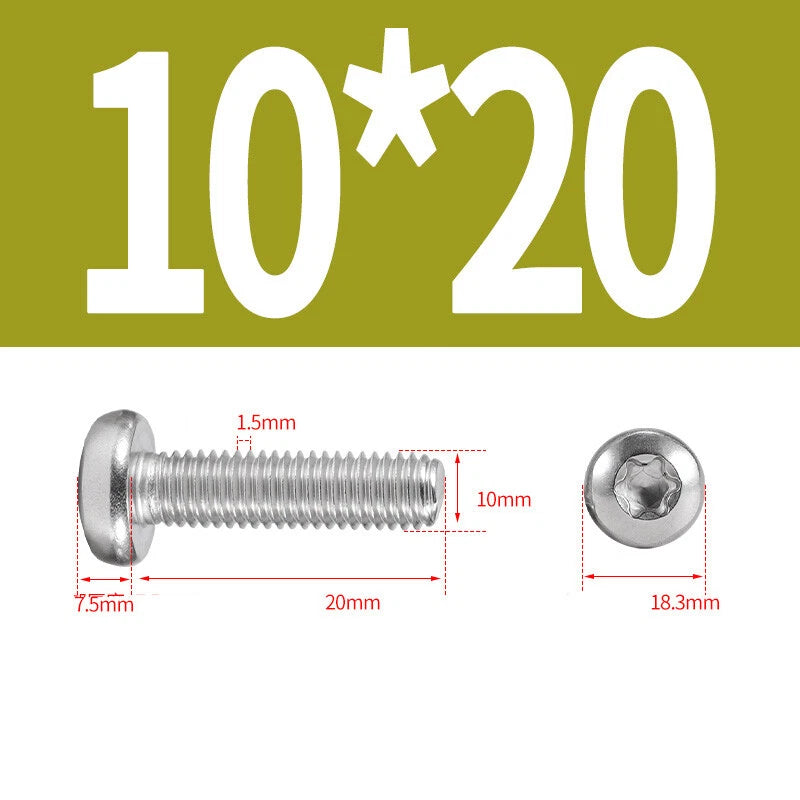

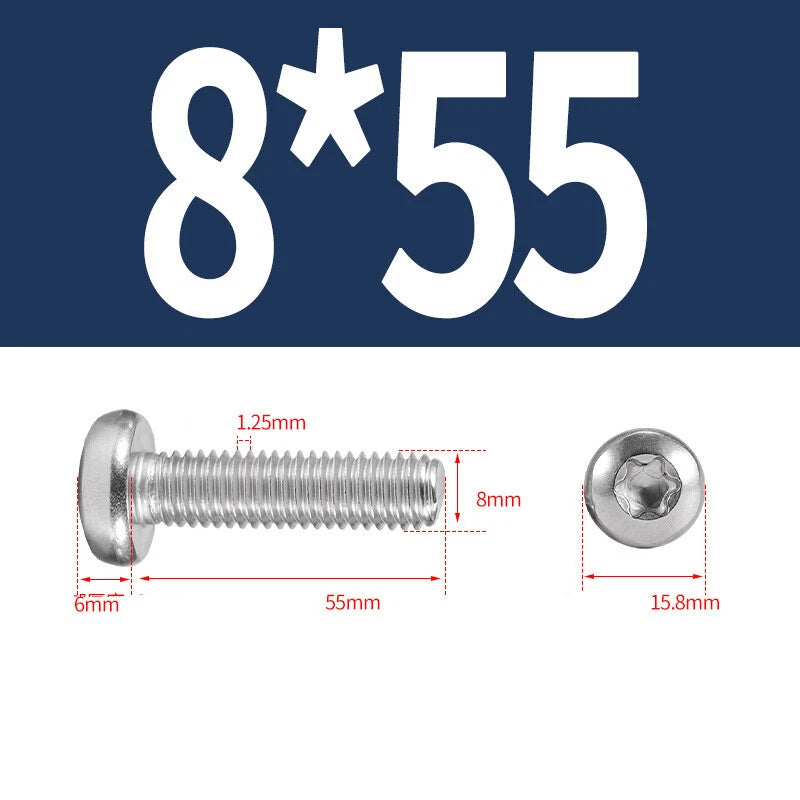

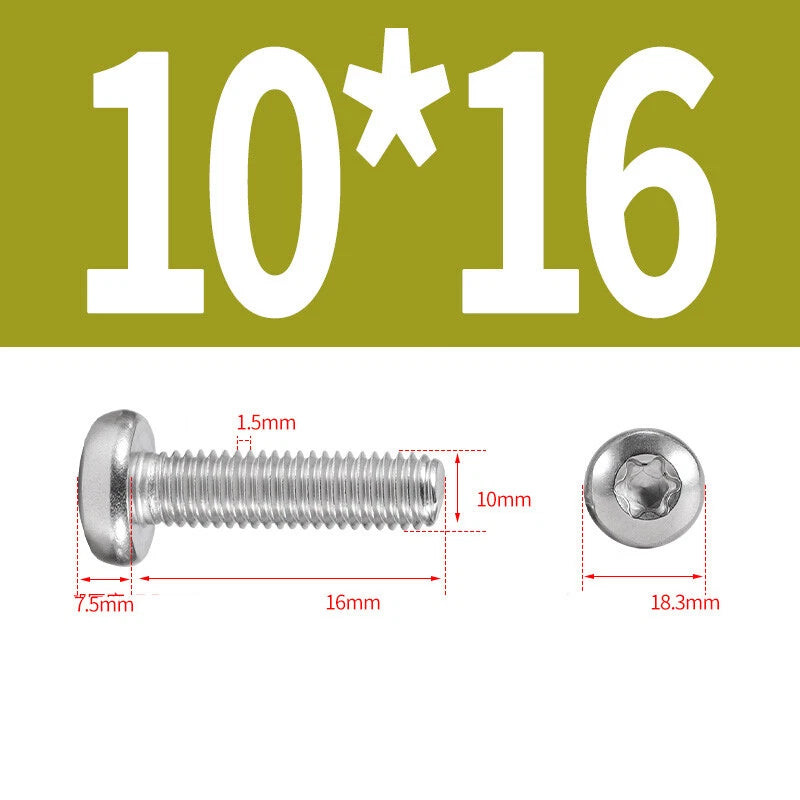

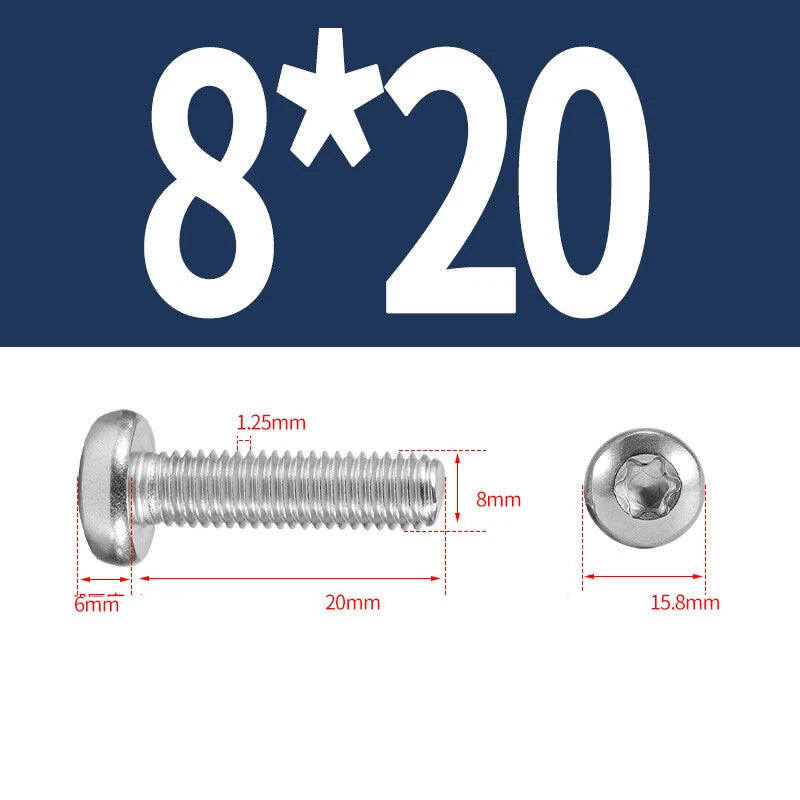

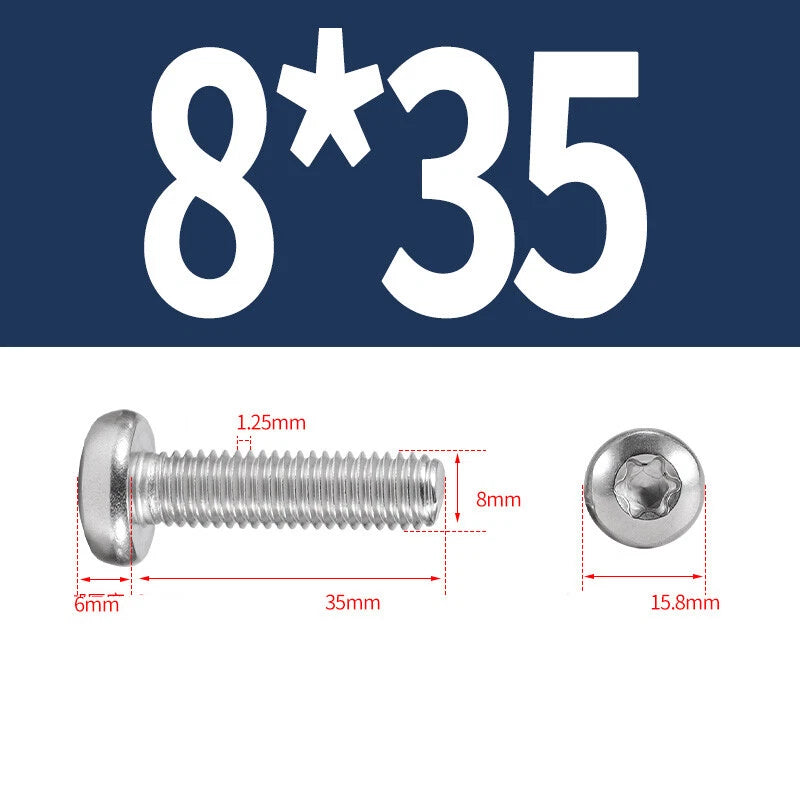

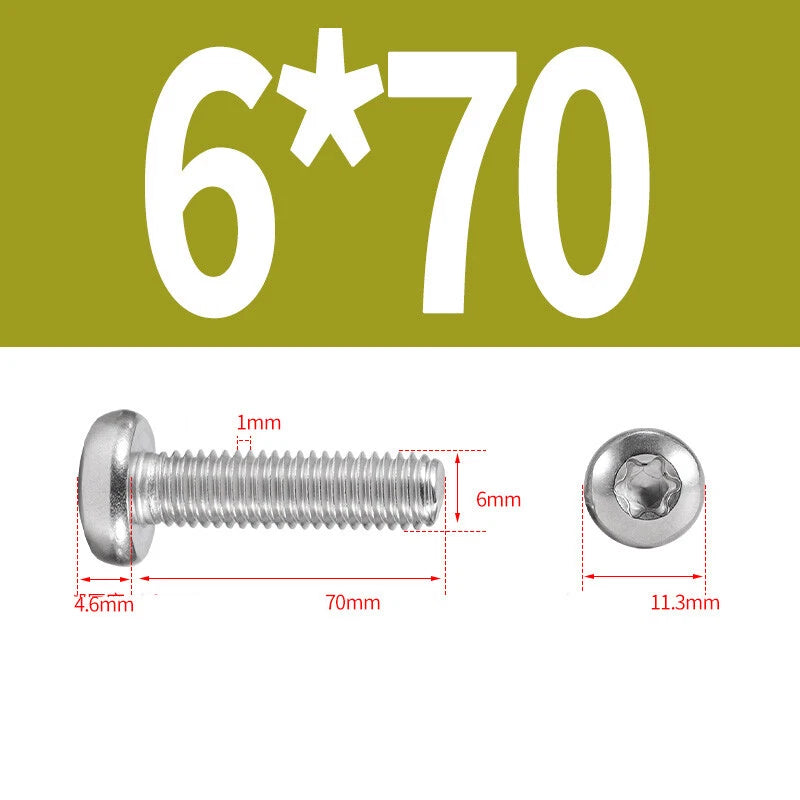

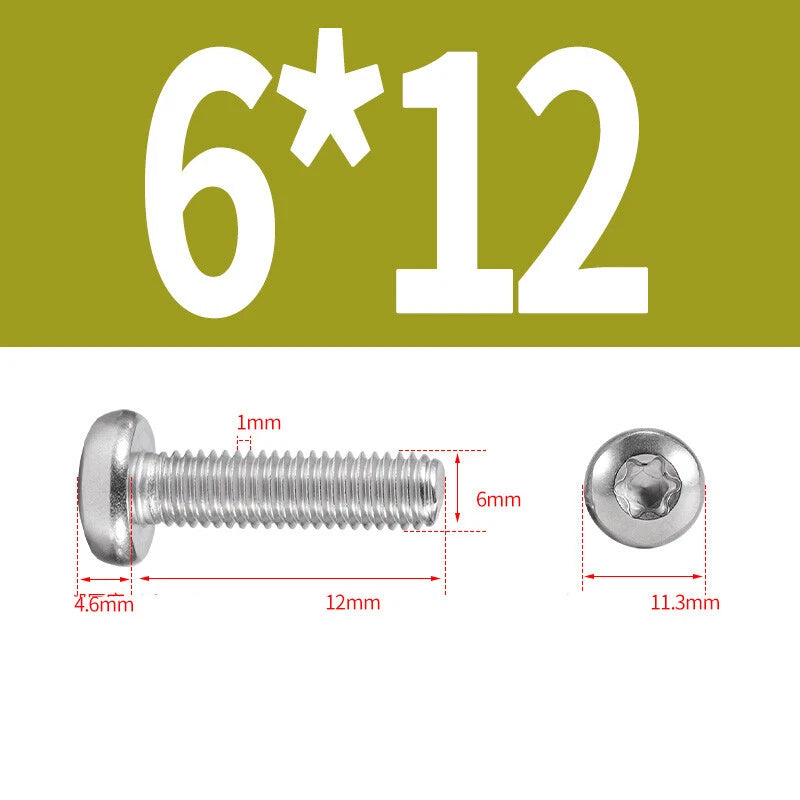

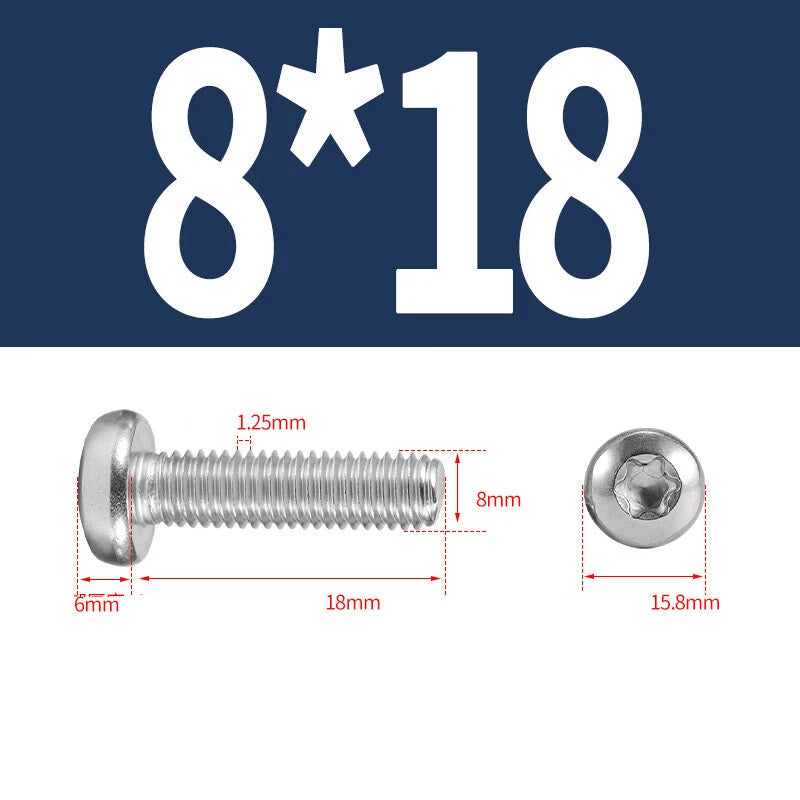

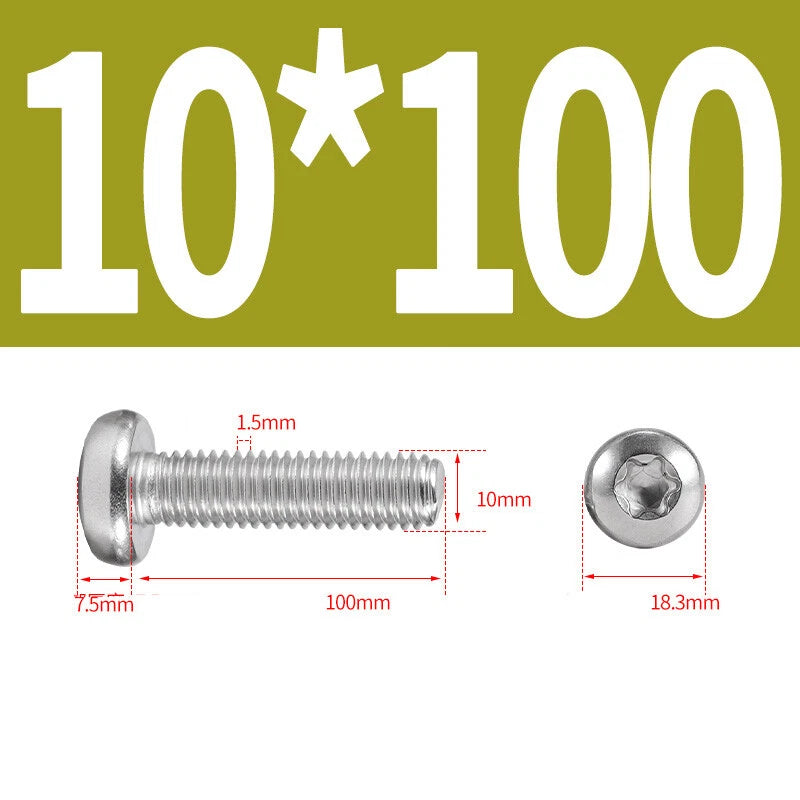

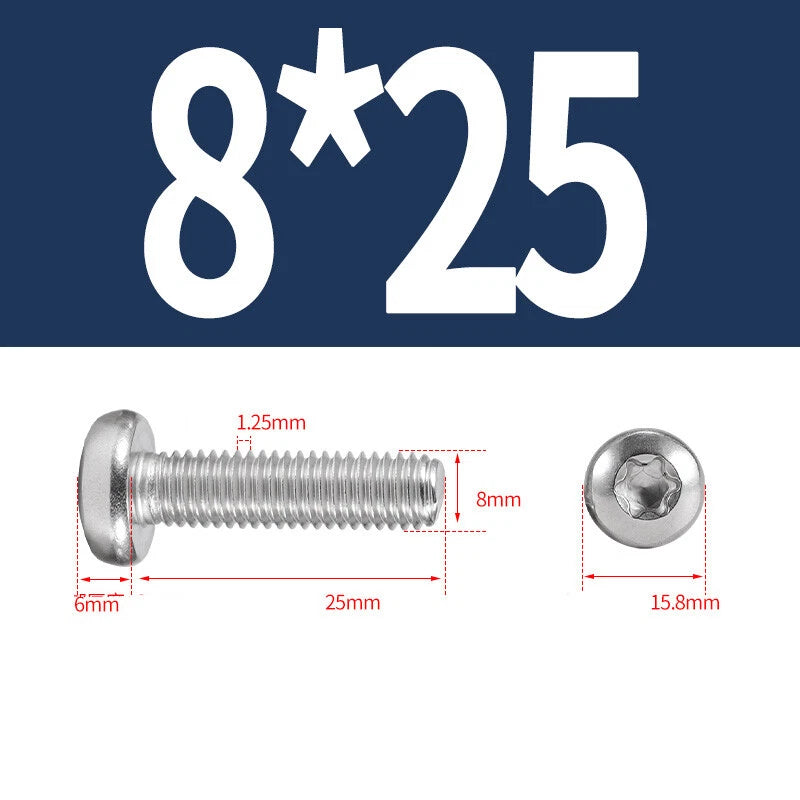

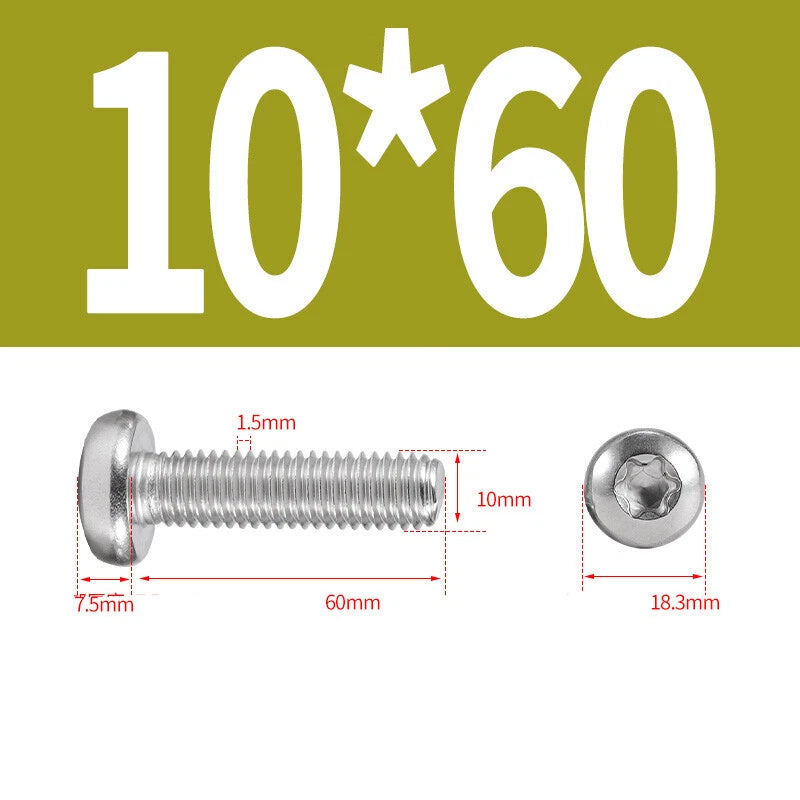

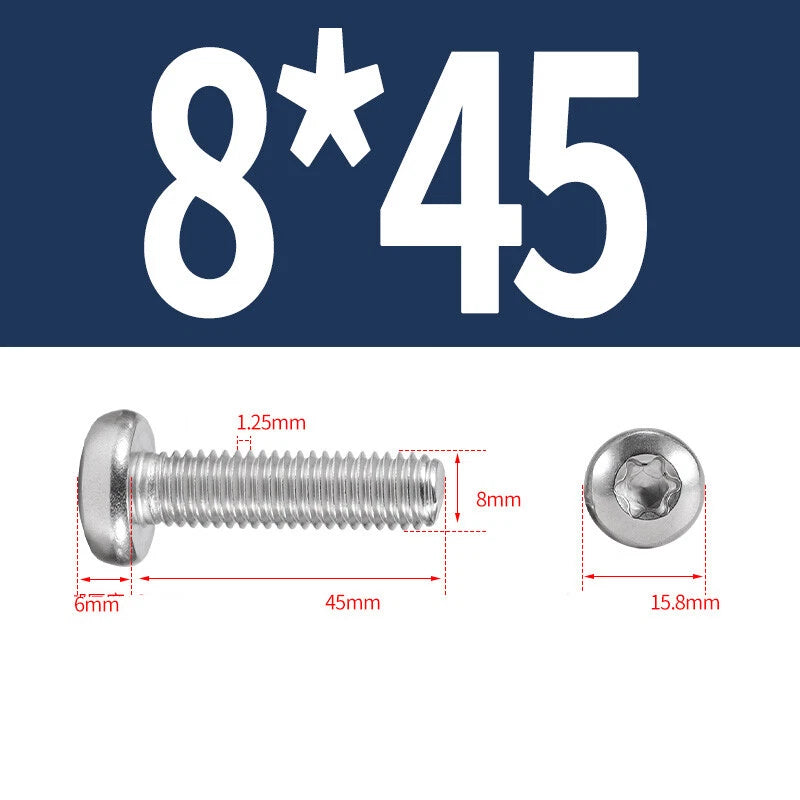

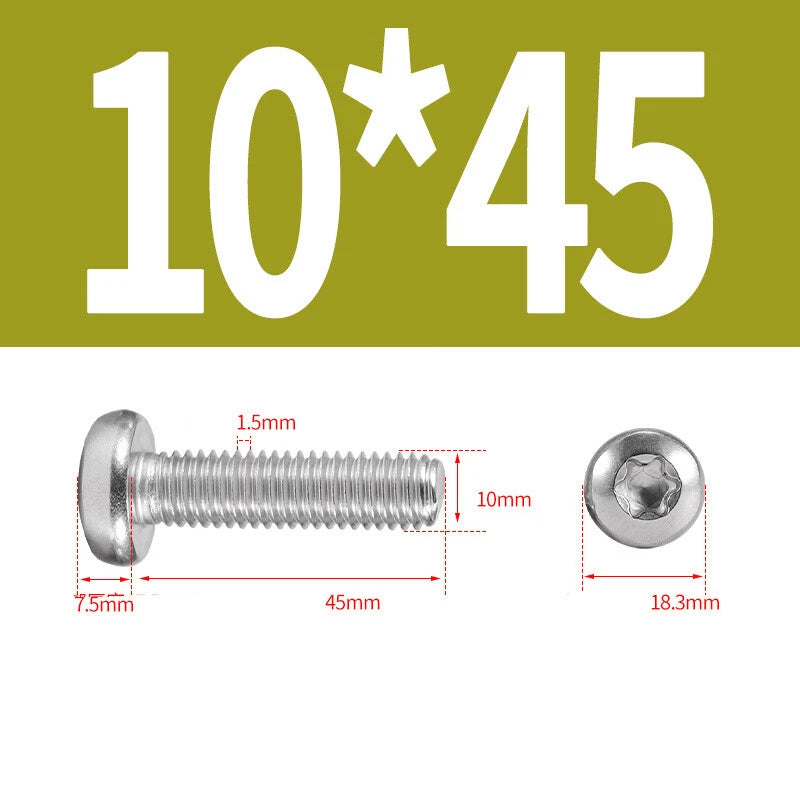

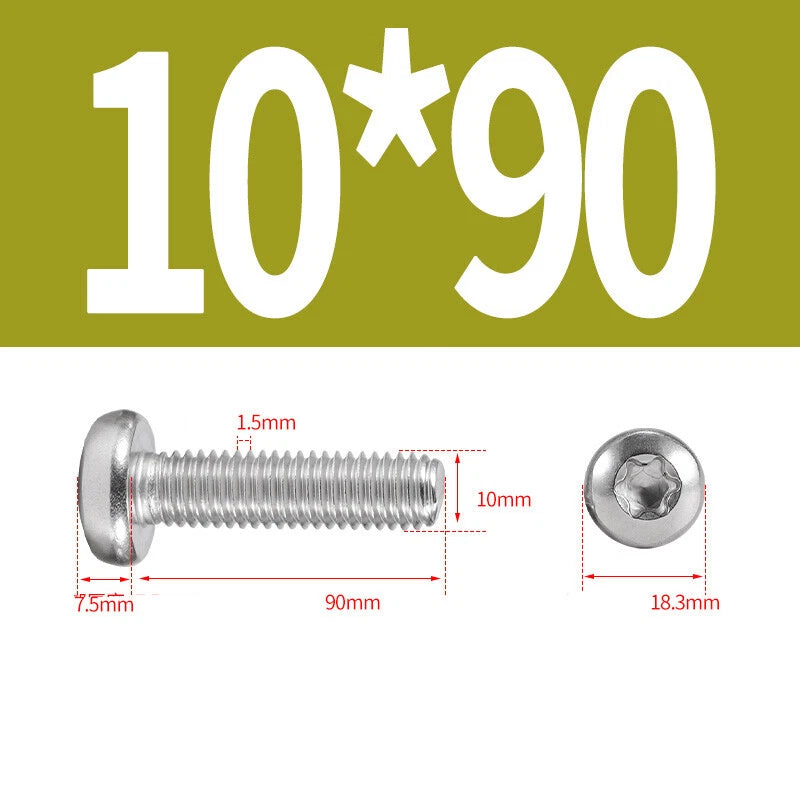

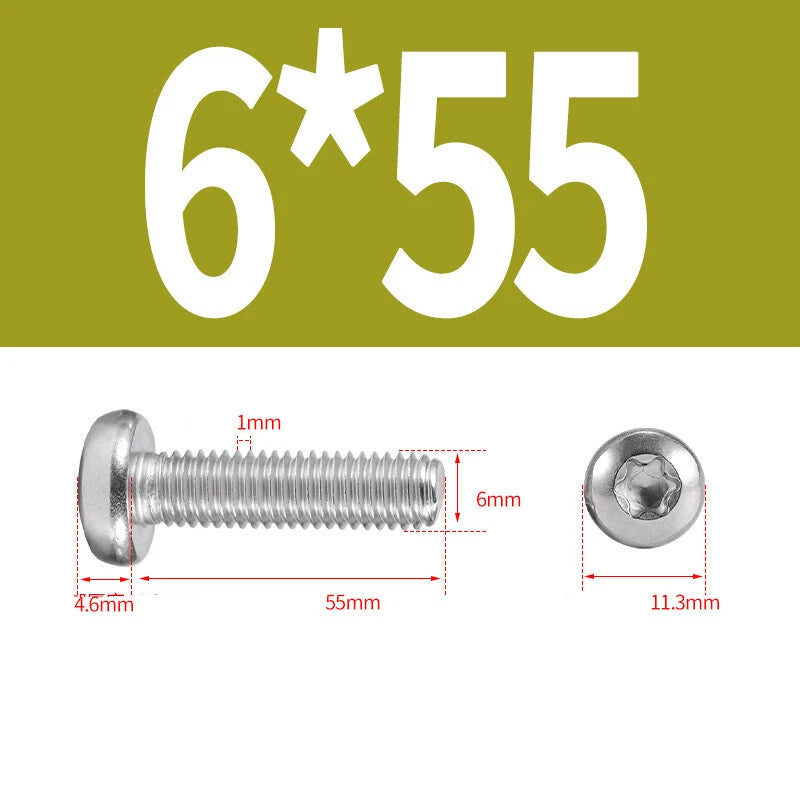

Available thread sizes are M6, M8, and M10. Lengths range from 8 mm to 100 mm depending on the thread size selected. Select your preferred Size (thread diameter x length) from the options above.
These screws feature a pan head (round head) profile. The pan head sits above the surface of the material, providing a low-profile dome shape that distributes clamping force over a wider area than a flat head. It is suitable for applications where a flush fit is not required.
Available pack quantities are 1, 3, 5, 10, and 30 pieces. Choose the quantity that matches your project needs — single pieces for repairs or replacements, larger packs for production or maintenance stock.
These screws are widely used in industrial machinery, automotive assemblies, furniture manufacturing, outdoor structures, marine environments, and general mechanical assemblies where corrosion resistance and high torque fastening are required. The Torx drive is particularly valued in production environments for its resistance to cam-out.
Standard metric coarse thread pitches are: M6 × 1.0 mm, M8 × 1.25 mm, M10 × 1.5 mm. These are compatible with standard metric nuts, threaded inserts, and tapped holes of the same pitch.
A2 (304) stainless steel offers good corrosion resistance for most outdoor environments including rain, humidity, and mild chemical exposure. For highly corrosive environments such as saltwater or coastal marine applications, A4 (316) stainless steel is generally recommended for superior chloride resistance.
