When you need to open, adjust, or secure a panel repeatedly without reaching for a screwdriver, standard hex bolts become a daily frustration. These M6 plastic five-star thumb screws are designed for makers, workshop builders, and equipment technicians who need fast, hand-tightened fastening on access covers, machine guards, junction boxes, and DIY enclosures.

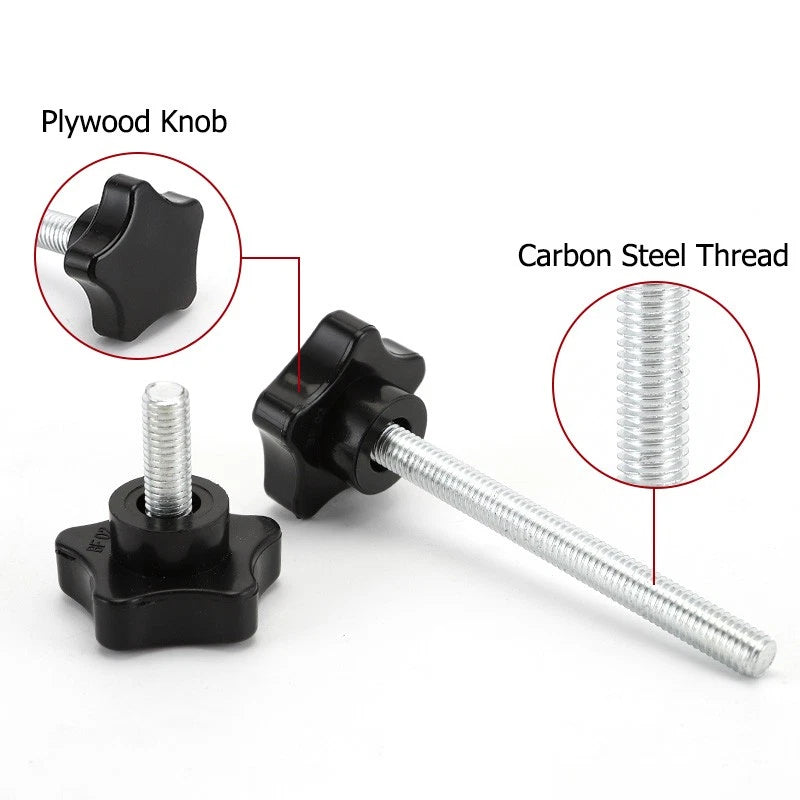

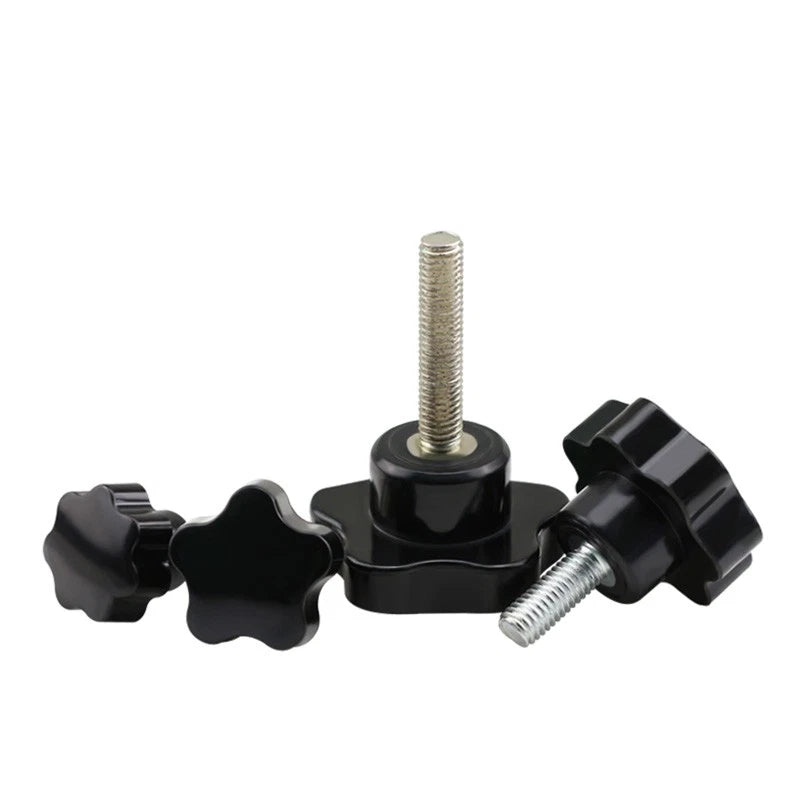

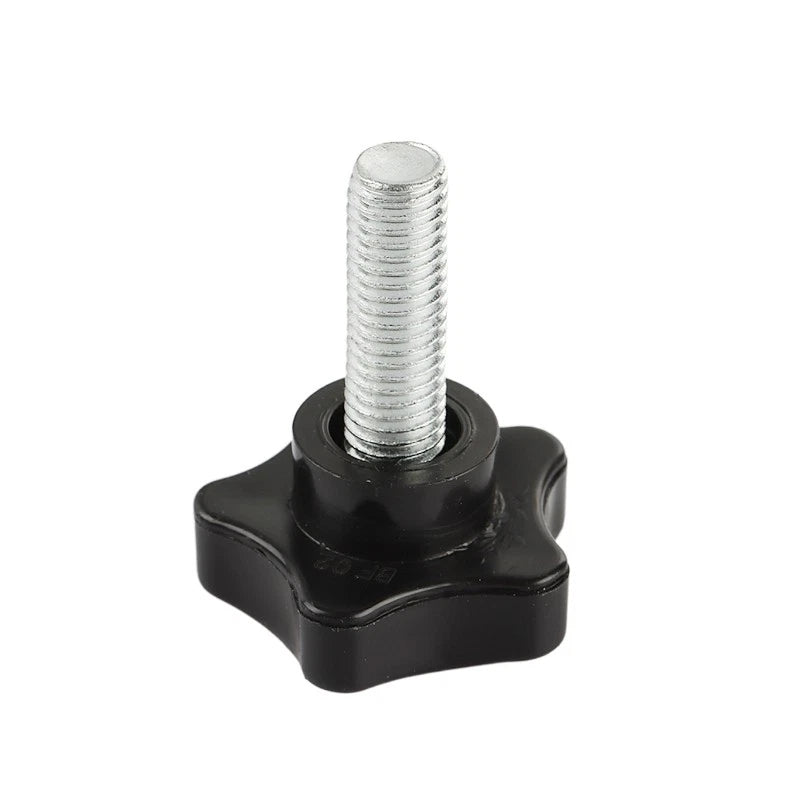

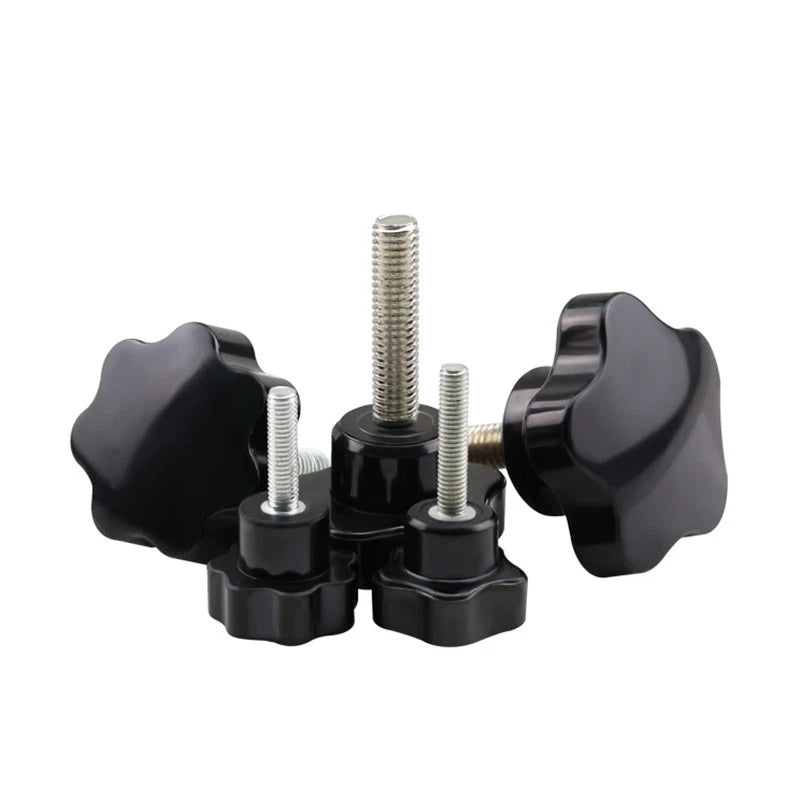

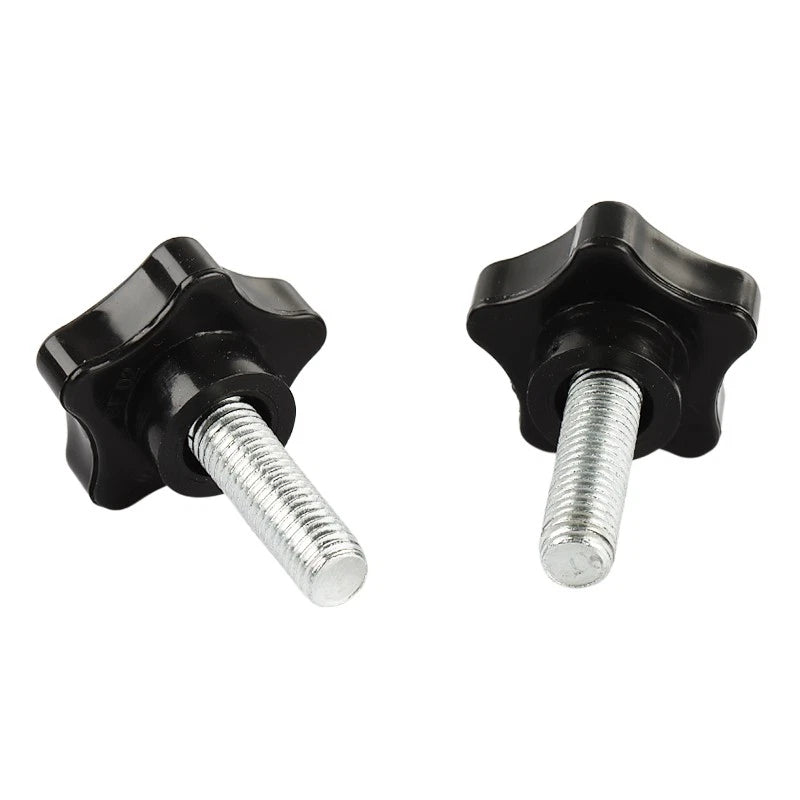

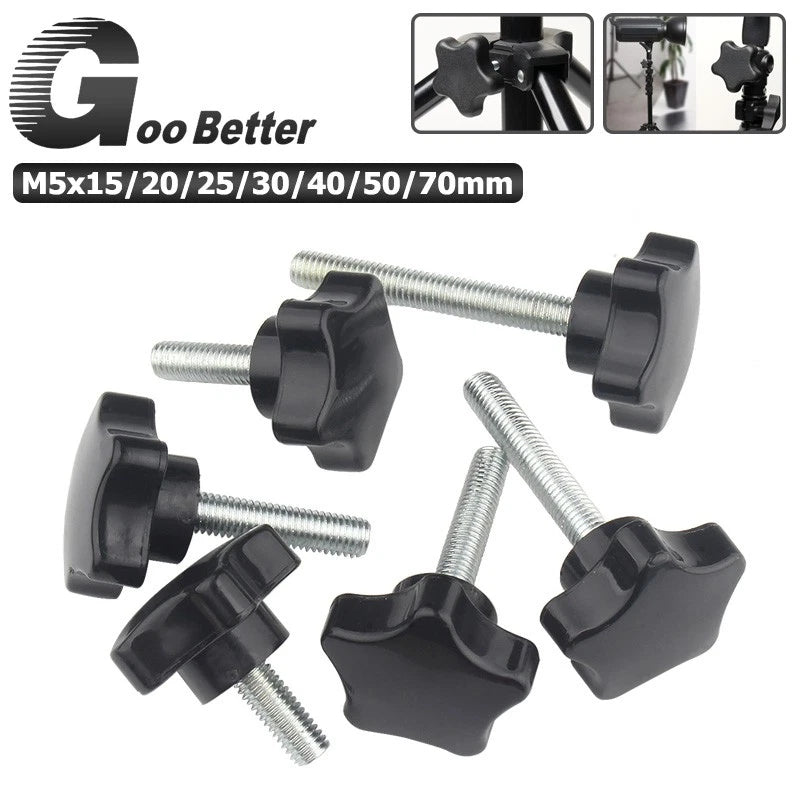

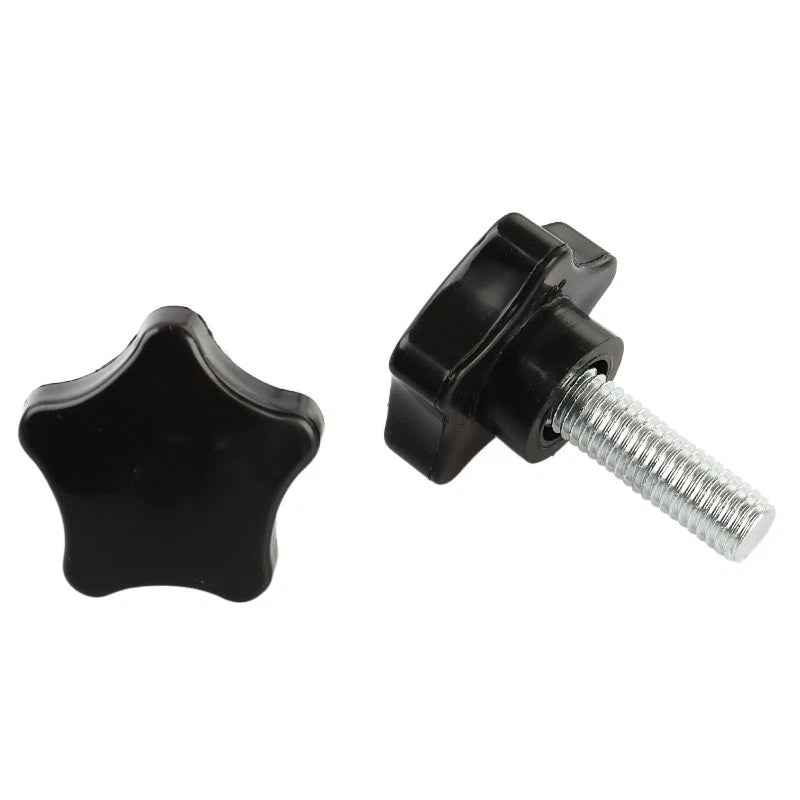

Each thumb screw features a five-star (star-knob) plastic head in black with a steel mandrel insert for thread integrity. The M6 metric thread runs through lengths ranging from 15 mm (~0.59 in) to 70 mm (~2.76 in), giving you the reach needed for thin sheet panels up to thicker structural assemblies. Pack quantities of 1, 2, 5, and 10 pieces let you order exactly what your project requires.
Typical applications include 3D printer frame assemblies requiring frequent belt-tension access, electrical enclosure lids on control panels, CNC router dust-shoe attachments, and rack-mount equipment covers — anywhere a tool-free M6 thumb screw speeds up your workflow.

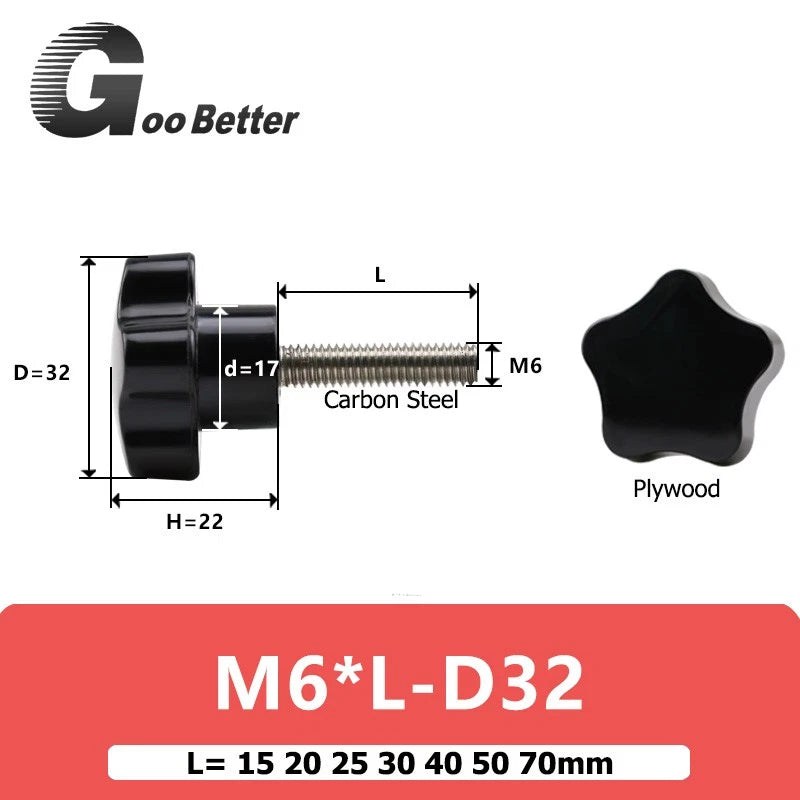

| Thread Size | M6 (6 mm) |
|---|---|
| Thread Pitch | 1.0 mm (standard metric coarse) |
| Length Range | 15 mm – 70 mm (0.59 in – 2.76 in) |
| Available Lengths | 15 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm, 70 mm |
| Head Style | Five-Star (Star Knob) |
| Drive Style | Manual (hand-tightened, no tool required) |
| Knob Material | Plastic |
| Mandrel Material | Steel |
| Color / Finish | Black |
| System of Measurement | Metric |
| Pack Quantity Options | 1 pcs, 2 pcs, 5 pcs, 10 pcs |
| Knob Diameter | See variant options |
| Overall Weight (per piece) | See variant options |
Measure the total grip length — the combined thickness of all materials being clamped — then add at least 6–8 mm for thread engagement into the nut or tapped hole. For example, a 3 mm panel with a standard M6 hex nut needs roughly 3 mm + 5 mm nut height + a few mm clearance, so M6×15 mm is typically sufficient. For deeper assemblies or stacked materials, step up to 20, 25, or 30 mm accordingly.
The steel mandrel insert carries the thread load, so these screws resist stripping and cross-threading far better than all-plastic designs. The plastic knob handles the torque transfer from your fingers. For light-duty panel fastening and access covers, the steel mandrel provides adequate clamping force. They are not intended for high-vibration structural joints where a fully metallic fastener would be required.
The plastic knob body is inherently moisture-resistant and will not rust. The steel mandrel shank may show surface oxidation over time in humid or outdoor environments. For indoor workshop, enclosure, and rack applications these perform reliably. If your application involves prolonged moisture exposure, consider applying a light coating of anti-corrosion spray to the steel shank.
Yes. The M6 × 1.0 mm coarse thread is the standard metric pitch and mates with any M6 hex nut, flange nut, T-nut, or M6-tapped hole machined to standard tolerance. They are widely used with aluminum extrusion T-slot nuts in 3D printer and CNC router frames.
Yes — M6 thumb screws are a popular choice for 2020, 2040, and 3030 aluminum extrusion builds. Pair them with M6 T-slot nuts or drop-in nuts rated for your profile series. The five-star knob makes it easy to adjust belt tension, panel positions, or accessory mounts without tools during assembly or tuning.
Count the number of fastening points in your project and add a small buffer for spares. Single-piece orders work well for replacement or testing fit. Packs of 5 or 10 are cost-effective for full enclosure builds or batch production of fixtures. The per-unit price decreases as pack quantity increases, so larger packs offer better value for multi-point assemblies.
The exact knob span varies by variant. Please refer to the variant options or contact us to confirm the specific knob diameter for your chosen size before ordering if clearance space is a concern in your design.
