When every gram matters and aesthetics count, standard steel fasteners fall short. Cyclists upgrading components, motorsport builders chasing weight savings, and precision DIYers who refuse to compromise on finish all face the same frustration: heavy, rust-prone screws that look out of place on a carefully built machine. These M6 titanium taper cap head screws are engineered for exactly those situations.

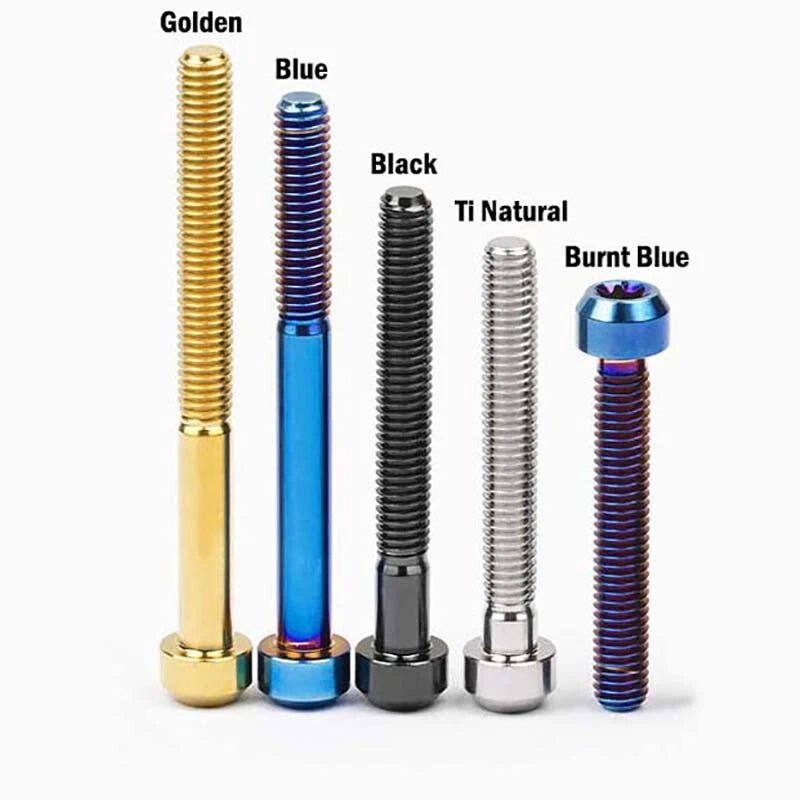

Each screw is machined from titanium alloy and features a taper (countersunk) cap head profile that sits flush or slightly proud of the surface for a clean, low-profile look. Available in thread lengths from 10mm (≈3/8") to 80mm (≈3-1/8"), with a standard M6×1.0mm coarse thread pitch. Choose from five anodized finishes: Ti Natural, Golden, Burnt Blue, Black, and Blue. Sold individually or in sets of 3, 5, or 10 pieces.

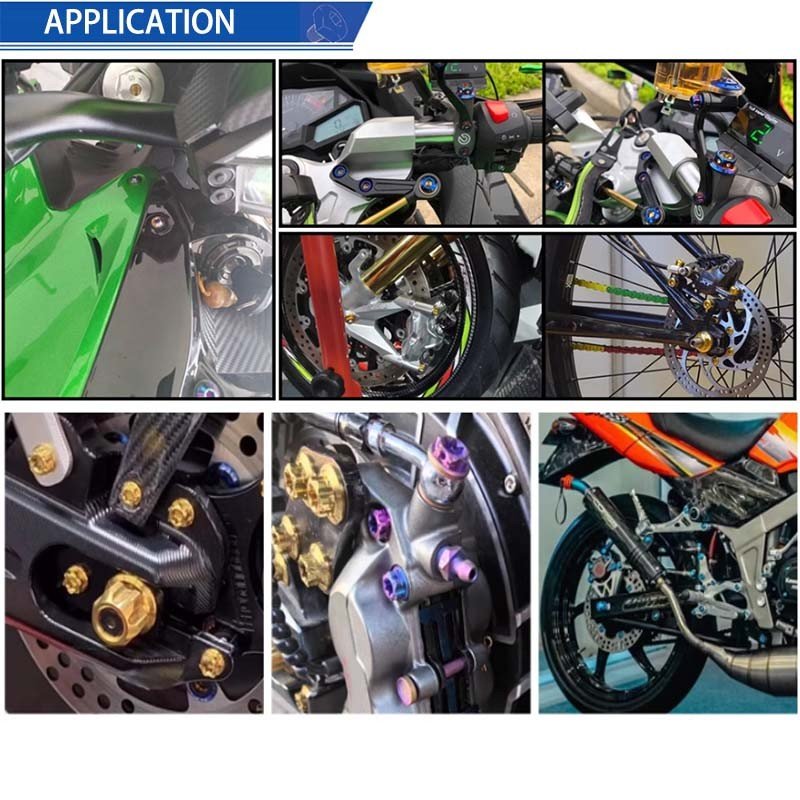

Typical use cases include bicycle stem and handlebar bolts, motorcycle fairing and bracket fasteners, lightweight camera rig and tripod hardware, and precision enclosure assembly where flush-mount M6 titanium fasteners reduce weight without sacrificing holding power.
| Material | Titanium alloy (typically Ti-6Al-4V Grade 5) |
|---|---|
| Head Type | Taper cap head (countersunk / flush-mount profile) |
| Drive Type | T30 Torx (6-point star) |
| Thread Standard | ISO Metric M6, coarse pitch (M6×1.0mm) |
| Thread Diameter | M6 (6mm / ≈0.236") |
| Available Lengths (thread only) | 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), 30mm (≈1-3/16"), 35mm (≈1-3/8"), 40mm (≈1-9/16"), 45mm (≈1-25/32"), 50mm (≈2"), 60mm (≈2-3/8"), 65mm (≈2-9/16"), 70mm (≈2-3/4"), 80mm (≈3-1/8") |
| Available Colors | Ti Natural, Golden, Burnt Blue, Black, Blue |
| Quantity per Order | 1, 3, 5, or 10 pieces (select variant) |
| Head Height | See variant options (not included in listed length) |
| Recommended Torque | Typically 6–9 Nm (use anti-seize compound) |
| Surface Treatment | Anodized (color-dependent) |
| Country of Origin | Contact us to confirm |
A general rule: the engaged thread length should be at least 1–1.5× the screw diameter for metal, and 2–3× for softer materials like aluminum or plastic. For M6 screws, that typically means at least 6–10mm of thread engagement. Measure your material thickness and add clearance for the taper head recess. Available lengths range from 10mm (≈3/8") to 80mm (≈3-1/8") — if you're unsure, size up rather than down.
Grade 5 titanium (Ti-6Al-4V) generally offers tensile strength comparable to or exceeding many stainless steel grades, while weighing approximately 40–45% less. For most cycling, motorsport, and precision hardware applications, titanium fasteners typically provide sufficient strength with significant weight savings. For safety-critical structural applications, always verify load requirements with an engineer.
Yes. Titanium is naturally highly corrosion-resistant due to its stable oxide layer, making it well-suited for marine, outdoor, and humid environments. It generally outperforms standard stainless steel in salt-spray resistance. No additional coating is required for most outdoor applications, though the anodized finish adds an extra layer of surface protection.
These screws use standard ISO metric M6 coarse thread (M6×1.0mm pitch), compatible with any standard M6 threaded hole, nut, or insert. They are not compatible with M6 fine-thread (M6×0.75) applications — confirm your thread pitch before ordering. Most bicycle, automotive, and general hardware M6 applications use the coarse 1.0mm pitch.
For titanium M6 screws, a torque of approximately 6–9 Nm is typically recommended for general applications, though the exact value depends on the mating material and application. Always apply a small amount of anti-seize compound (titanium-compatible, such as copper-based or nickel-based) to prevent galling. Consult your component manufacturer's torque specification when available — never exceed it.
The listed length (e.g., M6×25mm) refers to the thread shank length only, not including the taper cap head. When planning your installation, account for the additional head height when calculating total fastener length. This is standard practice for countersunk/taper head fasteners across all standards.
You need a T30 Torx (6-point star-shaped) driver bit. T30 is a common size available in most quality bit sets and torque wrenches. Do not use a Phillips or hex driver — doing so will damage the drive recess and may strip the head. A calibrated torque wrench with a T30 bit is strongly recommended for precision installations.
