When you need to make frequent adjustments, swap panels, or secure enclosures without reaching for a wrench, standard hex bolts slow you down. These M8 knurled thumb screws are built for makers, workshop builders, and equipment assemblers who demand fast, repeatable hand-tightening without sacrificing holding strength.

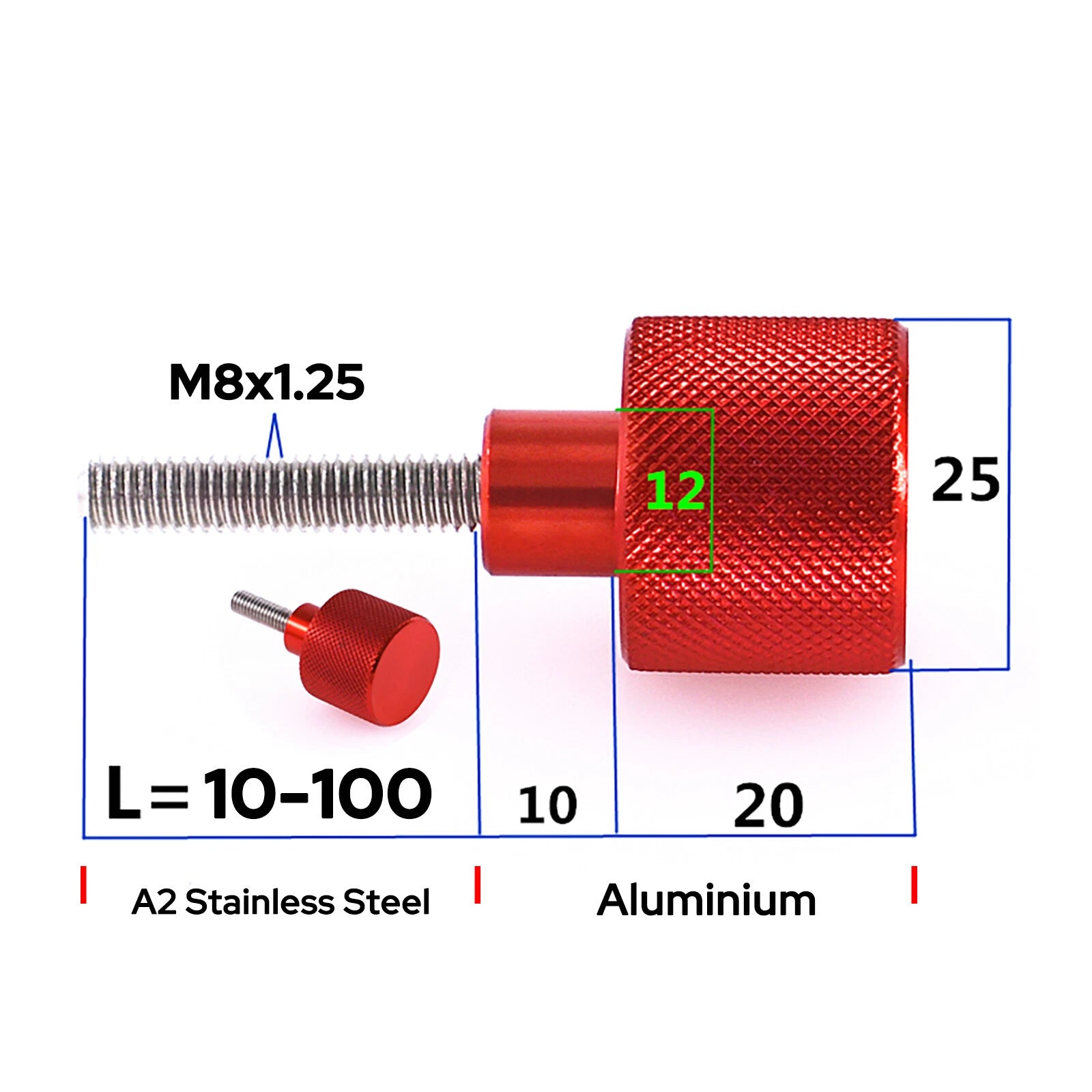

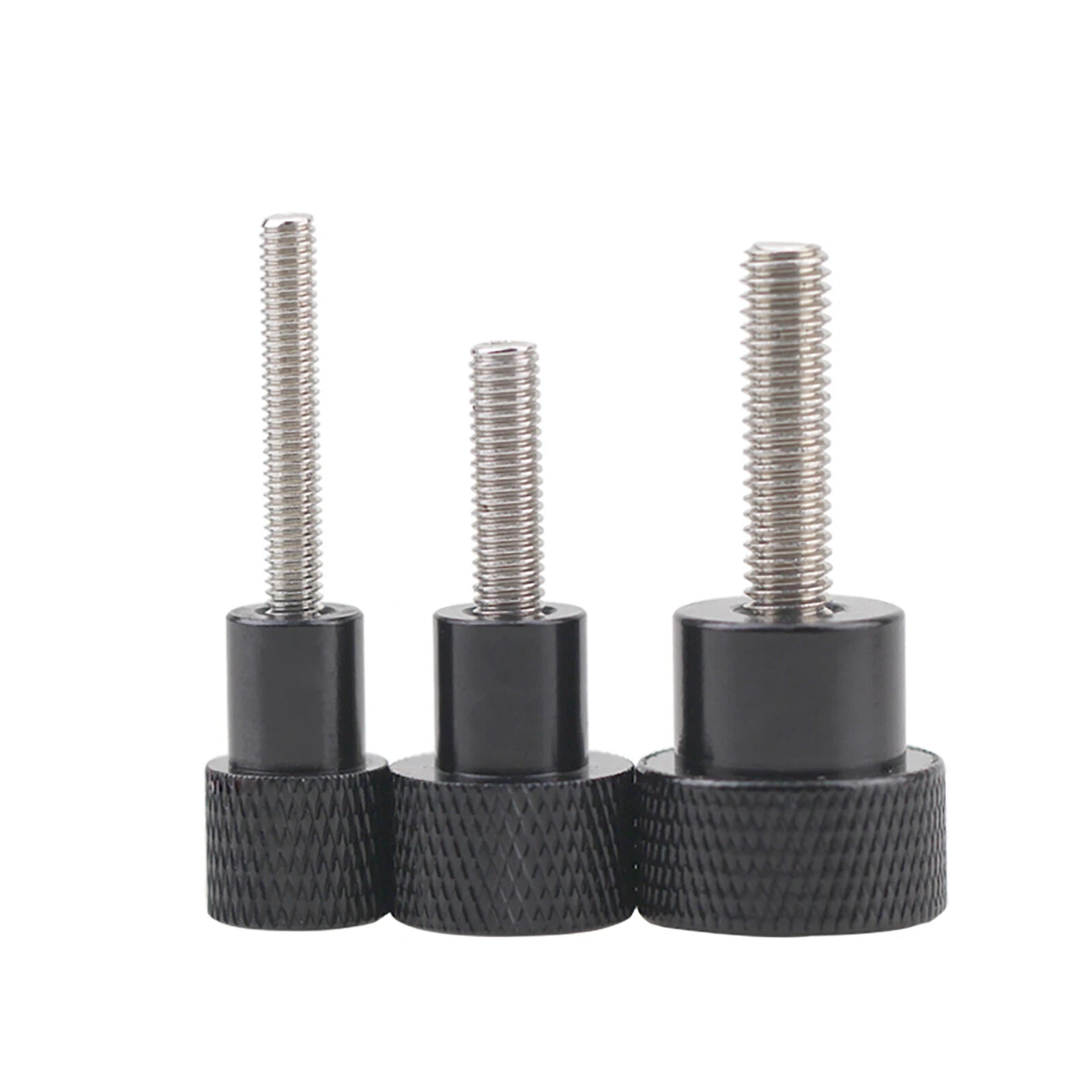

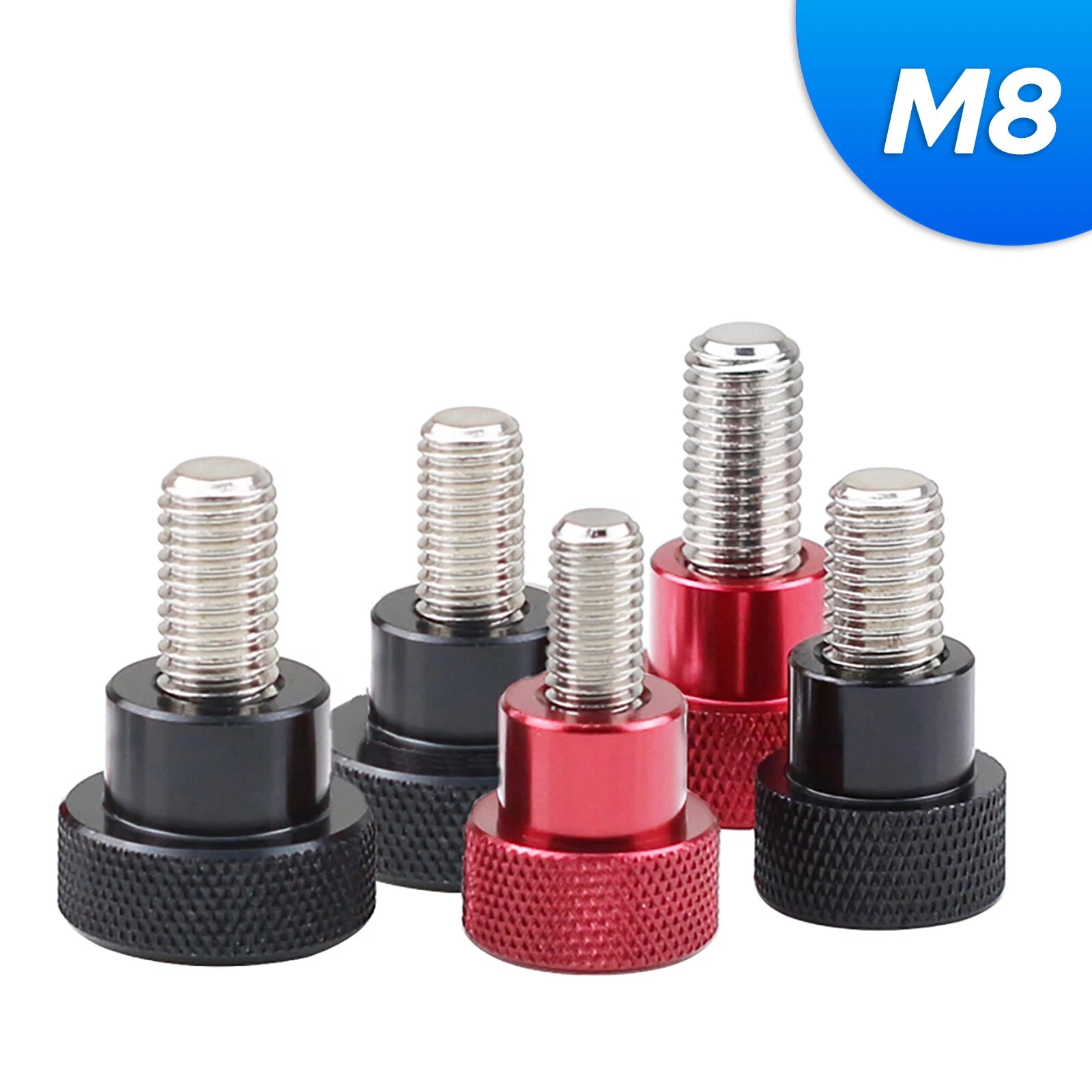

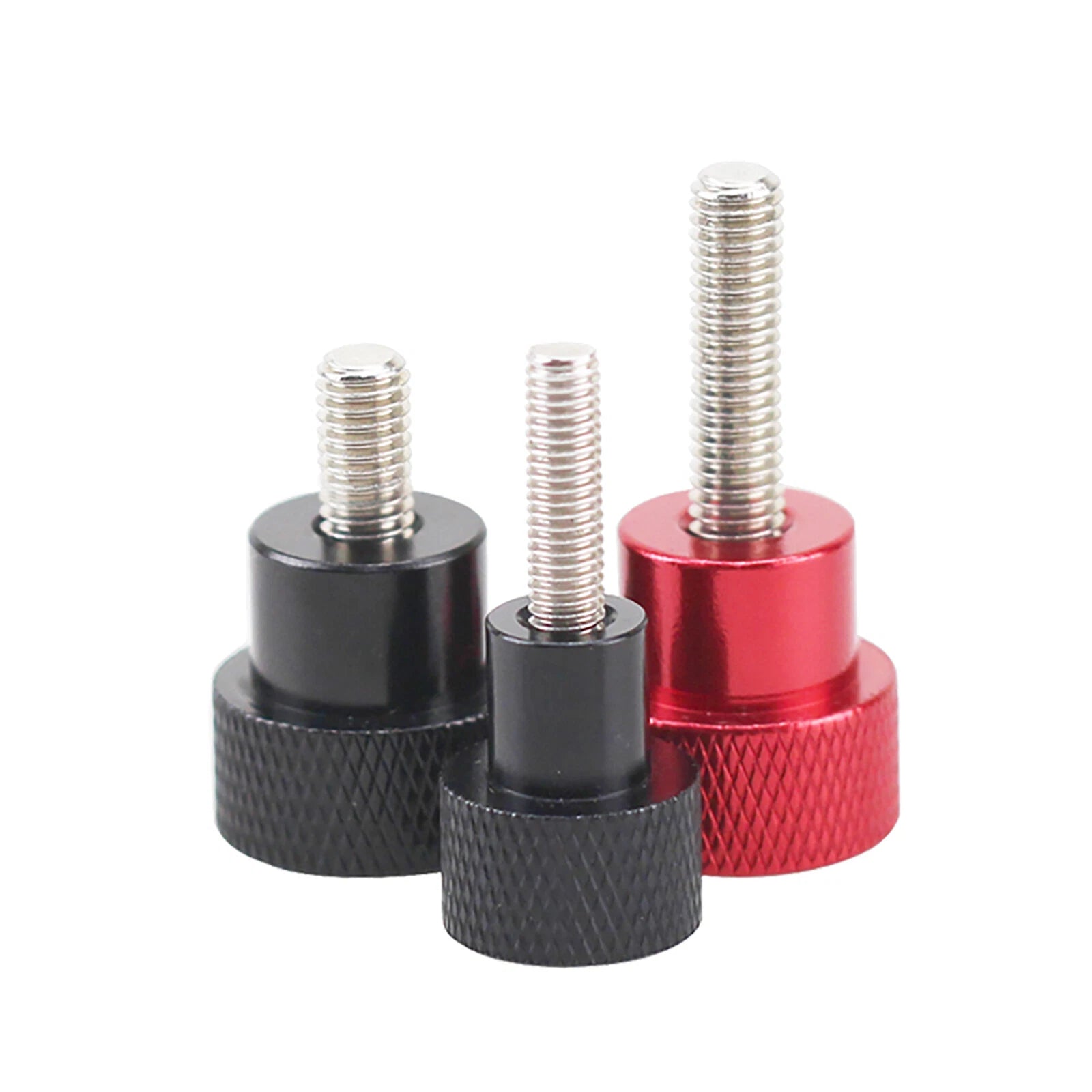

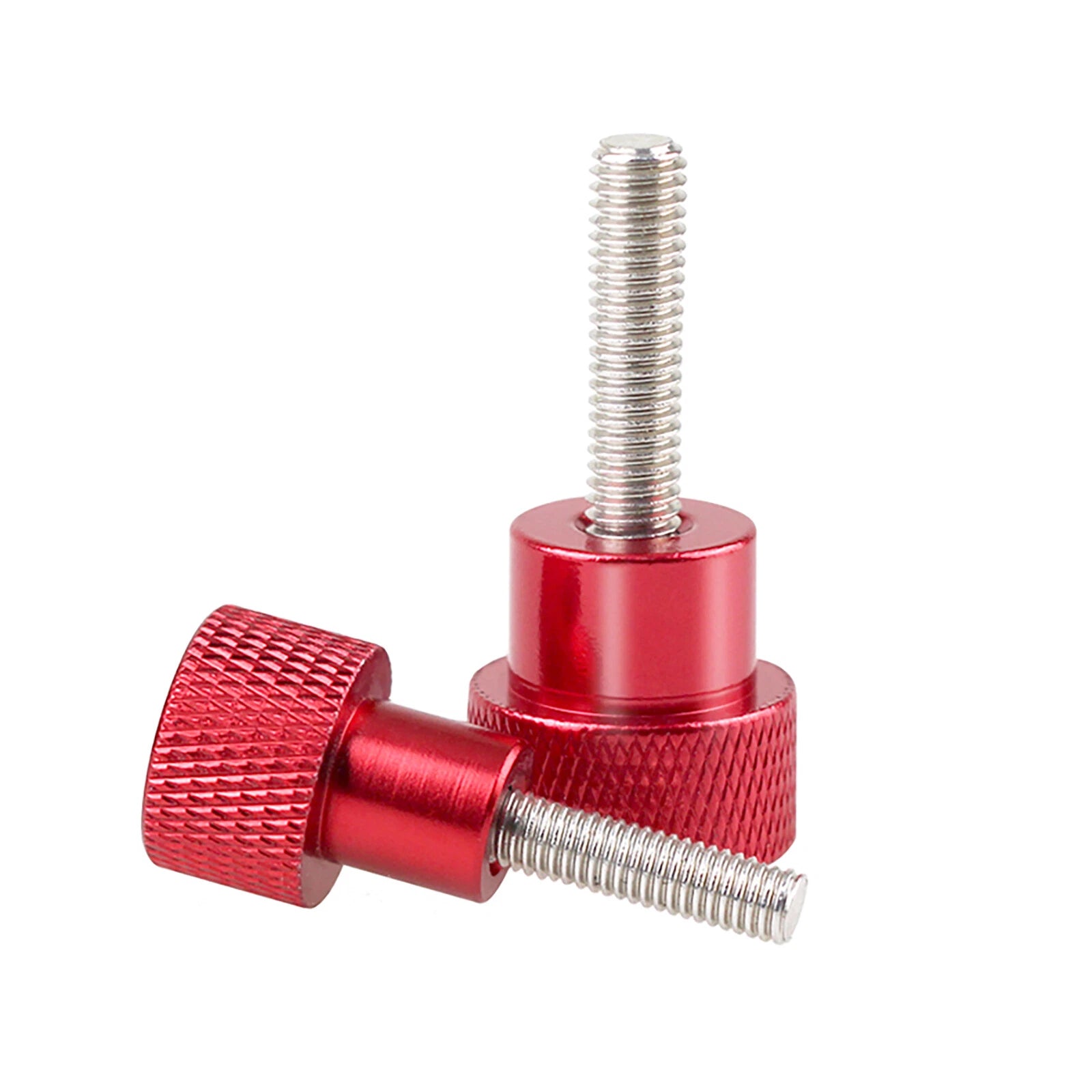

Each screw combines an A2 stainless steel threaded shank with an anodised aluminium knurled head, conforming to DIN 464 standard. The M8 thread pitch is 1.25 mm (standard coarse), and shaft lengths range from 10 mm to 100 mm (approx. 0.39 in to 3.94 in). Available in Black or Red anodised finish, sold in packs of 1, 5, or 10.
Typical applications include securing 3D printer frames and bed assemblies, adjusting jigs and fixtures on CNC routers, fastening access panels on electronic enclosures, and hand-tightening clamps on photography rigs and tripod accessories — all scenarios where M8 thumb screw hand-tightening bolts save time on the bench.
| Thread Size | M8 |
|---|---|
| Thread Pitch | 1.25 mm (Coarse) |
| Thread Standard | DIN 464 |
| Shank Material | A2 Stainless Steel (304) |
| Head Material | Anodised Aluminium |
| Head Style | Round Knurled (Thumb Screw) |
| Drive Style | Hand / Thumb (No Tool Required) |
| Available Lengths | 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100 mm |
| Available Colours | Black, Red (Anodised) |
| Pack Quantities | 1, 5, 10 |
| System of Measurement | Metric |
| Head Diameter | See variant options |
| Overall Weight (per piece) | See variant options |
Select a length that allows the screw to engage at least 1.0–1.5× the thread diameter (8–12 mm) into the receiving material for reliable holding. For thin panels (3–6 mm), a 10–15 mm screw is typically sufficient. For thicker assemblies or where you need extra reach, choose 20–50 mm. Lengths of 60–100 mm suit deep-reach or stacked-material applications.
Knurled thumb screws are designed for hand-tightening loads, not high-torque clamping. The A2 stainless steel shank provides solid tensile strength for the thread itself, but the aluminium head limits the torque you can apply by hand. They are ideal for panels, guards, and adjustable fixtures that need frequent removal — not for structural joints requiring specified torque values.
The A2 stainless steel shank offers good corrosion resistance suitable for indoor use and light outdoor or damp environments. The anodised aluminium head also resists surface oxidation. For harsh marine or chemical environments, consider A4 (316) stainless steel alternatives, as A2 may show surface staining over extended exposure to salt or strong acids.
Yes — these screws use the standard M8 × 1.25 mm coarse thread, which is the most common M8 pitch used in general engineering, 3D printer frames, aluminium extrusion systems (e.g., 2020/4040 profiles with M8 T-nuts), and electronic enclosures. If your application uses M8 fine pitch (1.0 mm), these screws will not be compatible.
Both colours are functionally identical — same A2 stainless steel shank, same DIN 464 dimensions, same knurl pattern. The difference is purely the anodised colour of the aluminium head. Red is popular for quick-release or adjustment points that need to stand out visually on a build; Black suits builds where a low-profile, uniform appearance is preferred.
The 1-pack is ideal if you need a single replacement or want to test fit before committing. The 5-pack suits most project builds — for example, securing five access points on an enclosure. The 10-pack offers the best per-unit value and is recommended for workshop stock, production jigs, or builds with multiple adjustment points of the same size.
Yes, M8 knurled thumb screws are commonly used with M8 T-slot nuts in aluminium extrusion systems. They allow tool-free panel attachment and quick repositioning of brackets, stops, and guards. Ensure your T-nut or insert is rated for M8 and that the screw length clears the extrusion channel depth before bottoming out.
