When you need to tighten or loosen fasteners repeatedly without reaching for a tool, standard hex bolts become a frustrating bottleneck. Makers, machine builders, and workshop technicians who adjust fixtures, guards, or panels on a daily basis need a fastener they can operate bare-handed — quickly and reliably. These M8 knurled thumb screws with stepped hand-grip knobs are designed exactly for that workflow.

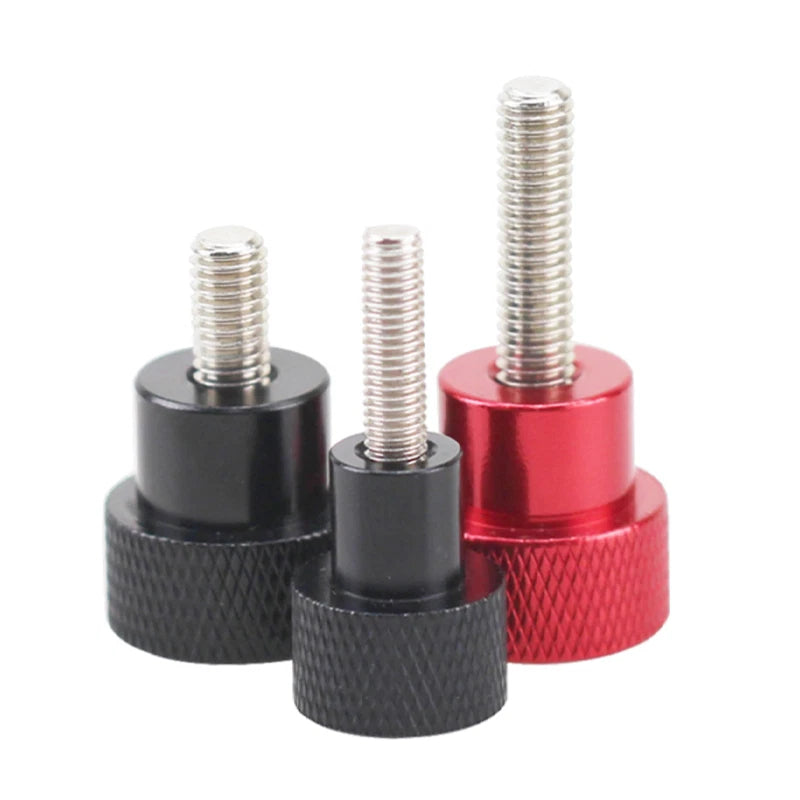

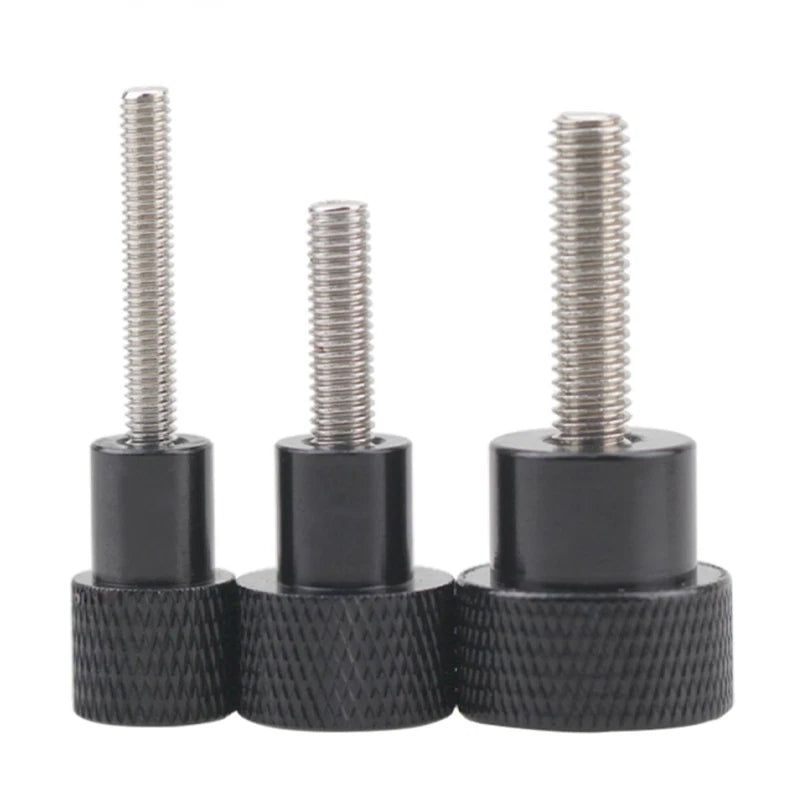

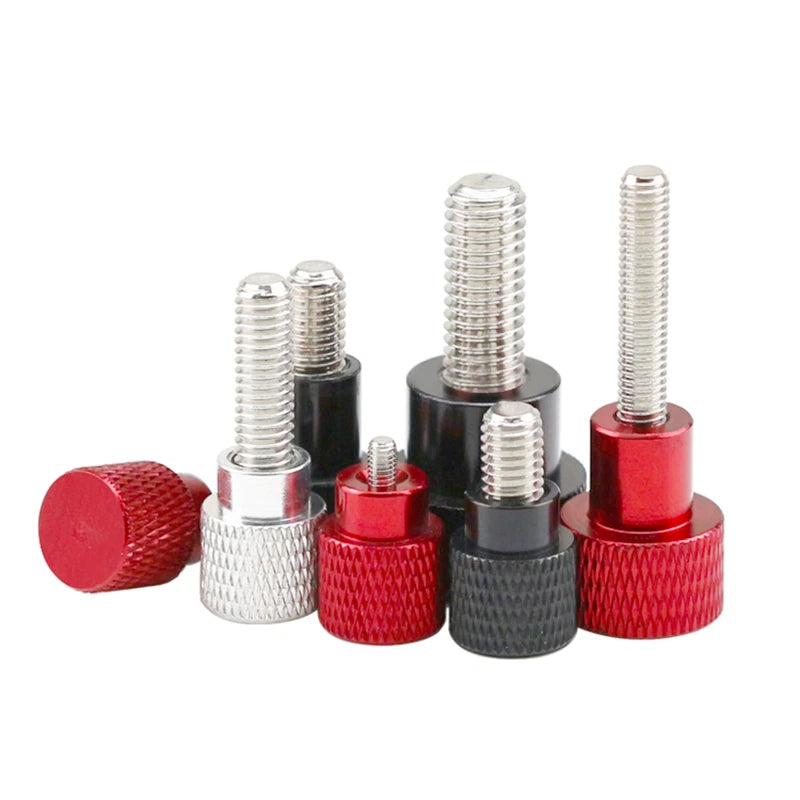

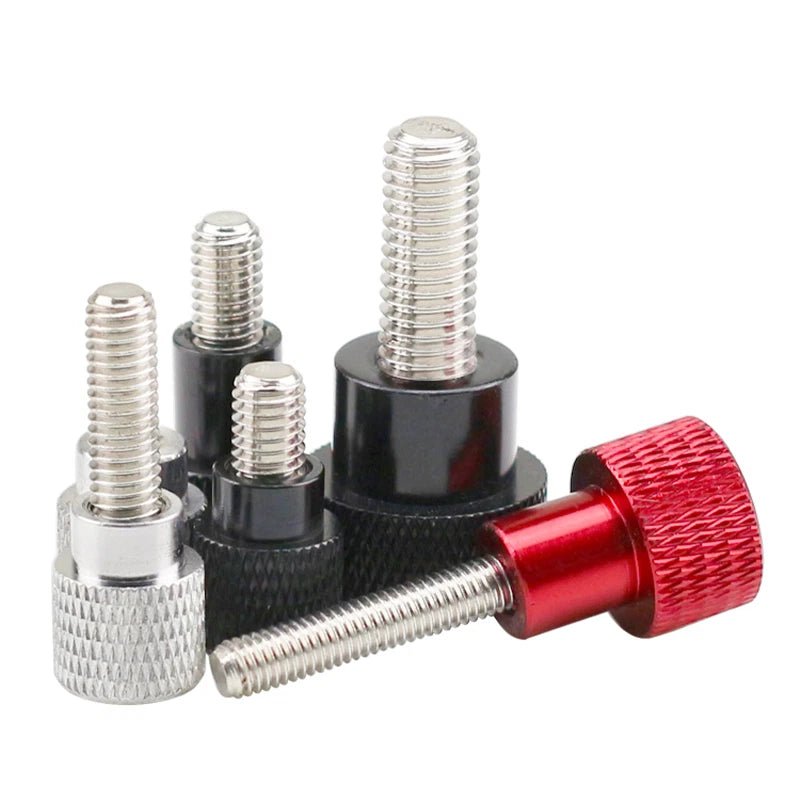

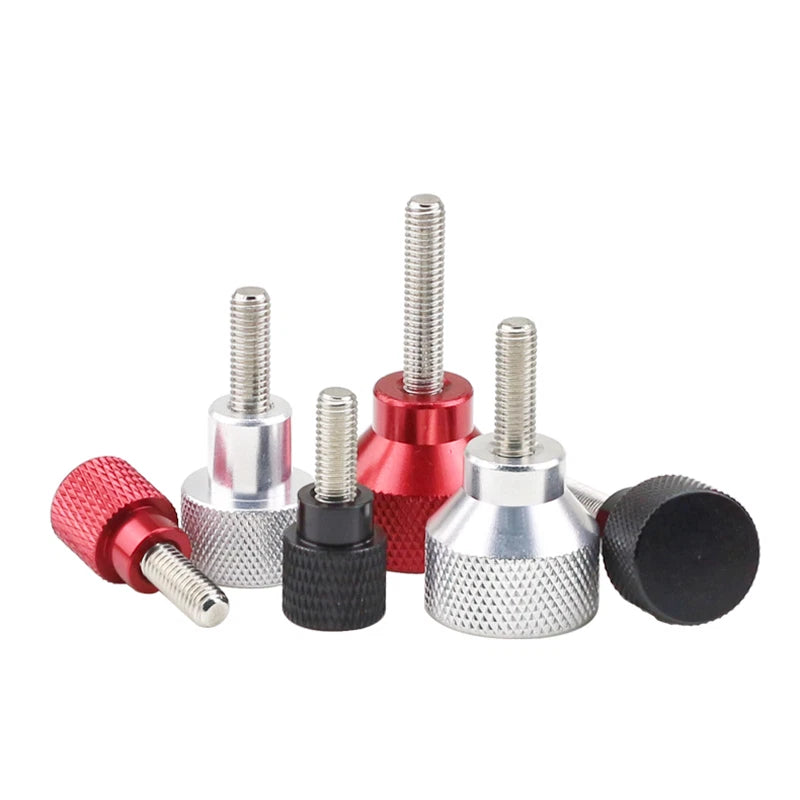

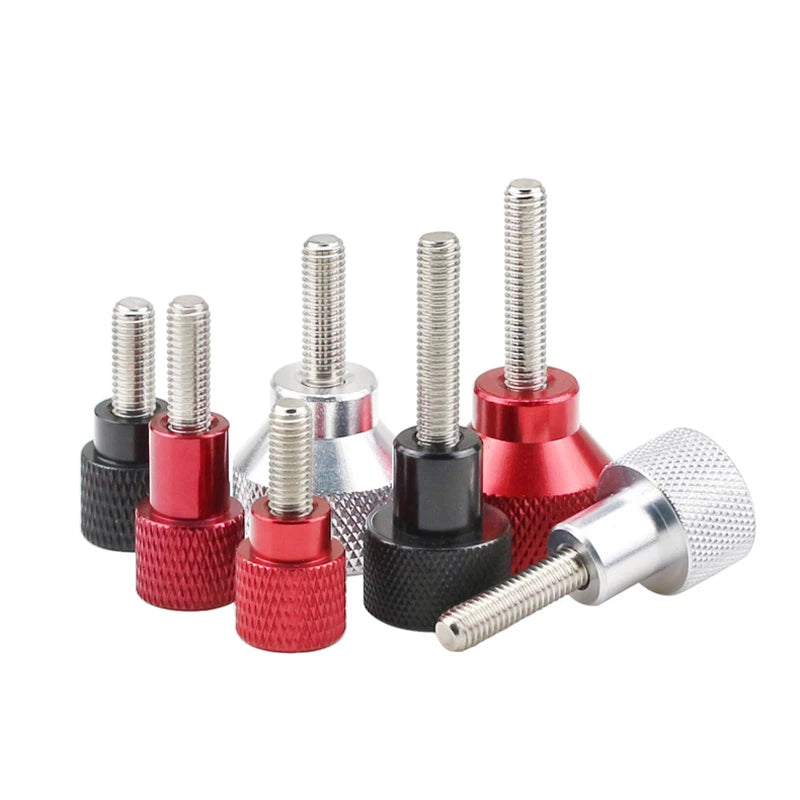

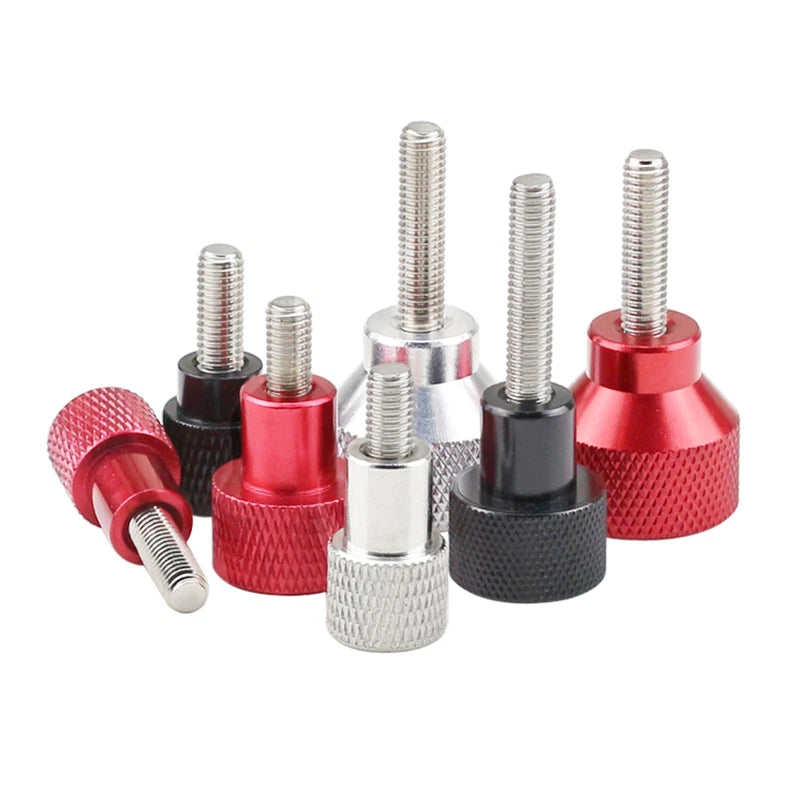

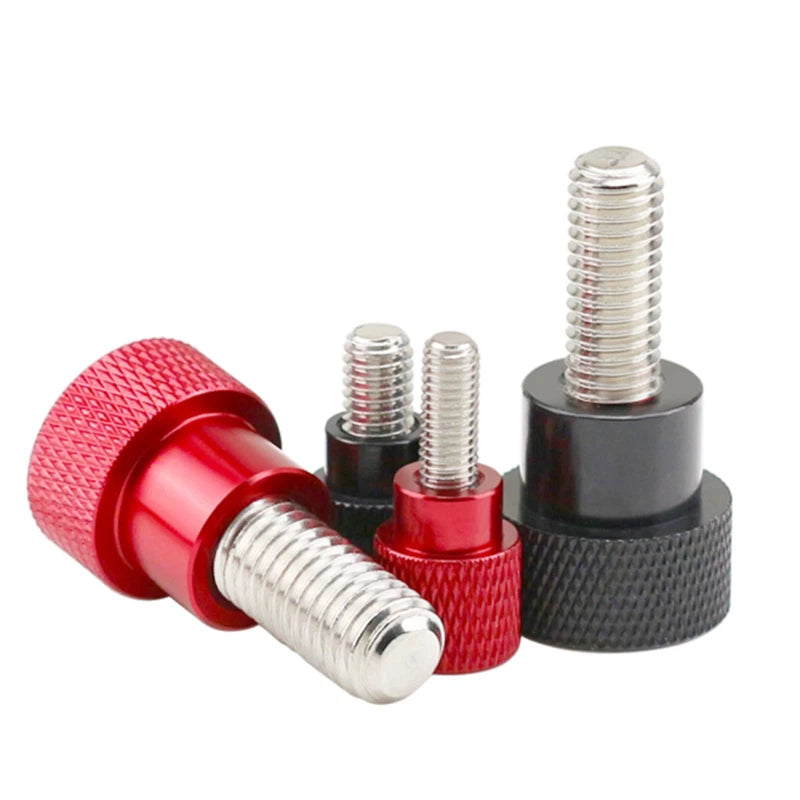

Each screw is machined from aluminium alloy and features a stepped cylindrical knob (handle diameter 20 mm / ~0.79 in, handle length 20 mm / ~0.79 in) with a knurled outer surface for a secure finger grip. The M8 threaded shank is available in lengths from 15 mm (~0.59 in) to 135 mm (~5.31 in), covering a wide range of clamping depths. Colour options — Red, Black, and White — allow colour-coding by zone or function on multi-axis equipment.
Typical applications include CNC router hold-down clamps, 3D printer bed levelling knobs, jig and fixture quick-release points, electronics enclosure panel fasteners, and laboratory instrument access covers — anywhere hand-adjustable M8 knurled thumb screws replace tool-dependent bolts.

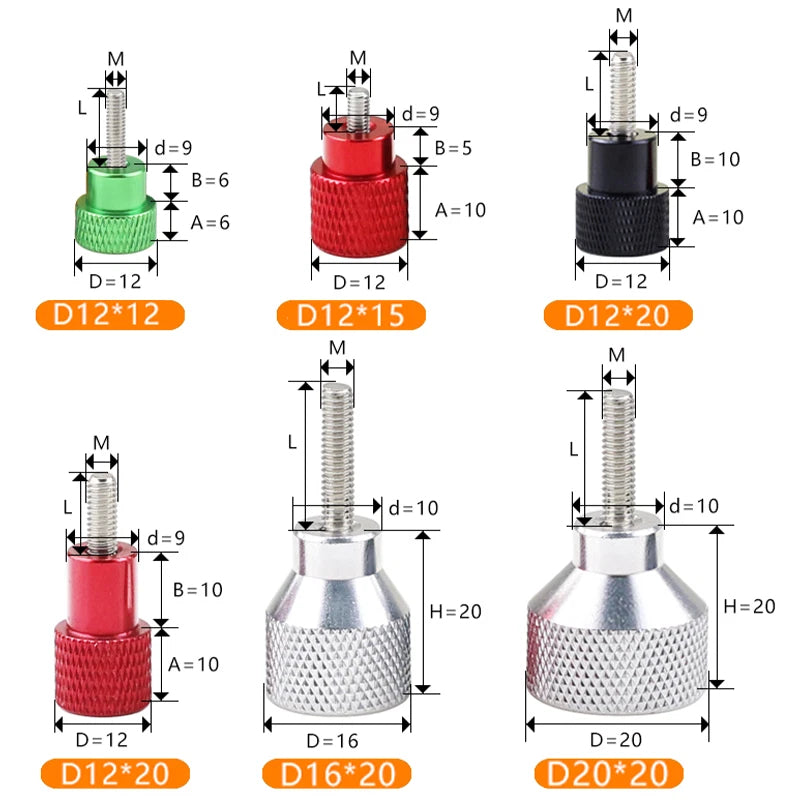

The stepped cylindrical handle (D20 × L20 mm) provides a positive finger grip for confident hand-tightening without slipping, even with slightly oily hands.

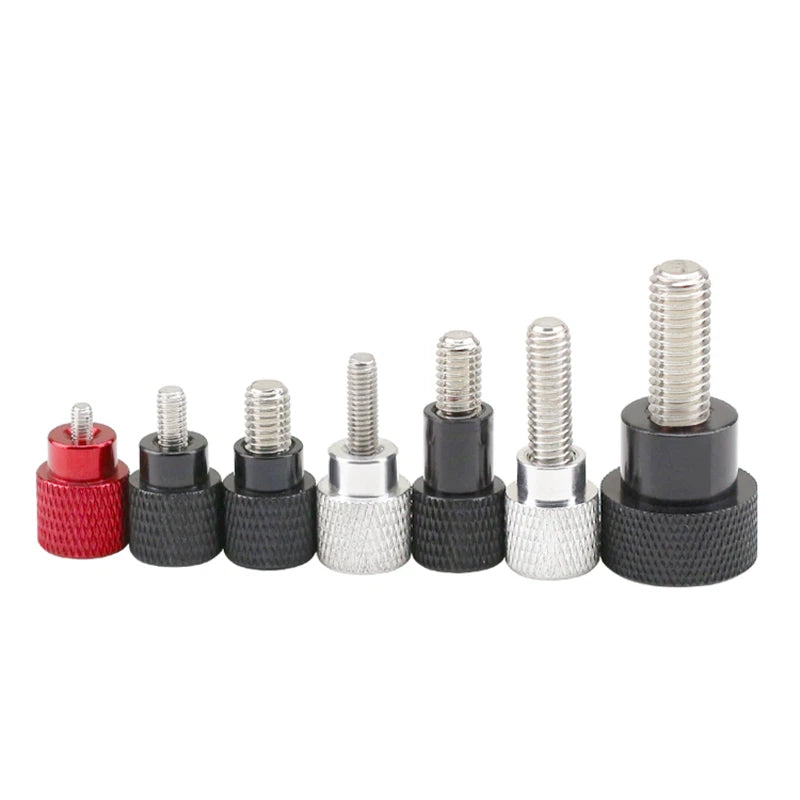

Available from M8×15 mm to M8×135 mm in 19 increments, so you can match the exact clamping depth of your application without shimming or stacking washers.
Lightweight yet rigid aluminium alloy body keeps added mass minimal — ideal for moving fixtures, robotic arms, and portable jigs where every gram matters.

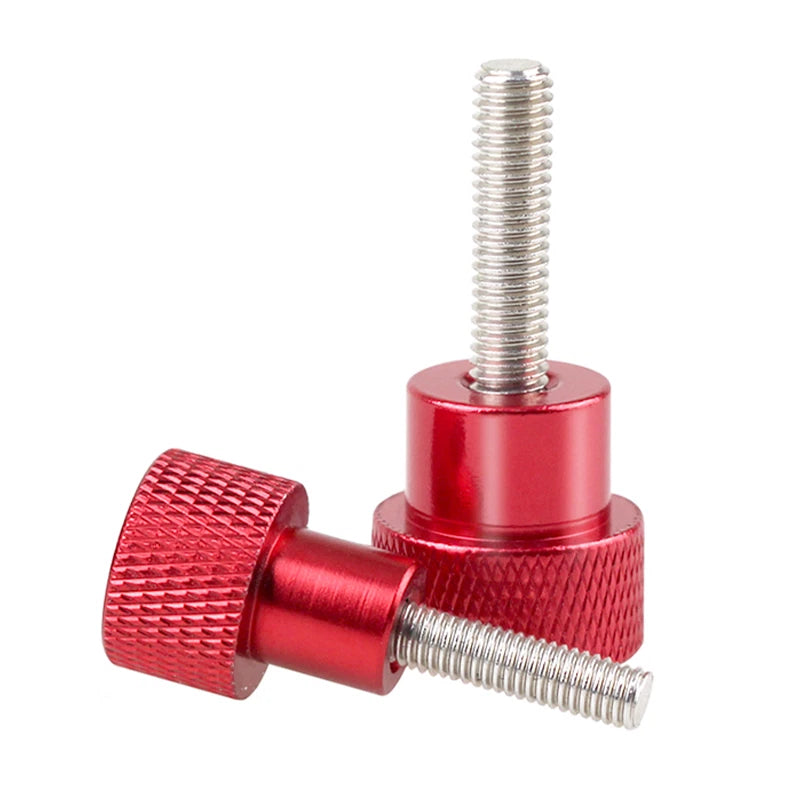

Red, Black, and White finishes allow intuitive colour-coding of adjustment points on multi-axis machines, assembly fixtures, or safety-critical access panels.
Order 1, 5, 10, or 50 pieces per variant — whether you need a single replacement or a bulk supply for a production line build.
Eliminates the need for hex keys or spanners at frequently accessed fastener points, reducing setup time and the risk of misplaced tools during maintenance cycles.
| Thread Size | M8 |
|---|---|
| Thread Pitch | 1.25 mm (standard metric coarse) |

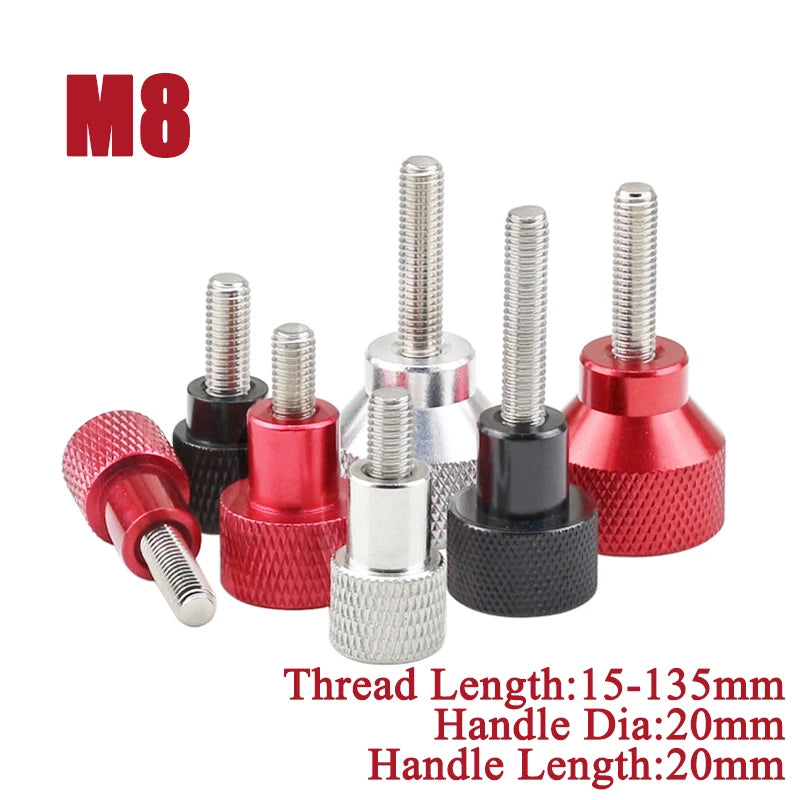

| Shank Length Range | 15 mm – 135 mm (0.59 in – 5.31 in) |
| Handle Diameter | 20 mm (~0.79 in) |
| Handle Length | 20 mm (~0.79 in) |
| Head Style | Flat (stepped cylindrical knob) |
| Material | Aluminium Alloy |
| Surface Finish | Knurled outer surface |
| Colour Options | Red, Black, White |
| Available Quantities | 1 / 5 / 10 / 50 pcs per order |
| Drive Style | Hand-tightened (no tool required) |
| Weight (per piece) | See variant options |
Measure the total clamping depth — the distance from the top surface of your workpiece or panel to the bottom of the threaded hole or nut. Select a shank length equal to or slightly longer than that depth. For through-hole applications, add the thickness of any washers or spacers. The available range is M8×15 mm to M8×135 mm.
The screws are machined from aluminium alloy, which offers a good balance of low weight and structural rigidity. They are suitable for light-to-medium clamping loads in dry or mildly humid indoor environments.
Aluminium alloy has natural oxidation resistance that provides moderate protection against moisture and mild chemicals. For harsh outdoor environments, prolonged exposure to salt spray, or chemical-heavy settings, consider applying a protective coating or selecting stainless steel alternatives.
These use the standard M8 coarse thread pitch of 1.25 mm, which is the most common M8 specification worldwide. They will fit any standard M8-threaded hole, insert nut, or hex nut. If your application uses M8 fine thread (1.0 mm pitch), these screws will not be compatible — please verify your thread specification before ordering.
The 20 mm diameter knurled knob allows comfortable finger torque for light clamping and panel retention tasks. These are not designed to replace high-torque structural bolts. For applications requiring precise clamping force, use a torque-limiting tool or supplement with a locking mechanism such as a nylon-insert nut.
Yes — M8 knurled thumb screws are widely used for 3D printer bed levelling, CNC router hold-down clamps, and jig quick-release points. The stepped knob provides enough grip for repeatable hand-adjustment during calibration cycles. Confirm that your printer or fixture uses M8 thread before ordering.
Red, Black, and White options allow colour-coding of adjustment points on multi-axis machines, assembly fixtures, or safety-critical panels. For example, Red can indicate a frequently adjusted axis, Black for fixed reference points, and White for operator-accessible covers — reducing the chance of accidental adjustment during operation.
