Marine 316 Stainless Steel Boat Rail Stanchion Base - Front, Center & Rear Mounts for Yacht Handrails - 1 Inch Tube

Marine 316 Stainless Steel Boat Rail Stanchion Base - Front, Center & Rear Mounts for Yacht Handrails - 1 Inch Tube

Name: Marine 316 Stainless Steel Boat Rail Stanchion Base - Front, Center & Rear Mounts for Yacht Handrails - 1 Inch Tube
Brand: HomeDIYer
SKU: HKTBCLA440001
Price: 36.8 USD
Availability: InStock

$36.80 USD

In stock

By HomeDIYer®

Quantity Discount Promotion

Style:25mm Fore/Aft Support Bracket

Variant

Quantity:

Pickup currently unavailable at Illinois

Illinois

Pickup currently unavailable

150 Hastings Drive
Buffalo Grove IL 60089
United States

+18479091828

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

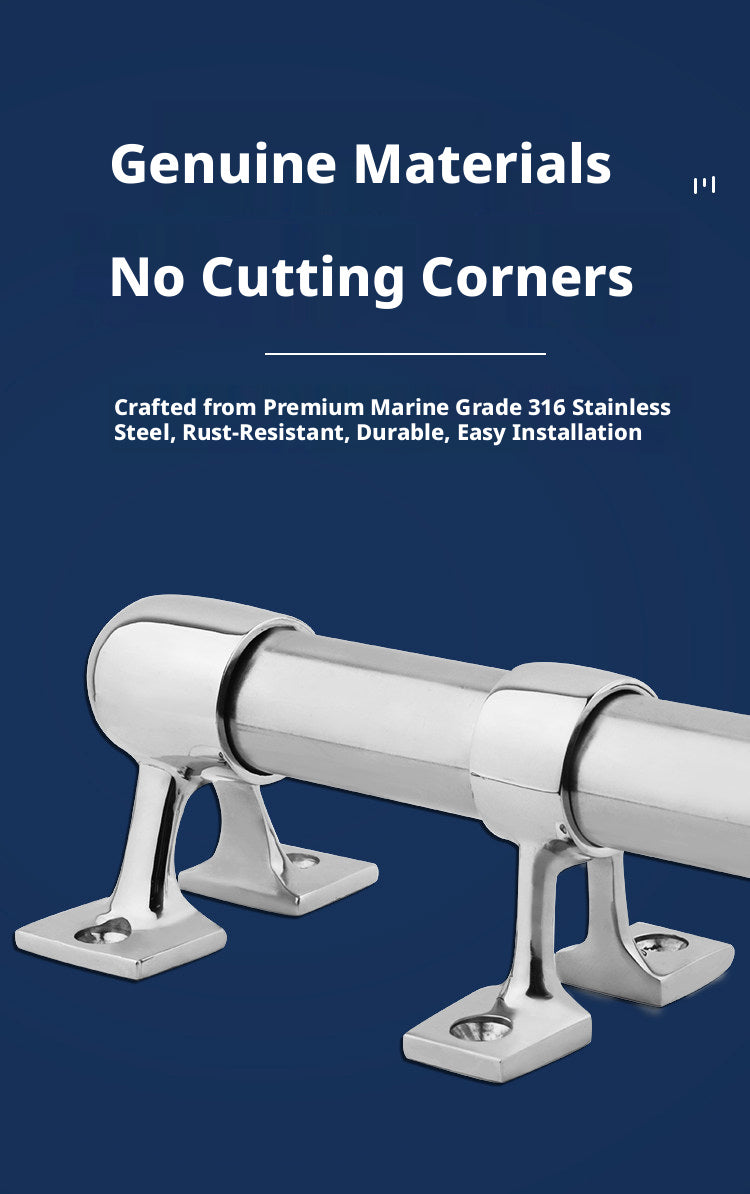

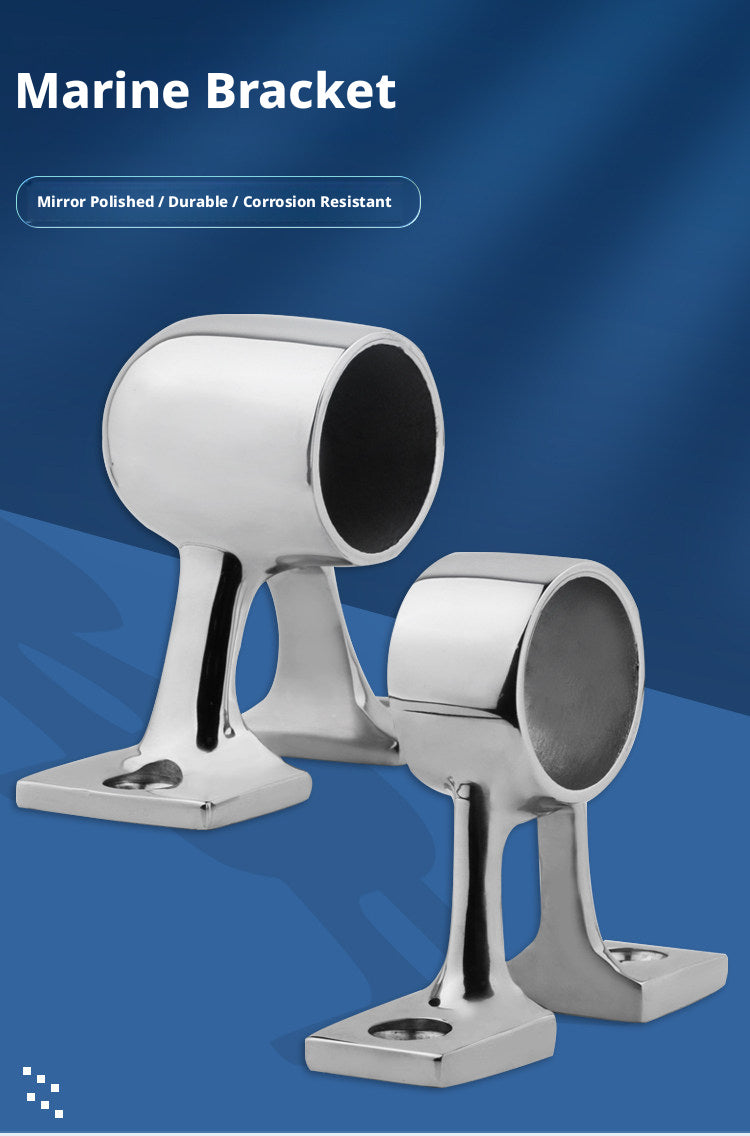

⛵ Marine Grade 316 Stainless Steel Rail Stanchion Base – Secure Handrail Mounts for Boat Bow, Midship & Stern

Whether you are upgrading your yacht's railing system, replacing a rusted stanchion base on your fishing boat, or building a custom safety rail from scratch, these 316 stainless steel boat rail mounts are exactly what you need. Crafted using the precision silica sol investment casting process, they offer a perfect mirror finish and exceptional resistance to saltwater corrosion. These heavy-duty brackets feature a sleek, low-profile design that securely holds 25.5mm (1 inch) tubing in place, providing a rock-solid foundation for your bow, midship, and stern handrails.

⚙️ Key Features of These 316 Stainless Steel Boat Rail Mounts

Marine-Grade 316 Stainless Steel: Built to withstand the harshest saltwater environments. Unlike cheap steel or 304 stainless steel, 316 provides superior resistance to pitting, rust, and corrosion caused by salt spray and humidity on your boat or yacht.

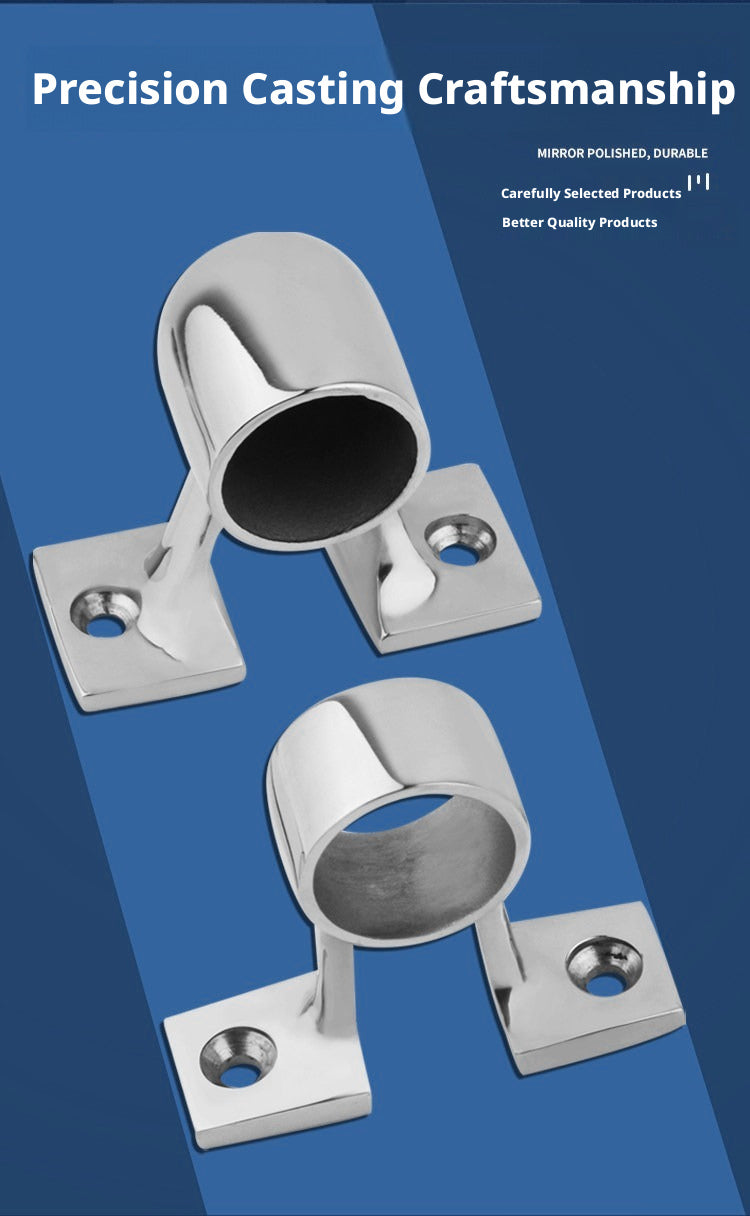

Precision Silica Sol Casting (Investment Casting): This advanced manufacturing technique creates a dense, flawless stainless steel structure. The result is a stronger, smoother, and more durable part compared to common sand-casting methods.

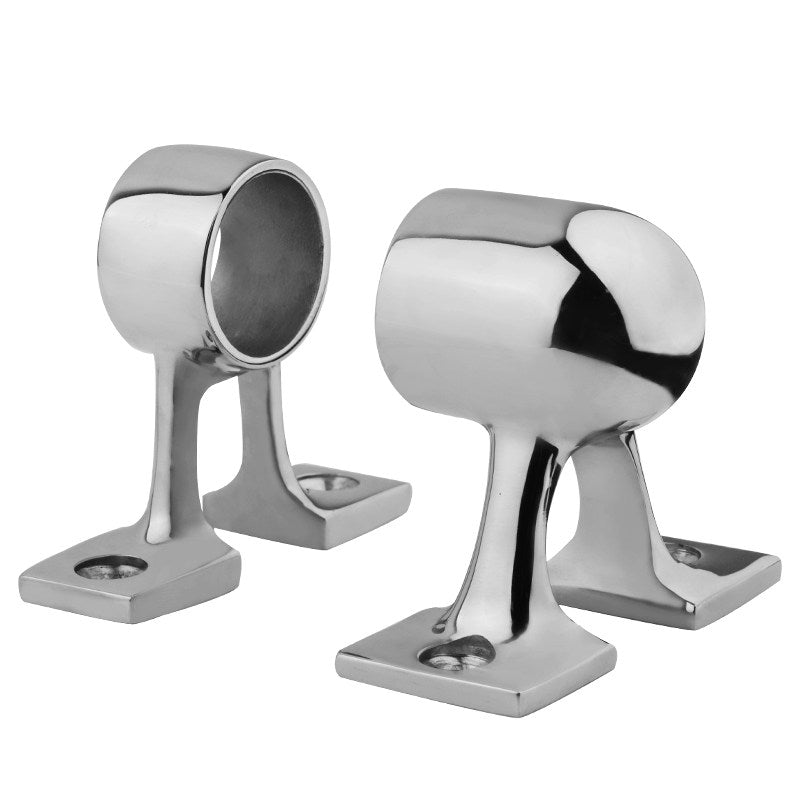

Versatile Front, Center & Rear Mounting Options: Available in two distinct designs to fit different locations along your boat's railing layout. Whether you need a sturdy base for the bow, a flexible mount for midship, or a secure mount for the stern (aft), we have the right hardware.

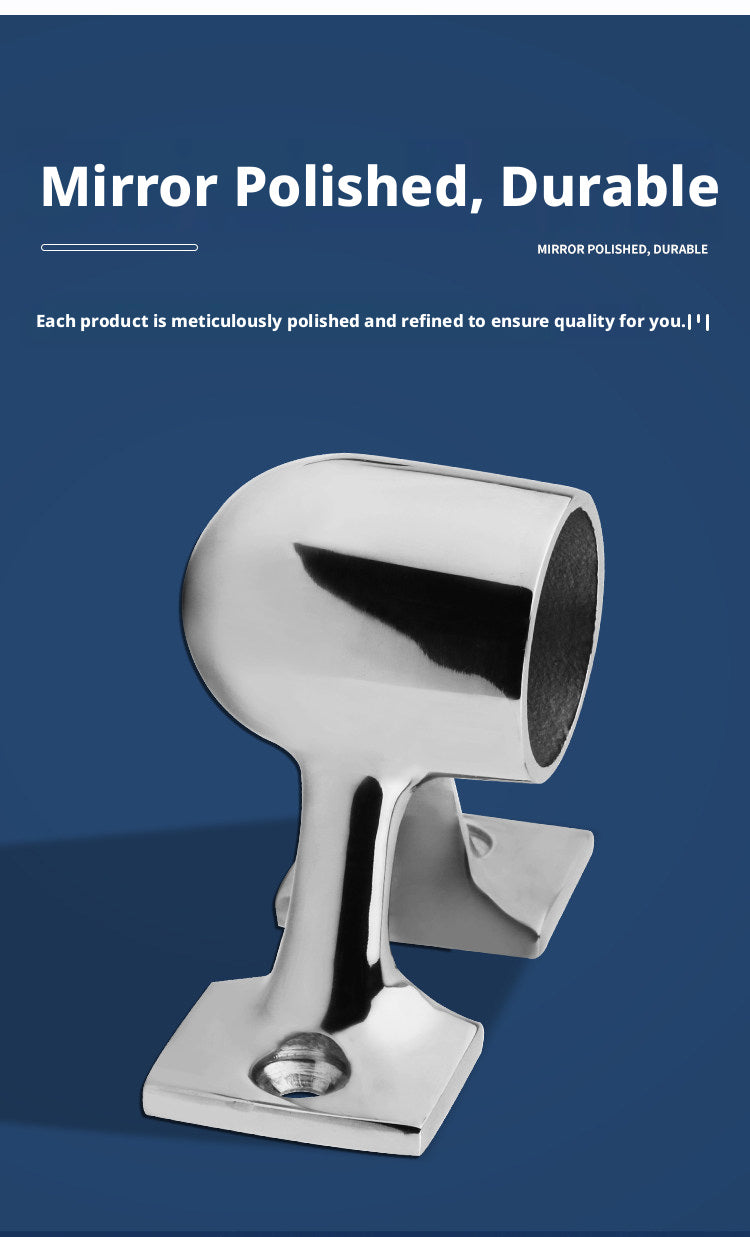

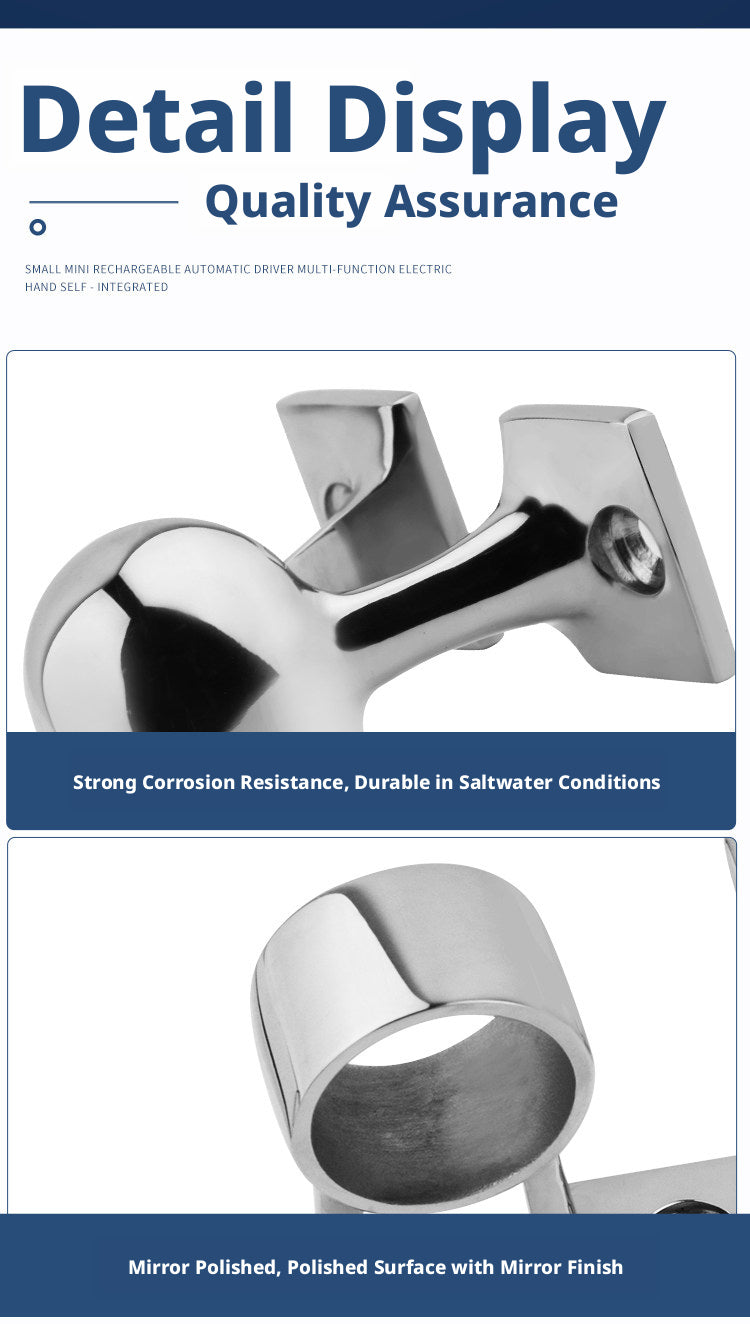

Mirror Polished Finish – Easy to Clean: Each rail mount undergoes a thorough hand-polishing process to achieve a brilliant, mirror-like shine. This not only makes your boat look sharp but also makes maintenance a breeze – salt and grime wipe right off.
Secure Fit for Standard 1-inch (25.5mm) Tubing: The inner diameter is precisely machined to 25.5mm (approx 1 inch), creating a tight, secure fit for most standard marine stainless steel railing tubes. The 2-hole base design makes installation straightforward.

📐 Product Specifications

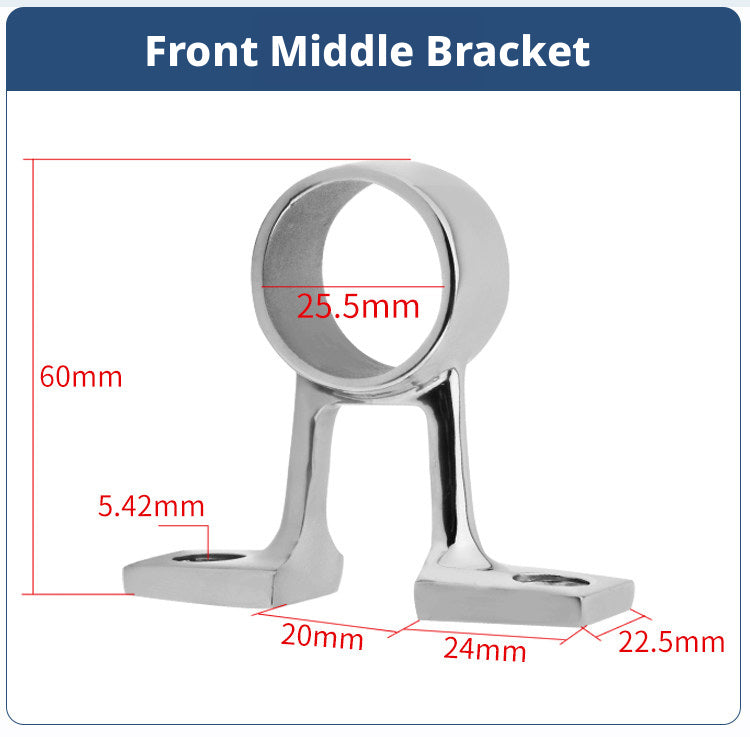

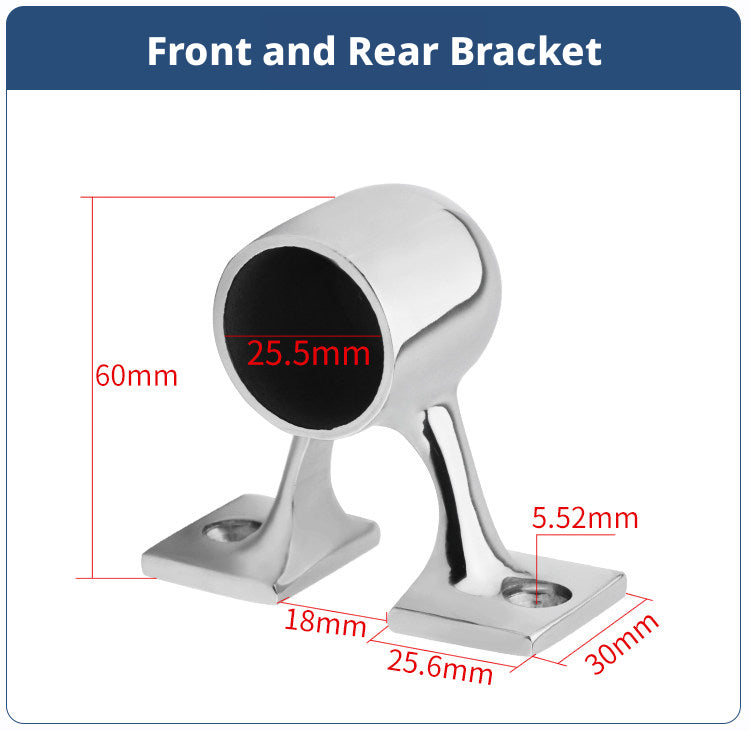

Parameter	Front / Center Stanchion	Front / Rear Stanchion
Material	Marine Grade 316 Stainless Steel
Casting Process	Silica Sol Investment Casting
Surface Finish	Mirror Polished
Height	60mm (approx 2.36 inches)	60mm (approx 2.36 inches)
Tube Inner Diameter	25.5mm (approx 1 inch)	25.5mm (approx 1 inch)
Base Length	24mm (approx 0.94 inches)	25.6mm (approx 1.01 inches)
Base Width	22.5mm (approx 0.89 inches)	30mm (approx 1.18 inches)
Recommended Screw Hole Diameter	5.42mm (approx 0.21 inches)	5.52mm (approx 0.22 inches)
Mounting Holes	2 Holes per base
Application	Bow, Midship	Bow, Stern (Aft)

❓ Frequently Asked Questions About Boat Rail Stanchions

Are these boat rail mounts designed for saltwater use?

Yes, absolutely. They are made from 316 marine-grade stainless steel, which is specifically formulated to resist the corrosive effects of saltwater. This is the standard for high-quality yacht and boat hardware.

Do they come with mounting screws?

No, screws are not included with the purchase. You should select marine-grade 316 stainless steel screws to match the base. For best results, use a silicone sealant or marine caulk beneath the base to ensure a fully watertight installation against your boat's deck.

What is the difference between the "Front/Center" and "Front/Rear" style brackets?

The main difference is in the base footprint. The "Front/Center" (standard stanchion) has a slightly shorter, narrower base, making it suitable for tighter spaces like the bow or midship. The "Front/Rear" (aft) has a wider, longer base for increased stability on the transom or stern. Always measure your available deck space before ordering.

Will these fit a 1-inch (25.4mm) tube?

Yes, they are designed to fit standard 1-inch OD tubing perfectly. The inner diameter of the ring is 25.5mm, which provides a snug fit for 25.4mm tubing. You may need to lightly sand or file the inside of the tube if it is oversized for a smooth installation.

What is silica sol casting and why is it better than standard casting?

Silica sol investment casting is a premium manufacturing process that uses a fine ceramic mold to create parts with exceptional surface finish and dimensional accuracy. It results in a denser, smoother, and stronger final product with almost no porosity, which means better resistance to cracking and cleaner, more beautiful looks compared to sand casting.
