Marine Rotary Steering System & Cable — Planetary Gear Helm Kit or Cable-Only for Outboard Boats

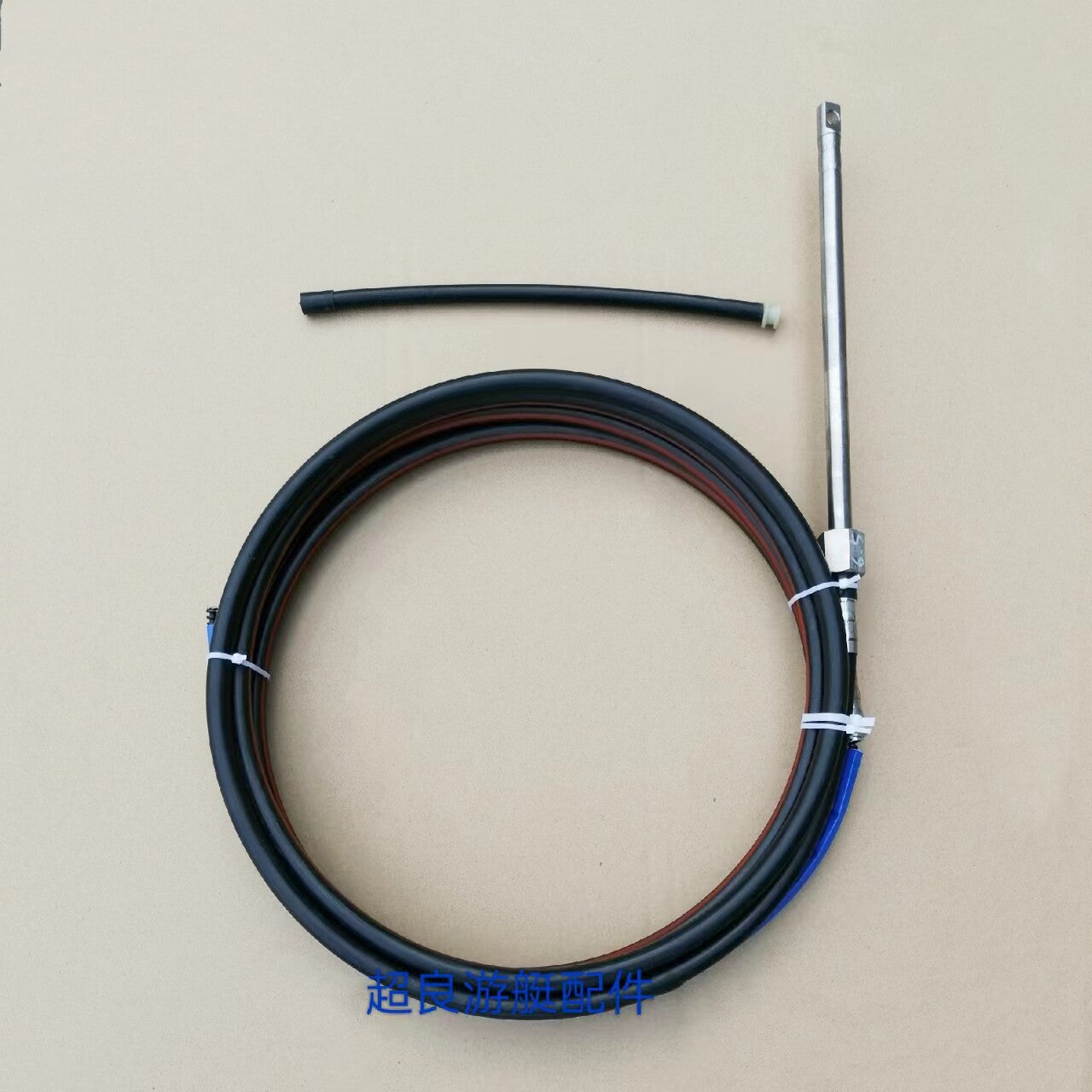

Measure three segments and add them together: A = distance from the motor tilt tube to the transom, B = length of the boat from transom to helm station, C = distance from the helm station down to the steering wheel mounting point. A + B + C = total cable length required. Available lengths are 4M, 4.5M, 5M, 5.5M, and 6M. When in doubt, round up to the next size — excess cable can be routed; a cable that’s too short cannot be extended.

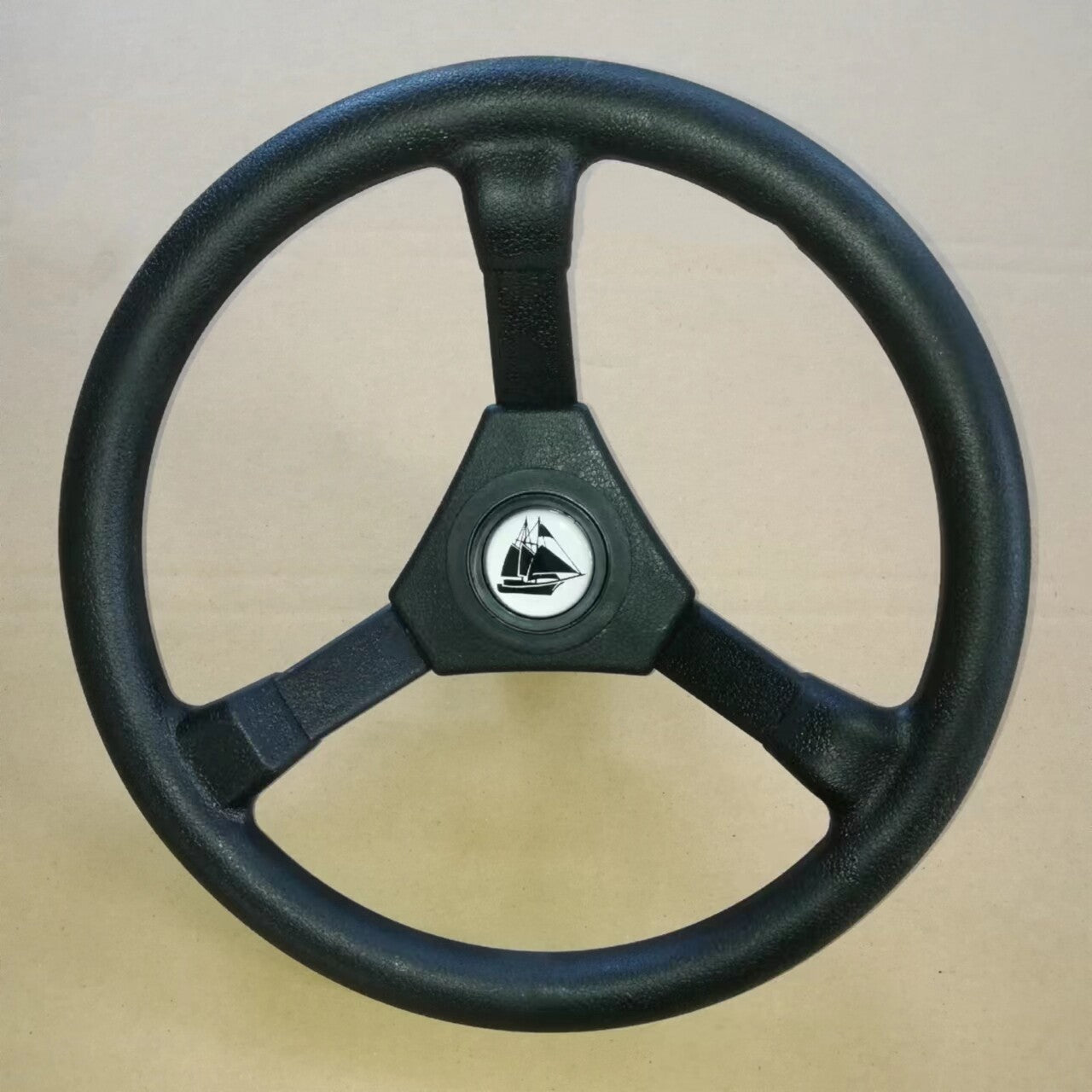

The helm uses a standard 3/4" tapered shaft, which is the most common size for marine steering wheels. This is compatible with the majority of aftermarket and OEM marine steering wheels designed for outboard motor applications, including the matching wheel available as a variant option on this listing.

The planetary gear helm is rated at approximately 3.5 turns lock-to-lock. This provides a balance between steering responsiveness and effort, making it suitable for outboard motors across a range of horsepower ratings. Fewer turns means quicker response; more turns means lighter effort — 3.5 turns is a practical middle ground for most recreational outboard applications.

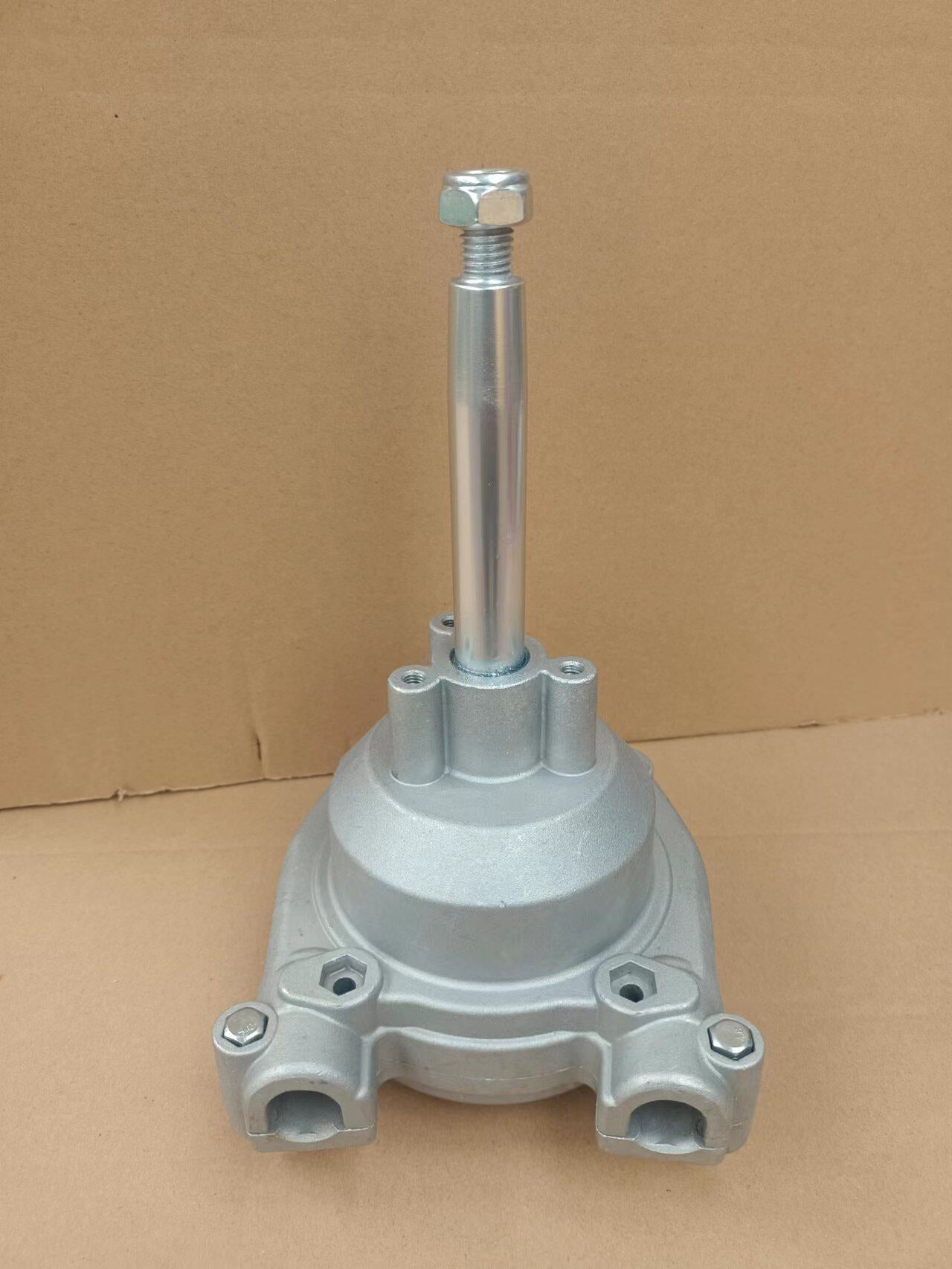

The helm housing and internal planetary gear set are cast from high-strength zinc alloy with copper-element additives, which increases hardness and wear resistance compared to standard zinc alloy. The exterior receives an anti-corrosion surface treatment to resist salt spray and marine moisture. This construction is generally well-suited for long-term use in open-water marine environments.

This rotary steering system is generally suitable for outboard motors in the small-to-mid horsepower range, typically up to around 150HP depending on boat hull design and cable routing. For high-horsepower applications above 150HP, a hydraulic steering system is generally recommended for safety and comfort. Contact us to confirm compatibility with your specific motor model.

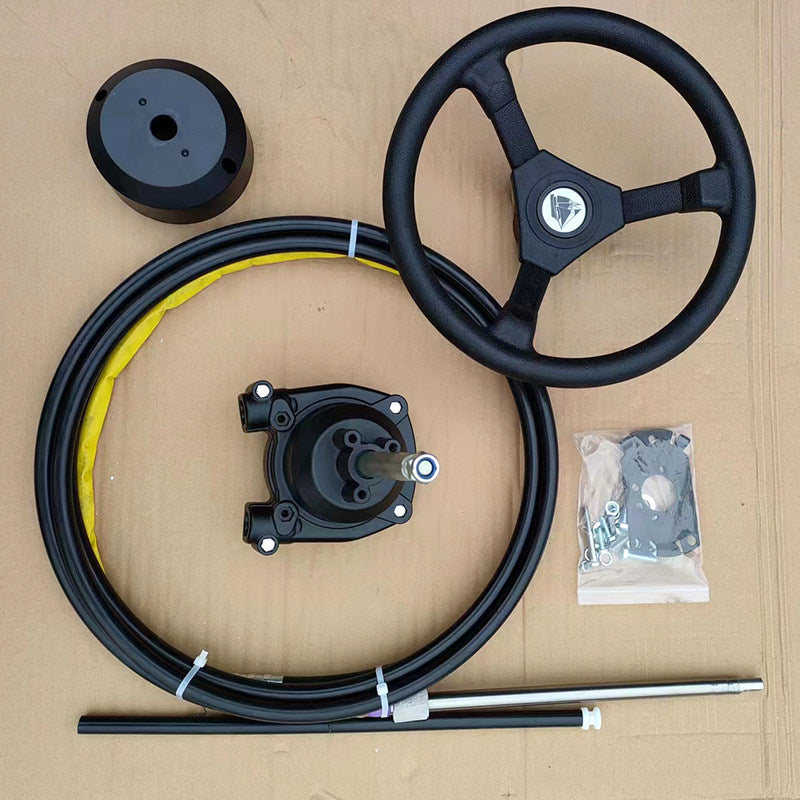

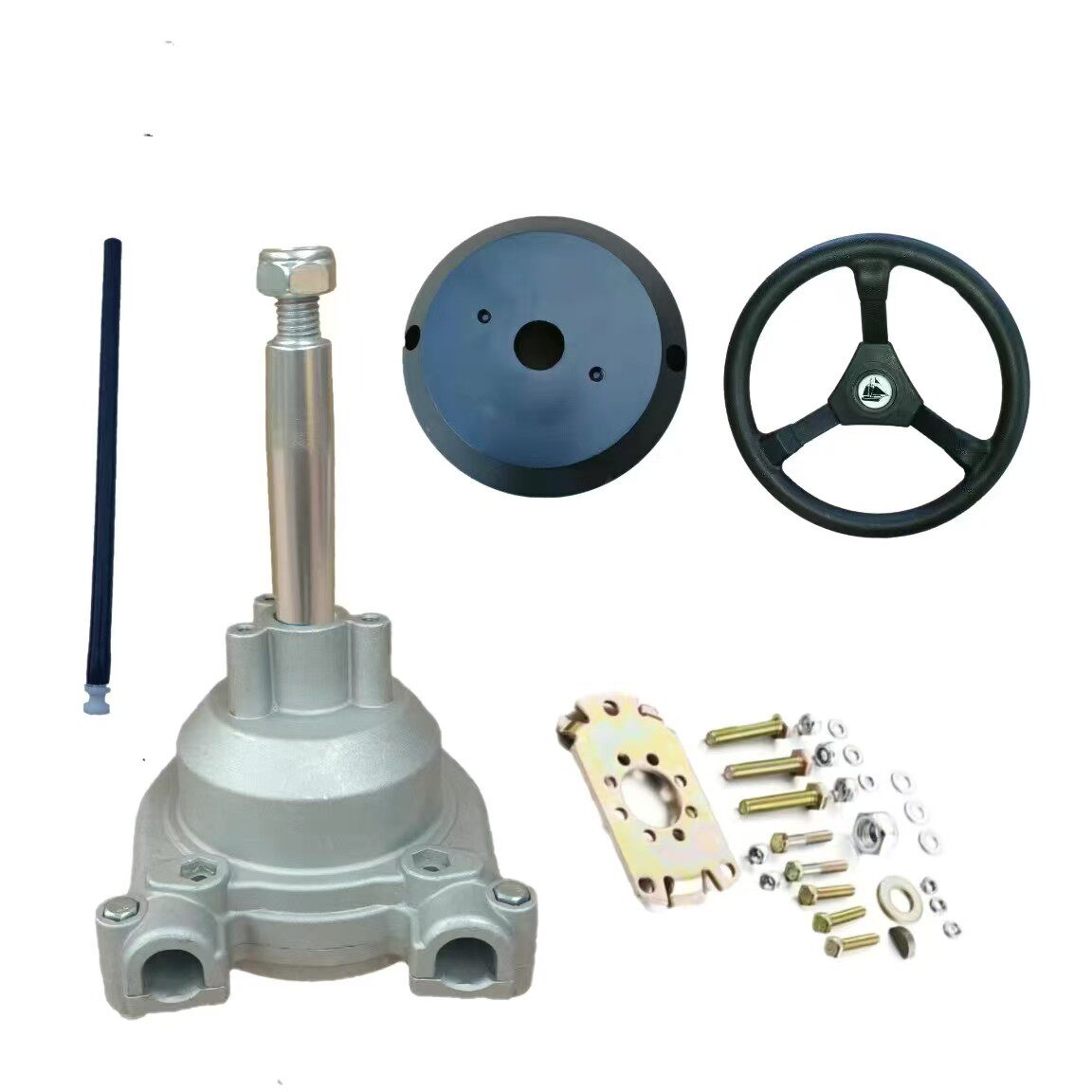

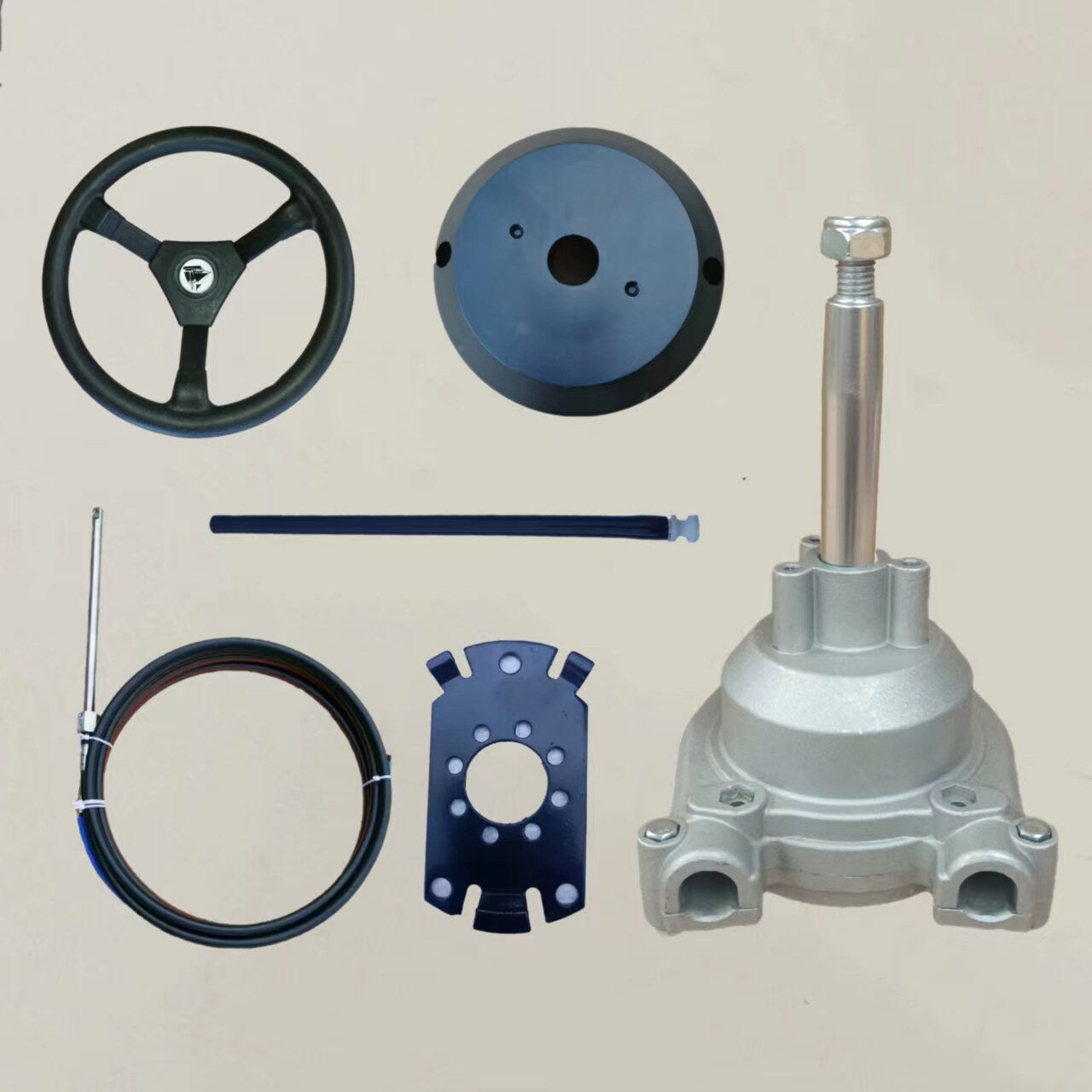

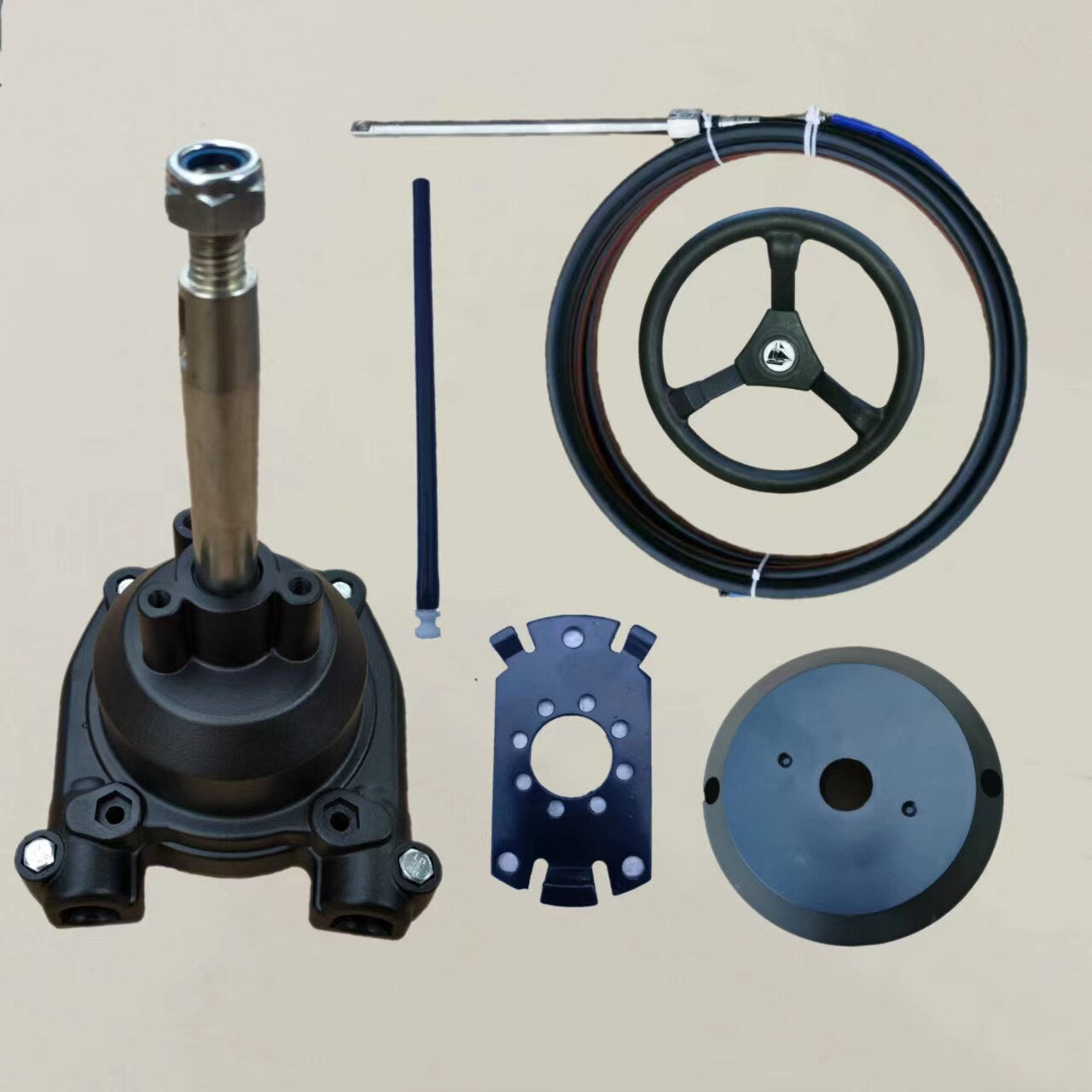

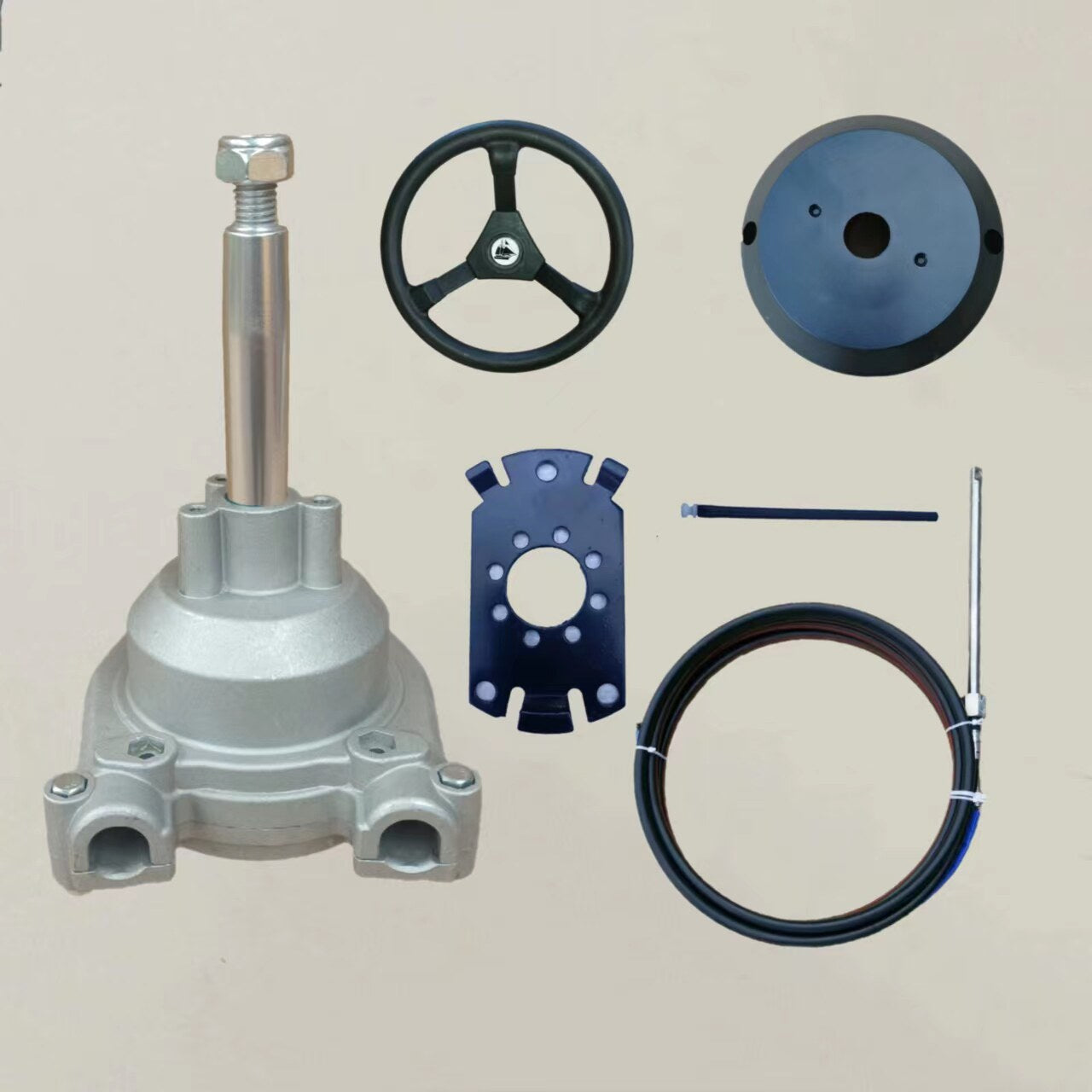

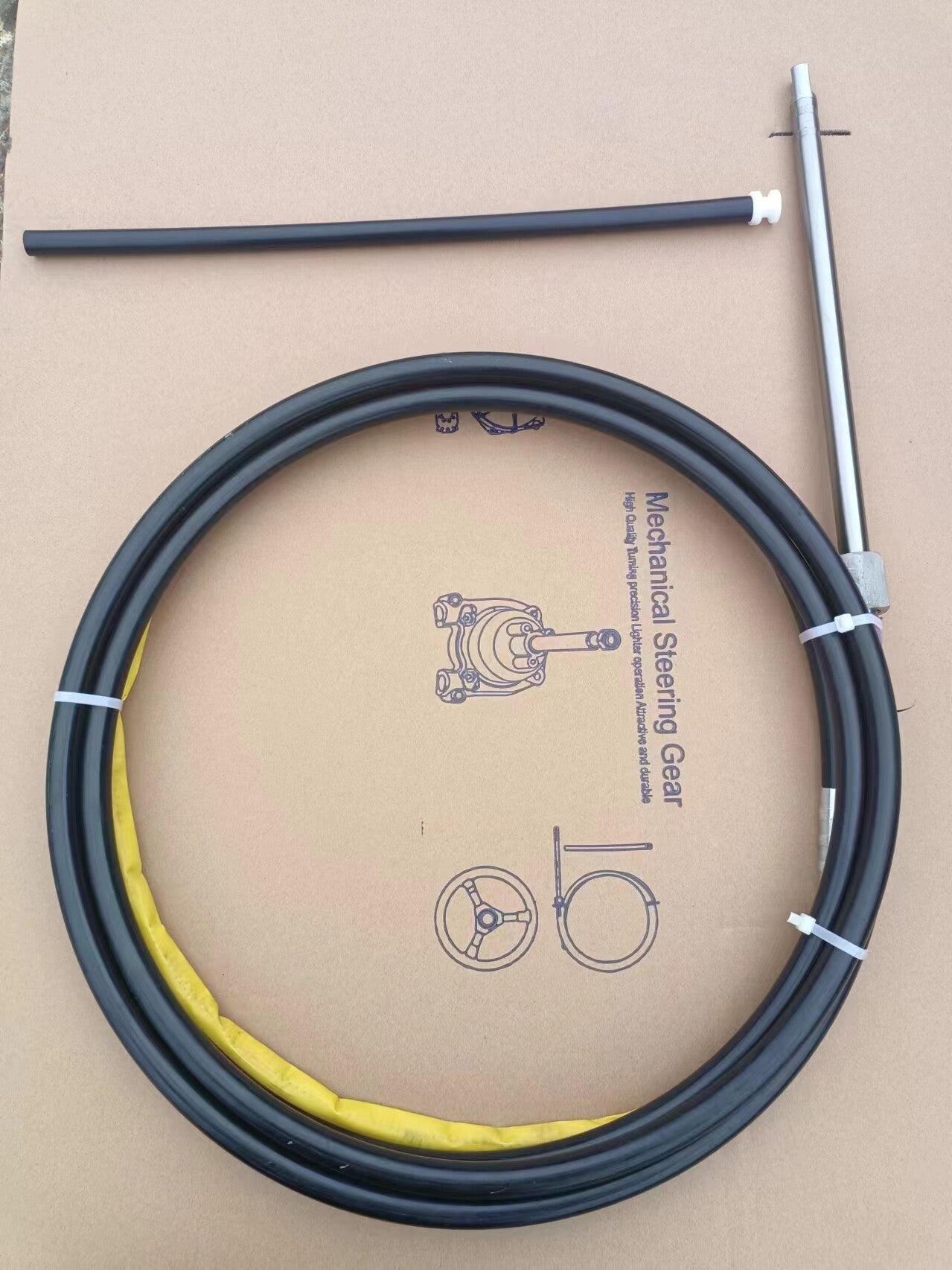

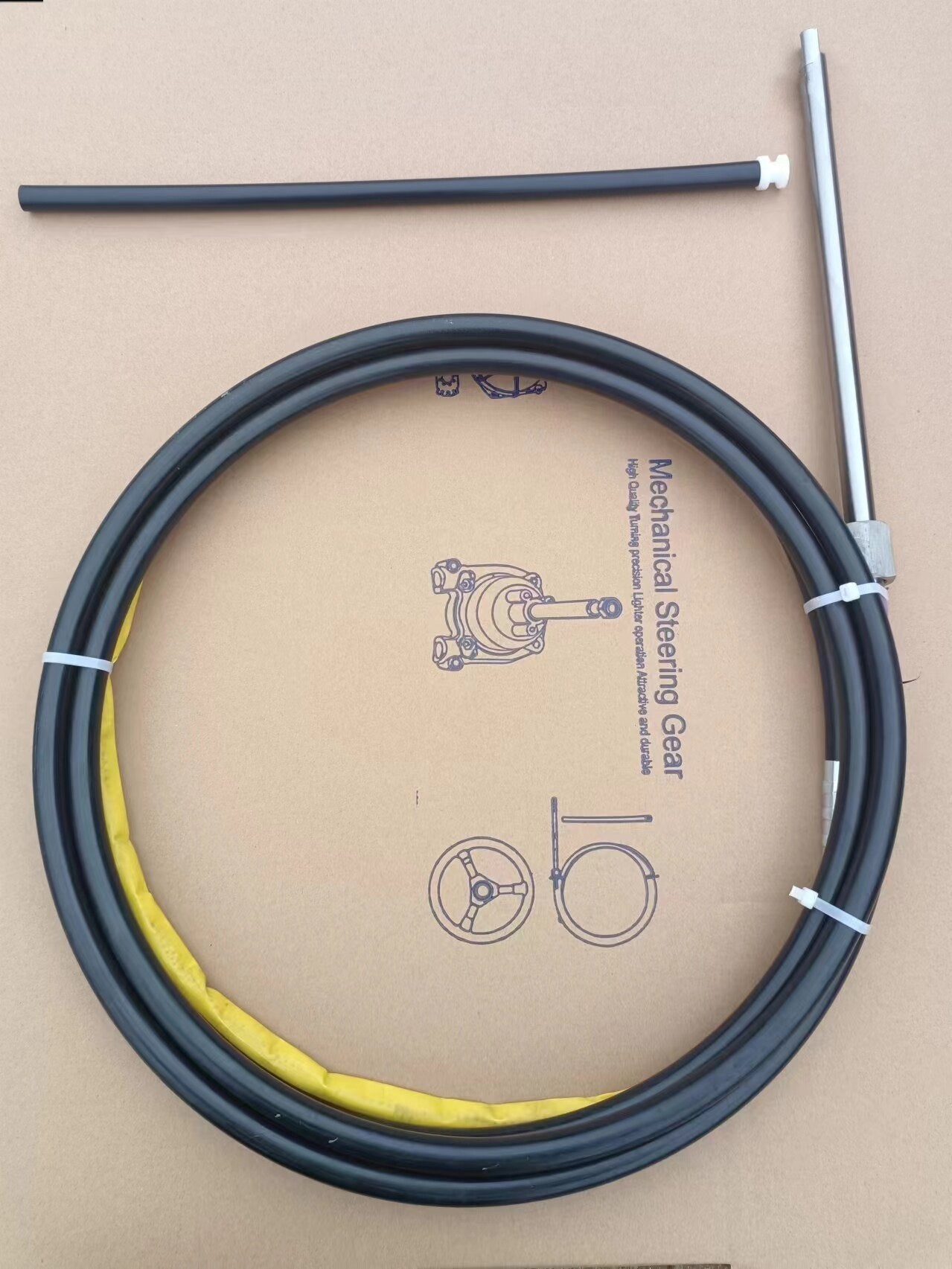

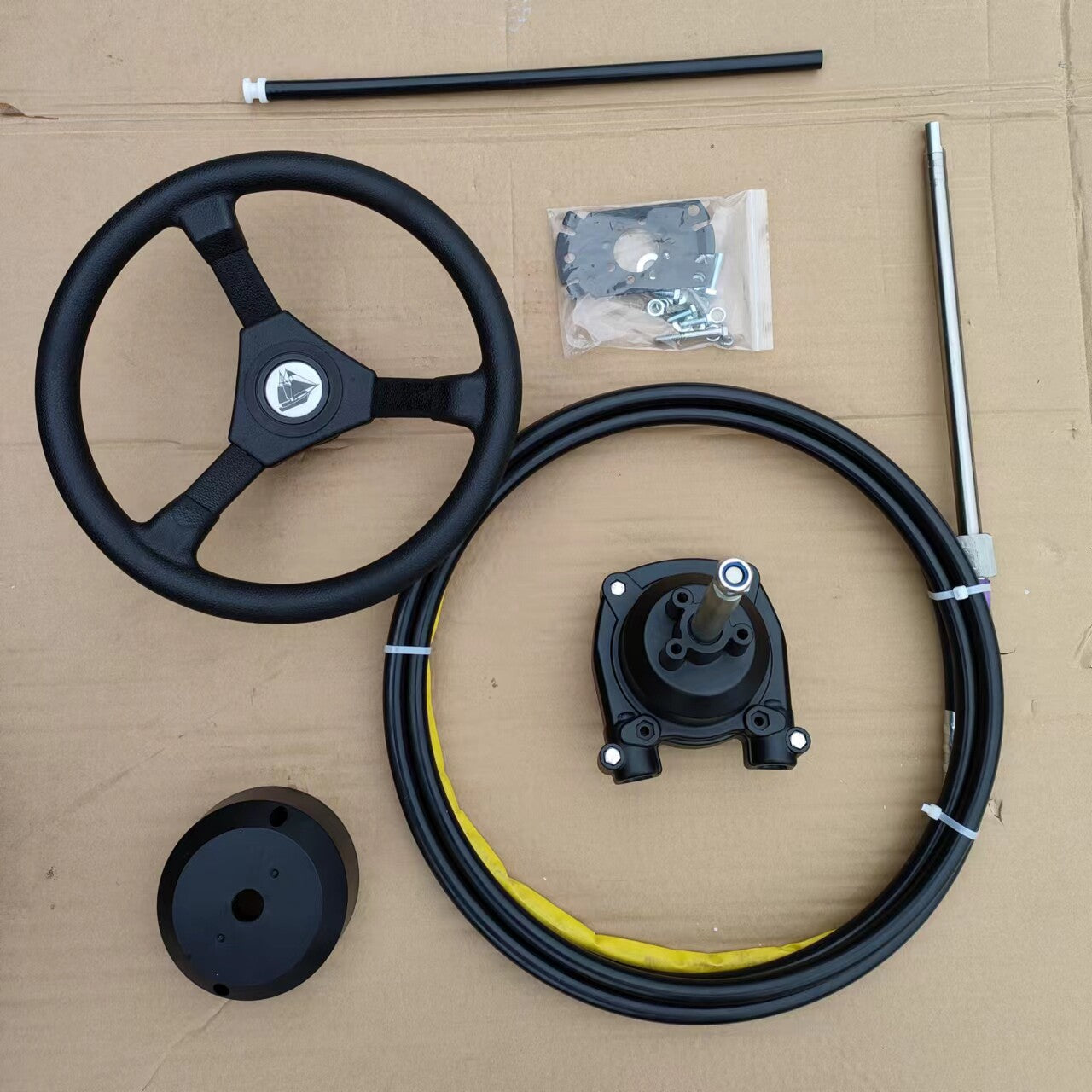

The Steering Cable Only option includes just the push-pull cable in the selected length — ideal if your helm is still in good condition. The Complete Steering System includes the planetary gear helm unit plus the steering cable. The Steering Gear With Steering Wheel option adds the helm wheel. The Steering Wheel Only option is for wheel replacement only. Choose based on which components you need to replace or upgrade.

The helm unit uses a mounting flange designed to fit standard marine console helm cutouts. In most cases it is compatible with standard helm station openings found on fiberglass and aluminum console boats. The cable end fittings are designed to connect to standard outboard motor tiller arm brackets. Contact us with your boat make, model, and motor brand to confirm fitment before ordering.

Yes — this rotary steering system is generally compatible with electric outboard motors and pontoon boat steering setups, provided the motor uses a standard tiller arm bracket and the cable run length falls within the available options (up to 6M). For pontoon boats with longer cable runs or unusual routing, contact us to discuss custom cable length options.
