Metal Fixed Swivel Pulley Sheave Rigging Lift Hoist Rope Hanging Lifting Wheel

Roll over image to zoom in Click on image to zoom

Metal Fixed Swivel Pulley Sheave Rigging Lift Hoist Rope Hanging Lifting Wheel

HomeDIYer

No reviews

By HomeDIYer®

Sizes: 20mm

Single or Double: Double

Amount: 1pcs

Price:

$2.65 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

Metal Fixed & Swivel Pulley Sheave — Reliable Rigging, Lifting & Hoisting Solution

When a rope slips off a makeshift guide or a worn sheave groove causes dangerous load drift, the right pulley makes all the difference. Whether you are a rigger, a DIY workshop builder, a farm operator, or a small-batch manufacturer setting up a material-handling line, you need a sheave that holds its groove geometry under repeated load cycles without seizing or corroding.

These metal pulley sheaves are constructed from zinc-alloy or steel (see variant options for exact material per size), featuring a precision-machined rope groove and a central bore for axle or bolt mounting. Available in both fixed and swivel (double-groove) configurations, sizes range from 13 mm (~0.51 in) up to 48 mm (~1.89 in) outer diameter, sold individually or in multi-packs of 2, 5, or 10 pieces to suit project scale.

Typical use cases include DIY overhead rope pulley systems for garage storage lifts, single-line and compound rigging setups for small cranes and davits, and guide sheaves for cable management in robotics or automation frames — all scenarios where a compact metal fixed swivel pulley sheave rigging lift hoist rope hanging lifting wheel keeps lines running true.

🔗 Compatibility: Fits standard rope and cord diameters suited to each sheave size. Single-groove variants guide one rope line; double-groove variants support two parallel lines or a looped rigging arrangement. Confirm bore diameter against your axle or bolt before ordering.

✅ Key Features of These Metal Fixed Swivel Pulley Sheaves

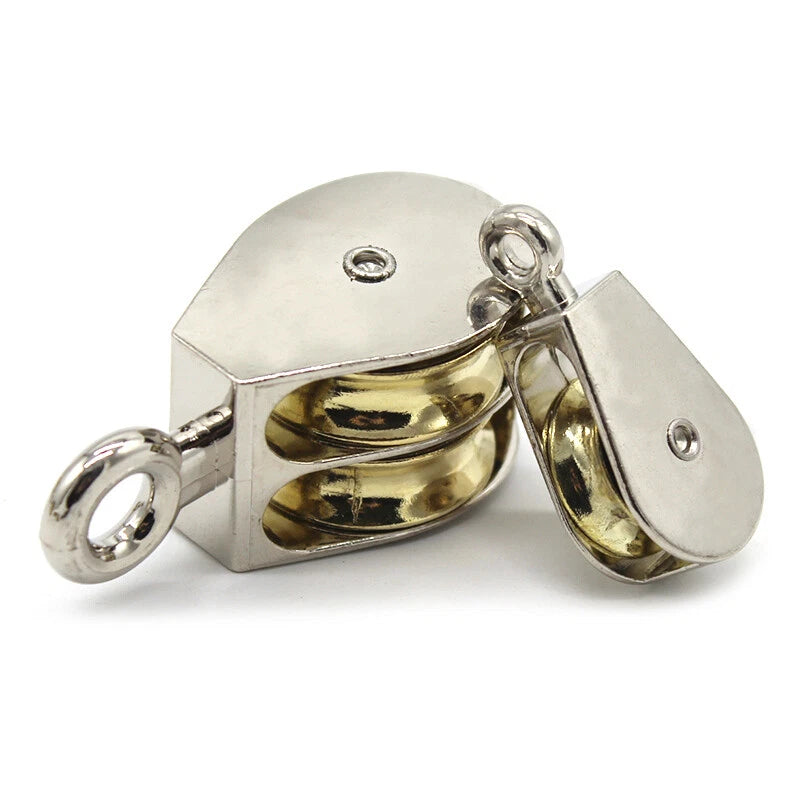

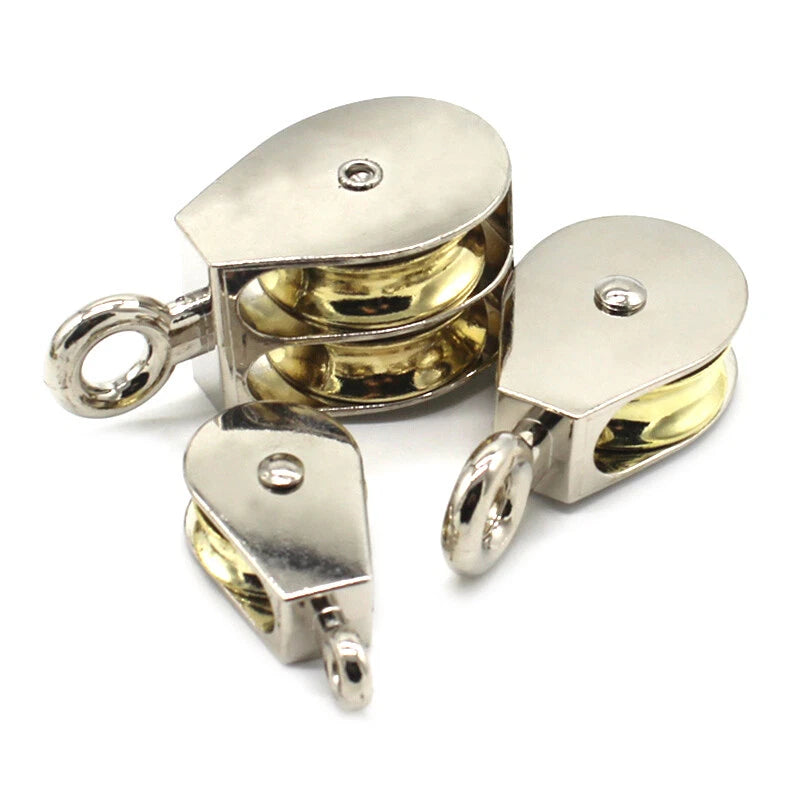

⚙️Single & Double Groove Options — Choose single-groove for straightforward rope runs or double-groove for compound rigging and two-line setups, giving you flexibility across different load configurations.

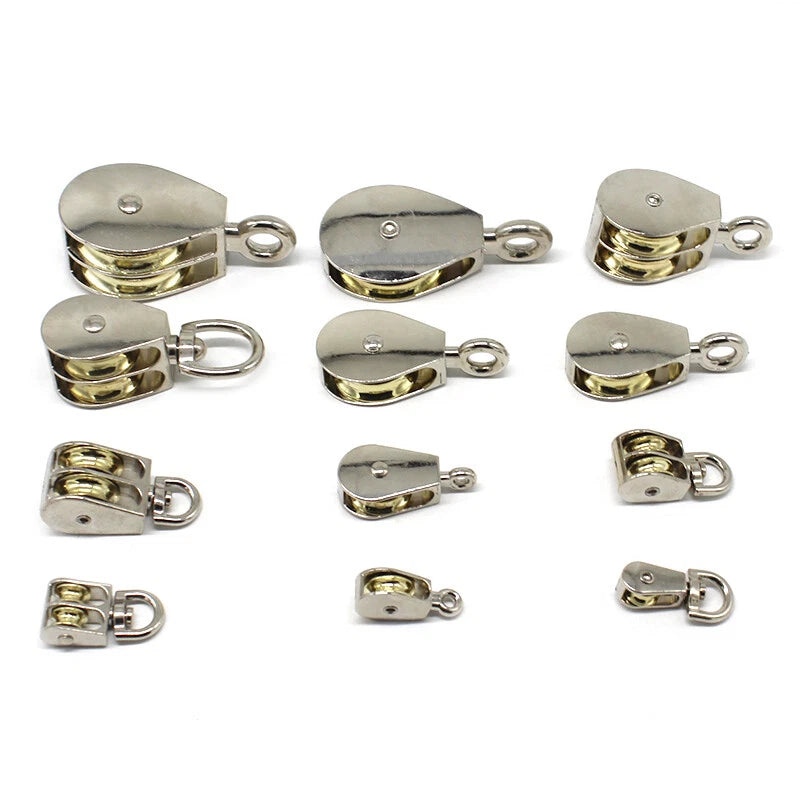

📐Six Size Variants (13–48 mm) — Outer diameters of 13 mm, 20 mm, 25 mm, 32 mm, 36 mm, and 48 mm cover light-duty cord guides through medium-duty hoist applications; select the size that matches your rope diameter and working load.
🔩Precision-Machined Rope Groove — The machined groove profile keeps rope seated under load, reducing side-slip and uneven wear that shortens rope service life in repetitive lift cycles.
🛡️Corrosion-Resistant Metal Construction — Metal body with a protective finish resists oxidation in workshop, outdoor rigging, and light marine environments, maintaining smooth rotation over extended service periods.
📦Multi-Pack Quantities Available — Order 1, 2, 5, or 10 pieces per variant to match your project needs, from a single replacement sheave to a full compound pulley block build.

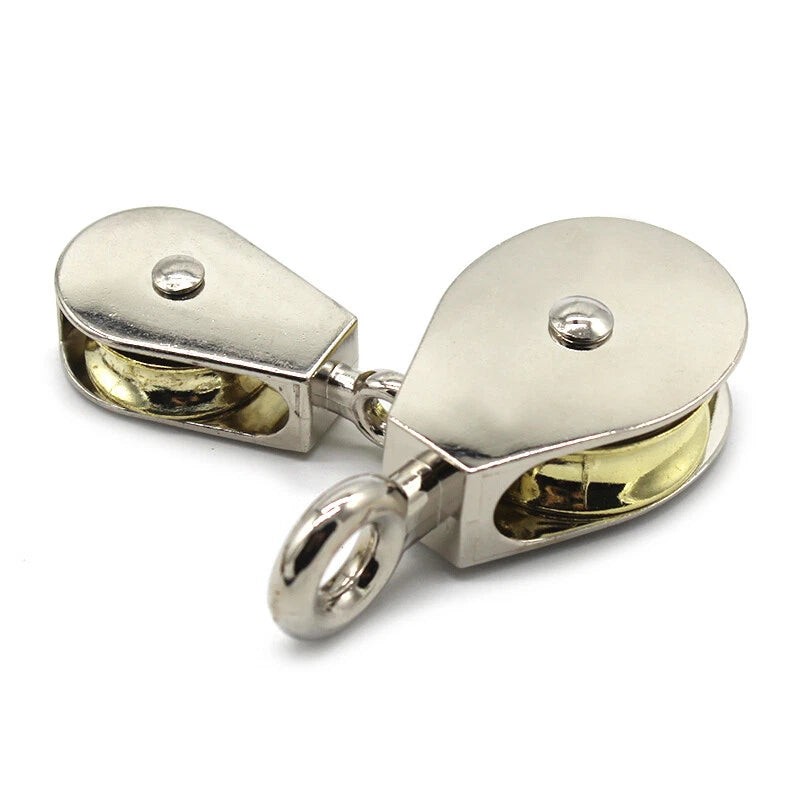

🔄Fixed & Swivel Mounting Compatibility — Central bore accommodates standard axle pins or bolts for fixed-frame installation; swivel-style double-groove variants allow the sheave to self-align with rope direction changes.

📐 Technical Specifications — Metal Pulley Sheave

Product Type	Fixed / Swivel Pulley Sheave
Outer Diameter	13 mm / 20 mm / 25 mm / 32 mm / 36 mm / 48 mm (see variant options)
Groove Configuration	Single groove or Double groove (see variant options)
Bore Diameter	See variant options
Material	See variant options
Finish / Coating	See variant options
Working Load Limit	See variant options
Rope Compatibility	See variant options
Pack Quantity	1 pcs / 2 pcs / 5 pcs / 10 pcs (see variant options)
Application	Rigging, lifting, hoisting, rope guide, DIY pulley block

❓ Frequently Asked Questions

How do I choose the right sheave size for my rope?

Match the sheave outer diameter to your rope diameter — a general rule is that the sheave diameter should be at least 8–10× the rope diameter for wire rope, or 4–6× for fiber rope, to minimize bending fatigue. For light cord or paracord applications, the 13 mm or 20 mm variants are typically sufficient. For heavier rigging rope (6–10 mm diameter), the 32 mm, 36 mm, or 48 mm sheaves provide a more appropriate bend radius. Check the bore diameter against your axle pin before ordering.

What is the difference between the Single and Double groove options?

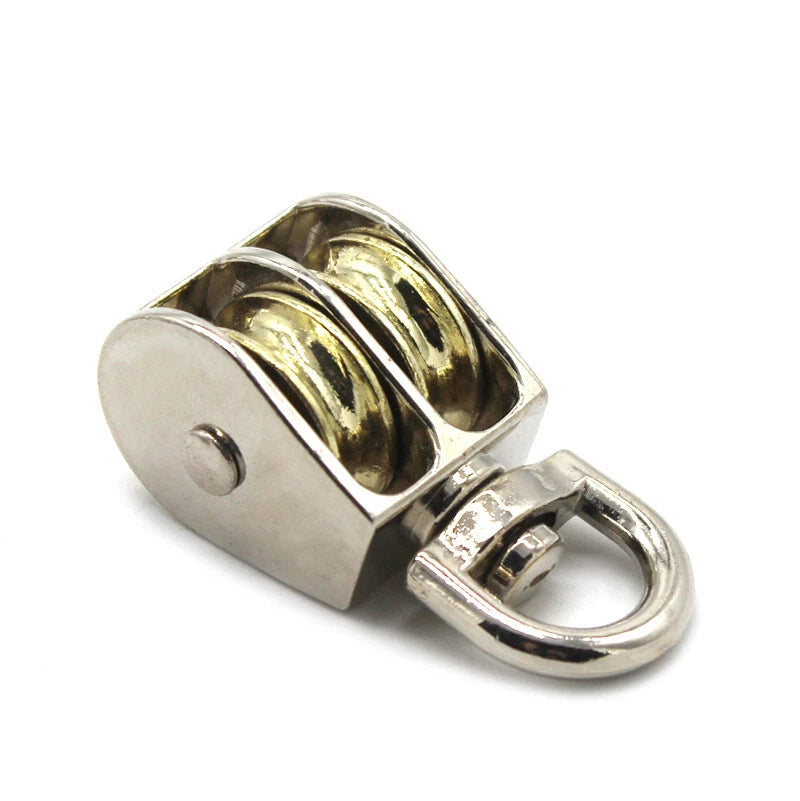

A single-groove sheave guides one rope line and is used in simple fixed or movable block arrangements. A double-groove sheave has two parallel grooves, allowing two rope lines to run side by side — useful for compound pulley systems, two-line rigging setups, or applications where a looped rope needs to be guided without crossing. Select based on your rigging configuration.

Are these sheaves suitable for outdoor or marine use?

The metal construction with a protective finish provides resistance to light moisture and oxidation, making these sheaves suitable for covered outdoor workshops, farm equipment, and light rigging applications. For prolonged saltwater or fully exposed marine environments, we recommend confirming the specific material and finish of your chosen variant and applying additional corrosion protection as needed. Contact us to confirm material specifications for your size.

Can I use these pulleys in a compound block-and-tackle system?

Yes. These sheaves are designed for use in DIY and light-industrial block-and-tackle rigging. For a compound system, you will need multiple sheaves mounted on axle pins within a frame (block). The double-groove variants can reduce the number of separate blocks needed in some configurations. Always calculate the working load limit for your complete system and ensure all components — rope, axle, frame, and anchor points — are rated appropriately.

What bore diameter do these sheaves have, and what axle size do they fit?

Bore diameter varies by sheave size. As a general reference, smaller sheaves (13–20 mm OD) typically accept axle pins in the 3–5 mm range, while larger sheaves (32–48 mm OD) typically accept 6–10 mm axle pins. Please contact us to confirm the exact bore diameter for your selected size before purchasing, especially if you are fitting to an existing axle or bolt.

How many pieces should I order for a standard pulley block build?

A basic single-movable-block system requires a minimum of 2 sheaves (one fixed, one movable). A 3:1 mechanical advantage system typically uses 3 sheaves. For workshop storage lift systems with two anchor points, 4 sheaves are common. The 5-pack and 10-pack options offer a cost-effective way to stock up for multi-block builds or to keep spares on hand for maintenance.

Are these sheaves compatible with wire rope as well as fiber rope?

These sheaves are primarily designed for fiber rope, paracord, and light synthetic rope applications. Use with wire rope is possible on the larger sizes (36 mm and 48 mm OD) at reduced loads, but the groove profile and material hardness may not be optimized for wire rope's abrasive contact. For dedicated wire rope applications, confirm the groove radius and material with us before ordering.

🛒 Select your size, groove type, and quantity above, then add to cart.
