Metal Single Double Sheave Pulley Brass Wheel Swivel-Fixed Eye Lifting Rope

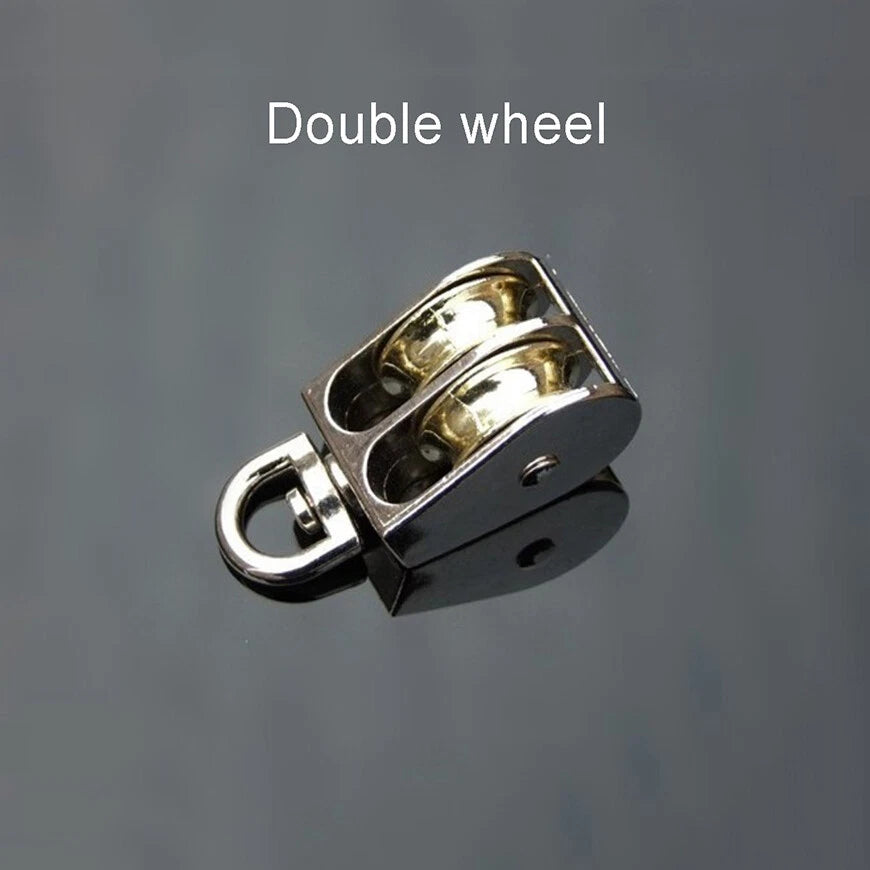

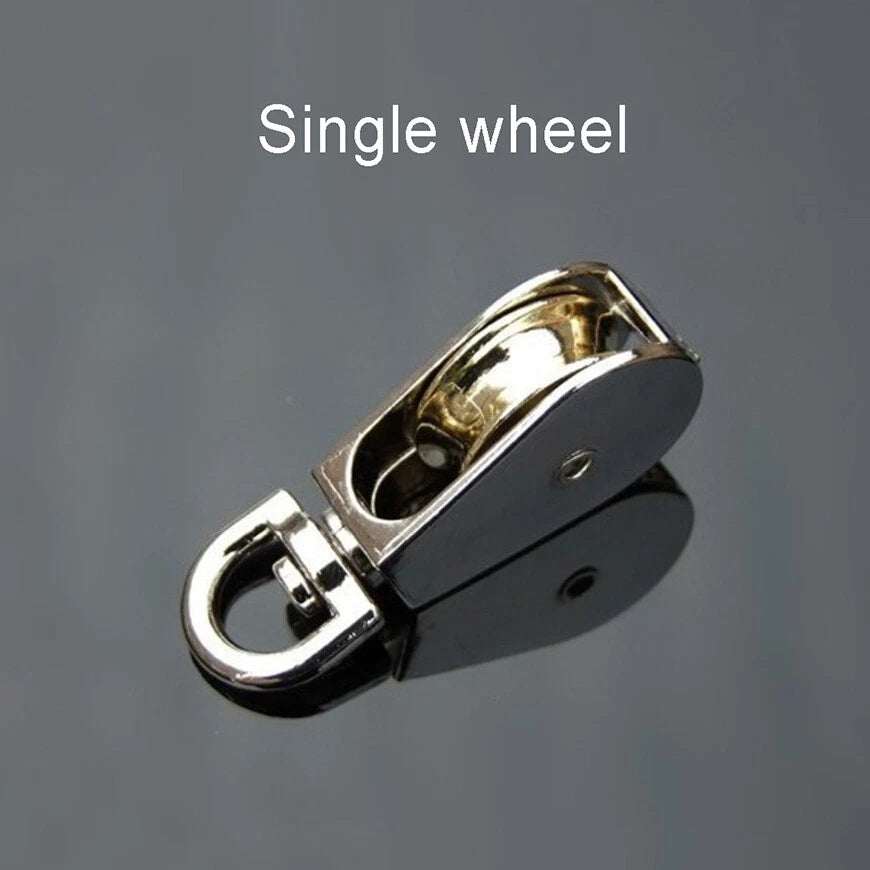

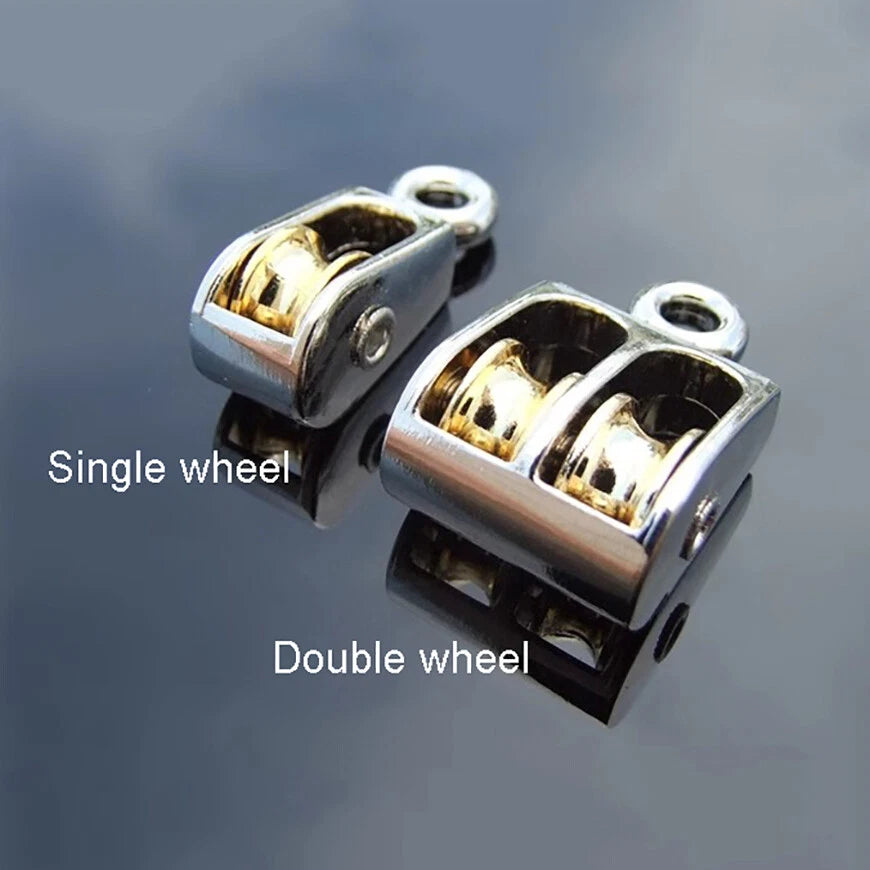

A single sheave pulley redirects a rope in one direction and is ideal for simple lifting or guiding tasks. A double sheave pulley allows two rope runs through the same block, which is used in block-and-tackle systems to multiply mechanical advantage and reduce the effort needed to lift heavier loads. If you need to lift heavy items with less force, choose the double sheave variant.

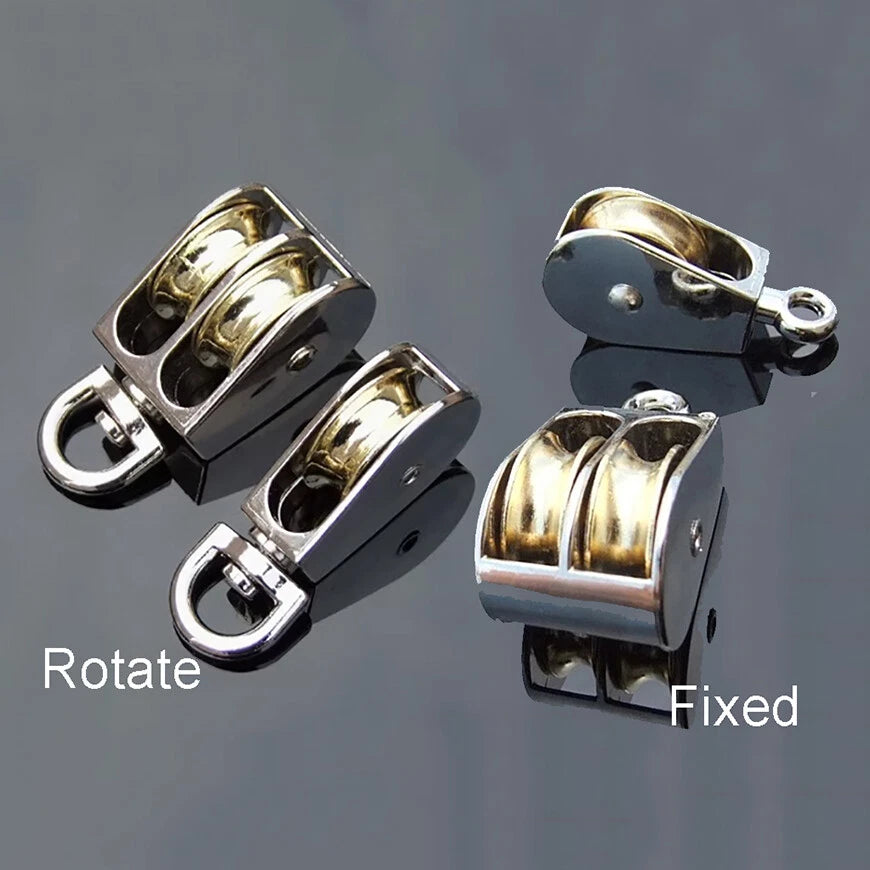

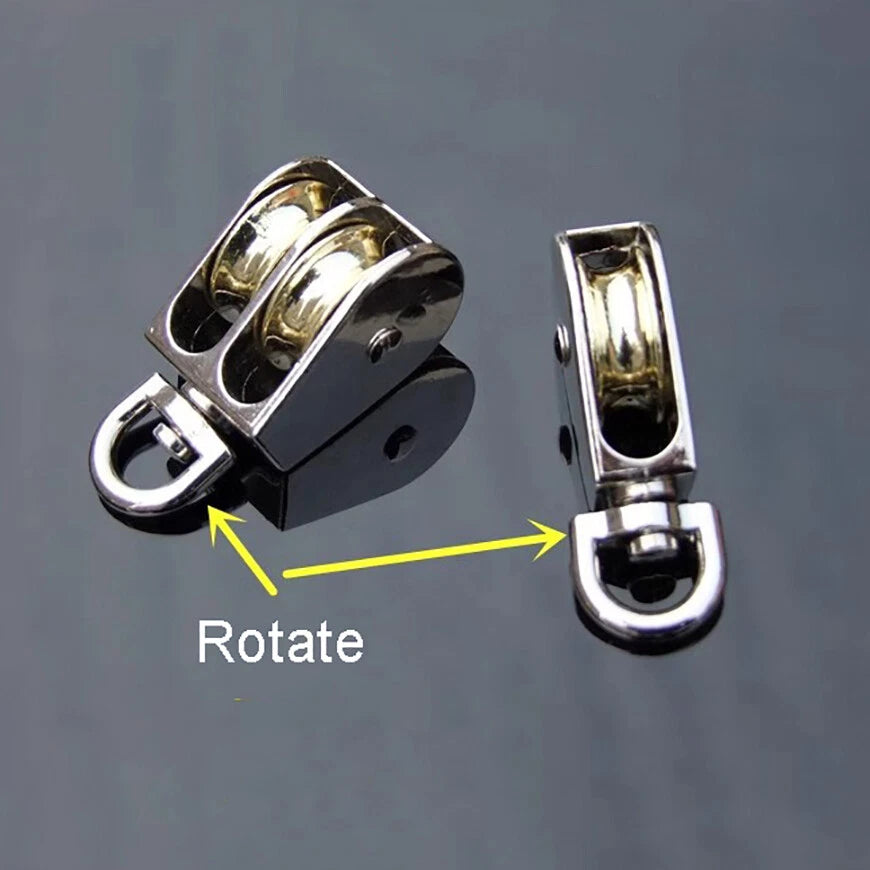

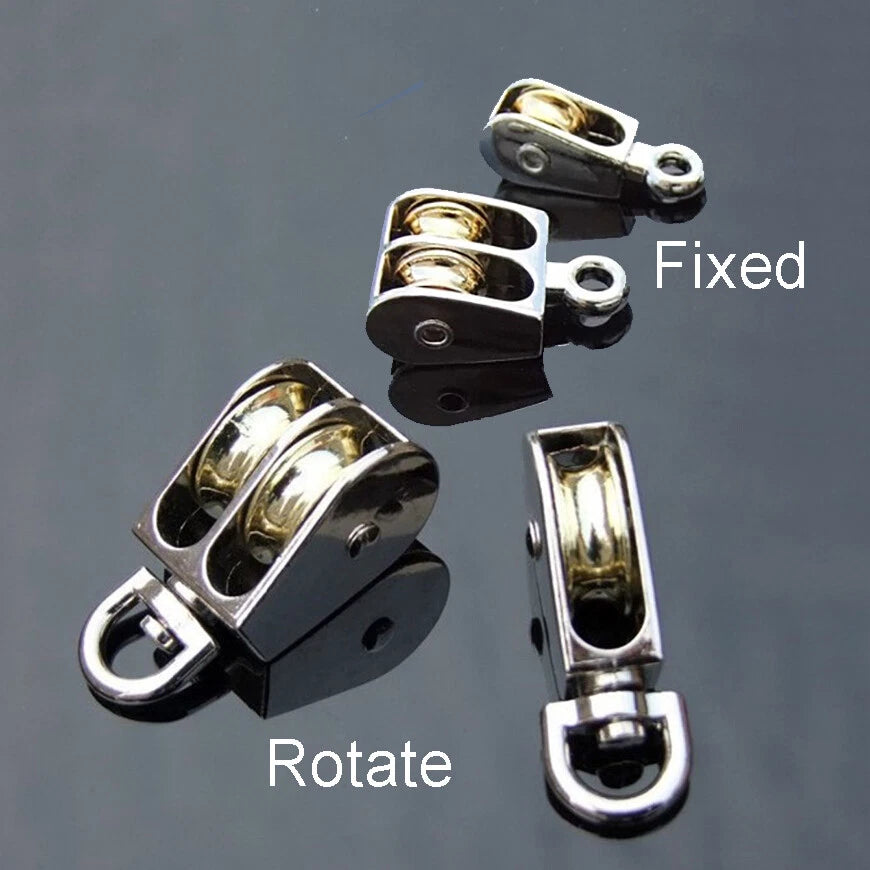

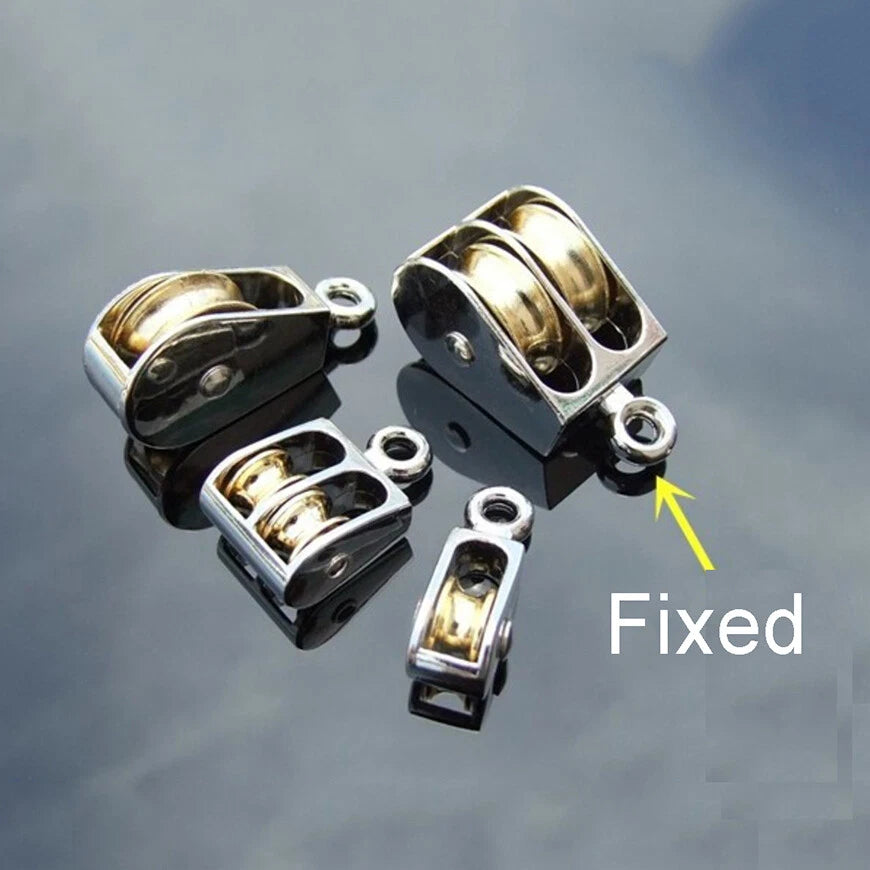

The swivel-eye (Rotate) version allows the pulley body to rotate 360° around the attachment point, which prevents rope twist and allows the block to self-align as the load direction changes. The fixed-eye version has a rigid, non-rotating attachment point, making it better suited for static rigging where the load direction is consistent and a stable anchor is needed.

As a general guideline, the sheave diameter should be at least 8–10 times the rope diameter for synthetic ropes to avoid excessive bending stress. For example, a 6mm rope pairs well with a 52mm or 58mm sheave. Select the size above that best matches your rope diameter and consult the variant details for confirmed rope capacity per size.

These pulleys are designed for light-duty lifting and rope-guiding applications in workshops, garages, and outdoor structures. Always verify the working load limit of the specific variant before using in any overhead lifting scenario. Do not exceed the rated load capacity, and inspect the pulley before each use for signs of wear or deformation.

Brass naturally resists corrosion better than bare steel, making the brass sheave wheel a durable choice for environments with occasional moisture exposure, such as marine-adjacent or outdoor applications. For prolonged saltwater or fully submerged use, additional corrosion protection measures should be considered and the variant specifications confirmed.

These pulleys are designed primarily for fiber and synthetic ropes. Using wire rope or steel cable is not recommended unless the variant specifications explicitly confirm wire rope compatibility, as wire rope requires a specifically grooved sheave profile and higher load ratings to operate safely.

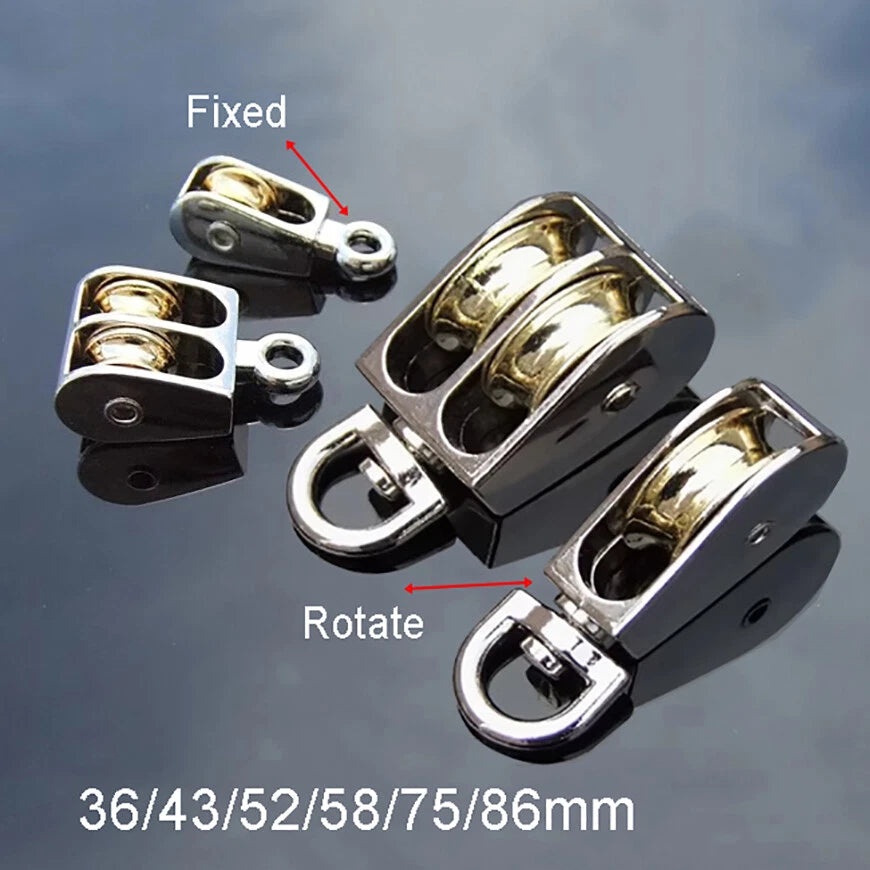

The 43mm Rotate variants are suited for lighter loads and smaller-diameter ropes in compact rigging setups. The 58mm variants offer a mid-range balance of rope capacity and block size for general workshop use. The 86mm Rotate variants are best for larger ropes and higher load applications where a bigger sheave diameter reduces rope wear and improves mechanical efficiency.
