Finding flat steel circles that are truly consistent in size and finish is a frustration every metalworker, fabricator, and maker knows well. Whether you're building brackets, crafting decorative pieces, or prototyping mechanical components, warped or poorly finished blanks waste time and material. These mild steel zinc-plated disc blanks are designed for makers who need reliable, ready-to-use circles without the hassle of cutting their own.

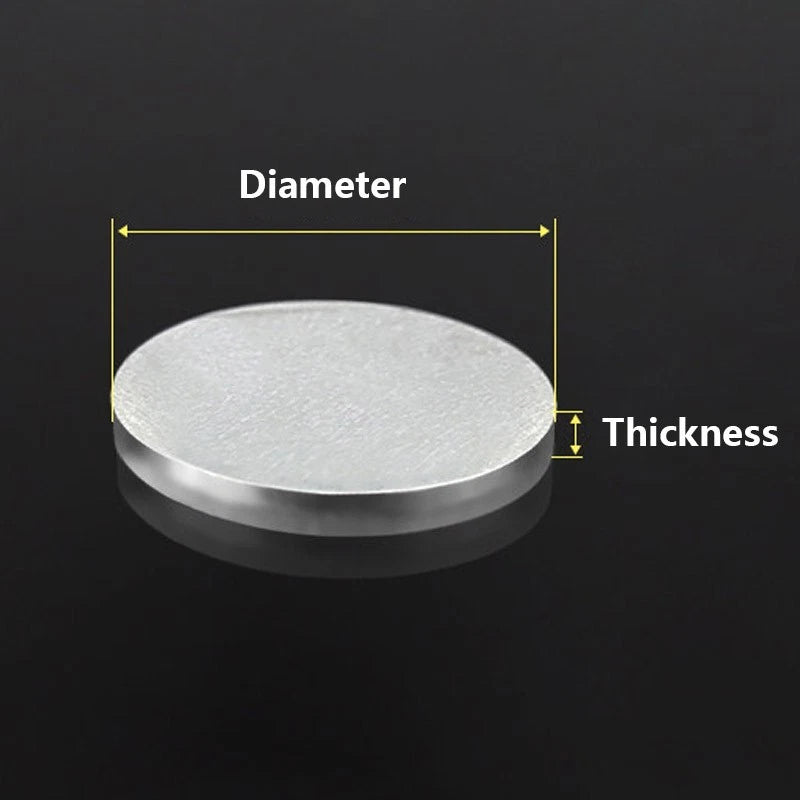

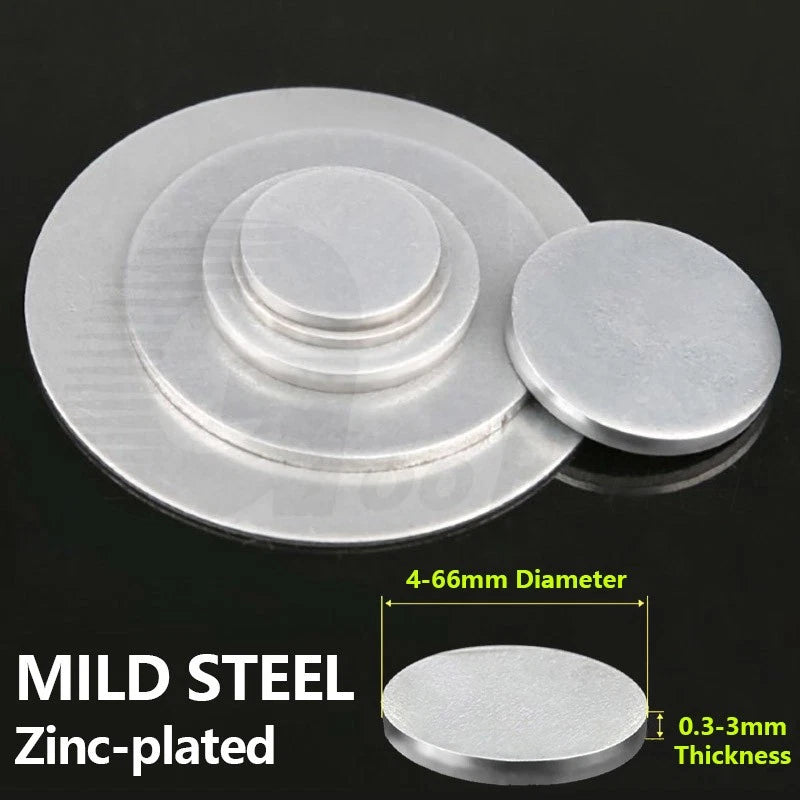

Each disc is cut from mild steel (low-carbon steel, typically S235/Q235 grade) and finished with a zinc electroplating layer for corrosion resistance. Available in outer diameters from 4mm to 66mm (approx. 0.16" to 2.60") and thicknesses ranging from 0.3mm to 3mm (approx. 0.012" to 0.118"), with flat, burr-minimised edges. Sold in packs of 10 to 200 pieces depending on the selected size combination.
Typical applications include: fabricating custom washers and shims for mechanical assemblies; creating decorative metal art, jewellery bases, and craft blanks; prototyping gaskets, spacers, and stamping blanks for light engineering; and use as backing plates or reinforcement discs in woodworking and construction joinery.
| Material | Mild steel (low-carbon, typically S235/Q235 equivalent) |
|---|---|
| Surface Finish | Zinc electroplated |
| Outer Diameter Range | 4mm – 66mm (approx. 0.16" – 2.60") |
| Thickness Range | 0.3mm – 3mm (approx. 0.012" – 0.118") |
| Shape | Round disc / circle blank (no centre hole) |
| Edge Condition | Burr-minimised, flat |
| Pack Quantity | See variant options |
| Specific Diameter × Thickness | See variant options |
| Tensile Strength (typical) | Approx. 400–500 MPa (mild steel, varies by grade) |
| Hardness (typical) | Approx. 120–160 HB (mild steel) |
| Weldability | Good (suitable for MIG, TIG, and spot welding) |
| Machinability | Good (drillable, grindable, tappable) |
Select the outer diameter to match the footprint you need — for example, use a 10mm disc as a small washer under an M6 bolt, or a 50mm disc as a decorative base. Thickness determines rigidity: 0.3–0.5mm discs are flexible and suit shims or craft work, while 1.5–3mm discs provide structural strength for load-bearing applications. Use the variant selector above to find your exact combination.
Mild steel has a typical tensile strength of 400–500 MPa, making it suitable for light to moderate structural applications such as brackets, spacers, and reinforcement plates. For heavy-load or safety-critical applications, consult an engineer and verify the specific grade. Thicker discs (2–3mm) in larger diameters provide significantly more rigidity than thin variants.
Zinc electroplating provides a sacrificial barrier that protects the underlying steel from surface rust in typical indoor and sheltered outdoor conditions. It is not suitable for prolonged immersion in water, strongly acidic or alkaline environments, or marine exposure without additional sealing or coating. For harsher environments, consider painting, powder-coating, or applying a clear lacquer over the zinc finish.
Yes. Mild steel is highly workable: it can be MIG or TIG welded, drilled with standard HSS bits, ground, tapped, and painted. Note that welding will burn off the zinc coating in the heat-affected zone — grind back the plating before welding and re-treat the area afterwards if corrosion protection is needed. For painting, lightly abrade the surface first to improve adhesion.
These are solid round disc blanks with no pre-drilled centre hole. They are designed as flat circle blanks for you to drill, punch, or use as-is. If you need a washer with a specific hole size, you can drill the centre yourself to your required diameter.
Pack quantities range from 10 to 200 pieces depending on the disc size. Smaller, thinner discs are available in larger packs (up to 200 pcs) as they are lighter and more commonly used in bulk. Larger or thicker discs are offered in smaller packs (10–30 pcs). Select the quantity that suits your project volume — buying in larger packs typically offers a lower per-piece cost.
When used as flat washers or shims, the disc outer diameter should be larger than the fastener head or nut, and the centre hole (if drilled) should match the bolt shank diameter. For example, a 10mm disc with a 5mm drilled hole works as a washer for an M5 bolt. Refer to standard washer sizing tables (DIN 125 / ISO 7089) for guidance on matching disc dimensions to fastener sizes.
