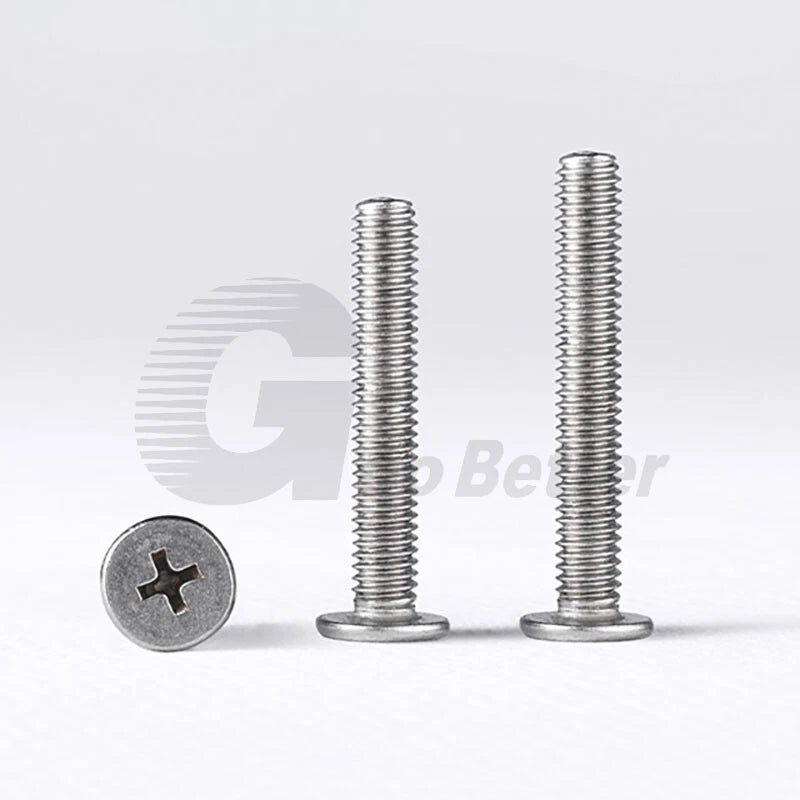

🔩 Product Overview: Mini Phillips Thin Flat Head Machine Screws – A2 Stainless Steel (M2, M2.5, M3)
When space is extremely tight and a standard countersunk head is still too tall, these ultra‑thin flat head Phillips machine screws are the solution. Designed with a reduced head height, they allow you to fasten components in slim enclosures, laptops, small electronics, and precision instruments without protruding or interfering with nearby parts. Made from A2 (304) stainless steel, they offer good corrosion resistance, high strength, and a clean silver finish. Available in M2, M2.5, and M3 metric diameters, with lengths from 2mm to 20mm. Fully threaded with standard coarse pitch, and length is measured from under the head (excluding the thin flat head). Perfect for replacing hard‑to‑find miniature screws in cameras, drones, medical devices, and hobbyist projects.
✨ Why These Mini Thin Flat Head Screws Are a Precision Essential
-
Ultra‑thin flat head design – Reduced head height compared to standard countersunk screws. Ideal for tight clearance applications like laptops, tablets, and small enclosures.
-
A2 stainless steel (304 grade) – Good corrosion resistance, high strength, and a clean silver finish. Suitable for indoor and light outdoor use.
-
Phillips drive – Standard cross recess works with precision PH0 or PH00 bits. Easy to install with common tools.
-

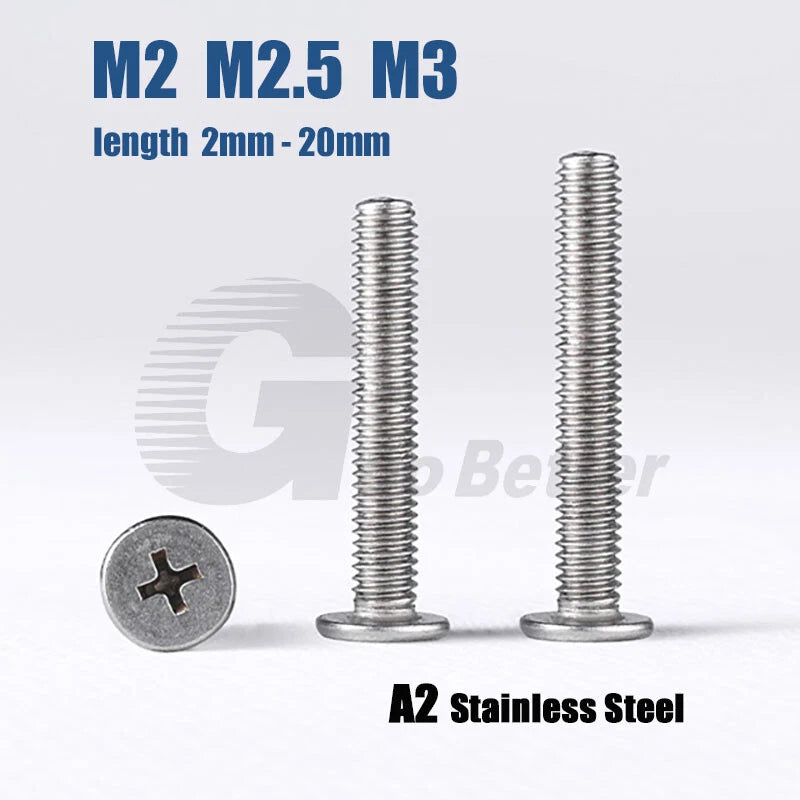

Metric sizes M2, M2.5, M3 – The most common miniature diameters for electronics, cameras, drones, and medical devices.
-
Lengths from 2mm to 20mm (under head) – Extremely short screws for ultra‑thin panels, longer ones for through‑hole applications. Choose exactly what you need.
-
Fully threaded, coarse metric pitch – Standard threads: M2x0.4, M2.5x0.45, M3x0.5. Threads run the entire shank length for maximum grip.
-
Wide application range – Laptops, tablets, cameras, drones, medical instruments, model making, and any precision assembly with space constraints.

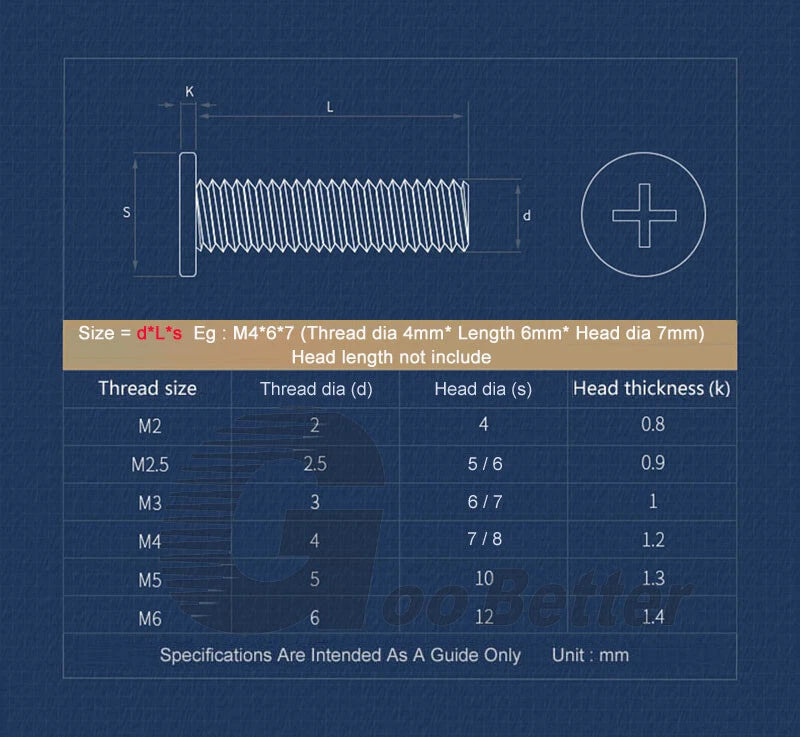

📏 Technical Specifications – Mini Thin Flat Head Phillips Screws (M2–M3)
| Specification |
Details |
| Product Type |
Phillips Thin Flat Head Machine Screws (Miniature) |
| Material |
A2 Stainless Steel (304 / 18-8) |
| Drive Style |
Phillips cross‑head (use PH0 or PH00) |
| Head Style |
Thin flat head (reduced height, not fully countersunk) |
| System of Measurement |
Metric |
| Screw Sizes (Diameter) |
M2, M2.5, M3 |
| Thread Pitches (coarse) |
M2x0.4, M2.5x0.45, M3x0.5 |
| Thread Type |
Fully threaded |
| Length Range (under head) |
2mm – 20mm (select from options) |
| Length Measurement |
Under head – from flat bearing surface to tip (head not included) |
| Finish |
Natural stainless (unplated, silver) |
❓ FAQs – Mini Thin Flat Head Screws
🔸 What is the difference between a thin flat head and a standard countersunk head?
A standard countersunk head has a tapered underside that requires a countersunk hole to sit flush. A thin flat head has a much smaller overall height and a flat underside – it sits on top of the surface but adds very little thickness. This is ideal for applications where you cannot countersink the hole but still need a low‑profile fastener.
🔸 How is length measured for these screws?
Length is measured from the underside of the head (the flat bearing surface) to the tip, not including the thin head. For example, an M3 x 10mm screw has a 10mm threaded shank. This matches standard pan/flat head measurement.
🔸 Are these screws fully threaded? What Phillips bit should I use?
Yes – they are fully threaded. For M2 and M2.5, use a PH00 or PH0 precision bit. For M3, a PH0 works well. Never use a PH1 – it will strip the tiny recess.
🔸 Will A2 stainless steel rust in outdoor or humid environments?
A2 (304) stainless is highly resistant to moisture and humidity – fine for most indoor and protected outdoor use. For direct saltwater or chemical exposure, A4 (316) stainless is recommended.
🔸 Can I use these screws with nuts, or are they self‑tapping?
These are standard machine screws – they require a matching metric nut (M2, M2.5, or M3) or a pre‑tapped hole. They are not self‑tapping.
🔸 What lengths are available for M2, M2.5, and M3?
We offer lengths from 2mm to 20mm. Common increments include 2, 2.5, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20mm depending on the diameter. Please select your desired length from the dropdown options. If you need a length not listed, contact us.
