Miniature Slide Switch — 2P2T / 2P3T, 2 & 3 Position, SS/SK Series (G1.5–G6)

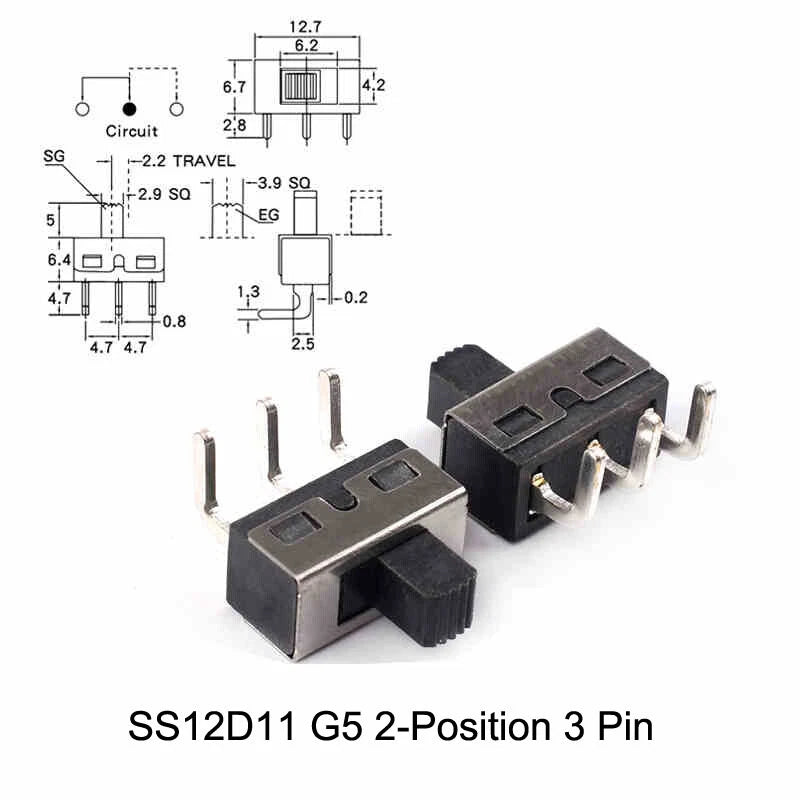

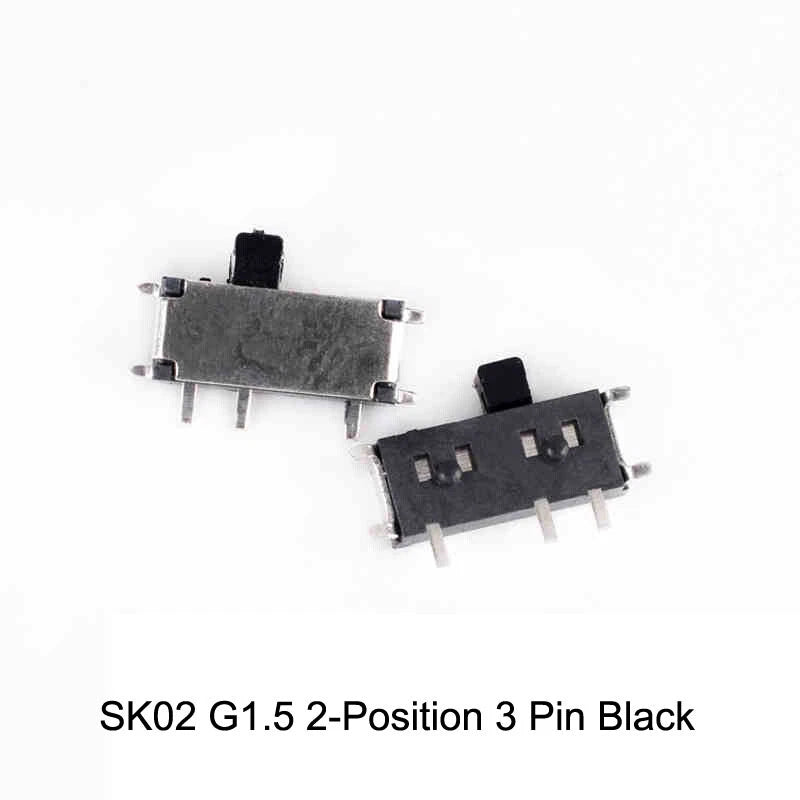

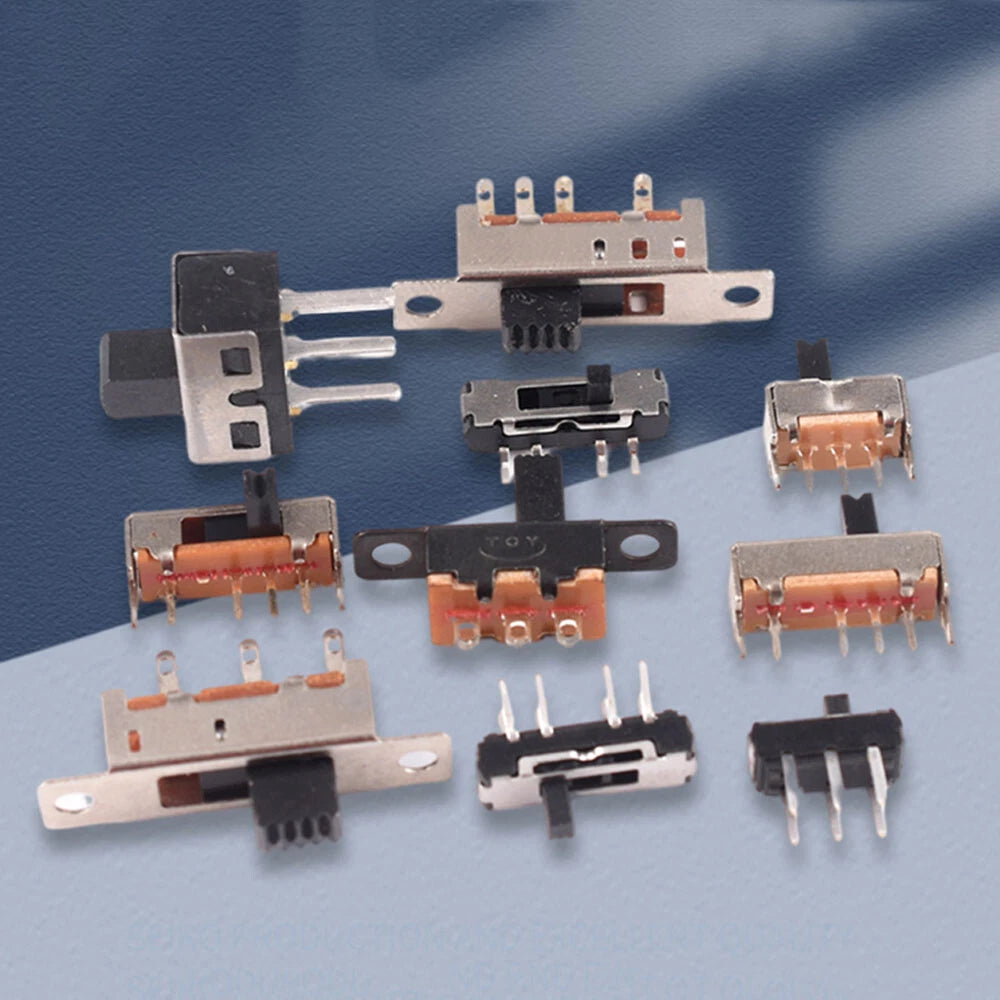

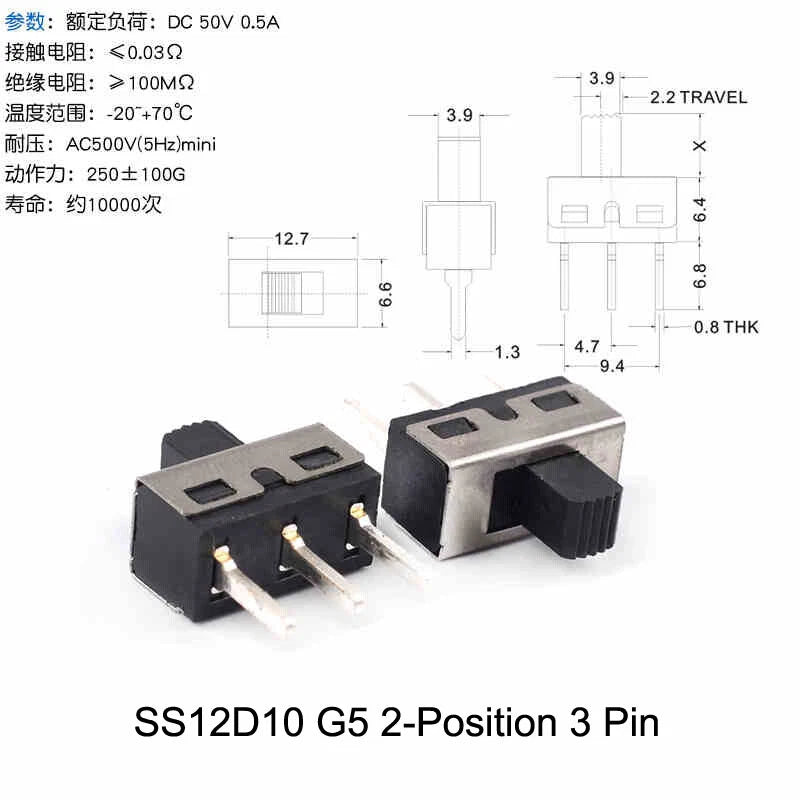

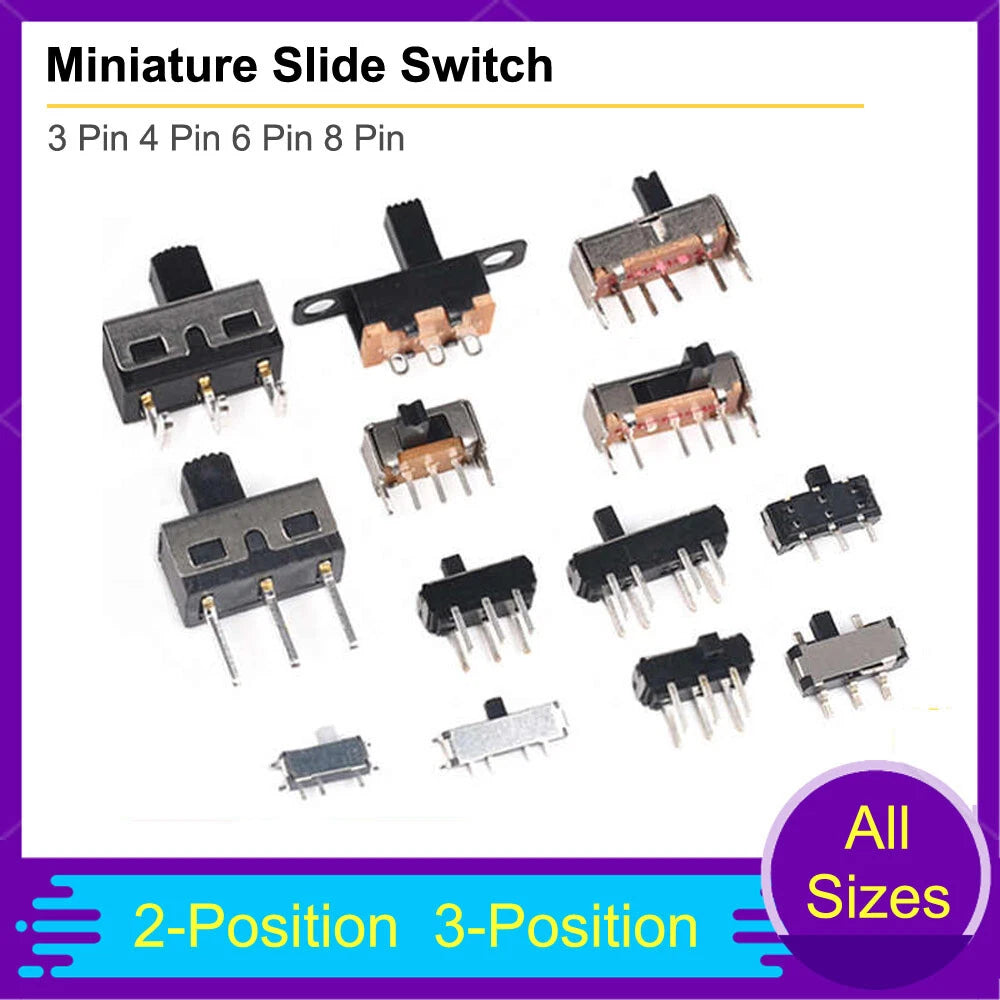

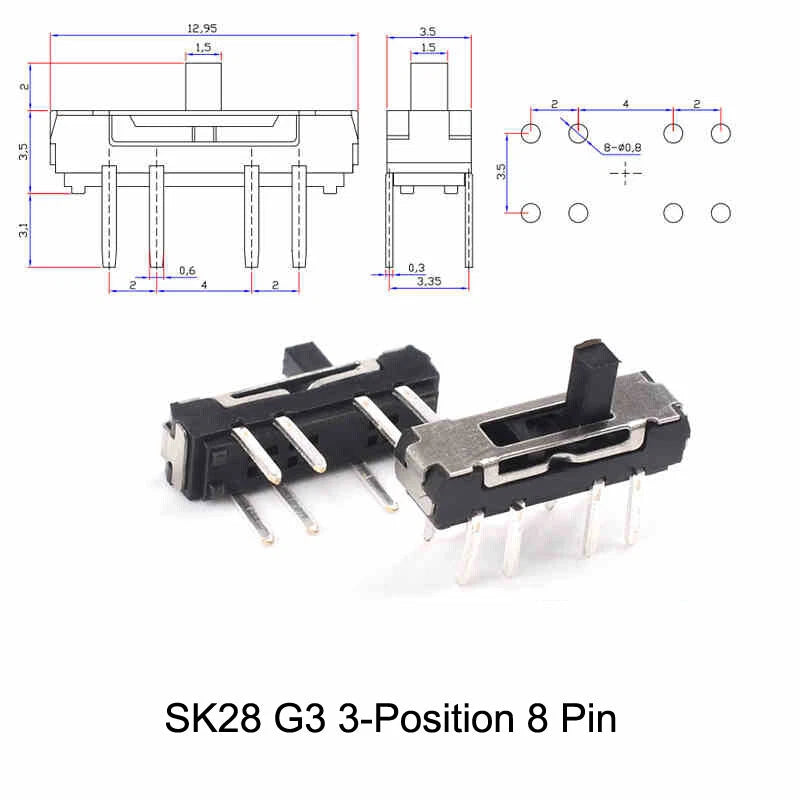

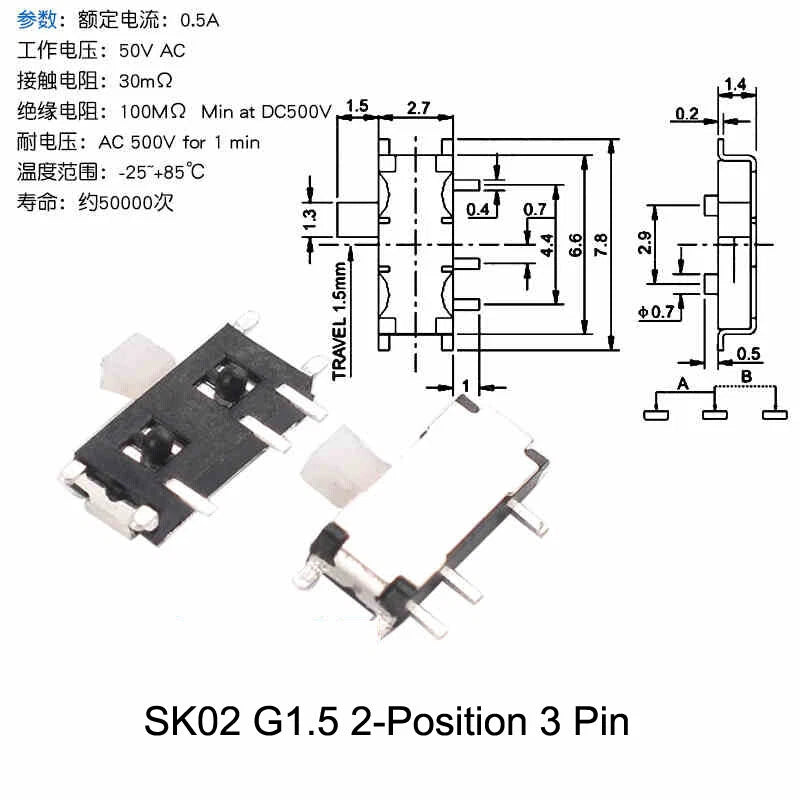

The pitch designation refers to the center-to-center spacing between the switch terminals: G1.5 = 1.5mm, G2 = 2mm, G3 = 3mm, G4 = 4mm, G5 = 5mm, G6 = 6mm. Match this to your PCB footprint or wiring harness connector spacing. When in doubt, measure your existing switch with calipers or check your PCB layout file. Ordering the wrong pitch is the most common mistake with miniature slide switches — take a moment to verify before adding to cart.

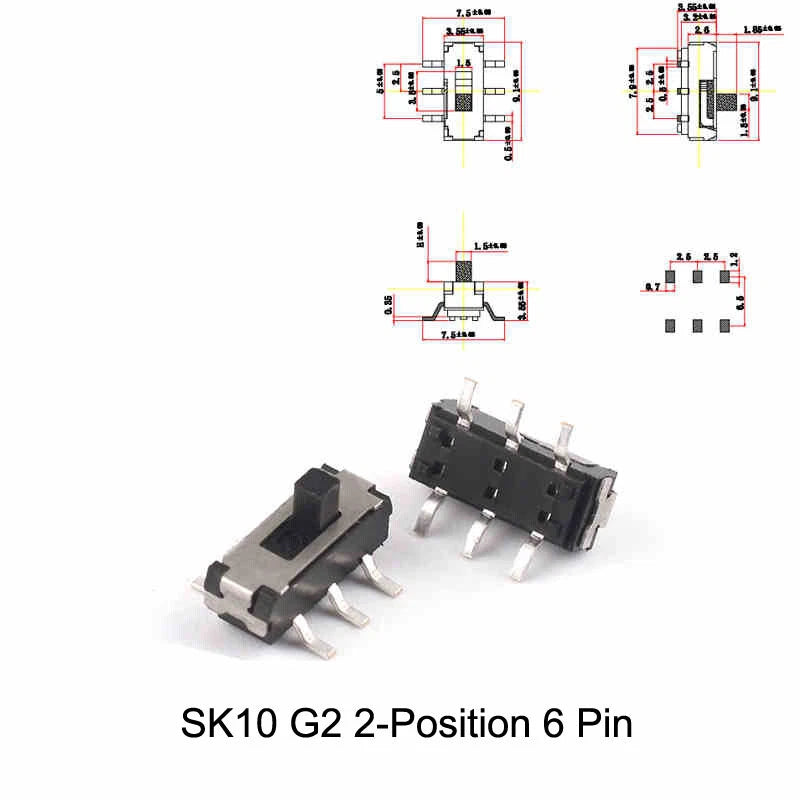

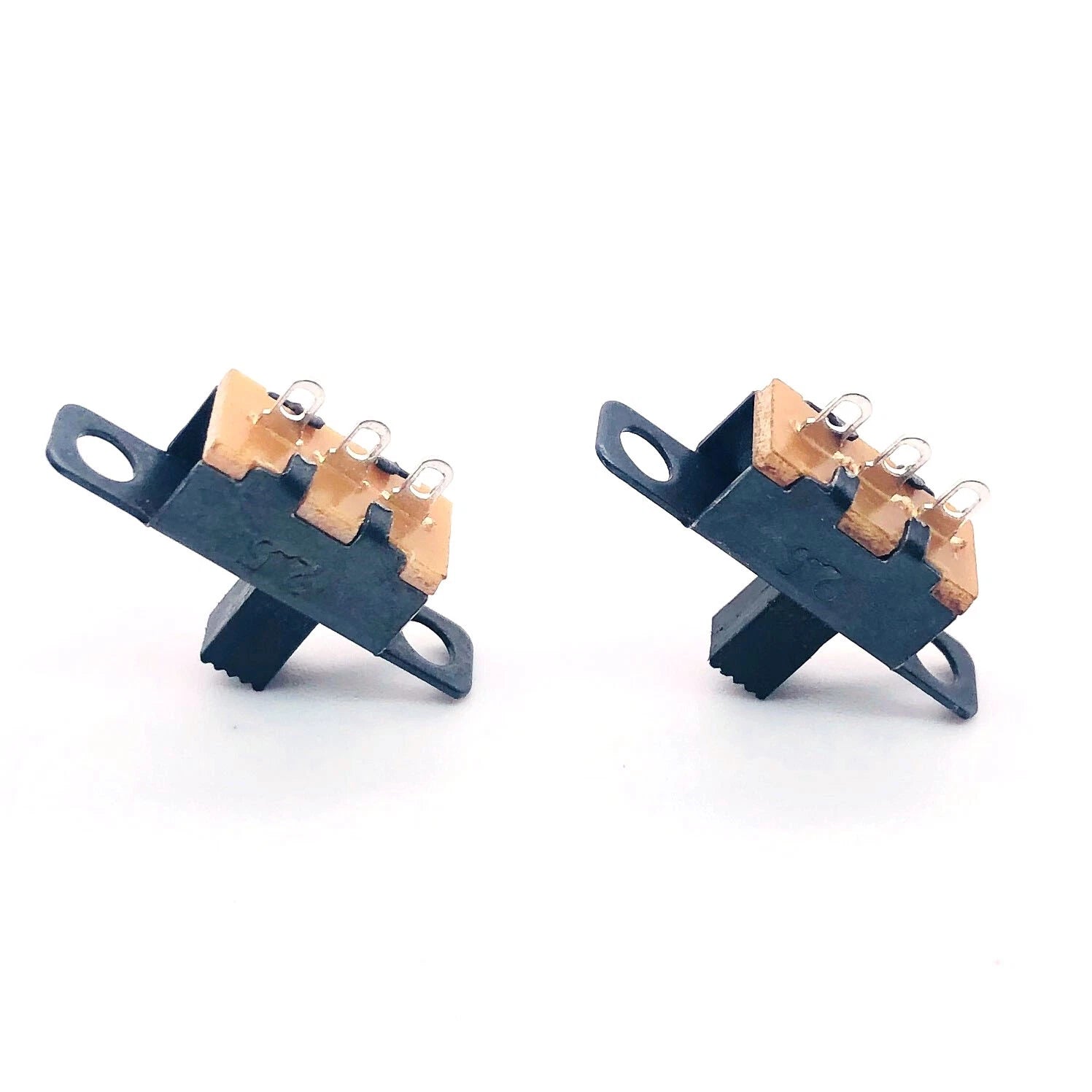

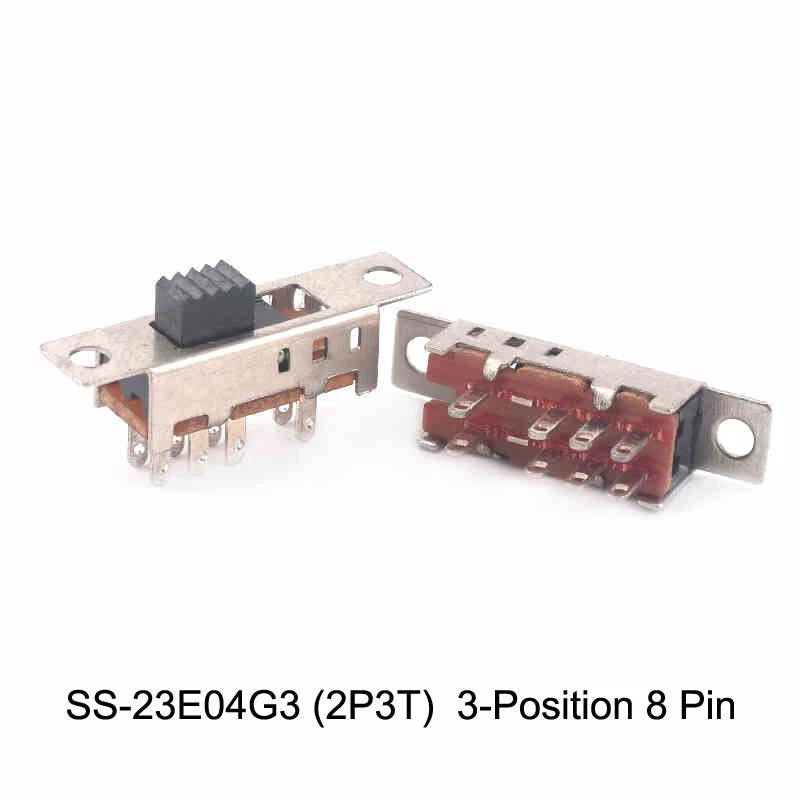

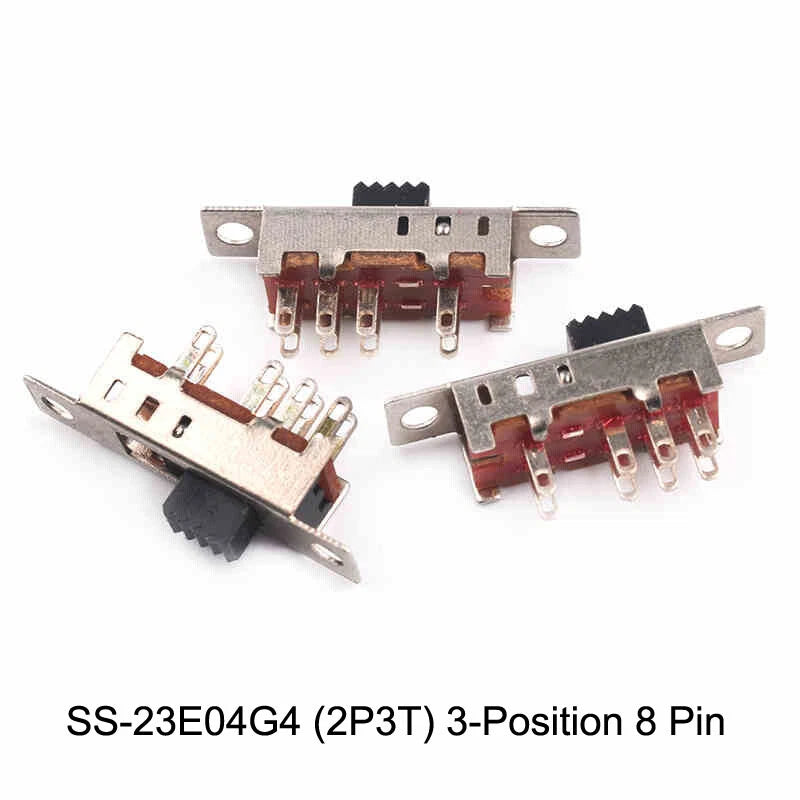

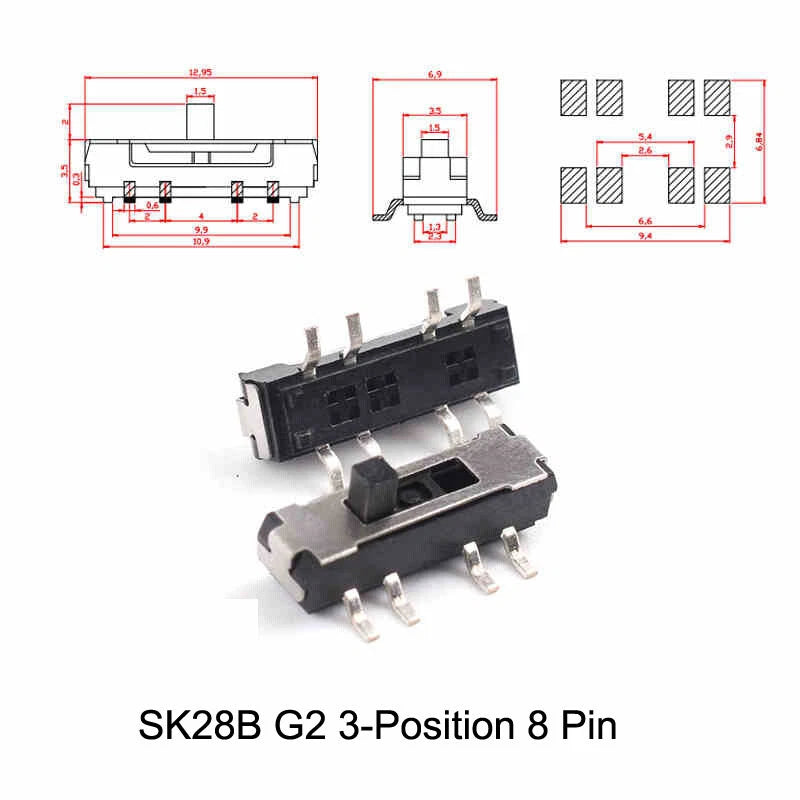

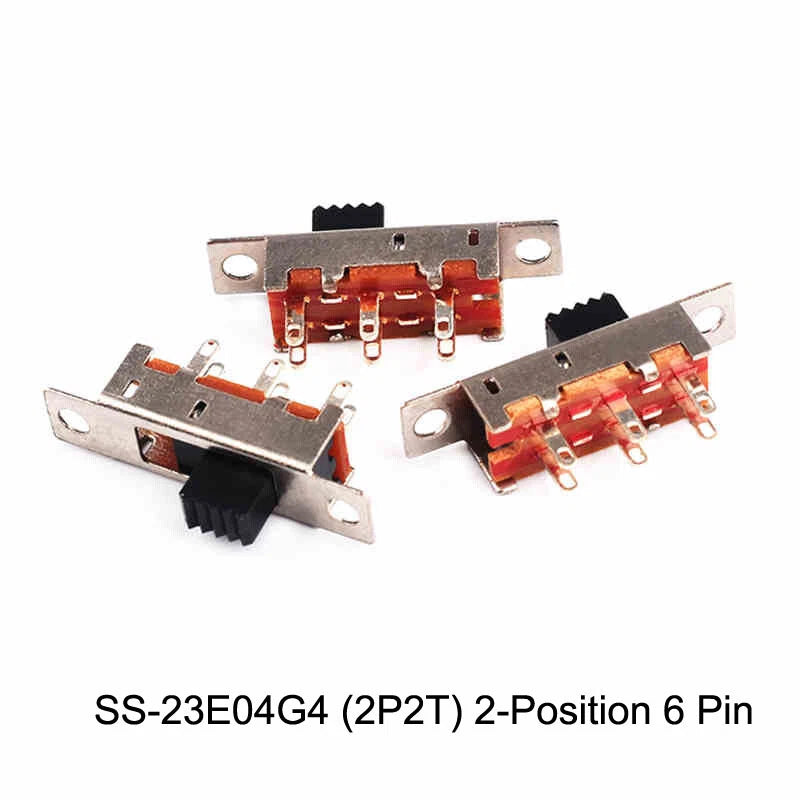

2P2T (Double Pole Double Throw) has 2 poles and 2 throw positions — typically resulting in a 6-pin switch. It's used for simple on/off or A/B circuit selection. 2P3T (Double Pole Triple Throw) has 2 poles and 3 throw positions — typically 8 pins — and is used when you need a center-off position or need to select between three circuit paths. Check your schematic to confirm which configuration your design requires.

SS and SK series miniature slide switches are generally rated for low-signal applications — typically 0.3A to 0.5A at 6V DC to 12V DC. They are not designed for mains voltage or high-current power switching. Always verify the datasheet for your specific part number before use in safety-critical circuits. If you need the exact rating for a specific variant, contact us with the type name.

Standard SS/SK series slide switches are generally not rated for outdoor or high-humidity use without additional protection. For moisture-exposed applications, conformal coating applied after PCB assembly is a common solution. If you need a sealed or IP-rated variant, contact us to confirm availability. In most cases, these switches are best suited for indoor, enclosed enclosure use.

Yes — SS and SK series switches follow widely used industry dimensional standards. Most EDA libraries include footprints for these series. The key parameters to match are pin pitch (G1.5 through G6) and pin count (3, 4, 6, or 8 pins), both of which are listed in each variant name. Verify the exact pitch from the variant before placing your PCB order to avoid respins.

SS series switches typically feature a standard slide actuator profile suited for general PCB and panel applications. SK series variants may have a different actuator height or body depth, making them better suited for tighter clearances or specific panel cutout dimensions. Both series share similar electrical ratings. Compare the physical body dimensions from the variant name and your available mounting space to choose the right series.

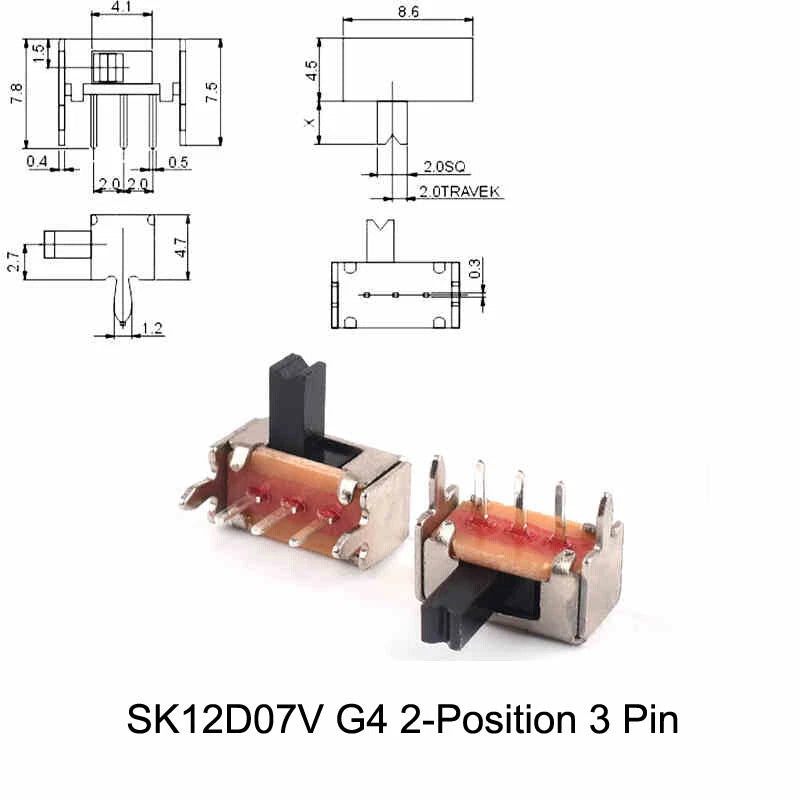

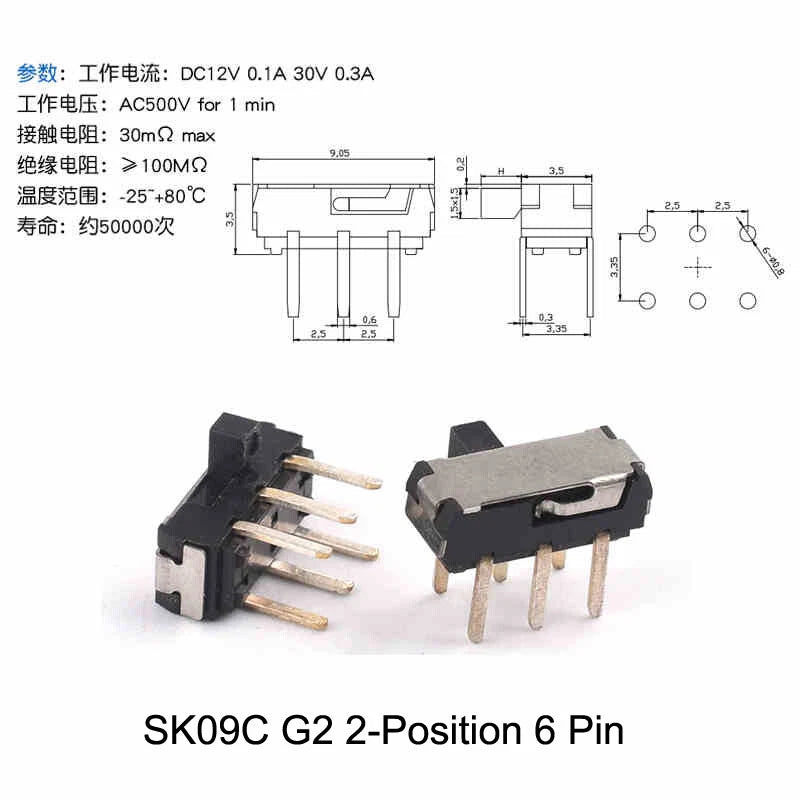

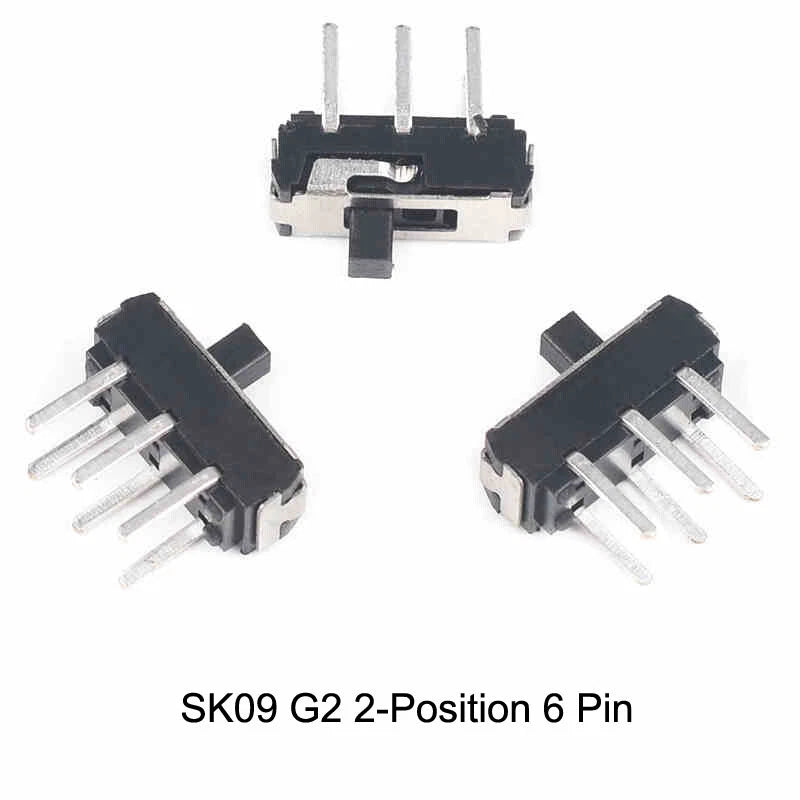

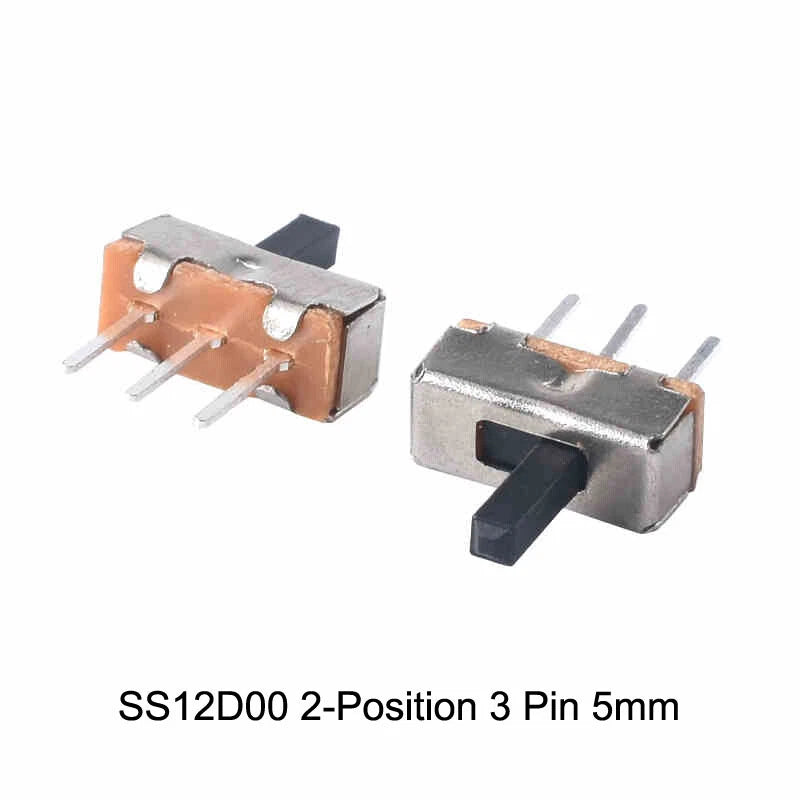

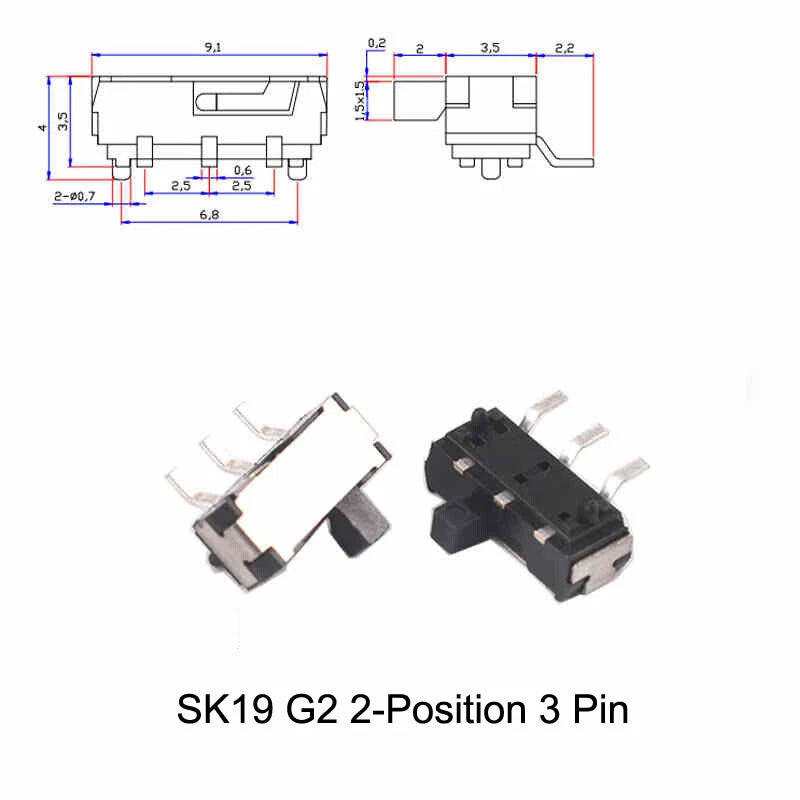

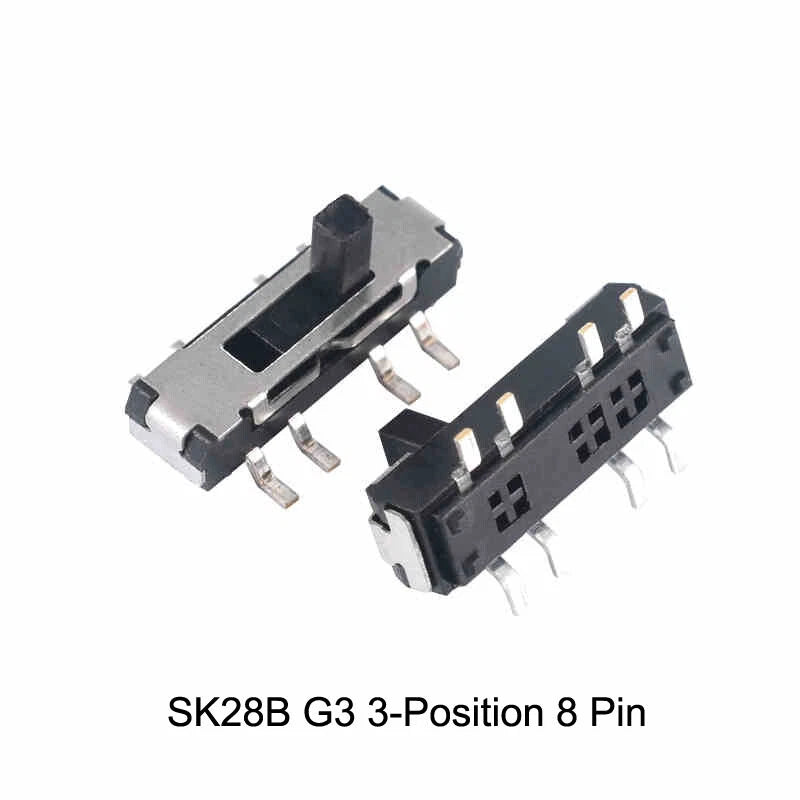

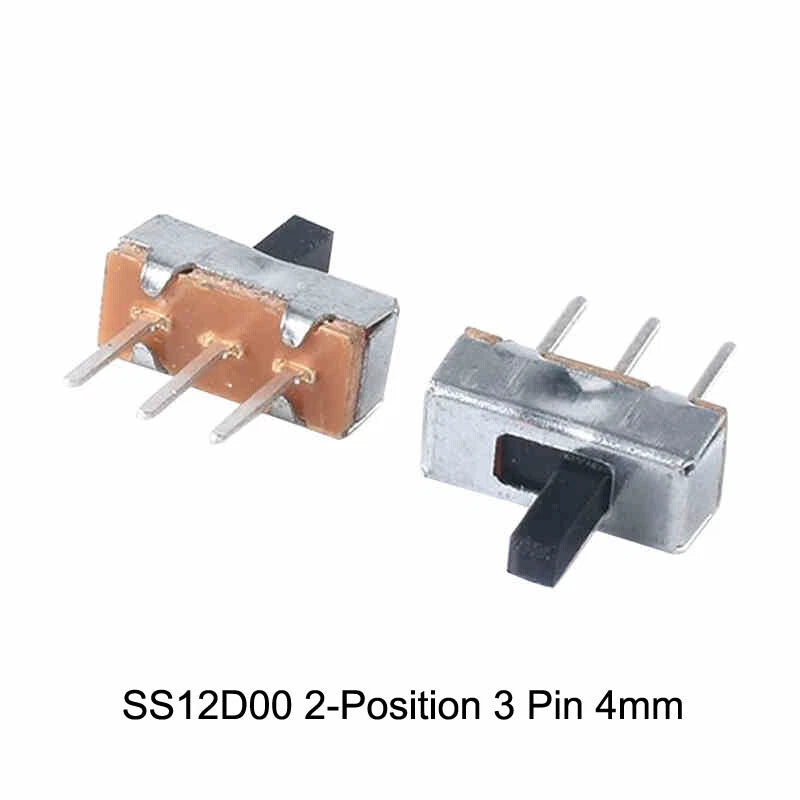

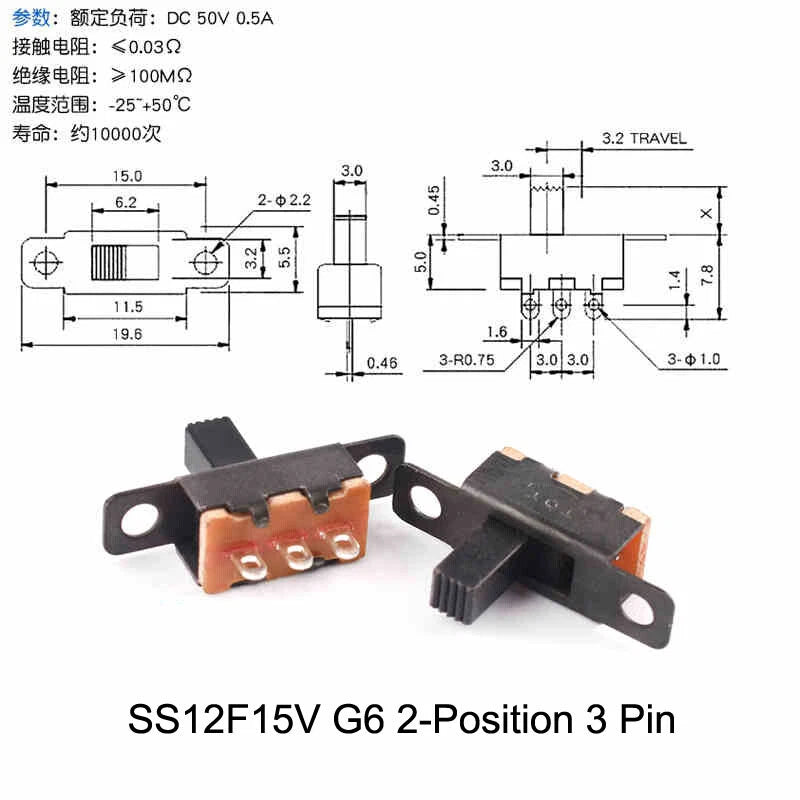

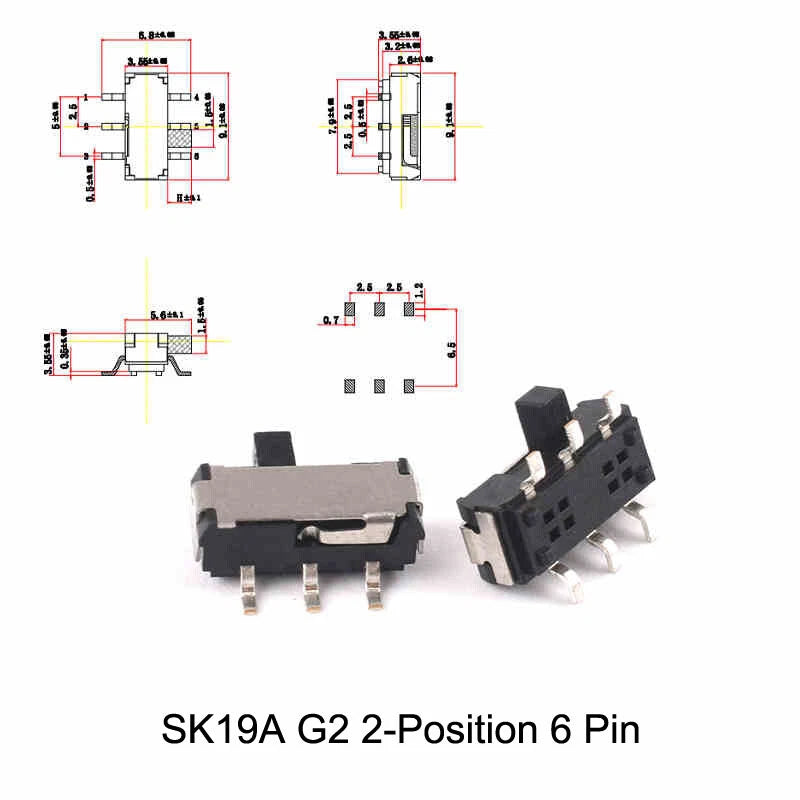

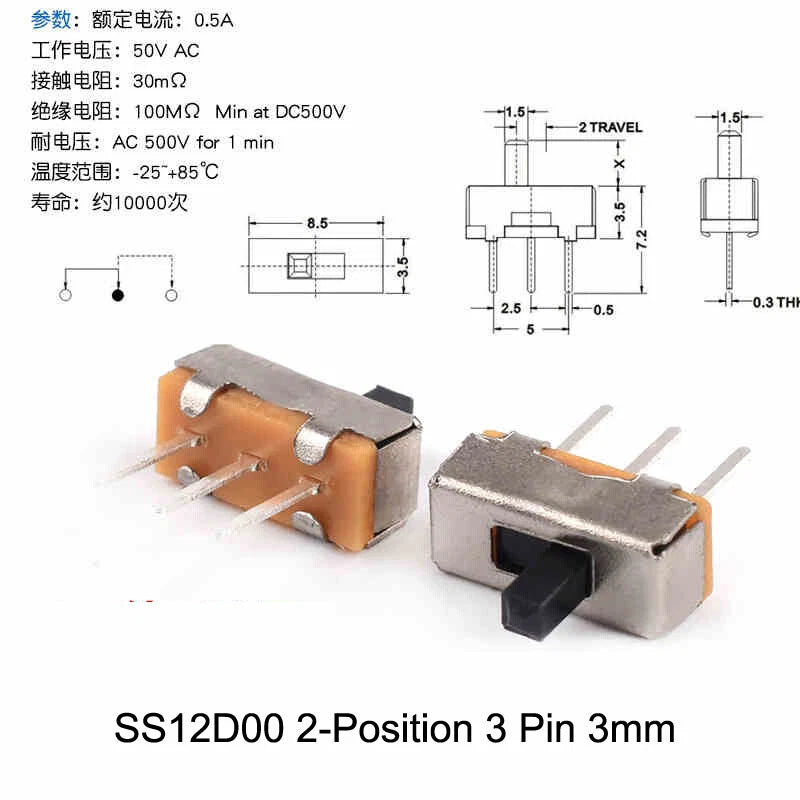

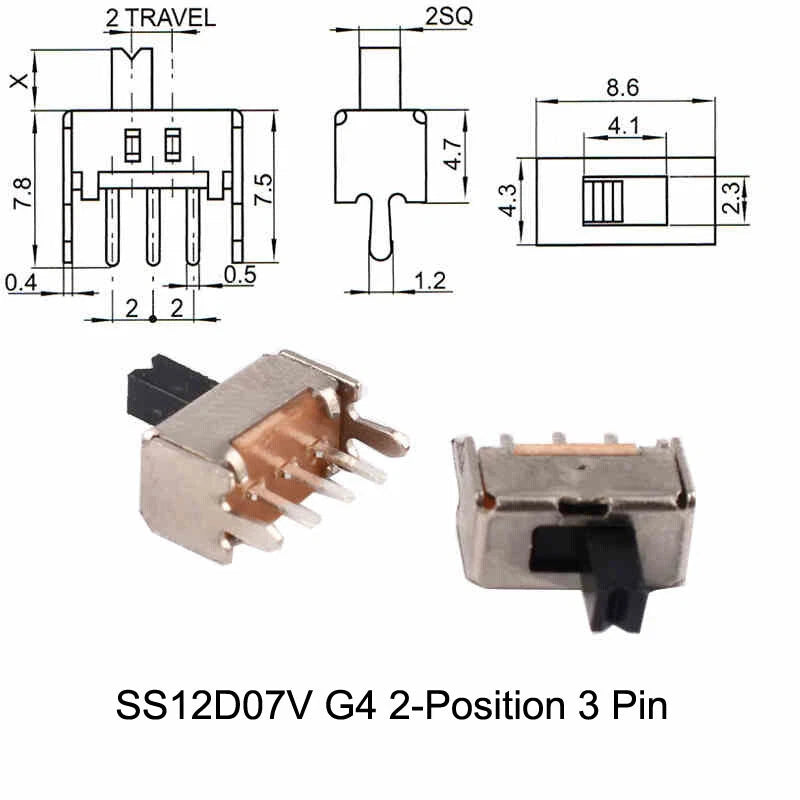

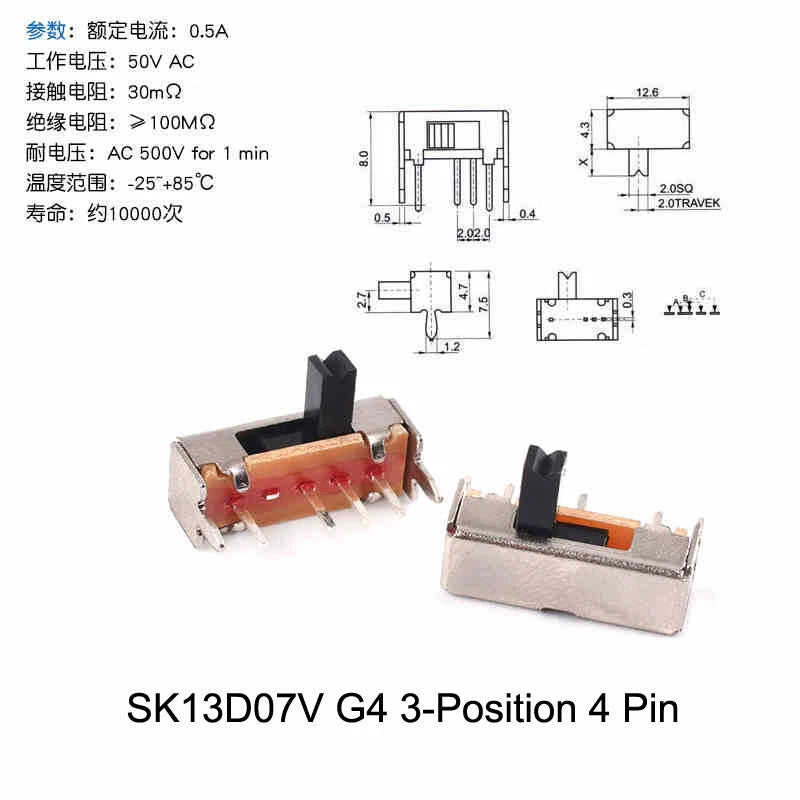

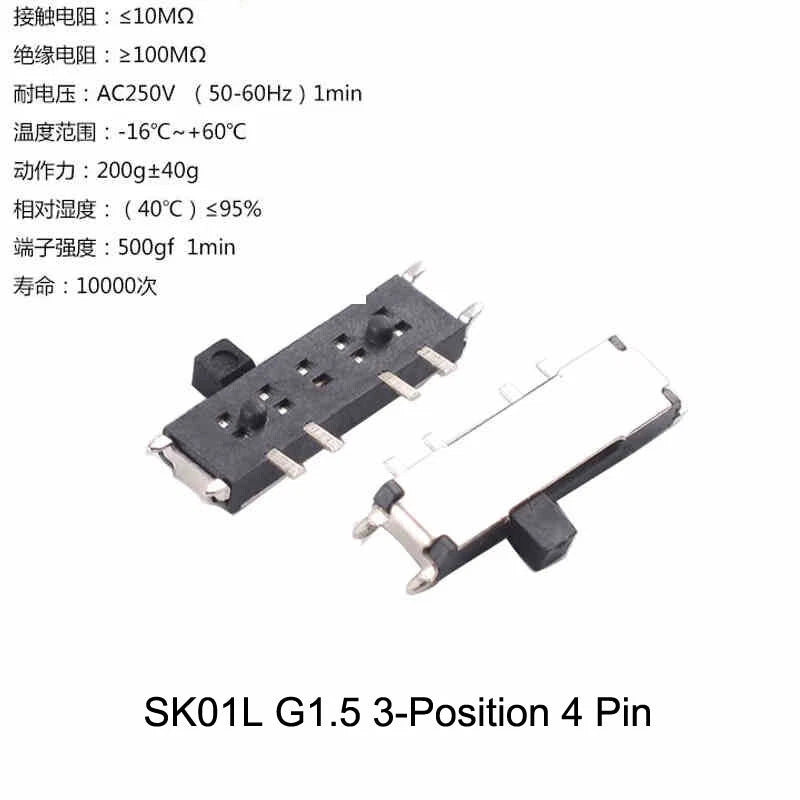

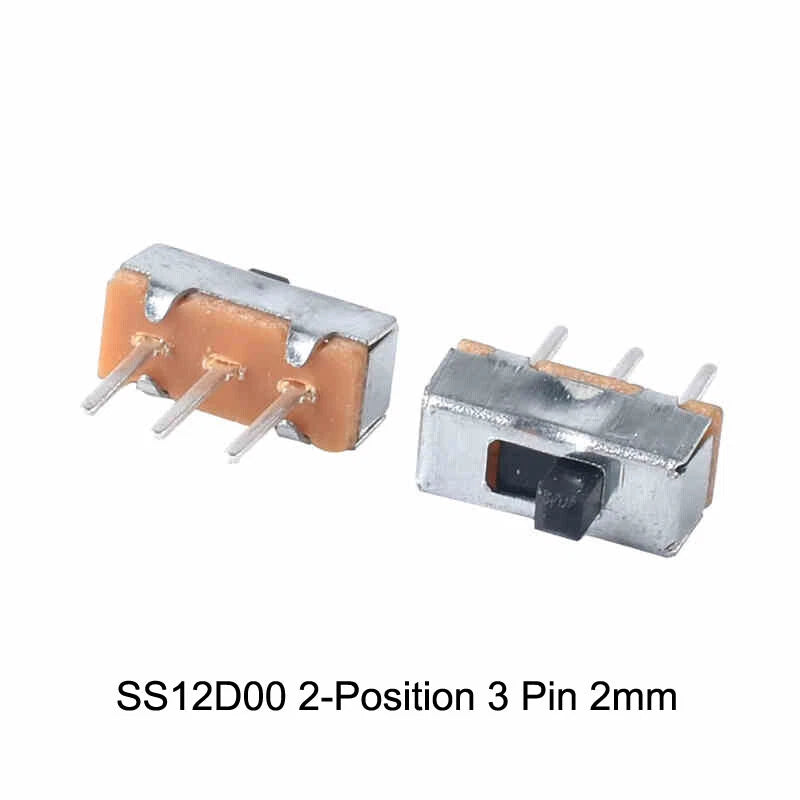

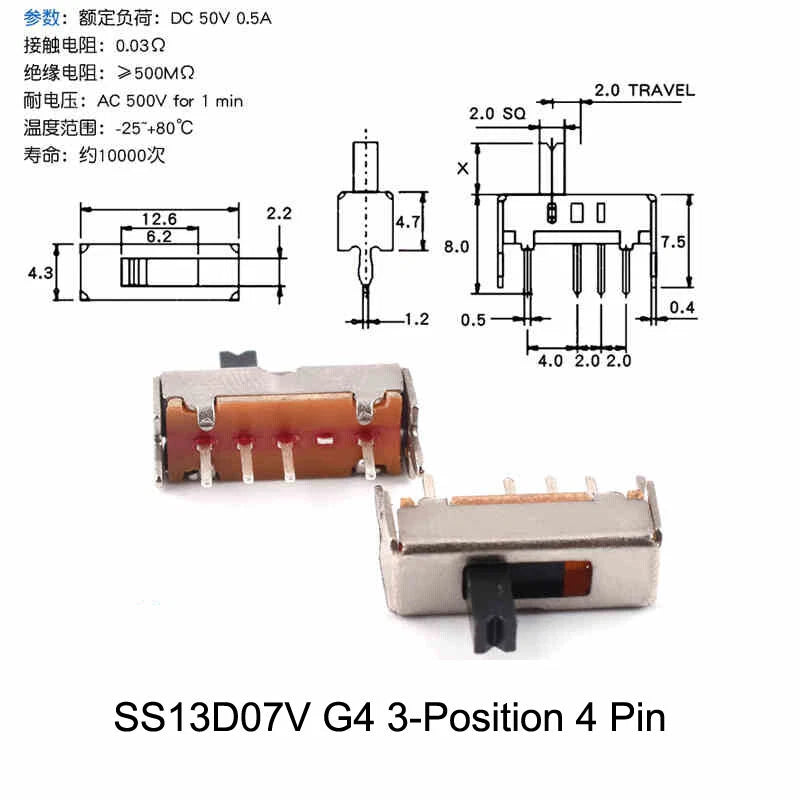

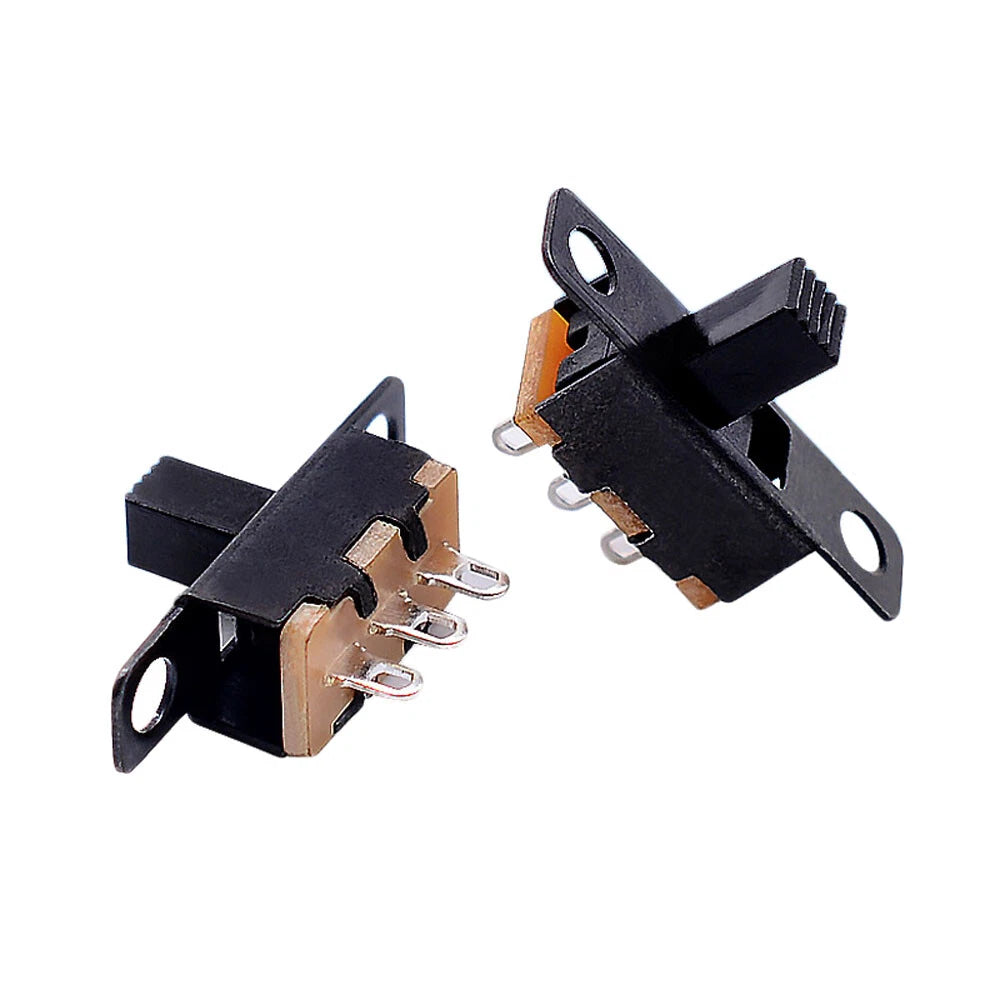

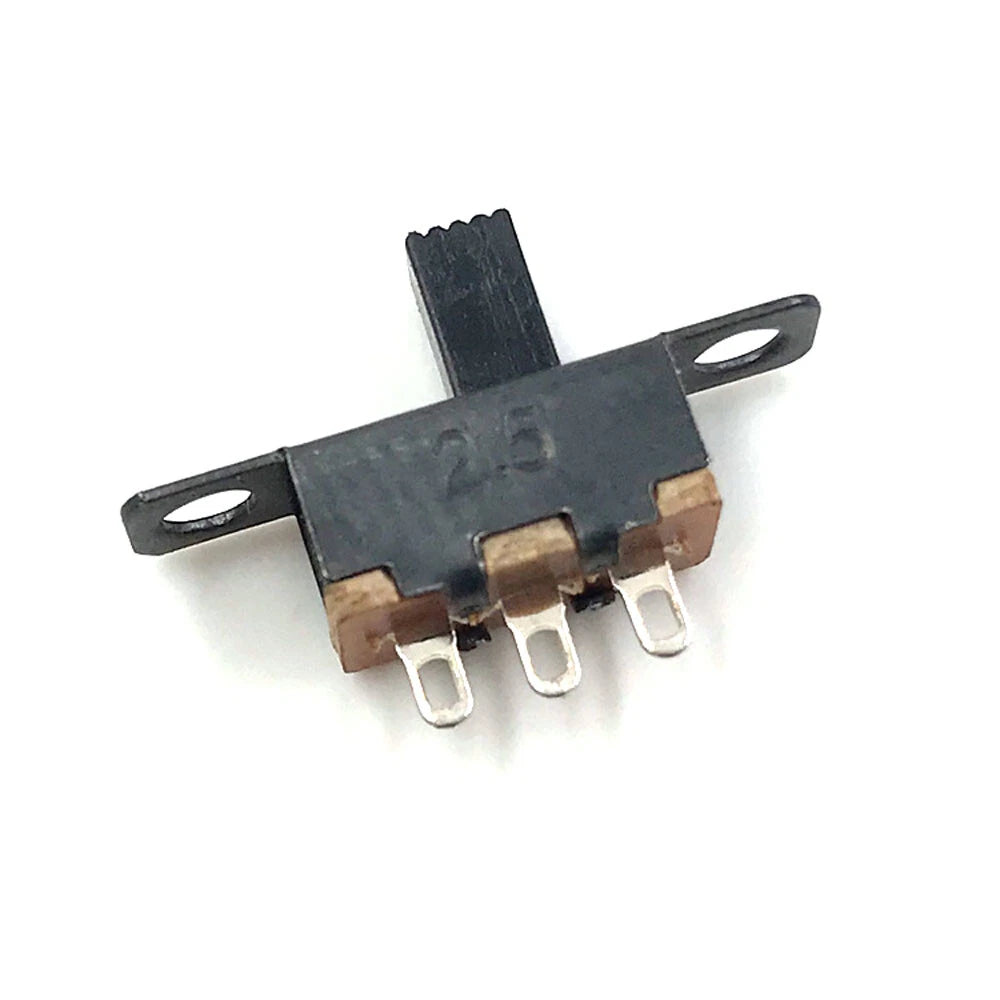

Some variants — particularly the SS12D00 series with 2mm–5mm actuator travel — are commonly used in panel-mount or chassis applications with an appropriate cutout. For direct PCB through-hole soldering, any variant in this listing works. If you're panel mounting, measure your panel thickness and match it to the actuator travel length. Contact us to confirm the best fit for your specific panel dimensions.
