Description

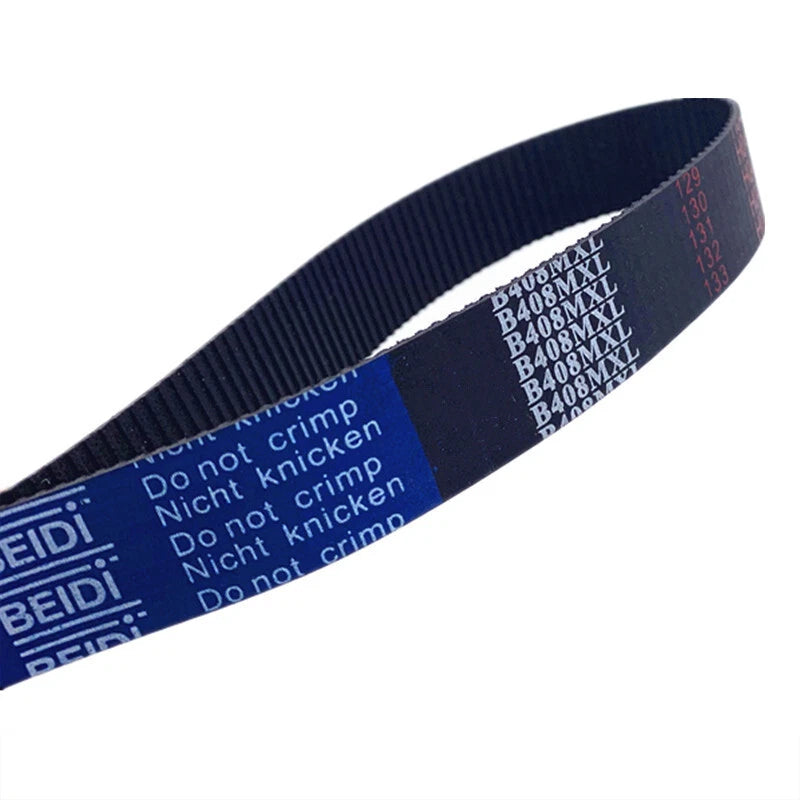

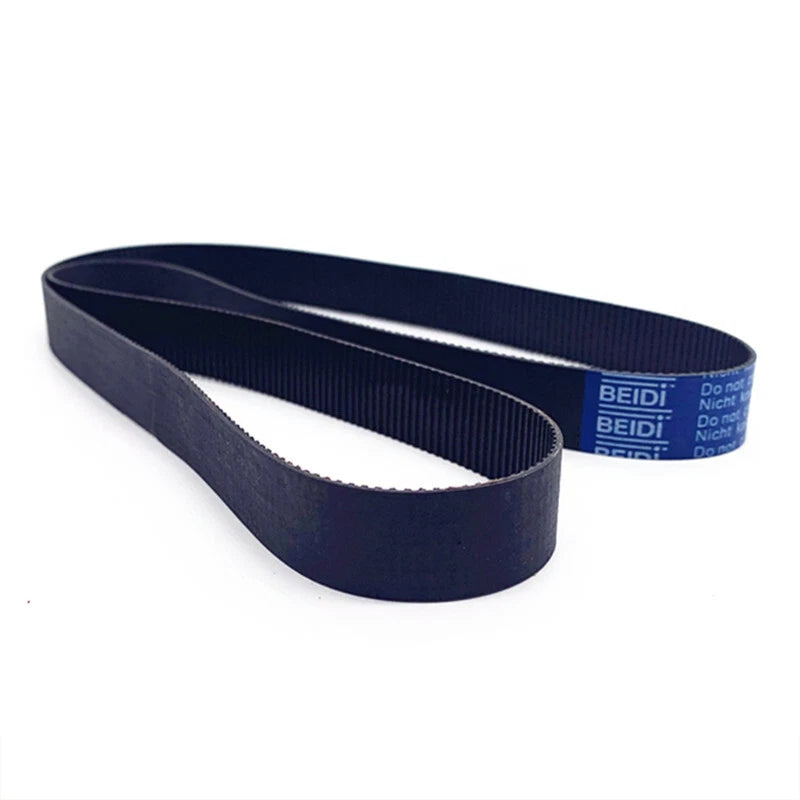

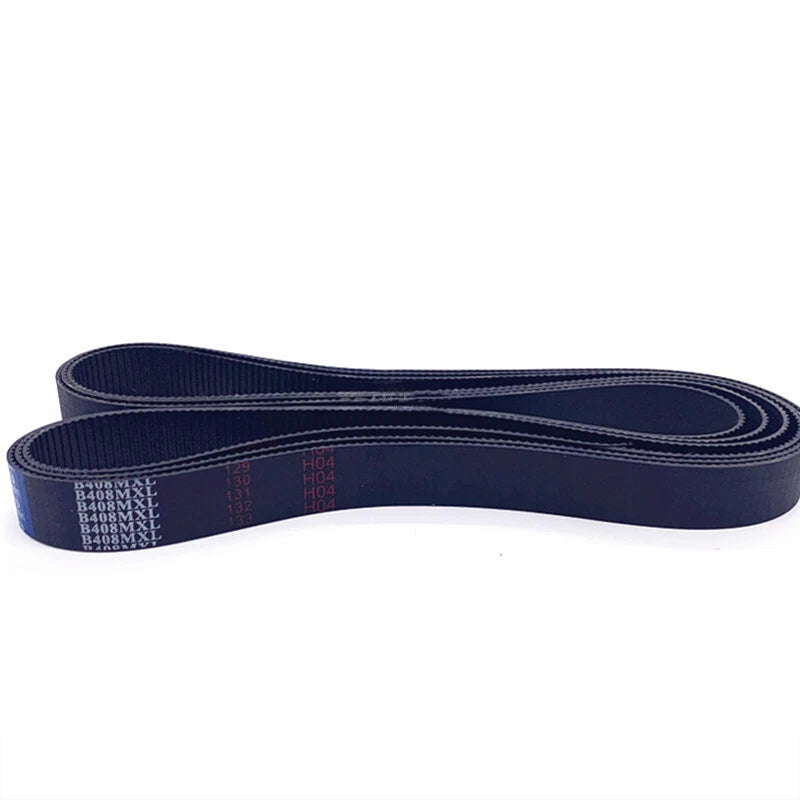

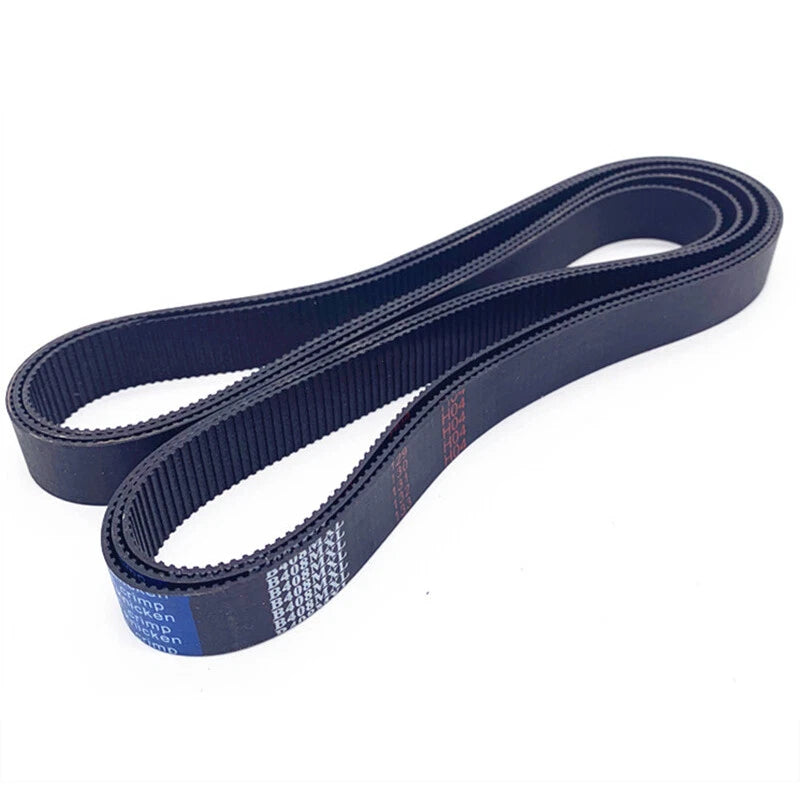

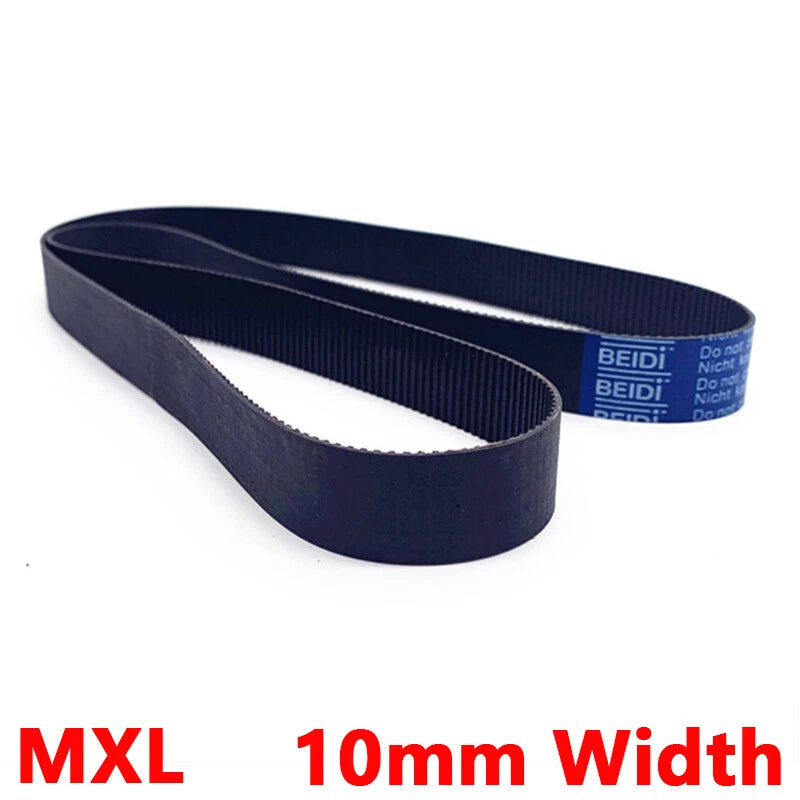

MXL Closed Loop Synchronous Timing Belt — Precise, Slip-Free Power Transmission for CNC and 3D Printers

When a skipped tooth or a stretched belt throws off your CNC cut or ruins a 3D print mid-job, the root cause is almost always a belt that was not built to spec. Makers, engineers, and machine builders who demand repeatable positioning accuracy need an MXL closed loop timing belt they can count on — one that seats cleanly on the pulley, holds tension, and does not creep under load.

Each belt in this listing follows the MXL tooth profile standard with a 2.032mm pitch and a 10mm width. The closed-loop (endless) construction means no splice point and no weak joint. Available in a wide range of sizes from 40 Teeth / 81.28mm (approx 3.2") up to 2046 Teeth / 4157.472mm (approx 163.7") — select your exact tooth count from the variant dropdown. Belt material is typically neoprene rubber with a nylon tooth facing and fiberglass cord reinforcement for dimensional stability.

Typical use cases include CNC router X/Y axis drives, 3D printer extruder and motion systems, linear actuator drives, pick-and-place machine drives, and DIY automation conveyor loops — anywhere a synchronous, no-slip drive loop is required.

🔗 Compatibility: Fits any MXL-profile pulley with a 2.032mm pitch tooth form. NOT compatible with GT2, T2.5, or HTD pulleys. Confirm your pulley groove width accommodates a 10mm belt before ordering.
⚠️ Size Selection: Each variant lists the Teeth count and exact pitch circumference in mm. Measure your required belt path length before selecting. Contact us if you need help calculating the correct size.

✅ Key Features of These MXL Closed Loop Timing Belts

  • 🦷MXL Tooth Profile, 2.032mm Pitch — Conforms to the MXL standard used across CNC routers, 3D printers, and light automation equipment, ensuring consistent mesh with MXL pulleys and sprockets.
  • 🔄Closed Loop (Endless) Construction — No splice, no joint, no weak point. The seamless loop design delivers uniform tension distribution and eliminates the failure mode common in joined or laced belts.
  • 📏Wide Size Range — 40 to 2046 Teeth — One listing covers an exceptionally broad range of circumferences, from compact 81.28mm loops for small desktop machines to 4157mm loops for large-format CNC gantries.
  • 🧵10mm Belt Width for Balanced Load Capacity — The 10mm width suits the majority of hobby CNC and 3D printer drive systems, providing adequate tensile strength without adding unnecessary mass to moving carriages.
  • 🛡️Neoprene Body with Nylon Tooth Facing — The nylon-faced tooth surface reduces friction against pulley flanges and resists wear, while the neoprene body maintains flexibility across typical workshop operating temperatures.
  • ⚙️Fiberglass Cord Reinforcement for Dimensional Stability — The tensile cord layer resists elongation under load, helping maintain accurate positioning in closed-loop motion control systems where belt stretch translates directly to positioning error.

📐 Technical Specifications — MXL Closed Loop Synchronous Timing Belt

Belt Profile MXL (Miniature Extra Light)
Pitch 2.032mm (0.080")
Belt Width 10mm (approx 0.394")
Tooth Count Range 40 Teeth / 81.28mm to 2046 Teeth / 4157.472mm
Loop Type Closed Loop / Endless (no splice)
Body Material Neoprene rubber (typically)
Tooth Facing Nylon fabric (typically)
Tensile Cord Fiberglass (typically)
Compatible Pulley Profile MXL only — not compatible with GT2, T2.5, or HTD
Typical Applications CNC routers, 3D printers, linear drives, automation
Operating Temperature Contact us to confirm for your specific application
Quantity per Order 1 belt per variant selected

❓ Frequently Asked Questions

How do I choose the right belt length (number of teeth)?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C = center distance and D1/D2 = pitch diameters of each pulley. For MXL pulleys, pitch diameter = (Teeth × 2.032mm) / π. Each variant in this listing shows the exact pitch circumference in mm — match that to your calculated belt path. Example: MXL 100-tooth belt = 203.2mm (approx 8.0"). When in doubt, size up slightly and adjust your tensioner.

How do I convert the belt circumference from mm to inches?

Divide the mm value by 25.4. Quick reference:

  • MXL 40 Teeth = 81.28mm = approx 3.2"
  • MXL 100 Teeth = 203.2mm = approx 8.0"
  • MXL 200 Teeth = 406.4mm = approx 16.0"
  • MXL 400 Teeth = 812.8mm = approx 32.0"
  • MXL 1000 Teeth = 2032mm = approx 80.0"

All variant names in this listing include the exact mm circumference for easy reference.

What pulleys are compatible with this MXL timing belt?

This belt uses the MXL tooth profile with a 2.032mm pitch. It is compatible with MXL-profile pulleys and sprockets only. MXL is NOT interchangeable with:

  • GT2 (2mm pitch — different tooth shape)
  • T2.5 (2.5mm pitch)
  • HTD 3M, 5M, or 8M profiles

Also confirm your pulley groove width accommodates a 10mm wide belt before ordering.

What tensile strength and load capacity does this belt have?

MXL closed loop timing belts are generally rated for light-to-medium duty power transmission. The fiberglass cord reinforcement typically provides tensile loads well-suited for CNC routers, 3D printer motion systems, and small automation equipment. Exact load ratings vary by manufacturer — contact us if you need specific tensile data for your application. For heavier industrial loads, consider GT2 or HTD profile belts with wider widths.

Can this belt be used outdoors or in wet or oily environments?

Neoprene MXL timing belts generally offer moderate resistance to oil, grease, and mild moisture — suitable for typical workshop and light industrial environments. They are not recommended for prolonged outdoor UV exposure or full submersion in water or chemicals. For harsh outdoor or chemical-exposure applications, a polyurethane (PU) belt variant would typically be more appropriate.

Is this a closed loop (endless) belt or an open-ended belt?

This is a closed loop (endless) belt — it forms a continuous loop with no joint, splice, or fastener. This construction is required for most CNC and 3D printer drive systems where the belt wraps around two or more pulleys. The seamless design eliminates the weak point found in joined or laced belts and provides consistent tension around the full loop.

Why does belt width matter, and is 10mm the right width for my machine?

Belt width directly affects load capacity — a wider belt can transmit more torque and handle higher tensile forces. The 10mm width is the most common size for desktop CNC routers, 3D printers (CoreXY, Cartesian), and small linear actuators. Before ordering, confirm that your pulley flange-to-flange groove width is at least 10mm. If your machine uses a narrower groove (e.g., 6mm), you would need a narrower belt variant.

🛒 Select your size (tooth count) above, then add to cart — ships from our US warehouse.
