You’re working on a marine electrical panel, a battery box, or a piece of radio equipment – and metal screws would short out or corrode. This nylon fastener set gives you the versatility you need: choose from pan head Phillips, flat head Phillips, or hex socket cap head screws in M5 and M6, plus matching hex nuts and cap nuts. Made from PA66 nylon, they’re completely non‑conductive, non‑magnetic, and immune to rust and chemicals. Lightweight, self‑lubricating, and heat resistant. Perfect for PCB mounting, marine hardware, chemical environments, and any project where insulation and corrosion resistance are critical.

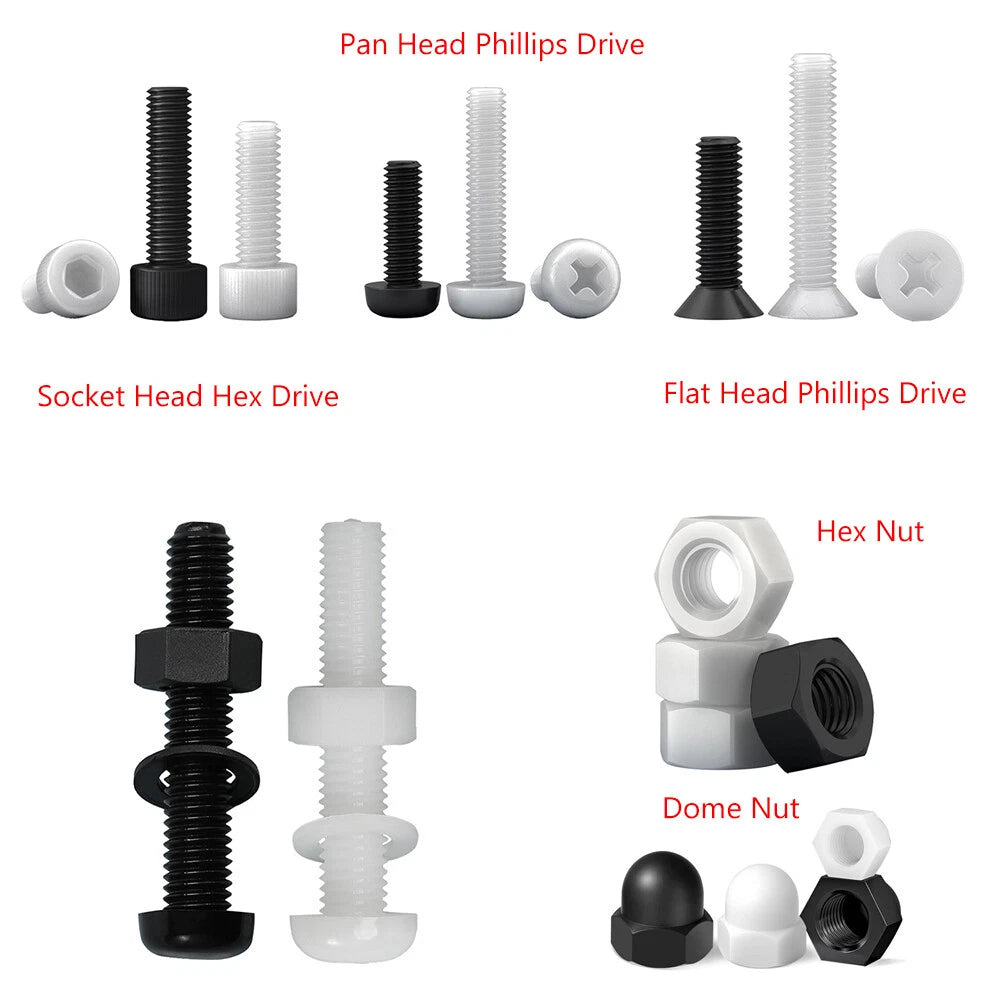

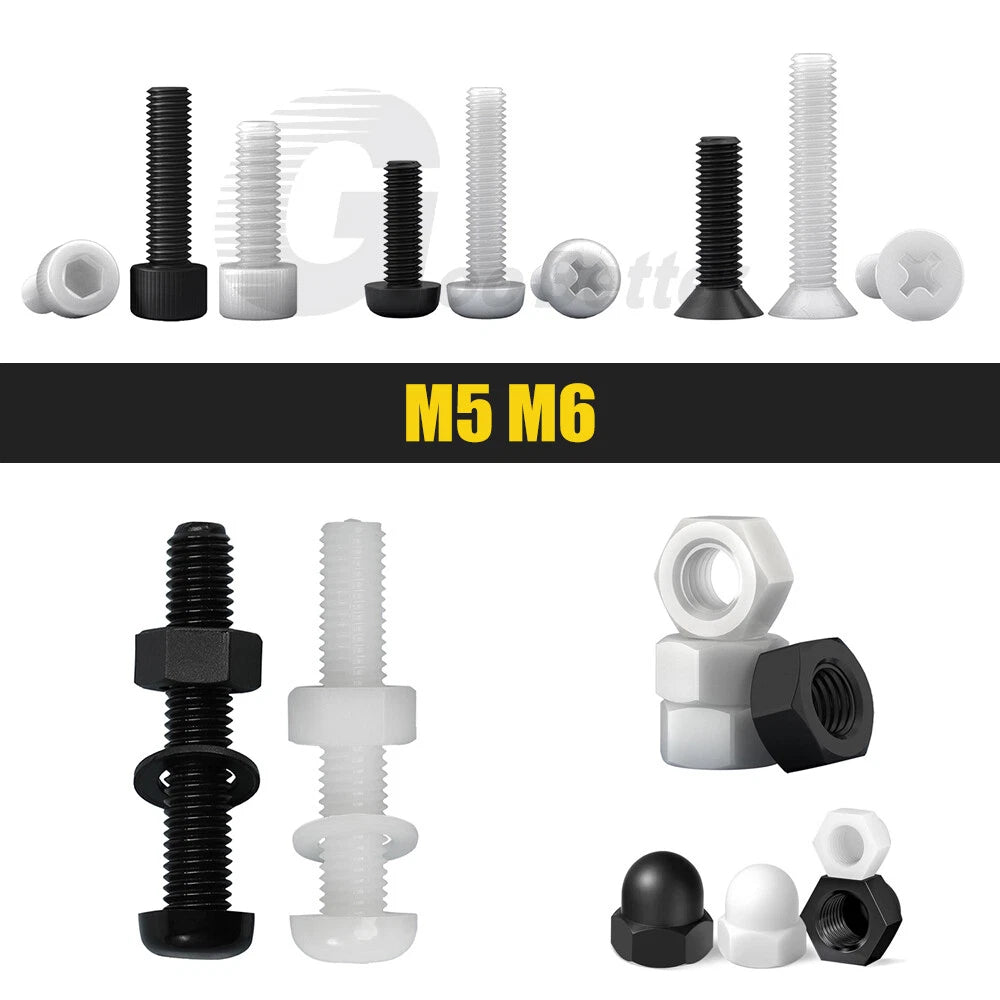

| Component | Head Style | Drive | Thread Sizes (M) | Thread Pitch (mm) | Material |
|---|---|---|---|---|---|
| 🔩 Screws (fully threaded, metric coarse) | |||||

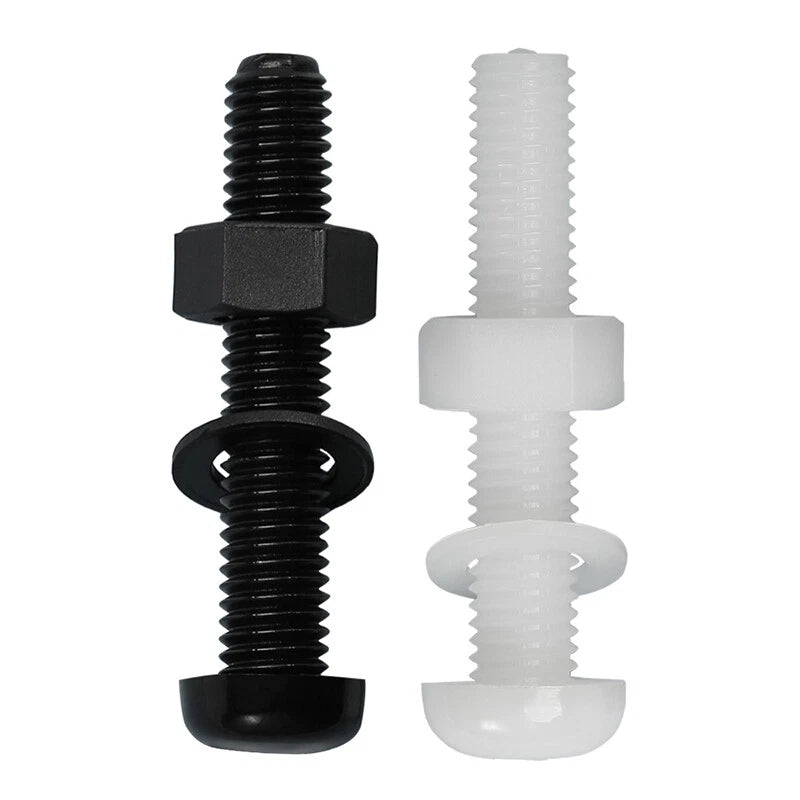

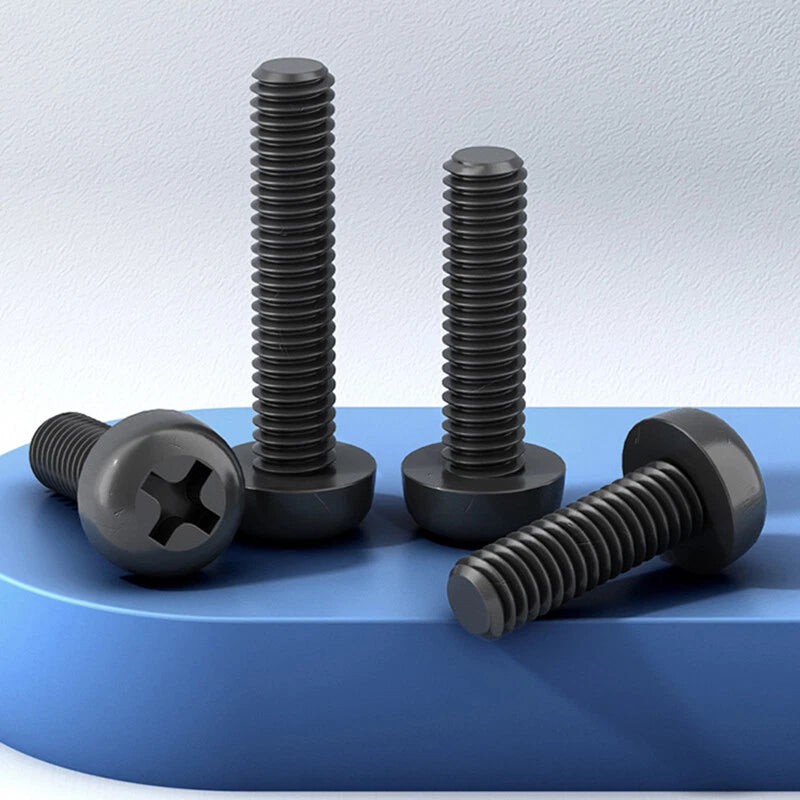

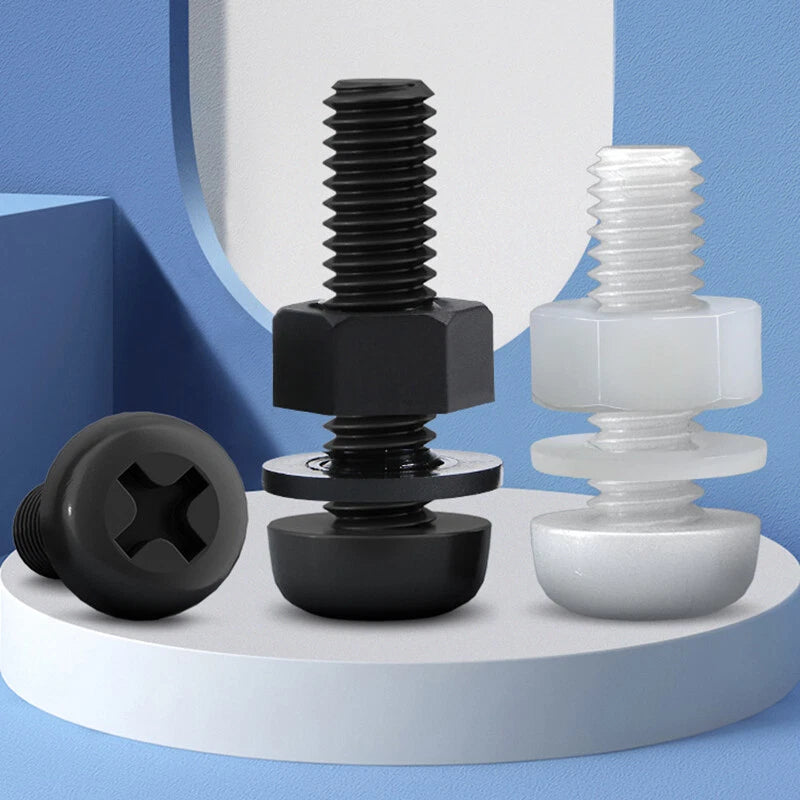

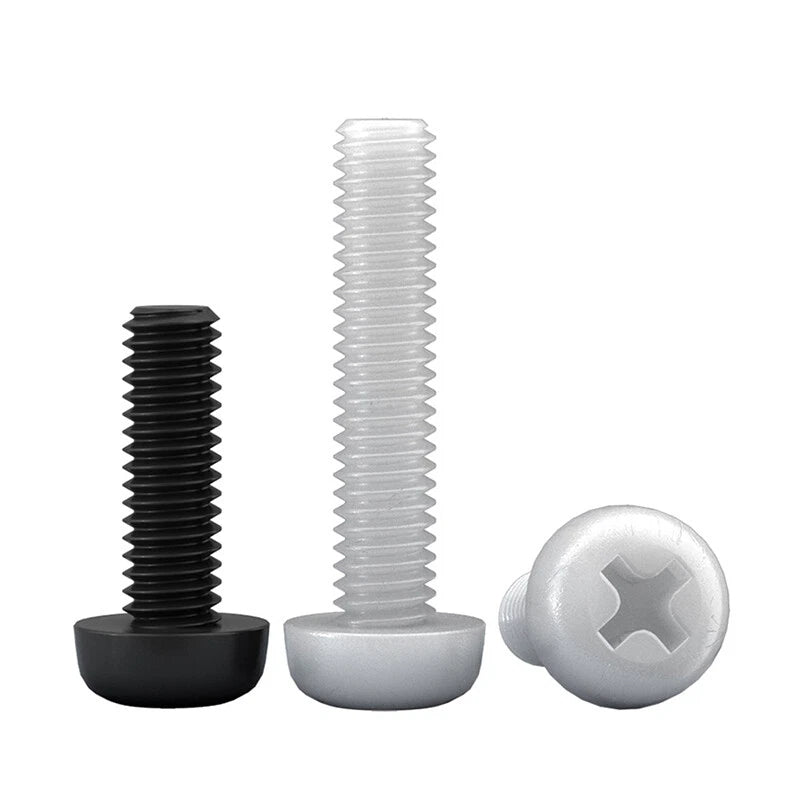

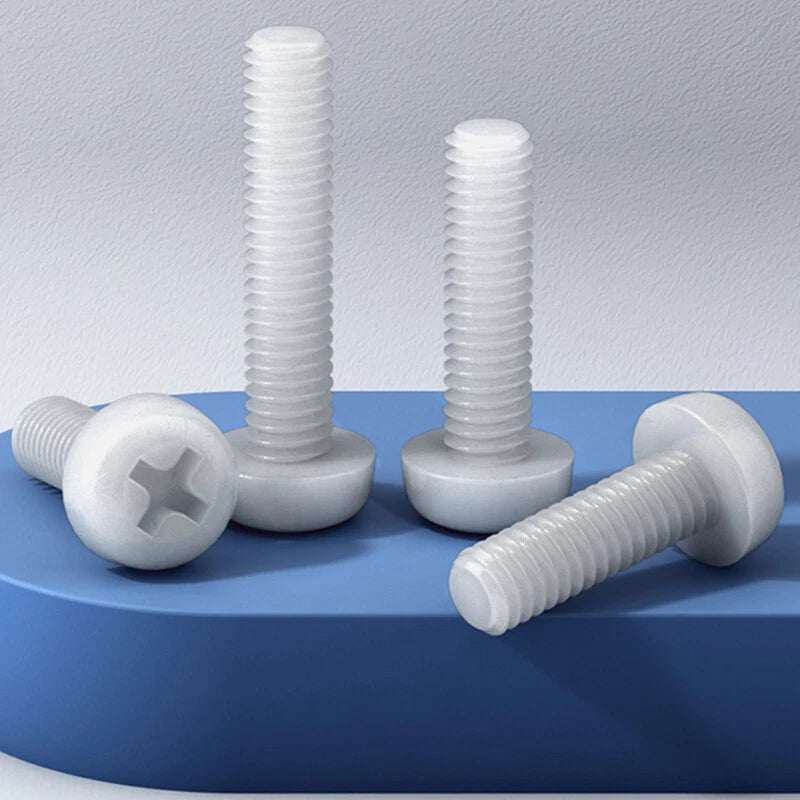

| Pan head screw | Pan head | Phillips | M5, M6 | 0.8 / 1.0 | PA66 Nylon |

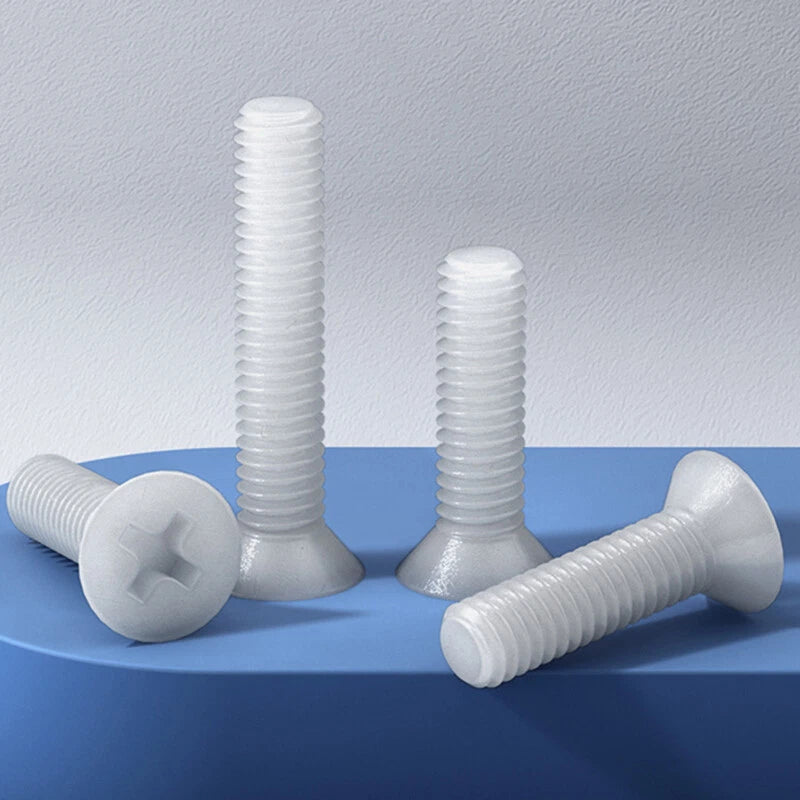

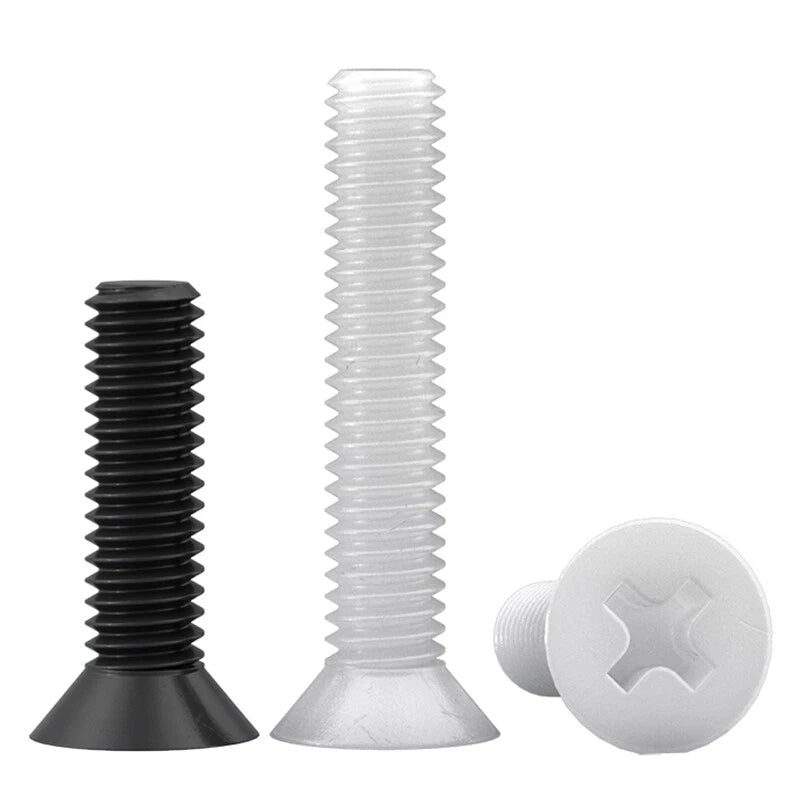

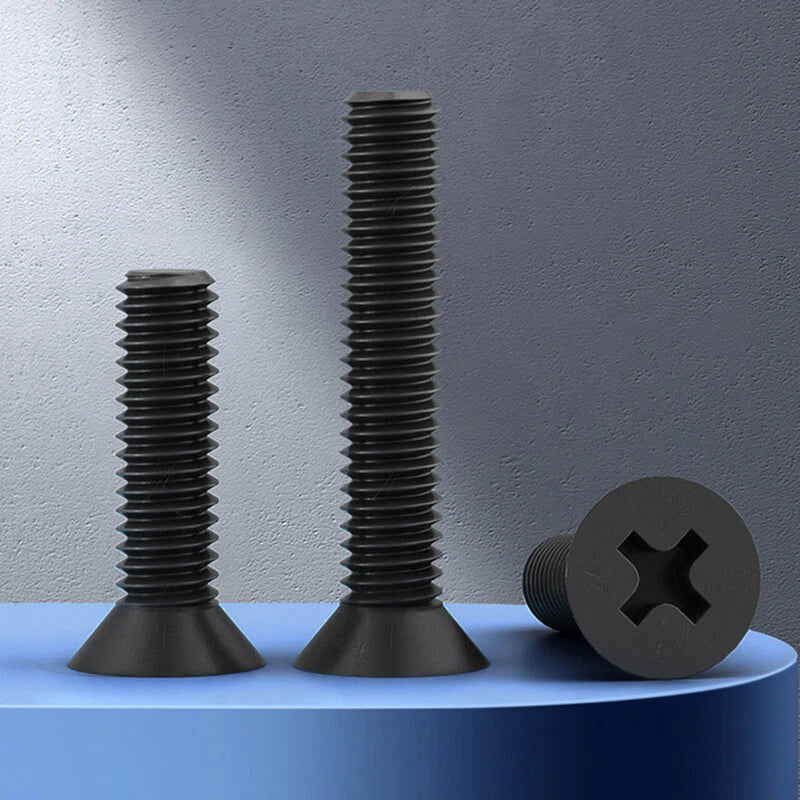

| Flat head screw | Countersunk flat | Phillips | M5, M6 | 0.8 / 1.0 | |

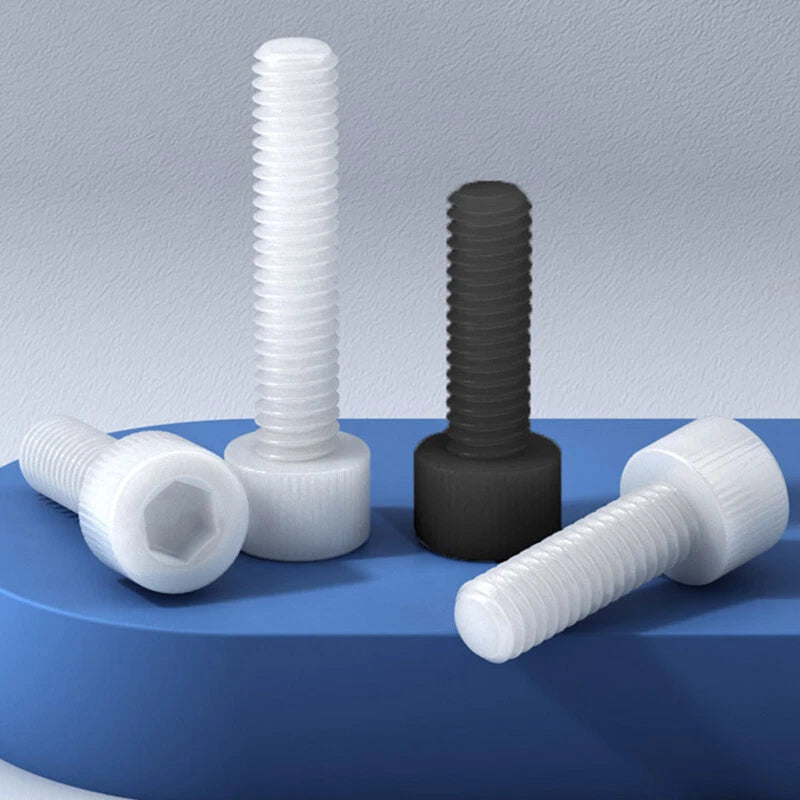

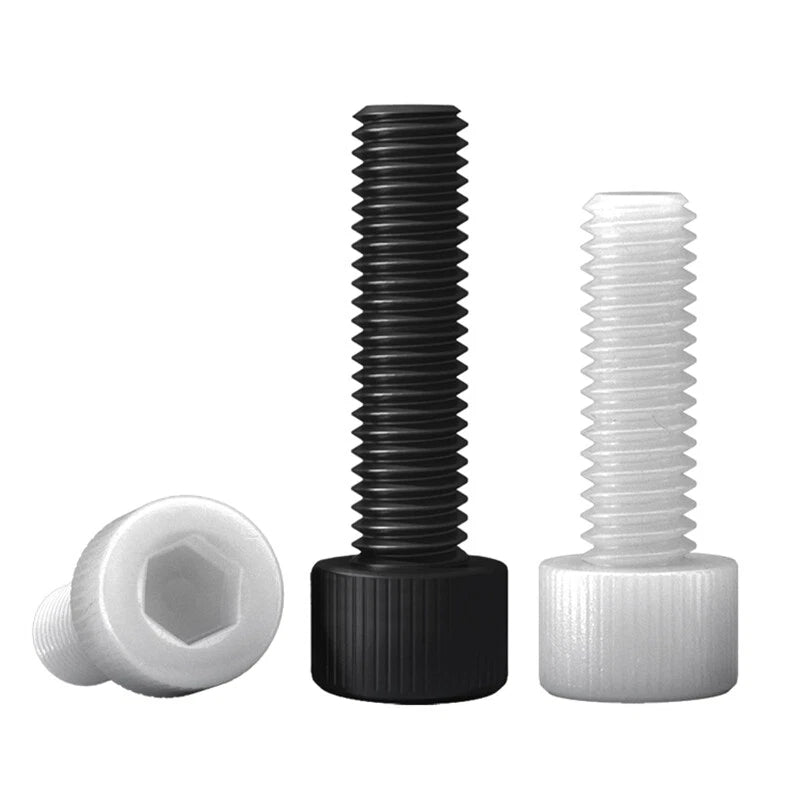

| Socket cap head screw | Socket cap (cylindrical) | Hex (Allen) | M5, M6 | 0.8 / 1.0 | |

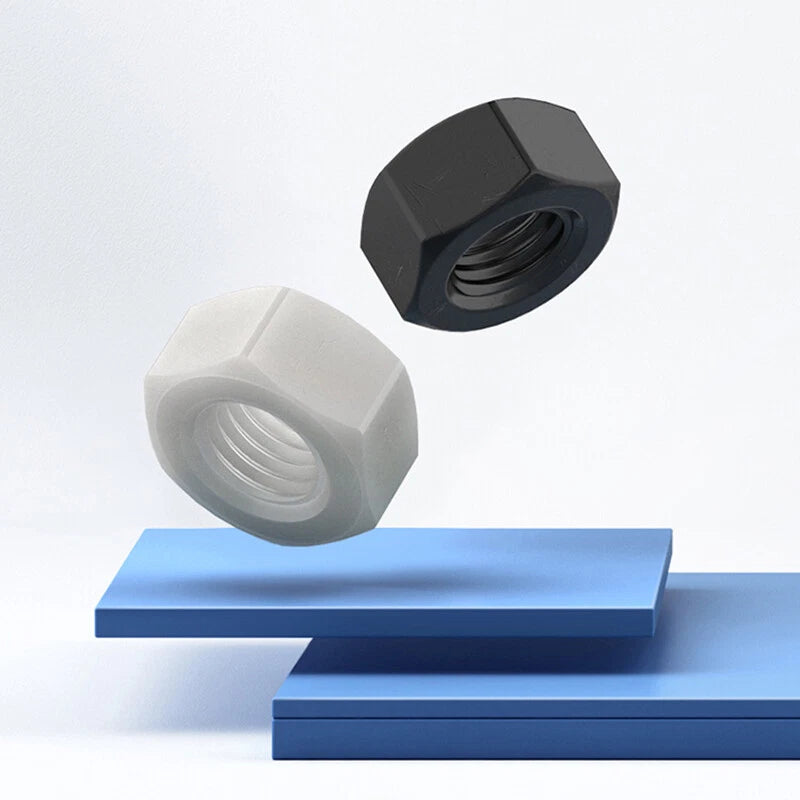

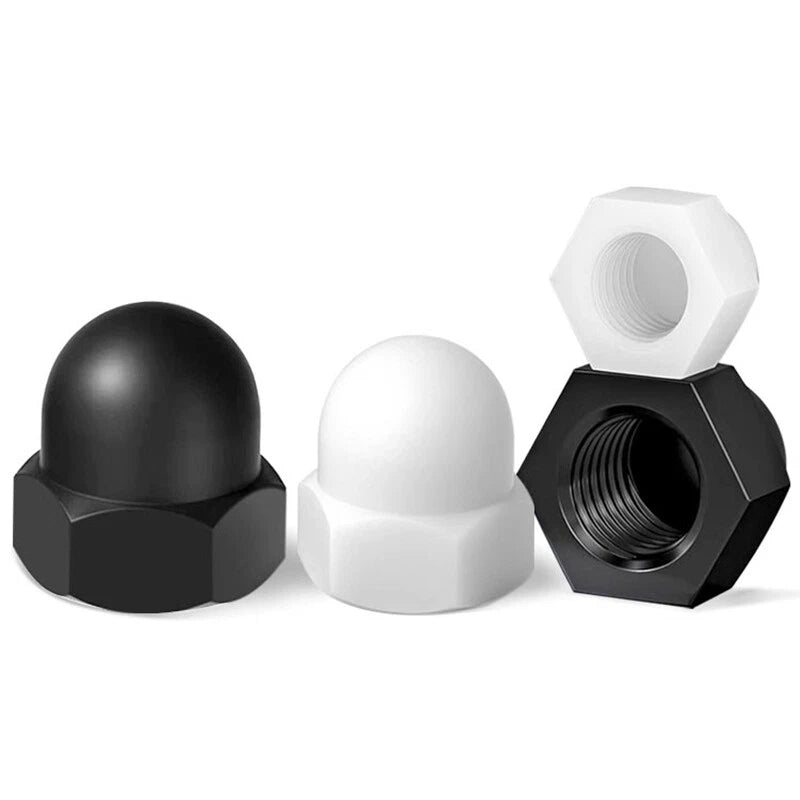

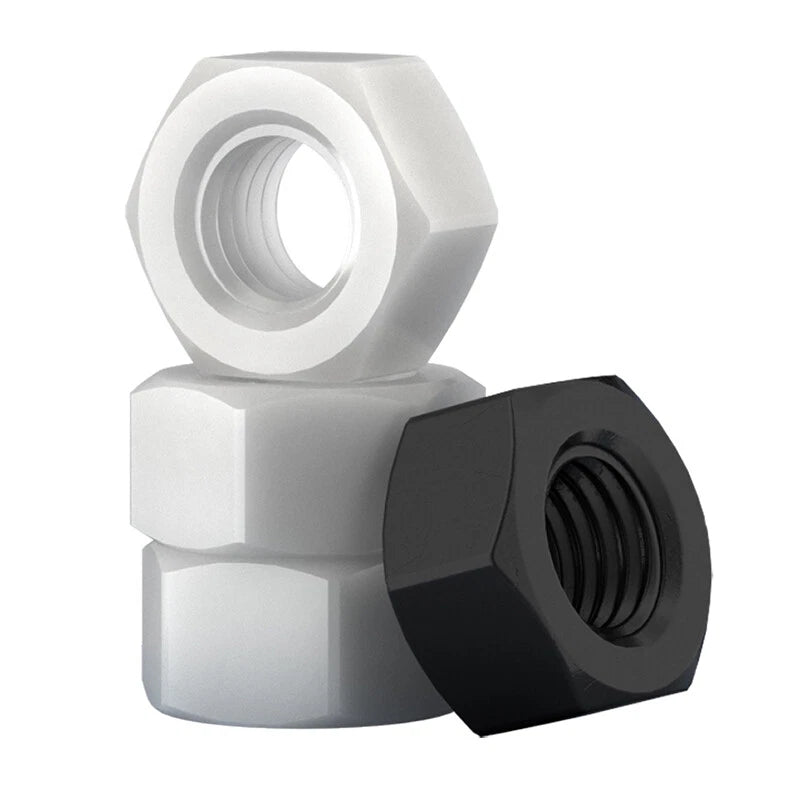

| Hex nut / Cap nut | – | – | M5, M6 | 0.8 / 1.0 | |
📐 Screw lengths vary – select from dropdown. Washers also available. Please allow minor manual measurement errors.
| Head Style | Best for | Advantage |
|---|---|---|
| Pan head (Phillips) | General assembly, visible surfaces | Wide bearing surface, sits above material, no countersinking needed. |
| Flat head (countersunk) | Flush finishes, tight clearances | Sinks flush with surface after countersinking – smooth, snag‑free. |
| Socket cap head (hex) | High torque, recessed drives | Hex socket allows high torque without cam‑out, clean look. |
1. Are nylon screws strong enough for structural applications?
Nylon screws have about 1/5 to 1/3 the tensile strength of steel. They are perfect for lightweight assemblies, electrical insulation, corrosion‑prone environments, and vibration‑damping. For heavy load‑bearing (e.g., a 50kg shelf), use metal. For PCB mounting, plastic enclosures, or battery terminals, nylon is ideal.
2. Can I use these screws outdoors? Will they degrade?
Nylon is UV‑sensitive. For continuous outdoor sunlight exposure (months or years), the material may become brittle and discolor. We recommend using them in shaded or indoor applications, or painting the screw heads with UV‑blocking paint for outdoor use. For marine or outdoor use where UV is a concern, consider black nylon (which has added UV stabilizers).
3. How do I measure the length of a pan head vs. flat head screw?
For pan head and socket cap head screws, length is measured from the underside of the head to the tip. For flat head (countersunk) screws, length is measured overall – from the top of the head to the tip. Please refer to the product dropdown for exact sizing notes.
4. Are these screws fully threaded?
Yes – all M5 and M6 nylon screws in this set are fully threaded from under the head to the tip, giving you maximum grip in blind holes or when using nuts.
5. Can I use a power drill to drive these screws?
Yes – but use a very low‑clutch setting (1–2) and low speed. Nylon threads can strip if over‑torqued. Hand tightening is recommended for final seating.
6. Do you offer other sizes like M4 or M8?
This listing covers M5 and M6. We also carry nylon fasteners in M3, M4, M8, and M10 – please check our store or contact us for availability.
