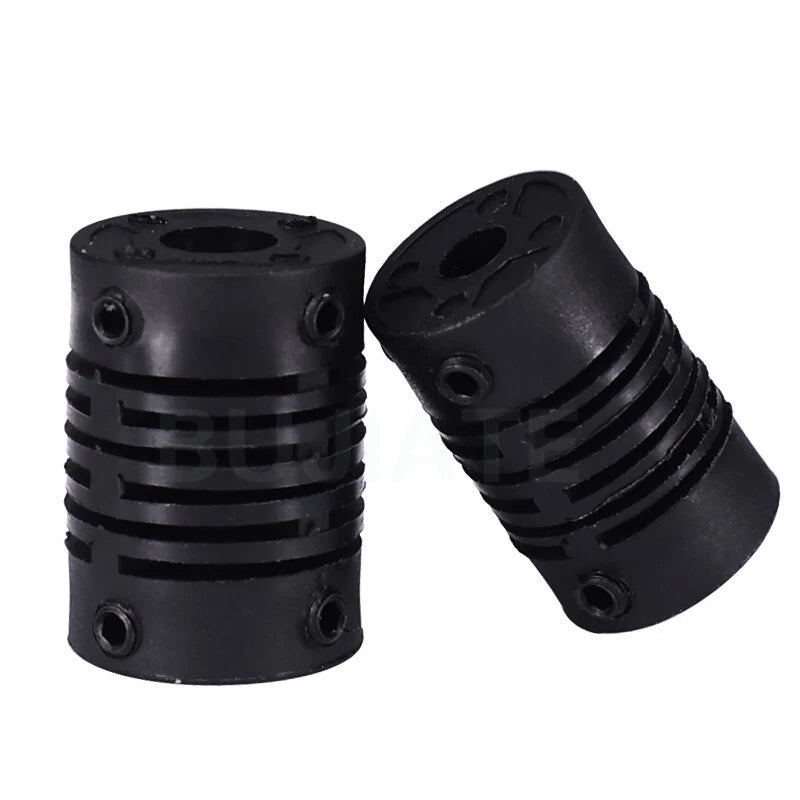

When a rigid coupler transmits every vibration and misalignment directly into your lead screw, print quality suffers and stepper motors wear prematurely. Makers, engineers, and machine builders who demand smooth, accurate motion need a coupler that absorbs angular and parallel shaft misalignment without sacrificing torque transfer. These nylon plastic flexible shaft couplers are engineered for exactly that job.

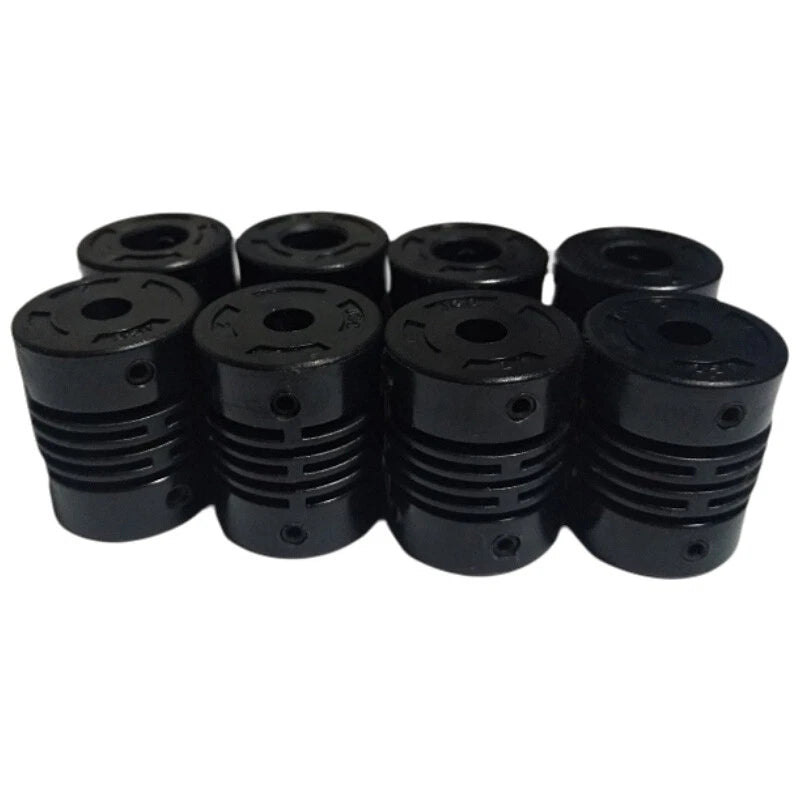

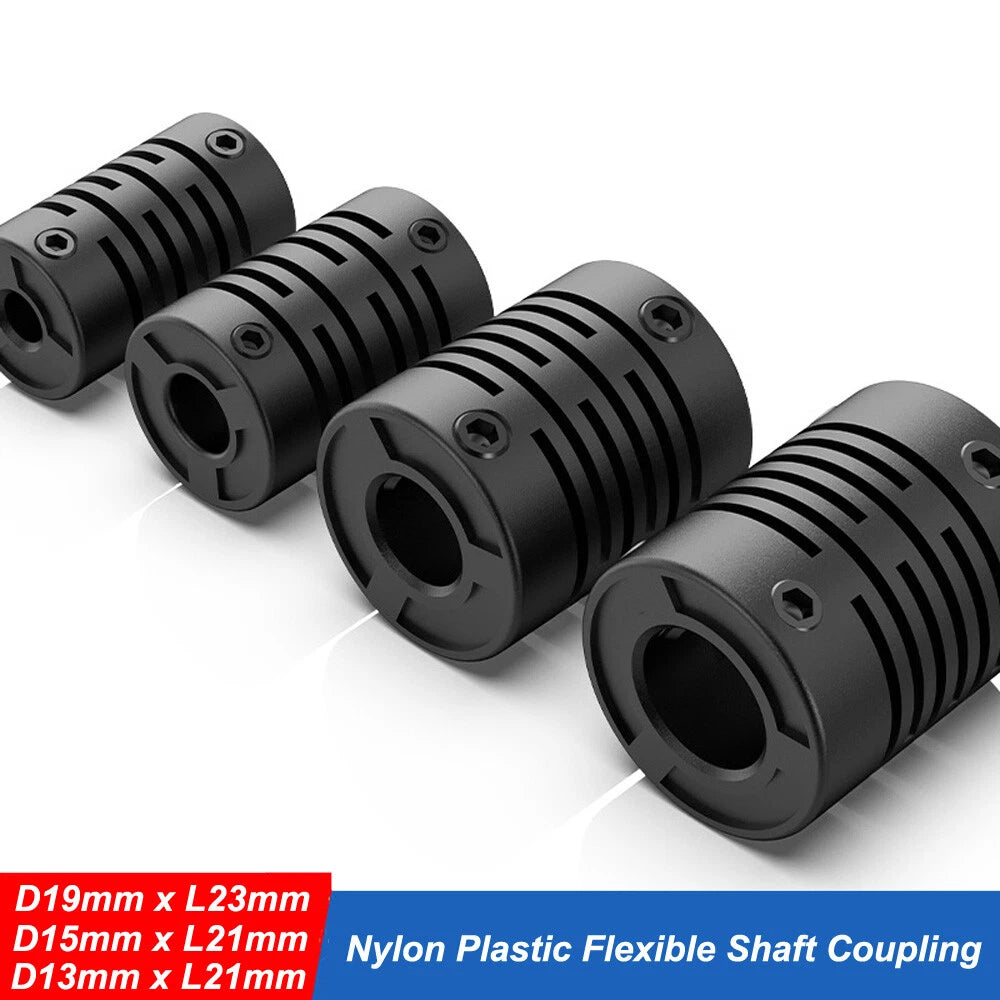

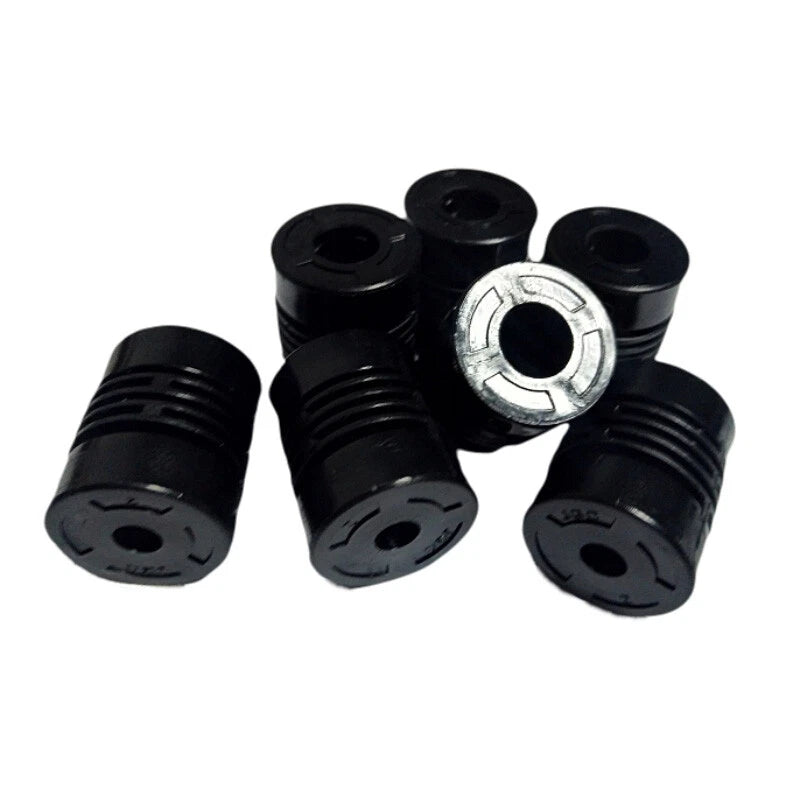

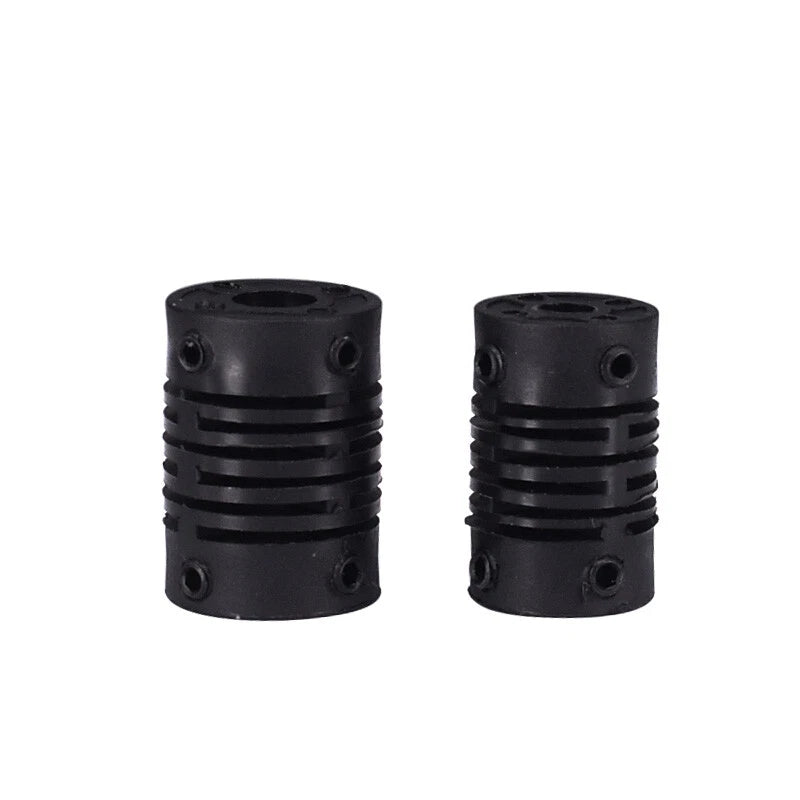

Each coupler is machined from engineering-grade nylon, offering a lightweight yet durable alternative to all-metal designs. The helical-cut flexible body accommodates angular misalignment of typically 1–3° and parallel offset of typically 0.2–0.5mm. Available in three coupler body sizes — D13mm×L21mm, D15mm×L21mm, and D19mm×L23mm — with shaft bore options of 4mm, 6mm, and 8mm (same-diameter bore on both ends). Sold individually or in multi-packs of 2, 3, or 5.
Ideal for DIY CNC router Z-axis lead screw coupling, RepRap and cartesian 3D printer Z-motor shaft coupling, and desktop engraver or laser cutter axis drives. Long-tail use cases include flexible shaft coupler for NEMA 17 stepper motor, nylon coupler for T8 lead screw, and CNC axis coupler replacement.
| Material | Engineering-grade nylon (PA) |
|---|---|
| Coupler Body Sizes | D13mm×L21mm / D15mm×L21mm / D19mm×L23mm |
| Shaft Bore Diameter | 4mm / 6mm / 8mm (same bore both ends) |
| Angular Misalignment Tolerance | Typically 1–3° |
| Parallel Offset Tolerance | Typically 0.2–0.5mm |
| Clamping Method | Set screw (both ends) |
| Finish / Color | See variant options |
| Weight (per piece) | See variant options |
| Pack Quantity | 1 / 2 / 3 / 5 pieces |
| Typical Application | CNC router, 3D printer, stepper motor lead screw drive |
Match the shaft bore to your stepper motor output shaft and lead screw diameter — both ends of these couplers use the same bore size (4mm, 6mm, or 8mm). Then select the body dimension (D13, D15, or D19mm) that fits the clearance space in your machine frame. If you are unsure, measure your existing coupler's outer diameter and length before ordering.
Yes. The helical nylon body and dual set-screw clamping are designed for the constant direction reversals typical of CNC and 3D printer axis motion. The nylon material provides enough torsional stiffness for accurate positioning while still absorbing minor misalignment shock.
Nylon is inherently resistant to moisture, mild chemicals, and oxidation, making these couplers suitable for workshop environments where metal couplers might rust over time. They are not rated for submersion or highly aggressive chemical exposure.
The available bore sizes are 4mm, 6mm, and 8mm. A standard NEMA 17 with a 5mm output shaft is not directly compatible with these variants. If your motor has a 5mm shaft, please contact us to confirm availability of a 5mm bore option before ordering.
Slide the coupler onto the motor shaft and lead screw until each shaft end is flush with or slightly past the inner set-screw position. Tighten the set screws with an appropriate hex key (typically 1.5–2mm). Do not overtighten — snug is sufficient to prevent slippage without cracking the nylon body.
Nylon couplers are lighter, which reduces rotational inertia and allows stepper motors to respond faster to direction changes. They also dampen vibration more effectively than aluminum, which can improve surface finish on CNC-routed parts and reduce ringing artifacts in 3D prints. The trade-off is a lower maximum torque rating compared to solid aluminum couplers — for most hobby and light-industrial CNC and 3D printing applications, nylon is the practical choice.
Yes. T8 lead screws typically have an 8mm outer diameter, so the 8mm bore variant is the correct match. Pair it with the D19mm×L23mm body for the most secure grip on standard T8 lead screw ends.
