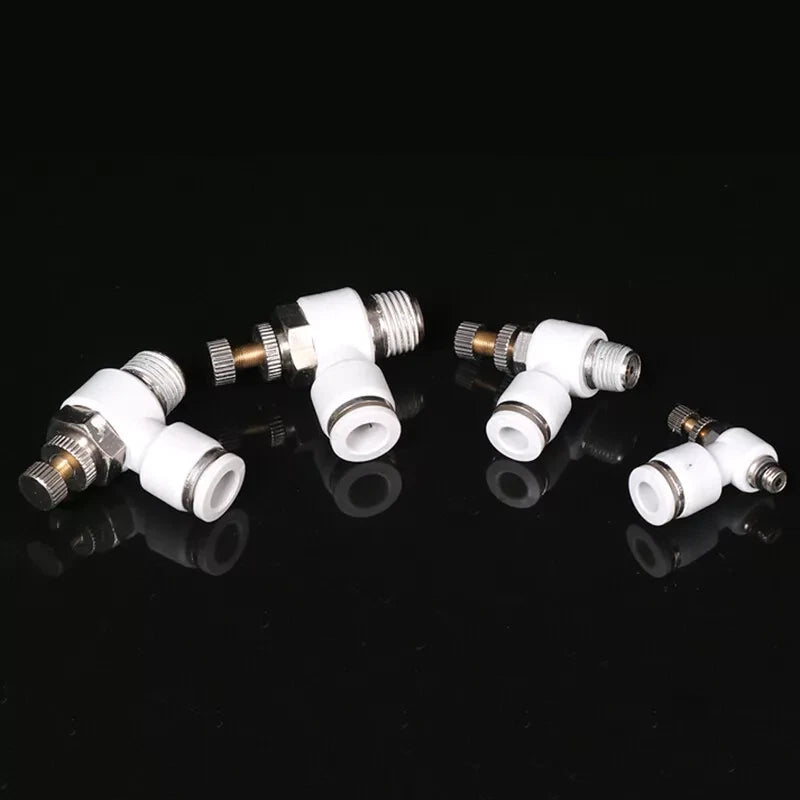

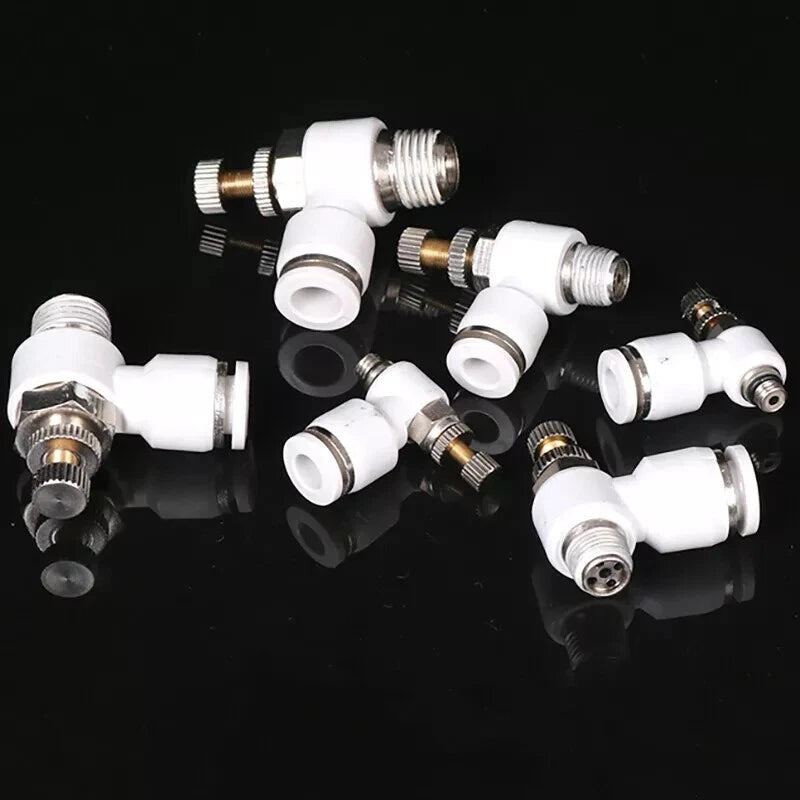

Nylon L-Shape Flow Control Valve Push-Fit Connector — Precise Airflow in Tight Spaces

When you're routing pneumatic lines through a crowded machine cabinet or compact automation panel, a straight fitting just doesn't cut it — you need a 90° elbow that also lets you dial in airflow without adding a separate throttle valve. These nylon pneumatic L-shape flow control valve push-fit connectors are built for engineers, maintenance technicians, and serious DIYers who need reliable speed control and clean routing in one compact fitting.

Each connector features a push-fit collet mechanism for tool-free tube insertion and release, combined with an integrated needle valve for adjustable flow control. Available in tube OD sizes from 4mm (≈5/32") to 12mm (≈15/32"), with thread options spanning M3, M5, 1/8" BSP, 1/4" BSP, 3/8" BSP, and 1/2" BSP. Choose White or Black finish, and order in packs of 1, 2, 3, 5, or 10 pieces to match your project scale.

Typical applications include pneumatic cylinder speed control on assembly lines, airflow regulation in pick-and-place systems, and space-saving hose routing in CNC machine enclosures — anywhere you need a push-fit elbow flow control valve for compressed air lines.

🔗 Compatible with standard PU, PA, and PE pneumatic tubing. Thread options include BSP (1/8", 1/4", 3/8", 1/2") and metric (M3, M5). Select your tube OD and thread size from the variant options above.
⚠️ Always verify your tube OD and port thread standard before ordering. BSP and NPT threads are not interchangeable. If unsure, use a thread gauge or contact us to confirm compatibility.

✅ Key Features of These Nylon L-Shape Push-Fit Flow Control Valves

  • 🔄90° Elbow Push-Fit Design — The L-shape body routes air hose at a right angle, reducing bend stress on tubing and saving space in compact pneumatic enclosures and machine panels.
  • 🎛️Integrated Needle Flow Control — Built-in adjustable throttle valve lets you regulate airflow rate directly at the fitting — no separate flow control valve needed for pneumatic cylinder speed adjustment.
  • ⚡Tool-Free Push-Fit Connection — Internal collet grips the tube on insertion and releases with a simple press of the collet ring, enabling fast installation and reconfiguration without wrenches or sealant tape on the tube side.
  • 🧱Nylon Construction — Lightweight, corrosion-resistant nylon body withstands typical compressed air system pressures and resists moisture, making it suitable for factory automation and workshop pneumatic lines.
  • 📐Wide Size Range — Tube OD from 4mm to 12mm and thread sizes from M3 to 1/2" BSP cover the most common pneumatic fitting combinations used in industrial and DIY compressed air systems.

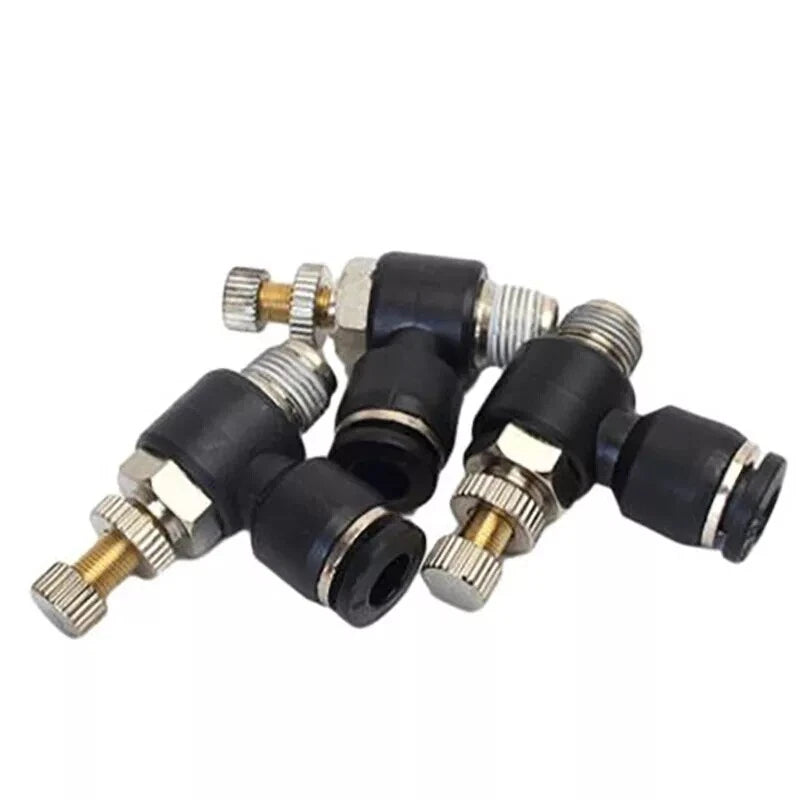

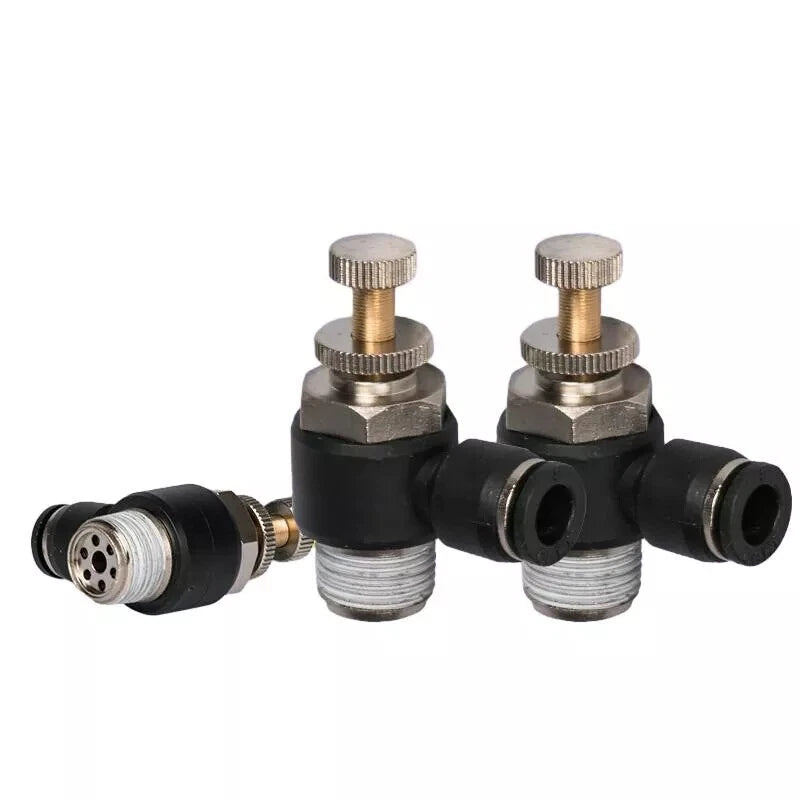

  • 🎨White & Black Color Options — Choose the finish that matches your system's color-coding convention or aesthetic preference for clean, organized pneumatic installations.

📐 Technical Specifications — Nylon Pneumatic L-Shape Flow Control Push-Fit Fitting

Product Type L-Shape (Elbow) Flow Control Valve with Push-Fit Tube Connection
Body Material Nylon (PA)
Color / Finish White; Black
Tube OD (Fitting Size) 4mm (≈5/32"), 6mm (≈1/4"), 8mm (≈5/16"), 10mm (≈3/8"), 12mm (≈15/32")
Thread Size Options M3, M5, 1/8" BSP, 1/4" BSP, 3/8" BSP, 1/2" BSP
Thread Standard BSP (British Standard Pipe) for imperial sizes; Metric for M3/M5
Flow Control Type Adjustable needle valve (meter-out / meter-in — see variant options)
Working Pressure Typically up to 150 PSI (≈10 bar) — confirm for your application
Working Medium Compressed air (dry or lubricated)
Compatible Tube Types PU, PA (Nylon), PE pneumatic tubing
Pack Quantity 1, 2, 3, 5, or 10 pieces per order (select above)
Application Pneumatic cylinder speed control, automation panels, CNC machines, compressed air lines
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right tube OD and thread size?

Measure your air hose outer diameter (OD) — available options range from 4mm (≈5/32") to 12mm (≈15/32"). Then match the thread size to your fitting port: M3, M5, 1/8" BSP, 1/4" BSP, 3/8" BSP, or 1/2" BSP. When in doubt, check the port markings on your pneumatic component or use a thread gauge. A 1/4" BSP port is the most common size on small pneumatic cylinders and solenoid valves.

What is the maximum working pressure for these flow control valves?

Nylon pneumatic push-fit fittings of this type are generally rated for working pressures up to approximately 150 PSI (≈10 bar) at normal operating temperatures. Confirm the specific rating for your application before use in high-pressure systems. Do not exceed the rated pressure of the weakest component in your pneumatic circuit.

Can these connectors be used outdoors or in humid environments?

Nylon is generally resistant to moisture and mild chemicals, making these fittings suitable for indoor and sheltered outdoor pneumatic systems. They are not typically recommended for prolonged UV exposure or immersion in harsh solvents. For fully outdoor or corrosive environments, consider stainless steel or brass alternatives.

Are these fittings compatible with standard BSP and metric threads?

Yes. The thread options include both metric (M3, M5) and BSP imperial sizes (1/8", 1/4", 3/8", 1/2"). BSP threads are the standard used across most pneumatic equipment in the US, UK, and EU. Note that BSP and NPT (US pipe thread) are not interchangeable — always verify your equipment's thread standard before ordering.

How does the push-fit mechanism work — do I need tools to install or remove the tube?

Push-fit fittings use an internal collet and O-ring to grip and seal the tube automatically when inserted. No tools are needed for insertion — simply push the tube in until it clicks. To release the tube, press the collet ring inward while pulling the tube out. This allows for fast, tool-free installation and reconfiguration of pneumatic lines.

What does the flow control (throttle) function do on an L-shape fitting?

The built-in needle valve allows you to adjust airflow rate through the fitting by turning the adjustment screw. This is commonly used to control the extension or retraction speed of pneumatic cylinders or actuators. The L-shape (elbow) design routes the hose at 90° to save space in tight installations — combining two functions in one compact fitting.

Which tube materials are compatible with these push-fit connectors?

These fittings are generally compatible with standard pneumatic tubing materials including polyurethane (PU), nylon (PA), and polyethylene (PE) air hose. Ensure the tube OD matches the selected fitting size for a secure, leak-free connection. Soft or deformed tube ends may not seal correctly — cut tubing squarely before insertion.
