Open Ended Timing Belt — Precise Linear Motion for CNC Machines & 3D Printers

When your CNC router skips steps or your 3D printer produces ringing artifacts, a worn or imprecise drive belt is often the culprit. Engineers, makers, and machine builders who need reliable, repeatable motion depend on open ended timing belts that hold tension without stretching. This listing is designed for anyone building or repairing motion systems — from desktop 3D printers to full-size CNC gantries.

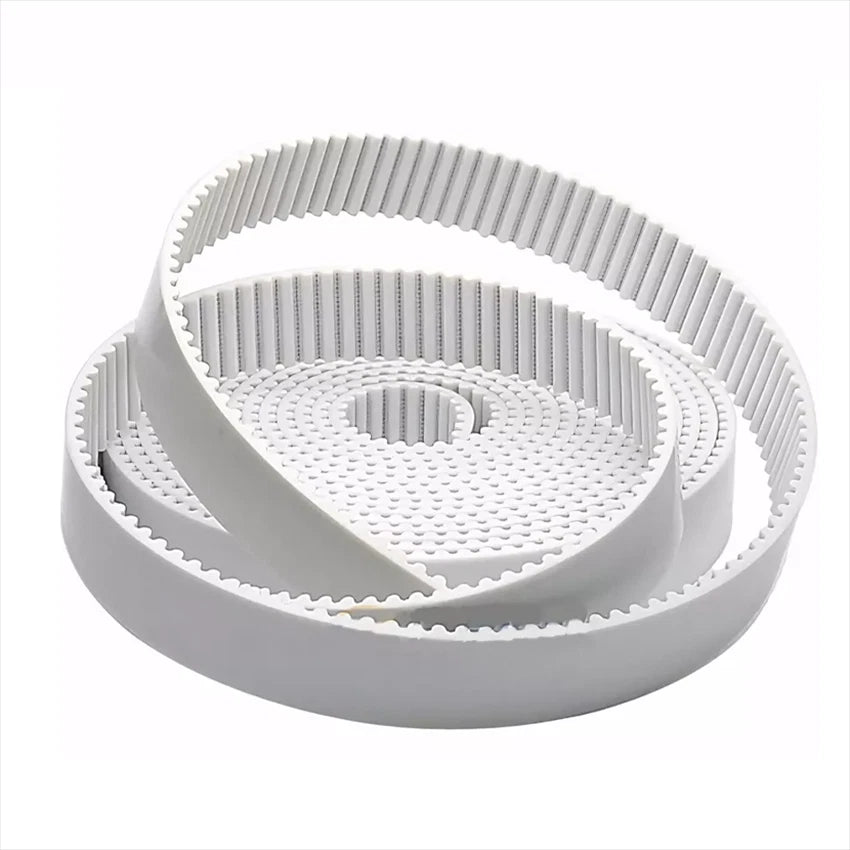

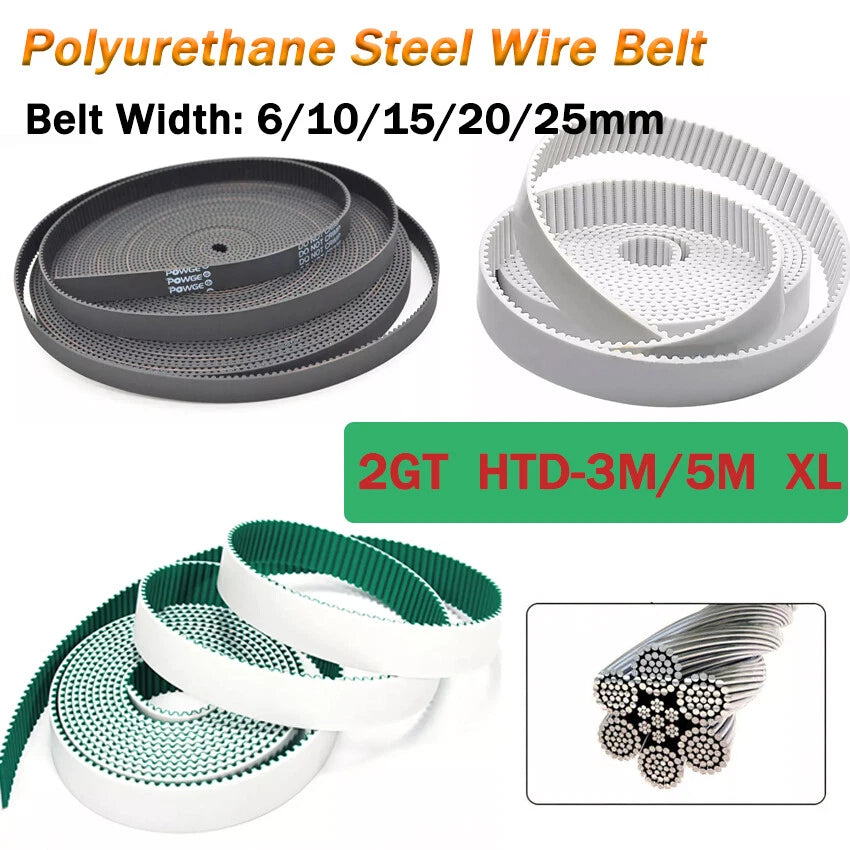

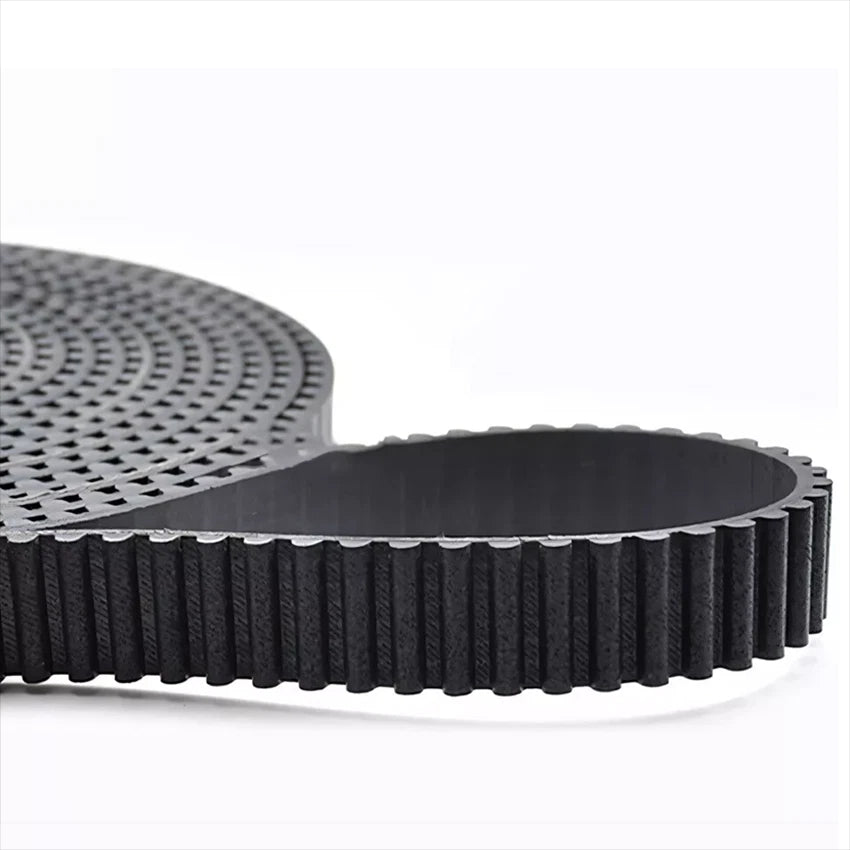

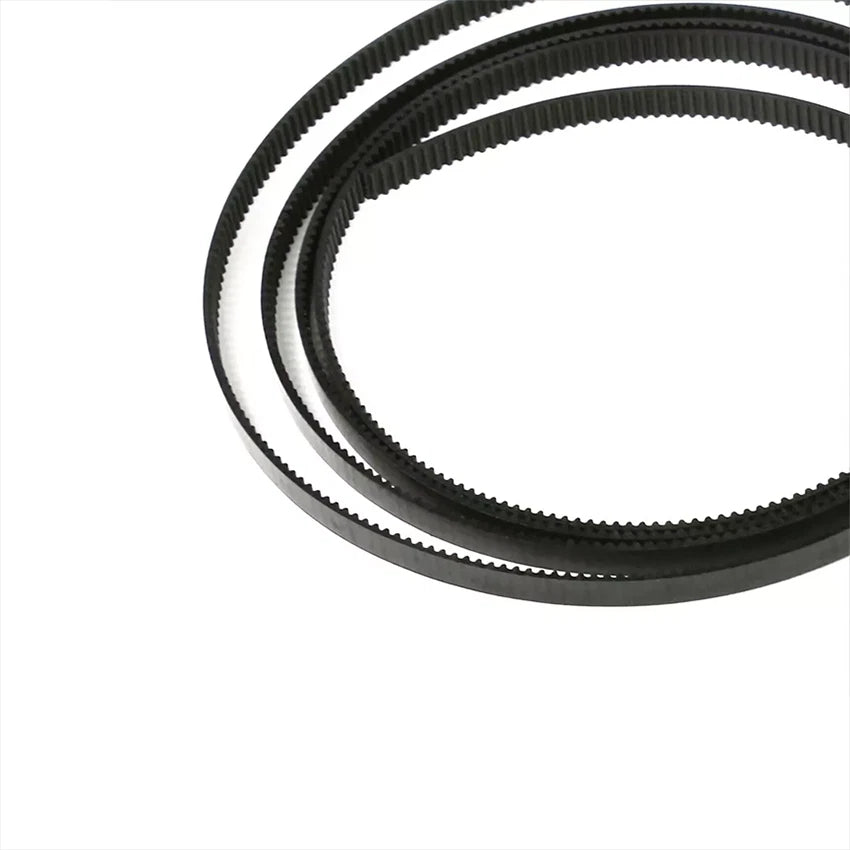

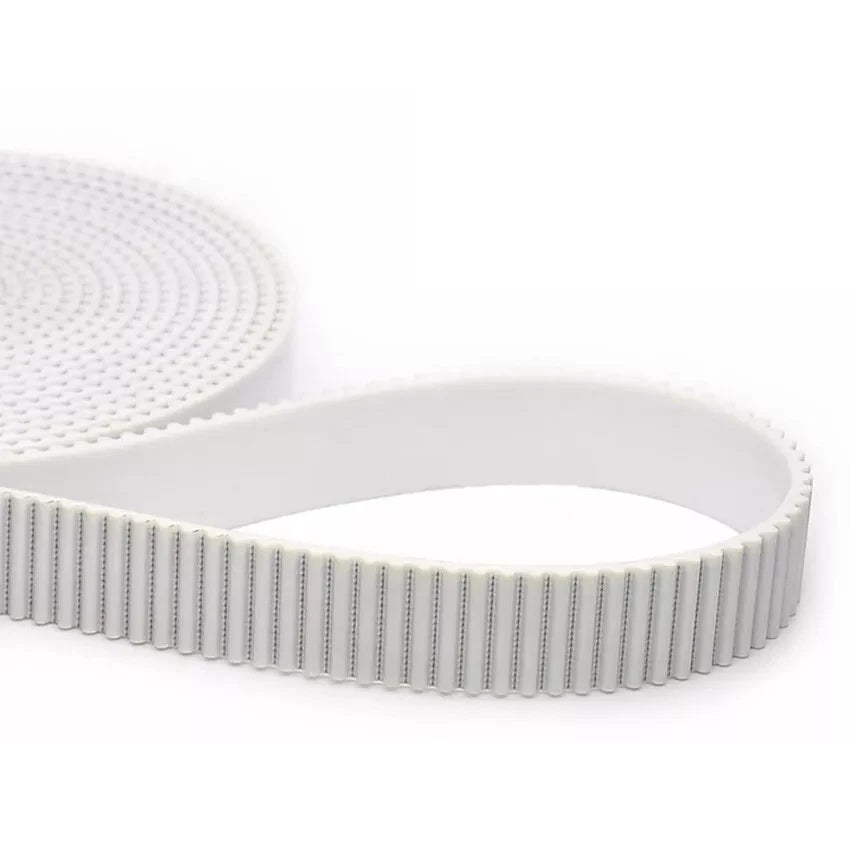

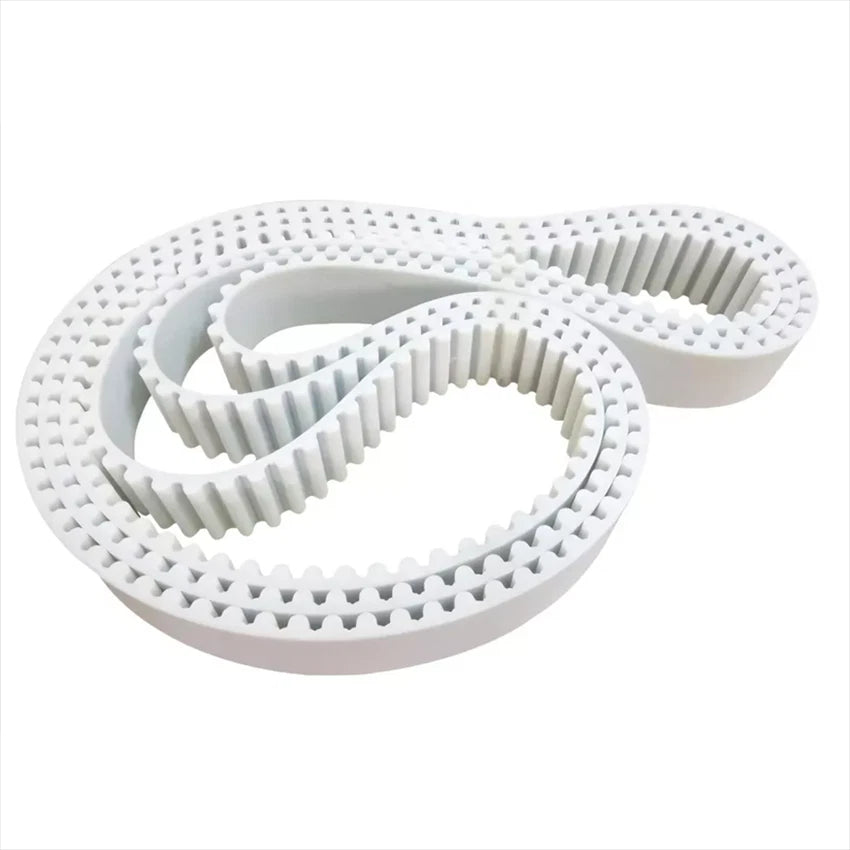

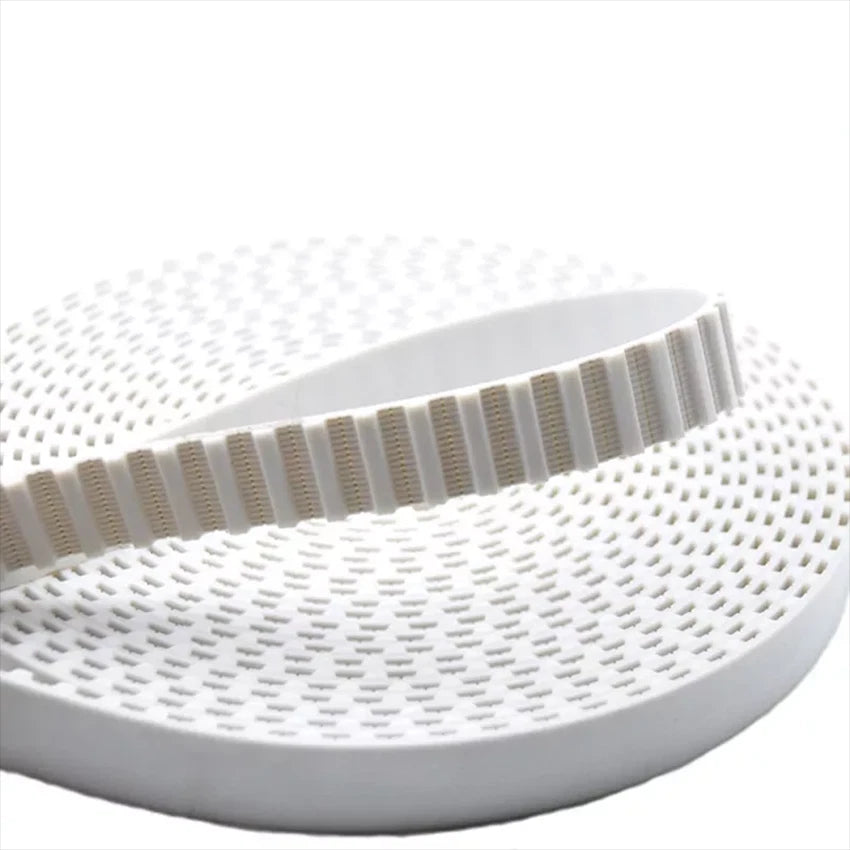

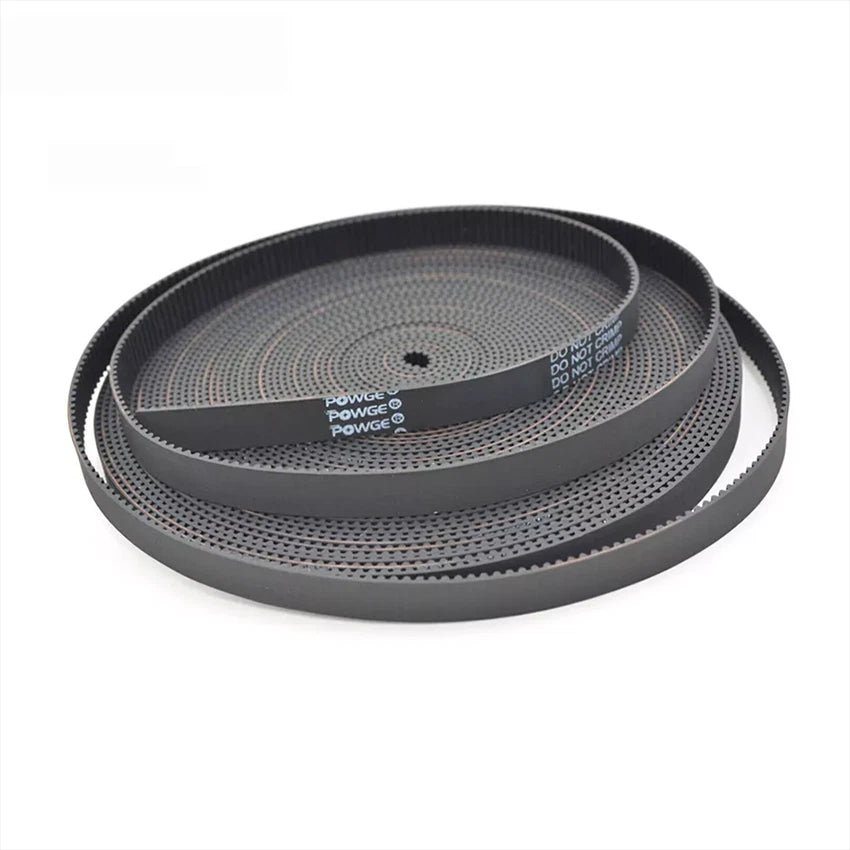

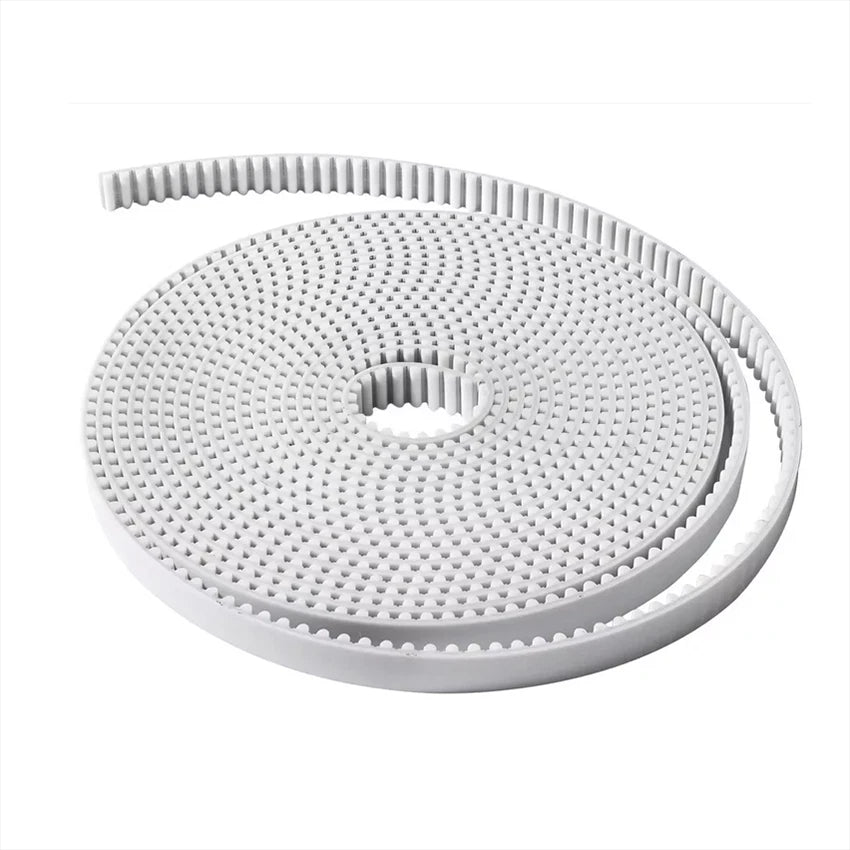

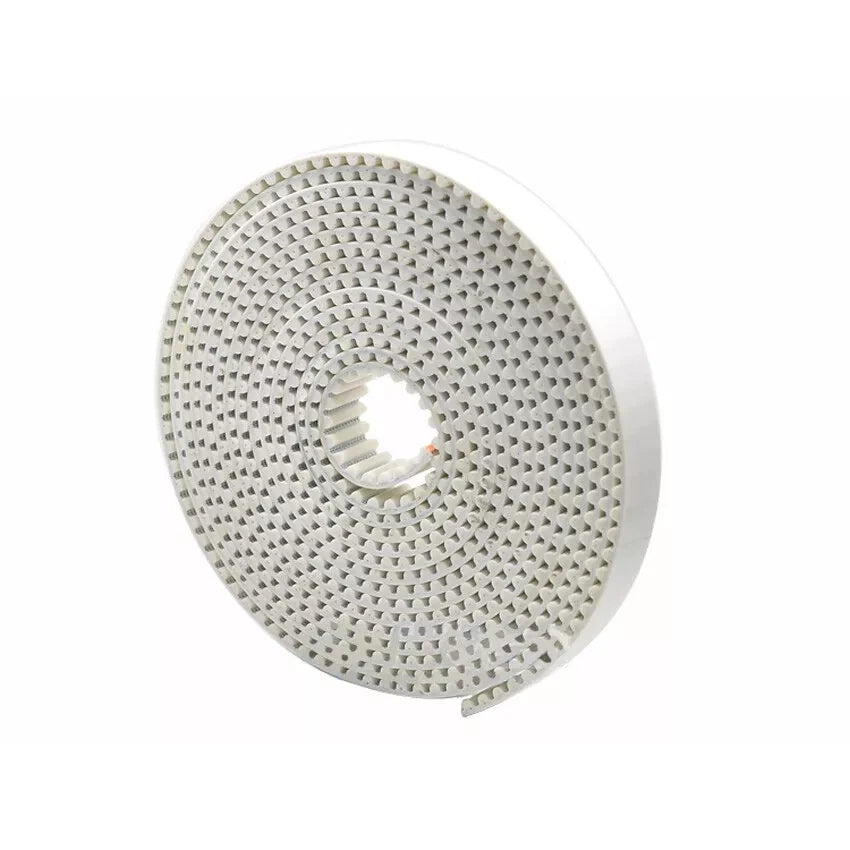

Each belt is sold by the meter as a continuous open-ended strip, available in lengths of 1m (≈39.4"), 2m (≈78.7"), 5m (≈196.9"), and 10m (≈393.7"). The belt body is molded from polyurethane with a steel wire tensile cord running through the core for dimensional stability. Profiles available: 2GT (2mm pitch, 6mm or 10mm width), HTD-3M (3mm pitch, 10mm or 15mm width), HTD-5M (5mm pitch, 15mm, 20mm, or 25mm width), and XL (5.080mm pitch, 10mm, 15mm, or 20mm width). Color options include White, White with Green Cloth backing, and Black.

Typical applications include 3D printer X/Y axis drives (2GT open ended timing belt for Ender, Voron, and CoreXY builds), CNC router gantry drives (HTD-5M timing belt for heavy-duty CNC machines), and automation conveyor and pick-and-place systems (XL timing belt for ANSI-standard industrial equipment). The cut-to-length format eliminates the need to stock multiple loop sizes.

🔗 Compatibility Note: Match your belt profile and pitch to your existing pulleys before ordering. 2GT fits GT2 pulleys · HTD-3M fits HTD 3M pulleys · HTD-5M fits HTD 5M pulleys · XL fits ANSI XL pulleys (5.080mm pitch). Belt width must be ≤ pulley width.

✅ Key Features of These Open Ended Timing Belts

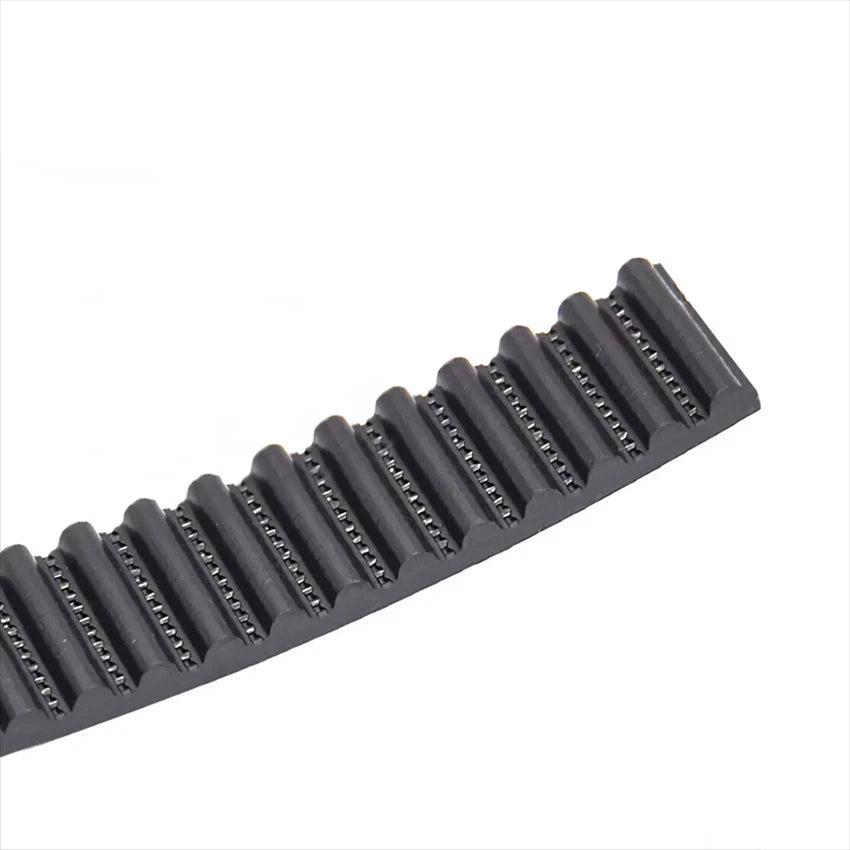

🔩Steel Wire Tensile Core — Embedded steel wire cords resist elongation under load, maintaining consistent tooth pitch and positioning accuracy over time in CNC and 3D printer drive systems.
🧪Polyurethane Belt Body — The PU material offers better oil and abrasion resistance compared to standard neoprene rubber belts, making it suitable for workshop environments where coolant or dust is present.
✂️Cut-to-Length Open Ended Format — Sold as a continuous strip in 1m, 2m, 5m, and 10m lengths so you can cut exactly what your machine requires — no splicing loops or ordering custom lengths.
📐Multiple Profiles & Widths — Four tooth profiles (2GT, HTD-3M, HTD-5M, XL) and widths from 6mm to 25mm cover the most common motion control standards used in DIY CNC builds and commercial automation equipment.
🎨Three Color Options — White, White with Green Cloth backing (added abrasion resistance on the flat side), and Black — choose based on your machine aesthetics or functional requirements.
⚙️Low Backlash Tooth Profile — Precision-molded tooth geometry engages pulley grooves consistently, reducing positional error in open-loop stepper motor systems where backlash directly affects print or cut quality.

📐 Technical Specifications — Open Ended Timing Belt

Belt Type	Open Ended (cut-to-length)

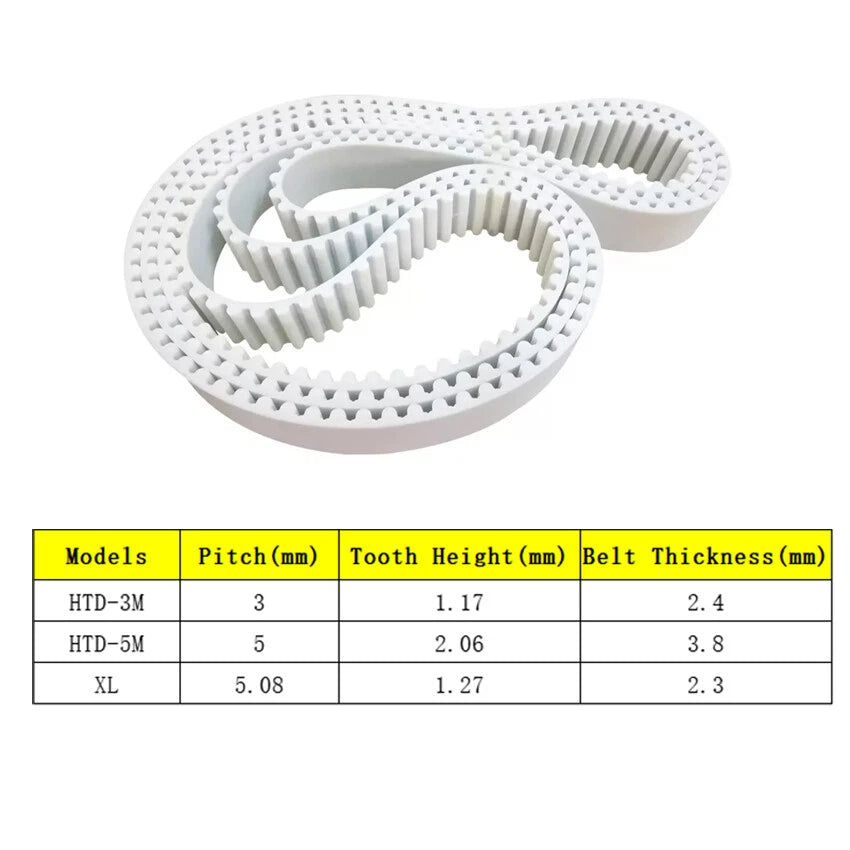

Available Profiles	2GT (2mm pitch) · HTD-3M (3mm pitch) · HTD-5M (5mm pitch) · XL (5.080mm pitch)
Available Widths	6mm · 10mm · 15mm · 20mm · 25mm (varies by profile — see variant options)
Available Lengths	1m (≈39.4") · 2m (≈78.7") · 5m (≈196.9") · 10m (≈393.7")
Belt Body Material	Polyurethane (PU)
Tensile Cord	Steel Wire
Color Options	White · White with Green Cloth Backing · Black
Tooth Form	Trapezoidal (XL) / Curvilinear HTD (HTD-3M, HTD-5M) / GT2-compatible (2GT)
Pulley Compatibility	See variant options — match profile to pulley
Typical Applications	3D printers, CNC routers, laser cutters, automation equipment
Operating Temperature	Contact us to confirm
Country of Origin	See variant options

⚠️ Before ordering: Confirm your pulley's tooth profile, pitch, and groove width. A 2GT belt will not mesh correctly with an HTD-3M pulley even if the widths match. When in doubt, check your machine's BOM or contact us with your pulley part number.

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the total path your belt needs to travel — from drive pulley to driven pulley and back. Add a small amount for tensioner adjustment, typically 20–50mm (≈0.8–2") extra. For example, a 500mm (≈19.7") loop path would generally need at least 520mm of open-ended belt. Order the next available length up to avoid running short.

What tensile strength can these belts handle?

The steel wire core provides strong tensile reinforcement. In most CNC and 3D printer applications, these belts are rated to handle the loads generated by standard NEMA 17 and NEMA 23 stepper motors. For heavy-duty industrial use, contact us to confirm load ratings for your specific profile and width.

Can these belts be used outdoors or in humid environments?

Polyurethane is generally more resistant to oils, moisture, and mild chemicals than neoprene rubber belts. However, prolonged exposure to standing water or UV radiation may reduce service life. For outdoor or washdown environments, we recommend confirming suitability with us before ordering.

Are these belts compatible with standard GT2, HTD, and XL pulleys?

Yes. The 2GT profile is compatible with standard GT2 pulleys. HTD-3M and HTD-5M profiles follow ISO/DIN HTD standards and fit matching HTD pulleys. The XL profile follows the ANSI/RMA XL standard (5.080mm pitch). Always verify your pulley tooth profile and pitch before ordering.

How do I cut the belt to the exact length I need?

Open-ended timing belts can be cut with sharp scissors, a utility knife, or a belt cutter. For clean, square cuts, use a straight edge as a guide. The polyurethane material cuts cleanly without fraying. Always cut on a flat surface for best results.

Which profile should I choose — 2GT, HTD-3M, HTD-5M, or XL?

2GT (2mm pitch) is the most common choice for 3D printers and light CNC machines — it offers smooth, low-backlash motion. HTD-3M (3mm pitch) suits medium-load applications needing slightly more torque capacity. HTD-5M (5mm pitch) is typically used for heavier CNC routers and automation equipment. XL (5.080mm pitch) follows the ANSI standard and is common in US-designed machinery. Match the profile to your existing pulleys.

What is the difference between White and White (With Green Cloth) variants?

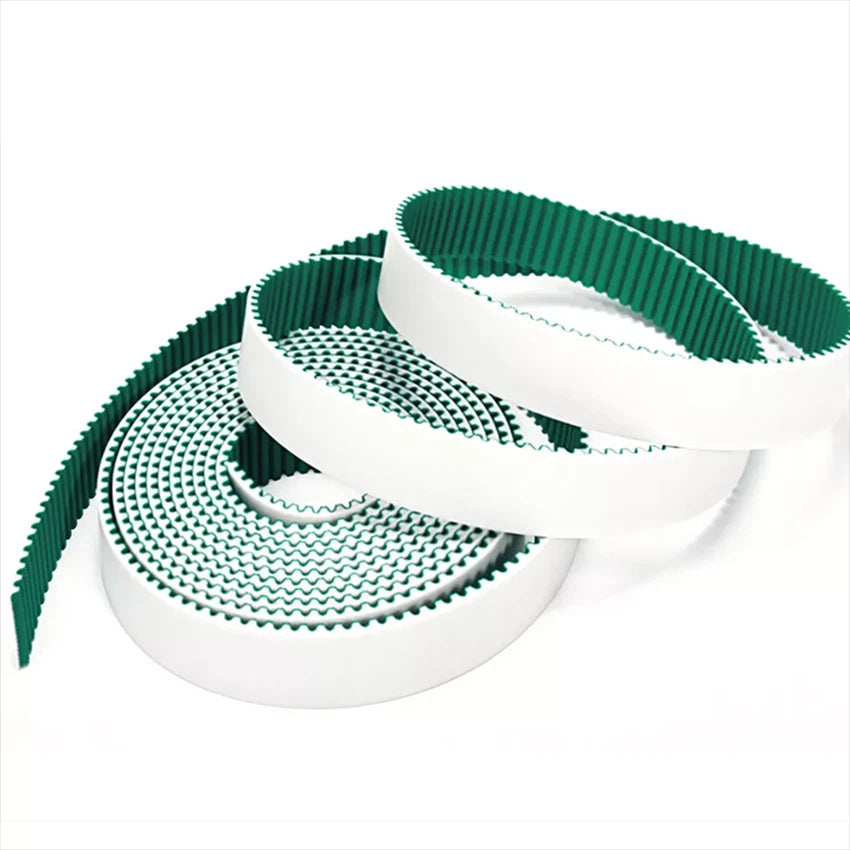

The White variant is a standard polyurethane belt. The White (With Green Cloth) variant includes a fabric backing layer on the flat side, which generally improves abrasion resistance and can reduce noise in some applications. Both share the same tooth profile and steel wire core.

🛒 Select your model and length above, then add to cart — ships from our US warehouse.
