Open Timing Belt HTD & STPD — Reliable Linear Drive for CNC Routers, 3D Printers & Automation
If you've ever had a CNC axis skip steps or a 3D printer carriage lose position mid-print, you know how critical a consistent, low-stretch drive belt is. Engineers, makers, and machine builders who need a cut-to-length open timing belt for CNC routers, 3D printers, laser cutters, and linear actuators will find this listing covers the most widely used profiles in one place.

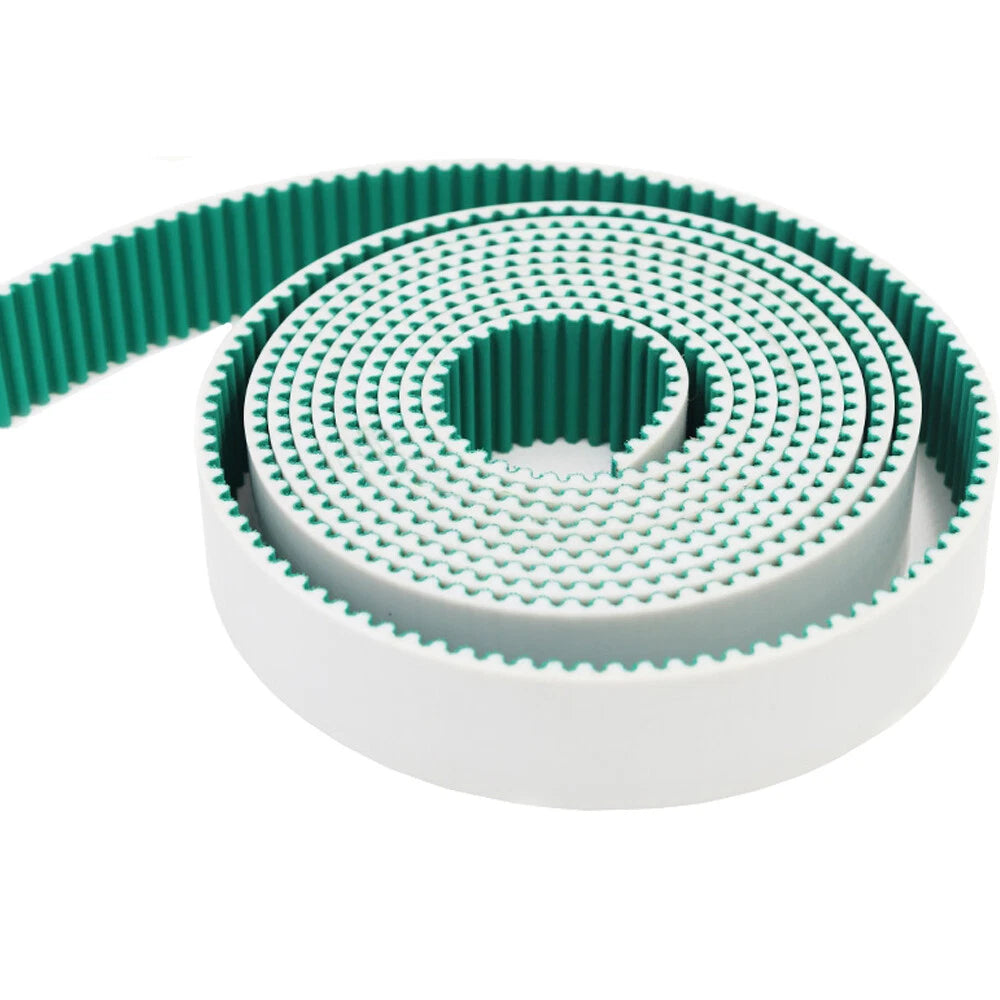

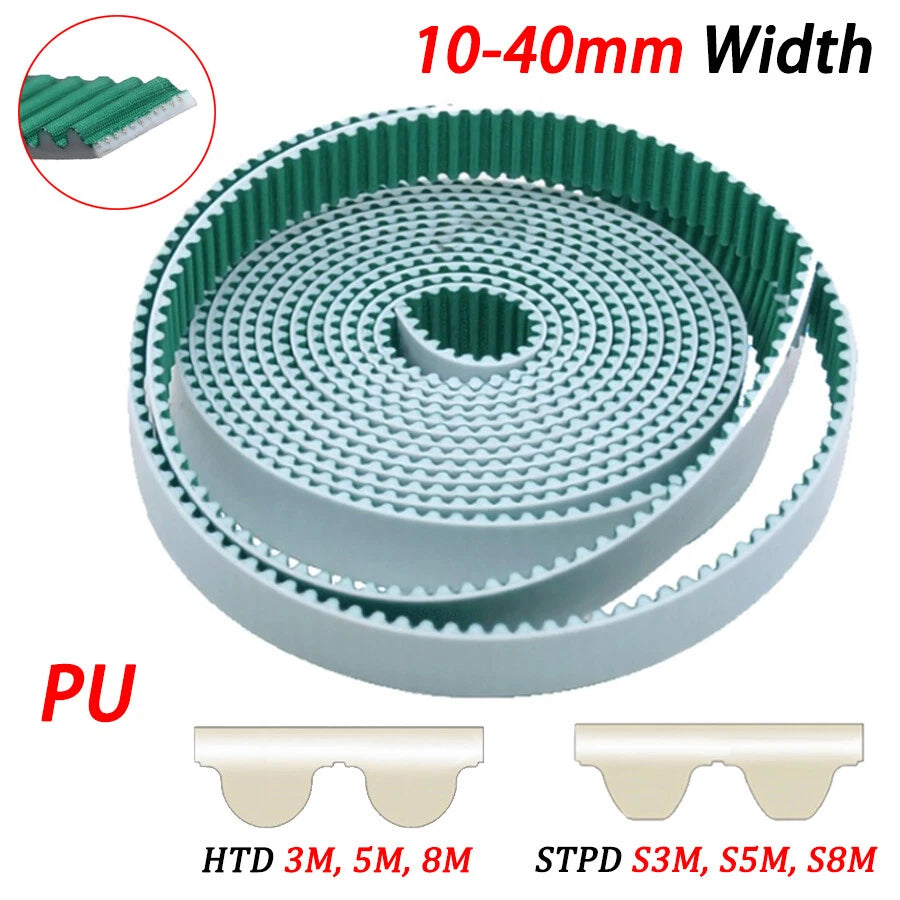

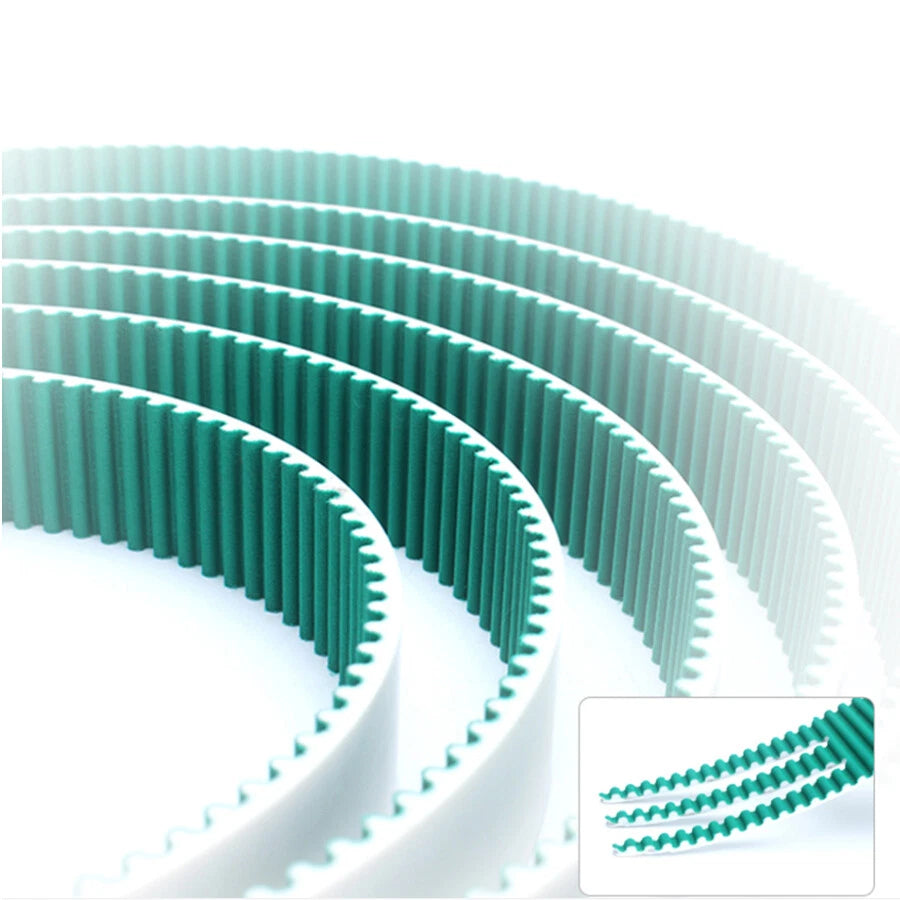

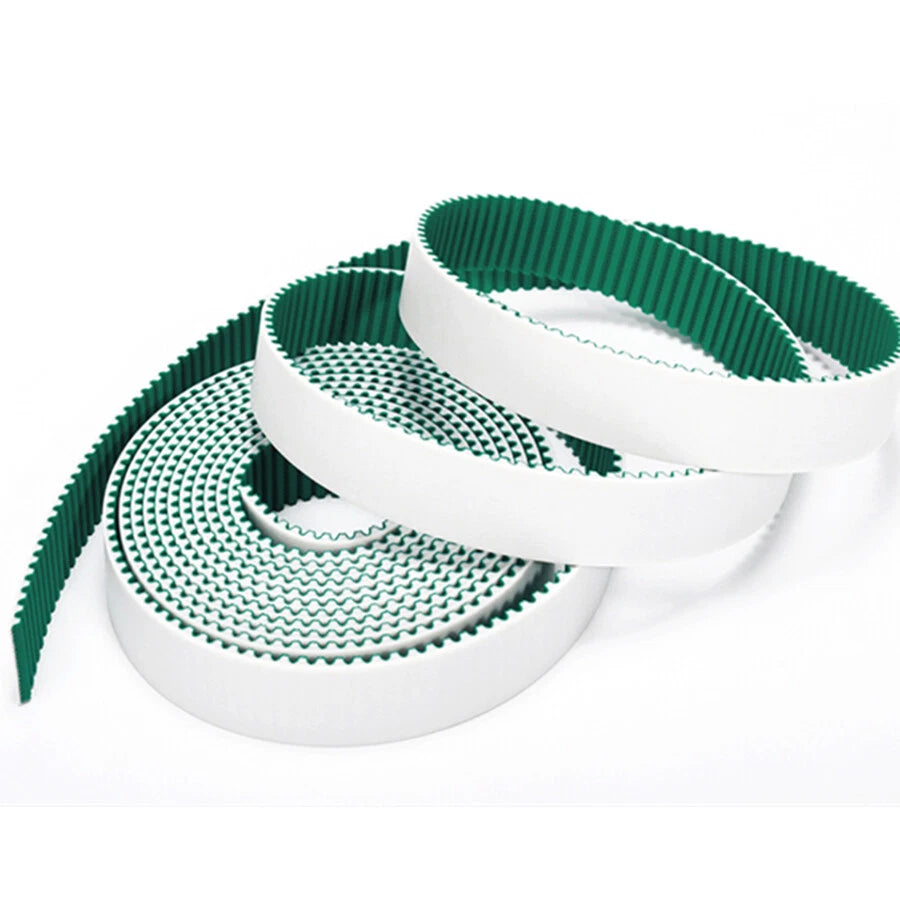

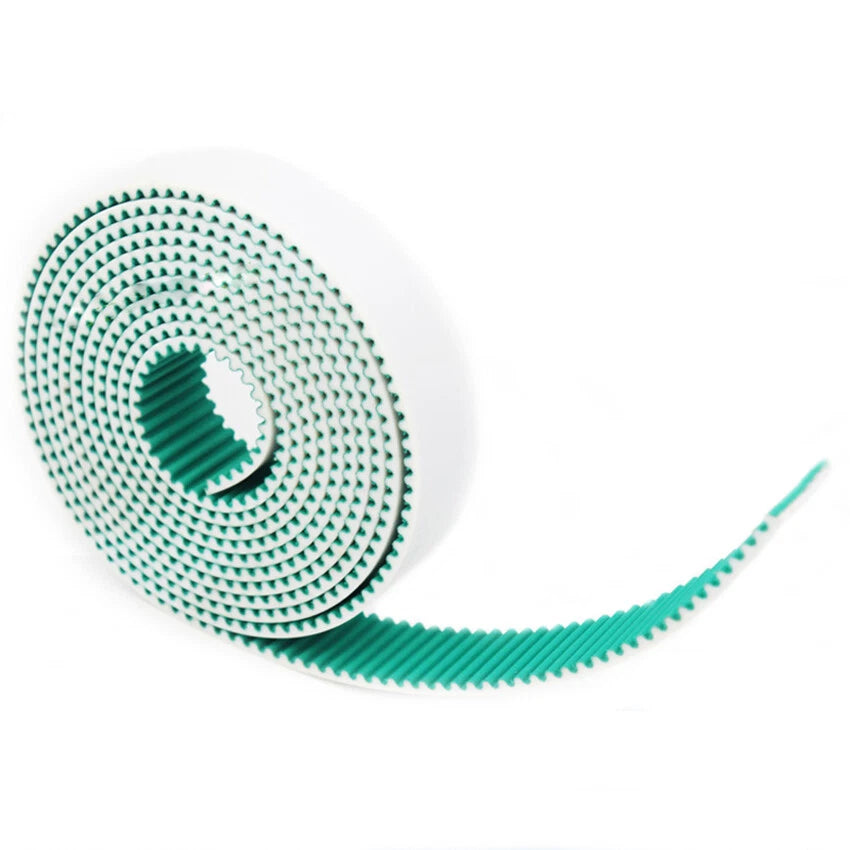

This listing offers open-end (non-loop) timing belt sold by the meter in six industry-standard profiles: HTD-3M, HTD-5M, HTD-8M (High Torque Drive, curvilinear tooth) and STPD-S3M, STPD-S5M, STPD-S8M (Super Torque Positive Drive, modified curvilinear tooth), plus the trapezoidal XL profile. Belt widths range from 10mm (≈3/8") to 40mm (≈1-9/16"), and lengths are available in 1 m (≈39.4"), 2 m (≈78.7"), 3 m (≈118.1"), 4 m (≈157.5"), 5 m (≈196.9"), 8 m (≈314.9"), and 10 m (≈393.7"). The belt body is typically constructed from neoprene rubber with fiberglass or steel cord reinforcement for dimensional stability under load.
Typical use cases include: replacing worn drive belts on open-loop CNC router X/Y axes, building custom CoreXY or Cartesian 3D printer motion systems, and constructing linear actuators for pick-and-place or conveyor automation. The open-end format means you cut exactly what you need — no waste, no splicing loops.
🔗 Compatibility: HTD-3M/5M/8M belts fit standard HTD pulleys of matching pitch. STPD-S3M/S5M/S8M belts fit STPD/RPP curvilinear pulleys of matching pitch. XL belts fit standard XL trapezoidal pulleys (5.08mm / 1/5" pitch). Profiles are not interchangeable across tooth types — verify your pulley tooth profile before ordering.
⚠️ Before you order: Confirm your pulley's tooth profile (HTD, STPD, or XL), pitch (3M, 5M, 8M, or XL), and face width. Belt width should be equal to or slightly narrower than the pulley flange width.
✅ Key Features of These Open Timing Belts
-

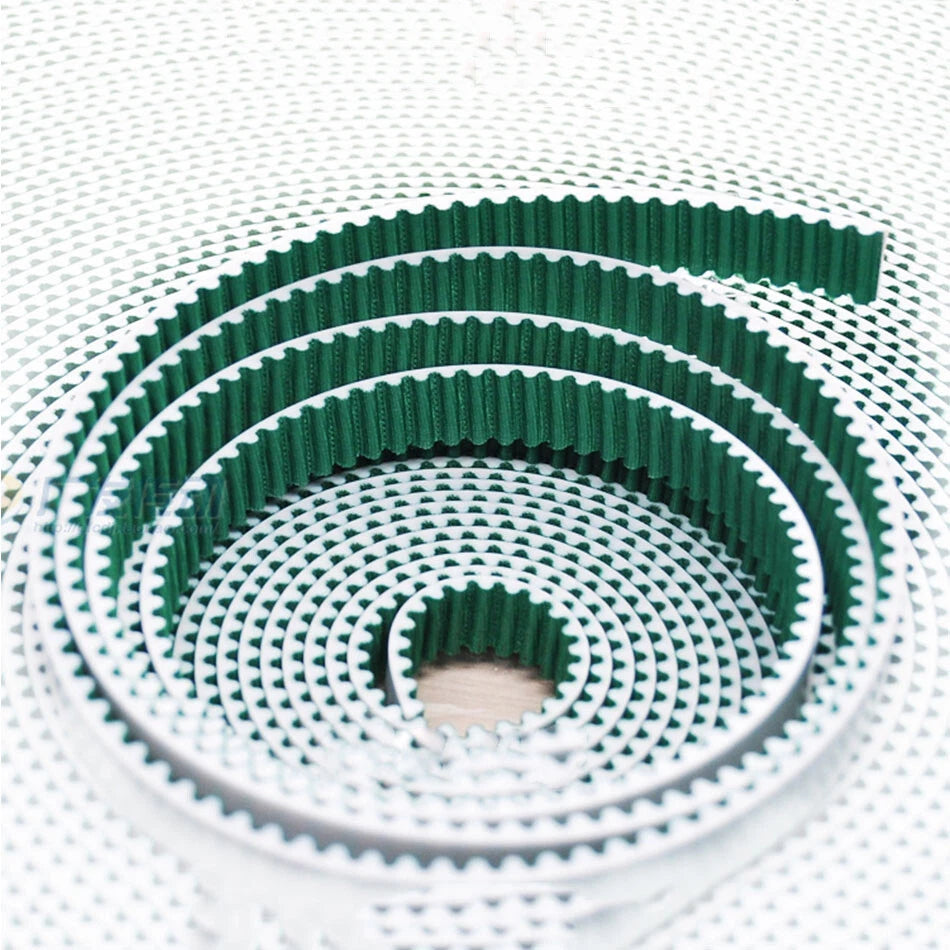

📐 Cut-to-Length Open-End Format — Sold by the meter in 1–10 m sections; cut to any custom length with a utility knife for a precise fit in CNC router drives, 3D printer axes, and linear actuator builds.
-
⚙️ Six Profile Options in One Listing — HTD-3M, HTD-5M, HTD-8M, STPD-S3M, STPD-S5M, and STPD-S8M curvilinear profiles plus XL trapezoidal, covering the most common open timing belt profiles used in motion control systems.
-
↔️ Wide Width Range: 10mm to 40mm — Six width options (10, 15, 20, 25, 30, 40mm) let you match the belt to your pulley face width and torque requirements, from lightweight 3D printer carriages to heavy-duty gantry drives.
-

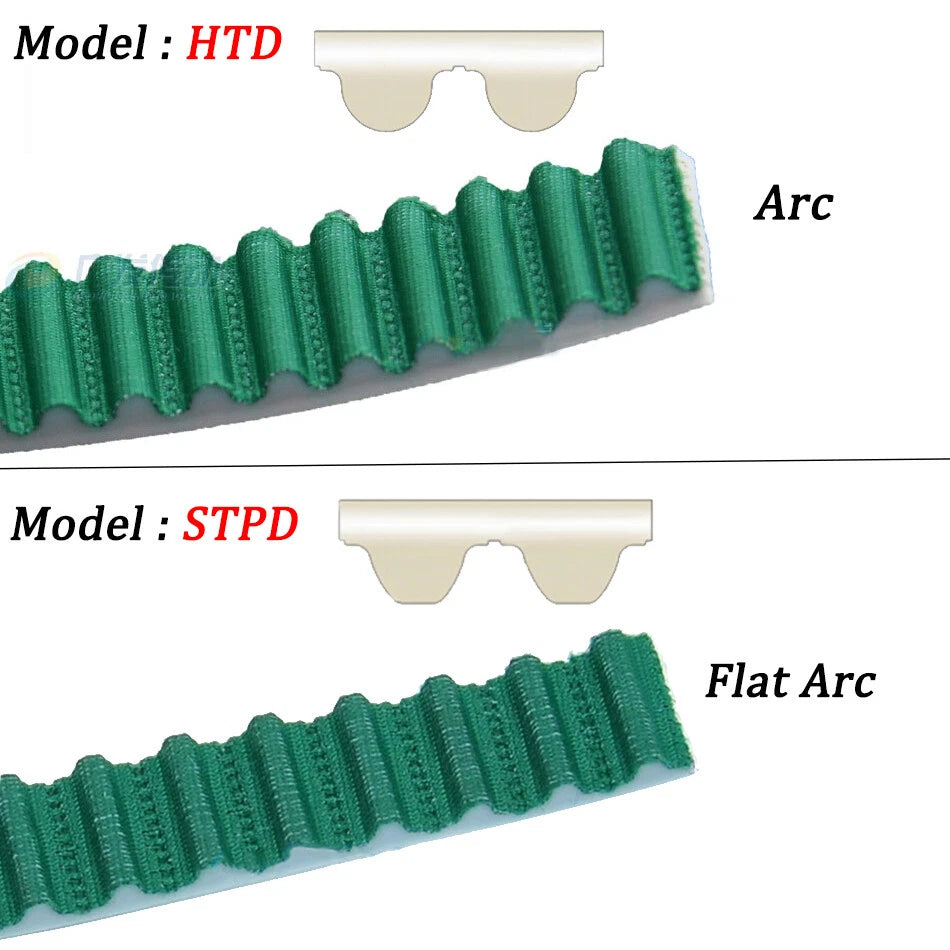

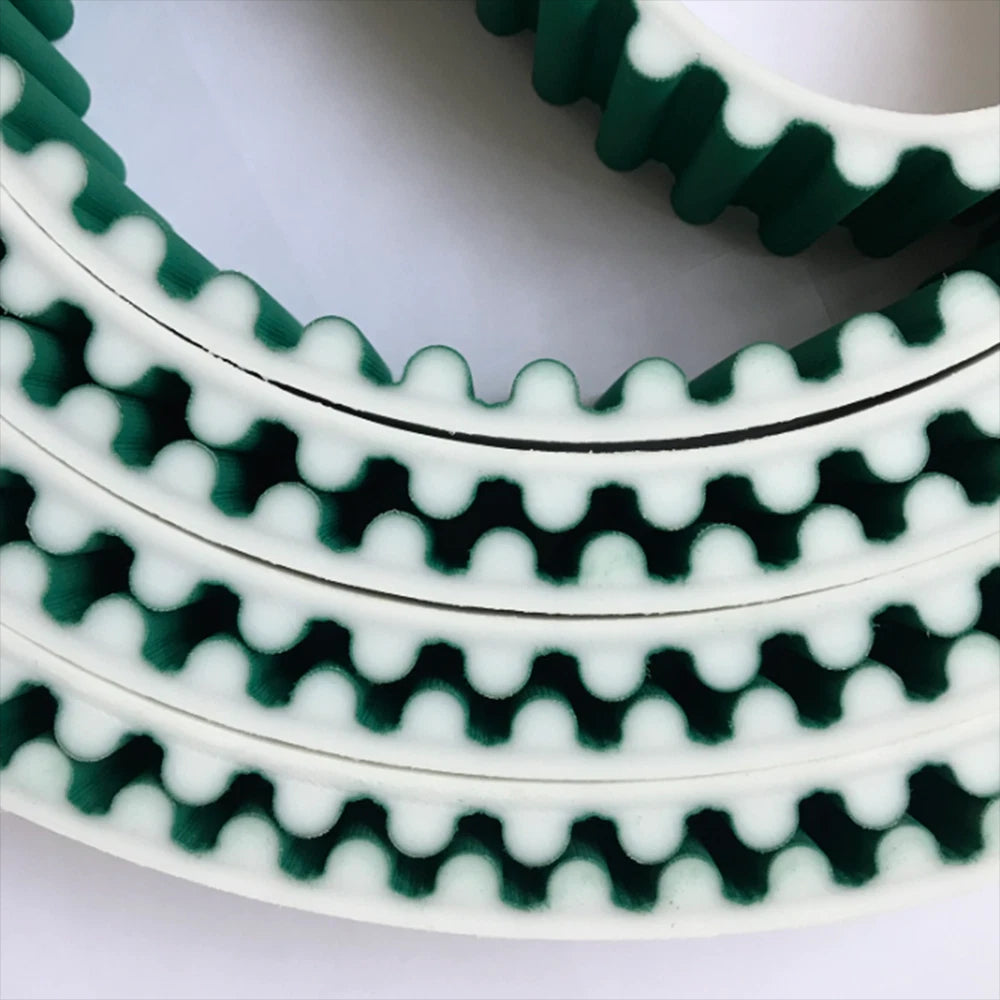

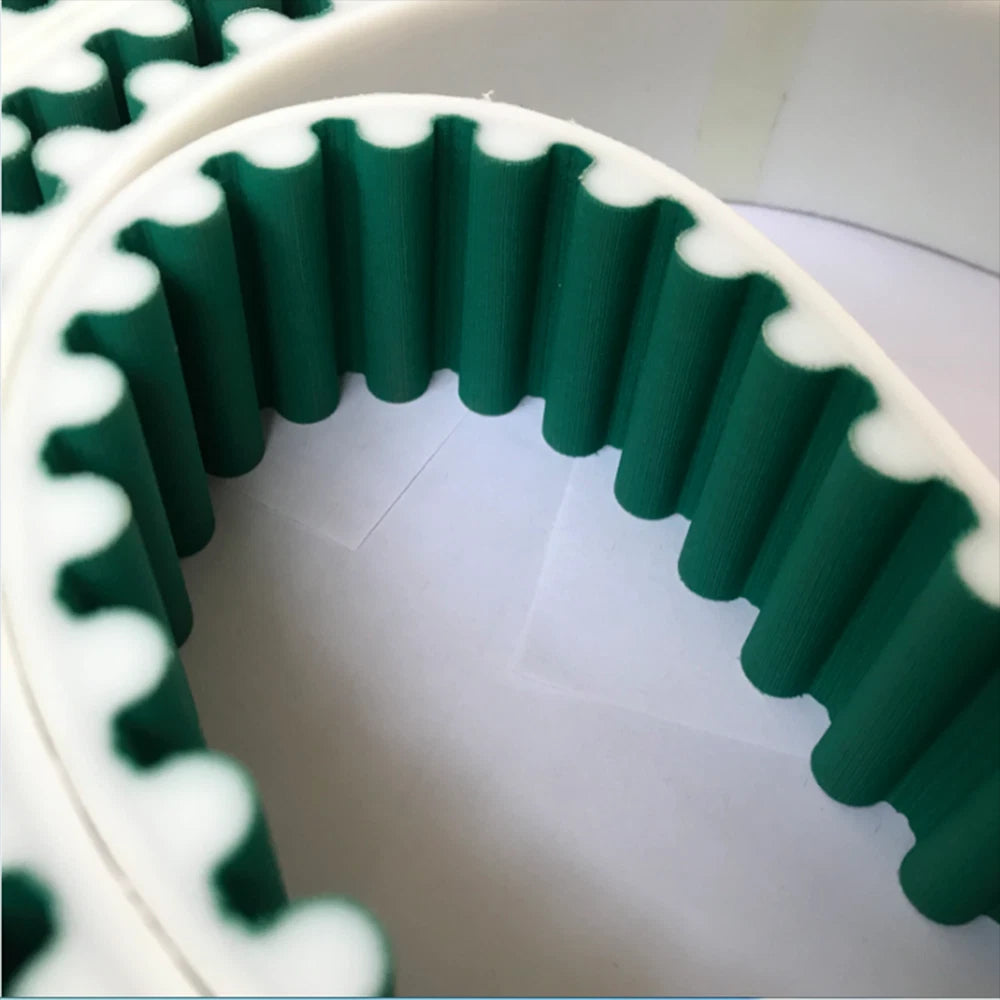

🔩 Curvilinear Tooth Design (HTD & STPD) — Rounded tooth profile distributes load across a larger contact area compared to trapezoidal teeth, reducing tooth deformation and improving resistance to tooth jump under dynamic loads in CNC and robotics applications.
-

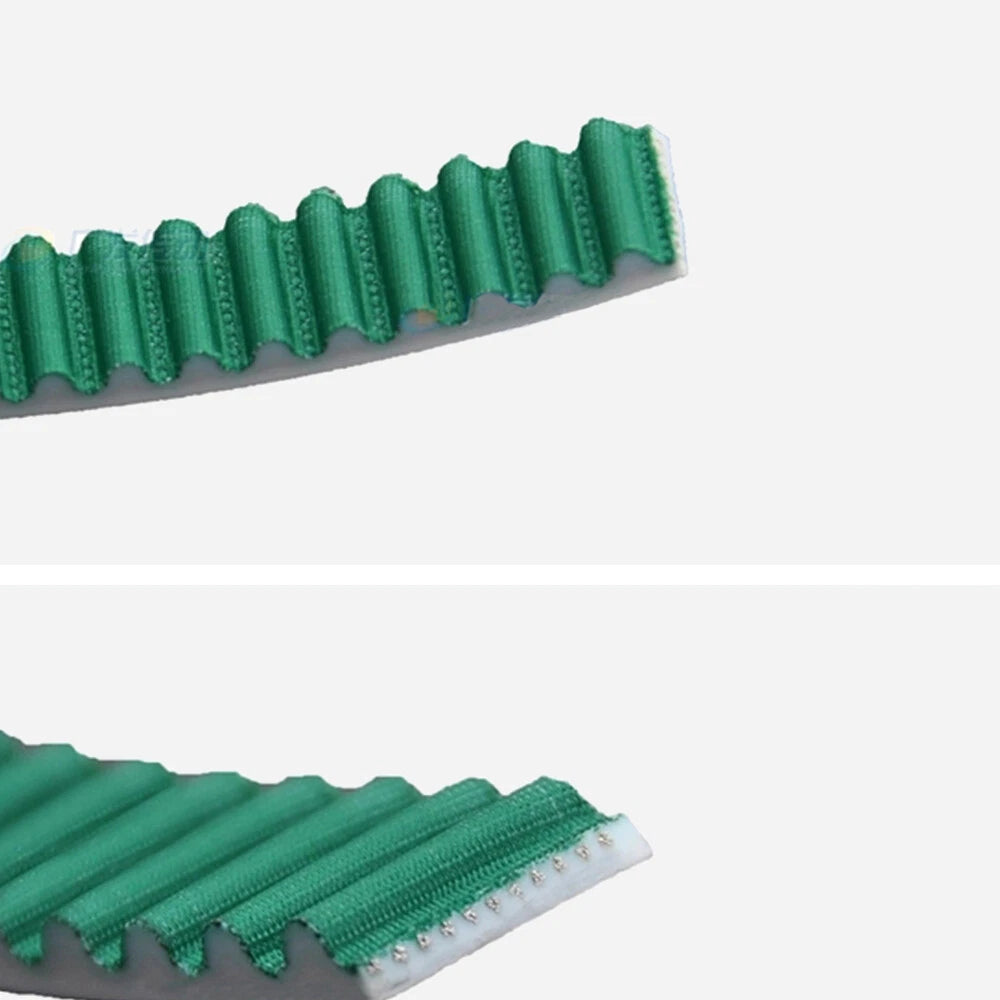

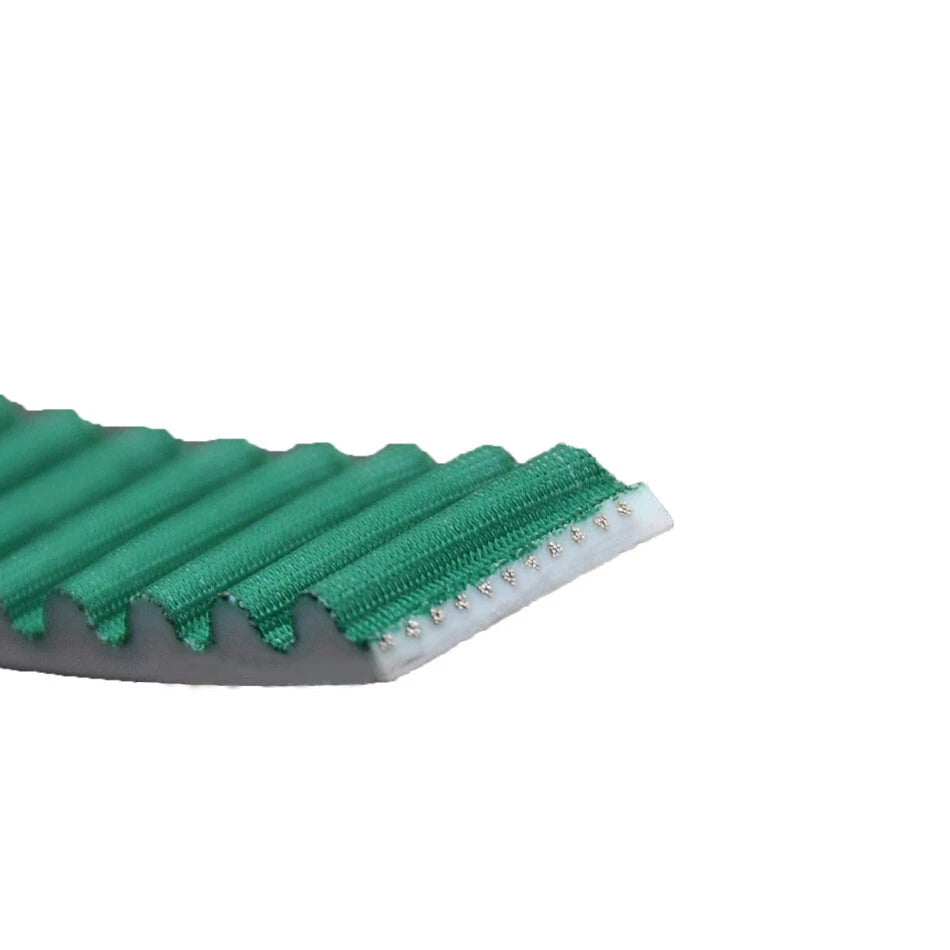

🧵 Reinforced Cord Construction — Fiberglass or steel tensile cords run the belt length to minimize elongation under tension, maintaining positional accuracy in open-loop stepper motor drive systems over extended use.
-
🏭 Broad Application Compatibility — Suitable for CNC router X/Y/Z axis drives, CoreXY and Cartesian 3D printer motion systems, laser cutter gantries, pick-and-place machines, and custom linear actuator builds requiring a standard open timing belt replacement.
📐 Technical Specifications — Open Timing Belt (HTD / STPD / XL)
| Belt Type |
Open-end (non-loop), sold by the meter |
| Available Profiles |
HTD-3M, HTD-5M, HTD-8M, STPD-S3M, STPD-S5M, STPD-S8M, XL |
| Tooth Profile |
Curvilinear (HTD & STPD); Trapezoidal (XL) |
| Pitch — HTD-3M / STPD-S3M |
3mm (≈0.118") |
| Pitch — HTD-5M / STPD-S5M |
5mm (≈0.197") |
| Pitch — HTD-8M / STPD-S8M |
8mm (≈0.315") |
| Pitch — XL |
5.08mm (1/5" / 0.200") |
| Available Widths |
10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), 30mm (≈1-3/16"), 40mm (≈1-9/16") |
| Available Lengths |
1 m (≈39.4"), 2 m (≈78.7"), 3 m (≈118.1"), 4 m (≈157.5"), 5 m (≈196.9"), 8 m (≈314.9"), 10 m (≈393.7") |
| Belt Body Material |
Typically neoprene rubber (contact us to confirm specific compound) |
| Tensile Cord |
Typically fiberglass or steel — see variant options |
| Tooth Hardness |
See variant options / Contact us to confirm |
| Operating Temperature |
Contact us to confirm |
| Pulley Compatibility |
HTD pulleys (for HTD profiles); STPD/RPP pulleys (for STPD profiles); XL pulleys (for XL profile) |
| Country of Origin |
See variant options |
❓ Frequently Asked Questions
How do I choose the right belt length for my machine?
Measure the travel distance of your axis and add enough for tensioning — typically 50–100mm (≈2–4") extra. Available lengths are 1 m (≈39.4"), 2 m (≈78.7"), 3 m (≈118.1"), 4 m (≈157.5"), 5 m (≈196.9"), 8 m (≈314.9"), and 10 m (≈393.7"). If you need an in-between length, order the next size up and cut to fit.
What is the load capacity of these timing belts?
Load capacity varies by profile and width. Generally, wider belts and larger pitch profiles (e.g., HTD-8M or STPD-S8M) handle higher torque and tensile loads than smaller profiles like HTD-3M or STPD-S3M. For precise load ratings specific to your application, please contact us with your torque requirements and we can confirm suitability.
Can these belts be used outdoors or in humid environments?
These timing belts are typically made from neoprene rubber, which provides reasonable resistance to moisture and moderate temperature variation. However, they are generally not rated for prolonged UV exposure or full immersion. For outdoor installations or washdown environments, contact us to confirm the specific rubber compound and its environmental ratings before ordering.
Are these belts compatible with standard HTD and STPD pulleys?
Yes. HTD-3M, HTD-5M, and HTD-8M belts are designed to mesh with standard HTD pulleys of the corresponding pitch. STPD-S3M, STPD-S5M, and STPD-S8M belts follow the STPD/RPP curvilinear tooth profile and are compatible with matching STPD pulleys. Always verify the tooth profile and pitch of your existing pulleys before ordering — HTD and STPD profiles are not interchangeable even at the same pitch number.
Which profile should I choose — HTD or STPD?
HTD (High Torque Drive) belts use a rounded tooth profile suited for general power transmission in CNC machines, 3D printers, and robotics. STPD (Super Torque Positive Drive) belts use a modified curvilinear profile that generally offers higher load capacity and reduced backlash at equivalent pitch. If your system already uses one profile, match it. If you are designing a new system, STPD is often preferred for precision positioning applications where minimizing backlash matters.
Can I cut this belt to a custom length?
Yes — this is an open-end (non-loop) timing belt sold by the meter, so it can be cut to any length with a sharp utility knife or dedicated belt cutter. Cut perpendicular to the belt width for a clean, square edge. The reinforcing cords run lengthwise, so a straight transverse cut will not compromise belt integrity or tensile strength.
What width should I select for my application?
Belt width affects torque capacity and lateral stiffness. Narrower widths (10mm, 15mm) are typically used in lightweight 3D printers and small CNC routers. Wider belts (20mm, 25mm, 30mm, 40mm) are suited for heavier gantry systems, laser cutters, and industrial linear actuators. As a general rule, match the belt width to your pulley flange width — the belt should be equal to or slightly narrower than the pulley face to prevent edge wear.
What is the difference between the XL profile and the HTD/STPD profiles?
XL (Extra Light) is a trapezoidal tooth profile with a 5.08mm (1/5") pitch, commonly used in lighter-duty positioning systems and older machine designs. HTD and STPD profiles use curvilinear (rounded) teeth, which generally provide better load distribution and reduced tooth jump under high torque. XL belts are not interchangeable with HTD or STPD pulleys — always verify your pulley tooth profile before selecting a belt.
🛒 Select your timing belt model, width, and length above, then add to cart — ships from our US warehouse.
