Outboard Throttle & Shift Control Cable — Japanese Import Specification, 4m–6.5m, for Yamaha, Suzuki, Honda & Tohatsu

A stiff, kinked, or corroded throttle and shift cable doesn’t just make your boat harder to control — it creates a genuine safety risk when the motor doesn’t respond cleanly to helm input at speed or in reverse. For boat owners, marine mechanics, and DIY riggers replacing worn control cables on Yamaha, Suzuki, Honda Marine, or Tohatsu outboards, this outboard throttle and shift control cable delivers smooth, consistent actuation from the helm to the motor with a Japanese-import specification end fitting that seats correctly in the OEM cable socket without modification.

Each unit is a single cable assembly sold individually. The cable consists of a stainless steel or galvanized steel inner wire core inside a low-friction polymer liner, enclosed in a UV-resistant marine-grade outer jacket. The end fitting tip diameter measures approximately 10.5mm (0.41"), matching the standard Japanese outboard control cable specification. Available in six lengths: 4m (13.1’), 4.5m (14.8’), 5m (16.4’), 5.5m (18.0’), 6m (19.7’), and 6.5m (21.3’). To select the correct length, route a tape measure along the actual cable path from the helm control box to the motor, add 300–500mm (12–20") of slack, and choose the next available length above that measurement.

This cable is the right replacement for a Yamaha outboard throttle cable replacement on a center console fishing boat where the original cable has developed stiff spots or visible jacket cracking after years of saltwater exposure; a Honda Marine shift cable replacement on a rigid inflatable boat (RIB) where the shift lever has become notchy and the motor is slow to engage forward or reverse; and a Tohatsu or Suzuki outboard control cable rerig on a boat where the helm has been relocated and a longer cable run is needed to reach the motor.

⛵ Compatible with: Yamaha, Suzuki Marine, Honda Marine, and Tohatsu outboard motors using the standard Japanese-specification control cable end fitting (approximately 10.5mm tip diameter). Compatible with single-lever and dual-lever helm control boxes for both throttle and shift functions. Select your required length from the Length option above.

⚠️ Length Selection: Always measure the routed cable path — not the straight-line distance — from helm to motor before selecting a length. A cable that is too short cannot be installed safely; a cable that is too long can be looped gently but must not be kinked. Do not cut this cable.

✅ Key Features of These Outboard Throttle & Shift Control Cables

🇯🇵 Japanese Import Specification End Fitting — The end fitting tip diameter of approximately 10.5mm (0.41") matches the OEM cable socket specification used by Yamaha, Suzuki, Honda Marine, and Tohatsu, ensuring a secure, rattle-free seat in the control box and motor cable socket without adapters or modification.
🌊 Low-Friction Polymer Liner — The inner wire core runs inside a low-friction polymer liner that reduces actuation effort and eliminates the metal-on-metal wear that causes stiff spots in older cables — giving you smooth, consistent throttle and shift response on a Yamaha outboard single-lever control cable replacement.
🛡️ UV-Resistant Marine-Grade Outer Jacket — The outer jacket is formulated to resist UV degradation, moisture absorption, and saltwater exposure, maintaining flexibility and jacket integrity over multiple seasons of use on saltwater fishing boat outboard control cables exposed to direct sun and spray.
📐 Six Lengths: 4m to 6.5m — Available in 0.5m increments from 4m (13.1’) to 6.5m (21.3’), covering the full range of helm-to-motor distances from compact center console boats to larger vessels with the helm positioned well forward of the transom — including long-run outboard shift cable replacements for pontoon boats and walkarounds.
🔄 Throttle & Shift Dual-Function Compatible — The cable specification is the same for both throttle (engine speed) and shift (forward/neutral/reverse) control functions, so a single cable type covers both positions on a dual-cable helm control box — simplifying sourcing for a complete outboard control cable set replacement.
🔧 Direct OEM-Style Replacement — Designed to replace the original equipment control cables supplied with Japanese outboard motors, restoring helm-to-motor response to factory specification without requiring modification to the control box, cable guide tubes, or motor cable socket on a Suzuki or Honda Marine outboard cable rerig.

📐 Technical Specifications — Outboard Throttle & Shift Control Cable

Product Type	Outboard motor throttle and shift control cable
Compatible Brands	Yamaha, Suzuki Marine, Honda Marine, Tohatsu
End Fitting Tip Diameter	Approximately 10.5mm (0.41")
Cable Specification	Japanese import specification (standard Japanese outboard control cable)
Inner Core Material	Stainless steel or galvanized steel wire
Liner Material	Low-friction polymer
Outer Jacket Material	UV-resistant marine-grade polymer
Available Lengths	4m (13.1’) / 4.5m (14.8’) / 5m (16.4’) / 5.5m (18.0’) / 6m (19.7’) / 6.5m (21.3’)
Function Compatibility	Throttle control and shift control (both functions)
Helm Control Box Compatibility	Single-lever and dual-lever helm control boxes
Environment Rating	Freshwater and saltwater marine use
Cuttable	No — factory-crimped end fittings; do not cut
Sold As	Single cable per order (select length above)

❓ Frequently Asked Questions

How do I measure the correct cable length for my boat?

Route a length of rope or flexible tape along the exact path the cable will follow from the helm control box to the outboard motor, following all bends and routing points without pulling tight around corners. Measure the total routed length. Add approximately 300–500mm (12–20") of slack to allow for installation and adjustment. Select the next available cable length above that total. For example, if your routed measurement is 4.2m, select the 4.5m variant.

Will this cable fit my specific Yamaha outboard model?

This cable is designed to be compatible with Yamaha outboard motors that use the standard Japanese-specification throttle and shift cable end fitting (approximately 10.5mm diameter tip). It is also compatible with Suzuki, Honda Marine, and Tohatsu outboards that use the same cable interface standard. To confirm compatibility with your specific motor model and year, check your motor’s service manual for the cable part number and end fitting specification, or contact us with your motor’s make, model, and year before ordering.

Is this cable suitable for saltwater use?

Yes. The cable outer jacket is made from UV-resistant and moisture-resistant materials designed for marine use in both freshwater and saltwater environments. Rinse the cable and end fittings with fresh water after saltwater use and apply a light coat of marine-grade cable lubricant periodically to maintain smooth operation and extend service life. Inspect the jacket annually for cracking or stiffness and replace if degradation is visible.

How do I know when my throttle or shift cable needs replacing?

Replace the cable if you notice any of the following: stiff or jerky throttle or shift lever movement that does not improve with lubrication; visible kinking, fraying, or cracking on the cable jacket or end fittings; the motor does not respond smoothly or fully to helm control input; or the cable has been kinked during installation or storage. A worn or kinked cable is a safety hazard and should be replaced before the next outing.

Can I use this cable for both throttle and shift functions?

Yes. This is a universal-specification outboard control cable compatible with both throttle (engine speed) and shift (forward/neutral/reverse) control functions on single-lever and dual-lever helm control boxes. The cable end fitting and jacket specification are the same for both functions on most Japanese outboard motor brands, so one cable type covers both positions on a dual-cable control box.

What is the end fitting diameter on this cable?

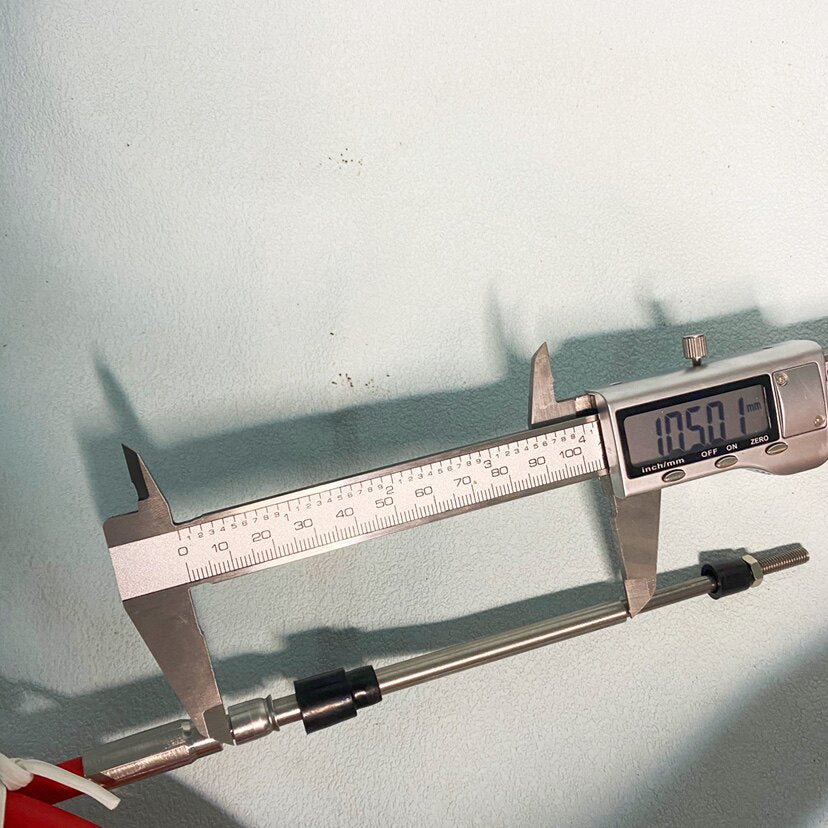

The end fitting tip diameter is approximately 10.5mm (0.41"), as measured by caliper. This matches the standard Japanese outboard control cable specification used by Yamaha, Suzuki, Honda Marine, and Tohatsu. If your existing cable has a different end fitting diameter or profile, contact us before ordering to confirm compatibility.

What lengths are available and which should I choose?

Available lengths and their imperial equivalents:

4m — 13.1’ — suitable for compact boats with helm close to the transom
4.5m — 14.8’
5m — 16.4’ — most common for center console and tiller-extension setups
5.5m — 18.0’
6m — 19.7’
6.5m — 21.3’ — for larger boats with helm positioned well forward of the transom

Measure the routed cable path, add 300–500mm of slack, and select the next length above that measurement.

Can I cut this cable to a shorter length if needed?

No. Outboard control cables should not be cut, as the end fittings are factory-crimped and the inner wire core requires specific termination to function correctly. Always select the correct length for your installation. If the cable is slightly longer than needed, route the excess in a gentle loop with a minimum bend radius of approximately 200mm (8") to avoid kinking. Never fold or sharply bend the excess cable.

🛒 Select your cable length above, then add to cart.
