Phillips Pan Head Machine Screws M0.8 M1 M1.2 M1.4 M1.6 M1.7 — Cross Round Head Bolts, Multiple Coatings - HomeDIYer

Roll over image to zoom in Click on image to zoom

Phillips Pan Head Machine Screws M0.8 M1 M1.2 M1.4 M1.6 M1.7 — Cross Round Head Bolts, Multiple Coatings

Name: Phillips Pan Head Machine Screws M0.8 M1 M1.2 M1.4 M1.6 M1.7 — Cross Round Head Bolts, Multiple Coatings
Brand: HomeDIYer
Price: 12.0 USD
Availability: InStock

HomeDIYer

No reviews

By HomeDIYer®

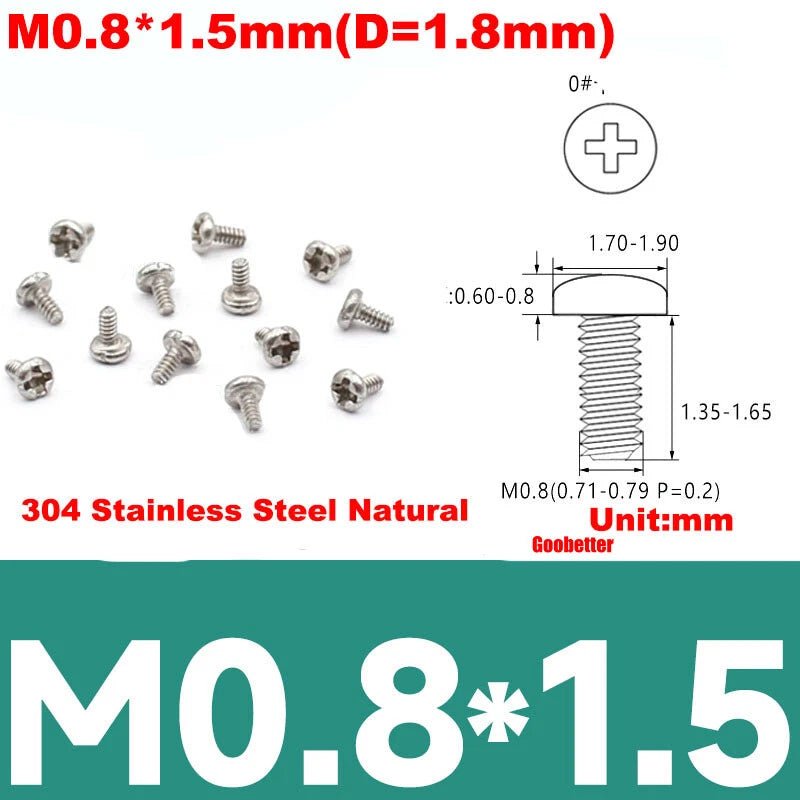

Size: M0.8*1.5mm(D=1.8mm)

Coating:: 304 Stainless Steel Natural

Quantity(PCS): 100PCS

Price:

$12.00 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

Phillips Pan Head Machine Screws M0.8–M1.7 — Precision Micro Fasteners for Electronics, Optics & DIY Assemblies

When a stripped screw or the wrong size brings your repair to a halt, the frustration is real — especially with micro fasteners where the margin for error is nearly zero. Whether you're a hobbyist reassembling a laptop, a technician servicing precision instruments, or a maker building custom electronics enclosures, having the right phillips pan head machine screws on hand makes all the difference.

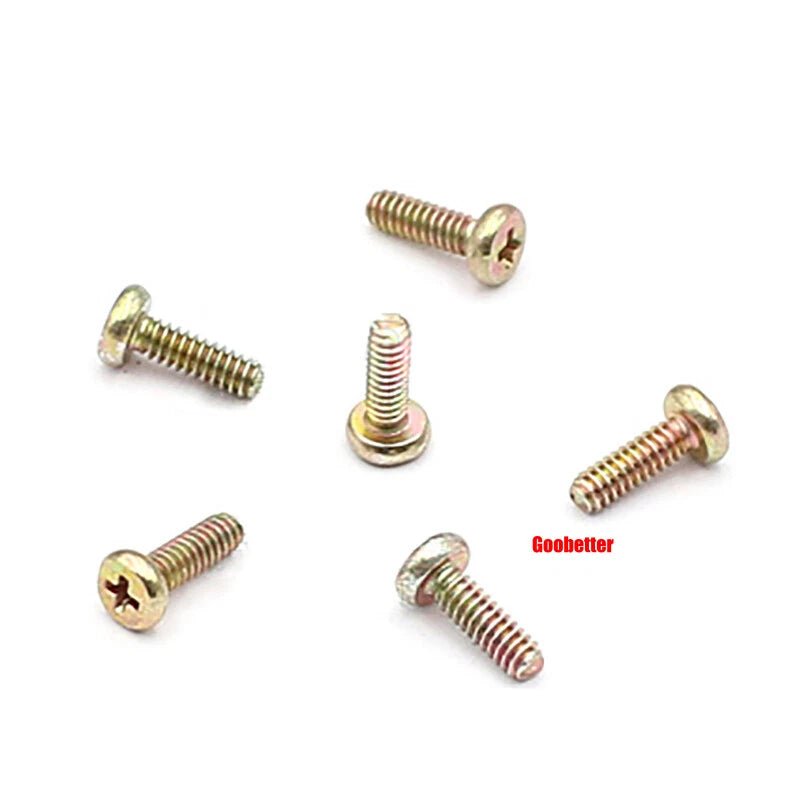

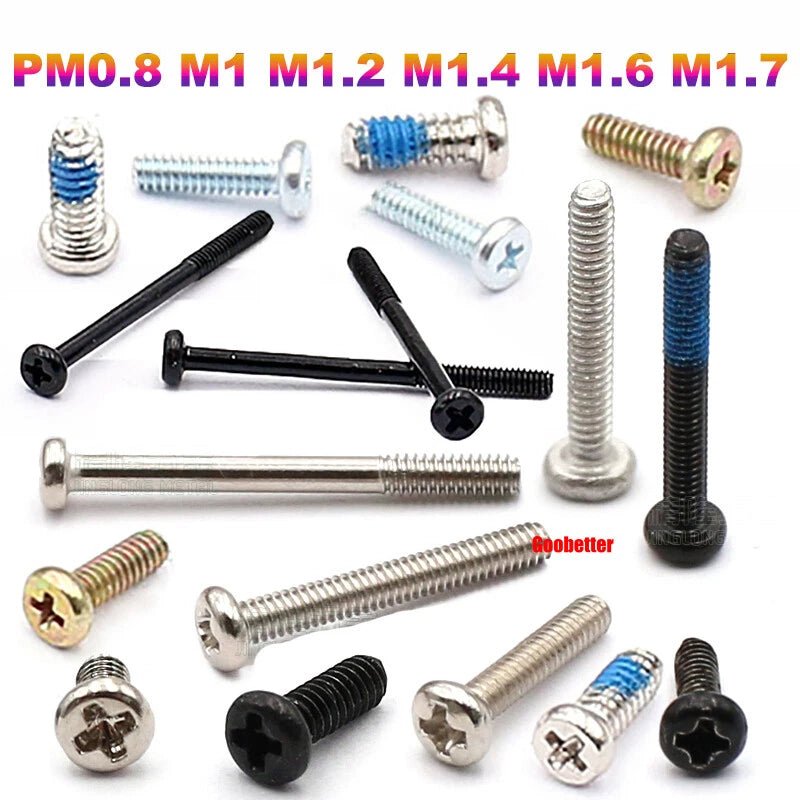

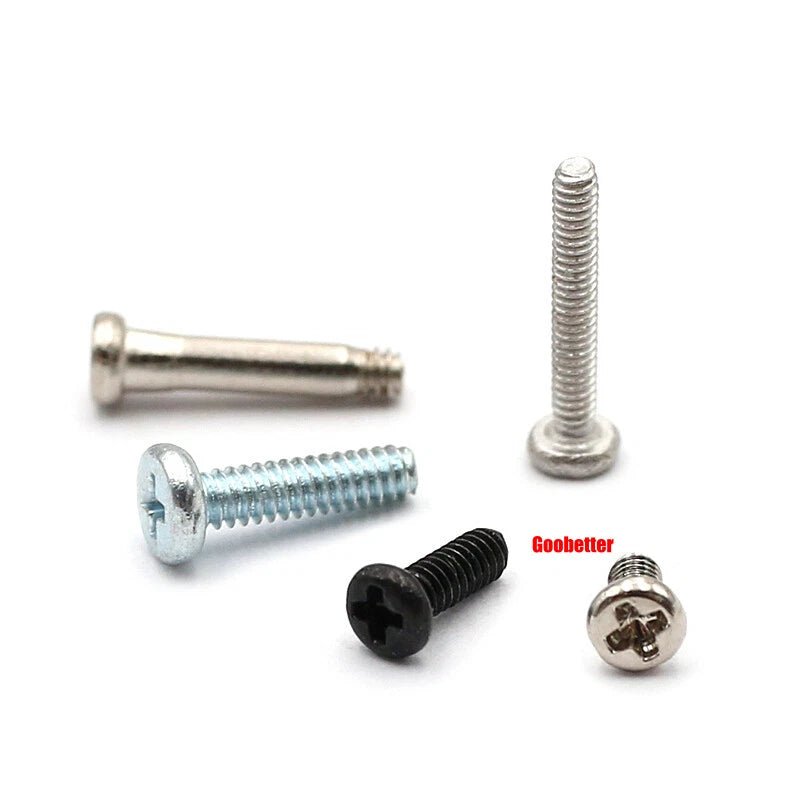

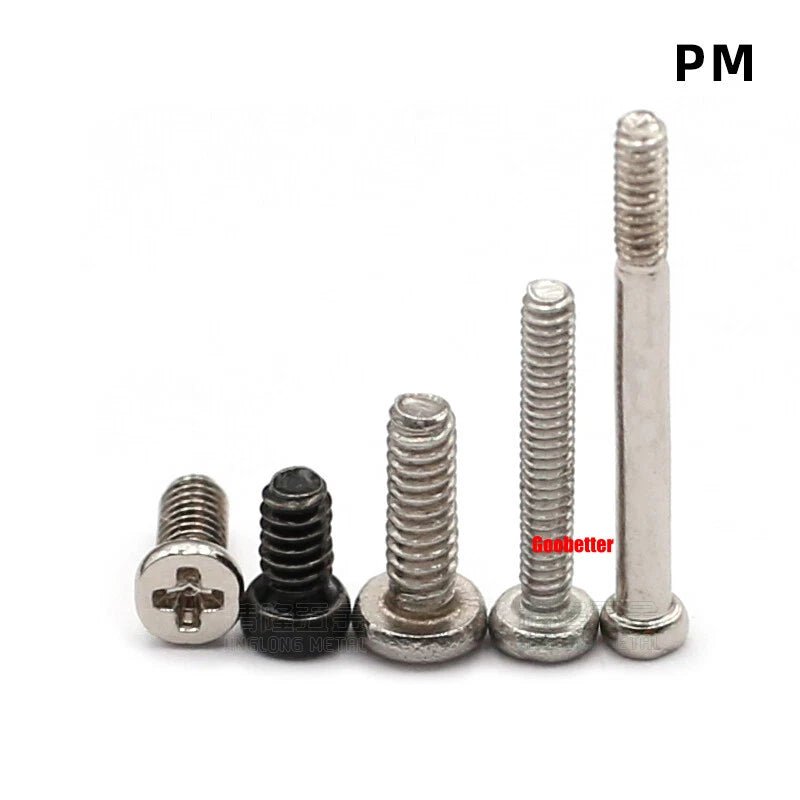

Each set is available in sizes ranging from M0.8 to M1.7, with lengths from 1.5mm (≈1/16") up to 22mm (≈7/8"), and head diameters from 1.5mm to 3.2mm depending on the variant. Coatings include 304 Stainless Steel Natural, Black Zinc, Nickel-Plated, Chrome Plating, Brass Natural, Blue White Zinc, White Zinc, Colour Zinc, and anti-loosening rubber patch options. Packs are available in 100, 200, 300, 400, and 500 pieces.

These cross round head bolts are widely used in laptop and smartphone repair, camera and optics assembly, RC model construction, PCB and electronics enclosure fastening, and precision DIY projects where standard hardware-store screws are simply too large.

🔩 Compatibility: ISO metric thread standard (M-series). Compatible with standard metric nuts and threaded inserts. Not compatible with UNC/UNF inch-standard threads. Requires PH000–PH0 precision Phillips driver depending on size.

✅ Key Features of These Phillips Pan Head Machine Screws

📐Wide Size Range — Covers M0.8 through M1.7 with multiple length options per diameter, giving you the exact micro machine screw size your project demands without substitution.
🛡️Multiple Coating Options — Choose from 304 stainless steel, black zinc, nickel-plated, chrome, brass, and zinc variants to match your corrosion resistance needs and aesthetic requirements.

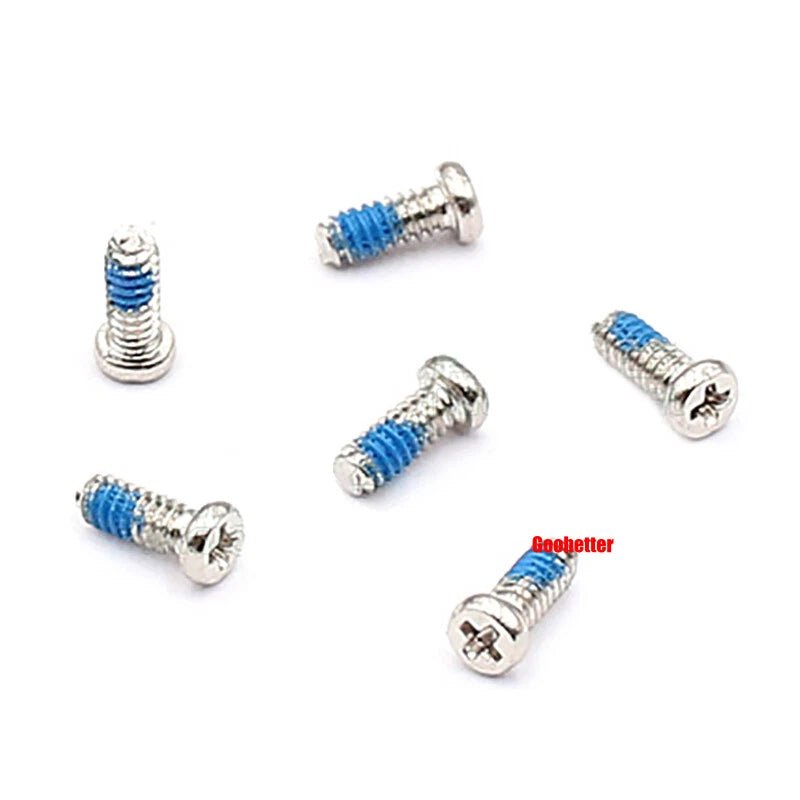

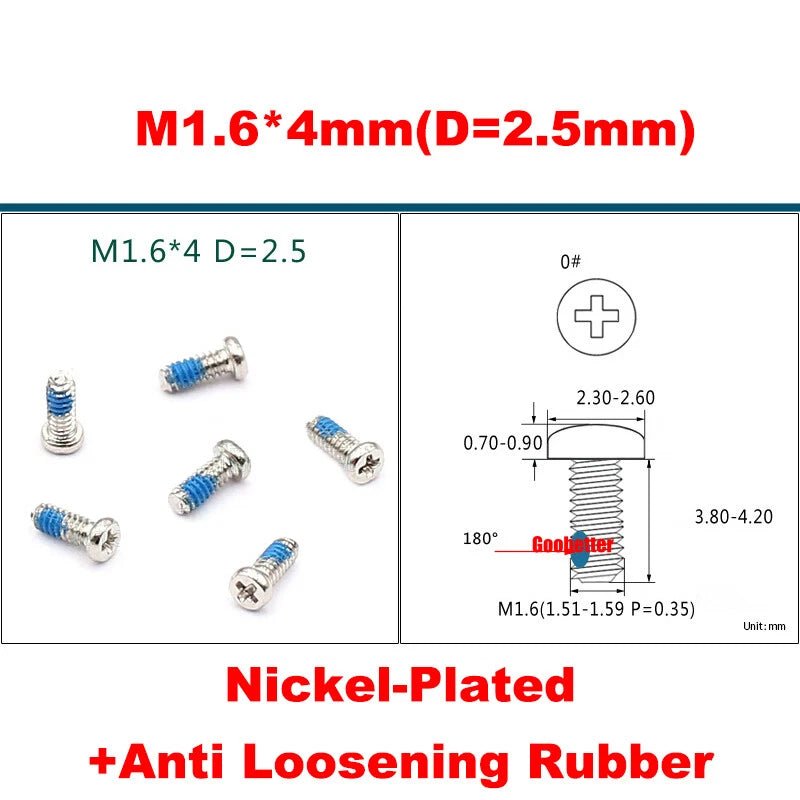

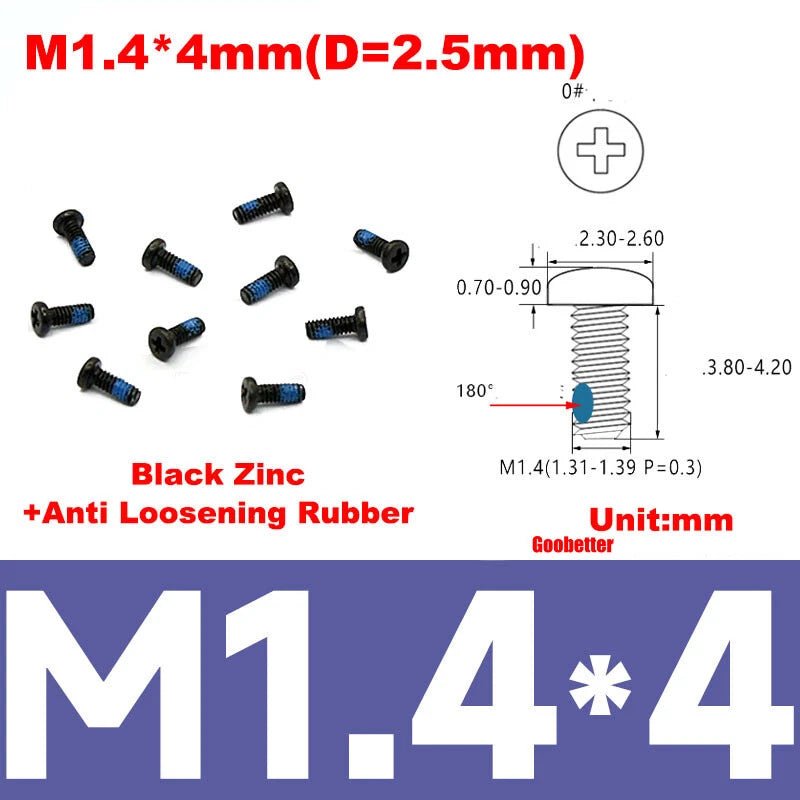

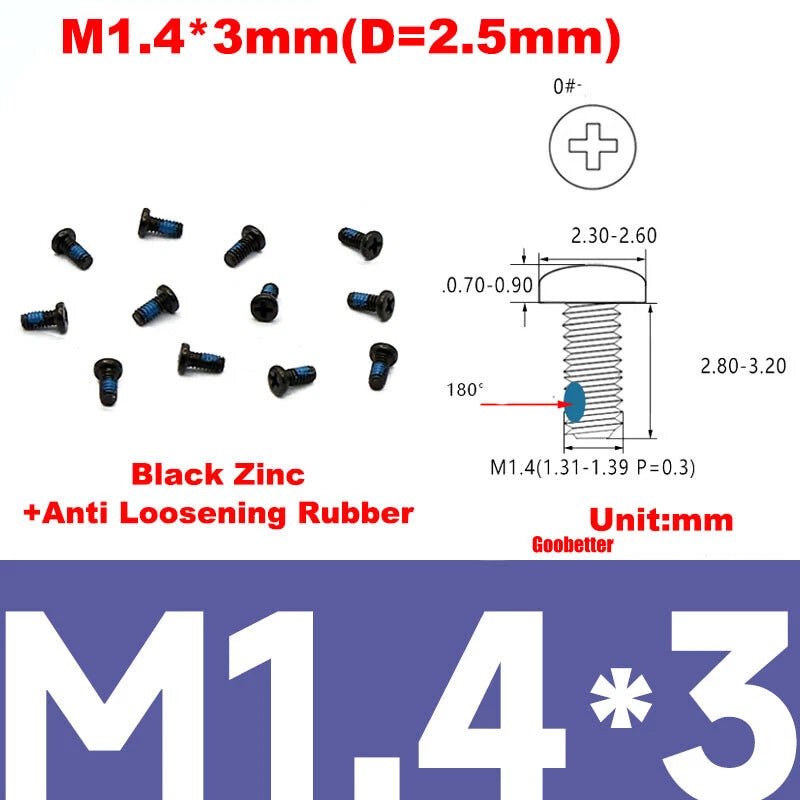

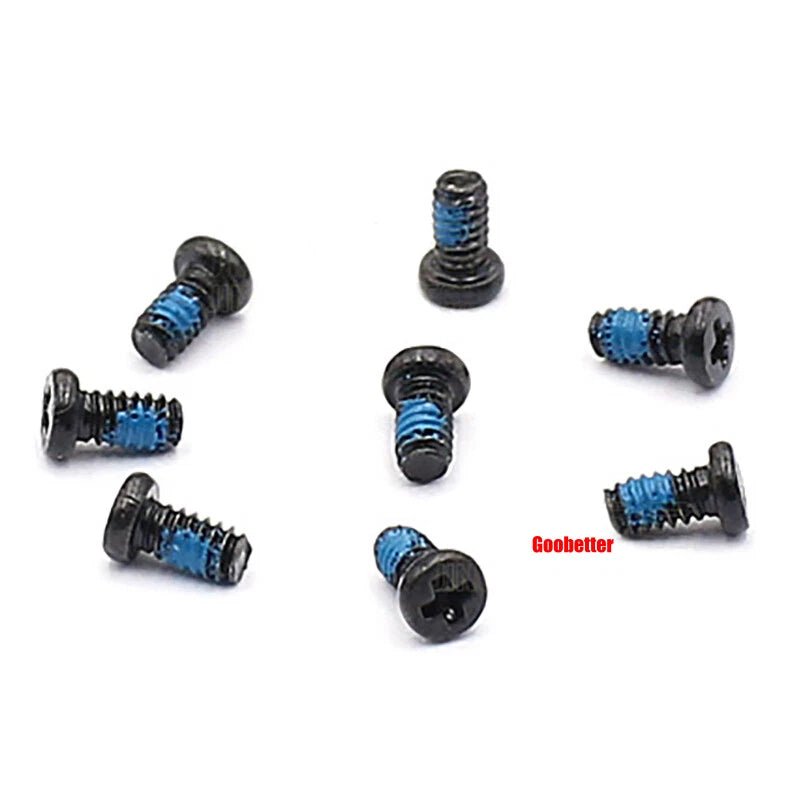

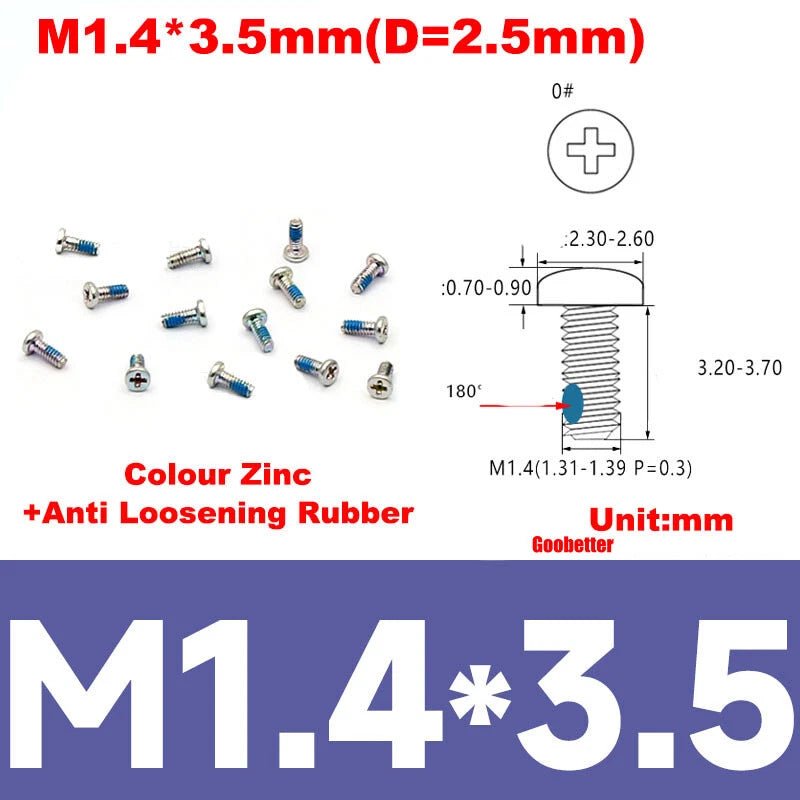

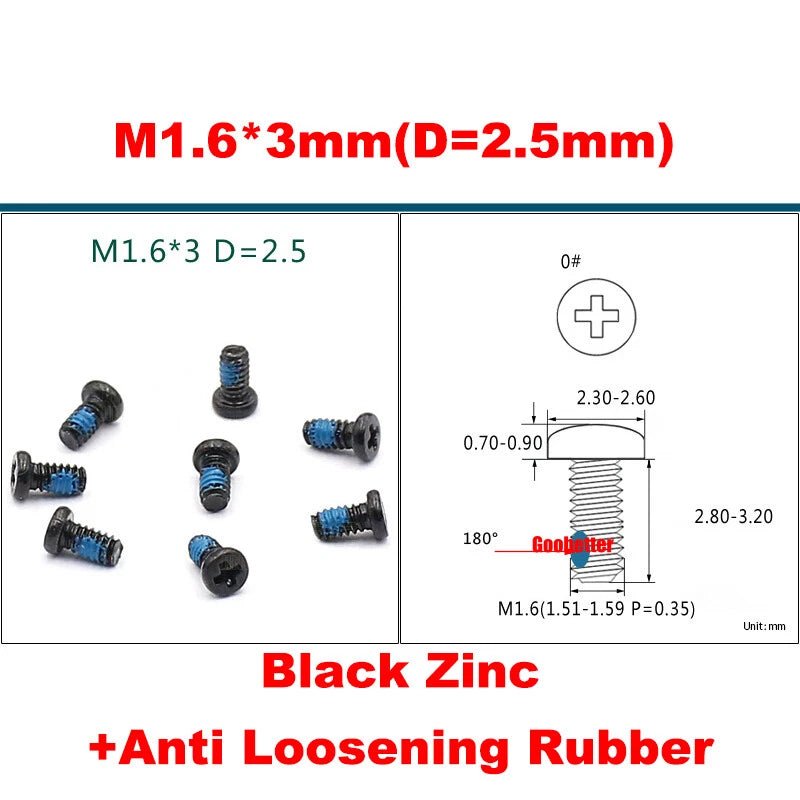

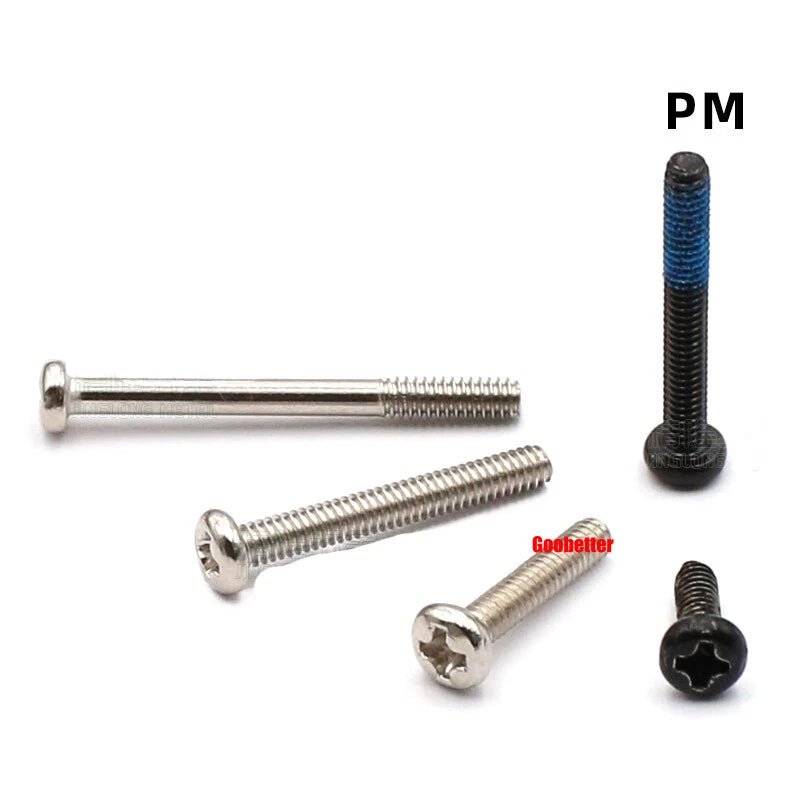

🔒Anti-Loosening Variants Available — Select coatings include a factory-applied nylon rubber patch on the thread for vibration-resistant fastening in electronics and dynamic assemblies.
🎯Phillips Cross Drive Head — The pan head profile distributes clamping load evenly across the surface, while the cross recess accepts standard PH000–PH0 precision driver bits for reliable torque transfer.
📦Bulk Pack Quantities — Available in 100 to 500 piece packs, ideal for repair shops, electronics hobbyists, and small-batch manufacturers who need consistent stock of cross round head bolts.
🏭Consistent Dimensional Accuracy — Manufactured to ISO metric tolerances, ensuring thread fit and head geometry are repeatable across the full size range for professional assembly work.

📐 Technical Specifications — Phillips Pan Head Machine Screws

Screw Type	Phillips Pan Head Machine Screw (Cross Round Head)
Drive Type	Phillips (Cross / PH)
Thread Standard	ISO Metric (M-series)
Diameter Range	M0.8, M1.0, M1.2, M1.4, M1.6, M1.7
Length Range	1.5mm (≈1/16") – 22mm (≈7/8") — see variant options
Head Diameter (D)	1.5mm – 3.2mm depending on size variant
Coating Options	304 Stainless Steel Natural, Black Zinc, Nickel-Plated, Chrome Plating, Brass Natural, Blue White Zinc, White Zinc, Colour Zinc, + Anti-Loosening Rubber variants
Pack Quantity	100 / 200 / 300 / 400 / 500 PCS
Driver Bit Size	PH000 (M0.8–M1.2), PH00–PH0 (M1.4–M1.7) — typically
Material	Carbon Steel (zinc/nickel/chrome coated) or 304 Stainless Steel or Brass — see variant
Application	Electronics, optics, PCB assemblies, RC models, precision DIY
Country of Origin	See variant options

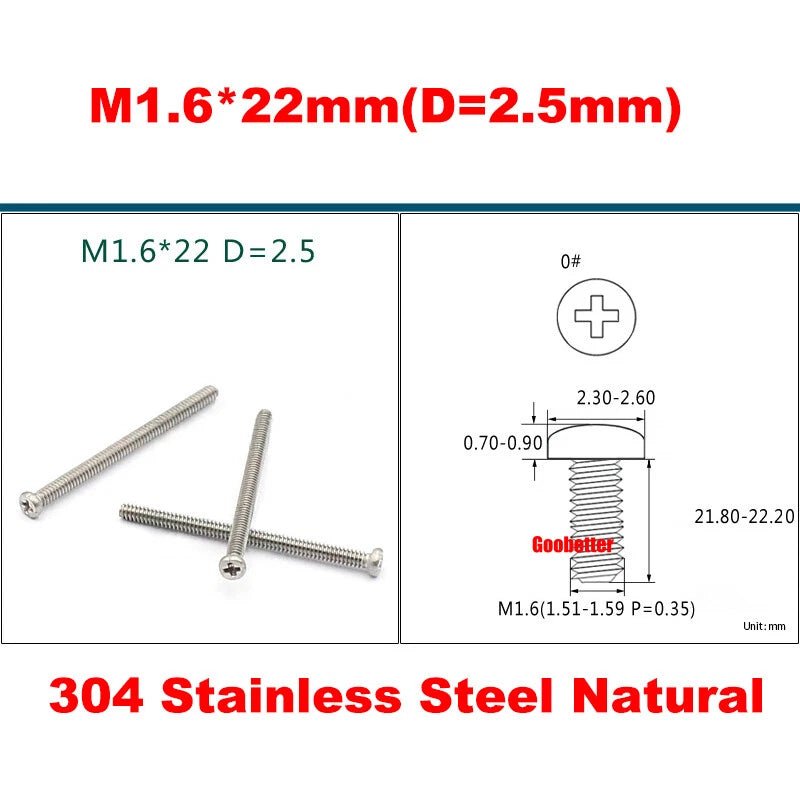

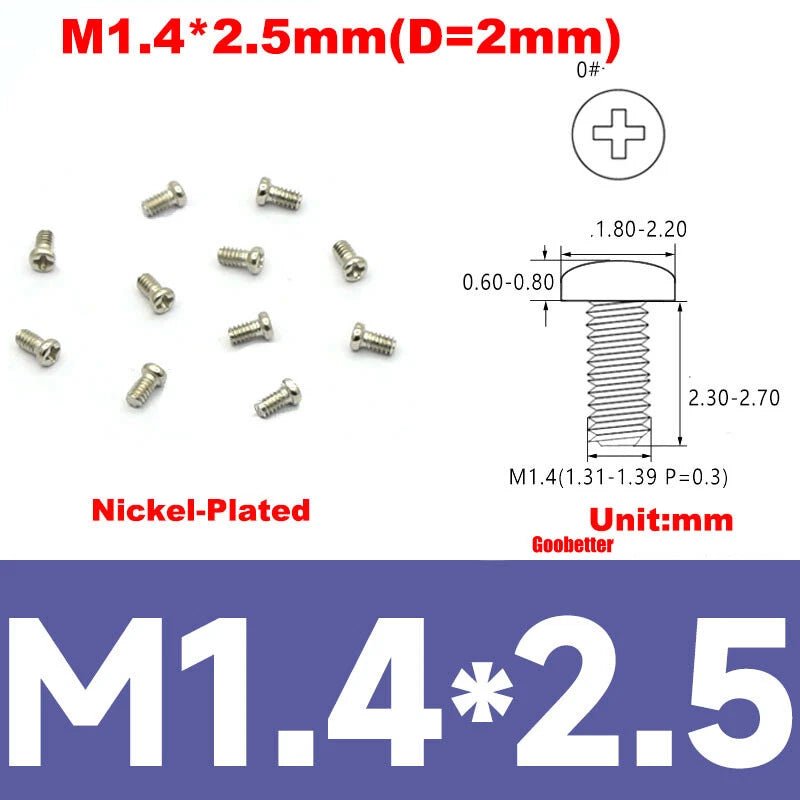

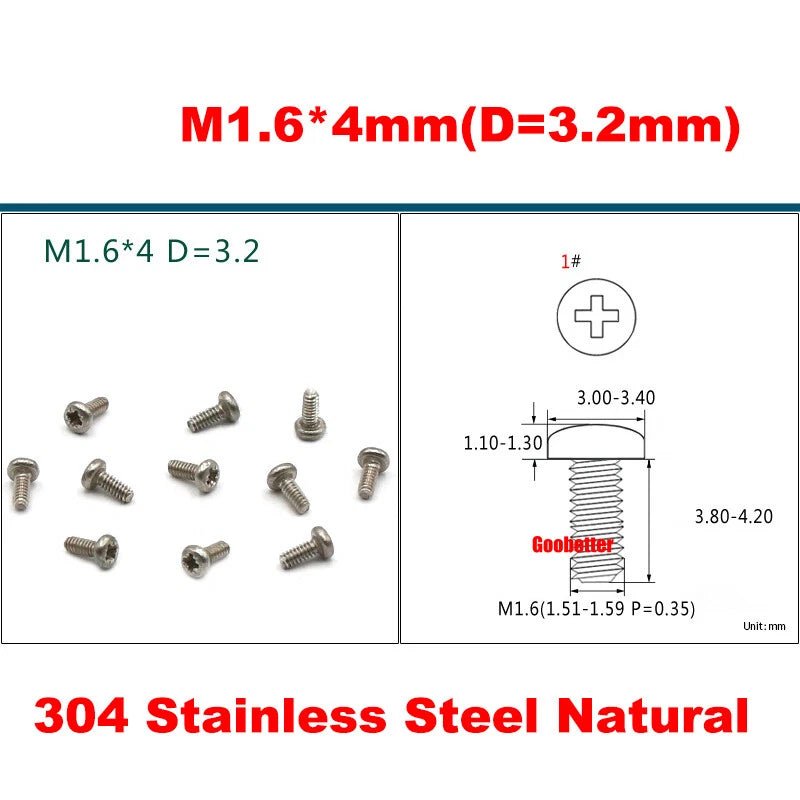

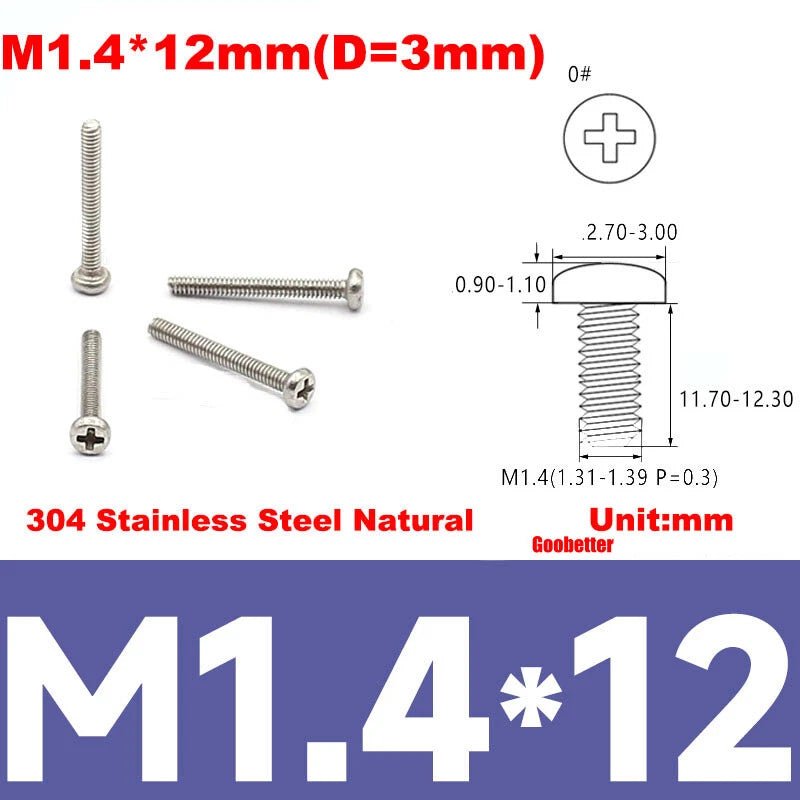

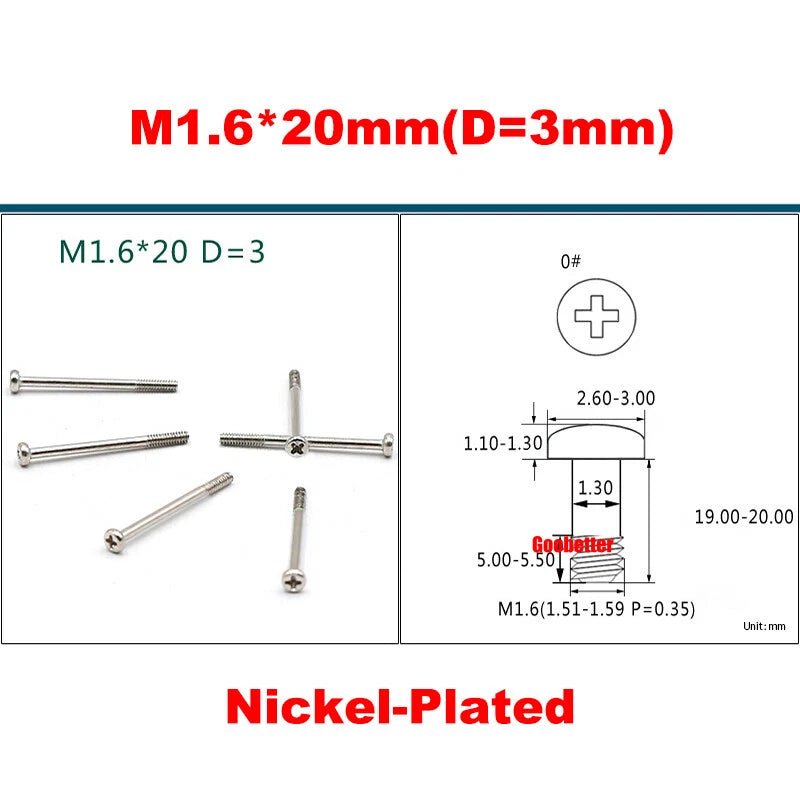

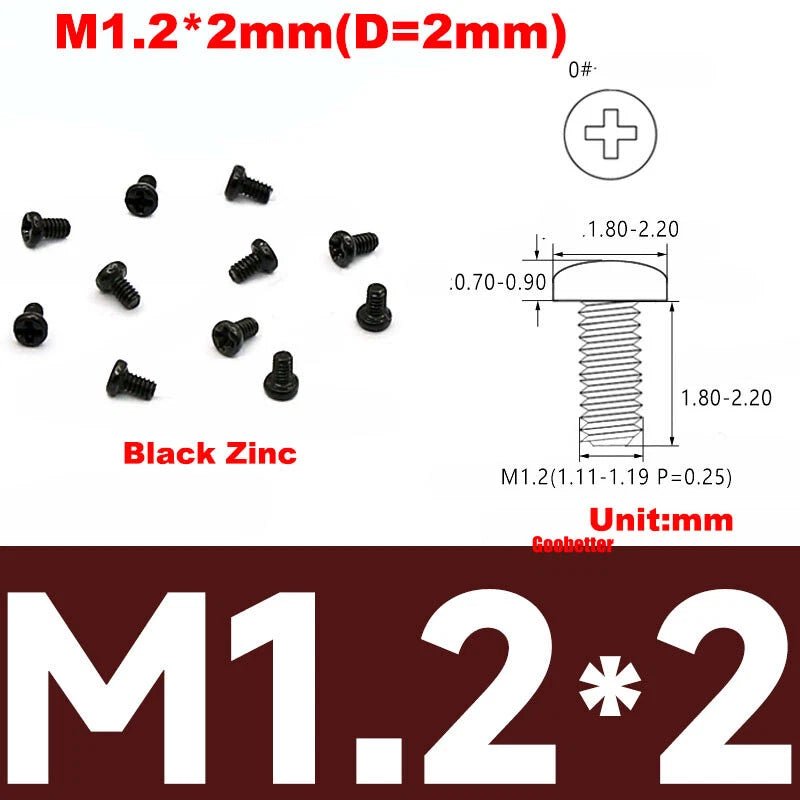

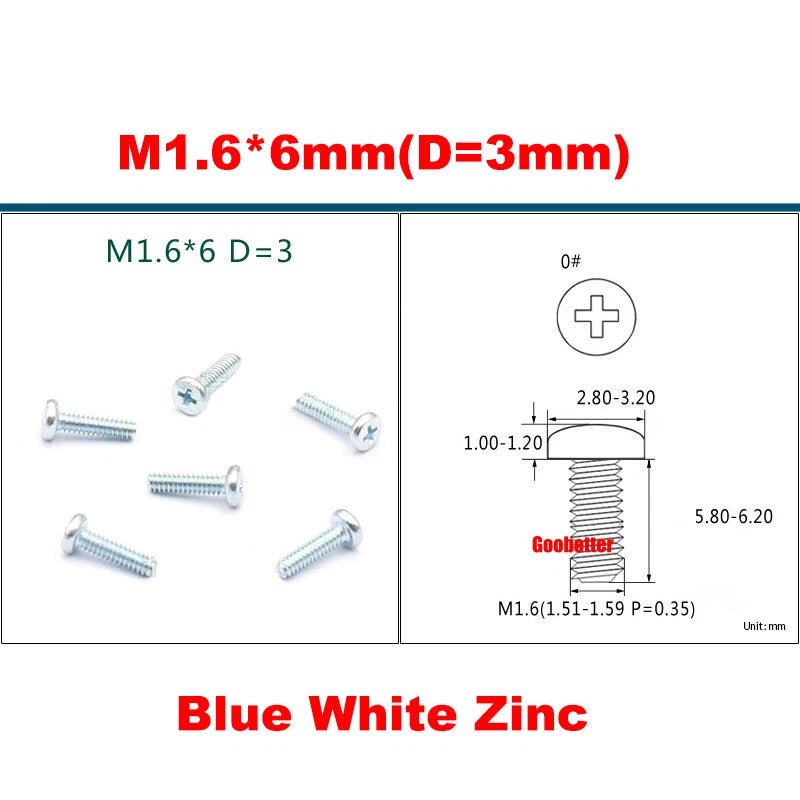

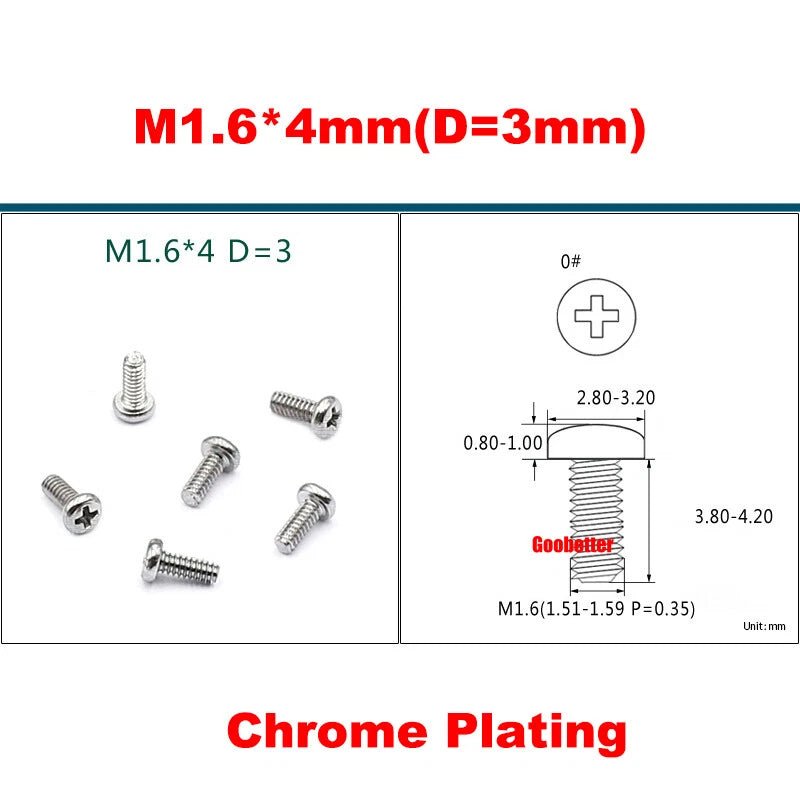

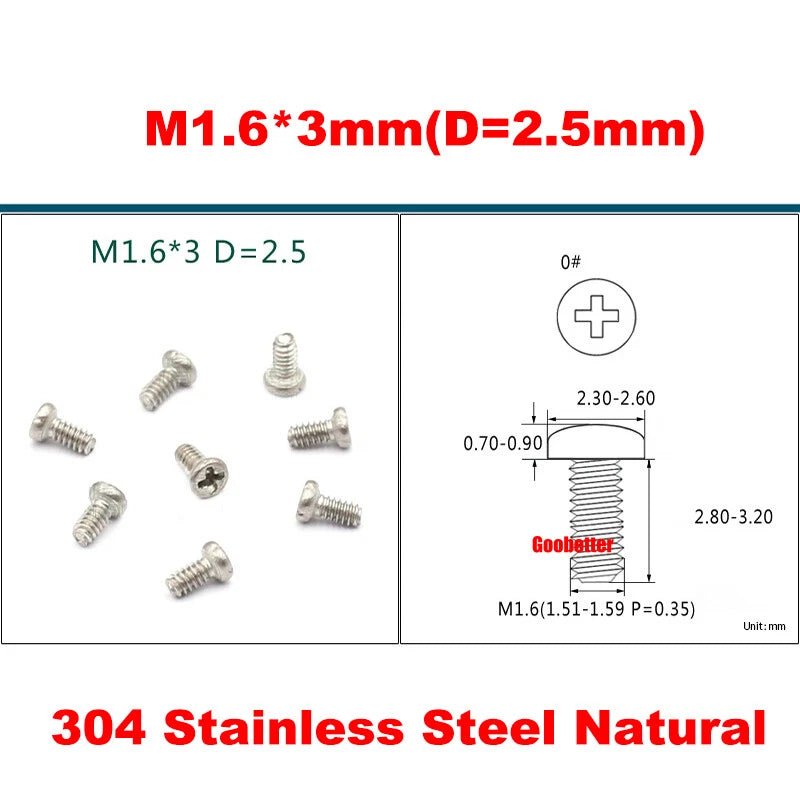

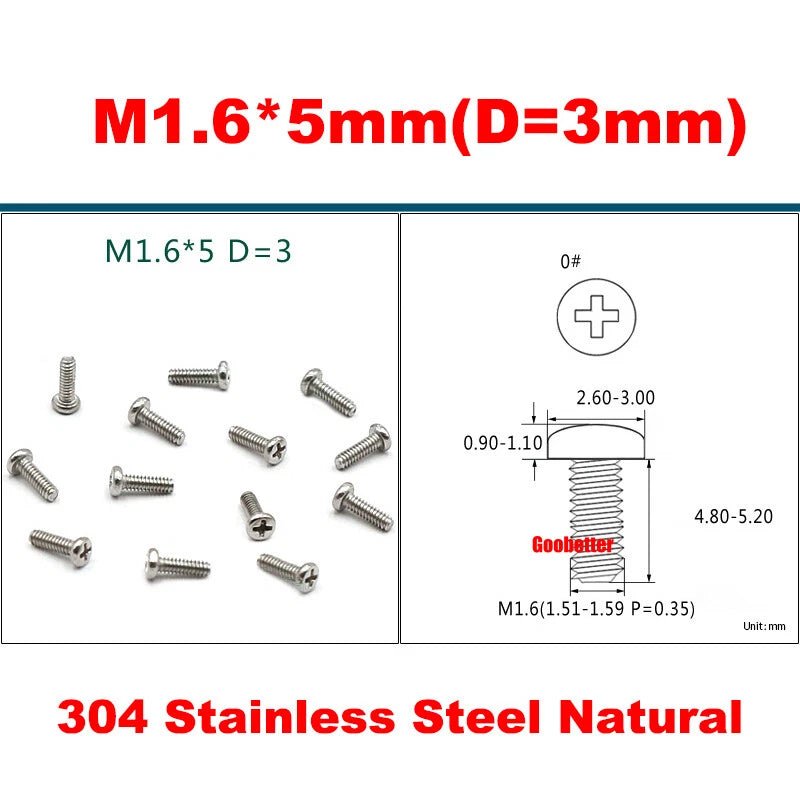

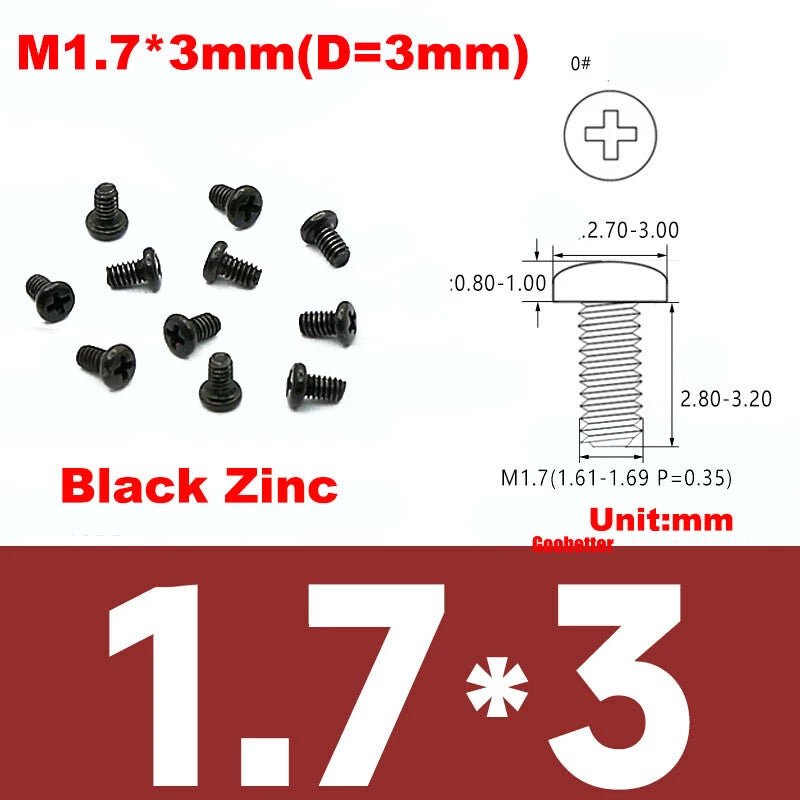

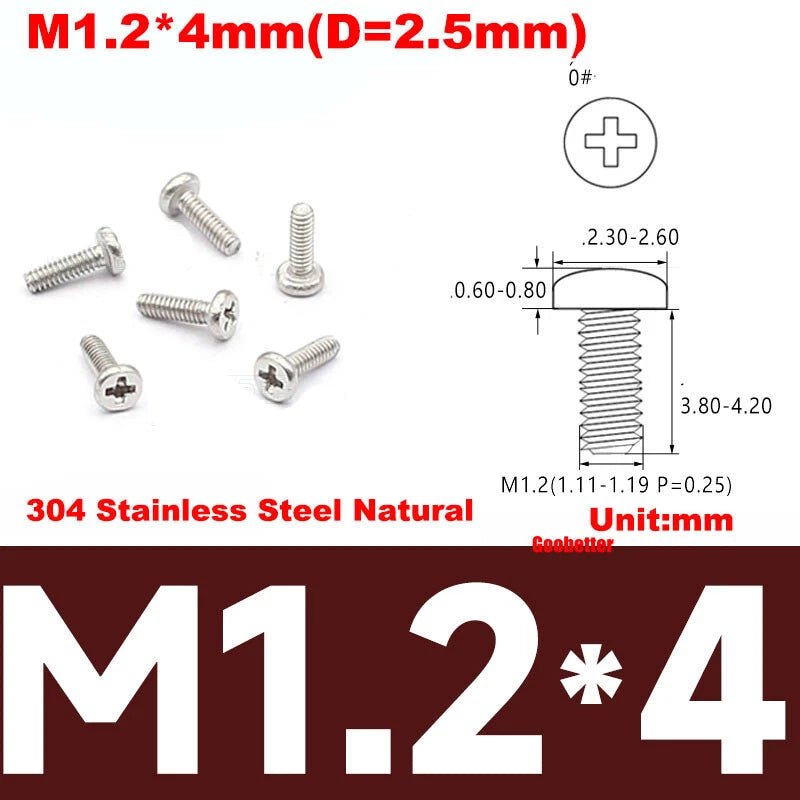

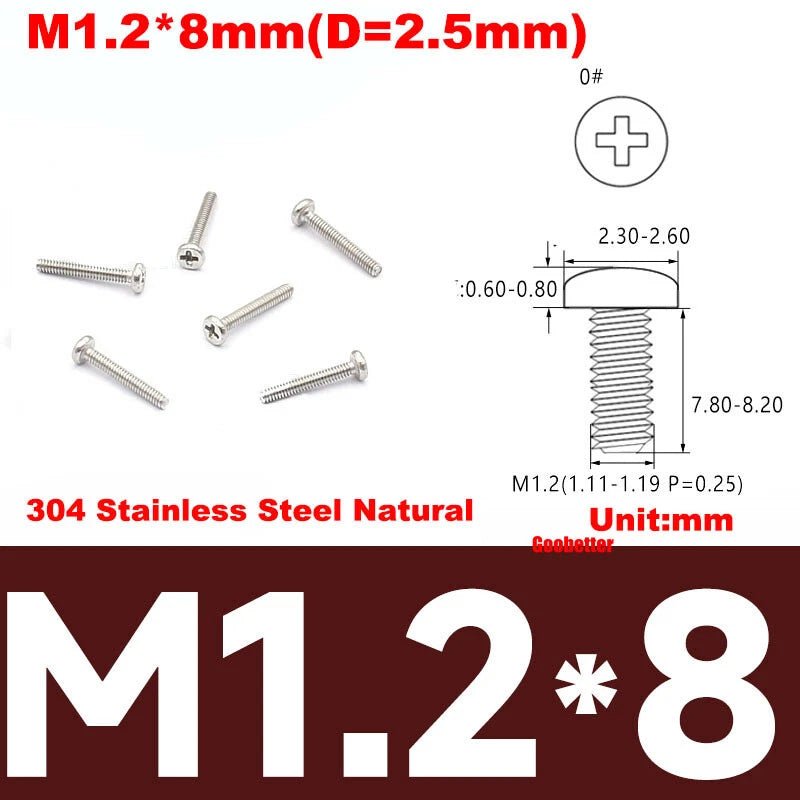

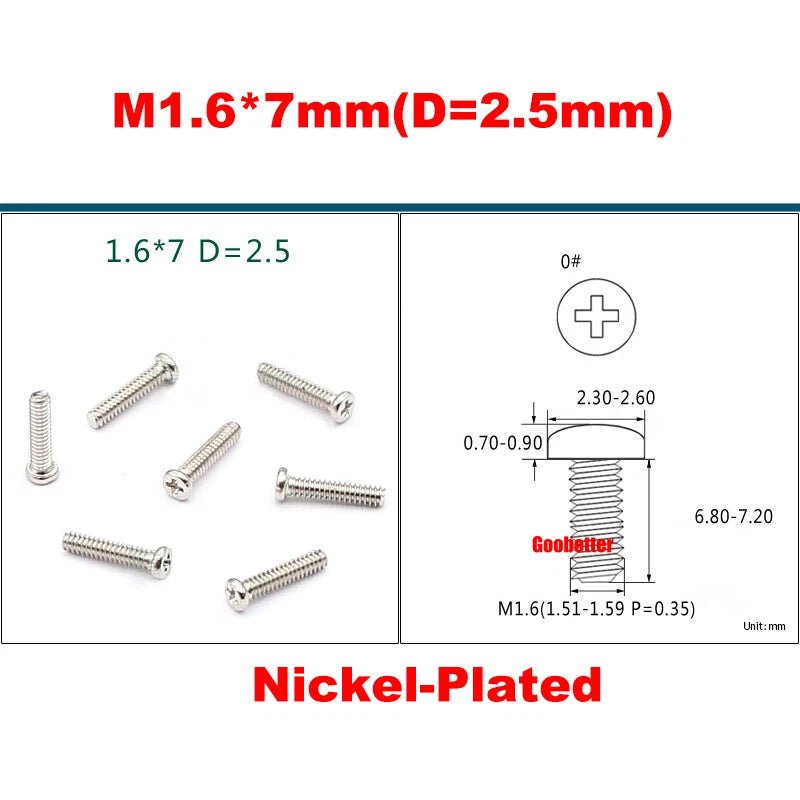

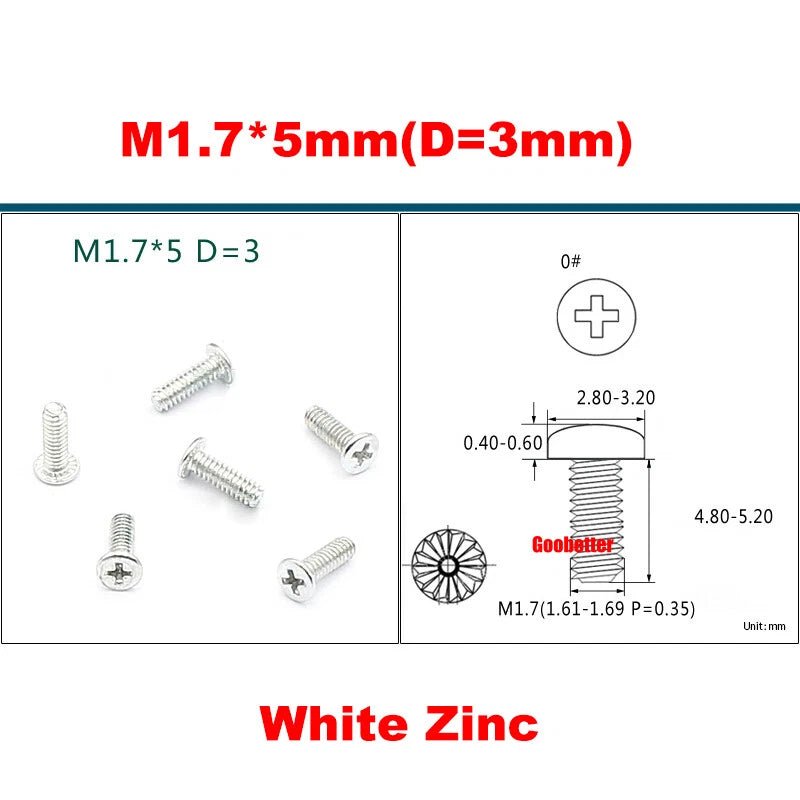

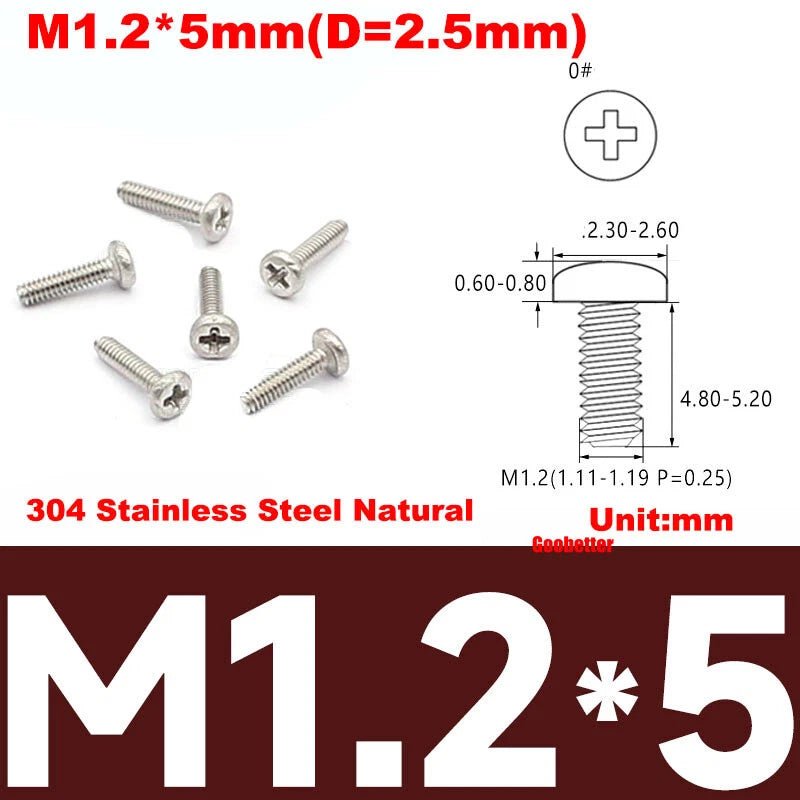

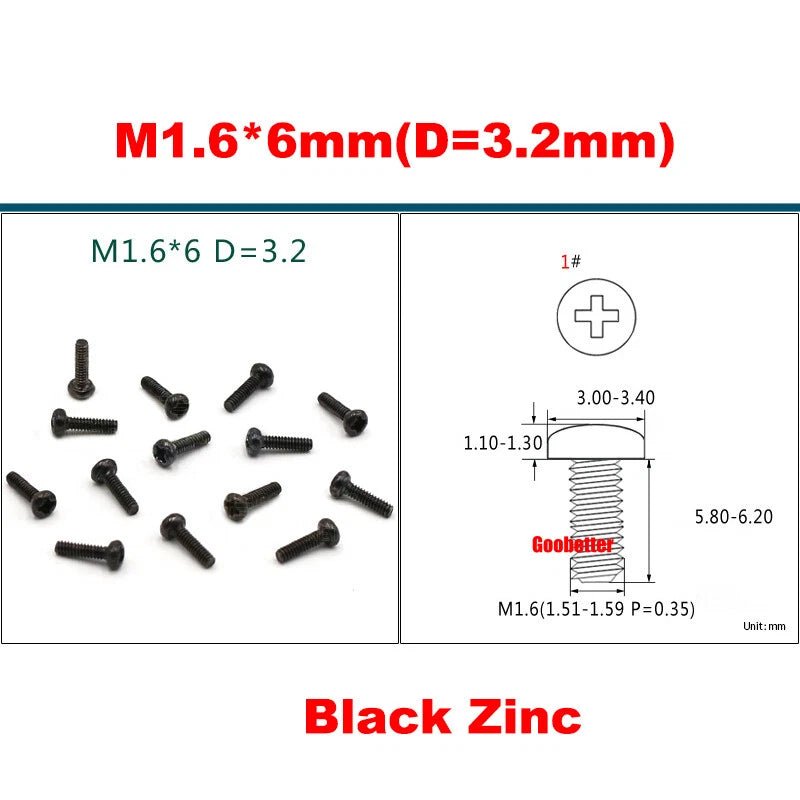

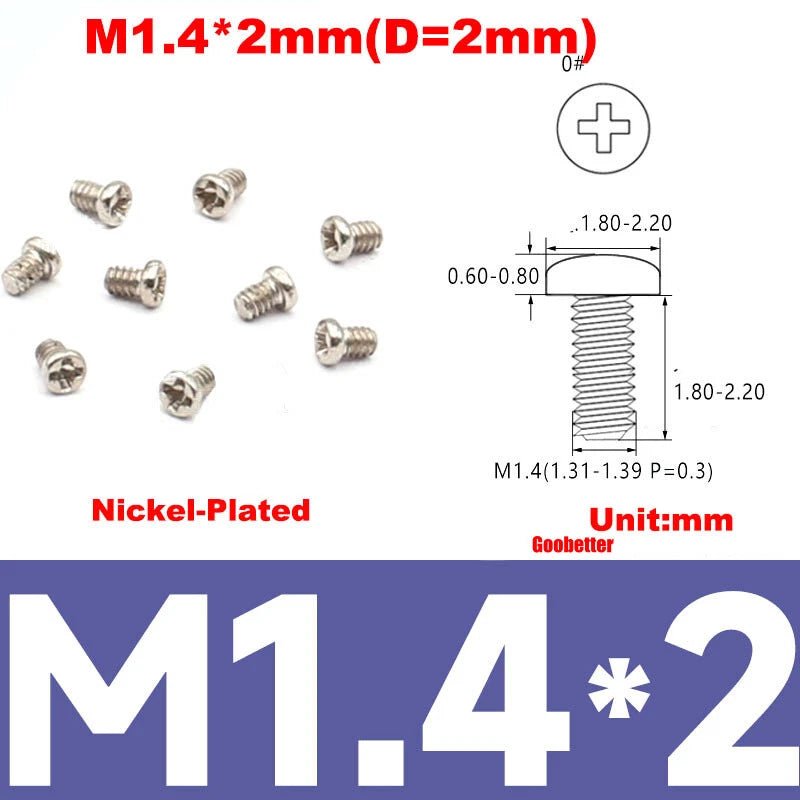

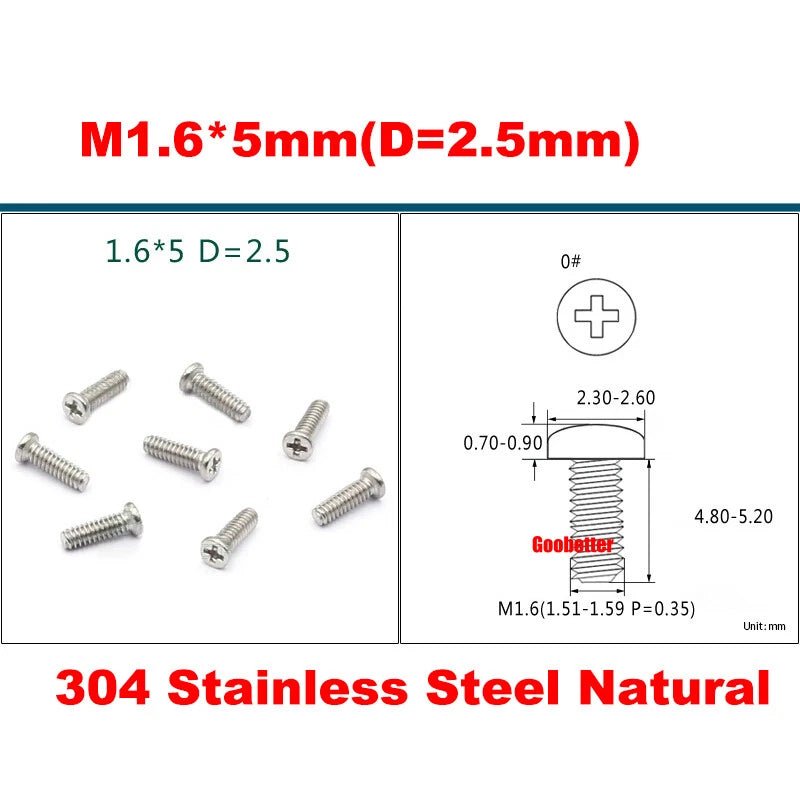

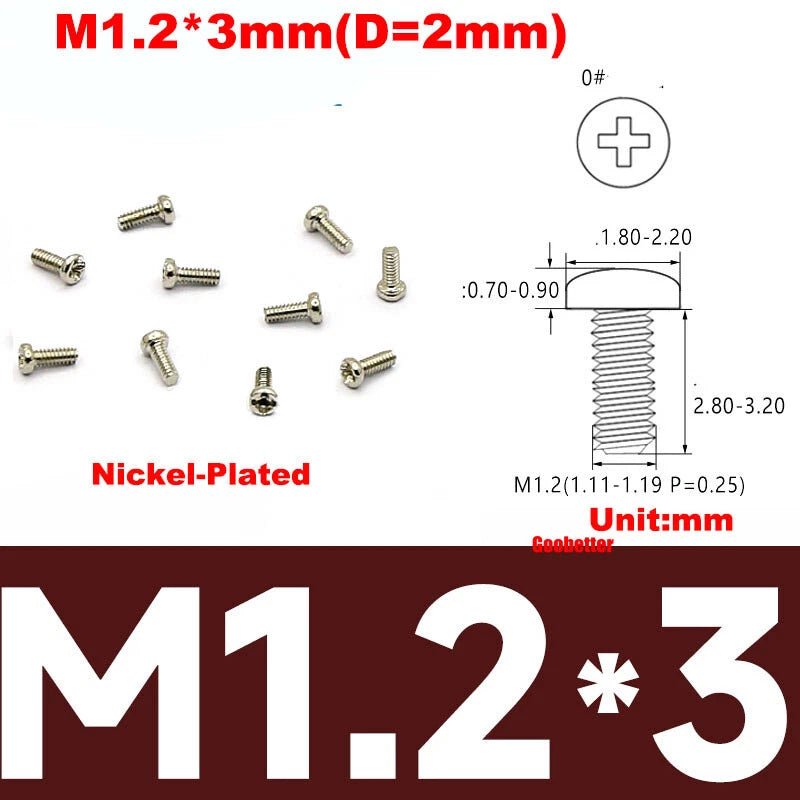

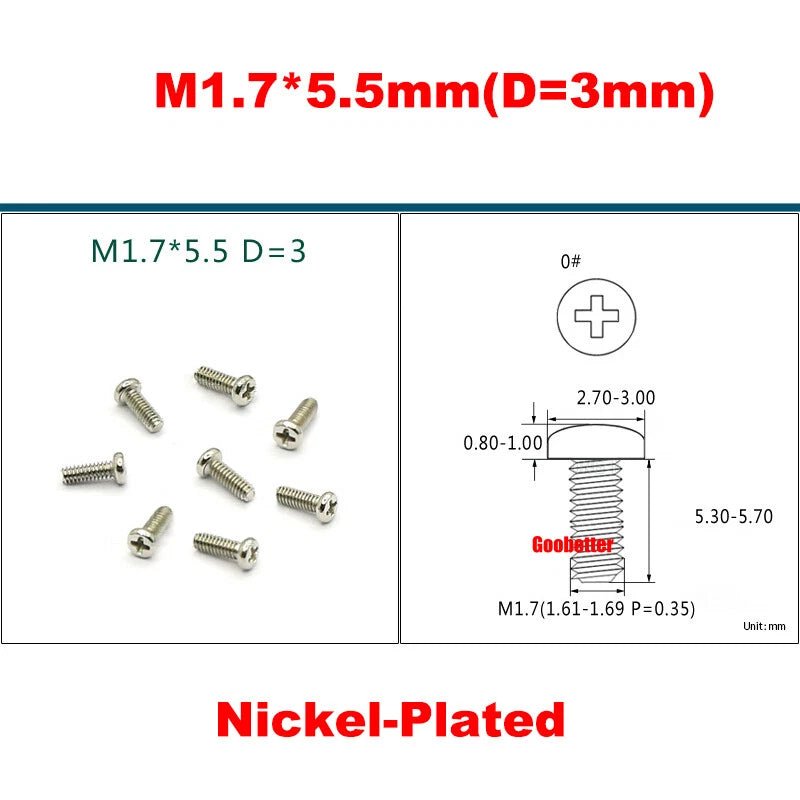

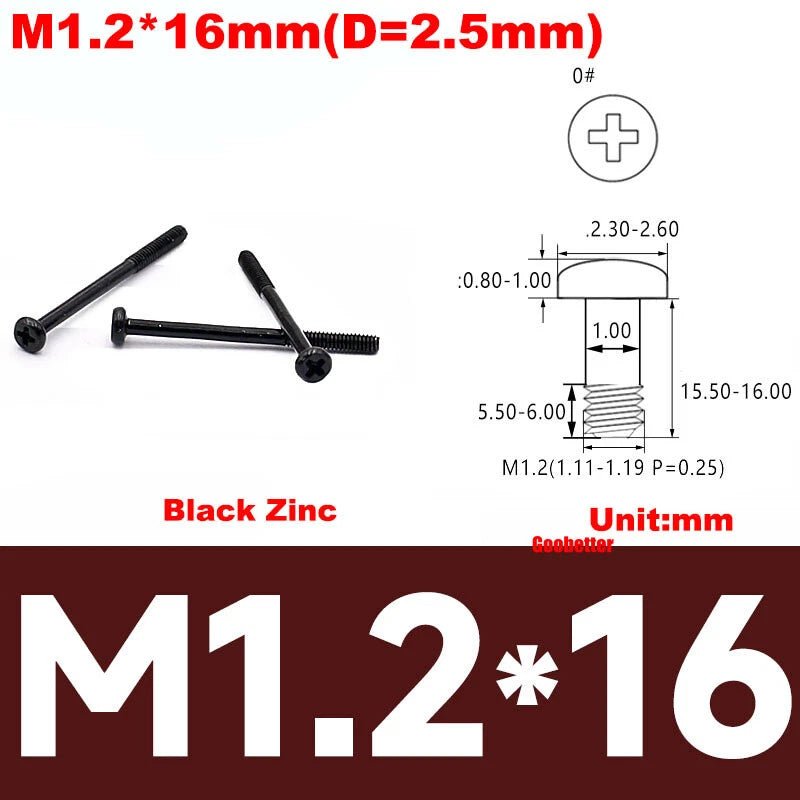

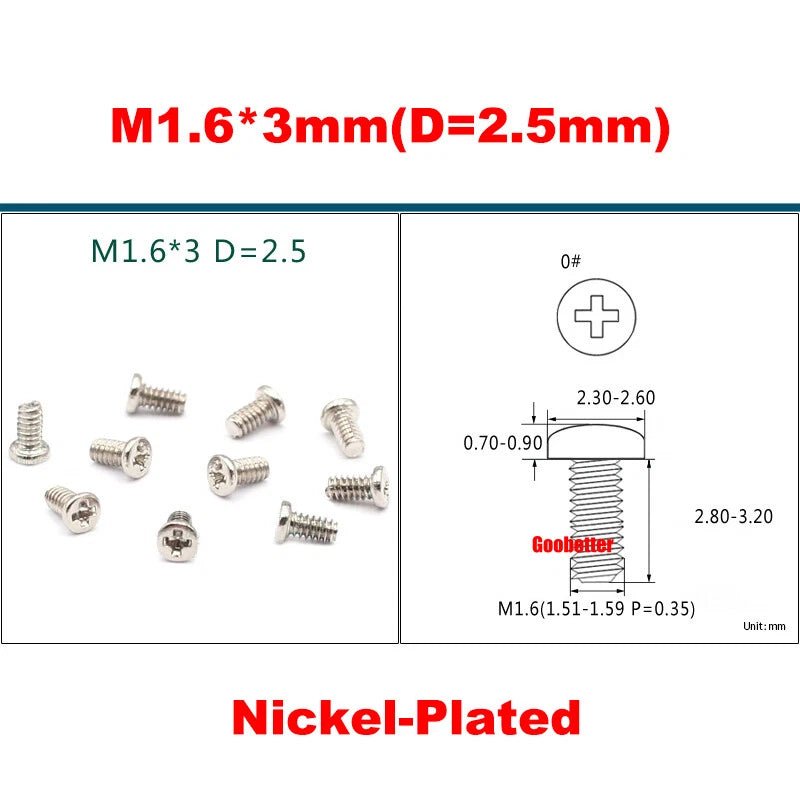

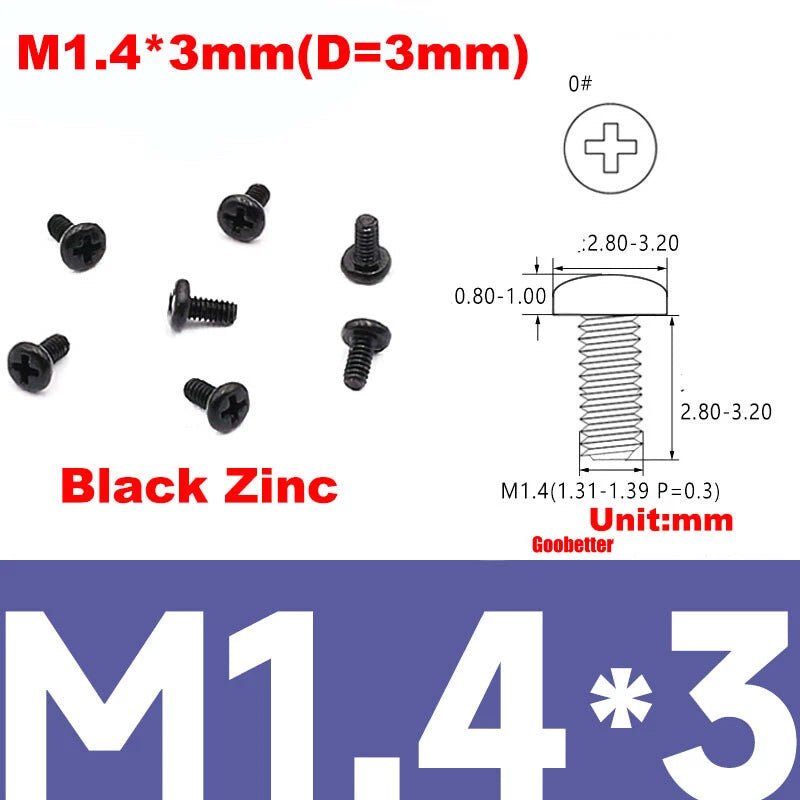

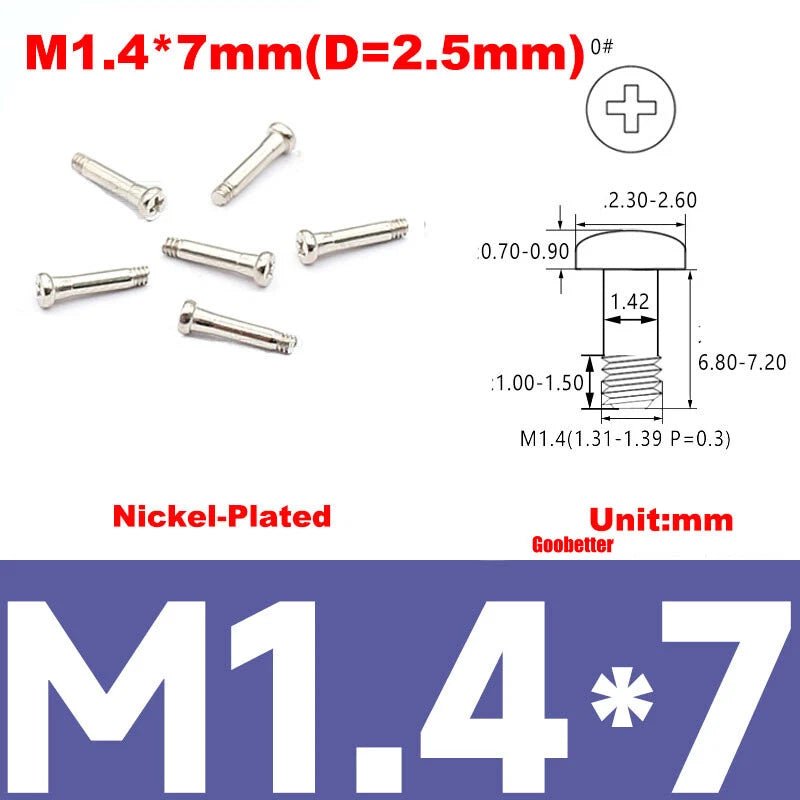

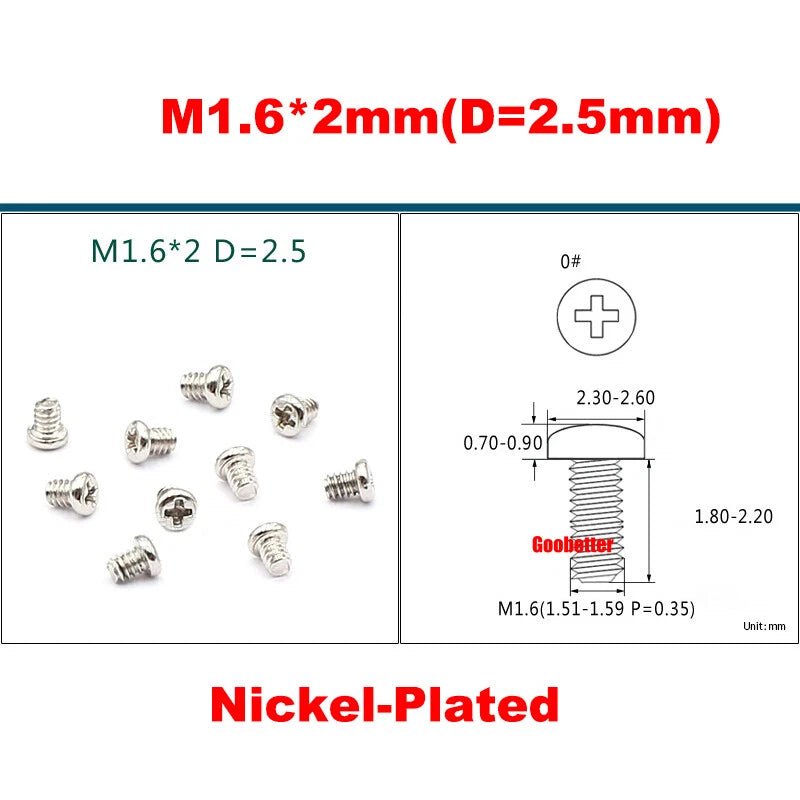

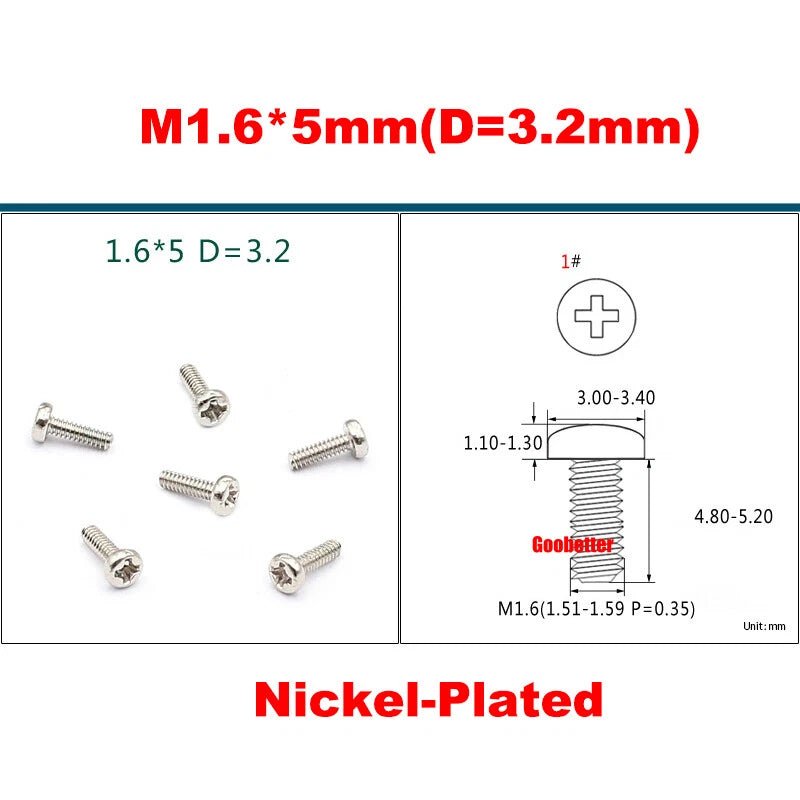

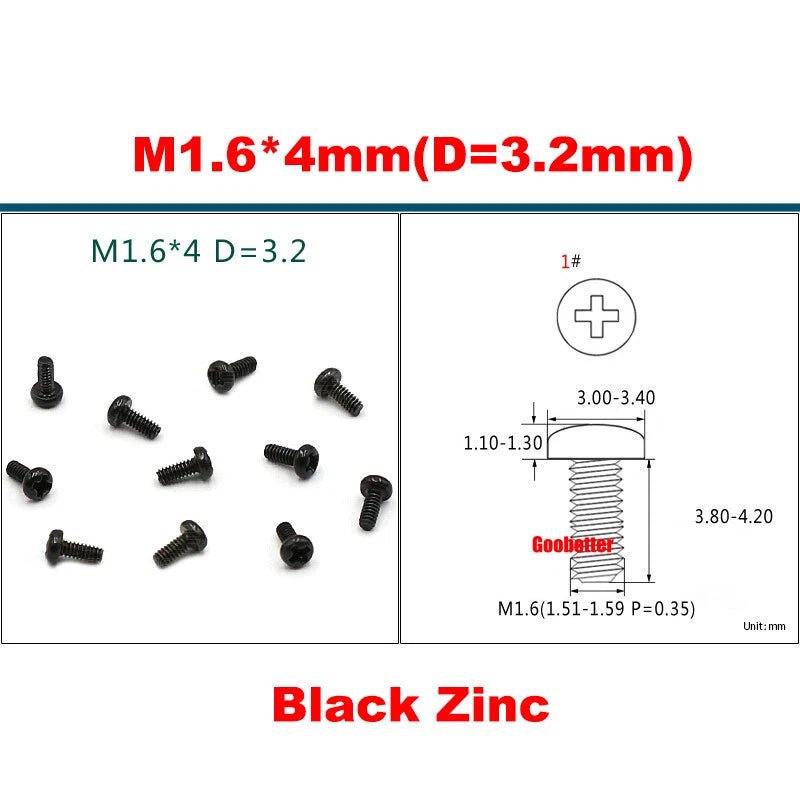

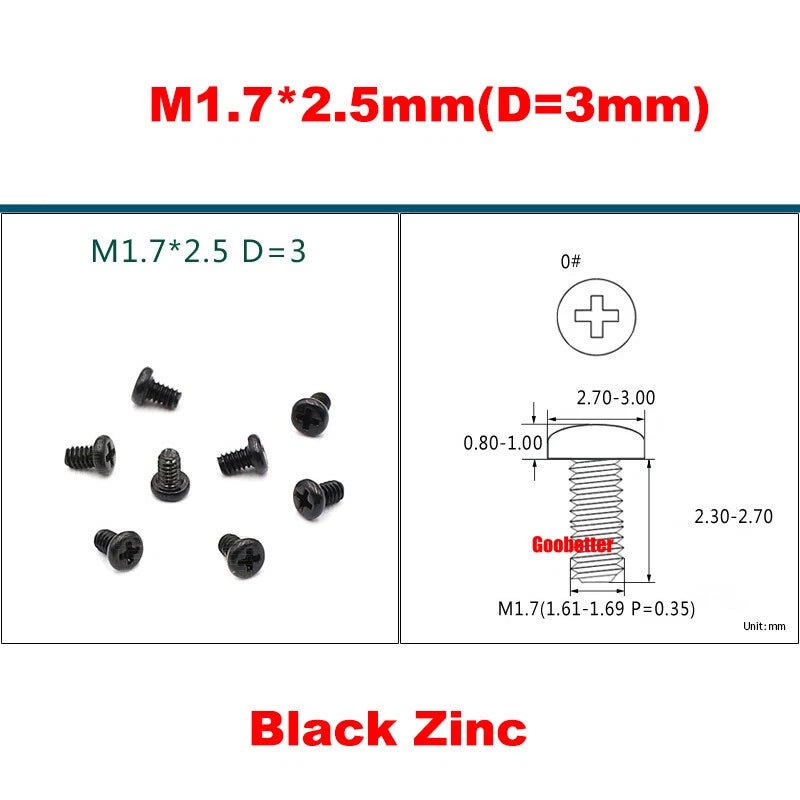

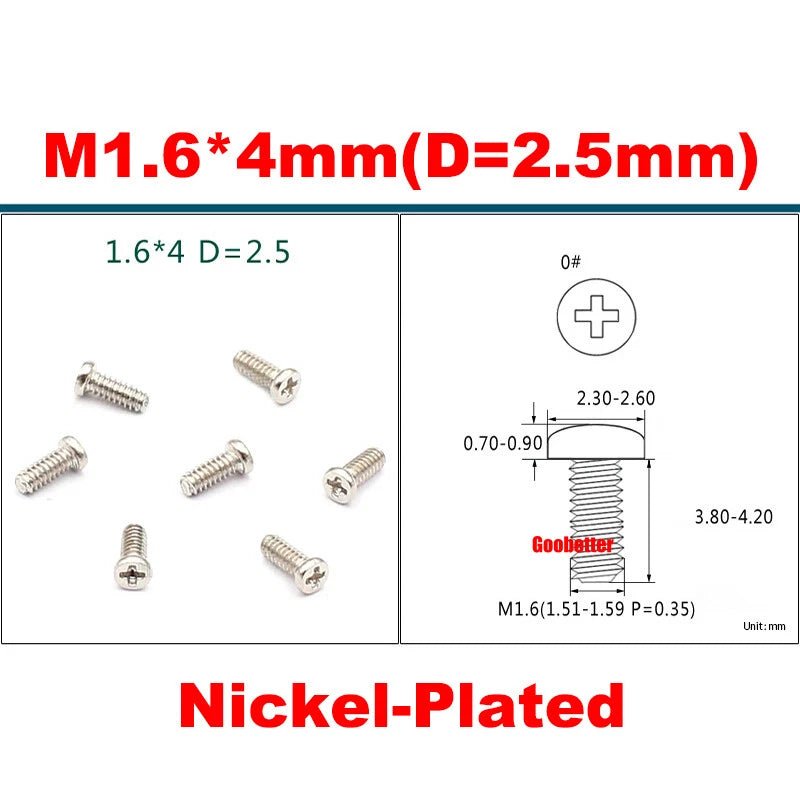

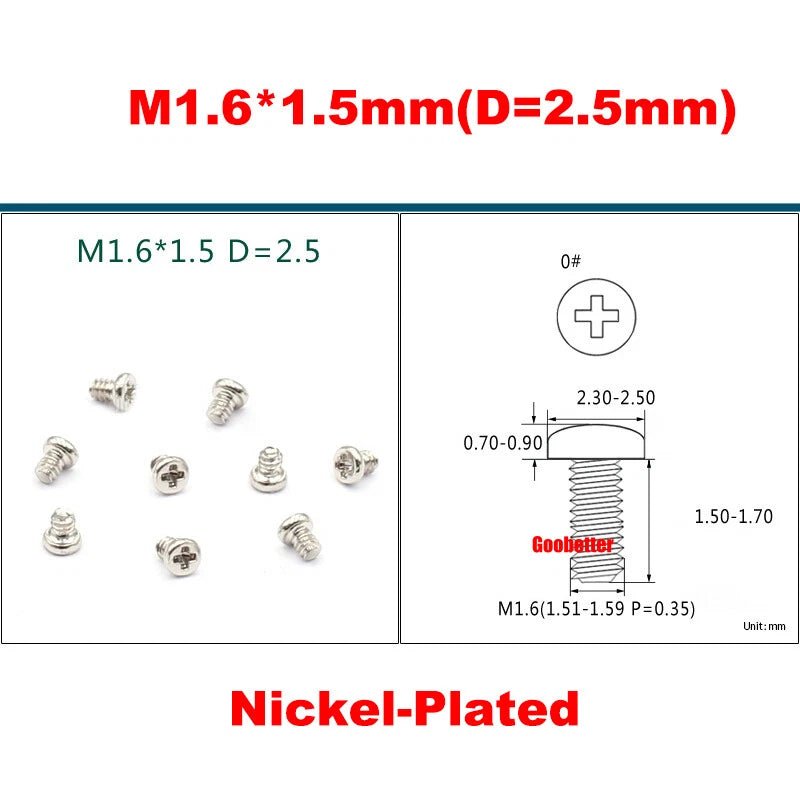

⚠️ Size Tip: The size format is M[diameter]*[length]mm (D=[head diameter]mm). For example, M1.6*4mm (D=2.5mm) means a 1.6mm thread diameter, 4mm long screw with a 2.5mm head diameter. If you are unsure which size fits your application, contact us to confirm before ordering.

❓ Frequently Asked Questions

How do I choose the right screw length for my project?

A general rule is to select a length that allows the screw to penetrate the base material by at least 2–3 times the screw diameter. For example, an M1.6 screw (≈0.063" diameter) typically needs at least 3–5mm (≈1/8"–3/16") of thread engagement in the base material. Always account for the thickness of the top piece being fastened. When in doubt, choose the next size up.

What is the load-bearing capacity of these small machine screws?

Load capacity depends on the screw diameter, material, and thread engagement. These micro screws (M0.8–M1.7) are generally suited for light-duty fastening in electronics, optics, and precision assemblies. 304 stainless steel variants typically offer higher tensile strength than zinc-plated versions. For critical structural applications, consult an engineer and verify torque specifications.

Are these screws suitable for outdoor or corrosive environments?

The 304 Stainless Steel Natural variants offer good corrosion resistance and are generally suitable for outdoor or humid environments. Zinc-plated options (Black Zinc, Blue White Zinc, White Zinc, Colour Zinc) provide moderate corrosion protection for indoor or mildly exposed applications. Nickel-plated and chrome-plated variants are primarily for appearance and light corrosion resistance. For harsh marine or chemical environments, contact us to confirm suitability.

What thread standard do these screws use, and are they compatible with my nuts?

These screws follow the ISO metric thread standard (M-series). The M designation (e.g., M1.6) refers to the nominal outer diameter in millimeters. They are compatible with standard metric nuts and threaded inserts of the corresponding size. They are not compatible with UNC/UNF inch-standard threads.

What driver bit size do I need for these Phillips pan head screws?

For M0.8–M1.2 screws, a PH000 or PH00 driver bit is typically required. For M1.4–M1.7 screws, a PH00 or PH0 bit is generally appropriate. Using the correct bit size is critical to avoid cam-out and head damage on these small fasteners. A precision screwdriver set with multiple bit sizes is recommended.

What is the difference between the coating options?

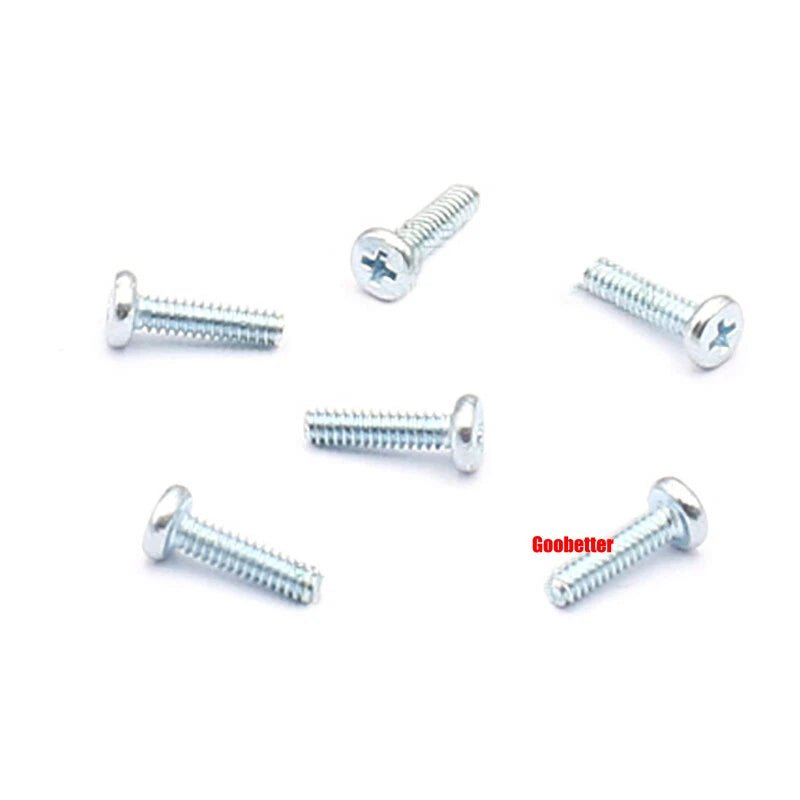

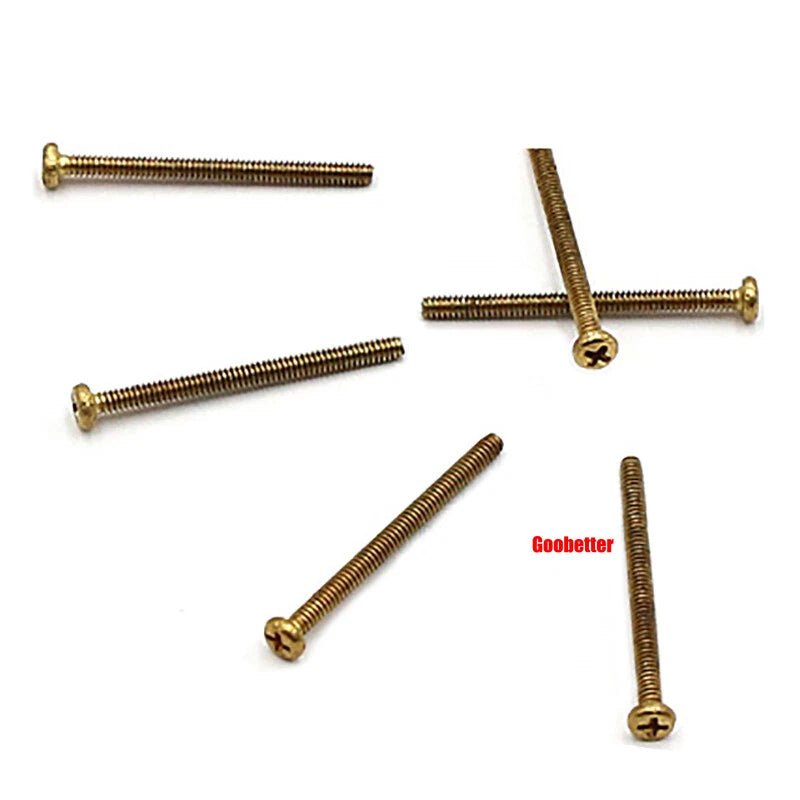

304 Stainless Steel Natural: no coating, inherent corrosion resistance. Black Zinc: dark matte finish, moderate corrosion protection, popular for electronics. Nickel-Plated: bright silver finish, good for appearance-sensitive applications. Chrome Plating: mirror finish, decorative use. Brass Natural: warm gold tone, non-magnetic. Blue White Zinc / White Zinc / Colour Zinc: various zinc plating finishes for light corrosion protection. Anti Loosening Rubber variants include a nylon patch for vibration resistance.

Can I use these screws in electronics or PCB assemblies?

Yes. These micro machine screws (M0.8–M1.7) are commonly used in electronics, PCB standoffs, camera modules, laptop chassis, and precision instruments. The small head diameter (D=1.5mm–3.2mm depending on variant) makes them well-suited for tight spaces. For non-magnetic requirements, choose the 304 Stainless Steel or Brass Natural options.

🛒 Select your size, coating, and quantity above, then add to cart — ships from our US warehouse.
