Plastic Hose Tee Reducer Connector — T-Piece Vacuum Pipe Joiner for Air & Water

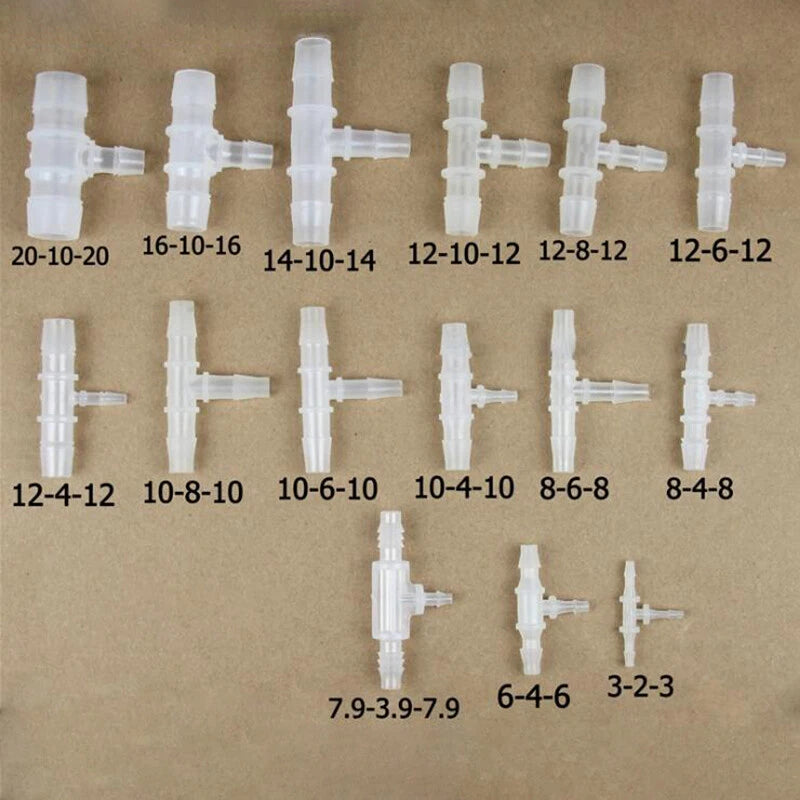

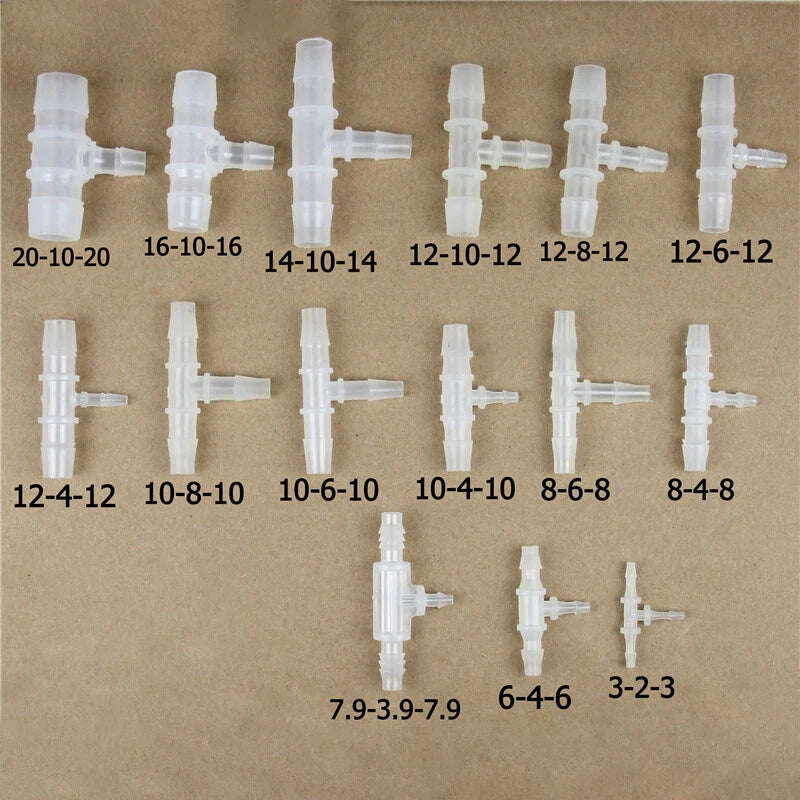

The size format is Main Port OD – Branch Port OD – Main Port OD (e.g., 10 - 6 - 10mm). Measure the outer diameter (OD) of each hose barb you need to fit. The two equal outer values match your main line hose ID, and the center value matches your branch hose ID. For example, a 10 - 6 - 10mm connector joins two 10mm (≈3/8") main hoses to one 6mm (≈1/4") branch. When in doubt, size up slightly — a snug barb fit is better than a loose one.

These connectors are made from rigid engineering-grade plastic — typically polypropylene (PP) or a similar polymer. This material is lightweight, corrosion-free, and resistant to water, coolant, and many common automotive and household fluids. It is not recommended for strong solvents or high-temperature steam applications.

Plastic hose barb tee connectors are generally rated for low-to-medium pressure — typically up to 30–60 PSI depending on hose wall thickness, fluid temperature, and whether hose clamps are used. They are well-suited for vacuum lines, coolant circuits, aquarium pumps, and low-pressure air routing. For high-pressure hydraulic or steam applications, a metal fitting is recommended.

Yes, in most cases. The plastic body resists moisture and will not rust or corrode. However, prolonged direct UV exposure may cause gradual surface degradation over time. For permanent outdoor installations, consider shielding the fitting from direct sunlight or securing with UV-resistant hose clamps to maintain a reliable seal.

These are hose barb fittings designed to push-fit inside flexible hoses. They are compatible with standard flexible tubing (silicone, rubber, PVC) whose inner diameter (ID) matches the barb OD listed in the variant name. For example, a 10mm barb fits a hose with approximately 10mm ID. Always verify your hose ID before ordering — hose OD and ID can vary by wall thickness.

For low-pressure or vacuum applications, the barbed profile generally provides a secure push-fit connection without clamps. For higher-pressure, vibration-prone, or safety-critical environments, using hose clamps is generally recommended to prevent the hose from backing off the barb under sustained pressure or thermal cycling.

A straight hose joiner connects two hoses end-to-end in a single line. A T-piece (tee) connector has three ports — it splits or merges flow, allowing you to branch off a secondary line from a main run. The reducer variant allows the branch port to be a different (smaller) diameter than the two main ports, making it ideal for tapping into a larger line with a smaller sensor or secondary hose.
