Pneumatic 5-Way Manifold Push-In Fitting — Reliable Inline Air Distribution for Compact Pneumatic Systems

When you're routing compressed air through tight control panels, automation enclosures, or DIY pneumatic rigs, a leaky or mismatched fitting can bring the whole system down. This 5-way male stud to hose tube push-in connector is designed for engineers, technicians, and hands-on builders who need a dependable inline manifold fitting that installs in seconds and holds pressure without fuss.

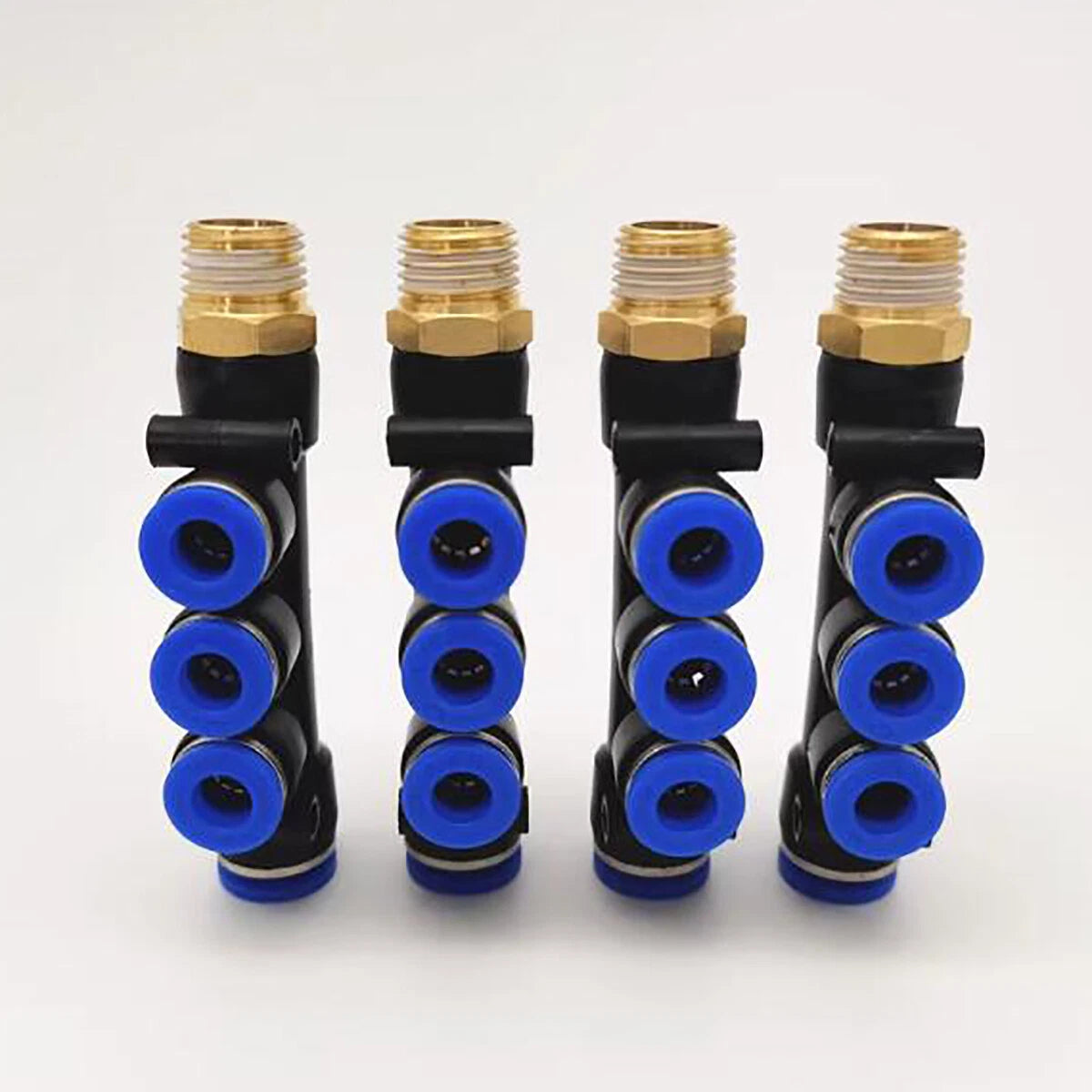

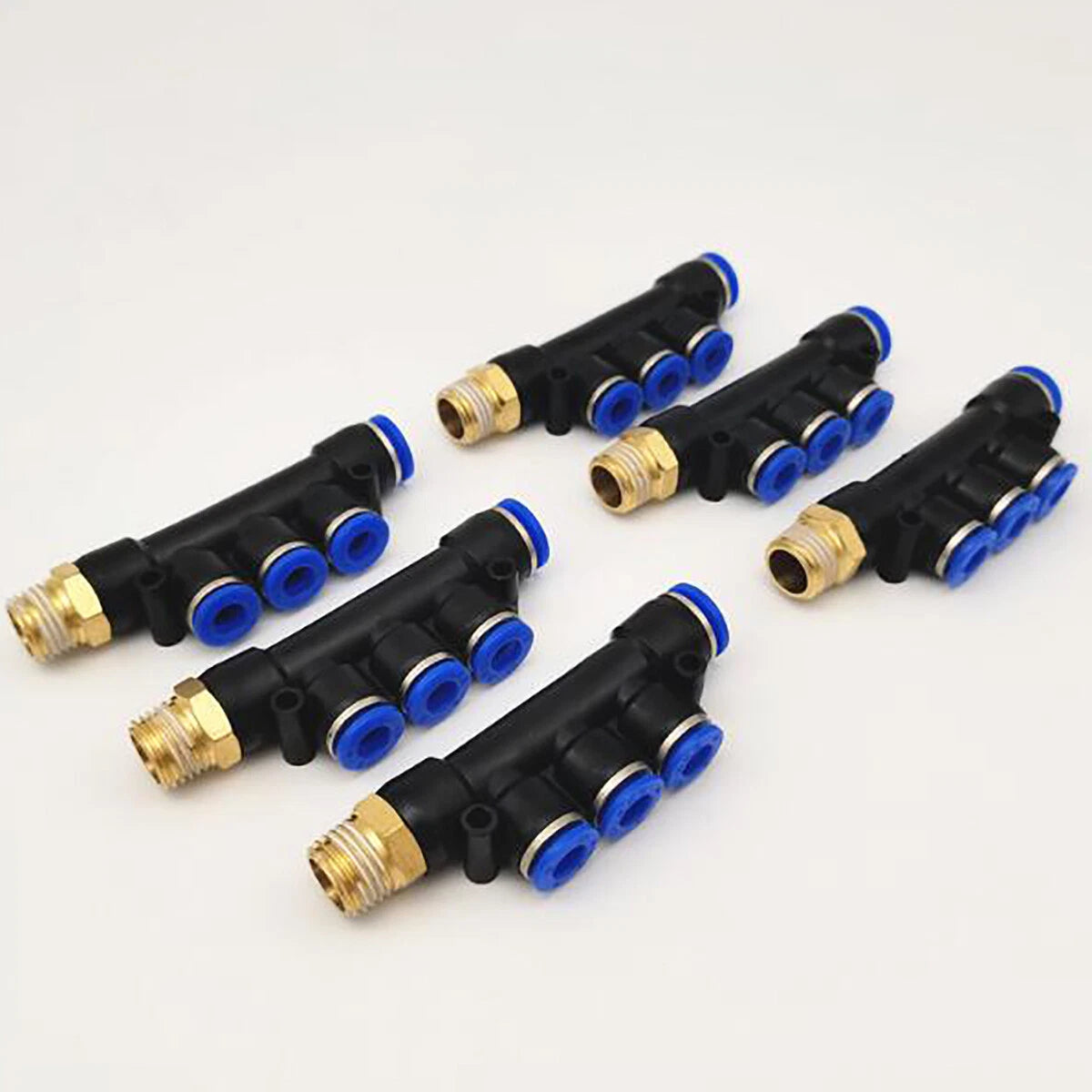

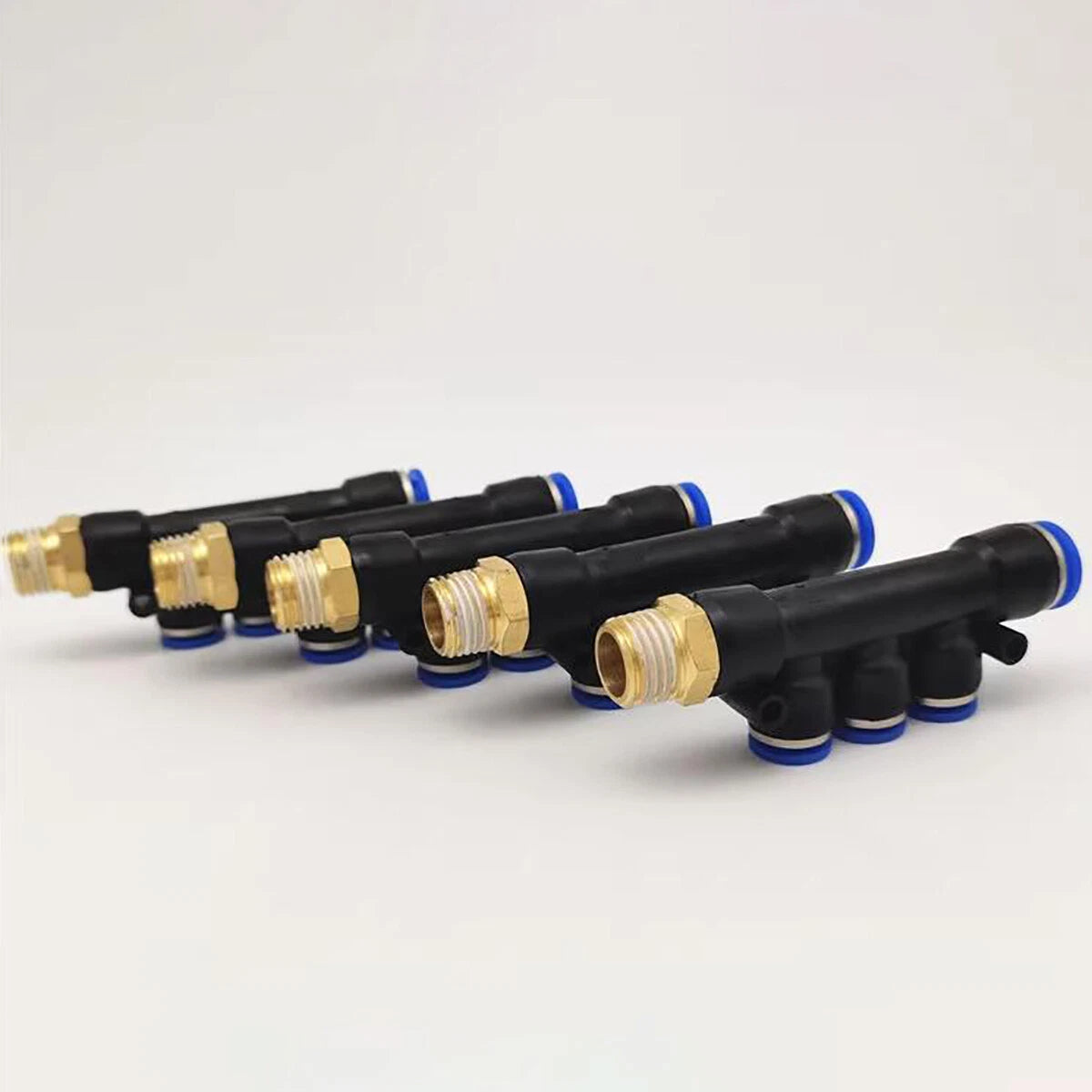

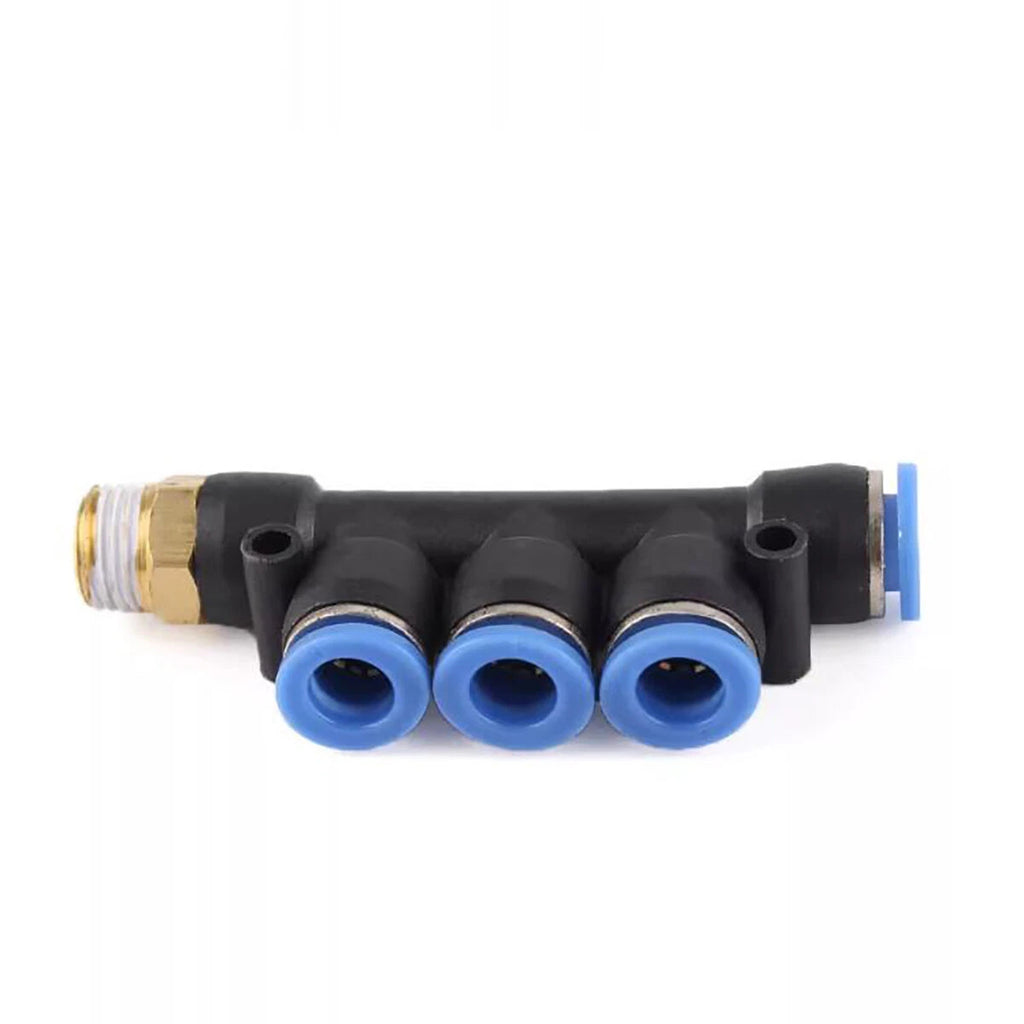

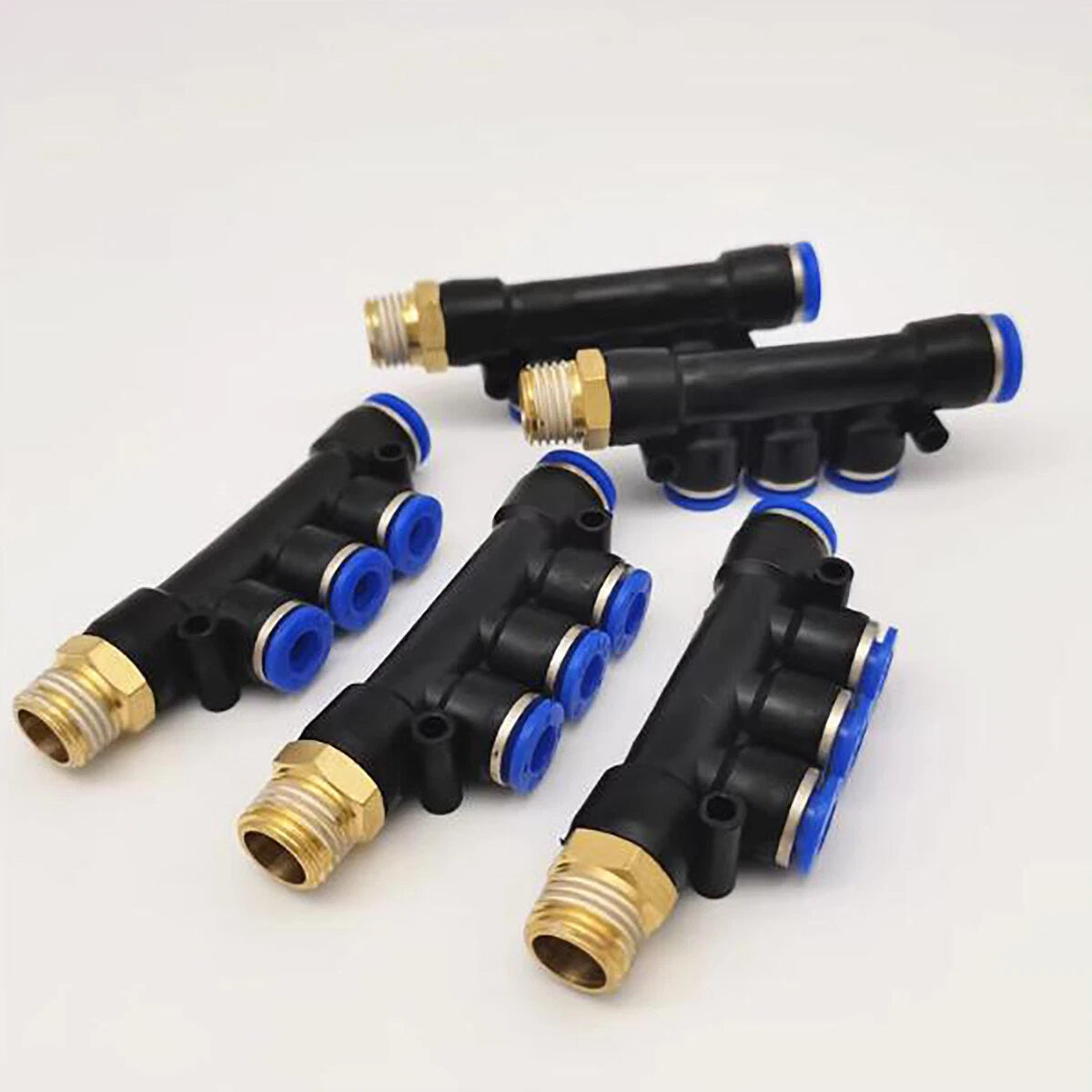

Each piece is a single-body 5-way manifold push-in adaptor with a male stud thread on one end (PT1/8, PT1/4, or PT3/8) and push-in tube ports sized to match your air hose OD. Available tube OD sizes range from 4mm (≈5/32") to 10mm (≈3/8"), with male thread diameters of 9.7mm (PT1/8), 12.7mm (PT1/4), or 16mm (PT3/8). Sold individually or in packs of 2, 5, or 10 pieces.

Typical use cases include pneumatic valve manifold assemblies, inline air splitter setups for multi-actuator systems, and compact push-in fitting installations in CNC machines, air-powered jigs, and workshop automation projects where space is limited and leak-free connections are non-negotiable.

ℹ️ Compatibility Note: These fittings use PT (BSPT) tapered threads — not NPT. Verify your equipment's port thread standard before ordering. Tube OD and thread size must both match your system. See variant options for available combinations.

✅ Key Features of These Pneumatic 5-Way Manifold Push-In Fittings

  • 🔧5-Way Inline Manifold Design — Distributes or collects airflow across multiple push-in tube ports from a single male stud connection, ideal for compact multi-actuator pneumatic circuits.
  • ⚡Tool-Free Push-In Installation — Tube inserts and locks with a single push; no clamps, crimps, or wrenches needed on the tube side, cutting assembly time significantly on inline air hose connector runs.
  • 📐Wide Size Range — Available in tube OD 4mm, 6mm, 8mm, and 10mm paired with PT1/8, PT1/4, or PT3/8 male threads, covering the most common pneumatic manifold fitting combinations used in industrial and DIY systems.
  • 🛡️Durable Construction — Body material is suited for continuous compressed air service; the push-in collet mechanism maintains a secure grip on semi-rigid PU, PA, and PE tubing under working pressure.
  • 🔄Releasable Tube Connection — Depress the collet ring to release the tube without cutting — useful for reconfiguring pneumatic layouts or replacing hose runs during maintenance.
  • 📦Flexible Pack Quantities — Order 1, 2, 5, or 10 pieces per variant to match your project scale, whether you're prototyping a single circuit or stocking a workshop with male stud to hose tube adaptors.

📐 Technical Specifications — Pneumatic 5-Way Push-In Manifold Fitting

Fitting Type 5-Way Inline Manifold Push-In Adaptor
Connection Style Male Stud Thread × Push-In Tube Ports
Thread Standard PT (BSPT — British Standard Pipe Taper)

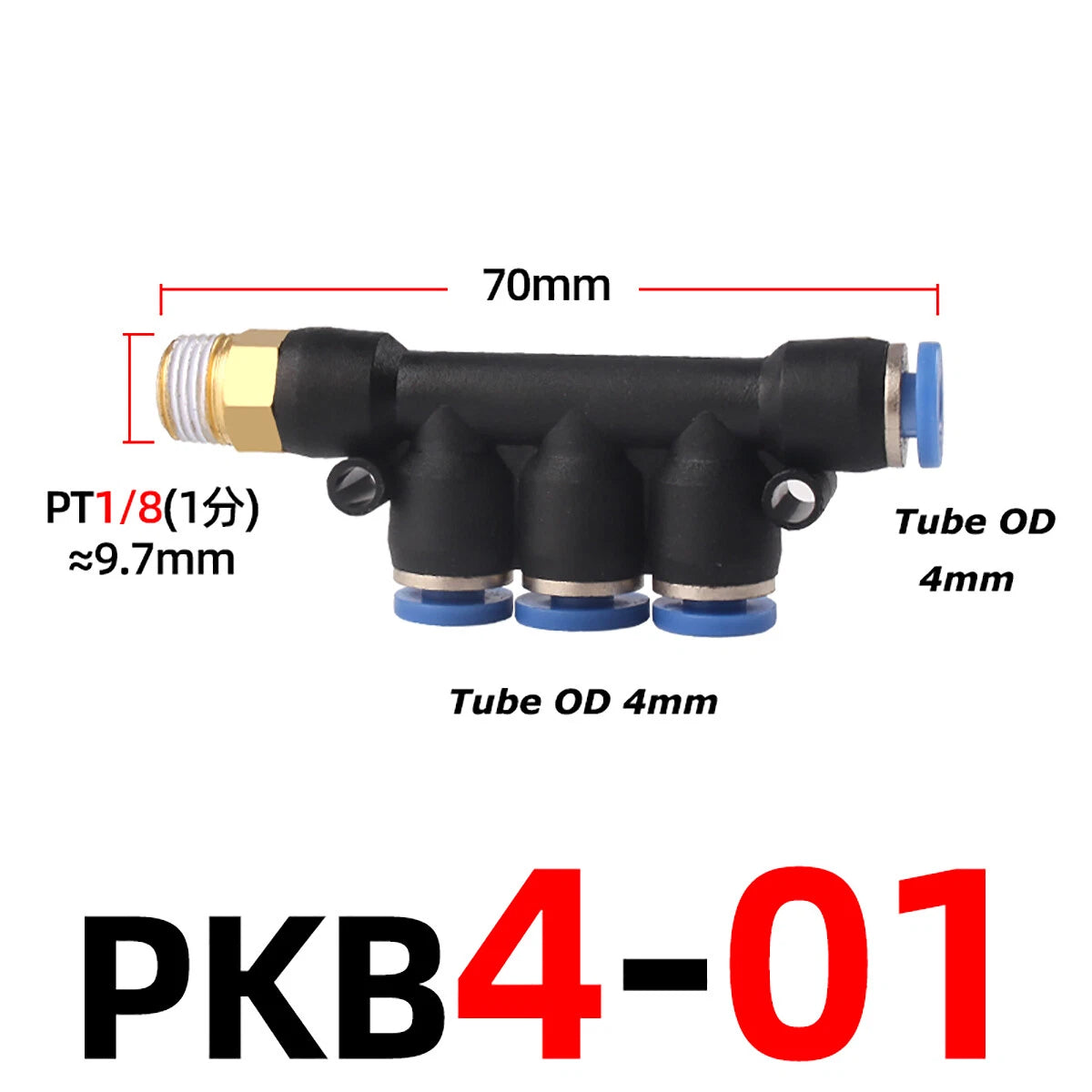

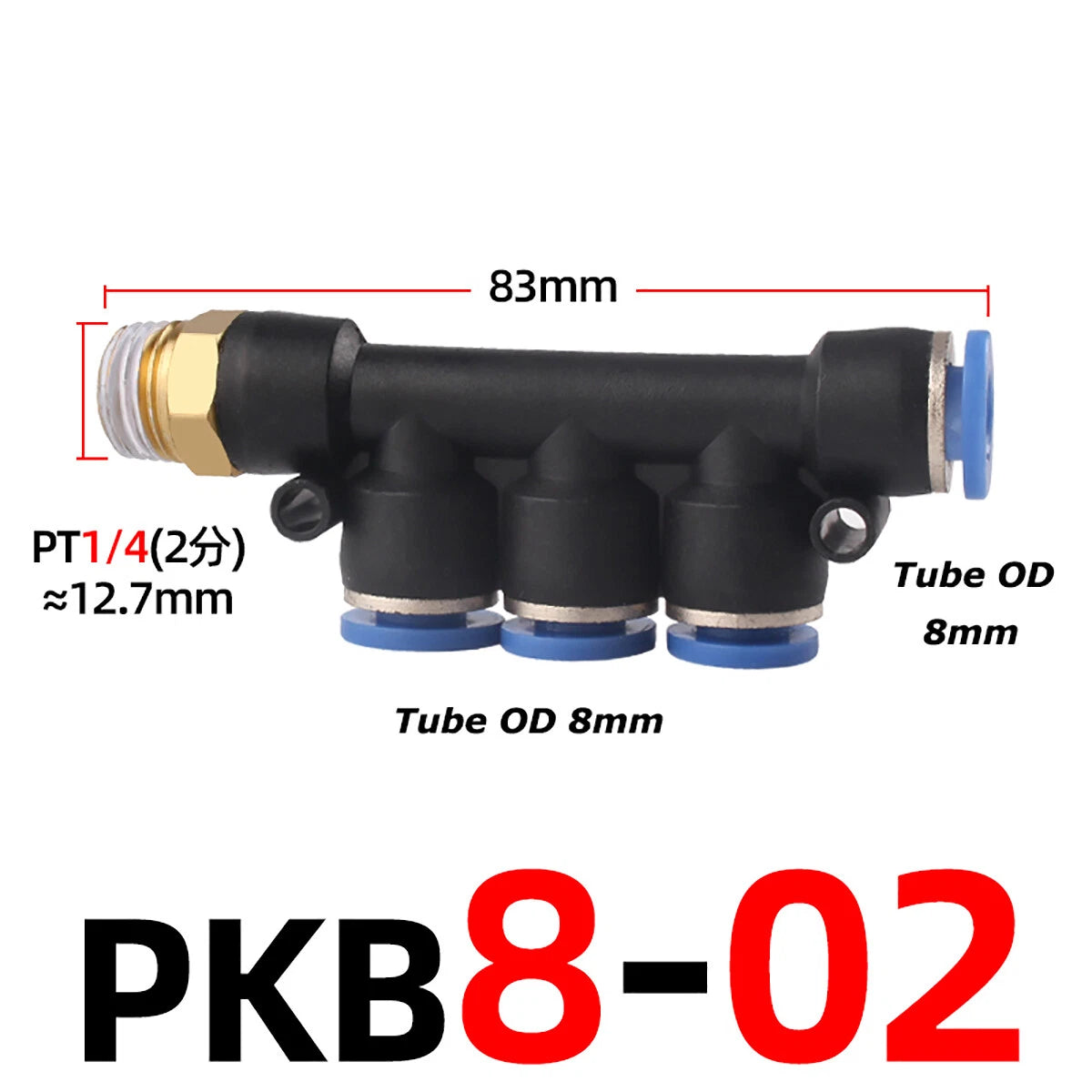

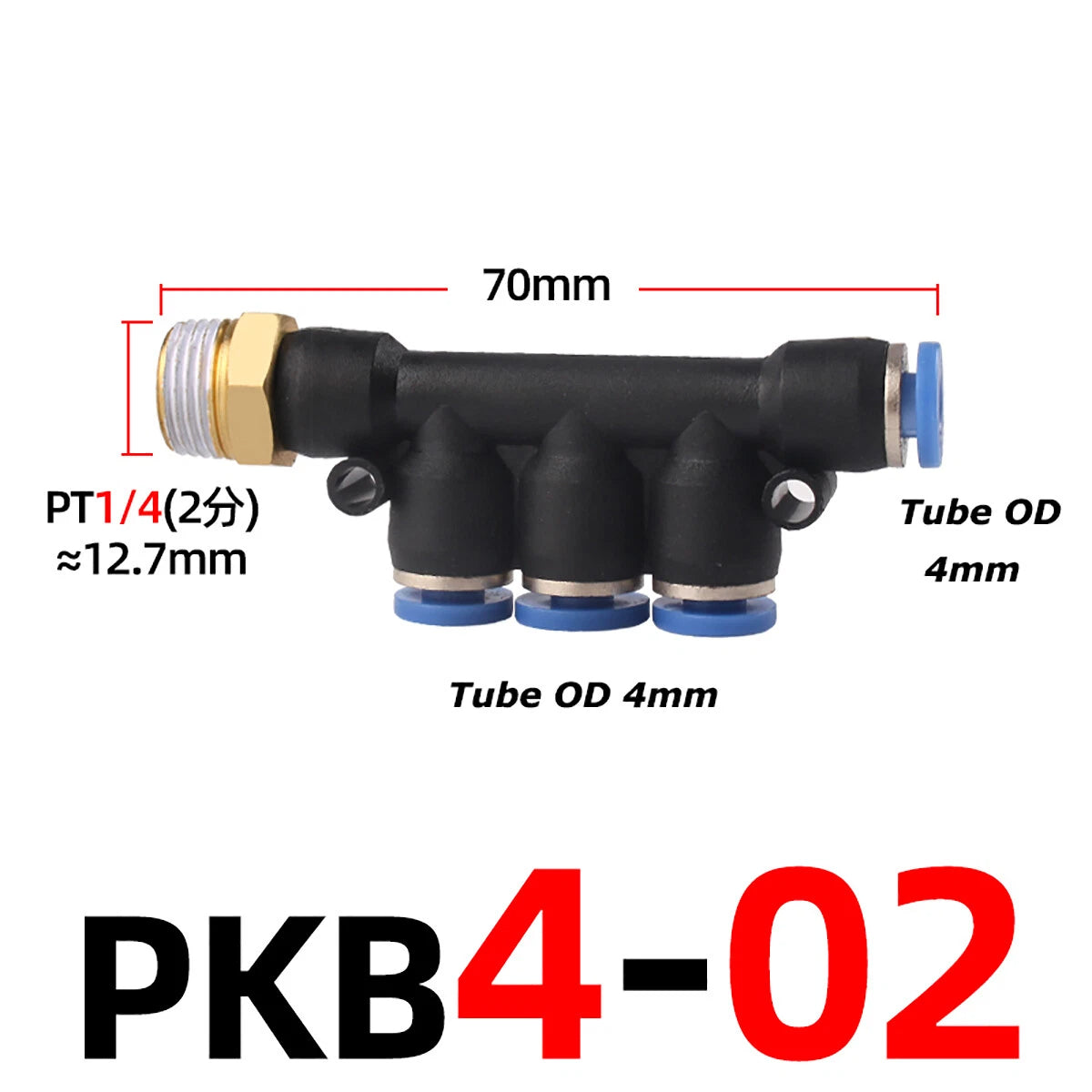

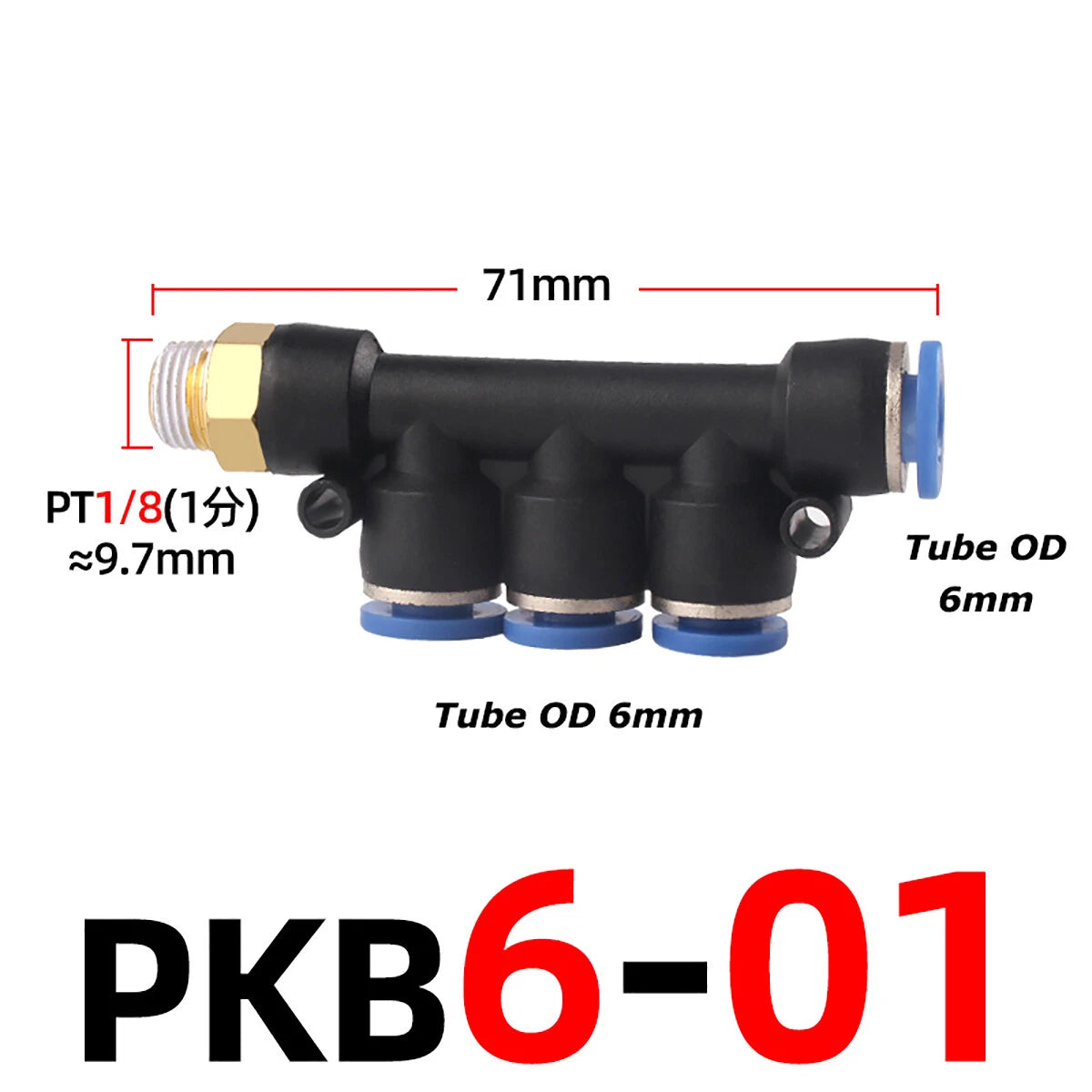

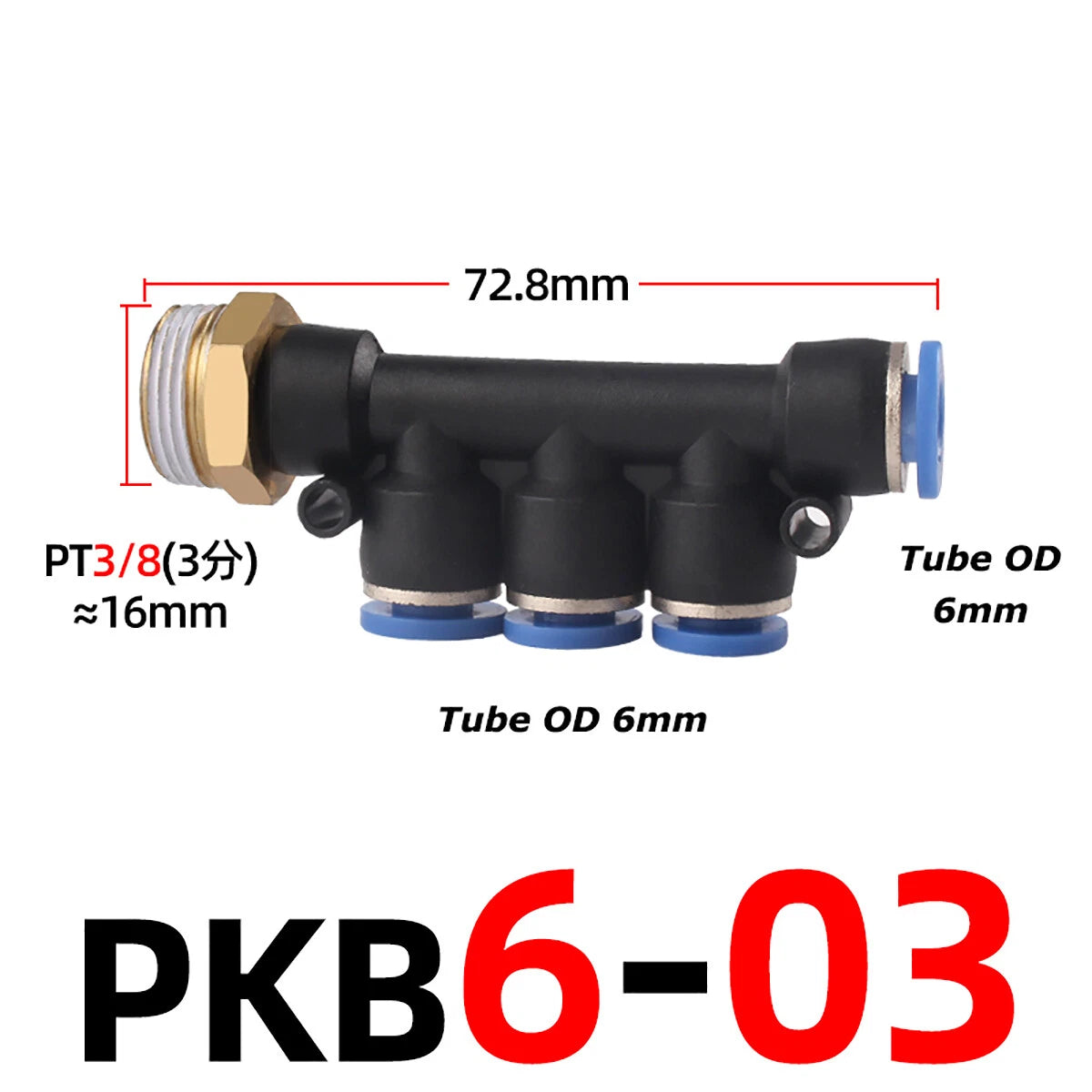

Available Male Thread Sizes PT1/8 (9.7mm), PT1/4 (12.7mm), PT3/8 (16mm)

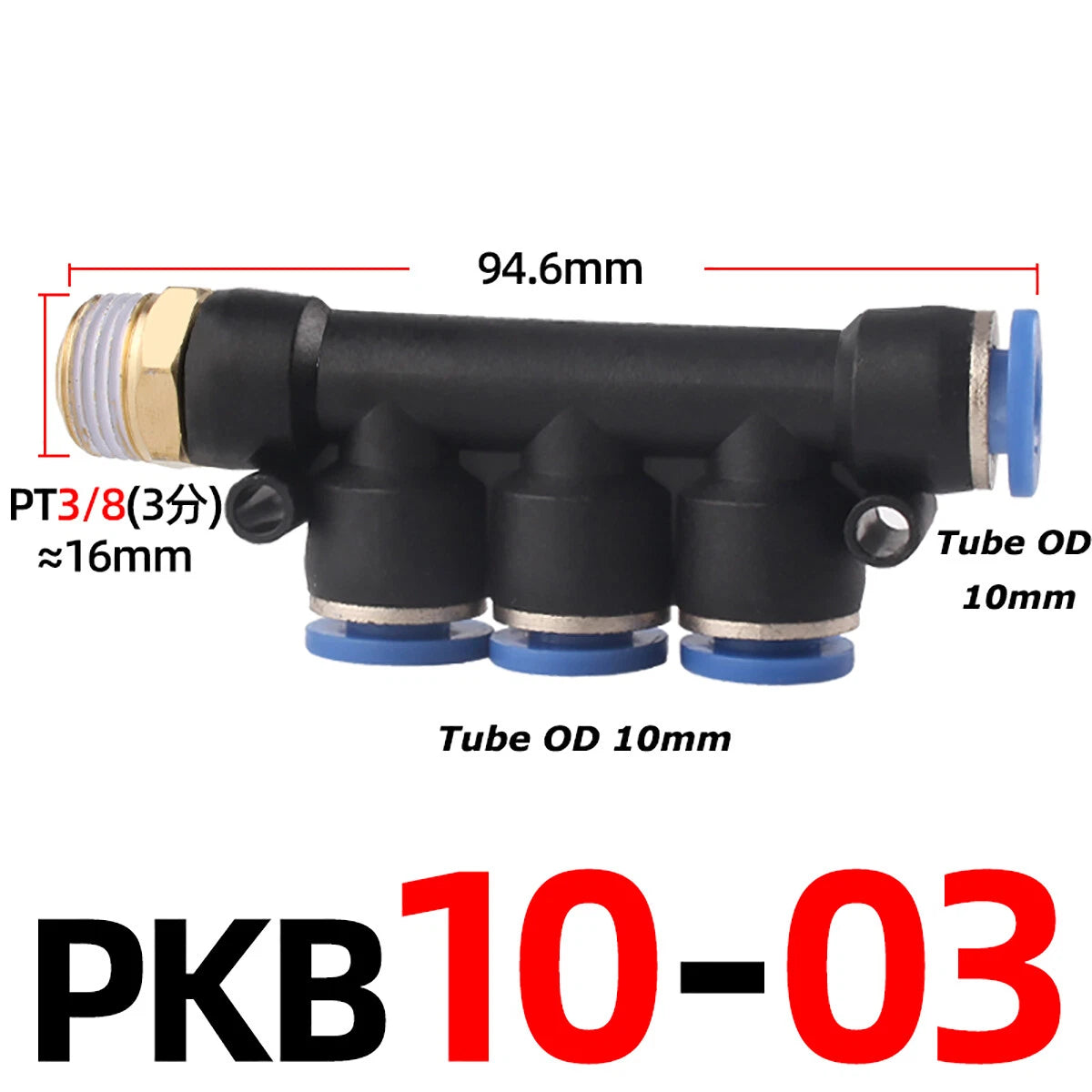

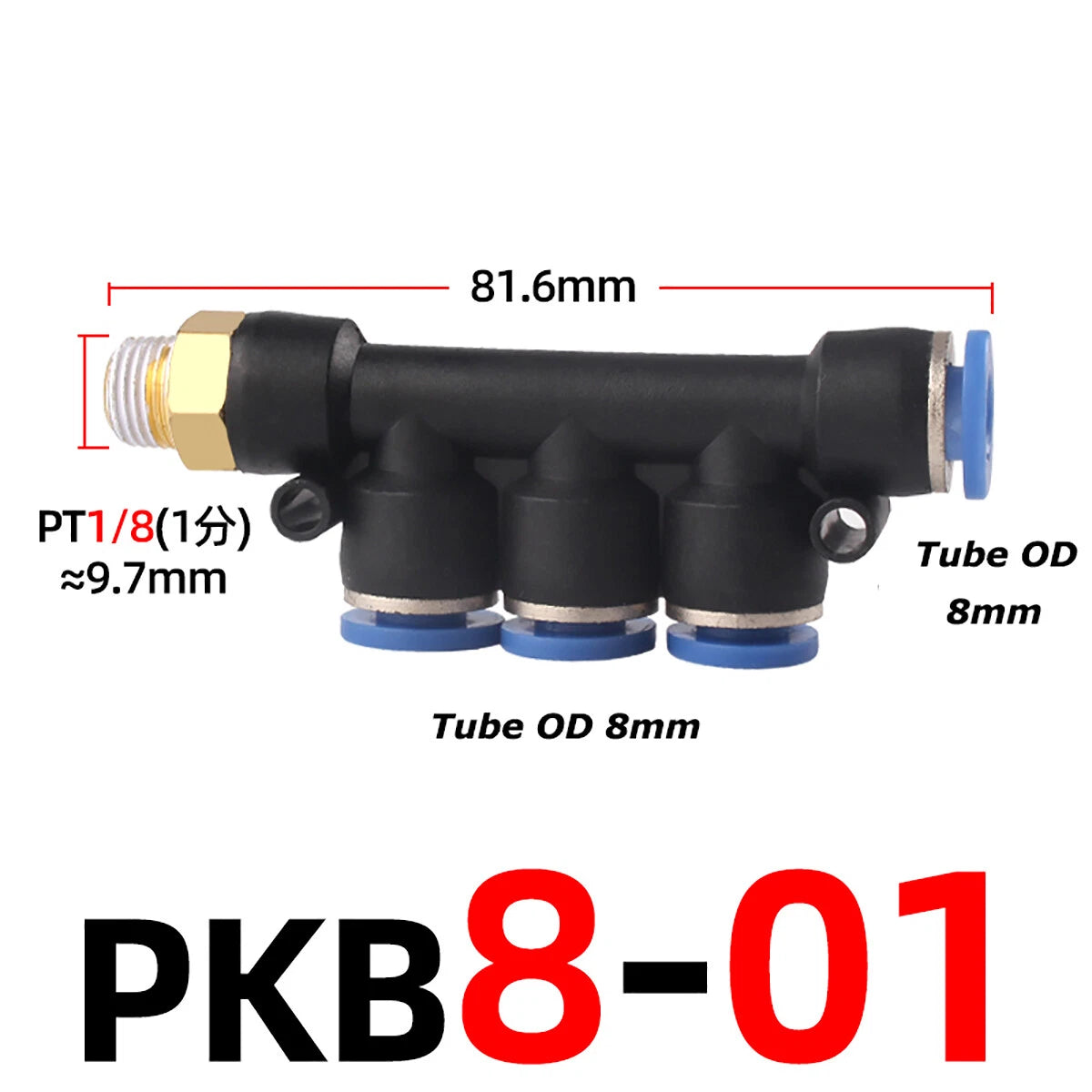

Available Tube OD Sizes 4mm (≈5/32"), 6mm (≈1/4"), 8mm (≈5/16"), 10mm (≈3/8")
Compatible Tubing Materials PU, PA (Nylon), PE semi-rigid air hose
Working Pressure See variant options / Contact us to confirm
Working Temperature See variant options / Contact us to confirm
Body Material See variant options / Contact us to confirm
Packing Quantity 1 PCS, 2 PCS, 5 PCS, 10 PCS
Application Compressed air, pneumatic control systems, automation
⚠️ Before You Order: Confirm both the tube OD and the male thread size match your existing pneumatic components. PT and NPT threads are not interchangeable. If unsure, contact us with your equipment's port spec.

❓ Frequently Asked Questions

How do I choose the right tube OD and thread size?

Match the tube OD to your air hose outer diameter — for example, a 6mm OD hose requires the 6mm variant. For the male thread, match the port size on your valve, manifold, or equipment body: PT1/8 (9.7mm), PT1/4 (12.7mm), or PT3/8 (16mm). When in doubt, measure the thread diameter with calipers or check your equipment's port specification sheet. Common conversions: PT1/8 ≈ 3/8" hex body; PT1/4 ≈ 1/2" hex body; PT3/8 ≈ 5/8" hex body.

What working pressure can these fittings handle?

Pneumatic push-in fittings of this type are generally rated for working pressures up to approximately 150 PSI (10 bar) in typical compressed air applications. Actual rated pressure depends on the specific size and material of your variant. Always verify the rated pressure for your system before use, and never exceed the fitting's rated working pressure.

Are these fittings suitable for outdoor or humid environments?

These fittings are typically constructed from nickel-plated brass or engineering-grade polymer, both of which offer good resistance to moisture and mild corrosion in indoor and semi-outdoor environments. For prolonged outdoor exposure, salt air, or chemically aggressive environments, contact us to confirm the specific material of your chosen variant before ordering.

What thread standard do these fittings use — NPT or BSP?

These fittings use PT (BSPT — British Standard Pipe Taper) threads, which are widely used in pneumatic systems across Asia, Europe, and many industrial applications globally. PT threads are generally not directly interchangeable with NPT (National Pipe Taper) threads used in North American plumbing. If your equipment uses NPT ports, please contact us before ordering to confirm compatibility or discuss adapter options.

Can I use these fittings with polyurethane (PU) or nylon tubing?

Yes. Push-in fittings of this design are generally compatible with semi-rigid tubing materials including PU (polyurethane), PA (nylon), and PE (polyethylene) air hose, provided the tube OD matches the fitting size exactly. Avoid using with soft or flexible silicone tubing, which typically does not grip securely in a push-in collet mechanism.

How many ports does the 5-way manifold have, and how are they arranged?

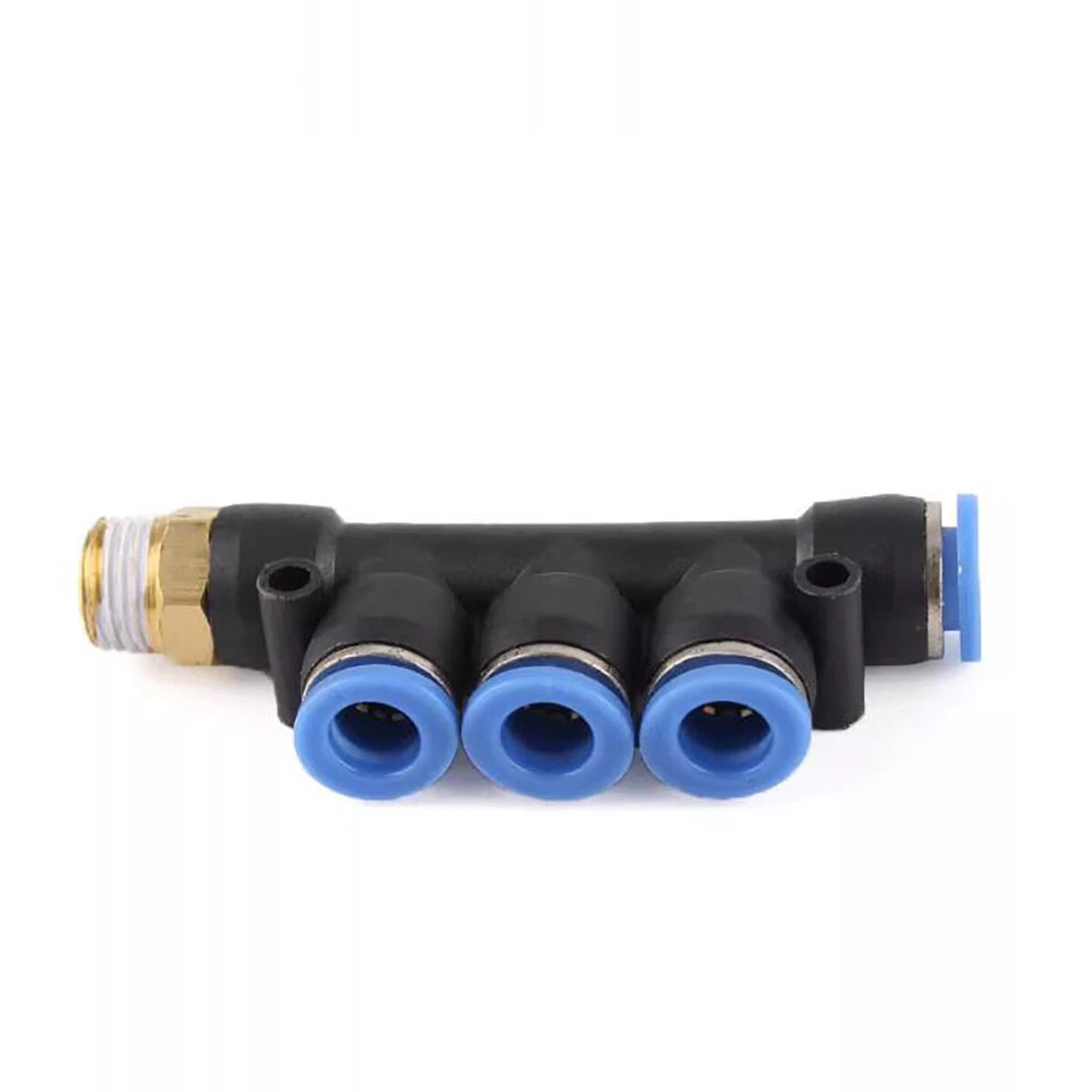

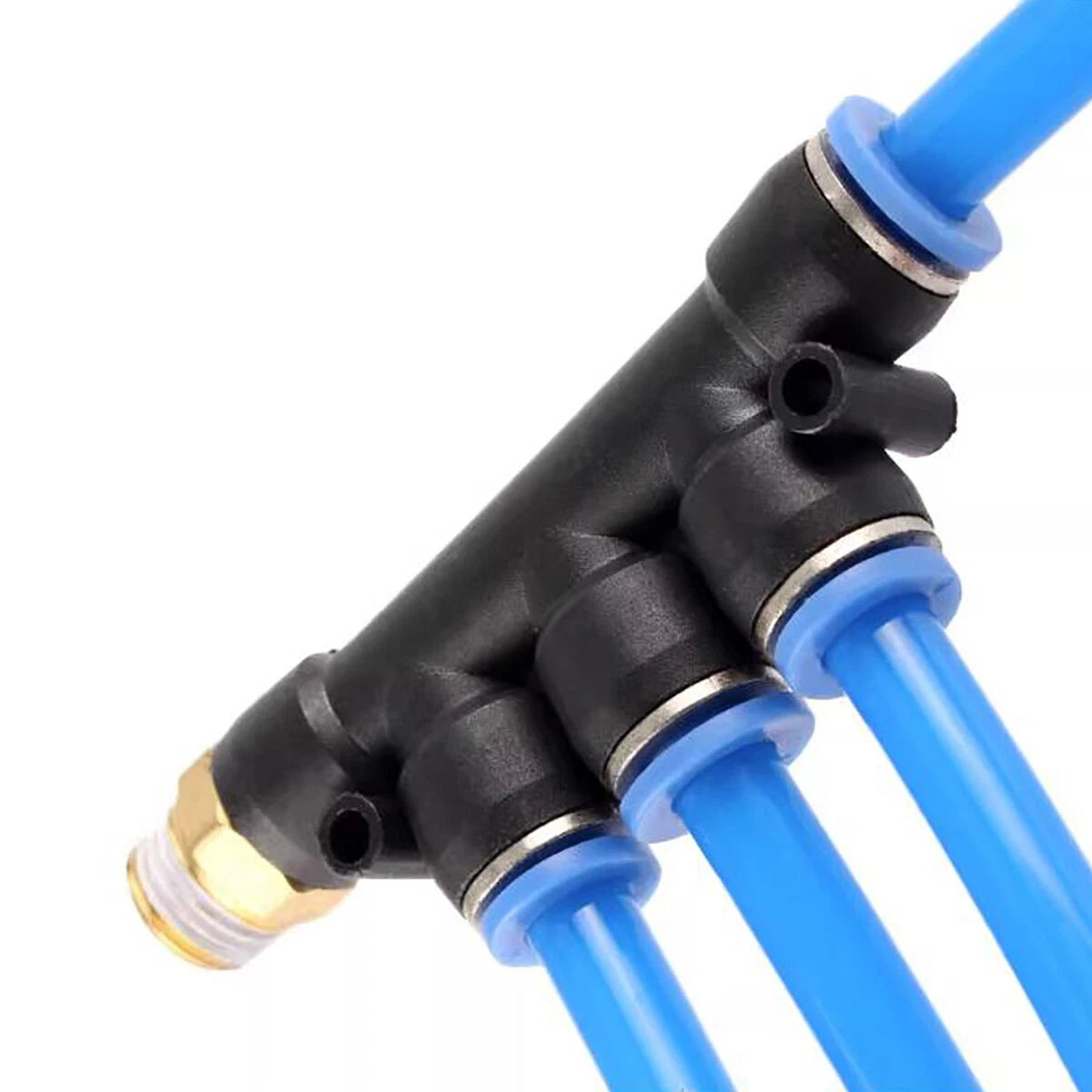

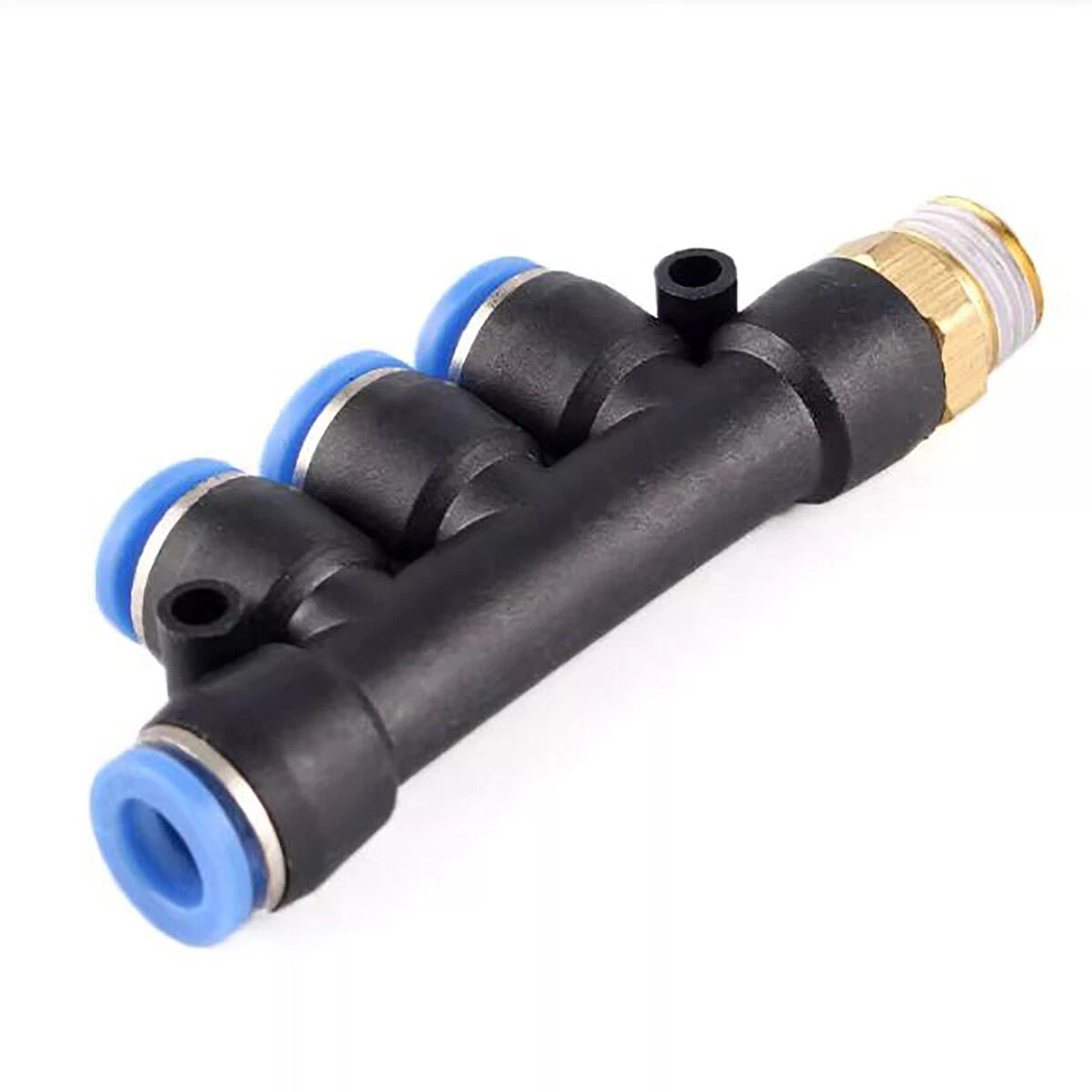

This is a 5-way inline manifold fitting. It typically features one male stud thread port for connection to a valve body or equipment port, and multiple push-in tube ports for distributing or collecting airflow across parallel circuits. The exact port layout may vary by size variant — refer to the product images or contact us for details on your specific size combination.

Do I need thread tape or sealant when installing?

For PT (BSPT) tapered threads, applying PTFE thread tape (1–2 wraps) is generally recommended to ensure an airtight seal and prevent thread galling on installation. The push-in tube side requires no sealant — simply insert the tube squarely until it clicks and seats fully in the collet. To release, depress the collet ring while pulling the tube out.
